Jacuzzi 67661-X5104 User manual

1
Questions, problems, missing parts? Before
returning to your retailer, call our customer service
department at 1-800-288-4002, 6 a.m. - 5 p.m.,PT
and 9 a.m. - 8 p.m.,ET, Monday - Friday.
TUB FILLER FAUCET
Jacuzzi Item # NW 55826 / NW 55827
MODEL # 67661-X5104 / 67661-X5101
ATTACH YOUR RECEIPT HERE
Serial Number ___________________
Purchase Date ___________________
2017/05/25 V1
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
WARNING:
• Follow the installation instructions carefully. Proper installation is the installer’s responsibility.
• Failure to follow correct installation procedures can result in the faucet being loose, which can result in serious injury.
• Not suitable for installation in concrete floors.
CAUTION:
• Check local building codes before beginning installation to ensure compliance.
PREPARATION
Before beginning the assembly of this product, make sure all parts are present. Compare parts with the package
contents and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 90 minutes (including removal of old faucet)
Tools Required for Assembly (not included): Adjustable Wrench, Silicone Sealant, Phillips Screwdriver, Pencil, Electric Drill
2
ASSEMBLY INSTRUCTIONS
Loosen the set screw (1) pre-assembled to the
spout (2), rotate the spout (2) about 90° to align
handle (3), then tighten the screw.
Place the escutcheon (1) over the standpipe (2)
and then push it to the base.
23
1
2
Drill a hole min 2 1/4 in. diameter-max 2 9/16 in.
diameter in the floor with an electric drill (1). Mark
the locations for the screws with a pencil (2). Then
drill three holes 1/4 in. diameter for the screws in
the floor with an electric drill (1).
Floor
Floor
1/4 in. dia.
1
1
23
2
2
1
Attach the mixer (1) to the standpipe (2), make sure
the prongs (3) on the standpipe (2) insert into the
hole (4) of the mixer (1). Install the set screw (5) and
tighten into the standpipe (2) with hex wrench.
Place the assembly with the flexible supply lines (1)
through the prepared hole and then holding the
escutcheon (2), secure the standpipe (3).
Note: If mounting into wooden floor, secure the
standpipe (3) using screws (4) only (wall plugs are
not needed). If mounting into solid floor, mark the
position of holes first and then secure the standpipe
(3) using anchors (5) and screws (4). Where requried
ensure correct anchors for your floor type are used.
4
3
2
Front
Cold inlet supply line Hot inlet supply line
1
3
4
5
5
1
2
5
3
4
6
1
2
4
3
Connect one end of the shower hose (1) to the mixer
(2) and the other end to the hand shower (3). Ensure
the washer (4) is in each end for seal.
4
Note1: Do not to reverse the cold and hot supply lines.
Note2: After installing the standpipe (2),the inlet supply
lines exposed 13 in.,we need to pay attention to set
aside enough space to connect the water inlet supply
lines to prevent the water inlet supply lines from twisting.
330.0mm
[ 13" ]
3
ASSEMBLY INSTRUCTIONS
CARE AND MAINTENANCE
•
and void your warranty.
Connect the flexible supply lines (1) to the water
supplies (2).
7
1
2
8
1
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is a leak from under the handle
or there is a leak from aerator when
the faucet is off.
The cartridge is damaged. Remove the handle and replace the
cartridge.
Hand shower leaks or has a low flow
pattern.
Hand shower is dirty or damaged. Remove the hand shower and check
for any debris clogged at the shower
connection, check the hand shower’s
spray nozzle for any build up or debris.
1
Flushing debris and checking for water leaks:
Important: After installation is complete, it is necessary
to flush debris from all water lines. Turn on the water
supply and allow both hot and cold water to run for at
least one minute each. Push in the diverter pin button
(1) to the bottom position, to divert water to the hand
shower hose line without hand shower attached, and
flush hose for one minute. This flushes away any debris
that could cause damage or blockage to internal parts.
Check for water leaks. After flushing, completely shut
off water,and attach the hand shower to the hose. The
diverter pin button (1) should auto-reset back into the
outward position. Retighten water/hose supply
connections if necessary, but be careful to not
overtighten to prevent damage.
Instructions for using of the Diverter: During use of this faucet, when diverting water from the faucet spout to the hand shower,
push in the diverter pin (1) to the bottom position. To divert water back to faucet spout, turn the water completely off, and then
on again. The diverter pin (1) will auto-reset back into the outward position. If the diverter pin (1) does not auto-reset back into
the outward position, then gently rotate the diverter pin (1) button left or right while the water is shut off, and it should easily reset
back to the outward position.
CAUTION: While water is running through the hand shower, the diverter will not pull outward to reset to the faucet spout unless
the water is shut off and turned on again. DO NOT FORCIBLY PULL THE DIVERTER PIN (1) OUTWARD WHILE WATER IS
RUNNING. This can cause damage to the diverter pin (1) assembly.
4
For replacement parts, call our customer service department at
1-800-288-4002, 6 a.m. - 5 p.m., PT and 9 a.m. - 8 p.m.,ET,
Monday - Friday.
REPLACEMENT PARTS LIST
Printed in China
14
13
12
2
1
4
3
5
5
6789
11
5
10
PART DESCRIPTION PART#
1 Hand Shower RP38355*
2 Shower Hose RP38236*
3 Spout assembly RP80499*
4 O-Ring RP60107
5 Set Screw RP50002
6 Cartridge RP20063
7 Bonnet RP70015
8 Cap RP80008*
9 Screw RP50049
10 Handle RP13422*
11 Index RP80390*
13 Screw RP50037
12 Escutcheon RP80500*
14 Anchor RP50036
The manufacturer warrants this faucet to be free from defects in workmanship and material present at time of shipment
from the factory for a limited lifetime from the date of purchase. This warranty applies only to the original purchaser. The
manufacturer agrees to correct such defects at no charge or, at our option, replace the faucet with a comparable or
superior model. To obtain warranty service, call our customer service department at 1-800-288-4002 for return
authorization and shipping instructions. You may be required to present a copy of your sales receipt as proof of purchase.
All cost of removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the faucet by ac-
, are the purchaser’s
responsibility. The manufacturer assumes no responsibility whatsoever for faucet installation during the warranty period.
There is no further expressed warranty. The manufacturer disclaims any and all implied warranties. The manufacturer shall
not be liable for incidental, consequential or special damages arising at or in connection with product use or performance
rights which vary from state to state. This warranty supersedes all prior warranties.
WARRANTY

This manual suits for next models

3

Other Jacuzzi Bathroom Fixture manuals

Jacuzzi 67661-W5104 User manual

Jacuzzi

Jacuzzi 67661-W5104 User manual

Jacuzzi flexa DOUBLE Parts list manual

Jacuzzi

Jacuzzi flexa DOUBLE Parts list manual

Jacuzzi MP44827 User manual

Jacuzzi

Jacuzzi MP44827 User manual

Jacuzzi Glint 80x80 User manual

Jacuzzi

Jacuzzi Glint 80x80 User manual

Jacuzzi THE ESSENTIALS 100x70 User manual

Jacuzzi

Jacuzzi THE ESSENTIALS 100x70 User manual

Jacuzzi 873X-1201 User manual

Jacuzzi

Jacuzzi 873X-1201 User manual

Jacuzzi xyz+ Maintenance and service guide

Jacuzzi

Jacuzzi xyz+ Maintenance and service guide

Jacuzzi Cloud 100 User manual

Jacuzzi

Jacuzzi Cloud 100 User manual

Jacuzzi Moove User manual

Jacuzzi

Jacuzzi Moove User manual

Jacuzzi LINK 160x70 User manual

Jacuzzi

Jacuzzi LINK 160x70 User manual

Jacuzzi TREVI User manual

Jacuzzi

Jacuzzi TREVI User manual

Jacuzzi Morphosis Opalia Wood User manual

Jacuzzi

Jacuzzi Morphosis Opalia Wood User manual

Jacuzzi 67662-X5127H2 User manual

Jacuzzi

Jacuzzi 67662-X5127H2 User manual

Jacuzzi 67661-5101 User manual

Jacuzzi

Jacuzzi 67661-5101 User manual

Jacuzzi MORPHOSIS Infinito Guide

Jacuzzi

Jacuzzi MORPHOSIS Infinito Guide

Jacuzzi 3636S User manual

Jacuzzi

Jacuzzi 3636S User manual

Jacuzzi Professional Sienna User manual

Jacuzzi

Jacuzzi Professional Sienna User manual

Jacuzzi Moove 90x70 User manual

Jacuzzi

Jacuzzi Moove 90x70 User manual

Jacuzzi CAICOS-GP User manual

Jacuzzi

Jacuzzi CAICOS-GP User manual

Jacuzzi BZ00000 User manual

Jacuzzi

Jacuzzi BZ00000 User manual

Jacuzzi FlexaTwin User manual

Jacuzzi

Jacuzzi FlexaTwin User manual

Jacuzzi The Essentials 100x80 User manual

Jacuzzi

Jacuzzi The Essentials 100x80 User manual

Jacuzzi J-DREAM II User manual

Jacuzzi

Jacuzzi J-DREAM II User manual

Jacuzzi BY82000 User manual

Jacuzzi

Jacuzzi BY82000 User manual

Popular Bathroom Fixture manuals by other brands

Bossini Paloma B00442 INSTALLATION AND CARE INSTRUCTIONS

Bossini

Bossini Paloma B00442 INSTALLATION AND CARE INSTRUCTIONS

Villeroy & Boch ViCare UNIVERSAL 921702 68 installation instructions

Villeroy & Boch

Villeroy & Boch ViCare UNIVERSAL 921702 68 installation instructions

Signature Hardware 948943 manual

Signature Hardware

Signature Hardware 948943 manual

ALEX BAITLER AB 18 user manual

ALEX BAITLER

ALEX BAITLER AB 18 user manual

Zenith 2501W Assembly instructions

Zenith

Zenith 2501W Assembly instructions

Oceanic OCEASHS1750B1 user manual

Oceanic

Oceanic OCEASHS1750B1 user manual

Helvex Clasica 105 installation guide

Helvex

Helvex Clasica 105 installation guide

Pressalit MATRIX R482219 Mounting instruction

Pressalit

Pressalit MATRIX R482219 Mounting instruction

Fleurco Cordoba Plus CKU4832-11-40 installation manual

Fleurco

Fleurco Cordoba Plus CKU4832-11-40 installation manual

Delabie TEMPOFIX 3 manual

Delabie

Delabie TEMPOFIX 3 manual

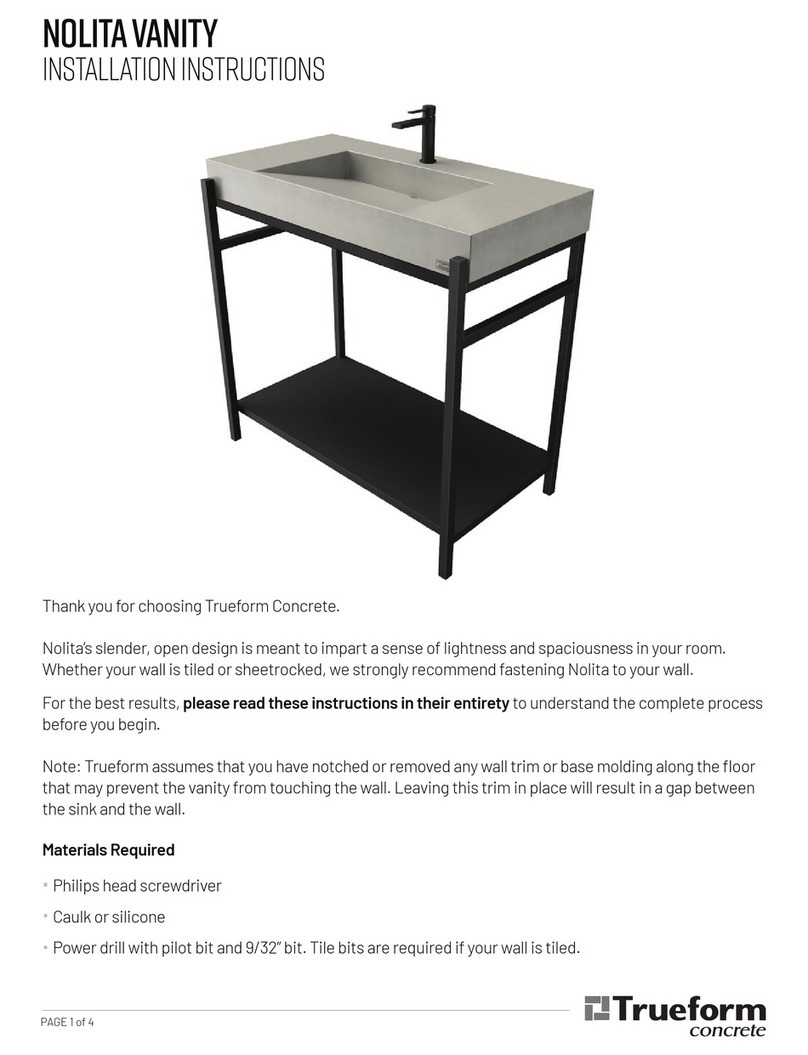

TRUEFORM NOLITA installation instructions

TRUEFORM

TRUEFORM NOLITA installation instructions

Kohler SLIM K-15227T installation instructions

Kohler

Kohler SLIM K-15227T installation instructions

Kohler K-11830 Homeowner's guide

Kohler

Kohler K-11830 Homeowner's guide

Radaway Premium Plus 2S Assembly instruction

Radaway

Radaway Premium Plus 2S Assembly instruction

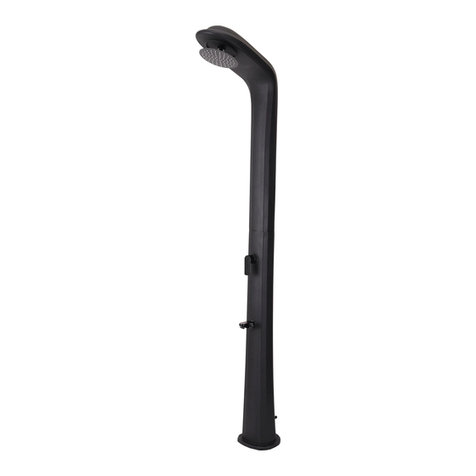

Steinbach Solardusche Split ORIGINAL OWNER'S MANUAL

Steinbach

Steinbach Solardusche Split ORIGINAL OWNER'S MANUAL

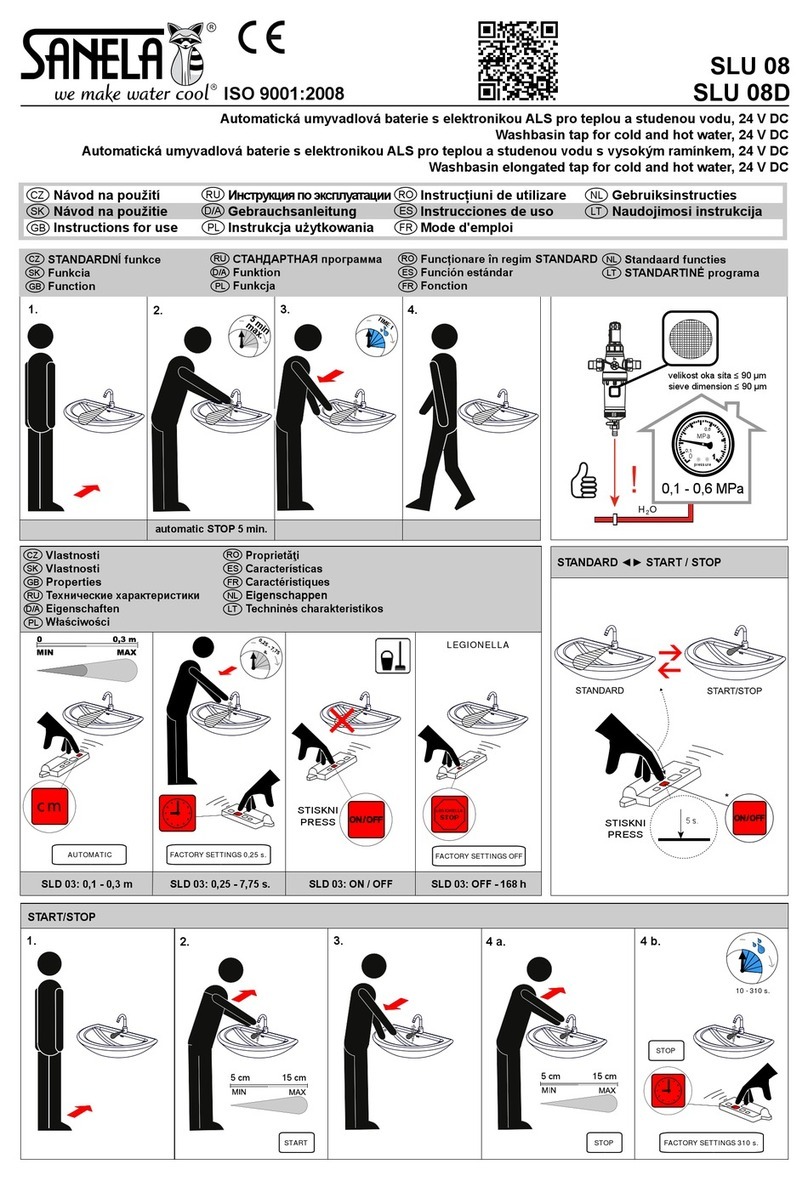

Sanela SLU 08D Instructions for use

Sanela

Sanela SLU 08D Instructions for use

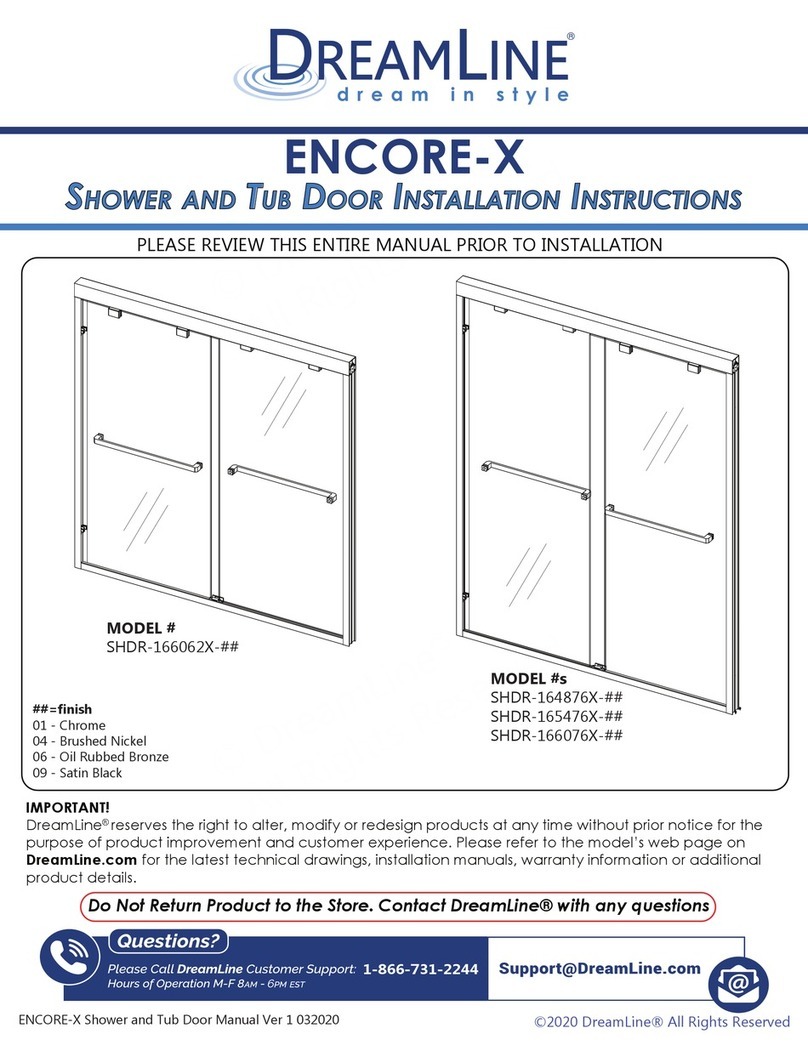

Dreamline ENCORE-X SHDR-166062X Series installation instructions
