Light Sky F1700WB -E User manual
Contents
1. Safety information........................................................................................................22. Technical information...................................................................................................43. Attachment and body size.........................................................................................74. Installation and connecting.......................................................................................85. Control panel..............................................................................................................116. Menu setting...............................................................................................................127. Channel function.........................................................................................................168. Circuit connecting diagram.......................................................................................189. Cleaning and maintenances.......................................................................................1910.Troubeshooting..........................................................................................................1911.Duty exonerative and copyright protection............................................................22
Congratulations on choosing our company product! We thank you for your custom.◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements.◆Carefully read this user manual in its entirety and keep it safe for future reference. It is essential to know the information and comply with the instructions given in this manual to ensure the fitting is installed, used and serviced correctly and safely.◆My company disclaims all liability for damage to the fitting or to other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this user manual, which must always accompany the fitting.◆My company reserves the right to modify the characteristics stated in this user manual at any time and without prior notice.
SAFETY INFORMATION2Ensure a minimum clearance of 0.2m around the cooling fans and ventilation.Please do not install the fixture onto combustible surface.
The double insulation between the LV power supply and the control conductor on the fixture.
The fixture is intended for indoor application.
ta40℃
40 Do not expose the front glass to sunlight or other strong light source from any angle. Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.■Mounting surface and fire protection Keep all combustible materials at least 20 cm away from the fixture. ■This lighting fixture is for professional use only - it is not for household use. Make sure all parts for fixing the projector are in a good state of repair.Make sure the point of anchorage is stable before positioning the projector.The safety chain must be prgperly hooked onto the fitting and secured to the framework.When suspending the fixture, ensure that the supporting structure and all hardware used can hold at least 10 times the weight of all the devices they support.。
3
The products referred to in this manual conform to the European Community Directives to whichthey are subject:Low Voltage 2014/35/EUElectromagnetic Compatibility 2014/30/EU

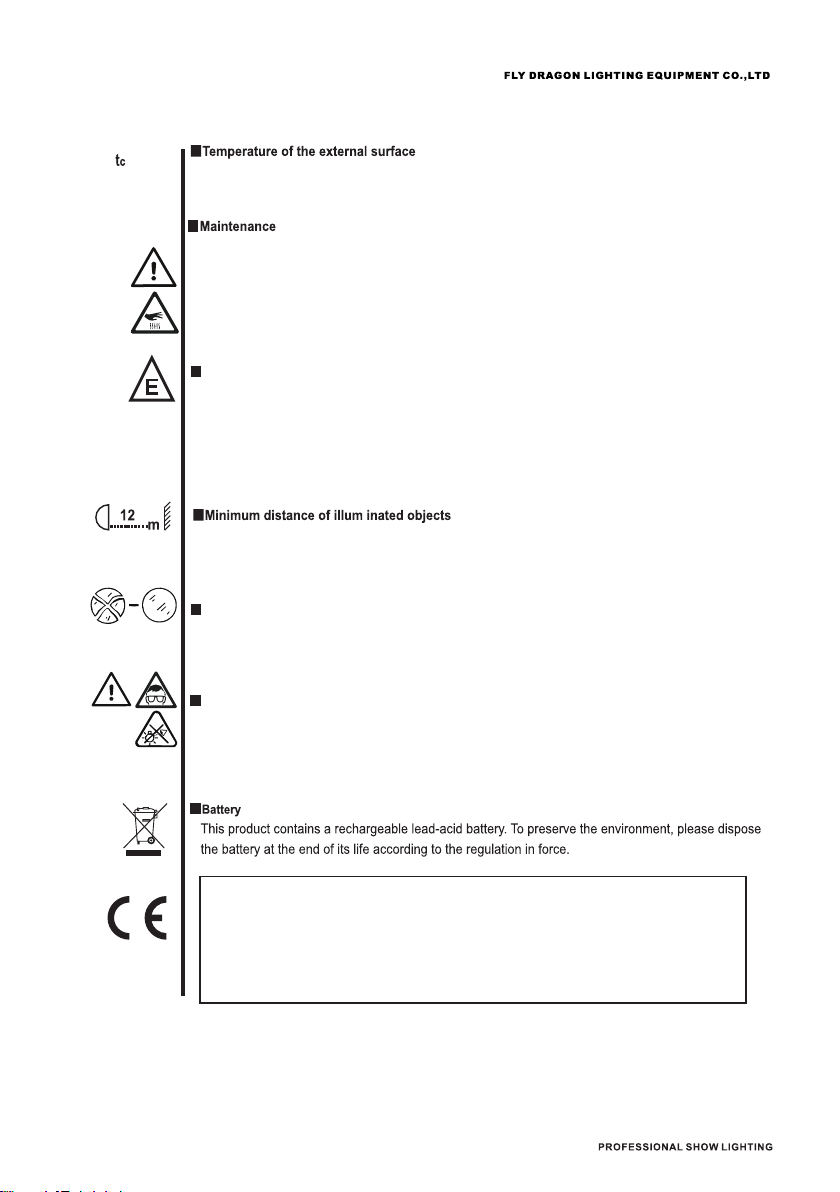

Protection against explosionThe protection screen, lens or uv screen on the lamp can be damaged to the degree of failure if visible damage, such as a crack or deep mark, should be replaced。LampThe maximun temperature that can be reached on the external surface of the fitting,in a thermally steady state,is 120℃。120℃
Never look directly into the light source. You risk injury to your retina, which may induce blindness.Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may concentrate the light output.
Protection optical radiation
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes. After this time the likelihood of the lamp exploding is virtually nill.The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if visibly Damaged, they have to be replaced with genuine spares.
When the luminaire projects an object, the minimum distance of the luminaire to the flammable object is 12 meters.
The fitting mounts a high-pressure lamp that needs an external .Immediately replace the lamp if damaged or deformed by heat.The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification.Always disconnect from mains before replacing the lamp.
● Power supplies available ： - -V～ 50/60Hz 11A 198264● Power ： - 2000W PF≥0.98● L amp ： - Light source ：SRAM lok-it HTI 1700PS O - Lamp power ：1700W - A verage life ：750H -Color T emperature： 2700K-6500K,Linear CTO adjustment.● Luminous flux output ：37000 LM ● Zoom Range：4°- 45° ● CRI ：Ra ≥ 90● Ballast ：Electrical ballast 。 ● Reflector ： - Double Reflector Cup design,German optical coating process.● Frost ： - 1° and 20 ° can be combined.● Dimming ： -16 it, 0-100% linear dimming. B● Lens ： - Diameter 200 mm φ large aperture optical lens set.● S trobe ： -1-9Hz synchronization, pulse, random stroboscopic.● C ontrol Mode ： DMX512, RDM, Art-Net,Wireless DMX512(optional).● X/Y Travel540°/270°：● X/Y Resolution2.11°/105°：.● X/Y Speed2.5S/1.5S：● Channel ：tandard17CHS● ： IP set -built-in long-life battery, can set address without power connection. ● ： Software upgrade -Upgrade via USB interface.●： Display Menu -The display panel adopts a 2.8-inch color LCD screen, which is used in both Chinese and English languages to facilitate quick operation and browse menus. -Display board can record device’s using time , show device’s temperature, channel data and software version . ● Working Mode ： -Silent , Standard, High brightness three modes.● Features ： -Remote Control Lamp switch On/Off, automatically reduce the lamp power when the Shutter is Off.● Temperature control ： -Intelligent temperature control, can automatically adjus the speed of the cooling fan and overheat protection.● ： Error alarm -Automatic alarming for fixture error.●： Structure -plastic cover parts are made of engineering plastic PA66 + GF,with fire-proof, noise reduction, impact resistance, high temperature resistance, anti-aging characteristics.●
