Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
Contents
LIGHT SKY www.lightsky.com.cn
1. Safety information..................................................................................................................2
2. Technical information.............................................................................................................4
3. Attachment and body size.......................................................................................................7
4. Installation and connecting.....................................................................................................8
5. Control panel.........................................................................................................................12
6. Menu setting..........................................................................................................................13
7. Channel function...................................................................................................................16
8. Circuit connecting diagram.................................................................................................18
9. Cleaning and maintenances..................................................................................................19
10. Troubeshooting....................................................................................................................20
11. Duty exonerative and copyright protection....... ...... ...... ...... ...... ...... ............. ...... ...... ...... ..21

-2-
■ Connection to mains supply
The double insulation between the LV power supply and the control conductor on the fixture.
■This lighting fixture is for professional use only - it is not for household use.
■ Installtion
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be prgperly hooked onto the fitting and secured to the framework.
When suspending the fixture, ensure that the supporting structure and all hardware used
can hold at least 10 times the weight of all the devices they support.
Ensure a minimum clearance of 0.2m around the cooling fans and ventilation.
Please do not install the fixture onto combustible surface.
Do not expose the front glass to sunlight or other strong light source from any angle.
Lenses can focus the sun's rays inside the fixture, creating a potential fire hazard.
■ Mounting surface and fire protection
Keep all combustible materials at least 0.5 m away from the fixture.
The fixture is intended for indoor and outdoor application.
Do not operate the fixture if the ambient temperature (Ta) exceeds 45℃
■ Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I
appliance according to standard EN 60598-1).
It is,moreover, recommended to protect the supply lines of the projectors from indirect
contact and/or shorting to earth by using appropriately sized residual current devices.
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
Don’t use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change the damaged power
cable in order to avoid any dangerous.
ta45℃
■ Maximum ambient temperature
SAFETY INFORMATION
LIGHT SKY

-3-
The products referred to in this manual conform to the European Community Directives to which
they are subject:
Low Voltage 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
Please do not look at the light source, it may cause blindness due to damage to the retina of the eye.
It is forbidden to look directly at the exposed light source to avoid UV damage to the eyes.
Protection optical radiation
Protection against explosion
The protection screen, lens or ultraviolet screen on the lamp can be damaged to the degree
of failure if visible damage, such as a crack or deep mark, should be replaced.
■ Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state is 60℃.
■ Maintenance
The product implementation standard：GB 7000.1-2015 GB7000.217-2008
When the lamp is projecting an object, the minimum distance from the light outlet of the lamp to the surface
of the illuminated object is 25 meters
■ Light
The light source in this luminaire should be replaced by the manufacturer or its service agent
or by a similarly qualified person;
Always cut of f the power before replacing the light source.
www.lightsky.com.cn
Before starting any maintenance work or cleaning the luminaire, the power supply to the luminaire must
be disconnected.
After the power is cut off, in order to avoid burns, do not disassemble any part of the lamp within 15 minutes.

-4-
TECHNICAL INF ORMATION
●ELECTRICAL SPECIFICATIONS AND CONNECTIONS
- Power supplies available ：AC100-240V，50/60Hz
- Rated power ：380W (100V:3.8A 220V:1.73A) PF0.976
- Power connector：IP66 Waterproof Neutrik I/O Power Jack (SAC3PX 16A 250V)
- DMX and RDM data in/out ：3-pin (standard) or 5-pin waterproof (optional) (IP66) XLR
● LIGHT SOURCE
- Light source: White laser lighting module
- Light source power: 260W
- Average life: ≥20000h
- Luminous flux: 12000 lm
- Light source color temperature: 7000 K
● LAMPS:
- Luminous flux: 10090 lm
- Color temperature: 7490K
- CRI: >64
- Illumination: 439000 lux/20m
●OPTICAL SYSTEM
- Beam angle: 0.88° (optional 0.63° or 1.13°)
- Diameter of light exit lens: φ190 mm
- Illumination: 1750000 lux @10m 7680lux @150m
●DYNAMIC EFFECT
Color wheel: 14 colors + white light, bidirectional rotating rainbow effect; -
independent CMY color mixing system, free color mixing
Fixed gobo wheel: white light + 11 patterns + 3 kinds of animation (animation effect patterns), -
which can be shaken in both directions
Prism: 8 prisms, 3rd order 24 prisms, various prism macro combination effects-
Soft Light Effect: Adjustable independent soft light effect-
Focus: Electric focus-
Strobe: 1-25 times/sec adjustable pulse strobe and random strobe-
Dimming: 0-100% linear adjustment.-
LIGHT SKY

-5-
●SCAN SYSTEM
- Horizontal scan: 540°
Vertical scan: 240°-
Pan/vertical fine adjustment: 2.11°/0.94°-
Scanning Speed : Standard and Speed Adjustable-
Pan/Tilt for automatic error correction and correction -
●CONTROL AND PROGRAMMING
- Address code setting: RDM two-way data transmission, the console can remotely reset the
DMX address code
Display: The display panel adopts a 2.0-inch LCD12864 LCD screen-
Intelligent management and control: The menu can record the use time and light-
emitting time of the device, and display the device temperature, channel data and software -
version information
Error alarm: automatic alarm for lamp failure-
Software upgrade: USB upgrade software can be inserted through the USB interface-
Control method: DMX512, RDM-
Channel mode: 17CH, see channel table for details-
●THERMAL SPECIFICATION
- Maximum ambient temperature: 40 °C
Minimum ambient temperature: -20 °C (lamps need to be powered on for 20 minutes in advance)-
Maximum body surface temperature point: 60 °C-
Minimum operating temperature of light source: 0 °C-
●APPROVALS
- The product implementation standard: GB 7000.1-2015 GB7000. 217-2008
- 、 Approved certifications: CE RoHs
- The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU
●MECHANICAL SPECIFICATION
- Integrated foldable lamp hook design, easy to disassemble and transport
The lamp adopts all-aluminum alloy shell, anti-oxidation treatment, high salt spray protection level-
IP Rating: IP66-
Lighting Size: 509mm×320mm×742mm N.W.: 36Kg-
Box Size(1 set): 810mm×580mm×395mm G.W.: 41Kg-
Flycase Size (1pcs): 640mm×620mm×825mm G.W.: 71Kg-
www.lightsky.com.cn

-6-
C M Y
CMY color mixing system
2
Static gobo wheel
1
11111
2
345
6
7
8
9
10
11
12
13
14
Color wheel
3
Prism wheel 1 Prism wheel 2
1
2
3
4
5
6
789
10
11
12
13
14
LIGHT SKY

-7-

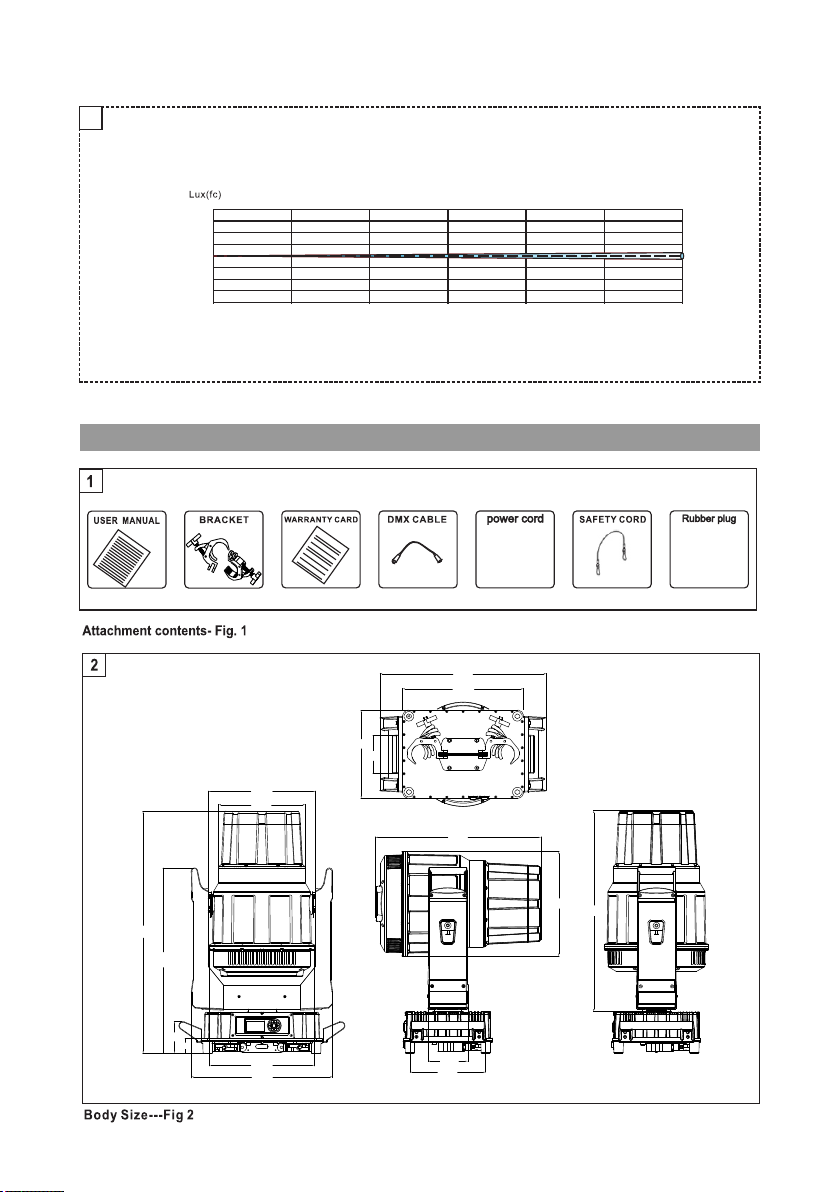

ATTACHMENT AND BODY SIZE
320 615
232
122
433
320
742
567
45
97
329
265
509
370
270
117
567
4
Standard 0 88°)( .
distance,spot diameter and illumination diagram
Distance m(ft in)
0.88° diameter m(ft in)
1.13° diameter m(ft in)
0.63° diameter m(ft in)
1750000(162639) 439000(40799) 192000(17844) 110000(10223) 70000(6506) 49000(4554)
0
1
2
3
4
1
2
3
4
0
0.88°
10（32′10″）
0.34（1′1″）
0.39（1′3″）
0.3（0′12″）
20（65′7″）
0.5（1′8″）
0.58（1′11″）
0.41（1′4″）
30（98′5″）
0.78（2′7″）
0.65（2′2″）
0.52（1′8″）
40（131′2″）
0.8（2′7″）
0.98（3′3″）
0.63（2′1″）
50（164′0″）
0.96（3′2″）
1.17（3′10″）
0.74（2′5″）
60（196′10″）
1.11（3′8″）
1.37（4′6″）
0.85（2′9″）
www.lightsky.com.cn

-8-
Safety rope
INSTALLATION AND CONNECTING
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING:with the exception of when the projector is positioned on the floor, the safety rope must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the base handle.
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
When suspending the fixture, ensure that the supporting structure and all hardware used can
hold at least 10 times the weight of all the devices they support.
Installing the projector- Fig. 3
LIGHT SKY

-9-

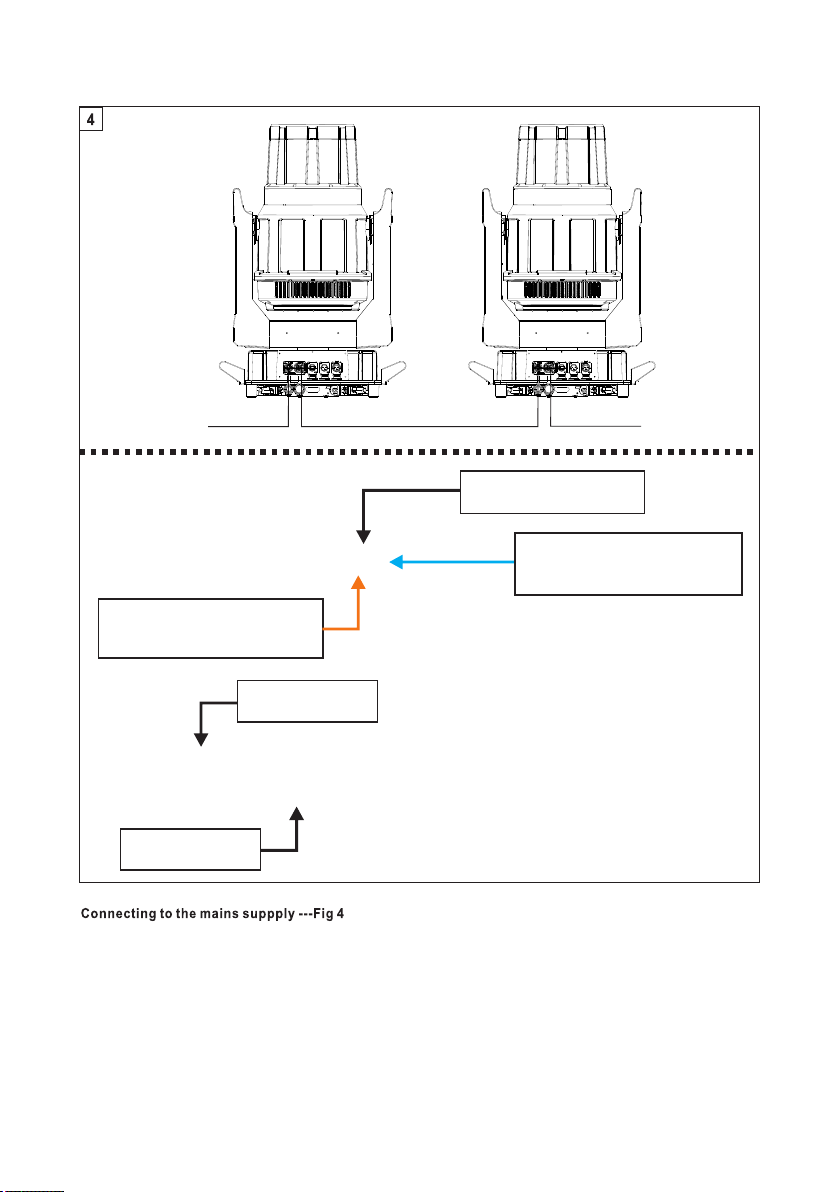

● After doing the above operation and making sure all the devices had been installed with
natural operate, press the power switch to check whether everything is working normally.
● Connection to the eiectricty mains must be carried out by a qualified electrical installer.
● The stage lighting power supply can not be more than 4pcs pre line.
The N terminal is connected
with the blue line.
The L terminal is connected
with the brown line.
Watertight seal ring
Watertight seal ring
●The stage lighting delivers a three-core waterproof plug.
www.lightsky.com.cn
power in power end
out in
Connect the ground wire
to the yellow-green wire

-10-
The projector
all the projectors are together
dn’t touch each other or
plinth).

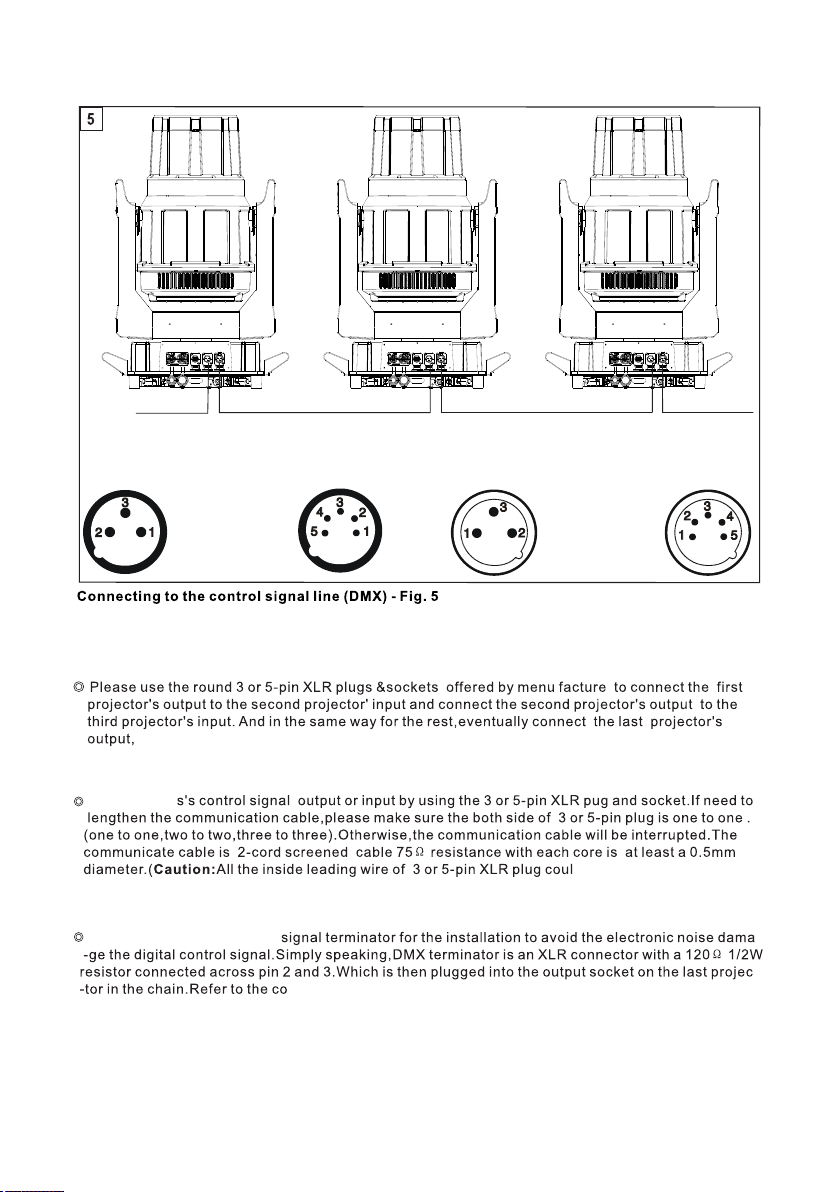

Recommend to use the DMX
nnection.
LIGHT SKY
DMX - output
1 - Shield
2 - Signal (-)
- Signal (+)
- Not connected
- Not connected
3
1
2
3
DMX-input
- Shield
- Signal (-)
- Signal (+)
- Not connected
- Not connected
4
5
4
5
DMX512 in
out in out in signal end

-11- www.lightsky.com.cn
6

-12-

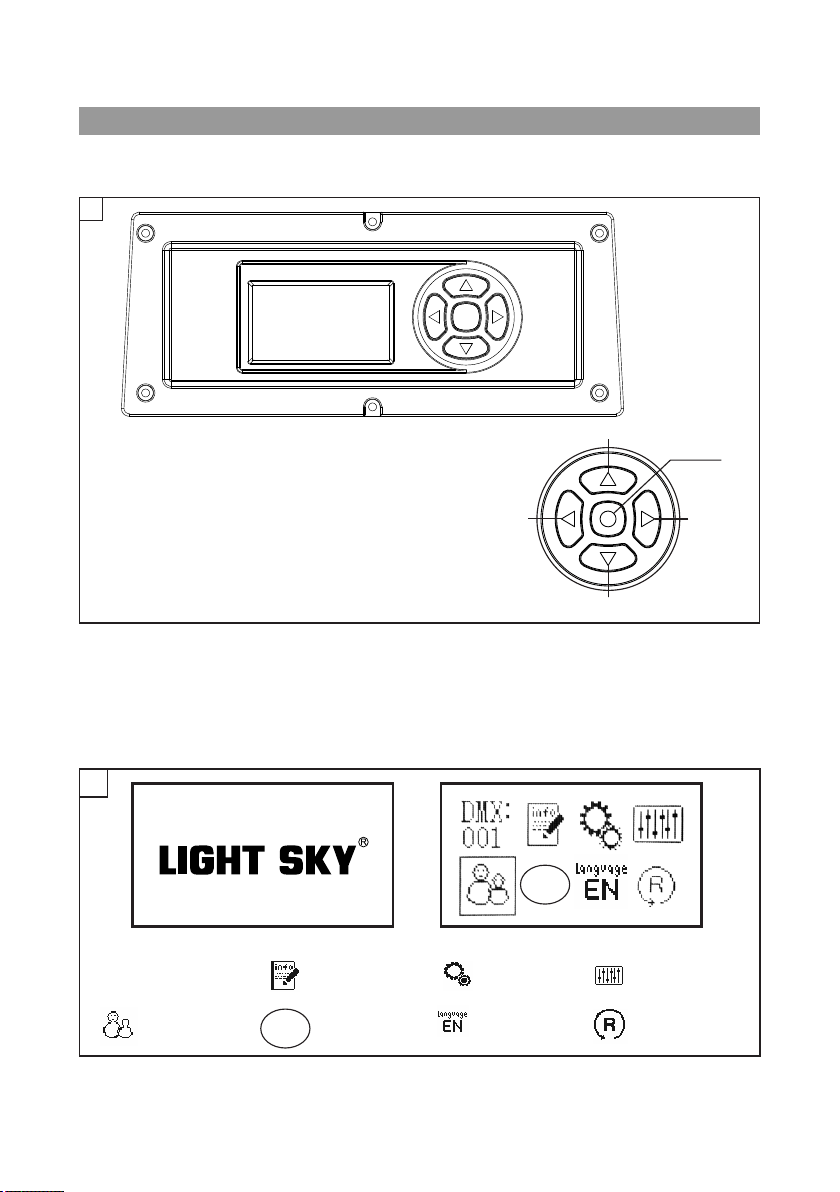

CONTROL PANEL
Dis pla y
Up arrowhead : page up
Down arrowhead : page down
Left arrowhead : reduce
Right arrowhead : increase
Enter : OK function
Exit : in the choice screen
UP
DOWN
LEFT RIGHT
ENTER
● Press the switch.The projector starts resetting the effects.
At the same time,the following information scrolls on the display
（Please refer to the actual material)
7
LIGHT SKY
DM X :
00 1 DMX Address Information Personal Manual control
Service Language Reversal
8
Test
TEST
TEST

-13-
MENU SET T ING V1.0（ ）
Main menu I menu II menu III menu
DMX Address/DMX →
Address:001-4xx
Passwork ON/OFF
return
Information →
Totel Time →Power:****(h)
Laser ON:****(h)
Laser hours →Total:****(h)
Laser open:****(h)
Temperature →
Out TEM：000.0
In TEM：000.0
Laser TEM：000.0
RDM UID →RDM UID 3888:00000000
FanSpeed/Voltage →
1.Out Fan:00.0V
2.LaserFan:00.0V
3.OutFan1:0000
RPM
4.OutFan2:0000
RPM
5.OutFan3:0000
RPM
6.LaserFan1:0000
RPM
7.LaserFan2:0000
RPM
DMX Live →
1.Cyan (***)
2.Magenta
(***)
3.Yellow
(***)
4.Colour
(***)
5.Shutter
(***)
6.Dimmer
(***)
7.Gobo (***)
8.Prism
(***)
9.PrismROTA.
(***)
10.PrismMacro
(***)
11.Frost
(***)
12.Focus
(***)
13.Pan (***)
14.Pan
Fine (***)
15.Tilt
(***)
16.Tilt
Fine (***)
17.Function
(***)
System version →
XY
Board :V*.**
Focus
Board:V*.**
Laser
Board:V*.**
Fan
Board:V*.**
CMY
Board:V*.**
LaserWheel
Info →
NoDetected
stoped
rotating
Return(ESC)
Personal →
P/T invert →
Pan
invert →OFF
ON
Tilt invert →OFF
ON
Display →
Language →English
Chinese
BackLight →
Open
Auto close(15s)
Reversal →
Normal
Rota.180
www.lightsky.com.cn

-14-
Main menu I menu II menu III menu
Backlight blink →ON
OFF
Return(ESC)
Return(ESC)
Manual control →
Channel control →
1.Cyan (***)
2.Magenta (***)
3.Yellow (***)
4.Colour (***)
5.Shutter (***)
6.Dimmer (***)
7.Gobo
(***)
8.Prism
(***)
9.PrismROTA.
(***)
10.PrismMacro
(***)
11.Frost
(***)
12.Focus
(***)
13.Pan
(***)
14.Pan
Fine (***)
15.Tilt
(***)
16.Tilt
Fine (***)
17.Function
(***)
Return(ESC)
Reset →
system
reset
Pan/Tilt
reset
Head motor reset
Return(ESC)
Return(ESC)
Error
list
Clean error →Keep
Clean
Calibration →
Pan
000-255
Tilt
000-255
Focus
000-255
Colour
000-255
Stat.Gobo
000-255
Prism1
000-255
Prism2
000-255
PrismRota.
000-255
Frost
000-255
Cyan
000-255
Magenta
000-255
Yellow
000-255
Return(ESC)
Open
000-255
Open+Co1
000-255
Co1
000-255
Co1+Co2 000-255
Co2 000-255
Co2+Co3 000-255
Co3 000-255
Co3+Co4 000-255
Co4 000-255
Co4+Co5 000-255
Co5 000-255
Co5+Co6 000-255
LIGHT SKY

-15-
Main menu I menu II menu III menu
Service →
Calibration2 →
Co6 000-255
Co6+Co7 000-255
Co7 000-255
Co7+Co8 000-255
Co8 000-255
Co8+Co9 000-255
Co9 000-255
Co9+Co10 000-255
Co10 000-255
Co10+Co11 000-255
Co11 000-255
Co11+Co12 000-255
Co12 000-255
Co12+Co13 000-255
Co13 000-255
Co13+Co14 000-255
Co14 000-255
Co14+Open 000-255
Factory →
Defualt
Time clean →
total time
Power up time
Lighting time
Developer →
Y-axis test switch
X-axis test switch
Manual Fan Vol
FanSpeedToLamp
manual or dmx
Upgrade font
Logo selection
Upgrade LOGO
set time
Model settings
ESC
Firmware update
Return(ESC)
return
Test →
Test P/T →STEP ***
Test effect →STEP ***
Test all →STEP ***
Return(ESC)
Language →English
Chinese
Reversal →Normal
Rota.180
www.lightsky.com.cn

-16-
CH ANN EL F UNC TIO N(V1.0)
Channel DMX Percentage Function Note
10-255 Cyan
20-255 Magenta
30-255 Yellow
4
Colour
0-4 5 White
5-8 4 White+Red
9-12 4 Red
13-17 5 Red+Orange
18-21 4 Orange
22-25 4 Orange+Aquamarine
26-29 4 Aquamarine
30-34 5 Aquamarine+Green
35-38 4 Green
39-42 4 Green+Light
Green
43-46 4 Light
Green
47-51 4 Light
Green+Lavender
52-55 4 Lavender
56-59 4 Lavender+Pink
60-63 4 Pink
64-68 5 Pink+Yellow
69-72 4 Yellow
73-76 4 Yellow+Magenta
77-81 4 Magenta
82-85 4 Magenta+Cyan
86-89 4 Cyan
90-93 4 Cyan+CTO
2
94-98 4 CTO
2
99-102 4 CTO2+CTO1
103-106 4 CTO1
107-110 4 CTO1+CTB
111-115 5 CTB
116-119 4 CTB+Blue
120-123 4 Blue
124-127 4 Blue+White
128-191 CCW，Fast→Slow
Rotation
192-255 CW，Slow→Fast
Rotation
5
Strobe
0-9 0-3.5 Open
10-49 3.9-19.2 Lighting
to Dark from fast slow
50-89 19.6-34.9 Opening
pulses in sequences from fast slow
90-119 35.3-46.7 breathe Effect from fast slow
120-179 47.1-70.2 Random Slow-Fast Strobe
180-255 70.6-100 Slow-Fast
Strobe
60-255 Dimmer
7
Gobo
0-3
White
4-7
Gobo1
8-11
Gobo2
12-15
Gobo3
16-19 Gobo4
20-23 Gobo5
24-27 Gobo6
28-31 Gobo7
32-35 Gobo8
36-39 Gobo9
40-43 Gobo10
44-47 Gobo11
48-51 Gobo12
52-55 Gobo13
56-59 Gobo14
60-69 Gobo1 Shake Slow-Fast Speed
LIGHT SKY

-17-
Channel DMX Percentage Function Note
70-79 Gobo2 Shake Slow-Fast Speed
80-89 Gobo3 Shake Slow-Fast Speed
90-99 Gobo4 Shake Slow-Fast Speed
100-109 Gobo5 Shake Slow-Fast Speed
110-119 Gobo6 Shake Slow-Fast Speed
120-129 Gobo7 Shake Slow-Fast Speed
130-139 Gobo8 Shake Slow-Fast Speed
140-149 Gobo9 Shake Slow-Fast Speed
150-159 Gobo10 Shake Slow-Fast Speed
160-169 Gobo11 Shake Slow-Fast Speed
170-179 Gobo12 Shake Slow-Fast Speed
180-189 Gobo13 Shake Slow-Fast Speed
190-199 Gobo14 Shake Slow-Fast Speed
200-225 CCW，Fast→Slow Rotation
226-229 Rotation
230-255 CW，Slow→Fast Rotation
8
Prism
0-63 Unused Range
64-127 Prism1
128-191 Prism2
192-255 Prism1+Prism2
9
Prism Rotation
0 Unused Range
1-63 Angle linear adjustment
Three kinds of prism effect options: set the prism (prism 1, prism 2 or prism 1+2) in the 8th
channel
64-127 CCW，Fast → Slow
128-191 CW，Slow → Fast
192-207 slow
→ fast, rotate 90°
back and forth
208-223 slow
→ fast, rotate 180°
back and forth
224-239 slow
→ fast, rotate 270°
back and forth
240-255 slow
→ fast, rotate 360° back and forth
10
Prism Macro
0-15 Unused Range
16-55 fast
→ slow, Prism 1 can switch freely
56-95 fast
→ slow, Prism 2 can switch freely
96-135 fast
→ slow, Prism 1 + Prism 2 can be switched freely at the
same time
136-175 fast
→ slow, prism 1 is selected + prism 2 is freely switched
176-215 fast
→ slow, Prism 2 is selected + Prism 1 is free to switch
216-255 fast
→ slow, prism 1 and prism 2 are interlocked and switched
11
Frost
0-9 Atomized removal
10-255 Atomization move in
12 0-255 Focus
13 0-255 Pan
14 0-255 Pan Fine
15 0-255 TILT
16 0-255 TILT Fine
17
Function
0-25 0-9.8 Unused Range
26-30 10.2-11.8 Effects Reset
31-35 12.2-13.7 PAN/TITL Reset
36-40 14.4-15.7 Complete Reset
41-180 16.1-70.6 Unused Range
181-200 71.0-78.4 Unused Range
201-220 78.8-86.3 Unused Range
221-255 86.7-100 Unused Range
www.lightsky.com.cn

-18-
C
BUS
M Y
PWR P6
P5 P4
28V
FANBUSDMXLAMPUSB
J1
LED GND FUN
5V Dir
GND
D- D+
U1 J3
BUS
28V
48V+
48V-
Color
Wheel
LED1
/TEM /LED2
BUS
0043-1 V1.00
BUS
PWR
FAN-KZ V1.2
FAN1/2
FAN3/4
FAN8
FAN5/6/7
X
Y
PX
PY BUS1 BUS
28V
28V
50/60Hz
100-240V
Power In
NL
DMX IN
DMX OUT
USB
Optional
PX PY
8M-QD
M21
P6
P7
BUS5
P5
P4 FAN
M10
M22
M7
M23
M6
M24
M5
M25
M4
M26
M3
M27
M2
M28
M1
L
N
PE
28+ 28-
48-
48- 48+
BUS4
CIRCUIT CONNECTING DIAGRAM
LIGHT SKY

-19-
■ In order to ensure the fixture could work normally. It should be kept clean always .
The lens should also be regularly cleaned to maintain an optimum light output.
Do not use any type of solvent on lens. It will damage the fixture.
■ Suggestion: The continue usage of the light don't exceed 4 hours. Or it will shorter the
usage of the lamp. Please use the alternative operation to solve this problem.
The fixture power ON time is best not over 48 hours, or it would generate lamp
protection procedure.
■ Please disconnect the power supply when begin to maintenance take down the fixture.
Please let the parts cool down 10 minute at least then begin to install.
■ Please inspect the lens or other moving parts timing and keep them clear and static.
If find anything damaged or looseness must change a lamp or fix the lamp in order to
avoid the accident.
Please check the machenical parts is jamging.After cleaning,please add some
temperature -durable juice.
■ The fixture use the strong cool system.It iseasy for the dirty to be colletced.Please do
clear the hot-sak one time two week at least.
■ After you use the fixture,please check the intake place whether there are some wastepaper,
please clean it up,or the windmill will break down and causing fire.
CAUTION!!!
Disconnect from mains before starting maintenance operation.
CLEANING AND MAINTENANCES
www.lightsky.com.cn
