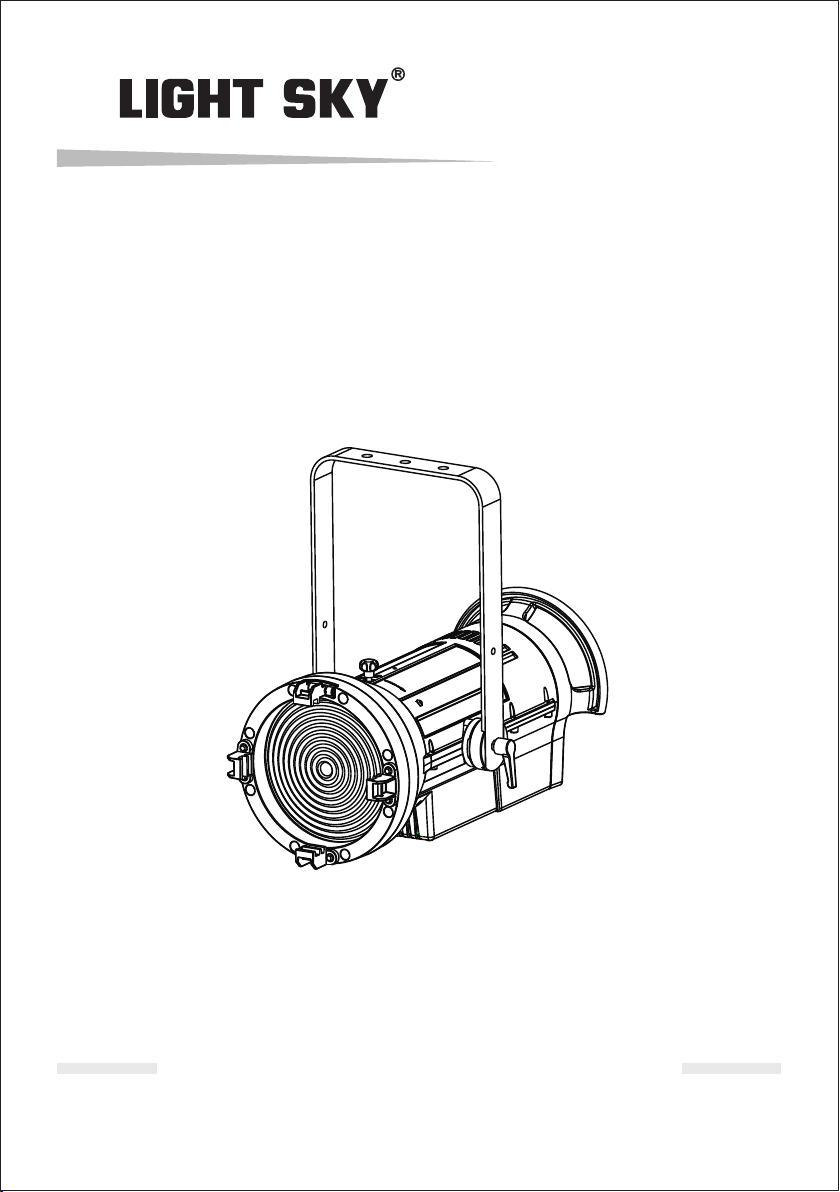

Light Sky L7-D48 User manual

□L7-D48(6000K)
□L7-T48(3000K)
INSTRUCTION MANUAL
LED Fresnel
Please read these instruction manual carefully before use
FLY DRAGON LIGHTING EQUIPMENT CO., LTD

UNPACKING: Thank you for purchasing our company products. Every product has
been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your fixture for
damage and be sure all accessories necessary to operate the fixture have arrived
intact. In the event damage has been found or parts are missing, please contact
our customer support team for further instructions. Inside the box you should
find: the fixture, a DMX XLR cable, a power cable, and this user manual.
INDEX
1
1.Safety information....................................................................................................2
2.Skill specifications and Performance trait ...........................................................3
3.Photometric data......................................................................................................4
4.Control panel.............................................................................................................5
5.Install fixture.............................................................................................................5
6.Dimensional drawings..............................................................................................6
7.Component name......................................................................................................6
8.Mounting and installation.......................................................................................7
9.Power supply and signal connection......................................................................8
10. setting.........................................................................................................10
11.Channel function..................................................................................................12
12. ...............................................................................13
13.Troubeshooting.................................................................................................14
14.Cleaning and maintenances...............................................................................15
15. .....................................................15
Menu
Circuit connecting diagram
Duty exonerative and copyright protection

SAFETY INSTRUCTIONS
2
Notice: To guarantee proper and consistent operation, it is important to follow the
guidelines in this manual. Our company will not accept responsibility for damages
resulting from the misuse of this fixture due to the disregard of the information
printed in this manual.
●1. In order to ensure the light could operate normally, the ambient temperature
couldn't be higher than 38℃ and no lower than- 2℃.
●2. Under normal condition, the highest sectional surface temperature may be up to
60 ℃.
●3.These projectors are designed depends on the electric shock protection, the
projector should be connected with the power supply system which connected
ground enough. The projector's ground cable should be connected with the ground
cable of the power supply system as well. The ground mark of the light metal cover
should be connecting with the installation bricked steadily.
●4. Don't use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change
the damaged power cable in order to avoid any dangerous.
●5.Please check the voltage, frequency data of power supply system is suitable for the
mentioned on the projector. Please do avoid the different voltage between them
and burn the projector.
●6.Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
●7.Never open this fixture while in use.
●8.Never look directly into the light source. You risk injury to your retina, which may
induce blindness.
●9.Please be aware that damages caused by modifications to the device are not subject
to warranty.

SKILL SPECIFICATIONS AND PERFORMANCE TRAIT
◎Voltage：AC100~240V 50/60Hz
◎Power：210W
◎LED brand：OSRAM
◎LED chip：6W*42PCS
◎LED power：200W
◎LED life：50000H
◎LED colour temperature：3000K(Standard);Selective 6000K
◎total luminous flux:9800LM
◎Luminance Efficiency:48
◎CRI index : ≥91
◎TLCI index ≥90
◎Strobe:1-30 times/ second
◎Dimmer ：65536 class dimmer
◎LENS : Glass frenel lens
◎Beam angle：10-60°
◎Control Mode: DMX512
◎Channel: 4CH
◎Light size:535×310×470MM
◎Single carton size：340×290×745MM
◎N.W.：7.6KG G.W.：9.6KG
◎Four carton size：710×610×775MM
◎N.W.：30.5KG G.W.：41.2KG
3

PHOTOMETRIC DATA
4
3(9′10") 5(16′5") 7(23′) 10(32′10") 15 49( ′3")
Distancem (in)
0.5(1′7") 0.8(2′7") 1.2(3′11") 1.7(5′7") 2.6(8′6")
10° diameter m (in)
60° diameter m (in)
4080(379)1570(146)800(74)450(42)250(23)
60°highlight Lux (fc)
8500(790)3260(303)1690(157)830(77)460(43)
10°highlight Lux (fc)
3.5 1(1′6") 5.8(19′) 8(26′3") 11.5(37′8") 17.3(56′9")
10°60°
0
3
6
9
9
6
3

CONTROL PANEL
POWER IN POWER OUT
Keypad
3/5 DMX
LCD
5
MENU U P DOWN E NT ER
IN OUT
DMX
POWE R
IN OUT
DIMMER
ZOOM
zoom D IM MER
INSTALL FIXTURE
General use position Low clearance position

DIMENSIONAL DRAWINGS
COMPONENT NAME
Yoke
knob
Accessory retainer
Lens tube
Yoke looking knob
6
535
470
310

MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating
areas, and away from areas were unauthorized personnel might reach the fixture.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device's weight. Fixture installation must
always be secured with a secondary safety attachment, such as an appropriate safety
cable. To avoid injury, never stand directly below the device when mounting, removing,
or servicing the fixture.
Mounting points:Overhead mounting requires extensive experience, including amongst
others calculating working load limits, a fine knowledge of the installation material
being used, and periodic safety inspection of all installation material and the fixture.
If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury. Be sure to complete all rigging and installation
procedures before connecting the main power cord to the appropriate wall outlet.
cautton! Be sure a qualified electrician performs all electrical connections.
Mounting:
Our company is fully operational in any mounting position, hanging upside-down, side
mounted, or set on a flat level surface, etc. Be sure this fixture is kept at least 0.5m
(about 1.6feet) away from any flammable materials (decoration etc.).

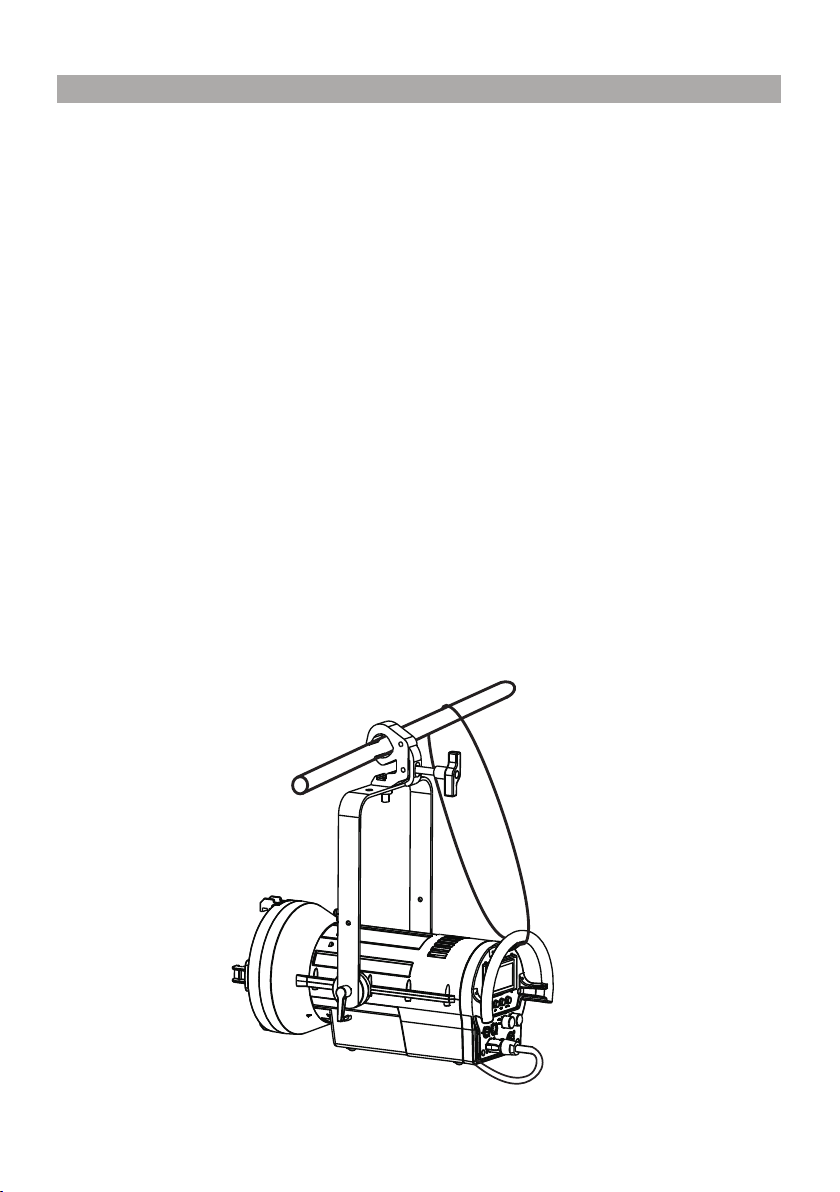

When clamp mounting; always use and install the supplied safety cable as an added
safety measure to prevent accidental damage in the event of a clamp failure. See the
image below.
7

POWER SUPPLY AND SIGNAL CONNECTION
1. Power supply
Use the professional plug to connect the projector and main power supply. Please
pay attention to the voltage, frequency the same as the mentioned on the projector.
Suggest each light has separately switched of the power supply so that could turn
on or turn off each projector desultorily.
2.Signal connection
Please use the round 3/5-pin XLR plugs &sockets offered by menu facture to
connect the first projector's output to the second projector' input and connect
the second projector's output to the third device's input. And in the same way
for the rest, eventually connect the last device's output, all the devices are together
as the following figure.
The devices' control signal output or input by using the 3/5-pin XLR pug and socket.
If need to long then the communication cable, please make sure the both side of
3/5-pin plug is one to one. (one to one, two to two, three to three). Otherwise, the
communication cable will be interrupted.
8
PUSH
MENU UP DO WN ENTER
IN OUT
DMX
POW ER
IN OUT
MENU UP DO WN ENTER
PUSH
IN OUT
DMX
POW ER
IN OUT
PUSH
MENU UP DO WN ENTER
IN OUT
DMX
POW ER
IN OUT
POWER IN OUT IN OUT IN POWER OUT
OUT IN OUT IN
DMX IN
DMX OUT
PUSH
MENU UP DO WN ENTER
IN OUT
DMX
POW ER
IN OUT
MENU UP DO WN ENTER
PUSH
IN OUT
DMX
POW ER
IN OUT
PUSH
MENU UP DO WN ENTER
IN OUT
DMX
POW ER
IN OUT

SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
Connecting to the control signal line (DMX)
◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first
projector's output to the second projector' input and connect the second projector's output to the
third projector's input. And in the same way for the rest,eventually connect the last projector's
output,all the projectors are together.
◎The projectors's control signal output or input by using the 3 or 5-pin XLR pug and socket.If need to
lengthen the communication cable,please make sure the both side of 3 or 5-pin plug is one to one .
(one to one,two to two,three to three).Otherwise,the communication cable will be interrupted.The

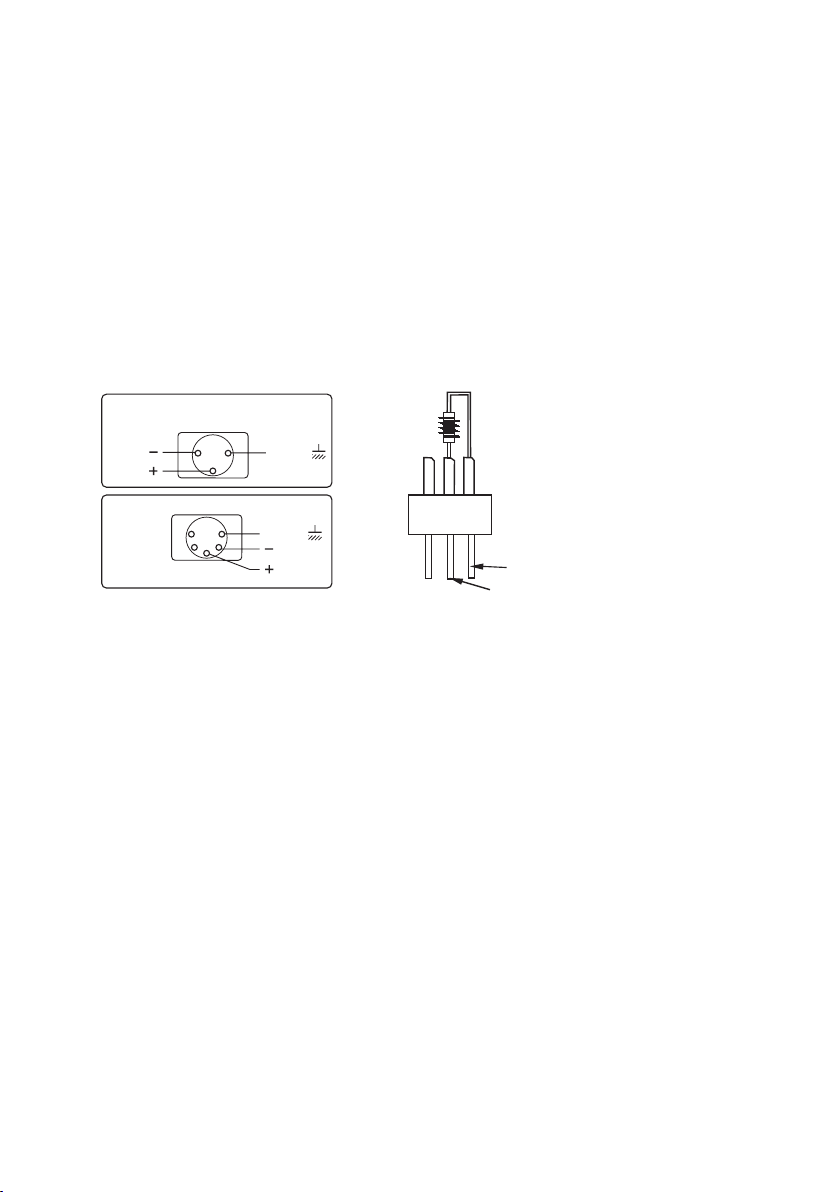

communicate cable is 2-cord screened cable 75Ω resistance with each core is at least a 0.5mm
diameter.(Caution:All the inside leading wire of 3 or 5-pin XLR plug couldn't touch each other or
plinth).
◎Recommend to use the DMX signal terminator for the installation to avoid the electronic noise dama
-ge the digital control signal.Simply speaking,DMX terminator is an XLR connector with a 120Ω 1/2W
resistor connected across pin 2 and 3.Which is then plugged into the output socket on the last projec
-tor in the chain.Refer to the connection.
SIGNAL
SCREEN
DMX512
5 PIN
1
2
3
4
5
SIGNAL
PIN3
PIN2
9

MENU UP DOWN EN T ER
2.Button operation
MENU：back ；
UP：Page up or increase；
DOWN：Page down or reduce；
ENTER：OK button
● Button
●
●
●
3.Menu operation
Address:001-512
DMX Address
Power
Dim.Cur
Fan mode
Protected
Regulated
Slow
Standard
Boost
Fast
Incandescent
Auto
Linear
Quick
Settings
1.After the power is switched on, the
display screen displays LOGO
MENU SETTING
Status No action
Presets
Action
Dimmer:0-100%
Zoom:0-100%
Display
Language 语言( )
English 英文( )
Chinese 中文( )
Open
Auto close(15S)
BackLight
Normal
Rota.180
Reversal
10

Service
Reset
Time clean
Developer
Factory
Error list
System reset
Defualt
Input:****
Input:****
Input:****
11
1.Dimmer 000-255
Channel control
2.Dimmer fine 000-255
3.Strobe 000-255
4.Zoom 000-255
LED hours Total:****(h)
LED:****(h)
Temperature LED Board: ***c
RDM UID 3888:********
Fan speed
FAN:****RPM
DMX live
System version
DIS Board: V*.**
Information
1.Dimmer
2.Dimmer fine
3.Strobe
4.Zoom ***
***
***
***

CHANNEL FUNCTION
12
Slow closing,fast opening,slow → fast
Fast closing,slow opening,slow → fast
Slow closing,slow open,slow → fast
Synchronous strobe,slow fast→
Random strobe,slow fast→
FUNCTION
Dimmer fine
NO function
Zoom
NO function
Dimmer
Strobe
%
0-100
0-100
0-100
DMX VALUE
0-255
0-255
10-49
50-89
90-119
120-179
180-249
250-255
0-255
0-9
CHANNEL
1
2
3
4
0-3.53
3.92-19.22
19.61-34.9
35.29-46.67
47.06-70.2
70.59-97.65
98.04-100

CIRCUIT CONNECTING DIAGRAM
AC100-240V
50/60Hz
Switched power supply
LED Drive board
Display board
Power adapter
13
48V GND
PE
NL
Input
L
G
N
L
G
N
12V
GND
GND
48V
GND
12V
J2 J3
J1

TROUBLE DISPOSE
It is recommended some solution for some normal trouble shooting. Any inextricability
problems should always be handling by the professional person. Disconnect the power
supply before maintenance the light.
●LCD off：
1.Please check if install the suitable voltage
2.Please check whether the led will reach the end of their life can explode; please
replace a same description led.
3.Please check if the power supply is enough.
4.Please check whether the DMX 512 controller pass the "turn on" order.
●Though the light is lighting, but it couldn't accept the control order:
1.Please check the start code address and the function option are correct.
2.Please check whether the communicate control cable is on good connection or the
cable is too long or interrupt.
3.Please check the control system is not valid, check the signal amplifier of chain
connected is valid.
4.Please check whether the communicate cable is too long or the other equipment is
mutually conjugate.
5.Please arrange the wire well, shorter the signal cable, put the high voltage cable
and low voltage cable separately.
6.Add the signal amplify isolator.
7.Signal cable is used the excellent screening doublet (Resistance 75 OHM）
8.The end of the light end and the end resistance.
●The light can't move:
1.Please check if the power supply is suitable for the light voltage data.
2.Please check the light if they are deformation, inside parts is broken, become wet
etc will lead the loose contact.
14

CLEANING AND MAINTENANCE
DUTY EXONERATIVE AND COPYRIGHT PROTECTION
■
clean always .The lens should also be regularly cleaned to maintain an
optimum light output. Do not use any type of solvent on lens. It will
damage the projector.
■2.Suggestion: The continue usage of the light don't exceed 4 hours. Or it
will shorter the usage of the lamp. Please use the alternative operation
to solve this problem.The fixture power ON time is best not over 48
hours, or it would generate lamp protection procedure.
■3.Please disconnect the power supply when begin to maintenance take
down the light. Please let the parts cool down 10 minute at least then
begin to install.
■4.Please inspect the lens or other moving parts timing and keep them clear
and static. If find anything damaged or looseness must change a lamp or
fix the lamp in order to avoid the accident.
1.In order to ensure the projector could work normally. It should be kept
CAUTION!
Disconnect from mains before starting maintenance operation.
◎Any products broken that didn't according to the instruction is not guarantee to
keep it in good repair.
◎The commentary for all the instruction belongs to the supplier in final.
◎No authorize can't copy.
15

Tel:[phone] Fax:[phone]
Web:www.lightsky.com.cn www.lightsky-china.com
E-Mail:[e-mail] [e-mail]
[e-mail] [e-mail]
[e-mail] [e-mail]
[e-mail]
Add: No.51 Yunfeng Rd , Xinhua Industrial Zone,Huadu District,Guangzhou City,China.
