MacDon CA20 User manual

CA20, CA25, and FM100
Combine Adapters and Float Modules
CE Chain Removal Instructions
214923 Revision A
Original Instruction
The harvesting specialists.

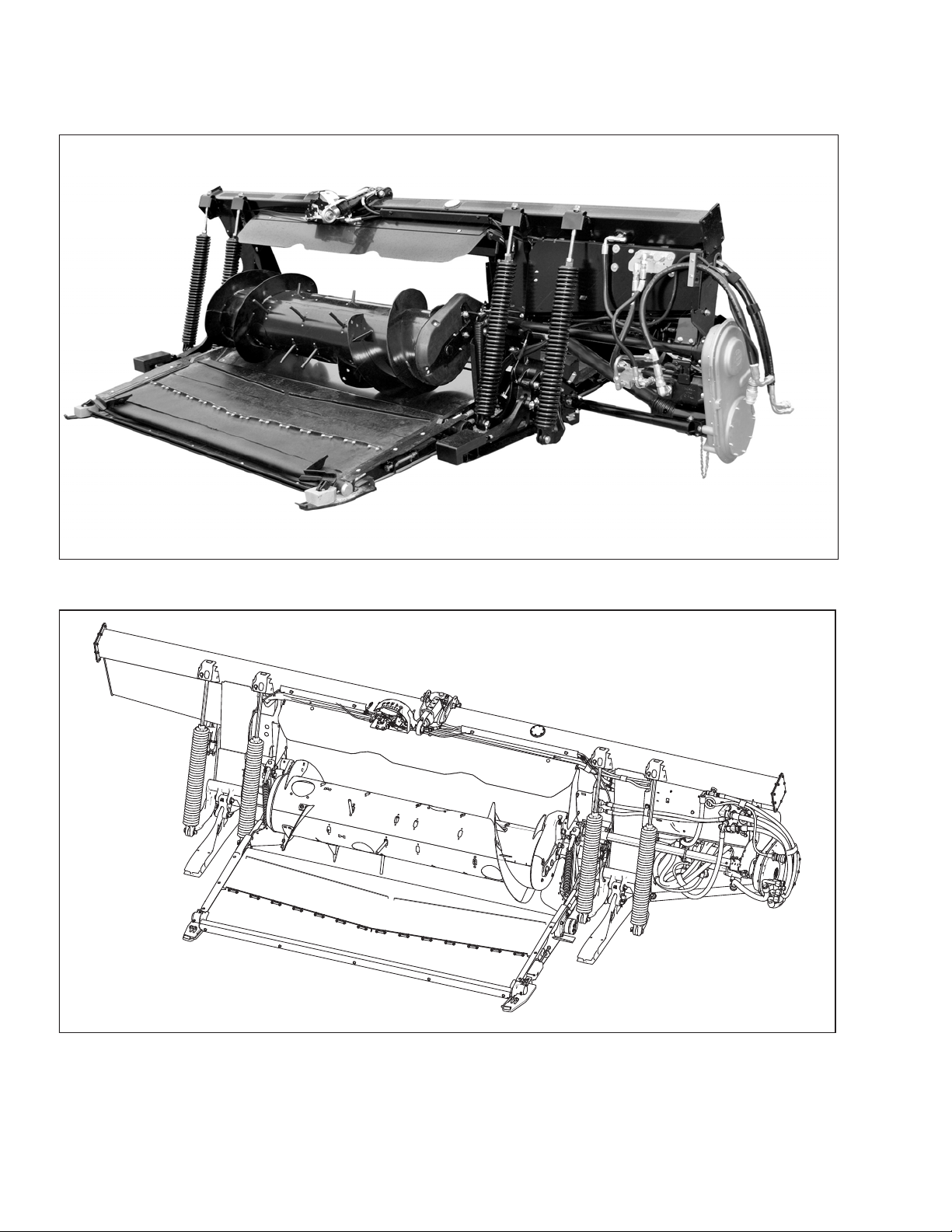

CA25 Combine Adapter
1004606
FM100 Float Module
1017434
Published February 2019

Introduction
Safety chains have been added to driveline halves and guards sold by MacDon Parts. These parts can be used to replace
damaged driveline halves and guards on all MacDon CA20 and CA25 Combine Adapters and FM100 Float Modules. If
servicing a driveline not originally equipped with safety chains, the chain on the replacement part needs to be removed
first to prevent damage to the guard caused by only one half of the guard rotating during operation. This document
explains who needs to remove the chains, and how to install the replacement parts.
The kit should include one driveline half or guard, with attached safety chain, and a copy of this instruction.
Installation time
Installation time for this kit is approximately 30 minutes.
Conventions
The following conventions are used in this document:
•Right and left are determined from the operator’s position. The front of the header is the side that faces the crop; the
back of the header is the side that connects to the combine.
•Unless otherwise noted, use the standard torque values provided in the header operator’s manual and technical
manual.
NOTE:
Keep your MacDon publications up-to-date. The most current version of this instruction can be downloaded from our
Dealer-only site (https://portal.macdon.com) (login required).
NOTE:
This document is currently available in English only.
214923 iRevision A

214923 iii Revision A
Introduction ................................................................................................................................................i
Chapter 1: Safety ........................................................................................................................................ 1
1.1 Signal Words .........................................................................................................................................1
1.2 General Safety .......................................................................................................................................2
Chapter 2: Installation Instructions ........................................................................................................... 5
2.1 Removing Driveline.................................................................................................................................6
2.1.1 Removing Driveline –FM100 ...........................................................................................................6
2.1.2 Removing Driveline –CA20 and CA25 ................................................................................................7
2.2 Removing Driveline Guard........................................................................................................................8
2.3 Installing Driveline Guard.........................................................................................................................9
2.4 Installing Driveline ................................................................................................................................ 11
2.4.1 Installing Driveline –FM100........................................................................................................... 11
2.4.2 Installing Driveline –CA20 and CA25 ............................................................................................... 13
TABLE OF CONTENTS

214923 1Revision A
Chapter 1: Safety
1.1 Signal Words
Three signal words, DANGER,WARNING, and CAUTION, are used to alert you to hazardous situations. Two signal words,
IMPORTANT and NOTE, identify non-safety related information. Signal words are selected using the following guidelines:
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. It may also be
used to alert against unsafe practices.
CAUTION
Indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may be used
to alert against unsafe practices.
IMPORTANT:
Indicates a situation that, if not avoided, could result in a malfunction or damage to the machine.
NOTE:
Provides additional information or advice.

214923 2Revision A
1.2 General Safety
1000004
Figure 1.1: Safety Equipment
CAUTION
The following general farm safety precautions should be part of
your operating procedure for all types of machinery.
Protect yourself.
•When assembling, operating, and servicing machinery, wear
all protective clothing and personal safety devices that could
be necessary for job at hand. Do NOT take chances. You may
need the following:
•Hard hat
•Protective footwear with slip-resistant soles
•Protective glasses or goggles
•Heavy gloves
•Wet weather gear
•Respirator or filter mask
1000005
Figure 1.2: Safety Equipment
•Be aware that exposure to loud noises can cause hearing
impairment or loss. Wear suitable hearing protection devices
such as earmuffs or earplugs to help protect against loud
noises.
1010391
Figure 1.3: Safety Equipment
•Provide a first aid kit in case of emergencies.
•Keep a properly maintained fire extinguisher on the machine.
Be familiar with its proper use.
•Keep young children away from machinery at all times.
•Be aware that accidents often happen when the operator is
tired or in a hurry. Take time to consider safest way. NEVER
ignore warning signs of fatigue.
SAFETY

214923 3Revision A

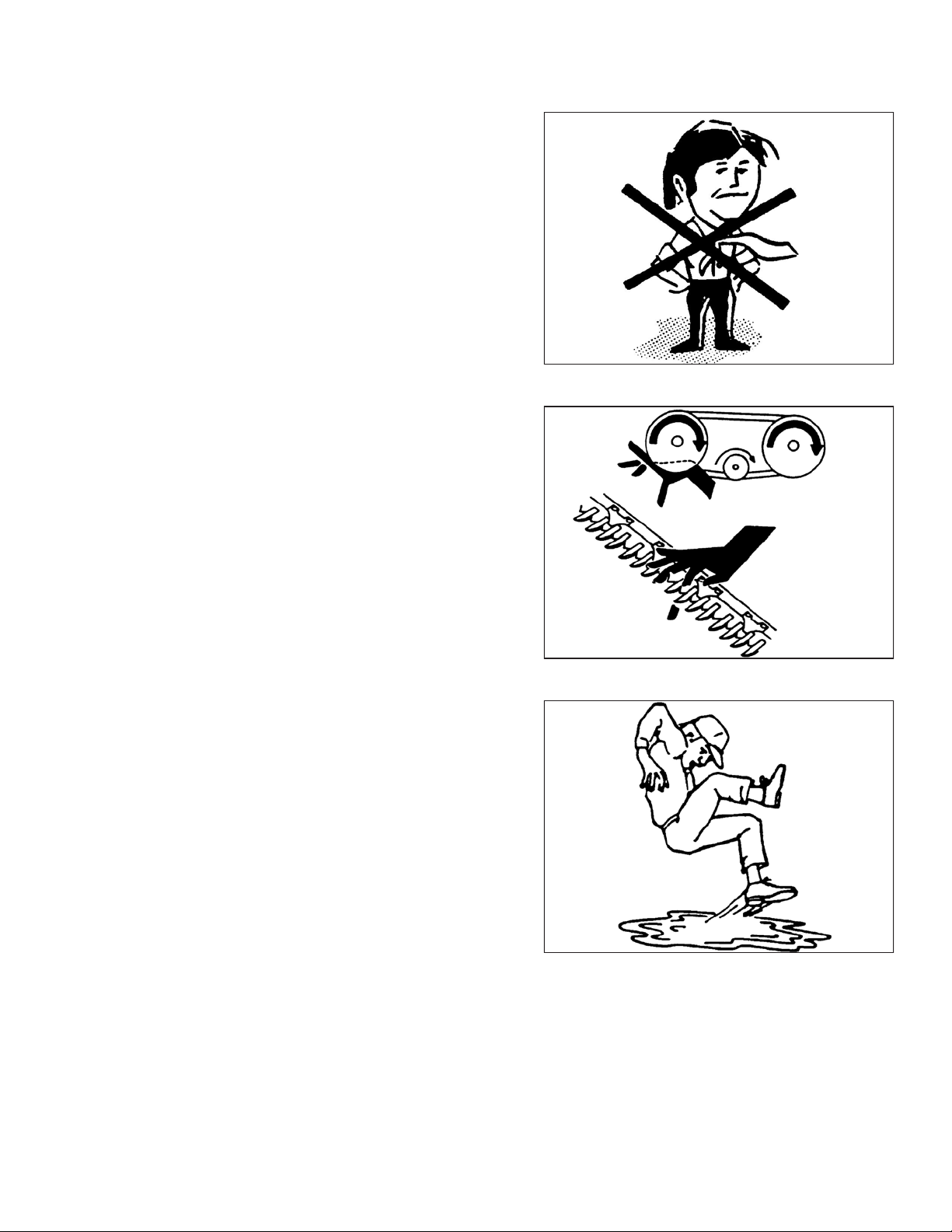

1000007
Figure 1.4: Safety around Equipment
•Wear close-fitting clothing and cover long hair. NEVER wear
dangling items such as scarves or bracelets.
•Keep all shields in place. NEVER alter or remove safety
equipment. Make sure driveline guards can rotate
independently of shaft and can telescope freely.
•Use only service and repair parts made or approved by
equipment manufacturer. Substituted parts may not meet
strength, design, or safety requirements.
1000008
Figure 1.5: Safety around Equipment
•Keep hands, feet, clothing, and hair away from moving parts.
NEVER attempt to clear obstructions or objects from a
machine while engine is running.
•Do NOT modify machine. Unauthorized modifications may
impair machine function and/or safety. It may also shorten
machine’s life.
•To avoid injury or death from unexpected startup of machine,
ALWAYS stop the engine and remove the key from the
ignition before leaving the operator’s seat for any reason.
1000009
Figure 1.6: Safety around Equipment
•Keep service area clean and dry. Wet or oily floors are
slippery. Wet spots can be dangerous when working with
electrical equipment. Be sure all electrical outlets and tools
are properly grounded.
•Keep work area well lit.
•Keep machinery clean. Straw and chaff on a hot engine is a
fire hazard. Do NOT allow oil or grease to accumulate on
service platforms, ladders, or controls. Clean machines before
storage.
•NEVER use gasoline, naphtha, or any volatile material for
cleaning purposes. These materials may be toxic and/or
flammable.
•When storing machinery, cover sharp or extending
components to prevent injury from accidental contact.
SAFETY

214923 5Revision A
Chapter 2: Installation Instructions
Refer to the following flowchart to determine if your model requires chain removal.
Figure 2.1: Driveline Flowchart
1028263

214923 6Revision A
2.1 Removing Driveline
Refer to the correct topic below for your model:
•2.1.1 Removing Driveline –FM100, page 6
•2.1.2 Removing Driveline –CA20 and CA25, page 7
2.1.1 Removing Driveline –FM100
WARNING
To avoid injury or death from unexpected start-up of machine, always stop engine and remove key from ignition before
leaving operator’s seat for any reason.
1. Shut down the combine, and remove the key from the ignition.

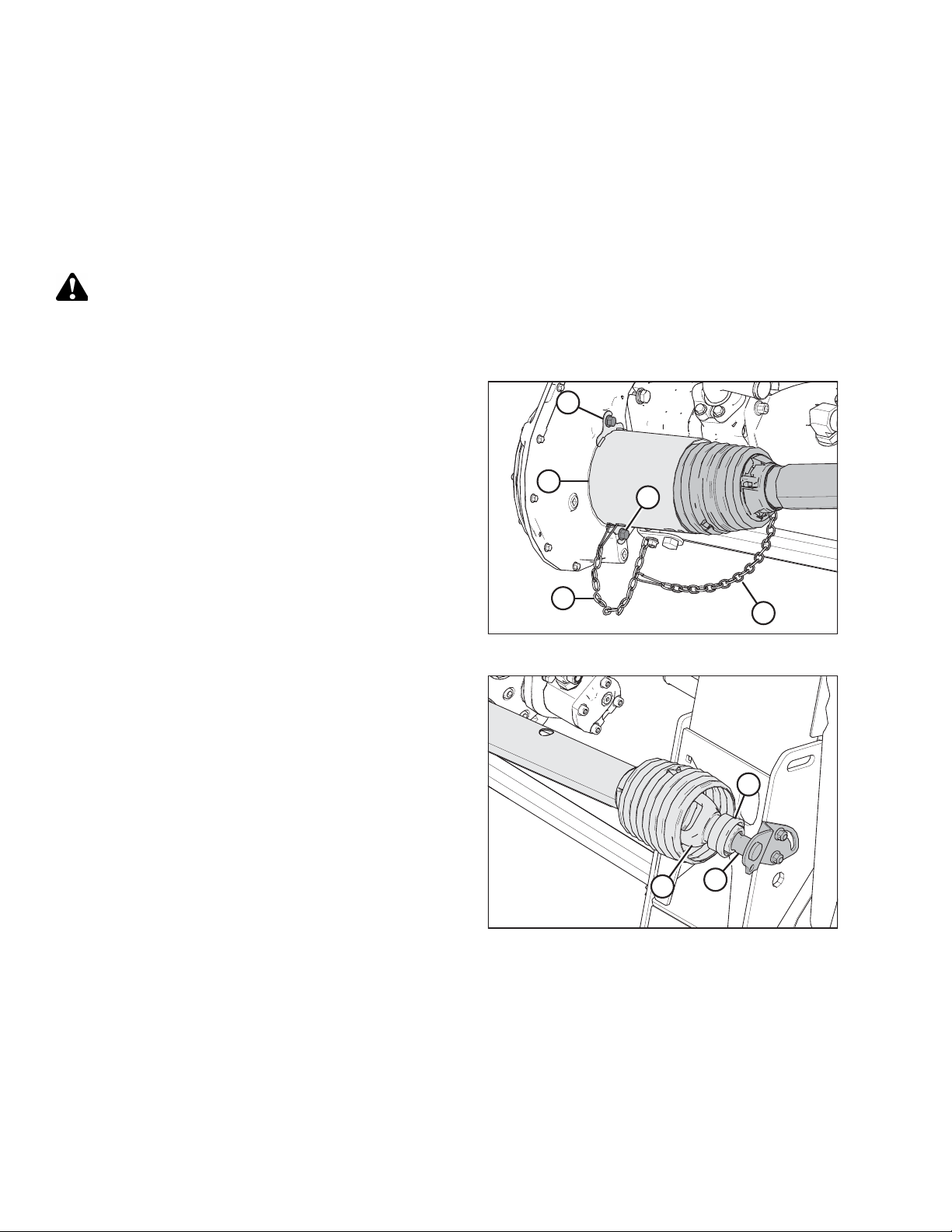

1028268
B
C
C
A
D
Figure 2.2: Float Module End of Driveline
3. Loosen two bolts (C), and remove driveline shield (B).
4. Detach safety chain (A) (if equipped) from chain (D) on the
driveline shield. Do NOT disconnect chain (D).
5. Pull the quick disconnect collar to release the driveline
yoke, and pull the driveline off the gearbox shaft.
1020759
A
B
C
Figure 2.3: Combine End of Driveline
6. Pull driveline collar (A) away from power take-off (PTO)
support (B). Slide yoke (C) off support bracket (B), and
release collar (A).
INSTALLATION INSTRUCTIONS

214923 7Revision A
2.1.2 Removing Driveline –CA20 and CA25
WARNING
To avoid injury or death from unexpected start-up of machine, always stop engine and remove key from ignition before
leaving operator’s seat for any reason.
1001162
B
C
A
Figure 2.4: Adapter End of Driveline
1. Remove the two nuts (A) securing the shield (B) to the
gearbox.
2. Slide the shield (B) over the driveline shield to expose the
quick disconnect on the gearbox. Do NOT disconnect the
tether (C), if equipped.
3. Pull the quick disconnect collar to release the driveline
yoke, and pull the driveline off the shaft.
4. Slide the shield (B) off the driveline.
1001470
A
Figure 2.5: Combine End of Driveline
5. Rotate the disc (A) on the adapter driveline storage hook,
and remove the driveline from the hook.
INSTALLATION INSTRUCTIONS

214923 8Revision A
2.2 Removing Driveline Guard
1001392
A
Figure 2.6: Driveline Guard
1. Slide the two halves of the driveline shaft apart.
2. On the guard being replaced, use a slotted screwdriver to
release grease fitting/lock (A).
Figure 2.7: Driveline Guard
3. Rotate the driveline guard locking ring (A) counterclockwise
using a screwdriver until the lugs (B) line up with the slots
in the guard.
4. Pull the guard off the driveline.
INSTALLATION INSTRUCTIONS

214923 9Revision A
2.3 Installing Driveline Guard
1001398
A
B
Figure 2.8: Driveline Guard
1. Slide the guard onto the replacement driveline, and line up
the slotted lug on the locking ring (A) with the arrow (B) on
the guard.
1001399
A
Figure 2.9: Driveline Guard
2. Push the guard onto the ring until the locking ring is visible
in the slots (A).
1001401
A
Figure 2.10: Driveline Guard
3. Use a slotted screwdriver to rotate ring (A) clockwise and
lock ring in guard.
INSTALLATION INSTRUCTIONS

214923 10 Revision A

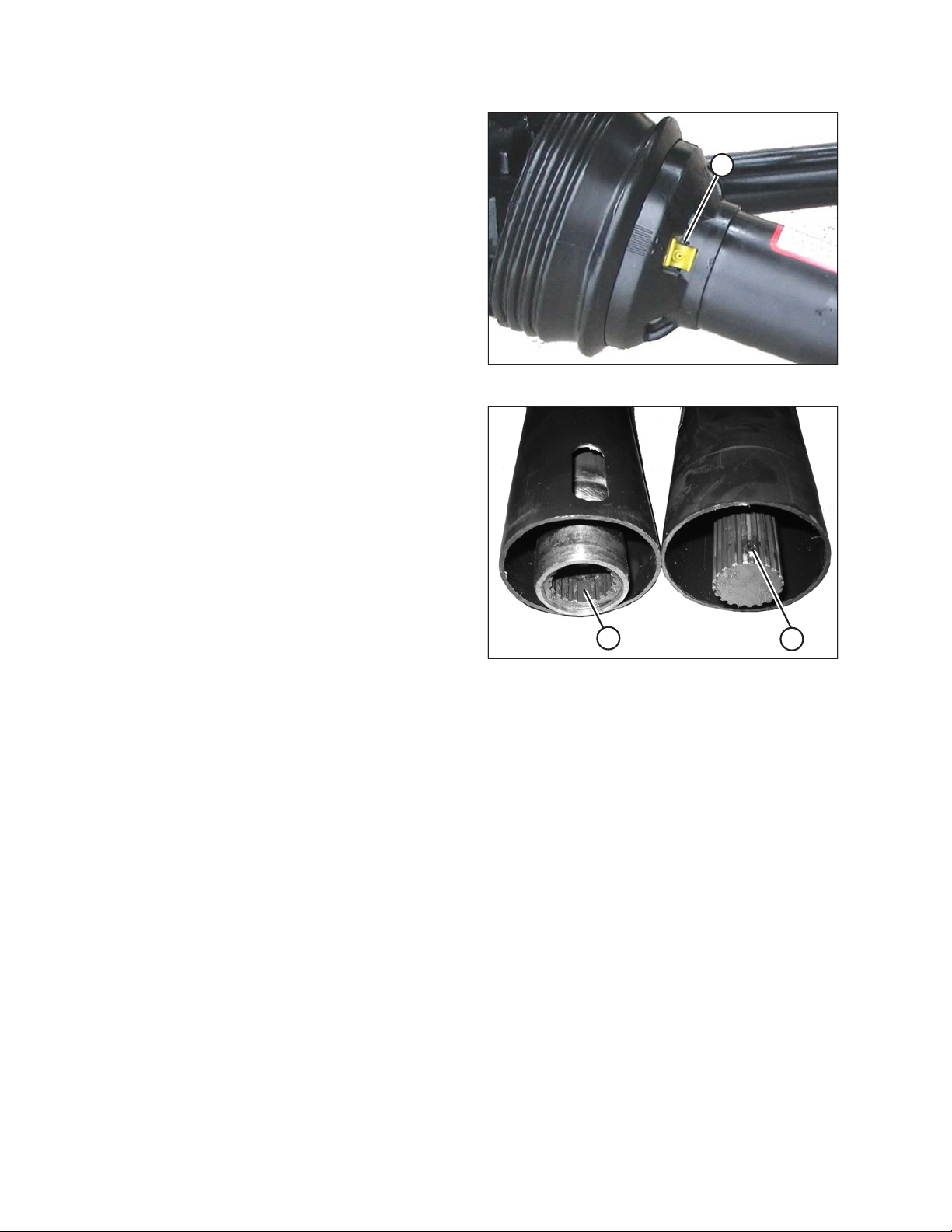

1001403
A
Figure 2.11: Driveline Guard
4. Push the grease fitting (A) back into the guard.
5. Grease the driveline.
1001404
AB
Figure 2.12: Driveline
6. Assemble the driveline.
IMPORTANT:
The splines are keyed to align the universals. Align weld (A)
with the missing spline (B) when assembling. Failure to
align the halves of the shaft can cause excessive vibration
and feed auger/gearbox failures.
INSTALLATION INSTRUCTIONS

214923 11 Revision A
2.4 Installing Driveline
Refer to the correct topic below for your model:
•2.4.1 Installing Driveline –FM100, page 11
•2.4.2 Installing Driveline –CA20 and CA25, page 13
2.4.1 Installing Driveline –FM100
WARNING
To avoid injury or death from unexpected start-up of machine, always stop engine and remove key from ignition before
leaving operator’s seat for any reason.
1028284
AB
Figure 2.13: Driveline Halves
IMPORTANT:
If the combine output shaft splines match the float module
input shaft splines, ensure the driveline is installed with the
shorter guard (A) at the combine end and the longer
guard (B) at the float module gearbox end.
1023809
A
B
C
D
Figure 2.14: Combine End of Driveline
1. Position the combine end of driveline (A) onto storage
support (B). Pull back collar (C) on the driveline and slide
the driveline onto the support until it locks in place. Release
collar (C).
2. For drivelines equipped with safety chains, attach chain (D)
at the combine end to driveline storage support (B).
INSTALLATION INSTRUCTIONS

214923 12 Revision A

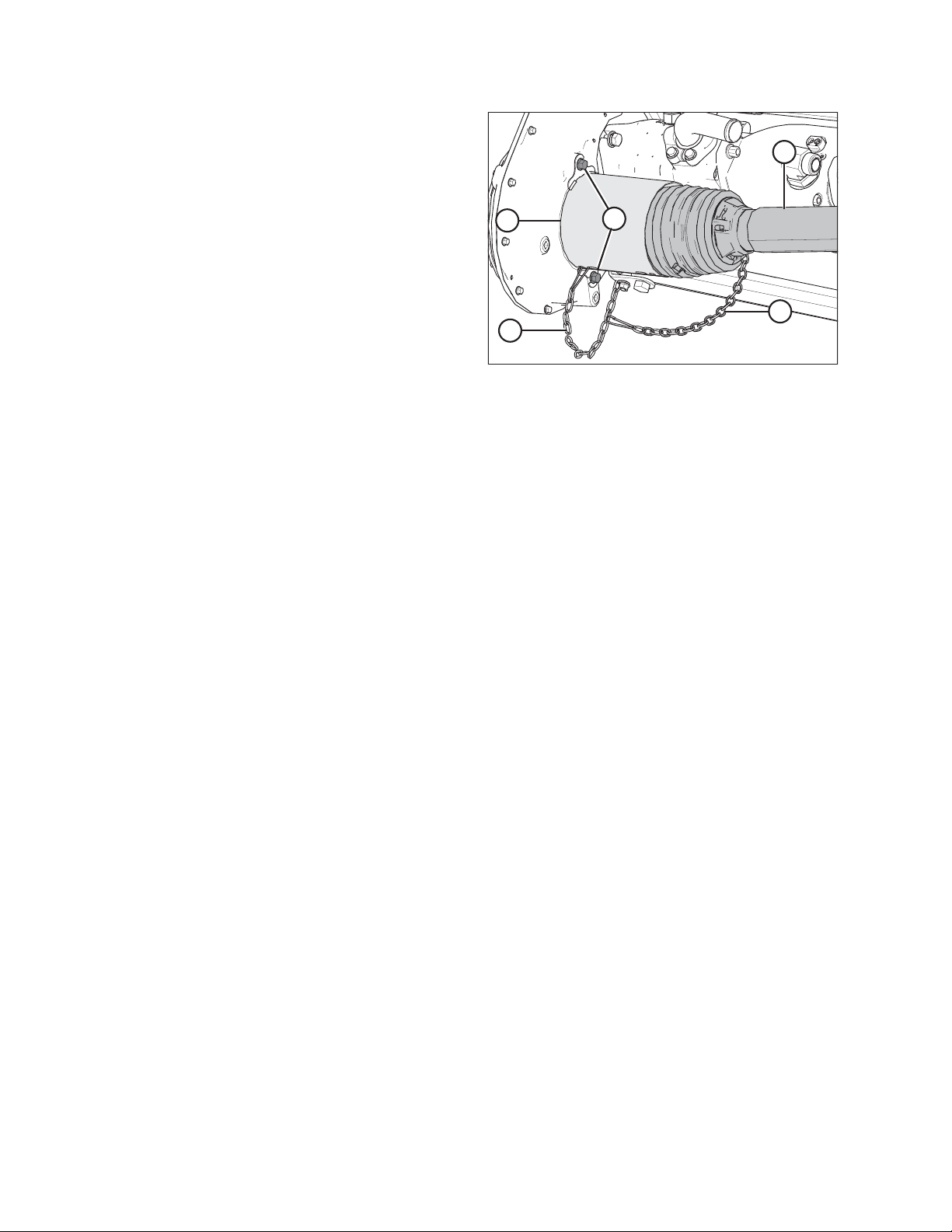

1023810
A
B
C
D
E
Figure 2.15: Float Module End of Driveline
3. Slide shield (A) over driveline (B).
4. Position the driveline quick disconnect onto the float
module gearbox shaft, pull back the collar, and slide it onto
the shaft until it locks in place. Release the collar.
5. Position shield (A) on the gearbox and secure with bolts (C).
6. For drivelines equipped with safety chains, attach chain (D)
at the module end to chain (E) on the shield.
INSTALLATION INSTRUCTIONS

214923 13 Revision A
2.4.2 Installing Driveline –CA20 and CA25
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
1028284
AB
Figure 2.16: Driveline Halves
IMPORTANT:
If the combine output shaft splines match the adapter input
shaft splines, ensure the driveline is installed with the
shorter guard (A) at the combine end and the longer
guard (B) at the adapter gearbox end.
B
A
1001420
Figure 2.17: Combine End of Driveline
1. Slide the driveline into the hook (A) so the disc (B) drops
and secures the driveline.
1001161
A
B
Figure 2.18: Adapter End of Driveline
2. Slide the shield (B) over the driveline.
3. Position the driveline quick disconnect onto the adapter
gearbox shaft, pull back the collar, and slide onto the shaft
until the yoke locks onto the shaft. Release the collar.
4. Position the shield (B) on the gearbox and secure with
nuts (A).
5. Connect the opposite end to the combine if necessary.
INSTALLATION INSTRUCTIONS
