Makita RP2302FC User manual

INSTRUCTION MANUAL
Router
RP1802
RP1802F
RP1803
RP1803F
RP2302FC
RP2303FC
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: RP1802 RP1802F RP1803 RP1803F RP2302FC RP2303FC
Collet chuck capacity 12 mm or 1/2″
Plunge capacity 0 - 70 mm
No load speed 23,000 min-1 22,000 min-1 9,000 - 23,000 min-1
Overall height 312 mm 327 mm
Net weight 6.2 kg
Safety class /II
Lamp --
Speed adjusting dial -
Electric brake - -
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• Weight according to EPTA-Procedure 01/2014
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Wear safety glasses.
DOUBLE INSULATION
Only for EU countries
Due to the presence of hazardous compo-
nents in the equipment, used electrical and
electronic equipment may have a negative
impact on the environment and human health.
Do not dispose of electrical and electronic
appliances with household waste!
In accordance with the European Directive
on waste electrical and electronic equipment
and its adaptation to national law, used
electrical and electronic equipment should
be collected separately and delivered to a
separate collection point for municipal waste,
operating in accordance with the environ-
mental protection regulations.
This is indicated by the symbol of the crossed-
out wheeled bin placed on the equipment.
Intended use
The tool is intended for ush trimming and proling of
wood, plastic and similar materials.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-2-17:
Model RP1802
Sound pressure level (LpA) : 85 dB(A)
Sound power level (LWA) : 96 dB (A)
Uncertainty (K) : 3 dB(A)
Model RP1802F
Sound pressure level (LpA) : 85 dB(A)
Sound power level (LWA) : 96 dB (A)
Uncertainty (K) : 3 dB(A)
Model RP1803
Sound pressure level (LpA) : 85 dB(A)
Sound power level (LWA) : 96 dB (A)
Uncertainty (K) : 3 dB(A)
Model RP1803F
Sound pressure level (LpA) : 85 dB(A)
Sound power level (LWA) : 96 dB (A)
Uncertainty (K) : 3 dB(A)
Model RP2302FC
Sound pressure level (LpA) : 88 dB(A)
Sound power level (LWA) : 99 dB (A)
Uncertainty (K) : 3 dB(A)
Model RP2303FC
Sound pressure level (LpA) : 88 dB(A)
Sound power level (LWA) : 99 dB (A)
Uncertainty (K) : 3 dB(A)
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.

3ENGLISH
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-2-17:
Model RP1802
Work mode: cutting grooves in MDF
Vibration emission (ah) : 5.1 m/s2
Uncertainty (K) : 1.5 m/s2
Model RP1802F
Work mode: cutting grooves in MDF
Vibration emission (ah) : 5.1 m/s2
Uncertainty (K) : 1.5 m/s2
Model RP1803
Work mode: cutting grooves in MDF
Vibration emission (ah) : 5.1 m/s2
Uncertainty (K) : 1.5 m/s2
Model RP1803F
Work mode: cutting grooves in MDF
Vibration emission (ah) : 5.1 m/s2
Uncertainty (K) : 1.5 m/s2
Model RP2302FC
Work mode: cutting grooves in MDF
Vibration emission (ah) : 4.2 m/s2
Uncertainty (K) : 1.5 m/s2
Model RP2303FC
Work mode: cutting grooves in MDF
Vibration emission (ah) : 4.2 m/s2
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can di󰀨er from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listed below may result in electric shock, re and/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.

4ENGLISH
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
8. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.

5ENGLISH
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
Router safety warnings
1. Hold the power tool by insulated gripping
surfaces only, because the cutter may contact
its own cord. Cutting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form. Holding the work by your hand or against
the body leaves it unstable and may lead to loss of
control.
3. The cutter bit shank must match the designed
collet chuck.
4. Only use a bit that is rated at least equal to the
maximum speed marked on the tool.
5. Wear hearing protection during extended
period of operation.
6. Handle the router bits very carefully.
7. Check the router bit carefully for cracks or
damage before operation. Replace cracked or
damaged bit immediately.
8. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
9. Hold the tool rmly with both hands.
10. Keep hands away from rotating parts.
11. Make sure the router bit is not contacting the
workpiece before the switch is turned on.
12. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate improperly
installed bit.
13. Be careful of the router bit rotating direction
and the feed direction.
14. Do not leave the tool running. Operate the tool
only when hand-held.
15. Always switch o󰀨 and wait for the router bit to
come to a complete stop before removing the
tool from workpiece.
16. Do not touch the router bit immediately after
operation; it may be extremely hot and could
burn your skin.
17. Do not smear the tool base carelessly with
thinner, gasoline, oil or the like. They may
cause cracks in the tool base.
18. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
19. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
20. Place the tool on stable area. Otherwise falling
accident may occur and cause an injury.
21. Keep cord away from your foot or any objects.
Otherwise an entangled cord may cause a falling
accident and result in personal injury.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before adjusting or
checking function on the tool.
Adjusting the depth of cut
4
7
8
15
6
2
3
Fig.1
► 1. Lock lever 2. Adjusting hex bolt 3. Stopper block
4. Adjusting knob 5. Depth pointer 6. Stopper pole
7. Stopper pole setting nut 8. Fast-feed button
1. Place the tool on a at surface. Loosen the lock
lever and lower the tool body until the router bit just
touches the at surface. Tighten the lock lever to lock
the tool body.
2. Turn the stopper pole setting nut counterclock-
wise. Lower the stopper pole until it makes contact
with the adjusting hex bolt. Align the depth pointer with
the "0" graduation. The depth of cut is indicated on the
scale by the depth pointer.
3. While pressing the fast-feed button, raise the
stopper pole until the desired depth of cut is obtained.
Minute depth adjustments can be obtained by turning
the adjusting knob (1 mm per turn).
4. By turning the stopper pole setting nut clockwise,
you can fasten the stopper pole rmly.
5. Now, your predetermined depth of cut can be
obtained by loosening the lock lever and then lowering
the tool body until the stopper pole makes contact with
the adjusting hex bolt of the stopper block.

6ENGLISH
Nylon nut
CAUTION: Do not lower the nylon nut too low.
The router bit will protrude dangerously.
The upper limit of the tool body can be adjusted by
turning the nylon nut.
1
Fig.2
► 1. Nylon nut
Stopper block
CAUTION: Since excessive cutting may cause
overload of the motor or di󰀩culty in controlling the
tool, the depth of cut should not be more than 15 mm at
a pass when cutting grooves with an 8 mm diameter bit.
CAUTION: When cutting grooves with a 20
mm diameter bit, the depth of cut should not be
more than 5 mm at a pass.
CAUTION: For extra-deep grooving operations, make
two or three passes with progressively deeper bit settings.
As the stopper block has three adjusting hex bolts which
raise or lower 0.8 mm per turn, you can easily obtain three
di󰀨erent depths of cut without readjusting the stopper pole.
1
2
3
Fig.3
►
1. Stopper pole 2. Adjusting hex bolt 3. Stopper block
Adjust the lowest adjusting hex bolt to obtain the deepest depth
of cut, following the method of "Adjusting the depth of cut".
Adjust the two remaining adjusting hex bolts to obtain shallower
depths of cut. The di󰀨erences in height of these adjusting hex
bolts are equal to the di󰀨erences in depths of cut.
To adjust the adjusting hex bolts, turn the adjusting hex
bolts with a screwdriver or wrench. The stopper block is
also convenient for making three passes with progres-
sively deeper bit settings when cutting deep grooves.
Switch action
CAUTION: Before plugging in the tool, always
check to see that the switch trigger actuates properly
and returns to the "OFF" position when released.
CAUTION: Make sure that the shaft lock is
released before the switch is turned on.
To prevent the switch trigger from being accidentally
pulled, a lock button is provided.
1
2
Fig.4
► 1. Lock button 2. Switch trigger
To start the tool, depress the lock button and pull the
switch trigger. Release the switch trigger to stop.
For continuous operation, depress the lock button fur-
ther while the switch trigger is being pulled.
To stop the tool, pull the switch trigger so that the lock but-
ton returns automatically. Then release the switch trigger.
After releasing the switch trigger, the lock-o󰀨 function
works to prevent the switch trigger from being pulled.
CAUTION: Hold the tool rmly when turning
o󰀨 the tool, to overcome the reaction.
Electronic function
The tool is equipped with the electronic functions for easy operation.
Indication lamp
1
Fig.5
► 1. Indication lamp
The indication lamp lights up green when the tool is plugged. If the
indication lamp does not light up, the mains cord or the controller may
be defective. The indication lamp is lit but the tool does not start even
if the tool is switched on, the carbon brushes may be worn out, or the
controller, the motor or the ON/OFF switch may be defective.

7ENGLISH
Unintentional restart proof
The tool does not start with the switch trigger pulled
even when the tool is plugged.
At this time, the indication lamp blinks in red and shows
the unintentional restart proof device is on function.
To cancel the unintentional restart proof, release the
switch trigger.
Soft start feature
Soft-start feature minimizes start-up shock, and makes
the tool start smoothly.
Constant speed control
Only for model RP2302FC, RP2303FC
Possible to get ne nish, because the rotating speed is
kept constant even under the loaded condition.
Speed adjusting dial
Only for model RP2302FC, RP2303FC
WARNING: Do not use the speed adjusting
dial during operation. The router bit can be touched
by the operator because of reaction force. This may
result in personal injury.
NOTICE: If the tool is operated continuously
at low speeds for a long time, the motor will get
overloaded, resulting in tool malfunction.
NOTICE: The speed adjusting dial can be turned
only as far as 6 and back to 1. Do not force it past
6 or 1, or the speed adjusting function may no
longer work.
The tool speed can be changed by turning the speed
adjusting dial to a given number setting from 1 to 6.
1
Fig.6
► 1. Speed adjusting dial
Higher speed is obtained when the dial is turned in the
direction of number 6. And lower speed is obtained
when it is turned in the direction of number 1.
This allows the ideal speed to be selected for optimum
material processing, i.e. the speed can be correctly
adjusted to suit the material and bit diameter.
Refer to the table for the relationship between the num-
ber settings on the dial and the approximate tool speed.
Number min-1
19,000
211,000
314,000
417,000
520,000
623,000
Lighting up the lamps
Only for model RP1802F, RP1803F, RP2302FC,
RP2303FC
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch trigger to turn on the light. The lamp
keeps on lighting while the switch trigger is being pulled.
The lamp turns o󰀨 approximately 10 seconds after
releasing the trigger.
1
Fig.7
► 1. Lamp
NOTE: Use a dry cloth to wipe the dirt o󰀨 the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before carrying out
any work on the tool.
Installing or removing the router bit
CAUTION: Install the router bit securely.
Always use only the wrench provided with the
tool. A loose or overtightened router bit can be
dangerous.
NOTICE: Do not tighten the collet nut without
inserting a router bit or install small shank bits
without using a collet sleeve. Either can lead to
breakage of the collet cone.

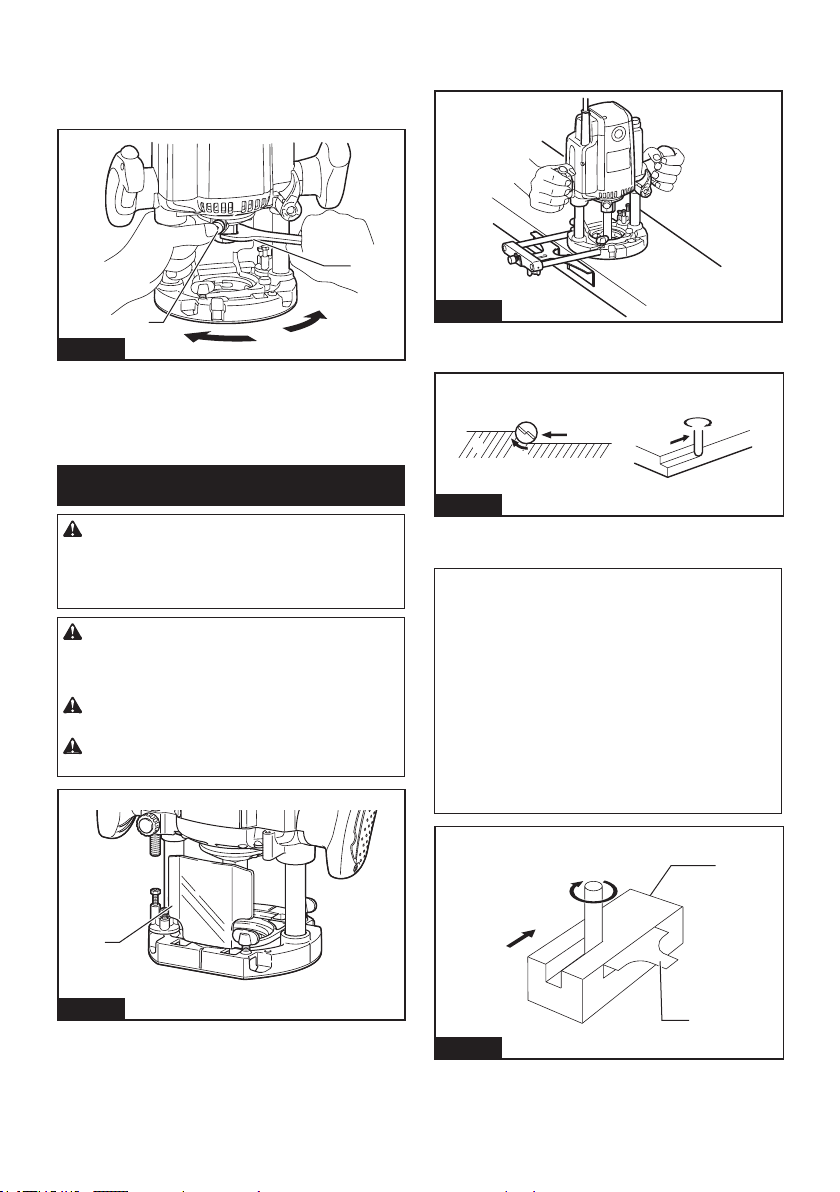

8ENGLISH
1. Insert the router bit all the way into the collet cone.
2.
Press the shaft lock to keep the shaft stationary and use
the wrench to tighten the collet nut securely. When using router
bits with smaller shank diameter, rst insert the appropriate
collet sleeve into the collet cone, then install the router bit.
1
2
3
4
Fig.8
► 1. Shaft lock 2. Wrench 3. Loosen 4. Tighten
To remove the router bit, follow the installation proce-
dure in reverse.
OPERATION
WARNING: Before operation, always make
sure that the stopper pole is secured rmly by the
stopper pole setting nut. Otherwise the depth of
cut may change during operation and cause personal
injury.
CAUTION: Before operation, always make sure
that the tool body automatically rises to the upper
limit and the router bit does not protrude from the
tool base when the lock lever is loosened.
CAUTION: Always use both grips and rmly
hold the tool by both grips during operations.
CAUTION: Before operation, always make
sure that the chip deector is installed properly.
1
Fig.9
► 1. Chip deector
1. Set the base on the workpiece to be cut without
the router bit making any contact.
2. Turn the tool on and wait until the router bit attains
full speed.
3. Lower the tool body and move the tool forward
over the workpiece surface, keeping the base ush and
advancing smoothly until the cutting is complete.
Fig.10
When doing edge cutting, the workpiece surface should
be on the left side of the router bit in the feed direction.
1
2
3
44
2
Fig.11
► 1. Workpiece 2. Bit revolving direction 3. View from
the top of the tool 4. Feed direction
NOTE: Moving the tool forward too fast may cause
a poor quality of cut, or damage to the router bit or
motor. Moving the tool forward too slowly may burn
and mar the cut. The proper feed rate will depend on
the router bit size, the kind of workpiece and depth
of cut.
Before beginning the cut on the actual workpiece, it
is advisable to make a sample cut on a piece of scrap
lumber. This will show exactly how the cut will look as
well as enable you to check dimensions.
NOTE: When using the straight guide or the trimmer
guide, be sure to install it on the right side in the feed
direction. This will help to keep it ush with the side of
the workpiece.
1
23
4
Fig.12
► 1. Feed direction 2. Bit revolving direction
3. Workpiece 4. Straight guide

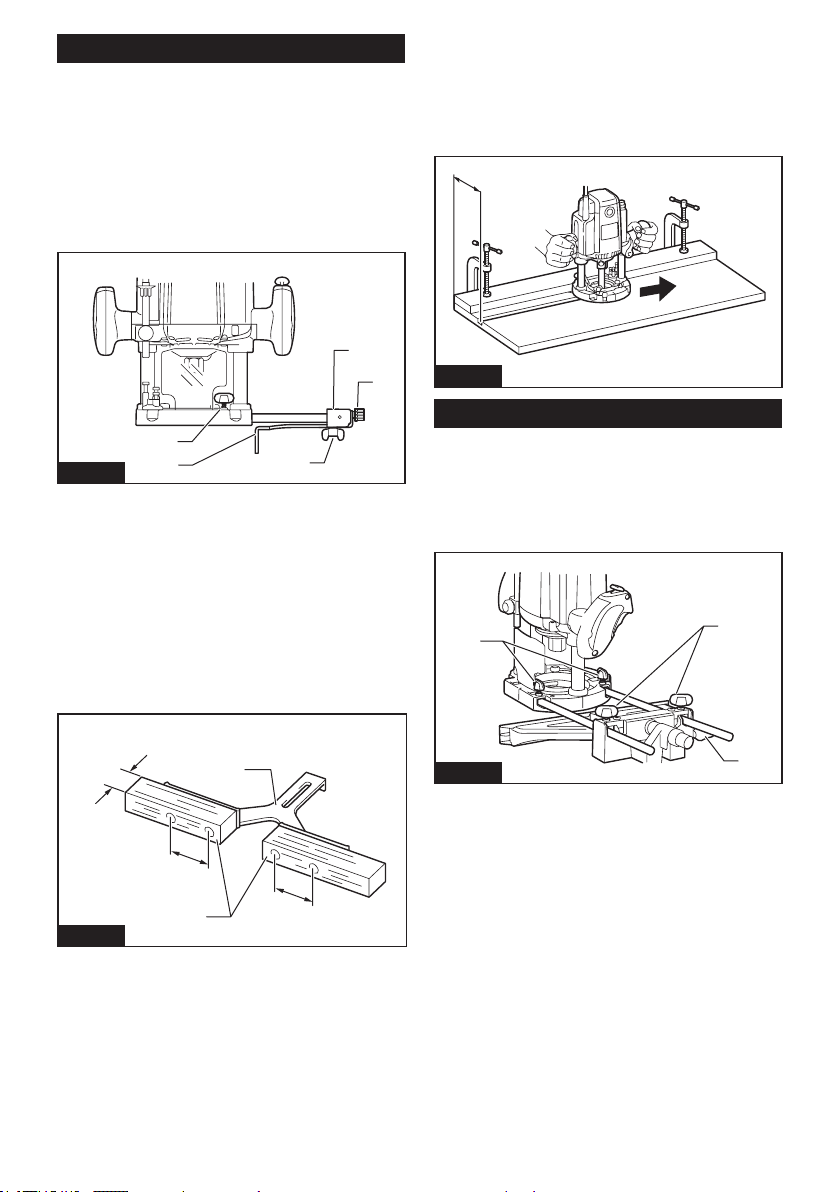

9ENGLISH
Straight guide
The straight guide is e󰀨ectively used for straight cuts
when chamfering or grooving.
1. Install the straight guide on the guide holder using
the clamping screw (B). Insert the guide holder into the
holes in the tool base and tighten the clamping screw
(A). To adjust the distance between the router bit and
the straight guide, loosen the clamping screw (B) and
turn the ne adjusting screw (1.5 mm per turn). At the
desired distance, tighten the clamping screw (B) to
secure the straight guide in place.
1
2
3
4
5
Fig.13
► 1. Clamping screw (A) 2. Straight guide 3. Guide
holder 4. Fine adjusting screw 5. Clamping screw
(B)
2. When cutting, move the tool with the straight guide
ush with the side of the workpiece.
Wider straight guide of desired dimensions may be
made by using the convenient holes in the guide to bolt
on extra pieces of wood.
When using a large diameter router bit, attach pieces
of wood to the straight guide which have a thickness of
more than 15 mm (5/8″) to prevent the router bit from
striking the straight guide.
C1
A
B
2
Fig.14
► 1. Straight guide 2. Wood
A=55 mm (2-3/16″)
B=55 mm (2-3/16″)
C=15 mm (5/8″) or thicker
If the distance between the side of the workpiece and
the cutting position is too wide for the straight guide, or
if the side of the workpiece is not straight, the straight
guide cannot be used. In this case, rmly clamp a
straight board to the workpiece and use it as a guide
against the base. Feed the tool in the direction of the
arrow.
Fig.15
Fine adjusting straight guide
Optional accessory
Insert the two rods into the outer mounting slots of the
guide holder, and secure them by tightening the two
clamping screws (B). Make sure that the thumb screw
(A) is tightened down, insert the two rods into the base,
and tighten the clamping screws (A).
1
2
3
Fig.16
► 1. Clamping screw (B) 2. Thumb screw (A)
3. Clamping screw (A)

10 ENGLISH
Fine adjusting function for positioning
blade in relation to straight guide
1
2
3
Fig.17
►
1. Thumb screw (A) 2. Thumb screw (B) 3. Scale ring
1. Loosen the thumb screw (A).
2. Turn the thumb screw (B) to adjust position (one
turn adjusts the position by 1 mm) as necessary.
3. Tighten the thumb screw (A) until it is secured.
Scale ring can be rotated separately, so scale unit can
be aligned to zero (0).
Adjusting guide shoe width
Loosen the screws marked by the circles to alter the
width of the straight guide. After altering width, tighten
the screws until they are secured.
Guide shoe width alteration range is 280 mm to 350 mm.
1
Fig.18
► 1. Screw
When set to minimum opening width
Fig.19
When set to maximum opening width
Fig.20
Templet guide
Optional accessory
The templet guide provides a sleeve through which the
router bit passes, allowing use of the router with templet
patterns.
Fig.21
1. Pull the lock plate lever and insert the templet
guide.
1
2
Fig.22
► 1. Templet guide 2. Lock plate lever

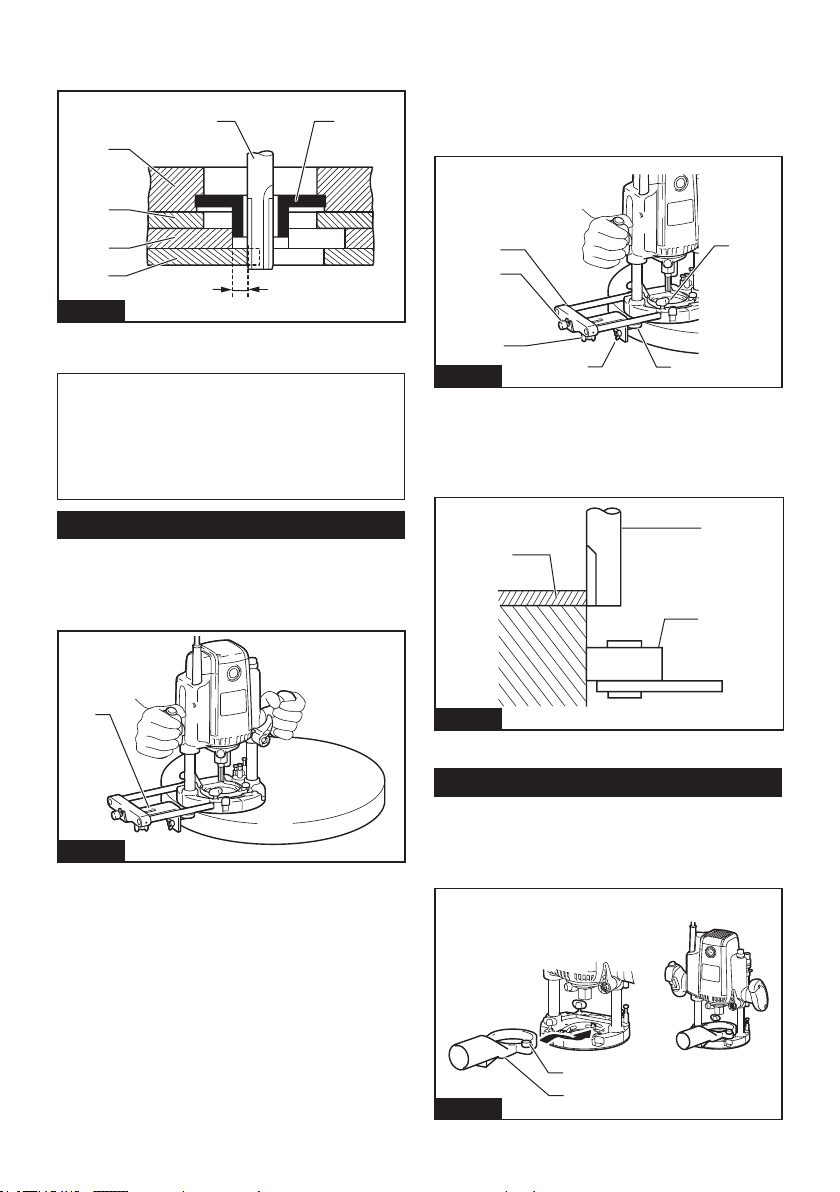

11 ENGLISH
2. Secure the templet to the workpiece. Place the
tool on the templet and move the tool with the templet
guide sliding along the side of the templet.
1
2
3
5
6
4
(X)
Fig.23
► 1. Router bit 2. Base 3. Base plate 4. Templet
5. Workpiece 6. Templet guide
NOTE: The workpiece will be cut a slightly di󰀨erent
size from the templet. Allow for the distance (X)
between the router bit and the outside of the templet
guide. The distance (X) can be calculated by using
the following equation:
Distance (X) = (outside diameter of the templet
guide - router bit diameter) / 2
Trimmer guide
Optional accessory
Trimming, curved cuts in veneers for furniture and the
like can be done easily with the trimmer guide. The
guide roller rides the curve and assures a ne cut.
1
Fig.24
► 1. Trimmer guide
Install the trimmer guide on the guide holder using the clamp-
ing screw (D). Insert the guide holder into the holes in the tool
base and tighten the clamping screw (A). To adjust the distance
between the router bit and the trimmer guide, loosen the clamping
screw (D) and turn the ne adjusting screw (1.5 mm per turn).
When adjusting the guide roller up or down, loosen the clamping
screw (C). After adjusting, tighten all the clamping screws securely.
1
2
3
45
6
Fig.25
► 1. Guide holder 2. Fine adjusting screw 3. Clamping
screw (D) 4. Clamping screw (C) 5. Guide roller
6. Clamping screw (A)
When cutting, move the tool with the guide roller riding
the side of the workpiece.
3
1
2
Fig.26
► 1. Router bit 2. Guide roller 3. Workpiece
Dust nozzle sets
Use the dust nozzle for dust extraction.
1. Install the dust nozzle on the tool base using the
thumb screw so that protrusion on the dust nozzle t to
the notch in the tool base.
1
2
Fig.27
► 1. Dust nozzle 2. Thumb screw

12 ENGLISH
2. Connect a vacuum cleaner to the dust nozzle.
Fig.28
How to use screw M6 x 135 for
adjusting the depth of cut
When using the tool with a router table available in the
market, using this screw allows an operator to obtain
a small amount of adjustment of the depth of cut from
above the table.
Installing the screw with washer on
the tool
Insert the screw with washer through a screw hole on
the tool base and then screw in the threaded part of
the motor bracket of the tool. At this time, apply some
grease or lubricating oil to the inside of the screw hole
on the tool base and the threaded part of the motor
bracket.
2
1
Fig.29
► 1. Flat washer 6 2. Screw M6 x 135
1
Fig.30
► 1. Screw M6 x 135 in a screw hole
1
2
Fig.31
► 1. Screw M6 x 135 2. Threaded part of the motor
bracket
Adjusting the depth of cut
1. A small amount of depth of cut can be obtained
by turning this screw with a screwdriver from above the
table. (1.0 mm per a full turn)
2. Turning the screw clockwise makes the depth
of cut greater and turning the screw counterclockwise
makes the depth of cut smaller.
1
Fig.32
► 1. Screwdriver
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.

13 ENGLISH
Replacing carbon brushes
1
Fig.33
► 1. Limit mark
Check the carbon brushes regularly.
Replace them when they wear down to the limit mark.
Keep the carbon brushes clean and free to slip in the
holders. Both carbon brushes should be replaced at the
same time. Use only identical carbon brushes.
1. Use a screwdriver to remove the brush holder
caps.
2. Take out the worn carbon brushes, insert the new
ones and secure the brush holder caps.
1
Fig.34
► 1. Brush holder cap
Only for model RP1803, RP1803F, RP2303FC
After replacing brushes, plug in the tool and break in
brushes by running tool with no load for about 10 min-
utes. Then check the tool while running and electric
brake operation when releasing the switch trigger.
If electric brake is not working well, ask your local
Makita service center for repair.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Straight & groove forming bits
• Edge forming bits
• Laminate trimming bits
• Straight guide
• Trimmer guide
• Guide holder
• Templet guides
• Templet guide adapter
• Lock nut
• Collet cone
• Collet sleeve
• Wrench
• Dust nozzle set
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨er from country to country.

14 ENGLISH

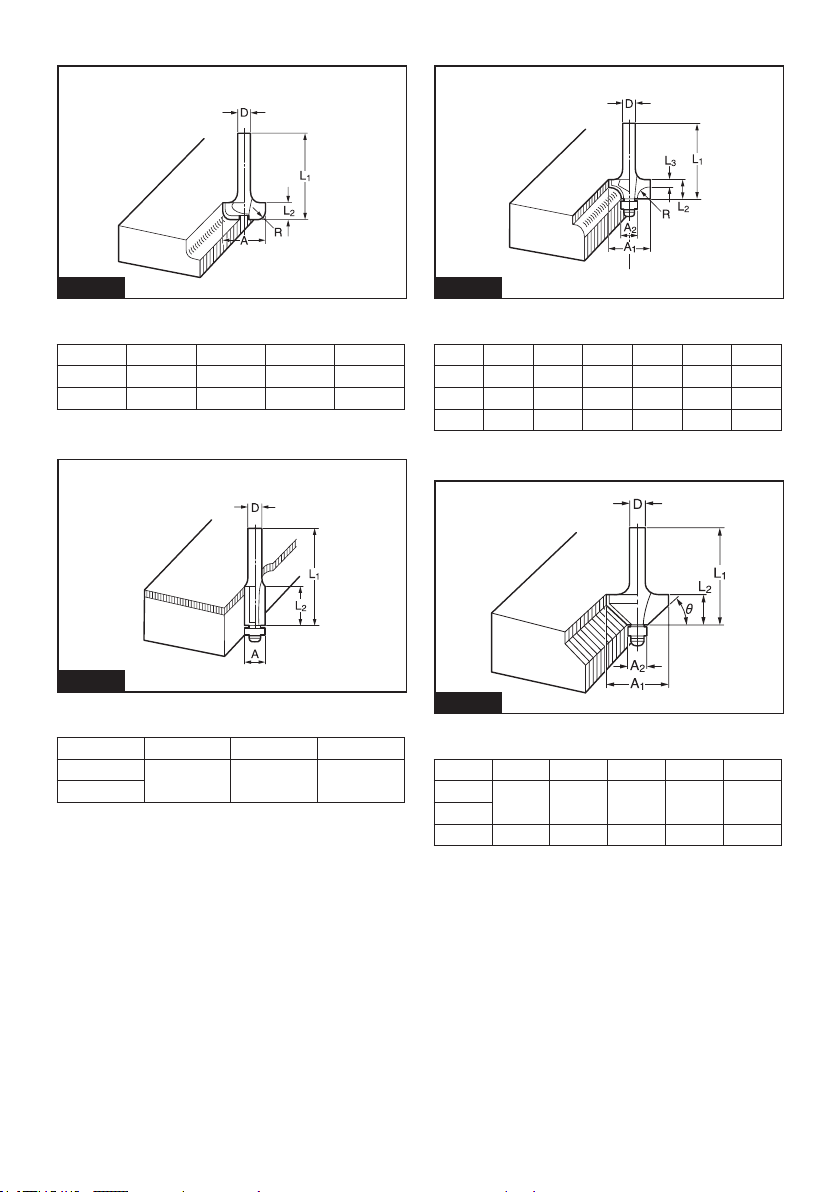

Router bits
Straight bit
Fig.35
Unit:mm
D A L1 L2
620 50 15
1/4″
12 12 60 30
1/2″
12 10 60 25
1/2″
8 8 60 25
6 8 50 18
1/4″
6 6 50 18
1/4″
“U”Grooving bit
R
Fig.36
Unit:mm
D A L1 L2 R
6 6 50 18 3
“V”Grooving bit
Fig.37
Unit:mm
D A L1 L2 θ
1/4″ 20 50 15 90°
Drill point ush trimming bit
Fig.38
Unit:mm
D A L1 L2 L3
12 12 60 20 35
8 8 60 20 35
6 6 60 18 28

15 ENGLISH
Drill point double ush trimming bit
Fig.39
Unit:mm
D A L1 L2 L3 L4
6 6 70 40 12 14
Board-jointing bit
Fig.40
Unit:mm
DA1 A2 L1 L2 L3
12 38 27 61 420
Corner rounding bit
Fig.41
Unit:mm
DA1 A2 L1 L2 L3 R
625 948 13 5 8
620 845 10 4 4
Chamfering bit
Fig.42
Unit:mm
D A L1 L2 L3 θ
623 46 11 630°
620 50 13 545°
620 49 14 260°

16 ENGLISH
Cove beading bit
Fig.43
Unit:mm
D A L1 L2 R
620 43 8 4
625 48 13 8
Ball bearing ush trimming bit
Fig.44
Unit:mm
D A L1 L2
610 50 20
1/4″
Ball bearing corner rounding bit
Fig.45
Unit:mm
DA1 A2 L1 L2 L3 R
615 837 73.5 3
621 840 10 3.5 6
1/4″ 21 840 10 3.5 6
Ball bearing chamfering bit
Fig.46
Unit:mm
DA1 A2 L1 L2 θ
626 842 12 45°
1/4″
620 841 11 60°

17
Ball bearing beading bit
Fig.47
Unit:mm
DA1 A2 A3 L1 L2 L3 R
620 12 840 10 5.5 4
626 12 842 12 4.5 7
Ball bearing cove beading bit
Fig.48
Unit:mm
DA1 A2 A3 A4 L1 L2 L3 R
620 18 12 840 10 5.5 3
626 22 12 842 12 5 5
Ball bearing roman ogee bit
Fig.49
Unit:mm
DA1 A2 L1 L2 L3 R1 R2
620 840 10 4.5 2.5 4.5
626 842 12 4.5 3 6
ENGLISH

18

19

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885917B222
EN
20211030
