5302 IP Phone User Guide
4
Tips for your comfort and safety
Don't cradle the handset
Prolonged use of the handset can lead to neck, shoulder, or back discomfort, especially if you cradle the
handset between your ear and shoulder.
Protect your hearing
Your phone has a control for adjusting the volume of the handset receiver. Because continuous exposure
to loud sounds can contribute to hearing loss, keep the volume at a moderate level.
Supporting Documentation
To access other Mitel phone and peripheral documentation:
yPoint your browser to http://edocs.mitel.com/UG/Index.html
This Manual: http://www.manuallib.com/file/2618403

5302 IP Phone User Guide
5
About your phone
The Mitel 5302 IP Phone is a 2-line, dual port phone with dedicated keys that provide access to the
following features: Hold, Transfer and Redial. There are also four programmable keys. The 5302 IP Phone
has a speaker for paging purposes; LED’s and tones are used to provide feedback.

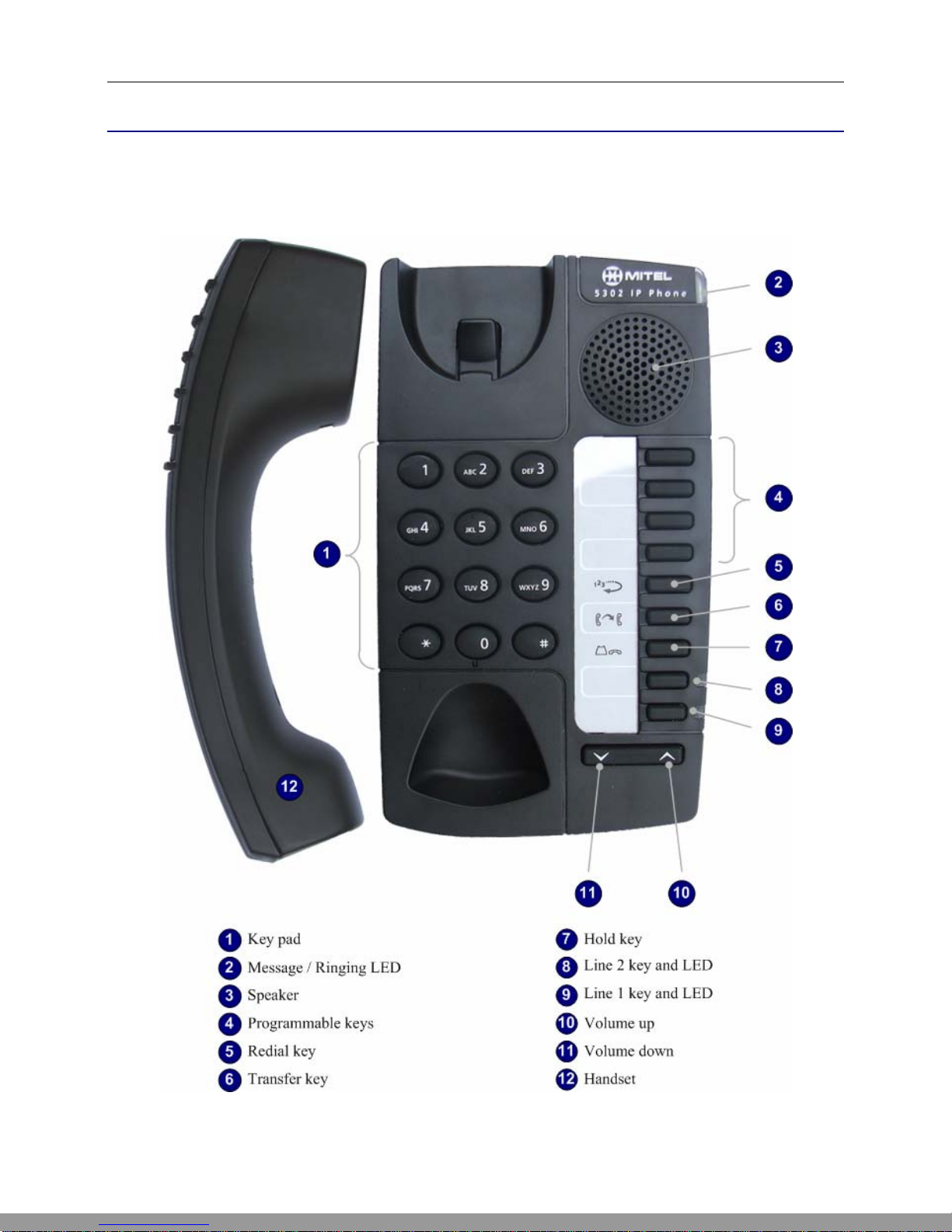

Figure 1 shows the physical layout of the phone.
Figure 1: Physical layout of the Mitel 5302 IP Phone
This Manual: http://www.manuallib.com/file/2618403

5302 IP Phone User Guide
6

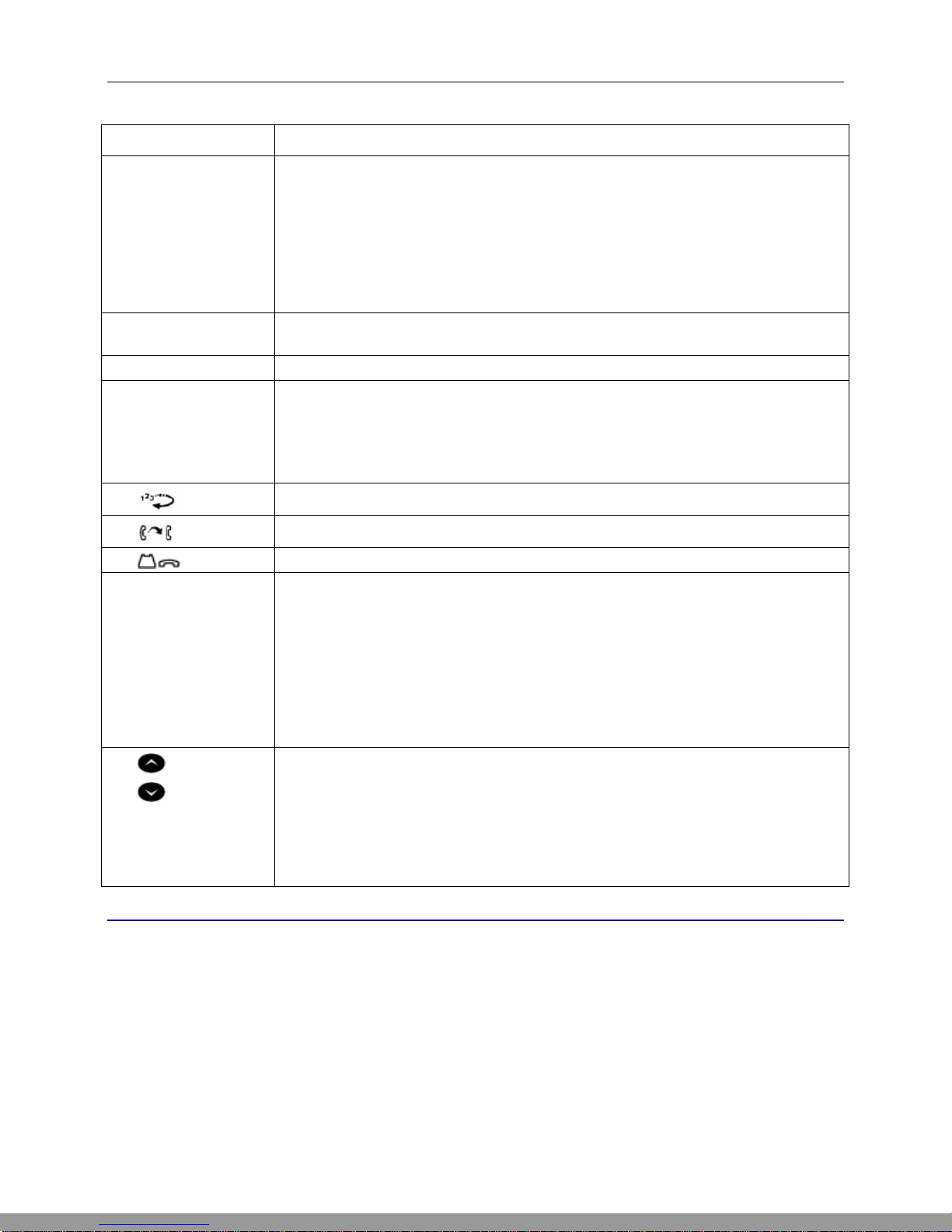

Elements of your phone
Element Function
1. Alphanumeric
keypad
There are 12 alphanumeric keys: the digits 0-9, * and #. These keys are used
for the following purposes:
yEntering a directory number (DN) and PIN during start up of an un-
initialized set
yDialing a number in order to establish an outgoing call.
yThe # is used for end of dialing sequence
ySending a DTMF tone to a remote party or parties.
2. Message / Ringing
LED Flashes to alert you to an incoming call or a voice message that is waiting for
retrieval.
3. Speaker Plays paging messages and ringing for incoming calls.
4. Four
programmable
keys
Four speed dial numbers (1-4) can be programmed for these keys. The
associated number (if one has been assigned) is automatically dialed by
pressing this key. One of the keys can also be used to dial the voice mail server
if its number is programmed to the key.
Contact your system administrator to have the keys programmed.
5. Redial key The Redial key is used to automatically redial the last number.
6. Transfer key The Transfer key is used to initiate a call transfer.
7. Hold key The Hold key is used to place an active call on hold.
8. Line 2 key
9. Line 1 key
The Line 1 and Line 2 keys select the primary and secondary lines of the phone.
A line is selected to:
yMake a call
yAnswer an incoming call on the line (if there is an active call on the other
line, it is automatically placed on hold)
yResume a held call
The LED associated with the key indicates the status of the line. See Indicator
Feedback of page 9 for more information.
10. Volume up
11. Volume down
The Volume up/down keys are used to increase/decrease the volume of the
following:
yRinger
yHandset
ySpeaker
There are 8 volume settings.
This Manual: http://www.manuallib.com/file/2618403

5302 IP Phone User Guide
7
Customizing your phone
The volume of the handset, speaker, and ringer can be changed using the volume up and down keys on
the phone (See number 10 and 11 in the above table). Pressing the volume up or down keychanges the
volumes as follows:
yIf the handset is on-hook, the ringer volume is adjusted while the set is ringing for an incoming call.
yIf a paging call is being played, the speaker volume is adjusted.
yIf the handset is off-hook, the handset volume is adjusted.
Call Handling Features
Making and answering calls
Line 1 is the primary line. If an incoming call is received and both lines are idle the call is presented on line
1. If the handset is lifted with both lines idle, line 1 is seized. Only if line 1 has been seized is a second
incoming call presented on line 2, or an outgoing call established on line 2. A call made from line 1 or line
2 will display the same name and number on the called party’s phone.
On incoming calls, the line LED and Message / Ringing LED will flash.
Make a call
1. Lift the handset.
2. Do one of the following:
yDial the number* or
yPress a programmable key or
yPress (Redial key).
yPress the # key to indicate the end of dialing or wait for the called party to connect.
Answer a call
lift the handset. If a call is received while the handset is offhook, press the ringing line key.
If there is an active call on the other line it will automatically be placed on hold.
Place a call on Hold
The Hold key is used to place an active call on hold.
To place a call on Hold:
•While in an active call press ( Hold key ).
To retrieve a call from Hold:
1. Lift the handset (if on-hook).
2. Press the flashing line key (if off-hook).
To toggle between calls:
yPress the flashing line key. The active call is automatically placed on on hold.
This Manual: http://www.manuallib.com/file/2618403

5302 IP Phone User Guide
8
Transfer a call
To Transfer a call:
1. Press (Transfer key).
2. Dial the number of the third party (the first call is placed on hold).
3. Wait for ring-back tone.
4. Hang up to complete the transfer, or
5. Wait for third party to answer, announce the call and then hang up.
To cancel a transfer and return to the first party:
yPress ##.
Conferencing
To establish a conference:
1. While on a call press (Transfer key).
2. Dial the number of the third party.
3. Wait for the third party to answer the call.
4. Press (Transfer key).
5. Dial the conference feature access code (FAC). Please contact your system administrator to obtain
the FAC.
Voice Messages
The Message / Ringing LED is used to indicate that your have a new message in your voicemail box.
To retrieve a voicemail message:
1. Lift the handset.
2. Dial the voicemail number or
3. Press the associated programmed key (if configured by your system administrator )
Direct Paging/Group Paging
Direct Paging allows you to page another telephone over its built-in speaker,.A Group Paging pages two
or more telephones at the same time.
An incoming page is automatically answered and is indicated by a special tone and flashing Line and
Message / Ringing LEDs.
Initiating a Direct Page
1. Lift the handset
2. Dial the Direct or Group Page feature access code (FAC). Please contact your system administrator
to obtain the FAC.
3. Wait for ringback and announce the page.
This Manual: http://www.manuallib.com/file/2618403

5302 IP Phone User Guide
9
Phone Status: Audio/Visual Feedback
The status of the 5302 phone is provided by the LEDs and tones played either through the handset or
speaker.
LED Feedback:.
LED Off On (Solid) Blinking slowly Blinking quickly
Message /
Ringing No voice messages in
your mailbox,
and no
incoming call.
Not Applicable There is an incoming
call. Ringing indication
takes precedence
over voice message
indication.
There is a new
message in your
voicemail box.
Line 1 Line 1 is idle. There is an active call
on Line 1 or Line 1
has been seized to
place an outgoing call.
There is an incoming
call on Line 1. There is a held call on Line 1.
Line 2 Line 2 is idle. There is an active call
on Line 2 or Line 2
has been seized to
place an outgoing call.
There is an incoming
call on Line 2. There is a held call on Line 2.
Tone Feedback
Tone Name Is heard when…
Error tone you press a programmable key that has not been configured by your System
Administrator
Busy tone a called party is busy.
Re-Order tone an incorrect number has been dialed..
Ring-back tone a called party is ringing.
Ring tone there is an incoming call
Paging tone a page is received.
TM, ® Trademark of Mitel Networks Corporation.
