USER GUIDE
MULTI-UNIT CHARGER
PMPN4156
en-US fr-CA
de-DE fr-FR
es-LA pt-BR
it-IT nl-NL
zh-CN ja-JP
ru-RU uk-UA
ko-KR
MN003509A01.book Page 0 Wednesday, January 6, 2021 4:04 PM

MN003509A01.book Page 1 Wednesday, January 6, 2021 4:04 PM

3
English
IMPORTANT
SAFETY INSTRUCTIONS
Save This Instructions
This document contains important safety and operating instructions.
Please read these instructions carefully and save them for future
reference.
Before using the battery charger, read all the instructions and
cautionary markings on (1) the charger, (2) the battery, and (3) the
radio using the battery.
1. To reduce risk of damage to the power supply electric
plugs and cords, pull the plug rather than the cord
when disconnecting from the AC outlet or the charger.
2. An extension cord should not be used unless
absolutely necessary. Use of an improper extension
cord could result in risk of fire and electric shock. If an
extension cord must be used, make sure that the cord size is
18 AWG for lengths of up to 6.5 feet (2.0 m), and 16 AWG for
lengths up to 9.8 feet (3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the
charger if it has been broken or damaged in any way. Take it to a
qualified Motorola Solutions service representative.
4. Do not disassemble the charger. It is not repairable and
replacement parts are not available. Disassembly of the charger
may result in risk of electric shock or fire.
5. To reduce risk of electric shock, unplug the charger power supply
from the AC outlet before attempting any maintenance or
cleaning.
6. To reduce risk of injury, charge only the rechargeable Motorola
Solutions Authorized Batteries listed in Table 14. Other batteries
may explode, causing personal injury and damage.
7. Use of accessories not recommended by Motorola Solutions may
result in risk of fire, electric shock, or injury.
WARNING
MN003509A01.book Page 3 Wednesday, January 6, 2021 4:04 PM

4
English
Operational Safety Guidelines
• This equipment is not suitable for outdoor use. Use only in dry
locations and conditions.
• Maximum ambient temperature around the charger must not exceed
40 °C (104 °F).
• The radio can be in ON only when the radio is transmitting data
wirelessly, such as using Wi-Fi. Otherwise, turn OFF the radio.
• Connect the charger only to an appropriate power supply as listed in
Table 15.
• The AC outlet to which the power supply is connected should be
close and easily accessible.
• Make sure the power supply cord to the charger is located where it
will not be stepped on, tripped over, or subjected to water, damage,
or stress.
• Connect the power cord only to an appropriately fused and wired
AC outlet with the correct voltage, as specified on the product.
• Disconnect from line voltage by removing the power cord from the
AC outlet.
• Multi-Unit Chargers will charge the batteries listed in Table 14, when
used in conjunction with Pockets in Table 2.
MN003509A01.book Page 4 Wednesday, January 6, 2021 4:04 PM

5
English
Supported Models
Table 1: Multi-Unit Charger.
Table 2: Multi-Unit Charger Pockets
(compatible with charger(s) in Table 1).
Kit Number Description Type Display Charging
Pockets
Communication
Module
PMPN4156_
MTP6000/MTP3000
Series Multi-Unit
Charger
IMPRES
21-Display 12 Devices/ 6 Batteries
Charger
Reprogramming
and Fleet
Management
Part Number Description
AS000060A01 Insert for Radio with IMPRES 2 Device, iTM Tri-Unit Charger
AS000061A01 Insert for Radio Battery with IMPRES 2 Device, iTM Tri-Unit
Charger
MN003509A01.book Page 5 Wednesday, January 6, 2021 4:04 PM

6
English
Charger, Pocket, and Communications Module
The Standard Multi-Unit Charger System charges wide variety of
battery types for Motorola Solutions batteries. It has pocket that
accommodates either a radio with attached battery or a stand-alone
battery.
The IMPRES 2™ Adaptive Charger System is a fully automated
IMPRES 2 battery care system that is equipped with additional
features:
• Adaptive charging to accommodate a wide variety of battery types,
including IMPRES 2, IMPRES™, and other authentic Motorola
Solutions batteries.
• Communications Module
- Programming for charger reprogramming.
- IMPRES battery data upload to an IMPRES Battery Fleet
Management System.
- iTM communication through USB hub.
• Keypad Menu
- Charger Setup.
- Battery Analysis.
• Information Display on Pocket #1.
• Energy Efficiency Features
- European Standby Current Limits (European Charger Kit): The
Charger Pockets will automatically turn off when there is no
activity for a period of time, but pressing any Keypad button will
re-power these pockets.
- Compliant with California Energy Commission appliance
standards for small battery charging systems. The Charger
Pockets will automatically sleep, then wake to respond to user
action, or to a service a battery in the pocket.
• Preparation of a battery for a long-term storage.
• Preparation of a Lithium-ion battery for shipment.
MN003509A01.book Page 6 Wednesday, January 6, 2021 4:04 PM

7
English
There are additional advantages when charging an IMPRES 2
Lithium-ion battery with an IMPRES 2 Adaptive Charger:
• Higher-rate IMPRES 2 Lithium-ion battery charging.
• Faster charging.
• Extended life cycle.
This feature combination is unique in a desktop charger. Therefore,
operation of the radio with a battery attached while in the charger is not
recommended.
During the charging process, radio operation may result in minimally
reduced radio performance and extended battery charge time.
During Calibration / Reconditioning, the battery is fully discharged
before being fully charged. As a result, the radio may shut down during
the discharge phase.
MN003509A01.book Page 7 Wednesday, January 6, 2021 4:04 PM

8
English

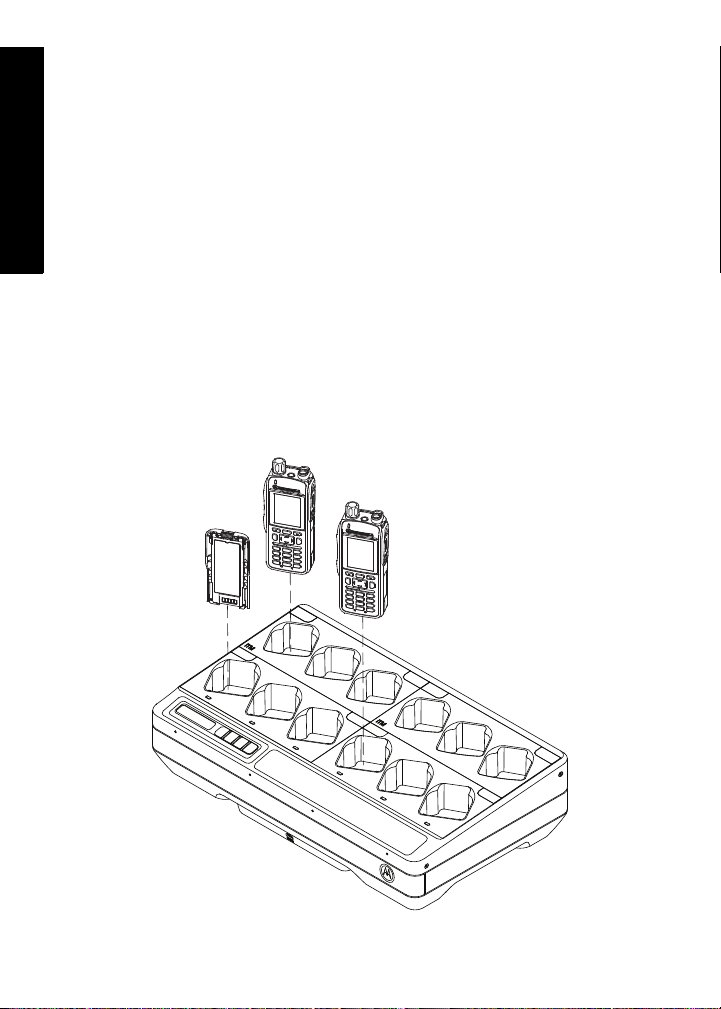

Charger Overview
1 - 6 Front Row Pockets
Radio with attached Battery or Battery Alone.
7 - 12 Back Row Pockets
Radio with attached Battery.
13 Display
Chargers only have a display for Front Row Pocket #1.
14 Keypad - Menu Selection
Menu selections are displayed only on the Front Row Pocket #1 Display.
15 Charger Status LED
Each Front Row has a Charge Status LED.
16
Communications Interface
Interface supports charger reprogramming and data upload to an IMPRES™
Battery Fleet Management System and iTM communication through USB hub.
17 Power Connector Inlet
Compatible with Power Supply per Table 4.
123 456
789 10
11 12 16
17
13 14 15
MN003509A01.book Page 8 Wednesday, January 6, 2021 4:04 PM

9
English
IMPRES 2 and IMPRES Batteries and Chargers
Features and Benefits
The IMPRES energy solution is an advanced Tri-Chemistry energy
system developed by Motorola Solutions. This system includes:
1. IMPRES Batteries
2. IMPRES Adaptive Charger
3. IMPRES Radios
Charging IMPRES batteries using an IMPRES Adaptive Charger, with
the charger periodically Calibrating / Reconditioning the battery, yields
the following benefits:
• Extends battery life cycle.
• Measures battery capacity, giving the Radio user an indication of
effective use time.
• Determines the current battery state of charge, giving the Radio user
an indication of effective use time.
• Monitors the IMPRES battery usage pattern.
• Updates pattern information stored in the IMPRES battery.
• Automatically performs Calibration / Reconditioning only as needed.
• Minimizes IMPRES battery heating, regardless of how long the
battery is left in the pocket.
• Periodically “tops off” a battery stored in the charger pocket,
maintaining a high state of readiness for the user.
• Eliminates Nickel battery memory effect, eliminating the need to
purchase special equipment or train personnel in tasks to maintain
battery life cycle.
Using this unique patented system, there is no need to track and
record IMPRES battery use, conduct manual Calibration /
Reconditioning, or remove batteries from chargers following
completion of charge.
MN003509A01.book Page 9 Wednesday, January 6, 2021 4:04 PM

10
English
IMPRES Battery Initialization
For full IMPRES functionality, a new IMPRES battery or
IMPRES 2 battery must be initialized by the charger. The charger
automatically detects the new IMPRES or IMPRES 2 battery, and
automatically starts Initialization. Initialization is the first IMPRES
battery Calibration / Reconditioning. This is a two-phase process. The
first phase is Battery Discharge, indicated by the Status LED in Steady
Amber. The second phase is full charge, eventually indicated by
Steady Green LED. This process may take up to 12 hours or more to
complete, depending on the state of charge and capacity of the battery.
Interruption of either phase delays Initialization until the next charging
opportunity.
Automatic IMPRES Battery Calibration / Reconditioning
The IMPRES 2 charger automatically assesses the condition of an
IMPRES or IMPRES 2 battery. Based on this condition, the charger
automatically calibrates / reconditions the battery. Interruption of either
the discharge phase or the full charge phase delays Calibration until
the next charging opportunity.
Calibration / Reconditioning may be enabled or disabled using Charger
Setup Mode. When disabled and the IMPRES battery requires
Calibration / Reconditioning, the LED will indicate Alternating Amber /
Green at battery insertion and after the battery is charged.
Manually Initiating Calibration / Reconditioning
Though Calibration / Reconditioning is automatic, there may be
situations in which manual initiation is desired. To manually initiate
Calibration / Reconditioning, remove IMPRES or IMPRES 2 battery
from the charger. Then, perform the following steps:
1. Insert the battery into the charger pocket.
2. Within 2-1/2 minutes, remove the battery from the charger pocket.
3. Within 5 seconds, reinsert the battery into the charger pocket.
Calibration / Reconditioning starts immediately, typically beginning with
Battery Discharge (Steady Amber). Calibration / Reconditioning is
complete only after full charge (Steady Green).
MN003509A01.book Page 10 Wednesday, January 6, 2021 4:04 PM

11
English
Manually Terminating Calibration / Reconditioning
At any time during IMPRES or IMPRES 2 battery discharge (Steady
Amber), Calibration / Reconditioning may be terminated. Perform the
following steps:
1. Remove the battery from the charger pocket.
2. Within 5 seconds, reinsert the battery into the charger pocket.
Battery discharge immediately terminates, and Normal battery
charging starts. The LED indicates Charge Status.
End-of-Service-Life Indication
As batteries are used, normal wear reduces available capacity.
At the successful completion of Calibration / Reconditioning, IMPRES
chargers compare IMPRES battery capacity to the battery Rated
Capacity. When the capacity is at a very low value, the IMPRES battery
may be nearing its End of Service. The IMPRES battery remains
usable. In some scenarios, it may be desirable to deploy the battery to
someone who does not require large battery capacity to complete a
work shift.
Radio or Battery Charging Procedure
Batteries charge best at room temperature. Batteries may be attached
to a radio or stand-alone.
1. Place the Multi-Unit charger on a flat surface.
2. Firmly insert the power supply into the charger DC Inlet Socket at
the back of the charger.
3. Plug the power supply power cord into a matching power outlet.
4. On the IMPRES 2 Adaptive Multi-Unit Charger System, each
pocket Status LED will flash Green for one second and
“IMPRES 2 CHARGER” will be displayed upon successful
power-up. If the Status LED’s do not flash, and no message is
displayed, check power cord connections.
5. Insert the radio with battery or stand-alone battery into an available
pocket.
MN003509A01.book Page 11 Wednesday, January 6, 2021 4:04 PM

12
English
6. When the radio or stand-alone battery is properly seated in the
pocket:
• On the IMPRES 2 Adaptive System, charging status will be
indicated by the associated pocket Status LED. The Display of
IMPRES 2 charger provides charging status associated with
Pocket #1 only.
• When charging the radio, charging status will be indicated by the
radio display indicator, and the LED charging indicator on the
radio.
7. The radio or stand-alone battery is ready for use when the Charging
status is Steady Green.
8. While in the charger, the radio may be turned ON only when the
Communications Module is detached from the charger. Otherwise,
turn OFF the radio.
Note: Grip the radio body when inserting, or removing the radio from
the charger. Avoid pulling the radio antenna when removing the radio.
Figure 1: Charging procedures.
MN003509A01.book Page 12 Wednesday, January 6, 2021 4:04 PM

13
English
Display Messages and LED Indications

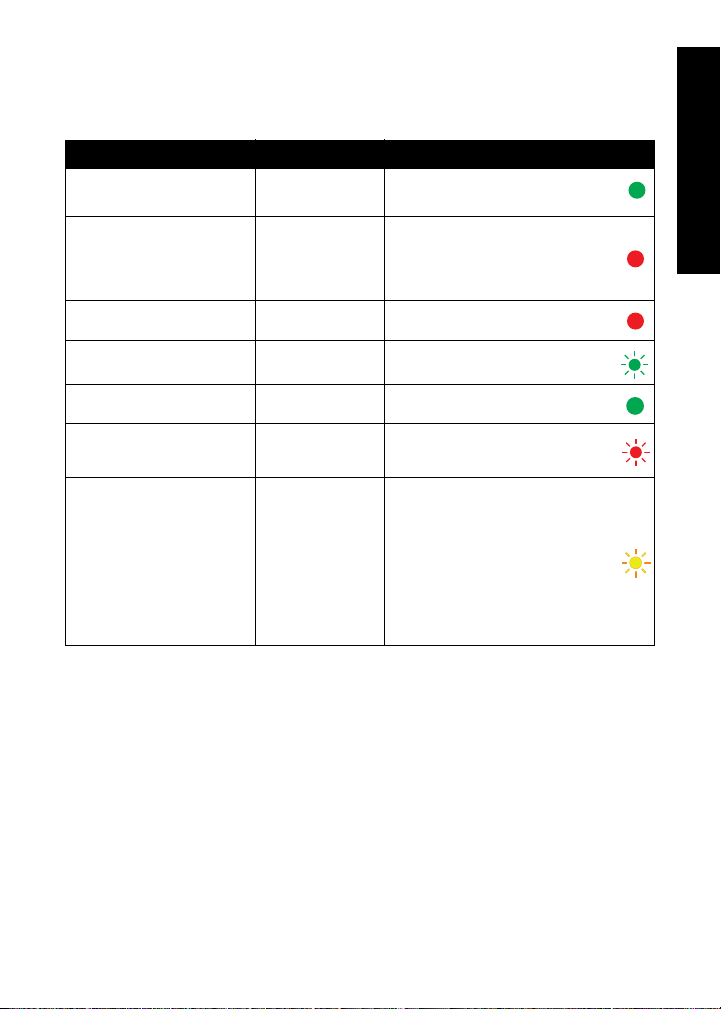

Table 3: Charging an IMPRES 2 or IMPRES Battery - Calibration not
Required.
Status Pocket Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected
IMPRES 2
BATTERY
or
IMPRES
BATTERY
Steady Red
Rapid Charging RAPID CHARGE
XXXX0mAh yyy%
Steady Red
Charged to 90% or more TRICKLE CHARGE
xxxx0mAh yyy%
Flashing Green
Charged to 95% or more CHARGE COMPLETE
xxxx0mAh yyy% Steady Green
Fault WARNING:
NOT CHARGEABLE
REMOVE & REINSERT
Flashing Red
Standby
• Battery is waiting to
rapid charge.
WARNING:
HOT BATTERY
WAITING TO CHRGE
OR
COLD BATTERY
WAITING TO CHRGE
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 13 Wednesday, January 6, 2021 4:04 PM

14
English
Table 4: IMPRES 2 or IMPRES Battery - Calibration / Reconditioning.
Status Pocket Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected
IMPRES 2
BATTERY
or
IMPRES
BATTERY
Steady Amber
Battery Discharging CAL DISCHARGE
xxxx0mAh yyy%
Steady Amber
Rapid Charging CAL RAPID CHARGE
xxxx0mAh yyy%
Steady Red
Charged to 90% or more CAL TRICKLE CHRGE
xxxx0mAh yyy%
Flashing Green
Charged to 95% or more CHARGE COMPLETE
xxxx0mAh yyy%
Battery Calibration successful:
Steady Green
Battery Calibration successful, but
may be nearing End of Service
(battery is usable):
Flashing Red / Green
Fault WARNING:
NOT CHARGEABLE
REMOVE & REINSERT
Flashing Red
Standby
• Battery is waiting to
rapid charge
WARNING:
HOT BATTERY
WAITING TO CAL
OR
COLD BATTERY
WAITING TO CAL
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 14 Wednesday, January 6, 2021 4:04 PM

15
English
Table 5: IMPRES 2 or IMPRES Battery - Calibration initially Disabled,
then Enabled.
Status Charger Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected
IMPRES 2
BATTERY
or
IMPRES
BATTERY
Battery requires Calibration, but
Calibration is disabled in charger:
Alternating Amber /
Green for 4 seconds
Requesting IMPRES
Battery Calibration
• Calibration is disabled in
charger.
• Charging Battery until
OK or time-out.
WARNING:
ENABLE BATTERY
CALIBRATION?
• Press OK to enable
Calibration
• Ignore for normal
charging (message
removed after
1 minute)
Steady Red
Battery Discharging
•OKselected
CAL DISCHARGE
xxxx0mAh yyy%
Steady Amber
Rapid Charging CAL RAPID CHARGE
xxxx0mAh yyy%
Steady Red
Charged to 90% or more CAL TRICKLE CHRGE
xxxx0mAh yyy%
Flashing Green
Charged to 95% or more CHARGE COMPLETE
xxxx0mAh yyy%
Battery Calibration successful:
Steady Green
Battery Calibration successful, but
may be nearing End of Service
(battery is usable):
Flashing Red / Green
Fault WARNING:
NOT CHARGEABLE
REMOVE& REINSERT
Flashing Red
MN003509A01.book Page 15 Wednesday, January 6, 2021 4:04 PM

16
English
Standby
• Battery is waiting to rapid
charge.
Before Calibration
Enabled:
WARNING:
HOT BATTERY
WAITING TO CHRGE
OR
COLD BATTERY
WAITING TO CHRGE
After Calibration
Enabled:
WARNING:
HOT BATTERY
WAITING TO CAL
OR
COLD BATTERY
WAITING TO CAL
Regardless of
Calibration Enabled /
Disabled:
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
Table 5: IMPRES 2 or IMPRES Battery - Calibration initially Disabled,
then Enabled. (Continued)
Status Charger Display LED Indicator
MN003509A01.book Page 16 Wednesday, January 6, 2021 4:04 PM

17
English

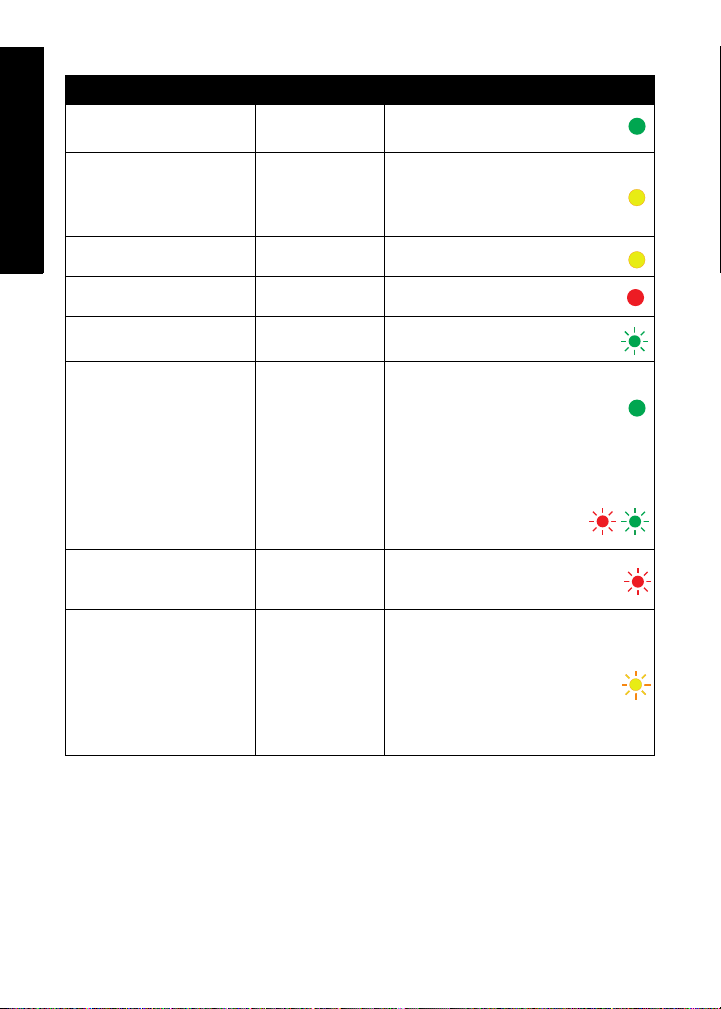

Table 6: Charging an IMPRES 2 or IMPRES Battery - Calibration
Required, but not Enabled.
Status Charger Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected
IMPRES 2
BATTERY
or
IMPRES
BATTERY
Battery requires Calibration, but
Calibration is disabled in charger:
Alternating Amber /
Green for 4 seconds
Requesting IMPRES
Battery Calibration
• Calibration is disabled in
charger.
• Charging Battery until
OK or time-out.
WARNING:
ENABLE BATTERY
CALIBRATION?
• Press OK to enable
Calibration.
• Ignore for normal
charging (message
removed after 1
minute).
Steady Red
Rapid Charging
• Request for Calibration
time-out.
RAPID CHARGE Steady Red
Charged to 90% or more TRICKLE CHARGE Flashing Green
Charged to 95% or more CHARGE COMPLETE Steady Green
Fault
WARNING:
NOT CHARGEABLE
REMOVE& REINSERT
Flashing Red
Standby
• Battery is waiting to rapid
charge
WARNING:
HOT BATTERY
WAITING TO CAL
OR
COLD BATTERY
WAITING TO CAL
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 17 Wednesday, January 6, 2021 4:04 PM

18
English
Other Motorola Solutions Batteries
Table 7: Charging Other Motorola Solutions Batteries.
Status Charger Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected MOTOROLA SOLUTNS
BATTERY
Steady Red
Rapid Charging RAPID CHARGE Steady Red
Charged to 90% or more TRICKLE CHARGE Flashing Green
Charged to 95% or more CHARGE COMPLETE Steady Green
Fault WARNING:
NOT CHARGEABLE
REMOVE & REINSERT
Flashing Red
Standby
• Battery is waiting to rapid
charge.
• Battery may be too hot,
too cold or low voltage.
WARNING:
HOT BATTERY
WAITING TO CHRGE
OR
COLD BATTERY
WAITING TO CHRGE
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 18 Wednesday, January 6, 2021 4:04 PM

19
English
Unknown Battery
Some Unknown Batteries may not be detectable by the charger.
Unknown Batteries do not declare charging parameters in a manner
recognizable by the charger. If an Unknown Battery is detected, then
the charger will indicate charging as summarized in Table 8.
Table 8: Charging an Unknown Battery.
Status Charger Display LED Indicator
Charger Powers On IMPRES 2
CHARGER
Green for approximately
1 second
Battery Detected UNKNOWN
BATTERY
Steady Red
Rapid Charging RAPID CHARGE Steady Red
Nearly Charged
• Battery Capacity
UNKNOWN TRICKLE CHARGE Flashing Green
Charged
• Battery Capacity
UNKNOWN
CHARGE COMPLETE Steady Green
Fault WARNING:
NOT CHARGEABLE
REMOVE & REINSERT
Flashing Red
Standby
• Battery is waiting to rapid
charge.
• Battery may be too hot,
too cold, or low voltage.
WARNING:
HOT BATTERY
WAITING TO CHRGE
OR
COLD BATTERY
WAITING TO CHRGE
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 19 Wednesday, January 6, 2021 4:04 PM

20
English
Battery Preparation for Long-Term Storage
Authentic Motorola Solutions Lithium-ion batteries may be prepared for
Long-Term Storage.
Table 9: Preparing an IMPRES 2 or IMPRES Battery for
Long-Term Storage.
Status Charger Display LED Indicator
Battery Insertion
Battery Discharging
STORAGE DISCHRGE
xxxx0mAh yyy%
Battery requires Calibration, but
Calibration is disabled in charger:
Alternating Amber /
Green for 4 seconds
Battery Discharging STORAGE DISCHRGE
xxxx0mAh yyy%
Steady Amber
Rapid Charging RAPID CHARGE
xxxx0mAh yyy%
Steady Red
Charge Complete
Ready to Ship LONGTERM STORAGE
xxxx0mAh yyy%
Battery does not require
Calibration:
Steady Green
Battery requires Calibration, but
Calibration is disabled in charger:
Alternating Amber /
Green
Fault WARNING:
NOT CHARGEABLE
REMOVE& REINSERT
Flashing Red
Standby
• Battery is waiting to rapid
charge.
• Battery may be too hot,
too cold, or low voltage.
WARNING:
HOT BATTERY
WAITING TO CHRGE
OR
COLD BATTERY
WAITING TO CHRGE
OR
VERY LOW BATTERY
WAITING TO CHRGE
Flashing Amber
MN003509A01.book Page 20 Wednesday, January 6, 2021 4:04 PM
