Motorola solutions IMPRES PMPN4527 User manual

IMPRES Adaptive Single
Unit Charger PMPN4527
User Guide
*MN007272A01*
MN007272A01-AB
APRIL 2023
© 2023 Motorola Solutions, Inc. All rights reserved
en-US fr-CA es-LA
zh-CN zh-TW
pt-BR
ko-KR es-ES
uk-UA
ru-RU

Safety and Legal
This section provides the safety and legal information for this product.
Intellectual Property and Regulatory Notices
Copyrights
The Motorola Solutions products described in this document may include copyrighted Motorola
Solutions computer programs. Laws in the United States and other countries preserve for Motorola
Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted
Motorola Solutions computer programs contained in the Motorola Solutions products described in this
document may not be copied or reproduced in any manner without the express written permission of
Motorola Solutions.
No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, without the prior written
permission of Motorola Solutions, Inc.
Trademarks
MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or
registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other
trademarks are the property of their respective owners.
License Rights
The purchase of Motorola Solutions products shall not be deemed to grant either directly or by
implication, estoppel or otherwise, any license under the copyrights, patents or patent applications
of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
Open Source Content
This product may contain Open Source software used under license. Refer to the product installation
media for full Open Source Legal Notices and Attribution content.
European Union (EU) and United Kingdom (UK) Waste of Electrical and
Electronic Equipment (WEEE) Directive
The European Union's WEEE directive and the UK's WEEE regulation require that products sold
into EU countries and the UK must have the crossed-out wheelie bin label on the product (or the
package in some cases). As defined by the WEEE directive, this crossed-out wheelie bin label means
that customers and end-users in EU and UK countries should not dispose of electronic and electrical
equipment or accessories in household waste.
Customers or end-users in EU and UK countries should contact their local equipment supplier
representative or service centre for information about the waste collection system in their country.
Disclaimer
Please note that certain features, facilities, and capabilities described in this document may not be
applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of
MN007272A01-AB
Safety and Legal
2

a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola
Solutions contact for further information.
© 2023 Motorola Solutions, Inc. All Rights Reserved
Important Safety Instructions
This document contains important safety and operating instructions. Please read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on the charger, the
battery, and the radio using the battery.
WARNING:
• To reduce the risk of damage to the power cord, pull the plug rather than the cord when
disconnecting power cord from the AC outlet or the charger.
• To reduce the risk of fire or electric shock, avoid using an extension cord. If an extension cord must
be used, ensure that the cord size is 18 AWG for lengths of up to 6.5 feet (2 m), and 16 AWG for
lengths up to 9.8 feet (3 m).
• To reduce the risk of fire, electric shock, or injury, do not operate the charger if it is broken or
damaged in any way. Take it to a qualified Motorola Solutions service representative.
• To reduce the risk of fire or electric shock, do not disassemble the charger. It is not repairable and
replacement parts are not available.
• To reduce the risk of electric shock, unplug the charger power adapter from the AC outlet before
attempting any maintenance or cleaning.
• To reduce the risk of injury, charge only the rechargeable authorized batteries. Other batteries may
explode, causing personal injury and damage.
• To reduce the risk of fire, electric shock, or injury, only use the accessories recommended by
Motorola Solutions.
• Changes or modifications made to this device, not expressly approved by Motorola Solutions, could
void the authority of the user to operate this equipment.
Class B Digital Device
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
MN007272A01-AB
Safety and Legal
3

Operating Guidelines
The followings are the operating guidelines for the charger.
• This equipment is not suitable for outdoor use. Use only in dry locations and conditions.
• Maximum ambient temperature around the charger must not exceed 40 °C (104 °F).
• To ensure optimized charging performance, turn off the radio while charging unless the radio is
transmitting data wirelessly on Wi-Fi or Bluetooth.
• Connect the charger to an AC outlet using only a Motorola Solutions Authorized Power Supply. See
Motorola Solutions Authorized Power Supplies.
• The AC outlet to which the power supply is connected must be nearby and easily accessible.
• Ensure that the power supply cord connected to the charger is not easily stepped on, tripped over,
or subjected to water, damage, or stress.
• Connect the power supply only to an appropriately fused and wired AC outlet with the correct
voltage, as specified on the product.
• Disconnect from the line voltage by removing the power supply from the AC outlet.
• Connect not more than the appropriate number of charger power supplies to a 15 A and 20 A
circuit, as limited by any certified power strip used.
• The equipment shall be connected to a nearby and easily accessible socket outlet.
Contact Address and Conformity Marking
Contact Address
European Union Contact
Motorola Solutions,
Czerwone Maki 82,
30-392 Krakow, Poland
Conformity Markings
MN007272A01-AB
Safety and Legal
4

Contact Us
The Centralized Managed Support Operations (CMSO) is the primary contact for technical support
included in your organization's service agreement with Motorola Solutions.
Service agreement customers should be sure to call the CMSO in all situations listed under Customer
Responsibilities in their agreement, such as:
• To confirm troubleshooting results and analysis before taking action
Your organization received support phone numbers and other contact information appropriate for your
geographic region and service agreement. Use that contact information for the most efficient response.
However, if needed, you can also find general support contact information on the Motorola Solutions
website, by following these steps:
1Enter motorolasolutions.com in your browser.
2Ensure that your organization's country or region is displayed on the page. Clicking or tapping the
name of the region provides a way to change it.
3Select "Support" on the motorolasolutions.com page.
Comments
Send questions and comments regarding user documentation to
[email protected].
Provide the following information when reporting a documentation error:
• The document title and part number
• The page number or title of the section with the error
• A description of the error
Motorola Solutions offers various courses designed to assist in learning about the system. For
information, go to https://learning.motorolasolutions.com to view the current course offerings and
technology paths.
MN007272A01-AB
Contact Us
5

Icon Conventions
The documentation set is designed to give the reader more visual clues. The following graphic icons
are used throughout the documentation set.
DANGER: The signal word DANGER with the associated safety icon implies information that, if
disregarded, will result in death or serious injury.
WARNING: The signal word WARNING with the associated safety icon implies information that,
if disregarded, could result in death or serious injury, or serious product damage.
CAUTION: The signal word CAUTION with the associated safety icon implies information that,
if disregarded, may result in minor or moderate injury, or serious product damage.
CAUTION: The signal word CAUTION may be used without the safety icon to state potential
damage or injury that is not related to the product.
IMPORTANT: IMPORTANT statements contain information that is crucial to the discussion
at hand, but is not CAUTION or WARNING. There is no warning level associated with the
IMPORTANT statement.
NOTE: NOTICE contains information more important than the surrounding text, such as
exceptions or preconditions. They also refer the reader elsewhere for additional information,
remind the reader how to complete an action (when it is not part of the current procedure,
for instance), or tell the reader where something is on the screen. There is no warning level
associated with a notice.
MN007272A01-AB
Icon Conventions
6

Contents
Safety and Legal..........................................................................................................2
Intellectual Property and Regulatory Notices.................................................................................2
Important Safety Instructions.........................................................................................................3
Class B Digital Device................................................................................................................... 3
Operating Guidelines.....................................................................................................................4
Contact Address and Conformity Marking..................................................................................... 4
Contact Us................................................................................................................... 5
Icon Conventions........................................................................................................ 6
Chapter 1: IMPRES 2 Batteries and Chargers........................................................ 8
1.1 Charging Radios and Batteries................................................................................................8
1.2 IMPRES Battery Charging Indicators...................................................................................... 9
1.3 IMPRES Battery Initialization.................................................................................................10
1.4 Automatic IMPRES Calibration and Recondition...................................................................10
1.4.1 Terminating Calibration and Recondition Manually................................................. 11
1.4.2 Initiating Calibration and Recondition Manually....................................................... 11
1.5 IMPRES End of Service Life LED Indication......................................................................... 11
Chapter 2: Troubleshooting................................................................................... 12
2.1 Service...................................................................................................................................12
Chapter 3: Authorized Power Supplies and Batteries......................................... 13
3.1 Compatible Power Supplies...................................................................................................13
3.2 Motorola Solutions Authorized Batteries................................................................................13
MN007272A01-AB
Contents
7

Chapter 1
IMPRES 2 Batteries and Chargers
The IMPRES™ energy solution is an advanced energy system developed by Motorola Solutions.
The system includes the followings:
• IMPRES 2 battery
• IMPRES 2 adaptive charger
Charger Specification
• Input: 14 V 1 A
Features and Benefits
Charging IMPRES 2 batteries using an IMPRES 2 Adaptive Charger yields the following benefits:
• Maximize the battery life by significantly reducing heat during the trickle and post-charge cycles.
• Determines the current battery status and giving an indication of the effective use time.
• Provide higher-rate IMPRES 2 Lithium-Ion battery charging.
• Minimizes the IMPRES 2 battery heating, regardless of how long the battery is left in the charger
pocket.
• Periodically charges a battery stored in the charger to maintain a high state of readiness.
• Eliminates Nickel battery memory effect, eliminating the need to purchase special equipment, or
train personnel in tasks to maintain battery life cycle.
Using this unique patented system, there is no requirement to track and record IMPRES 2 battery or
remove batteries from chargers after charging completion.
1.1
Charging Radios and Batteries
The IMPRES 2 Adaptive Charger System is a fully automated system. The charger pockets
accommodate either a radio with an attached Motorola Solutions-approved battery, or a Motorola
Solutions-approved battery alone. Batteries charge best at room temperature.
Prerequisites:
NOTE: To ensure optimized charging performance, turn off the radio while charging unless the
radio is transmitting data wirelessly on Wi-Fi or Bluetooth.
Procedure:
1Plug the charger end of the power supply cord into the DC inlet (1) at the back of the charger.
MN007272A01-AB
Chapter 1 : IMPRES 2 Batteries and Chargers
8

1
2Plug the wall power adapter into the appropriate Alternating Current (AC) outlet.
A successful power-up sequence is indicated by a single green blink on the charger indicator.
Refer to the IMPRES Battery Charging Indicators on page 9.
3Insert a Motorola Solutions-approved battery, or a radio with a Motorola Solutions-approved
battery into the charger pocket.
aAlign the battery contacts with the charger contacts.
bPress the battery into the pocket, ensuring complete contact.
Once the Motorola Solutions-approved battery is properly seated into the pocket, the charger
indicator illuminates, indicating the charger has recognized the presence of the battery.
4To remove a radio or Motorola Solutions-approved battery from the charger, pull straight up until
the battery completely clears the charger housing.
1.2
IMPRES Battery Charging Indicators
Table 1: IMPRES Battery Charging Indicators
Status LED Indicator Description
Charger Power On Green for approximately one
second
Successful charger power-up.
Rapid Charging Steady Red Battery in rapid charge mode.
Charged to 90 % or more Blinking Green Battery is charged to 90 % or
greater capacity.
Charged to 95 % or more Steady Green Battery is charged to 95 % or
greater capacity.
Calibration Steady Amber Battery is in recondition or cali-
bration mode.
MN007272A01-AB
Chapter 1 : IMPRES 2 Batteries and Chargers
9

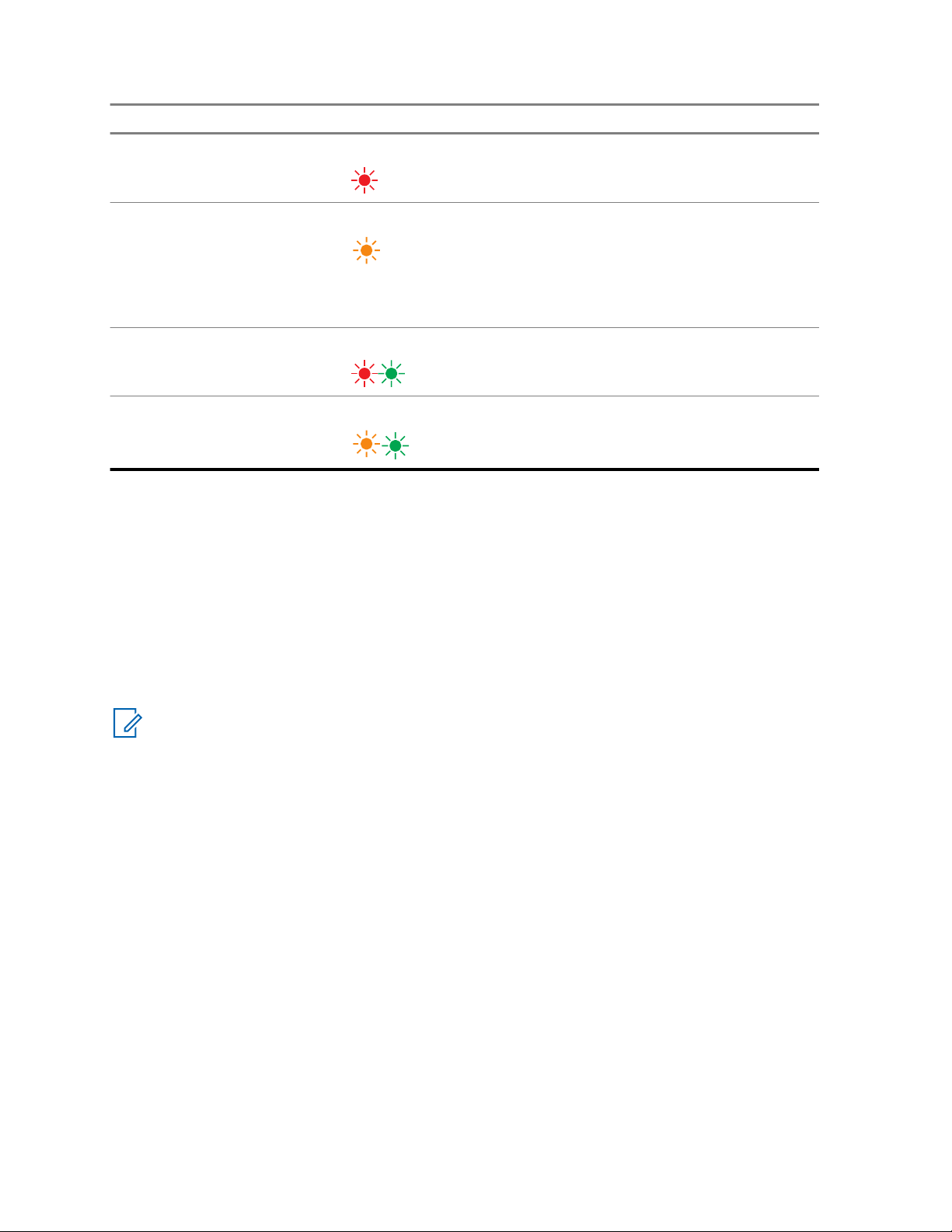

Status LED Indicator Description
Fault Blinking Red Not chargeable; remove and
re-insert radio or battery.
Standby Blinking Amber • Battery is waiting to rapid
charge.
• Battery may be too hot, too
cold, or low voltage.
• Charger may be too hot.
End of Service Life Alternating red and green Battery remains usable but
may be nearing the end of its
rated service life.
Recalibration Alternating amber and green Battery requires calibration or
battery is due for calibration.
1.3
IMPRES Battery Initialization
For a full IMPRES functionality, a new IMPRES battery must be initialized by the charger.
The charger automatically detects the new IMPRES battery, and automatically starts initialization.
Initialization is the first calibration and reconditioning of an IMPRES battery.
Phases of Battery Initialization
The first phase is a battery discharge, indicated by a steady amber LED. The second phase is a full
charge, indicated by a steady green LED. Refer to IMPRES Battery Charging Indicators on page 9.
NOTE: This process may take up to 12 hours or more to complete, depending on the state of
charge and capacity of the battery. Interruption of either phase delays initialization until the next
charging opportunity.
1.4
Automatic IMPRES Calibration and Recondition
The IMPRES charger automatically assesses the condition of an IMPRES battery.
Based on the condition, the charger automatically calibrates and reconditions the battery. This process
starts with battery discharge, indicated by a steady amber LED status. Calibration and recondition
are complete only after a full charge, indicated by a steady green LED status. See IMPRES Battery
Charging Indicators on page 9.
This process can take up to 12 hours or more to complete, depending on the charging status and
battery capacity. Interruption of either the discharge phase or the full charge phase delays calibration
until the next charging opportunity.
MN007272A01-AB
Chapter 1 : IMPRES 2 Batteries and Chargers
10

Figure 1: Self-Calibration and Recondition Icon
NOTE: IMPRES batteries with the Self-Calibration and Recondition icon on the battery label, do
not require periodic calibration and recondition, when docked into this IMPRES charger.
1.4.1
Terminating Calibration and Recondition Manually
You can manually terminate calibration and recondition during the process.
Procedure:
1Remove the battery from the charger pocket.
2Reinsert the battery into the charger pocket within 5 seconds.
Battery calibration and recondition immediately terminate. Normal battery charging starts. The LED
indicates charge status.
1.4.2
Initiating Calibration and Recondition Manually
Although calibration or recondition is automatic, you may be required to manually initiate calibration or
recondition in certain situations.
Procedure:
1Insert the battery into the charger pocket.
2Remove the battery from the charger pocket.
3Reinsert the battery into the charger pocket within 5 seconds.
Calibration and recondition starts immediately, beginning with battery discharge indicated by
a steady amber LED status. Calibration and recondition are complete only after a full charge
indicated by a steady green LED status. See IMPRES Battery Charging Indicators on page 9.
NOTE: This process can take up to 12 hours or more to complete, depending on the
charging status and battery capacity. Interruption of either the discharge phase or the full
charge phase delays calibration until the next charging opportunity.
1.5
IMPRES End of Service Life LED Indication
The IMPRES charger may indicate IMPRES battery end of service. Alternating red and green LED
status can appear to show End of Service Life.
Normal usage of the batteries reduces the available capacity. After a successful completion of
calibration and recondition, IMPRES charger compares IMPRES battery capacity to the battery rated
capacity. When the capacity is at a low value, the IMPRES battery may be nearing its end of service.
MN007272A01-AB
Chapter 1 : IMPRES 2 Batteries and Chargers
11

Chapter 2
Troubleshooting
Table 2: Troubleshooting
Problem What it means... What to do...
No charger indi-
cation • No charger contact.
• No power to the charger.
Check that the radio with battery or
the battery is inserted correctly.
• Make sure that the power cord
is securely plugged into the
charger and an appropriate AC
outlet, and that there is power to
the outlet.
Blinking red indi-
cation • No charger contact.
• Battery is not chargeable.
Remove the battery from the
charger and replace it back into the
charger.
• Verify that the battery is a
Motorola authorized battery lis-
ted in Motorola Solutions Au-
thorized Batteries on page 13.
Other batteries may not charge.
• Remove power from the bat-
tery charger and, using a clean
dry cloth, clean the gold metal
charging contacts of both the
battery and the charger.
• Replace battery.
Blinking amber
indication
Battery is waiting to charge. The bat-
tery temperature may be below 5 °C
(41 °F) or above 40 °C (104 °F) or the
battery voltage may be lower than the
predetermined threshold level for rapid
charging.
When this condition is corrected,
the battery charges automatically.
2.1
Service
The IMPRES Adaptive Chargers are not repairable. Order replacement chargers as necessary from
your local Motorola Solutions Sales Representative.
MN007272A01-AB
Chapter 2 : Troubleshooting
12

Chapter 3
Authorized Power Supplies and
Batteries
This section list out authorized accessories to be used with your charger.
3.1
Compatible Power Supplies
Table 3: Compatible Power Supplies
Power Supply Power Supply Description Country Plug
25009297001 14 W, 120 VAC United States/Taiwan
2571886T01 21 W, 90 V–264 V Japan/Brazil/India/United
States
PS000037A01 14 W, 207 V–253 V Europe
PS000037A02 14 W, 207 V–253 V United Kingdom/Hong Kong
PS000037A03 14 W, 207 V–253 V Australia/New Zealand
PS000037A04 14 W, 207 V–253 V Argentina
PS000037A05 14 W, 207 V–253 V China
PS000037A06 14 W, 207 V–253 V Korea
3.2
Motorola Solutions Authorized Batteries
Table 4: Motorola Solutions Authorized Batteries
Single-Unit
Charger
Battery Chemistry Battery Description
PMPN4527 NNTN4321_ Lithium-Ion (Li-
Ion)
IMPRES Li-Ion IECEX IP67 2000T
NNTN7789_ Li-Ion IMPRES Li-Ion IECEX IP67 1900T
NNTN8128_ Li-Ion IMPRES Li-Ion IP67 2000T
NNTN8129_R Li-Ion IMPRESS FM Li-Ion 2300M 2350T
NNTN8287_ Li-Ion IMPRES Li-Ion CSA157 IP67 2300T
NNTN8305_R Li-Ion IMPRES Li-Ion 1300T
NNTN8359_ Li-Ion IMPRESS IECEX/ATEX IP67 Li-
Ion1800M 2075T
NNTN8386_ Li-Ion IMPRES Li-Ion CSA157 IP68 2300T
NNTN8560_ Li-Ion IMPRES Li-Ion TIA4950 IP67 2500T
MN007272A01-AB
Authorized Power Supplies and Batteries
13

Single-Unit
Charger
Battery Chemistry Battery Description
NNTN8570_ Li-Ion IMPRES Li-Ion IECEX/ATEX IP67
1250T
NNTN8750_ Li-Ion IMPRES Li-Ion CSA157 IP67 2050T
NNTN8840_ Li-Ion IMPRES Li-Ion IECEX IP67 2000T
PMNN4065_ Nickel-Metal Hy-
drate (NiMH)
BATT NIMH 1480T
PMNN4066_ Li-Ion IMPRES Li-Ion IP57 1700T
PMNN4069_ Li-Ion IMPRESS Li-Ion 1400MAH FM
PMNN4077_ Li-Ion IMPRES Li-Ion 2240T
PMNN4101_ Li-Ion IMPRES Li-Ion IP57 1550T
PMNN4102_ Li-Ion IMPRES FM IP57 Li-Ion1400M
1500T
PMNN4103_ Li-Ion IMPRES Li-Ion IP57 2200T
PMNN4104_ NiMH BATT NIMH IP57 1430T
PMNN4262_R Li-Ion IMPRES Li-Ion IP57 2850T
PMNN4406_R Li-Ion BATT Li-Ion IP68 1650T
PMNN4407_R Li-Ion IMPRES Li-Ion IP68 1650T
PMNN4409_R Li-Ion IMPRES Li-Ion IP68 2250T
PMNN4412_R NiMH BATT NIMH IP68 1400T
PMNN4415_R NiMH BATT NIMH IP56 1400T
PMNN4416_R Li-Ion BATT Li-Ion IP56 1650T
PMNN4417_R Li-Ion IMPRES Li-Ion IP56 1650T
PMNN4418_R Li-Ion IMPRES Li-Ion IP56 2250T
PMNN4424_ Li-Ion IMPRES Li-Ion IP68 2350T
PMNN4448_ Li-Ion IMPRES Li-Ion IP68 2800T
PMNN4463_ Li-Ion BATT Li-Ion IP68 2000M
PMNN4488_ Li-Ion IMPRES Li-Ion HE DENS IP68
3000T (VIB BELT CLIP)
PMNN4489_ Li-Ion IMPRES Li-Ion TIA4950 HE DENS
IP68 2900T
PMNN4490_ Li-Ion IMPRES Li-Ion TIA4950 HE DENS
IP68 2900T
PMNN4491_ Li-Ion IMPRES Li-Ion IP68 2100T
PMNN4493_ Li-Ion IMPRES Li-Ion HE DENS IP68
3000T
PMNN4512_ Li-Ion CORE BATT Li-Ion IP57 2000T (DE-
MOTO)
PMNN4525_ Li-Ion IMPRES Li-Ion IP68 1950T
PMNN4533_ Li-Ion BATT Li-Ion IP68 2250T (DE-MOTO)
MN007272A01-AB
Chapter 3 : Authorized Power Supplies and Batteries
14

Single-Unit
Charger
Battery Chemistry Battery Description
PMNN4544_ Li-Ion IMPRES Li-Ion IP68 2450T
PMNN4543_ Li-Ion BATT Li-Ion IP68 2450T
PMNN4548_ Li-Ion BATT Li-Ion IP68 2450T (DE-MOTO)
PMPN4621 PMNN4455AR Li-Ion Battery CORE Li-Ion 2900T
PMNN4457AR Li-Ion Battery MagOne Li-Ion 2075T
PMNN4045BR NiMH Battery MagOne NIMH 1480T
HNN9010AR NiMH PREMIUM, NIMH, 1800 MAH, 7.2 V,
IS
HNN4001A NiMH Battery IMPRES NIMH 1920T
HNN4003BR Li-Ion Battery IMPRES Li-Ion IP54 2500T
HNN9008AR NiMH Battery NIMH 1450T
HNN9009AR NiMH Premium, NIMH, 1900MAH, 7.2 V
HNN9009ASP03 NiMH Battery NIMH 2450T
HNN9013DR Li-Ion Battery Li-Ion 1500T
HNN4001A NiMH Battery IMPRES NIMH 1920T
HNN4002 NiMH IMPRES SMART NIMH FM BAT-
TERY
NNTN5510 Li-Ion Battery Li-Ion ATEX 1420T
PMNN4502 Li-Ion Battery IMPRES Li-Ion Low Voltage
IP68 3000T
PMNN4511 Li-Ion Battery IMPRES Li-Ion TIA4950 Low
Voltage IP68 2900T
JMNN4023C Li-Ion Battery Li-Ion IP54 1050T
JMNN4024CR Li-Ion Battery Li-Ion 1620T(JMNN4024C
with Box)
PMNN4094B Li-Ion Battery Pack, Li-Ion IP67 2200T
PMNN4202A Li-Ion Battery Li-Ion IP54 1600T
Table 5: Batteries Available in Taiwan
Battery Chemistry Battery Description
PMNN4488AC Li-Ion IMPRES Li-Ion HE DENS IP68 3000T (VIB
BELT CLIP)
PMNN4493AC Li-Ion IMPRES Li-Ion HE DENS IP68 3000T
PMNN4490BC Li-Ion IMPRES Li-Ion TIA4950 HE DENS IP68 2900T
PMNN4489BC Li-Ion IMPRES Li-Ion TIA4950 HE DENS IP68 2900T
PMNN4448B Li-Ion IMPRES Li-Ion IP68 2800T
NNTN8560BC Li-Ion IMPRES Li-Ion TIA4950 IP67 2500T
PMNN4544AW Li-Ion IMPRES Li-Ion IP68 2450T
MN007272A01-AB
Chapter 3 : Authorized Power Supplies and Batteries
15

Battery Chemistry Battery Description
PMNN4543AW Li-Ion BATT Li-Ion IP68 2450T
PMNN4077E Li-Ion IMPRES Li-Ion 2240T
PMNN4424BC Li-Ion IMPRES Li-Ion IP68 2350T
PMNN4491CC Li-Ion IMPRES Li-Ion IP68 2100T
NNTN8359CR Li-Ion IMPRESS IECEX/ATEX IP67 Li-Ion1800M
2075T
NNTN8128CC Li-Ion IMPRES Li-Ion IP67 2000T
NNTN8128BR Li-Ion IMPRES Li-Ion 2000T
NNTN8129ARW Li-Ion IMPRESS FM Li-Ion 2300M 2350T
PMNN4525BC Li-Ion IMPRES Li-Ion IP68 1950T
PMNN4066B Li-Ion IMPRES Li-Ion IP57 1700T
PMNN4406BR Li-Ion BATT Li-Ion IP68 1650T
PMNN4069AW Li-Ion IMPRESS Li-Ion 1400MAH FM
NNTN8305AR Li-Ion IMPRES Li-Ion 1300T
MN007272A01-AB
Chapter 3 : Authorized Power Supplies and Batteries
16

Guide d’utilisation du
chargeur individuel
adaptatif IMPRES
PMPN4527
*MN007272A01*
MN007272A01-AB
AVRIL 2023
© 2023 Motorola Solutions, Inc. All rights reserved

Sécurité et aspect juridique
Cette section fournit des renseignements sur la sécurité et l’aspect juridique pour ce produit.
Propriété intellectuelle et avis réglementaires
Droits d’auteur
Les produits Motorola Solutions décrits dans ce document peuvent inclure des programmes
informatiques protégés par des droits d’auteur de Motorola Solutions. Les lois des États-Unis
et d’autres pays réservent à Motorola Solutions certains droits exclusifs pour les programmes
informatiques protégés par droits d’auteur. Par conséquent, tout programme informatique protégé par
droits d’auteur de Motorola Solutions compris dans les produits Motorola Solutions décrits dans le
présent document ne peut être copié ni reproduit de quelque manière que ce soit sans l’autorisation
écrite expresse de Motorola Solutions.
Aucune partie du présent document ne peut être reproduite, transmise, stockée dans un système
de recherche documentaire ou traduite dans une autre langue ou dans un langage informatique,
sous quelque forme ou par quelque moyen que ce soit, sans l’autorisation écrite préalable de
Motorola Solutions, Inc.
Marques de commerce
MOTOROLA, MOTO, MOTOROLA SOLUTIONS et le logo au M stylisé sont des marques de
commerce ou des marques déposées de Motorola Trademark Holdings LLC et sont utilisées sous
licence. Toutes les autres marques de commerce sont la propriété de leurs détenteurs respectifs.
Droits de licence
L’achat de produits Motorola Solutions ne peut être considéré comme une transaction octroyant
directement, par inférence, estoppel ou autrement une licence en vertu des droits d’auteur, des droits
de brevets ou d’une demande de brevet de Motorola Solutions, à l’exception d’une licence d’utilisation
normale et non exclusive, libre de toute redevance, prévue par la loi lors de la vente d’un produit.
Contenu à code source libre
Ce produit peut contenir des logiciels libres utilisés sous licence. Reportez-vous au support
d’installation du produit pour obtenir tous les avis juridiques relatifs aux logiciels libres et aux contenus
d’attribution.
Directive sur la mise au rebut des équipements électriques et électroniques
(DEEE) de l’Union européenne (UE) et du Royaume-Uni (RU)
La directive DEEE de l’Union européenne et les réglementations DEEE du Royaume-Uni exigent
que les produits (ou leur emballage, dans certains cas) vendus dans les pays de l’UE ou au Royaume-
Uni portent l’étiquette de la poubelle barrée. Comme le définit la directive DEEE, cette étiquette de
poubelle barrée signifie que les clients et les utilisateurs finaux dans les pays de l’UE et du RU ne
doivent pas jeter les équipements électriques et électroniques ou leurs accessoires dans les ordures
domestiques.
Les clients ou les utilisateurs finaux dans les pays de l’UE et du RU doivent communiquer
avec le représentant ou le centre de service de leur fournisseur d’équipement pour obtenir des
renseignements sur le système de collecte des déchets de leur pays.
MN007272A01-AB
Sécurité et aspect juridique
2

Avis de non-responsabilité
Veuillez noter que certaines fonctionnalités, installations et capacités décrites dans ce document
pourraient ne pas s’appliquer ou être accordées sous licence pour l’utilisation sur un système
particulier, ou pourraient dépendre des caractéristiques d’une unité mobile d’abonné ou
d’une configuration de certains paramètres. Veuillez consulter votre personne-ressource chez
Motorola Solutions pour en savoir plus.
© 2023 Motorola Solutions, Inc. Tous droits réservés
Notice de sécurité importante
Ce document contient d’importantes directives relatives à la sécurité et au fonctionnement de
l’appareil. Veuillez lire attentivement cette notice et la conserver pour vous y référer ultérieurement.
Avant d’utiliser le chargeur de batterie, lisez toutes les directives et tous les marquages
d’avertissement sur le chargeur, la batterie et la radio associée à la batterie.
AVERTISSEMENT :
• Pour réduire les risques d’endommager le cordon d’alimentation, tirez sur la prise et non sur le
cordon au moment de le débrancher de la prise c.a. ou du chargeur.
• Pour réduire les risques d’incendie ou de décharge électrique, évitez d’utiliser une rallonge
électrique. Si une rallonge doit être utilisée, assurez-vous que le format du cordon est de calibre 18
lorsque sa longueur est de 2 m (6,5 pi) ou moins et de calibre 16 lorsque sa longueur est de 3 m
(9,8 pi).
• Pour réduire les risques d’incendie, de décharge électrique ou de blessure, n’utilisez pas le
chargeur s’il est brisé ou endommagé de quelque manière que ce soit. Portez-le chez un
représentant de service Motorola Solutions.
• Pour réduire les risques d’incendie ou de décharge électrique, ne démontez pas le chargeur. Il ne
peut pas être réparé et aucune pièce de rechange n’est disponible.
• Pour réduire les risques de décharge électrique, débranchez l’adaptateur d’alimentation du
chargeur de la prise c.a. avant de procéder à une maintenance ou à un nettoyage.
• Pour réduire les risques de blessure, ne chargez que les batteries rechargeables agréées. Les
batteries non approuvées pourraient exploser et causer des blessures corporelles et d’autres
dommages.
• Pour réduire les risques d’incendie, de décharge électrique ou de blessure, n’utilisez que les
accessoires recommandés par Motorola Solutions.
• Toute modification apportée à cet appareil sans l’autorisation explicite de Motorola Solutions peut
annuler l’autorisation d’utiliser cet appareil.
MN007272A01-AB
Sécurité et aspect juridique
3

Appareil numérique de classe B
REMARQUE :
Cet équipement a fait l’objet de tests et a été déclaré conforme aux limites établies pour un
appareil numérique de classe B, conformément à la section 15 des règlements de la FCC.
Ces limites sont fixées afin d’offrir une protection suffisante contre des interférences nuisibles
dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie
de radiofréquence et, s’il n’est pas installé ou utilisé conformément aux instructions, il peut
provoquer un brouillage nuisible aux communications radio. Cependant, il est impossible de
garantir qu’il n’y aura aucune interférence dans une installation particulière. Si cet appareil
cause une interférence nuisible à la réception de la radio ou de la télévision, ce qui peut être
déterminé en éteignant et en allumant l’appareil, vous êtes encouragé à remédier à la situation
en prenant une ou plusieurs des mesures suivantes :
• Réorienter ou déplacer l’antenne réceptrice.
• Augmenter la distance entre l’équipement et le récepteur.
• Brancher l’appareil dans une autre prise sur un circuit différent de celui du récepteur.
• Consulter un revendeur ou un technicien radio/télévision chevronné pour obtenir de l’aide.
Directives d’utilisation
Voici les directives d’utilisation du chargeur.
• Cet équipement n’est pas adapté à une utilisation en extérieur. Utiliser uniquement dans des
endroits/conditions secs.
• La température ambiante maximale autour du chargeur ne doit pas dépasser 40 °C (104 °F).
• Pour une performance de chargement optimale, éteignez la radio pendant la recharge, à moins que
la radio ne transmette des données sans fil par Wi-Fi ou Bluetooth.
• Branchez le chargeur à une prise c.a. uniquement à l’aide d’un bloc d’alimentation agréé par
Motorola Solutions. Voir Blocs d’alimentation approuvés par Motorola Solutions.
• La prise de courant à laquelle le bloc d’alimentation est branché doit se trouver à proximité et être
facilement accessible.
• Assurez-vous que le cordon du bloc d’alimentation est placé à un endroit où il ne sera pas écrasé,
ne gênera pas le passage, ne sera pas tendu de façon anormale et ne sera pas exposé à une
source d’humidité.
• Ne branchez le bloc d’alimentation qu’à une prise c.a. à fusible câblée appropriée, de tension
prescrite telle que spécifiée sur le produit.
• Débranchez le chargeur de la tension de secteur en retirant le cordon d’alimentation de la prise de
courant c.a.
• Ne branchez pas plus de blocs d’alimentation de chargeur que le nombre approprié à un circuit de
15 A et 20 A, tel que limité par toute barre d’alimentation certifiée utilisée.
• L’équipement doit être branché à une prise de courant à proximité et facilement accessible.
Adresse de communication et marquage de conformité
Adresse de communication
Pour l’Union européenne, communiquez avec :
Motorola Solutions,
Czerwone Maki 82,
MN007272A01-AB
Sécurité et aspect juridique
4
