TRAVEL CHARGER
PMLN7089
USER GUIDE
en-US de-DE es-ES fr-FR it-IT ru-RU

MN000595A01.book Page 2 Friday, February 17, 2023 9:27 AM

1
English
IMPORTANT
SAFETY INSTRUCTIONS
SAVE THESE
INSTRUCTIONS
This document contains important safety and
operating instructions. Please read these
instructions carefully and save them for future
reference.
Before using the battery charger, read all the
instructions and cautionary markings on (1) the
charger, (2) the battery, and (3) the radio using
the battery.

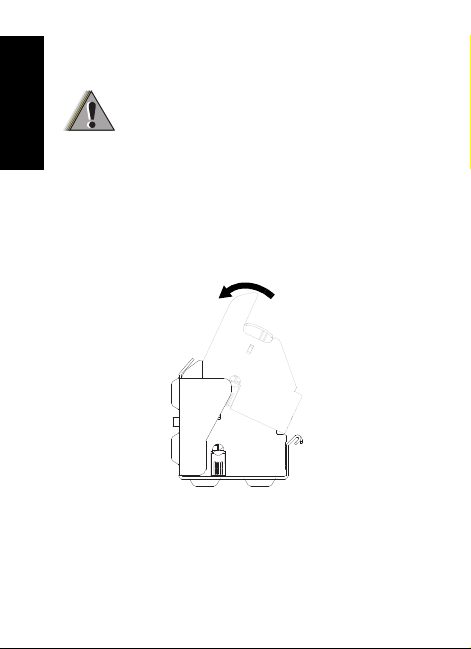

1. To reduce risk of injury during
sudden braking or impact while
driving, secure the Travel Charger
and radio in the mounted bracket
with the elastic strap securely
fastened.
2. To reduce risk of injury, charge only the
rechargeable Motorola Solutions authorized
batteries listed in Table 1. Other batteries may
explode, causing personal injury and damage.
3. Use of accessories not recommended by
Motorola Solutions may result in risk of fire,
electric shock, or injury.
W A R N I N G
MN000595A01.book Page 1 Friday, February 17, 2023 9:27 AM

2
English
4. To reduce the risk of damage to
the electric plug and cord, pull by
the plug rather than by the cord
when disconnecting the charger.
5. To reduce risk of fire, electric shock, or injury,
do not operate the charger if it has been broken
or damaged in any way. Take it to a qualified
Motorola Solutions service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.
W A R N I N G
MN000595A01.book Page 2 Friday, February 17, 2023 9:27 AM

3
English
OPERATIONAL SAFETY GUIDELINES
• To ensure optimized charging performance,
turn off the radio while charging unless the
radio is transmitting data wirelessly on Wi-Fi or
Bluetooth.
• This equipment is not suitable for outdoor use.
Use only in dry locations/conditions.
• Connect equipment only to an appropriately
fused and wired supply of the correct voltage
(as specified on the product).
• When not in use, disconnect the power supply
cord from the DC outlet.
• The socket outlet to which this equipment is
connected should be close by and easily
accessible.
• In equipment using fuses, replacements must
comply with the type and rating specified in the
equipment instructions.
• When used as a desktop charger, maximum
ambient temperature around the power supply
equipment must not exceed 40 °C (104 °F).
• Output power from the power supply unit must
not exceed the ratings stated on the product
label located on the bottom of the charger.
MN000595A01.book Page 3 Friday, February 17, 2023 9:27 AM

4
English
• Make sure the cord is located where it cannot
be stepped on, tripped over, or subjected to
water, damage, or stress.
• To reduce risk of damage to vehicular charger
adapter and cord, pull by the vehicular charger
adapter rather than the cord when disconnect-
ing the charger.
• Do not operate the charger or vehicular
charger adapter with a damaged cord –
replace it immediately.
Vehicles Equipped with Air Bags
• Do not place or install equipment in
the area over an air bag or in the
air bag deployment area. Air bags
inflate with great force. If
equipment is installed in the air
bag deployment area and the air
bag inflates, the equipment may be
propelled with great force and
cause serious injury to occupants
of the vehicle.
• If the communication equipment is improperly
installed and the air bag inflates, this could
cause serious injury.
W A R N I N G
MN000595A01.book Page 4 Friday, February 17, 2023 9:27 AM

5
English
• Installation of vehicle communication
equipment should be performed by a
professional installer/technician qualified in the
requirements for such installations. An air bag
size, shape and deployment area can vary by
vehicle make, model and front compartment
configuration for example bench seat as
opposed to bucket seats.
• Contact the vehicle manufacturer’s corporate
headquarters, if necessary, for specific air bag
information for the vehicle make, model and
front compartment configuration involved in
your communication equipment installation.
• Mounting screws can damage cables and
wires that run under some mounting surfaces
in the vehicle. Contact the vehicle
manufacturer for the detailed locations of
cables and wires in your vehicle, and avoid
mounting the radio above those locations.
MN000595A01.book Page 5 Friday, February 17, 2023 9:27 AM

6
English
MOTOROLA SOLUTIONS AUTHORIZED
BATTERIES
The batteries listed in Table 1 are approved for
use with the PMLN7089 Travel Charger kit.
Table 1. Motorola Solutions Authorized
Batteries
Kit (part)
Number
Battery
Chemistry/Description
PMNN4072_ NiMH Mag One Slim Battery
PMNN4098_ NiMH 1400 mAh Battery
PMNN4251_ NiMH 1400 mAh CE LPS Battery
PMNN4252_ NiMH 1300 mAh CE LPS FM Battery
PMNN4253_ Li-Ion 1600 mAh Slim Battery
PMNN4254_ Li-Ion 1800 mAh CE LPS Battery
PMNN4256_ NiCD 980 mAh CE LPS Battery
PMNN4258_ Li-Ion 2900 mAh Battery
PMNN4259_ Li-Ion 2075 mAh Mag One Battery
PMNN4450_ Li-Ion 2700 mAh Battery
PMNN4458_ Li-Ion 2000 mAh Mag One Battery
PMNN4598_ Li-ion Battery, 2300 mAh
PMNN4600_ Li-ion Battery, 2100 mAh
NNTN4496_ NiCD 1100 mAh Battery
NNTN4497_ Li-Ion 1800 mAh Battery
NNTN4851_ NiMH 1400 mAh Battery
NNTN4852_ NiMH 1300 mAh FM Slim Battery
NNTN4970_ Li-Ion 1600 mAh Slim Battery
MN000595A01.book Page 6 Friday, February 17, 2023 9:27 AM

7
English
DESCRIPTION
The PMLN7089 Travel Charger kit is used for
charging a radio inside a vehicle. The Travel
Charger kit includes a vehicular charger adapter
attached to a charger, and a mounting bracket to
mount the Travel Charger inside the vehicle.
The Travel Charger has the capability to charge a
stand alone battery or a radio with a battery. The
radio MUST be turned off when charging.
OPERATING INSTRUCTIONS
The Travel Charger charges only Motorola
Solutions authorized batteries listed in Table 1.
Other batteries may not charge.
Your battery must be charged using the rapid
charge method before operating your radio for the
first time.
Note: Do not leave a battery or radio in the Travel Charger
for an extended period of time (1 week) to avoid a
decrease in battery performance.
MN000595A01.book Page 7 Friday, February 17, 2023 9:27 AM

8
English
Charging Inside the Vehicle
1. Plug the vehicular charger adapter into
the vehicle auxiliary power outlet.
Note: Some vehicles auxiliary power outlets do not
maintain an electrical current once the vehicle has
been turned off. Rated input: 12 – 24 V DC 1 A.
Charging the Battery
1. Insert a battery or radio with a battery into the
charger pocket, making sure the charging
contacts make contact with the battery. The
battery charging indicator LED on the
charger indicates:
LED What it means.....
Green Blink For 1 second when first connecting the
charger to a power source without a
battery or radio inside the charging
pocket.
Red The battery is rapid charging.
Green The battery is fully charged. This occurs
once rapid charge is completed.
Flashing
Yellow
The battery is too cold or too hot to
charge.*
Flashing Red The battery is defective.
Flashing
Green
Charge > 90%
*The LED continues to blink yellow until the battery
meets it normal charging requirements.
