Norac UC4+ User manual

Hagie STS12 2000-2004
Installation Manual
Spray Height Control System
Improving the competitiveness of Industry and Agriculture
throu
g
h Precision Measurement

Printed in Canada
Copyright 2005-08 by NORAC Systems International Inc.
Reorder P/N: UC4+BC+HG1-INST Rev H (Hagie STS12 2000-2004)
NOTICE
NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without
the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

TABLE OF CONTENTS
1INTRODUCTION..................................................................................................................................1
2GENERAL SYSTEM DESCRIPTION ..................................................................................................2
3PARTS LISTS ......................................................................................................................................3
4INSTALLATION PROCEDURE...........................................................................................................7
4.1WING SENSOR INSTALLATION.........................................................................................................7
4.2MAIN LIFT SENSOR INSTALLATION................................................................................................10
4.3ROLL SENSOR INSTALLATION.......................................................................................................11
4.3.1Boom Roll Sensor Mounting..................................................................................................12
4.3.2Chassis Roll Sensor Mounting..............................................................................................13
4.3.3Temperature Probe ...............................................................................................................13
4.4HYDRAULIC INSTALLATION ...........................................................................................................14
4.4.1Valve Mounting......................................................................................................................14
4.4.2Hydraulic Plumbing ...............................................................................................................15
4.5ELECTRICAL INSTALLATION..........................................................................................................16
4.6COMPLETING THE INSTALLATION ..................................................................................................17
5ELECTRICAL REFERENCE – CABLE DRAWINGS........................................................................18
5.1ITEM C01: 44662B-40 –SENSOR TRUNK CABLE.........................................................................18
5.2ITEM C02: 44668 –SENSOR BRANCH CABLE...............................................................................18
5.3ITEM C02B: 44664 –CABLE UC4 CAN NODE DUAL...................................................................19
5.4ITEM C03: 44656D –VALVE CABLE VARIABLE RATE DT..............................................................20
5.5ITEM C04: 44651 –VALVE EXTENSION CABLE ............................................................................21
5.6ITEM C06: 44687 –CABLE UC3 SENSOR AMPMTO AMPF ..........................................................21
5.7ITEM C10: 44650-13 –POWER CABLE HAGIE STS12..................................................................22

1
1 INTRODUCTION
Congratulations on your purchase of the NORAC UC4+ Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating features and reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
YOUR INPUT CAN HELP MAKE US BETTER! If you find issues or have
suggestions regarding the parts list or the installation procedure, please don’t
hesitate to contact us.

2
2 GENERAL SYSTEM DESCRIPTION
Figure 1 depicts the general system layout of the UC4+ Spray Height Control system. Some
of the parts shown may be different and your UC4+ kit may not include all the shown parts.
Figure 1: System Components and General Location
NOTICE:
Every effort has been made to ensure the
accuracy of the information contained in
this manual. All parts supplied are selected
specially to fit the sprayer to facilitate a
complete installation. However, NORAC
cannot guarantee all parts fit as intended
due to the variations of the sprayer by the
manufacturer. Please read this manual
in its entirety before attempting
installation.
ATTENTION:
When installing the UC4+ Spray Height
Control system please be aware that at a
point in the installation your sprayer booms
will be inoperative until the installation is
complete. Any installation procedure
requiring boom movement will need
to be done first. Once the hydraulics
have been disconnected you must complete
the electrical installation before the booms
become operative.

3
3 PARTS LISTS
The parts that come with your UC4+ Spray Height Control System are listed in Table 1. The item
number on the left side of this table references each part.
Please ensure that all parts in your kit are present before proceeding with your installation.
Table 1: Hagie STS12 2000-2004 Spray Height Control System Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44700-03 PLATE VALVE MOUNT UC3 BOOM CONTROL HAGIE 1
B11 44743 MOUNTING BRACKET MAIN LIFT SENSOR UC4 PLUS 1
B13 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
B16 44695-11 MOUNTING BRACKET BREAKAWAY ADAPTER UC3 SENSOR NITRO/HAGIE 2
C01 44662B-40 CABLE UC3 SENSOR TRUNK AMPF TO AMPF BLACK STANDARD 40FEET 1
C02 44668 CABLE UC3 SENSOR BRANCH 1 AMP RECEPT 3 AMP PLUG BC 1
C02B 44664 CABLE UC4 CAN NODE DUAL 5 FT 1
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C04 44651 CABLE VALVE EXTENSION 1
C06 44687 CABLE UC3 SENSOR TRUNK PT EXTENSTION AMPM TO AMPF BLACK 14FEET 1
C10 44650-13 CABLE POWER UC3 BOOM CONTROL HAGIE STS12 1
E01 4461BC+HG UC4 PLUS BOOM CONTROL PANEL HAGIE 1
E02 44631 UC4 ULTRASOUND SENSOR 3
E03 45000* UC4 PLUS ROLL SENSOR W TEMPERATURE PROBE VER. 2 1
E04 45001* UC4 PLUS ROLL SENSOR VER. 2 1
H20 44865-13 HYDRAULICS FITTING KIT - HG1 1
M01 446BC+MAN7 OPERATOR MANUAL UC4+ SPRAY HEIGHT CONTROL 1
M10 UC4+BC+HG1-INST MANUAL INSTALLATION UC4+ HAGIE STS12 1
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
* For systems purchased BEFORE October 1, 2011, the roll sensor part numbers are 44641 and 44642.

4

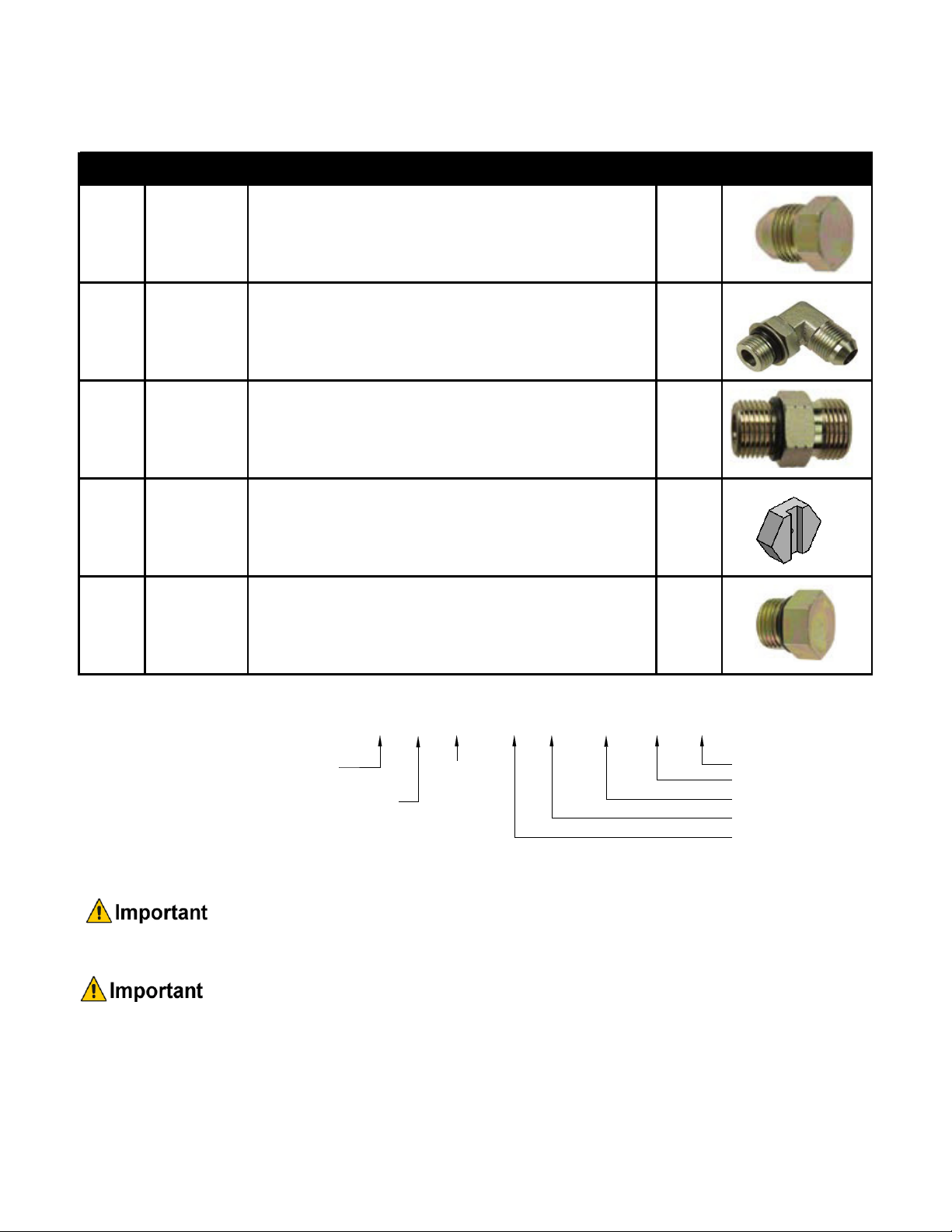

Table 2: 44865-13 - Hydraulics Fittings Kit Details
Item Part Number Name Quantity
F02 103779 MALE JIC PLUG - 6MJP 2
F03 103071 MALE 90 DEGREE ADAPTER - 8MB 6MJ90 2
F05 103312 MALE ADAPTER - 6MB-6MJ 4
F08 44928 ORIFICE INSERT .047 IN ONE WAY 4
F09 104369 PLUG - 6MBP 2
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
The use of dielectric grease is not recommended on any NORAC electrical connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of the
supplied Permatex Anti-seize grease to all threaded parts upon installation. Permatex
Anti-seize lubricant is preferred, but other similar anti-seize products may be used.

5

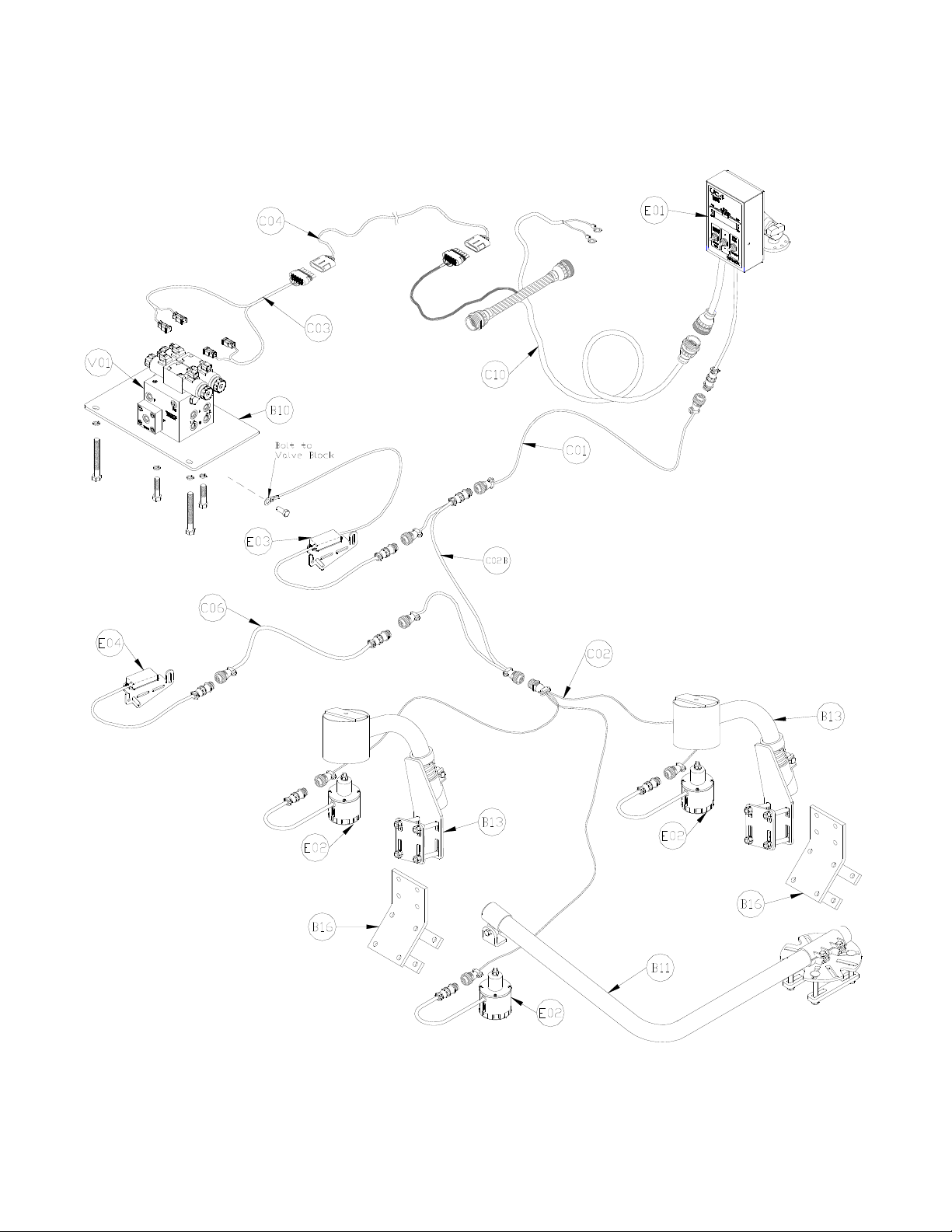

The parts that come with your UC4+ Spray Height Control system are shown below in
their general installation configuration.
Figure 2: UC4+ Spray Height Control Components

6
Figure 3: Hydraulic Plumbing Schematic

7
4 INSTALLATION PROCEDURE
4.1 WING SENSOR INSTALLATION
1. Assemble the Breakaway Sensor
Mounting Brackets (B13) as show in
Figure 4 and Figure 5.

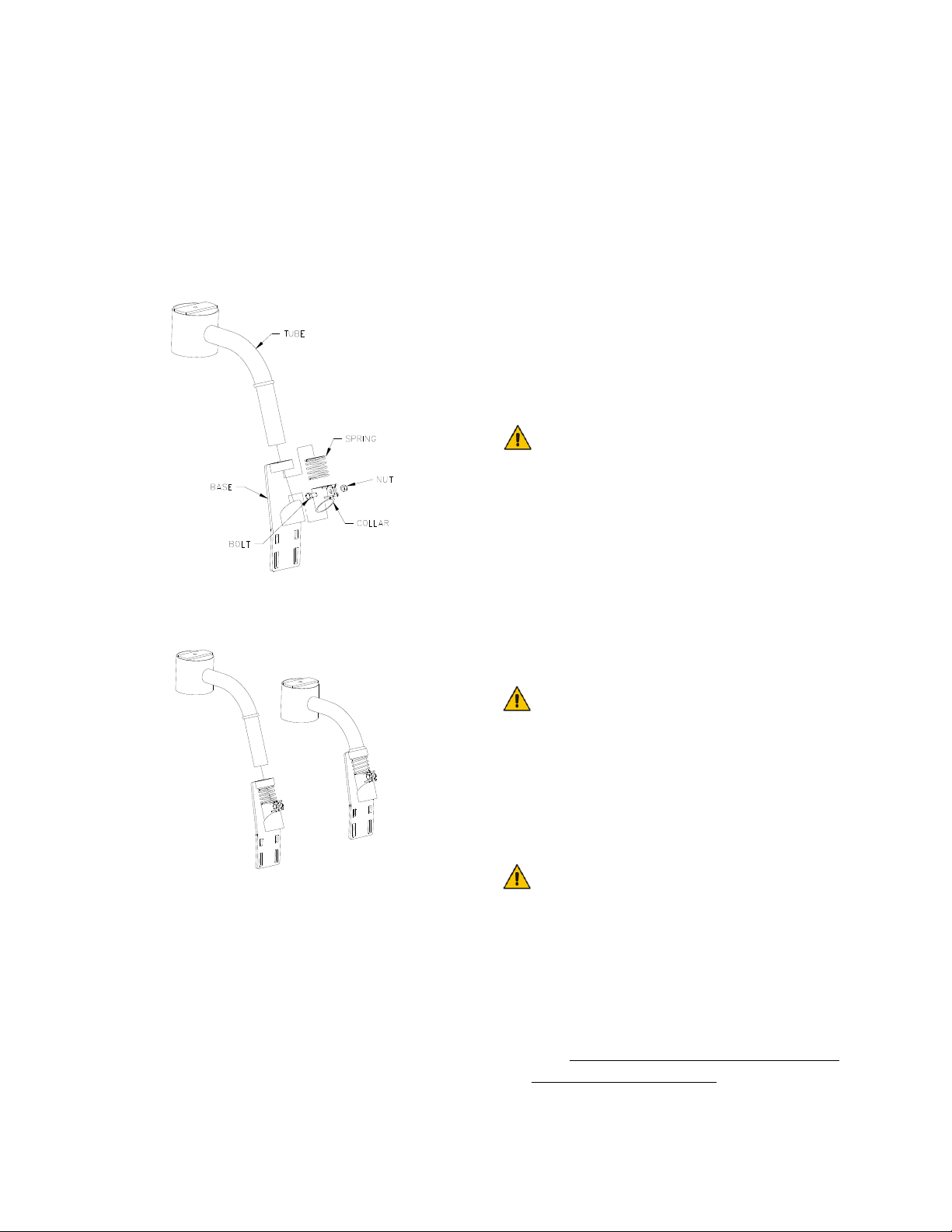

Figure 4: Breakaway Sensor Bracket
Exploded View
Figure 5: Breakaway Sensor Mounting
Bracket Assembly
To assemble the breakaway sensor
bracket:
a) Assemble the bolt and nut into the
collar.
b) Grease the bottom edge of the
collar and the angled tube of the
base.
c) Place the collar onto the angled tube
of the mounting base.
d) Install the spring between the collar
and the upper ring of the base.
e) Insert tube through assembly and
tighten the collar
2. Mount the sensor bracket onto the
boom.
If possible, mount the sensor
brackets while the booms are in
their folded position to ensure
that they will not interfere with
anything when the boom is folded
for transport.

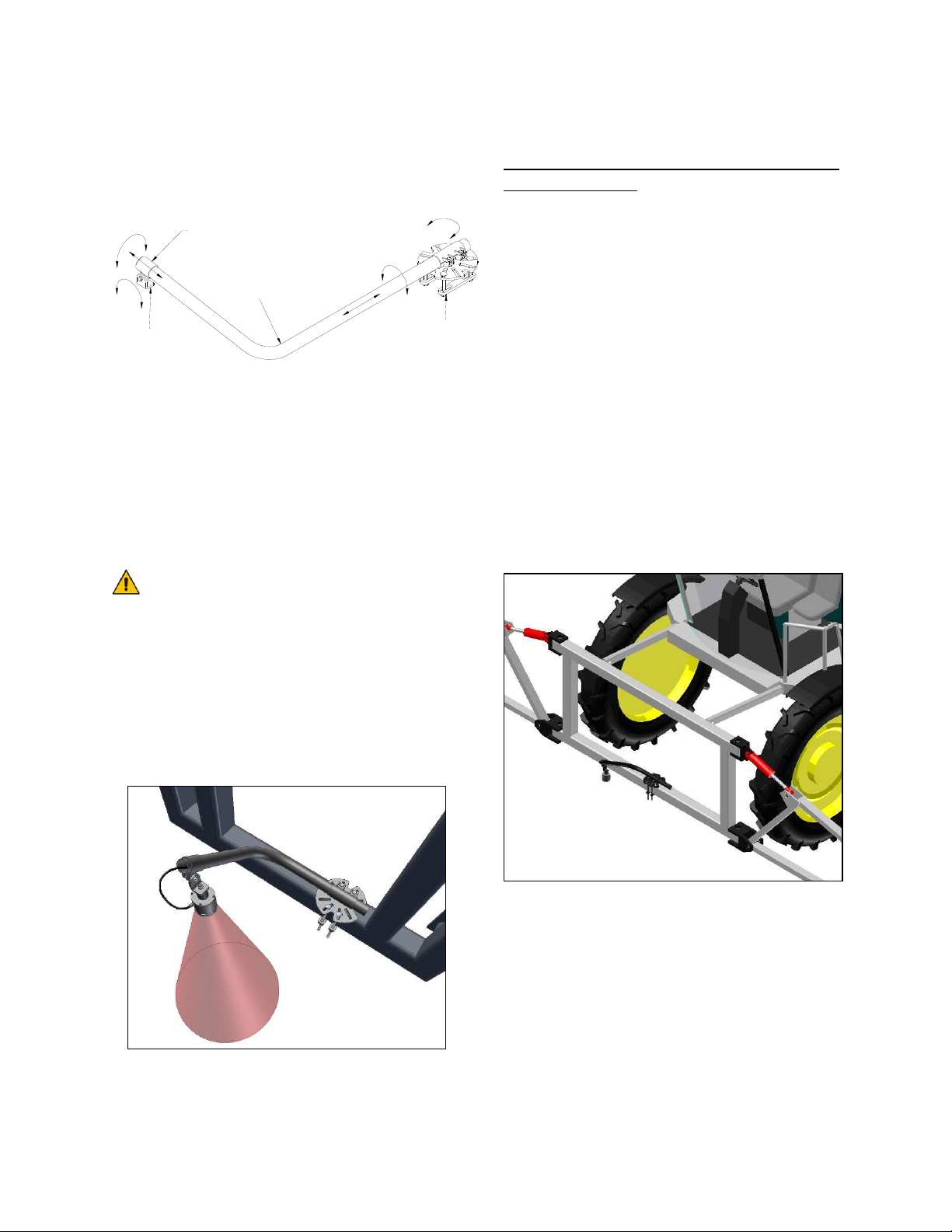

3. The sensor mounting brackets can be
installed on the 45 degree tube using
the provided adapter plate (B16).
Then attach B13 directly to B16.
Mounting the sensor bracket to
the break-away section of the
boom may cause the boom to
drop suddenly as a break-away
occurs. This will occur on break-
away sections which lift as they
break away.
For optimal boom tip protection,
it is recommended that the
sensor be mounted within
approximately two feet (60cm) of
the boom tip.
Please refer to the UC4+ Spray Height
Control system warranty at the end of
the UC4+ Spray Height Control
Operator’s Manual (M01) for
implications.
