Nuna pipa Series User manual

Designed
around your life

EN
2PIPA instructions
Canada Motor Vehicle Safety Standards have
defined a system for installing Infant child
restraints in vehicles. The system is called UAS*
(Universal Anchorage System).
*UAS may be used IN PLACE of vehicle belt ONLY if vehicle is equipped
with UAS anchor points. Please refer to vehicle owner’s manual for UAS
locations.

EN
3PIPA instructions
Contents
English (EN)
Information 4
Warnings 5
Parts List 12
Feature Overview 14
Child Requirements 18
Changing Harness Position 20
Securing Child in Carrier 24
Installation Instructions 28
Cleaning and Maintenance 42
Warranty and Service 43
French (FR) 45–94

EN
4PIPA instructions
Information
Model Name:______________________________________________________________________________________________________________
Model Number:_______________________________________________________________________________________________________
Manufactured Date:__________________________________________________________________________________________
Register Your Infant Restraint
Please fill in the above information. The name,
model number and the manufactured date can be
found on a label underneath your infant restraint.
Fill out the prepaid registration postcard attached
to the seat cover and mail it today.
Infant child restraints could be recalled for safety
reasons. You must register this restraint to be
reached in a recall. Send your name, address, and
the restraint's model number and manufacturing
date to:
Nuna Canada
2520 Av Marie-Curie
St-Laurent, QC, H4S 1N1
1-800-667-4111
Or, register online at www.nunababy.ca
Contact
For replacement parts, service, or additional
warranty questions, please contact our customer
service department.
Phone: [phone]
or email: [e-mail]

EN
5PIPA instructions
WARNING
DEATH or SERIOUS INJURY can occur
Read all instructions before use of the
infant child restraint.
Keep instructions for future use.
Use the bottom of the base for storage of
the manual.
Read the instruction manual for this infant
child restraint before use or installation
in a vehicle. In addition, read the vehicle
owner‘s manual for information on infant
child restraint installation. Failure to the
follow the infant child restraint instruction
manual or the labels on this product can
result in DEATH or SERIOUS INJURY.
Do not allow anyone who has not read the
instruction manual to install or use this
infant child restraint.
Child requirements:
1 Weight: 1.8 kg to
15.9 kg (4-35 lb)
2 Height: Less than
81 cm (32 in.)

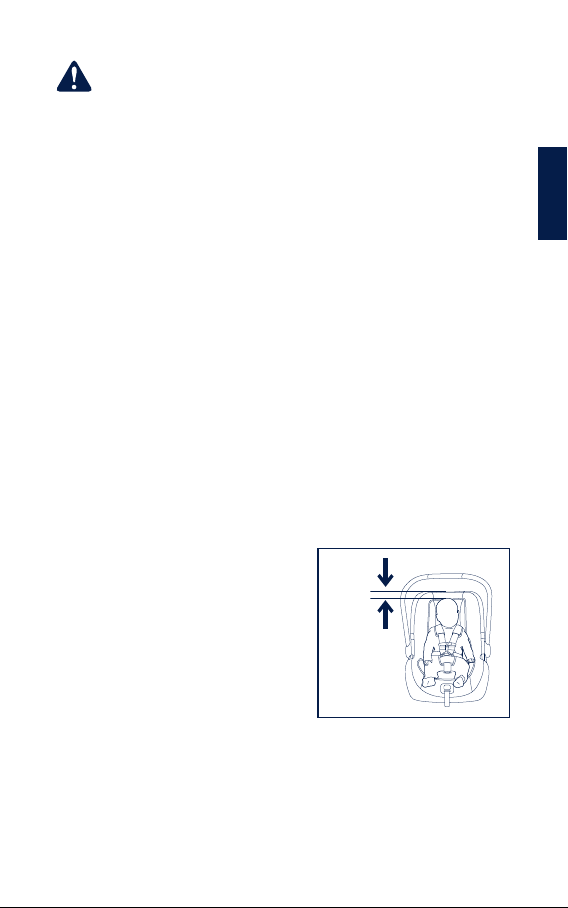

3Top of child´s head is
at least 25 mm (1 in.)
below top of carrier.
4 Use infant insert only if it is necessary to
achieve a snug fit for infants less than
5 kg (11 lb).
1 in
(25 mm)

EN
6PIPA instructions
This infant child restraint can ONLY be
used in a rear facing position on a forward
facing vehicle seat with appropriate UAS
or seat belt system.
According to accident statistics, children
are safer when properly restrained in rear
vehicle seating positions, rather than in the
front of the vehicle.
Never leave child unattended.
Never leave infant child restraint and base
or other item unbelted or unsecured in
your vehicle. Any unsecured item when in
motion can harm occupants.
DO NOT allow carrier or handle to contact
interior of vehicle when installed on base.
Always check buckle
and other parts for hot
surfaces. An infant child
restraint left uncovered
in the sun could burn a
child. Cover with blanket
if leaving in car.
Always check carrier
to base connection.
Never install infant child
restraint in a vehicle seat
with a front airbag. DEATH
or SERIOUS INJURY may
occur. Refer to your vehicle
owner’s manual for side
airbag warnings and
information.
click
1
check
2

EN
7PIPA instructions
Do not use infant child restraint if any
harness straps are cut, frayed or damaged.
Do not use infant child restraint if base or
carrier are damaged in anyway.
Replace this infant child restraint if it has
been involved in a car accident, even if
it was minor and there appears to be no
damage to the infant child restraint.
Never modify any part of the infant child
restraint. Only disassemble infant child
restraint if instructed to by instruction
manual.
Do not use any products or accessories in
conjunction with infant child restraint not
supplied with infant child restraint.
Do not use this infant restraint system
longer than 7 years from the date of
manufacture or date of purchase (proof
of purchase required). Please keep a copy
of the receipt with this user guide for your
records and for future reference. Check
the manufacturer´s label ‘do not use after’
date on the underside of the carrier and
base.
Never use clothing or blankets that
interfere with providing a properly
tightened harness. An unsecured child can
come out of the restraint during a crash.
Place blankets over child AFTER harness
has been properly tightened.

EN
8PIPA instructions
FALL HAZARD: Child’s activity can move
carrier. NEVER place carrier on counter
tops, tables, or any other elevated surface.
SUFFOCATION HAZARD: Infant carrier
can roll over on soft surfaces and
suffocate child. Never place carrier on
beds, sofas, or other soft surfaces.
STRANGULATION HAZARD: Children
have STRANGLED in loose or partially
buckled harness straps. Fully restrain the
child even when carrier is used outside the
vehicle.
A snug strap should not allow any slack.
It lies in a relatively straight line without
sagging. It does not press on the child's
flesh or push the child's body into an
unnatural position.
Never place carrier on top of a shopping
cart. Carrier will not be properly secured
and could fall.
Do not use the infant child restraint if it is
damaged or broken.
Only use with Nuna strollers or appropriate
Nuna adapters designed for use with other
strollers.
NEVER LEAVE AN INFANT CHILD
RESTRAINT AND BASE UNSECURED
IN YOUR VEHICLE. An unsecured infant
restraint or base can be thrown around
and may injure occupants in a sharp turn,
sudden stop or crash. Remove it or make
sure that it is securely belted in the vehicle.

EN
9PIPA instructions
If not using UAS, make sure unsecured
UAS connectors are properly stored on
base.
NEVER USE INFANT RESTRAINT AND
BASE IF IT HAS DAMAGED OR MISSING
PARTS. DO NOT use a cut, frayed or
damaged infant restraint harness, vehicle
seat belt or UAS belt.
THIS INFANT CHILD RESTRAINT
CONFORMS to Canada Motor Vehicle
Safety Standard 213 and 213.1, and is
certified for use in motor vehicles and
aircraft.
BE SURE handle locks into position before
lifting carrier.
DO NOT place carrier near a window
where cords from blinds or drapes can
strangle a child.
This infant restraint system is not to be
used in vehicles that do not have seat belts
or UAS.
This restraint system can only be used in
these classes of vehicles: passenger cars,
multi-purpose passenger vehicles and
trucks that have vehicle lap/shoulder belts
and UAS.
This infant child restraint can be properly
installed in most vehicles. However, there
are some vehicle belts and vehicle seats
that are not safe for use with this restraint.

EN
10 PIPA instructions
Here are some vehicle belt issues:
1 - Motorized / Automatic shoulder belts. These
should not be used unless the shoulder belt
can be removed, the lap belt is locked and use
is allowed by the vehicle manufacturer.
2 - Lap / Shoulder belt both with retractors.
If allowed by the manufacturer, the lap belt
only may be used to secure the infant child
restraint in accordance with this manual and
the vehicle's manual.
3 - Lap Belt only with emergency locking retractor
(ELR). This belt locks in a crash or sudden stop
and should only be used with a belt shortening
clip. Contact your vehicle manufacturer if
needed.
4 - Door mounted lap or shoulder belts can not be
used to install this infant child restraint.
5 - Lap belt forward of the seat bight (Where the
seat bottom and back meet) should not be
used to install this infant child restraint.
6 - Only install infant child restraint in a
forward facing vehicle seat. Never install in
a seat that faces the rear or the side of the
vehicle.
Refer to your vehicles owner’s manual for
detailed information about vehicle belts,
UAS (lower anchors), and preferred restraint
installation positions.

EN
11PIPA instructions
1
2
3
4
5
6

EN
12 PIPA instructions
12 13
14
15
16
17
18
4
3
58
2
11
1
9
10
7
6
1 Canopy
2 Infant Insert
3 Chest Clip
4 Buckle and
Crotch Belt
5 Adjuster Button
6 Adjuster Strap
7 Lap Belt Guides
(Blue)
8 Handle Button
9 Shoulder Pads
10 Seat Cover
11 Handle
12 Shoulder belt Guide
(Blue)
13 Stroller Release
Button
*only used with infant child
restraint adapters
Parts List

EN
13PIPA instructions
19
20
21
22
23
24
25
14 Harness Slots
15 Base Attachment
Bar
16 Harness Straps
17 Splitter Plate
18 Base Attachment
Bar
19 Lock off (Blue)
20 Rigid UAS (lower
attachments)
21 Rigid UAS Guides
22 Carrier Release
Button
23 Instruction Manual
Storage
24 Base Support
25 Locking Clip

EN
14 PIPA instructions
Feature Overview
Dream Drape™
1 - Unzip the zipper behind the front canopy bow.
2 - Pull the dream drape out of the compartment.
Attach the magnets on each corner to the front
of the infant child restraint.
Canopy Removal
3 - To remove the canopy, press the button in the
canopy mount and pull the canopy bow out.
Seat Pad Removal
4 - Pull the fastening pieces underneath the edge
of the seat out.
5 - Remove the harness from the splitter plate.
6 - Remove the seat pad from the adjustment
button as shown.

EN
15PIPA instructions
1
2
3
4
5
6

EN
16 PIPA instructions
1 - Remove the seat pad from the stroller release
button as shown.
*Feature used only with infant child restraint adapters. Infant child
restraint adapters for strollers sold separately.
Shoulder Pads
2 - Shoulder pads are removable and are not
necessary for safety.
Handle Adjustment
3 - The carrier handle can be adjusted to 3
positions.
Position for car, hand or stroller transportation.
(Position 1)
Baby chair position. (Position 2)
Rocking position. (Position 3)

EN
17PIPA instructions
1
2
3Position 1
Position 2
Position 3

EN
18 PIPA instructions

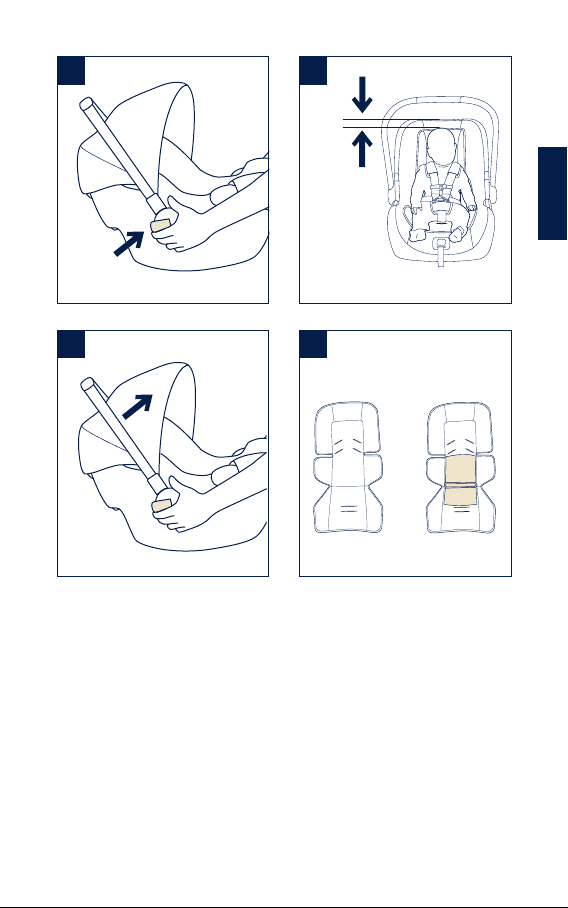

1 - To adjust the handle position, squeeze handle
buttons on both sides and rotate.
2 - Rotate handle until it clicks into any of the 3
positions. In the vehicle, the handle MUST BE
PLACED (LOCKED) IN POSITION 1 ONLY.
Be sure handle is locked in the carry position
before lifting carrier by handle. An unlocked
handle could move unexpectedly, causing
injury to child.
Handle MUST NOT contact the vehicle interior
when installed.
Child Requirements
3 - Weight: 1.8 to 15.9 kg (4 to 35 lb).
Height: less than 81 cm (32 inches).
Top of child’s head is at least 25 mm (1 in.)
below top of carrier.
Infant insert
4 - The infant insert can be used as necessary
to provide a snug fit for small babies. The
low birth weight pillow (shown in green)
can be used in the infant insert for even
smaller babies, but should be removed once
unnecessary. The low birth weight pillow
should be removed once a snug fit can be
achieved without it, at approximately 5 kg (11 lb).

EN
19PIPA instructions
1
2
3
4
1 in
(25 mm)
front back
