Nuna royl User manual

Easy Installation
Our products are designed to make your
life easier, so installing this child restraint
doesn't require outside assistance. While we
encourage the use of Certified Child
Passenger Safety Technicians to ensure
you have installed the seat correctly, you can
install the child restraint in your vehicle without
these professionals by carefully reading and
following these instructions.
Thank you!
You’ve just purchased a Nuna product, and
you can be sure that your child is getting the best
there is. Our products are expertly engineered for
safety, with luxury fabrics and sophisticated style.
Whatever made you fall in love with Nuna, rest
assured your adventures with your little one will
be easier from now on, freeing you to enjoy
more happy family moments together.

EN EN
IMPORTANT!
KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE:
READ CAREFULLY
WARNING: Read and understand ALL warning
labels affixed to the child restraint and all written
instructions. Failure to do so can result in serious
injury or death. Store instructions in the slot on
the bottom of the leg rest for future use.
Contents
Important Information
Product Information/Registration
Child Usage Requirements
Safety Warnings
Vehicle Compatibility
Car Seat Use after a Crash
Aircraft Installation
Child Restraint Overview
Parts List
Features Usage
Harness mode Installation (forward facing)
Booster mode Installation
(without built-in harness)
Securing Child
In Harness mode (forward facing)
Booster mode (without built-in harness)
Cleaning and Maintenance
4
5
6
10
16
16
17–19
20
38
46
54
56
58
2ROYL™instructions 3ROYL™instructions

EN EN
Product Information/
Registration
Model Number:_____________________________________________________________________
Manufactured (date):_________________________________________________________
Product Registration
Please fill in the above information. The model
number and the manufactured in date are located
on a label on the bottom of your child restraint.
Fill out the prepaid registration postcard attached
to the seat cover and mail it today.
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in
a recall. Send your name, address, e-mail address
if available and the restraint’s model number and
manufacturing date to:
Nuna Canada
2520 Av. Marie-Curie
St-Laurent, QC, H4S 1N1
1-800-667-4111
or register online at:
www://nunababy.ca/en/registration
Warranty
We have purposely designed our high-quality
products so that they can grow with both your child
and your family. Because we stand by our product,
our gear is covered by a custom warranty per
product, starting from the day it was purchased.
Please have the proof of purchase, model number
and manufactured in date available when you
contact us.
Contact
For replacement parts, service, or additional
warranty questions, please contact our customer
service department.
Phone: [phone]
or email: [e-mail]
Child Usage Requirements
To use this child restraint, your child must meet
ALL the weight and height requirements below:
Be at least 2 years old
Weight: 13.6–54.4 kg (30–120 lbs)
Height: 144.8 cm (57 in.) or less
In booster mode (without built-in harness), child
must be at least 4 years old and must be able
to sit relatively still in the same position with the
shoulder and lap belt properly positioned on their
body throughout the car ride.
4ROYL™instructions 5ROYL™instructions

EN EN
When used in harness mode (forward facing),
use ONLY with children who weigh 13.6–29.4 kg
(30–65 lbs) and whose height is 124.4 cm
(49 inches) or less and are at least 2 years of age.
When used in booster mode (without built-in
harness) use ONLY with children who weigh
between 18–54.4 kg (40–120 lbs) and whose
height 96 to 144.8 cm (38 to 57 inches) and
are at least 4 years old.
DO NOT use in any configuration not shown
in the instructions. Please refer to vehicle
owner’s manual for recommended or
suggested installation positions.
DO NOT use the child restraint if it is more
than 10 years from date of purchase (proof
of purchase required) or manufactured
otherwise. Check the label on the bottom
of the child restraint.
DO NOT use another manufacturer’s cover,
padding, fabric, or other soft materials
with this child restraint, as these constitute
an integral part of the child restraint
performance.
WARNING
DEATH OR SERIOUS INJURY CAN OCCUR
DO NOT modify your child restraint or use
any accessories or parts supplied by other
manufacturers unless they are approved
by Nuna for use with this child restraint.
Doing so may be unsafe and may void
the warranty.
DO NOT use a cut, frayed or damaged
vehicle seat belt. NEVER use the child
restraint if it has frayed or cut harness
straps, any damaged or missing parts,
or has been in a damaging crash. To find
out if damaged parts are replaceable,
call 1-800-667-4111.
NEVER use a car seat that has been
involved in a moderate to severe crash.
See page 16 to learn the difference between
a minor and moderate to severe crash.
DO NOT allow anyone who has not read
the instructions to install or use this child
restraint. NEVER give this child restraint to
another person without also giving them
these instructions.
NEVER leave child unattended in this child
restraint.
To avoid strangulation, do not allow children
to play with vehicle or child restraint belts
or straps. If possible, move unused belts
out of reach.
6ROYL™instructions 7ROYL™instructions

EN EN
Cover the child restraint when your vehicle
is parked in sunlight. Parts of a child restraint
can become very hot if left in the sun, and
can burn a child’s skin. Check for hot parts
before putting your child in the child restraint.
NEVER leave child restraint unsecured in
your vehicle even when it is unoccupied.
In a crash, it could become a projectile
and injure other vehicle occupants.
NEVER leave luggage or other objects
unsecured in a vehicle, as they are liable
to cause injuries in the event of a collision.
DO NOT install on a rear facing or side
facing vehicle seat.
This booster should be installed in the rear
vehicle seat so that it can be installed with
the vehicle lower anchors.
DO NOT install in the front passenger seat
with an active airbag, unless the air bag
can be turned OFF.
The child restraint is NOT certified for aircraft
use when used as a booster. Aircraft belts
are lap belts only, and a child cannot be
secured in the booster with only a lap belt.
WARNING! Use ONLY the vehicle’s lap and
shoulder belt system when restraining the
child in this booster seat. Use of any other
method of securement will not properly
secure the child, which could result in serious
injury or death. DO NOT use the built-in
harness when using the booster seat.
Properly position the vehicle lap and
shoulder belt on your child. Make sure the
vehicle lap and shoulder belt are not loose.
A loose or improperly positioned vehicle
lap and shoulder belt could cause the
child to be ejected in a sudden stop, turn
or crash and cause serious injury or death.
The vehicle shoulder belt should rest on
the child’s shoulder and across the center
of the chest.
The vehicle lap belt must remain snug
across the child’s thighs.
This restraint system can only be used
in these classes of vehicles: passenger
cars, multipurpose vehicles and trucks
that have lap, lap/shoulder belts and
UAS connectors.
8ROYL™instructions 9ROYL™instructions

EN EN
10 ROYL™instructions 11ROYL™instructions
Refer to your vehicle owner’s manual to determine
if your vehicle is equipped with UAS, and how to
correctly use UAS to install this child restraint in
your vehicle.
UAS and Tether Locations
Common locations of UAS and tether in a vehicle
are shown below (consult your vehicle owner’s
manual). Other locations of the tether are shown
on the next page.
UAS in Harness Mode (Forward Facing)
This child restraint is designed to be used with UAS
anchors at the standard spacing of 28 cm (11 inches).
UAS anchor points are defined as 28 cm (11 inches)
from the center of one UAS anchor to the center of
another UAS anchor.
WARNING: DO NOT USE the UAS anchor
belt to attach this child restraint forward facing
with harness mode when restraining a child
weighing over 18 kg (40 lbs).
Vehicle Compatibility
This child restraint can ONLY be installed on vehicle
seats that face forward. DO NOT install in seats that
face to the sides or rear of the vehicle.
IMPORTANT: According to accident statistics,
children are safer when properly restrained in the rear
seating positions than in the front seating positions.
Using UAS
This Child Restraint can be installed without vehicle
belts, by connecting the Restraint’s Universal Anchor
Belts to the lower anchorages in your vehicle.
UAS (Universal Anchorage System) is a system
for installing a child restraint in a vehicle without
using the vehicle belts.
WARNING: You MUST read and understand
ALL child restraint related instructions and
warnings in your vehicle owner’s manual to
correctly and safely use this child restraint in
your vehicle.
Vehicle Tether
Anchor Points
Vehicle Lower
Anchor Points
(UAS)

EN EN
12 ROYL™instructions 13ROYL™instructions
Using Vehicle Belts
Vehicle belt type is based on mode, as specified
below:
Lap/Shoulder Belt (A)
Harness mode
(forward facing)
Booster Mode
Lap Belt Only (B)
Harness mode
(forward facing)
Belts MUST be able to be locked. Refer to your
vehicle owner’s manual to determine if the belts
in your vehicle lock by: A) switching the seat belt’s
retractor by pulling the belt all the way out, or
B) a locking latch plate that locks the vehicle’s
seat belts so they will not move freely.
If the belt cannot be locked using one of these
methods, contact Nuna Customer Service for
a locking clip.
Tether
The child restraint’s tether strap must ALWAYS
be used in Harness mode (forward facing) as it
provides a more secure installation and is proven
to be safer. In a crash, the tether limits a child’s
forward movement, protecting their head and
neck and reducing the risk of injury.
Common tether locations (consult your vehicle
manual):
UAS in Booster mode (without built-in
harness)
Non-standard spacing of the lower anchors is
allowed in booster mode ONLY IF the vehicle
manufacturer allows it; consult your vehicle
owner’s manual.
An example of non-standard spacing is installing
the booster in the center seating position of your
vehicle where there are no lower anchors and
using the closest lower anchors from the outboard
positions instead.
When using non-standard spacing, lower anchors
MUST NOT interfere with the vehicle seat belt.
Rear Shelf
Back Wall
Back of Seat
Vehicle Floor
AB

EN EN
14 ROYL™instructions 15ROYL™instructions
Vehicle Belts that CANNOT Be Used
The following types of vehicle belts MUST NOT
be used to install this child restraint. They will not
provide a secure, safe installation. Refer to your
vehicle owner’s manual for which seating positions
in your vehicle can be used to install this child
restraint using vehicle belts or UAS.
1 - Motorized Belts (Automatic)
These should not be used unless the shoulder
belt can be removed, the lap belt is locked and
use is allowed by the vehicle manufacturer.
2 - Dual Retractor Lap/Shoulder Belts
If allowed by the vehicle manufacturer, the
lap belt only may be used to secure the child
restraint if it can be locked in accordance with
this manual and the vehicle’s manual.
3 - Non-Locking (ELR) Lap Belts
This belt locks only in a crash or sudden stop and
should only be used with a belt shortening clip.
Contact your vehicle manufacturer if needed.
4 - Airbag/Inflatable Belts
This belt is only allowable in booster mode.
5 - Door Mounted Belts
6 -Lap Belts forward of Seat Bight (where the seat
bottom and back meet)
1
2
3
4
5
6
In booster mode, child must be secured
by a lap/shoulder belt, NEVER a lap belt only.

EN EN
Car Seat Use after a Crash
Nuna recommends that car seats be replaced
following a moderate or severe crash. Car seats
do not automatically need to be replaced following
a minor crash.
A minor crash is one in which ALL of these apply:
• The vehicle was able to be driven away from
the crash site.
• The vehicle door nearest to the car seat was
not damaged.
• None of the passengers in the vehicle
sustained any injuries in the crash.
• If the vehicle has air bags, none of the air bags
deployed during the crash; and
• There is no visible damage to the car seat.
Any crash that does not meet all of the above
criteria for a minor crash is considered a moderate
to severe crash. NEVER use a car seat that has
been involved in a moderate to severe crash.
Aircraft Installation
Install child restraint forward facing in a forward
facing aircraft seat following vehicle lap belt
instructions, but install aircraft belt on top of closed
True Tension™door, under seat cover.
1
2
3
13
12
4
5
6
10
9
7 8
11
16 17
Parts List
3
4
11
The FAA recommends that children up to 18 kg (40 lbs)
use a child restraint while traveling on an aircraft.
When used in harness mode (forward facing):
This restraint is certified for use in aircraft.
When used in Booster mode (without built-in
harness): This restraint is NOT certified for use
in aircraft, since aircraft belts are lap belts only.
Contact your airline about their policies prior to travel.
ROYL™instructions ROYL™instructions
Front View
1 Headrest Adjustment
Button
2Headrest
3Shoulder Harness
Pad (x2)
4Crotch Pad
5Leg Rest Button
6Leg Rest
7Harness Release
Button
8Harness Adjustment
Strap
9Seat Cover
10 Harness Buckle
11 Cup Holder (x2)
12 Harness Strap
13 Chest Clip

EN EN
18 ROYL™instructions 19ROYL™instructions
Interior View
14 Harness Storage Compartment
15 True Tension™Door
16 True Tension™Door Release Button
17 Lower Anchor Attachment Strap
18 Universal Anchorage System (UAS)
Storage Door Release Button
19 Universal Anchorage System
Storage Door
20 Lower Anchor and Harness
Buckle Storage Compartment
(under UAS Storage Door)
14
18
17
15
19
16
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Side View
21 Booster Shoulder
Belt Guide
22 Side Impact
Protection Pod
23 Forward Facing
Belt Path
24 Magnetic Buckle
Tongue Holder
25 Booster Lap
Belt Path
26 Recline Position
Indicator
27 Recline Button
28 Instruction
Storage
Back View
29 Tether Strap Cover
30 Tether Strap
31 Tether Strap
Adjuster
32 Tether Hook
33 Lower Anchor Belt
34 Lower Anchor
Connectors
35 Lower Anchor
Adjuster

EN EN
Features Usage
Harness Use
1 - To Loosen Harness
Press on harness release button (1) while
pulling forward on the harness straps (2).
2 - To Open Chest Clip
Press button on front of clip (1) and pull clip
apart (2).
3 - To Open Harness Buckle
Press red button on front of buckle (1) and
pull out buckle tongues (2).
4 - To Use Magnetic Buckle Tongue Holders
Loosen and unbuckle harness. Place the buckle
tongues against the magnetic area on the side
of the child restraint so that the tongues are
held in place.
5 - To Fasten Chest Clip
Push chest clip halves together until they click.
(1) Pull to check.
To Fasten Buckle
Insert buckle tongues firmly into buckle until
they click. (2) Pull up on tongues to ensure they
are locked.
6 - To Tighten Harness
Pull on harness adjustment strap. (1) Place chest
clip at child's armpit level after tightening. (2)
1
1
1
1
1
1
2
2
2
2
2
20 ROYL™instructions
1
2
3
4
5
6
21ROYL™instructions

EN EN
22 23
Shoulder Pad and Crotch Pad Use
1 - In harness mode, the pads are a comfort
feature that may be used or removed for any
child.
To use the shoulder pads, fold each pad in half
over the harness strap and attach the snaps.
To use the crotch pad, slide the harness buckle
through the loop on the pad.
1
ROYL™instructions ROYL™instructions

EN EN
Harness Buckle Adjustment
The harness buckle has two positions. Use the
position that is closest to (but not under) your child.
Loosen and unbuckle harness.
1 - Unsnap seat cover (1) and pull forward while
pulling harness buckle backwards through slot
in seat cover (2).
2 - Route harness buckle strap through either slot
(1 or 2) on the UAS storage door. Pull buckle
through corresponding slot in seat cover and
replace seat cover.

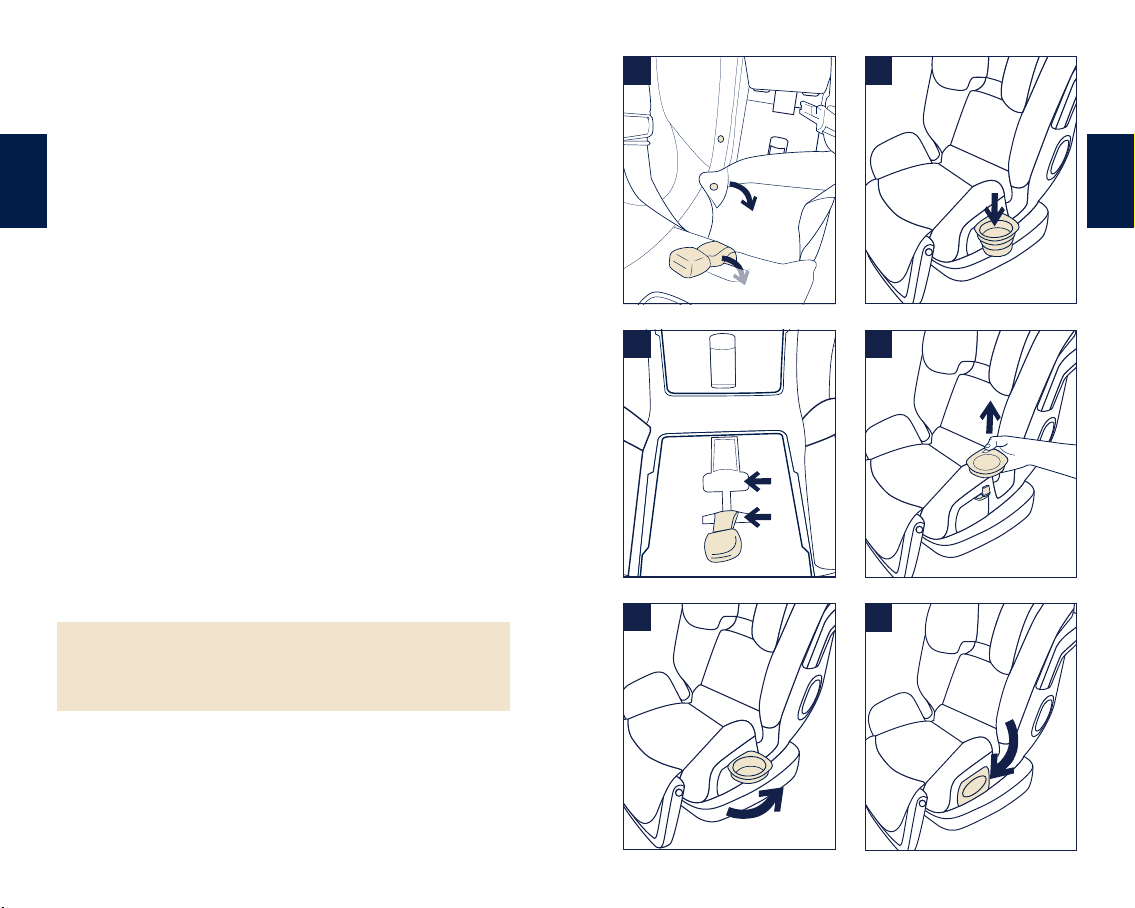

Cup Holder Use
3 - Pivot cup holder up and lock in use position.
4 - Push center of cup holder down to extend to
opened position.
5 - While in the opened position, pull up on the
cup holder to remove for washing.
6 - To store, collapse cup holder and pivot down.
Press to lock in position.
5
6
3
4
24
1
2
25
1
1
2
2
DO NOT place glass or metal containers or hard
or sharp objects in cup holder. In a crash they
could cause serious injury.
ROYL™instructions ROYL™instructions

EN EN
Headrest Adjustment
There are 8 headrest positions.
1 - With harness loose, squeeze headrest button
and move headrest up or down to desired
position.
Release headrest button and slide headrest
slightly up or down until locked into position.
The headrest will click when it locks.
CHECK that headrest is locked on both
sides by pulling firmly up and down.
Recline Use
2 - There are 4 recline positions.
3 - Press recline button (1) on either side of the
child restraint and tilt seat to desired recline
position (2).
Release recline button, and check that child
restraint is locked in desired recline position.
To change recline position after installation,
you MUST uninstall child restraint, select new
recline position, and then reinstall child restraint.
1
2
5
26
1
27
2
1
2
3
4
3
ROYL™instructions ROYL™instructions

EN EN
Leg Rest Use
The fully adjustable leg rest can be used in both
modes of the child restraint. It can be angled to
achieve proper leg support and extended for
longer legs.
1 - The leg rest MUST NOT be above the
child restraint seating surface.
To Adjust Leg Rest:
2 - Push and hold the buttons on both sides of
the leg rest. You can now angle and extend
the leg rest simultaneously.
3 - Adjust the leg rest to the desired position by
tilting to rotate the angle (1) and pulling forward
to extend for a child with longer legs (2).
Once you reach the desired position, release
the buttons. You will hear them click as they
spring back into place, locking the leg rest.
If the buttons do not spring back right away,
gently tilt the leg rest until it locks into place.
Angle must be locked before extension can
be locked.
2
1
2
3
28 29
1
ROYL™instructions ROYL™instructions

EN EN
True Tension™Door Use
The True Tension™door is located underneath the
seat cover.
Loosen and unbuckle harness, and retain with
magnetic buckle tongue holders.
1 - Adjust headrest to highest position, unsnap
seat cover and pull to front of seat.
2 - Lift True Tension™ door release button.
3 - Open True Tension™door. Follow instructions
for belt routing:
• Forward facing, p.38
• Booster, p.46
4 - Close True Tension™door by pressing down
firmly on door until it latches in place.
Replace seat cover.
30
1
2
3
4
31ROYL™instructions ROYL™instructions
click

EN EN
UAS Use
The UAS belt can be used instead of a vehicle belt
to install this child restraint. The lower anchor belt
MUST NOT be used forward facing if your child
weighs more than 18 kg (40 lbs).
The lower anchor belt can be used with the booster
from 18–54.4 kg (40–120 lbs).
The lower anchor belt and connectors are stored
under the UAS storage door.
Loosen and unbuckle harness, and unsnap seat
cover.
1 - Lift UAS storage door release button.
2 - Take out the lower anchor belt and connectors.
3 - Lengthen lower anchor belt for use by pressing
adjuster button while pulling on belt.
4 - For belt routing, see p.38 or p.46. To connect
lower anchor belt to lower anchors in vehicle,
press connector firmly onto lower anchor and
pull to check. Lower anchor belt MUST NOT
interfere with the vehicle seat belt.
5 - Remove all slack from lower anchor belt by
pulling loop at end of belt.
6 - To release lower anchor belt, press red button
on end of connector while pulling on belt.
Store lower anchors when not in use. Place
one lower anchor connector in each half of
the storage compartment. Fold excess belt
webbing into compartment. Belt MUST NOT
interfere with latching of storage door.
DO NOT cut the lower anchor attachment
strap. It permanently secures the lower anchors
to the child restraint.
32 33
2
4
3
5
6
1
ROYL™instructions ROYL™instructions

EN EN
Tether Use
1 - Open the tether strap cover by undoing the
hook and loop (1). Unclip the tether hook (2)
by pushing in the back of the hook while
pulling the hook down and off of the anchor.
2 - To extend tether for use, tilt tether adjuster
and pull to lengthen.
3 - Locate the tether anchor in your vehicle. Look
for the tether icon pictured here. Attach the
tether hook to the vehicle tether anchor (1).
Once tether is anchored, tighten by pulling
on tether strap to remove all slack (2).
Close the tether strap cover by attaching the hook
and loop.
4 - When attaching the tether hook to the
vehicle tether anchor, route the tether strap
over the top of the closed tether strap cover,
not out of the bottom.
5 - To store, attach tether hook to the back of the
child restraint (1) and remove slack from tether
strap. Loose strap should then be rolled neatly
and stored under tether cover (2). When not in
use, tether MUST be properly stored.
ALWAYS use tether for harness mode
(forward facing) installation.
34
1
2 5
4
35
2
1
1
2
3
2
1
ROYL™instructions ROYL™instructions

EN EN
Harness Storage
1 - Loosen harness, open chest clip, and open
harness buckle.
Fully raise head support (1). Unsnap and lift
the upper and lower seat covers (2).
2 - Gently slide each harness strap under the harness
storage compartment cover (1).DO NOT FORCE
OR BEND the compartment cover.
Store chest clip and buckle tongues inside
harness storage compartment (2).
3 - Slide harness buckle through slot in UAS
storage door.
4 - Store harness buckle in lower anchor storage
compartment. Replace seat cover.
Shoulder Belt Guide Use
When securing child in booster, the vehicle shoulder
belt MUST be routed through the shoulder belt guide.
5 - Pull the shoulder belt guide back (1) and slip the
vehicle shoulder belt in front of the open shoulder
belt guide (2).
6 - Release the shoulder belt guide.
ALWAYS store the harness when using the
child restraint as a booster.
The vehicle shoulder belt must route
COMPLETELY through the shoulder belt guide
and across the center of the child's chest, and
must not fall off the child’s shoulder.
36 ROYL™instructions
1
2
3
4
37
1
2
2
1
5
6
12
ROYL™instructions
