Panasonic KX-TD7580 User manual

DECT Portable Station
Operating Instructions
Model KX-TD7580
– Thank you for purchasing a DECT Handset (= Portable Station).
– Charge the battery for about 15 hours before initial use.
– This manual is designed to be used with your Handset and a Panasonic 
KX-TD816/KX-TD1232 system.
– In this manual, the last letter of each model number is omitted.
* Available AC Adaptors: KX-TCA1, KX-TCA1AL, KX-TCA1CE and KX-TCA1E.
The part number is different from each country. Refer to the number on the
label on the AC Adaptor.
Accessories (included)
Setting Up................................. 2
Before Operation....................... 3
Operation...................................4
Using the Phonebook................6
Handset Programming.............11
Important Information...............13
Specifications.......................... 16
English..................................1-16
Deutsch...............................17-32
Français..............................33-48
Nederlands.........................49-64
Svenska.............................. 65-80
Contents
To attach
AC Adaptor*
Belt Clip
Charger
Batteries
(Panasonic P-6P or BYD PQHHR120AA12)
Operating Instructions
Français
Nederlands
English Deutsch Svenska
The handset supports the single line telephone (SLT) features.
Please refer to the appropriate section in the User Manual for
the KX-TD816/1232 system to operate the handset.
Some of the features are not available.

2
7
1
0
3
2
4
6
8
9
5
R
7
1
0
3
2
6
8
9
5
C
4

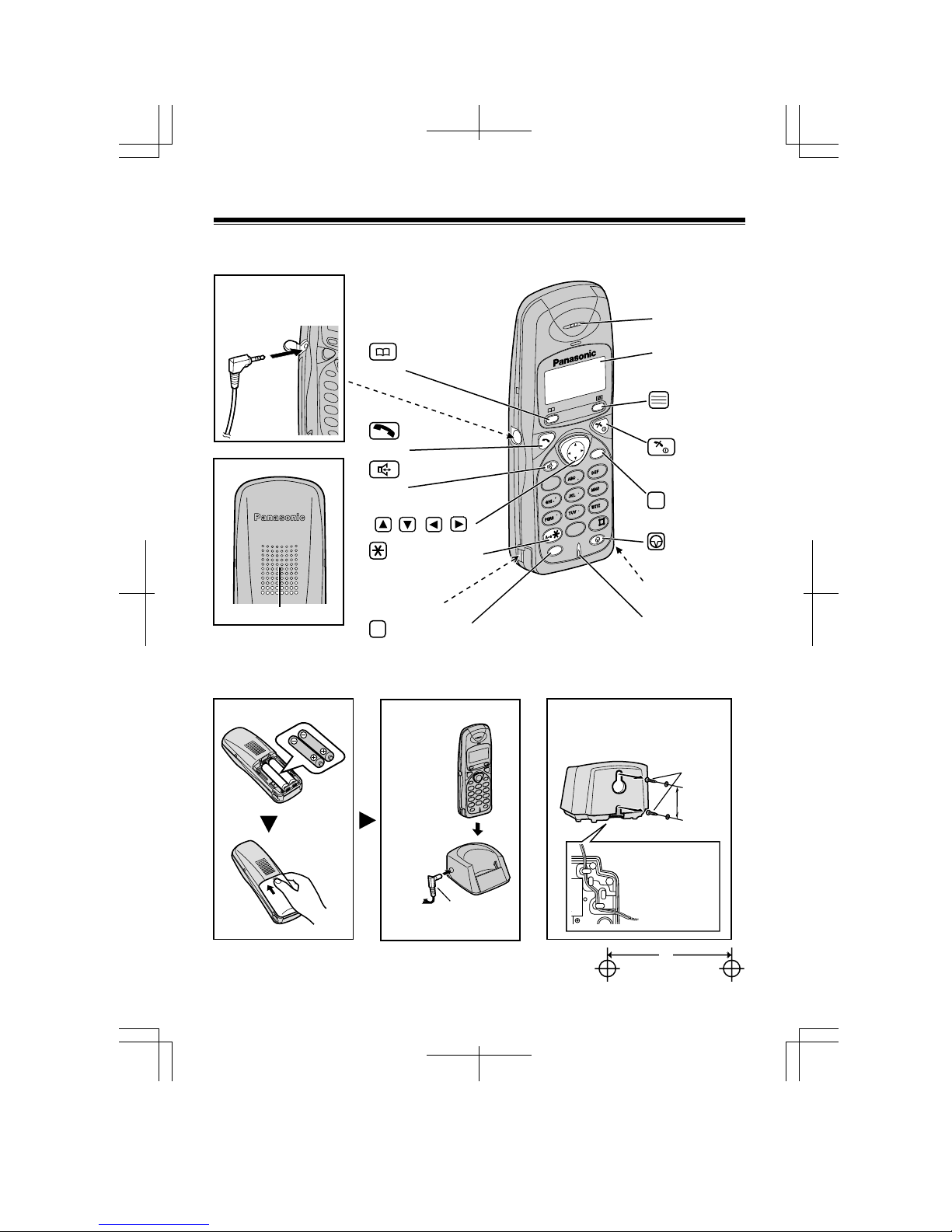

Setting Up
Handset
Display
Charge Contact
Microphone
(Function/OK)
Button
Charge Contact
Navigator Key
( , , , )
(Talk)
Button
(Speakerphone)
Button
(Phonebook)
Button
(Capital Change)
Button
(OFF/Power)
Button
Receiver
(Clear)
Button
C
R
(Recall) Button
Speaker
Insert and charge the batteries for about 15
hours as shown below.
Mount the charger
securely on the wall.
To power
outlet AC Adaptor
Back
Screws
30 mm
30 mm
(Pause)
Button
Headset Jack (Please
use only a Panasonic
headset.)
Use the template below for wall
mounting.
Insert the cord
in the groove for
wall mounting
or desktop
positioning.

3

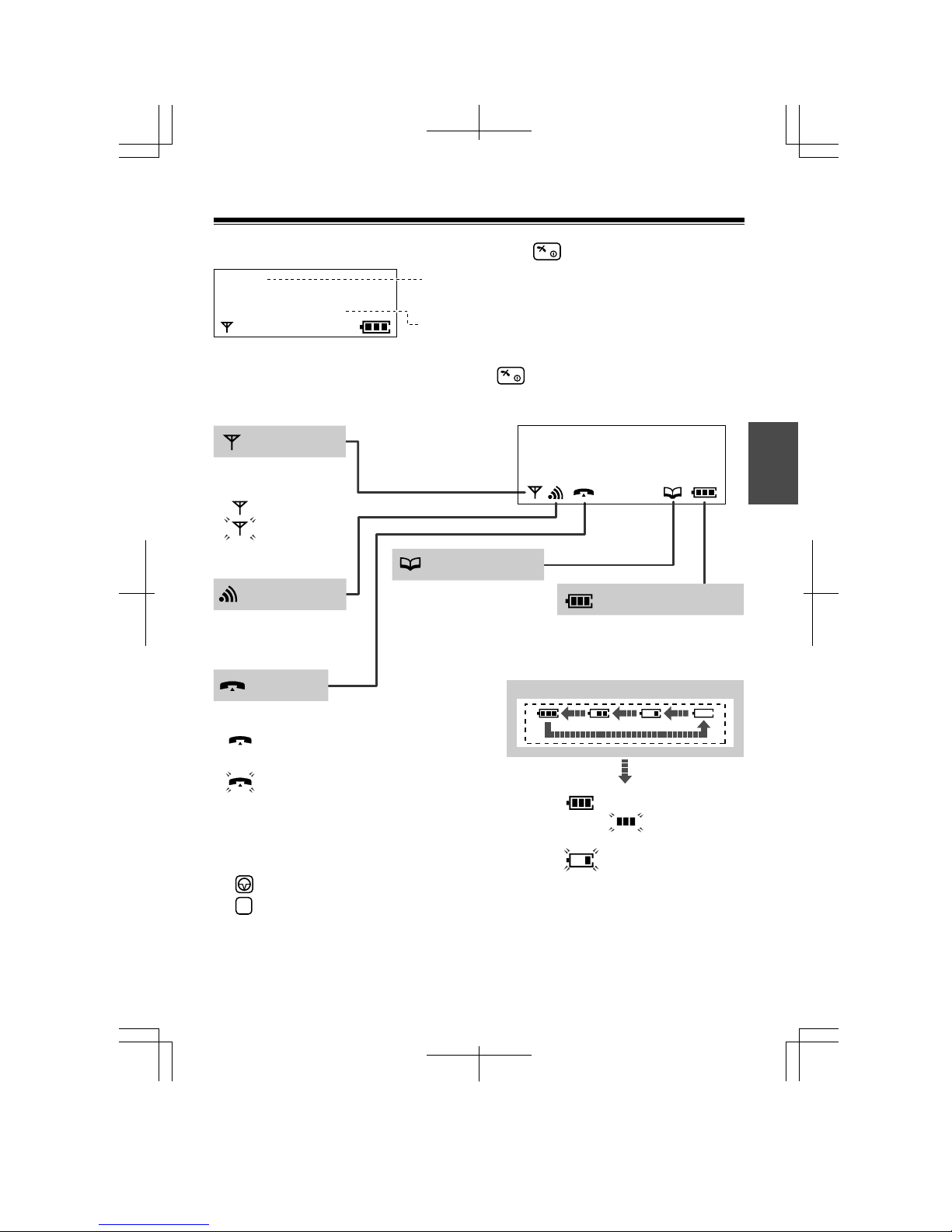

Before Operation

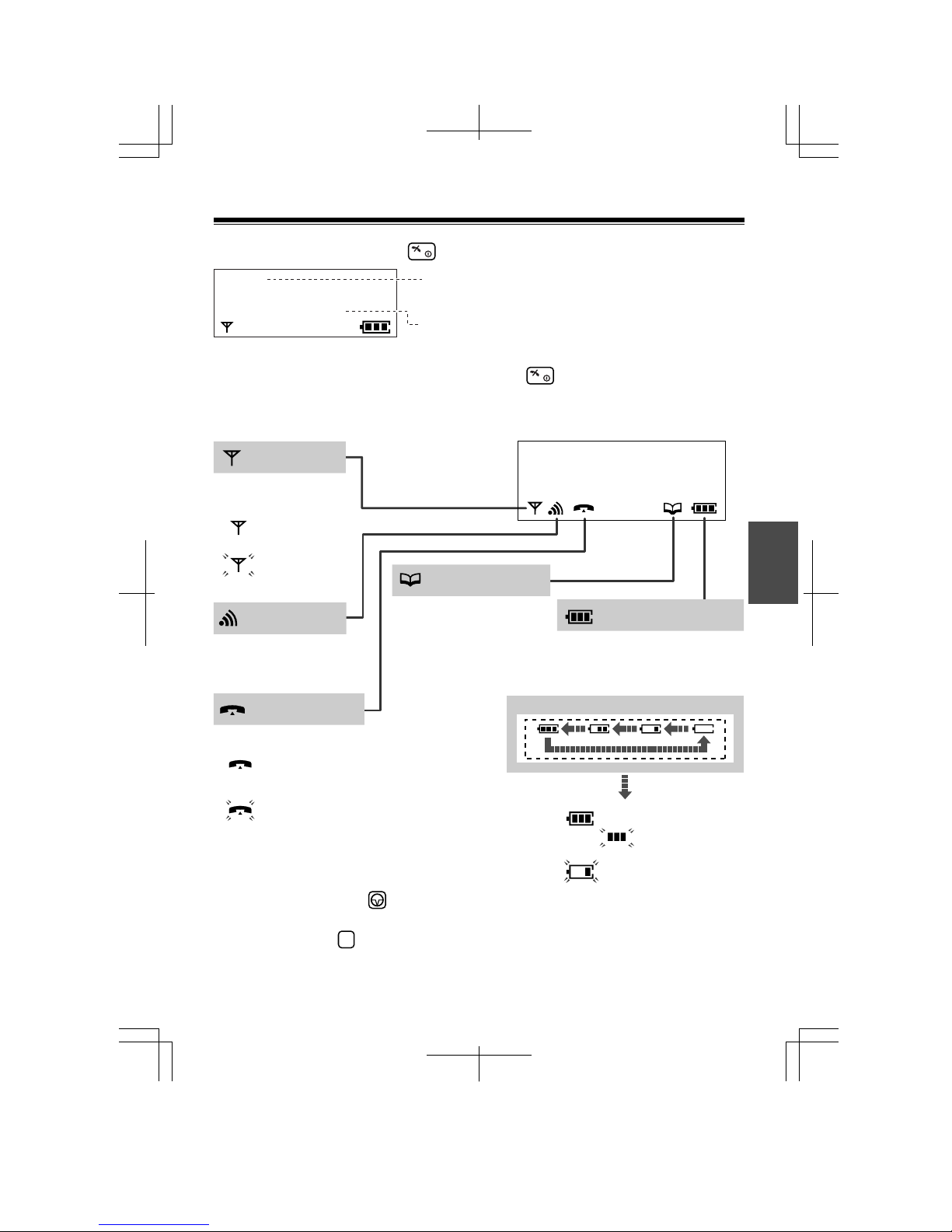

Shows the battery strength.
During charging the battery,
battery icon is as shown below.
Displays when storing
or viewing phonebook
items.
Needs to be
charged.
(Flashing)
(Flashing )
(Flashing)
(Flashing)
ABCDEFGHIabcdefg
1234567890123456
In-range icon
Talk icon
Displays when:
making or
answering a call.
receiving an outside
call.
Displays when the
handset is:
in range.
out of range.
Full
<During charge>
Characters
P is pressed while dialling.
F is pressed while dialling.
R
Flashes when receiving
an internal call.
To turn the power ON, press and hold .
[280]
15.05 13:58
The extension number:
For programming, see page 12.
The current date and time
● To turn the power OFF, press and hold until a beep sounds.
● To change the display language, see page 12.
Battery Strength
Phonebook icon
Intercom icon
English

4
● While talking, you can switch back and forth between the hands-free operation
and the receiver.
● Predialling: You can dial first, and then go off-hook.
Note
● If you misdial, press . To cancel, press and hold or press .

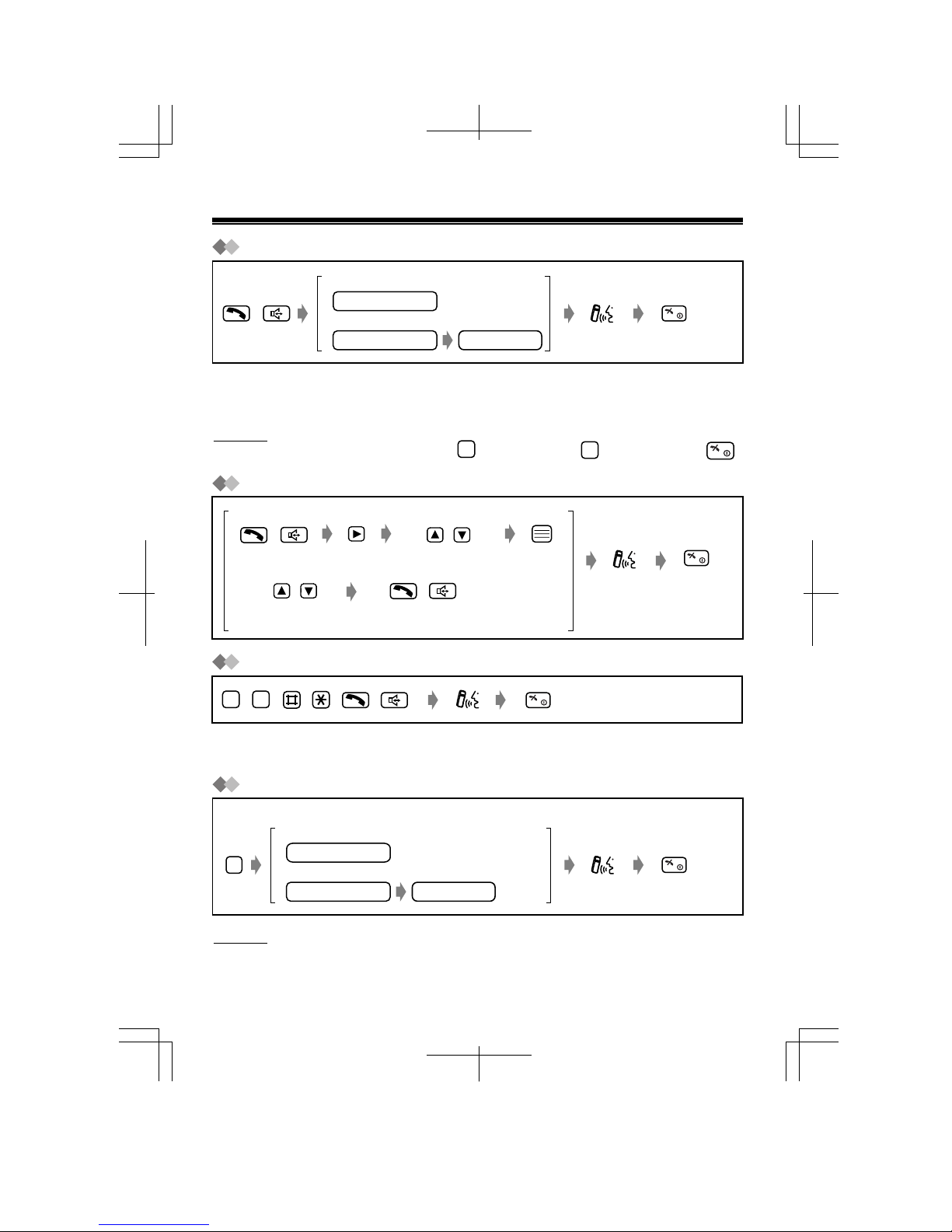

Operation

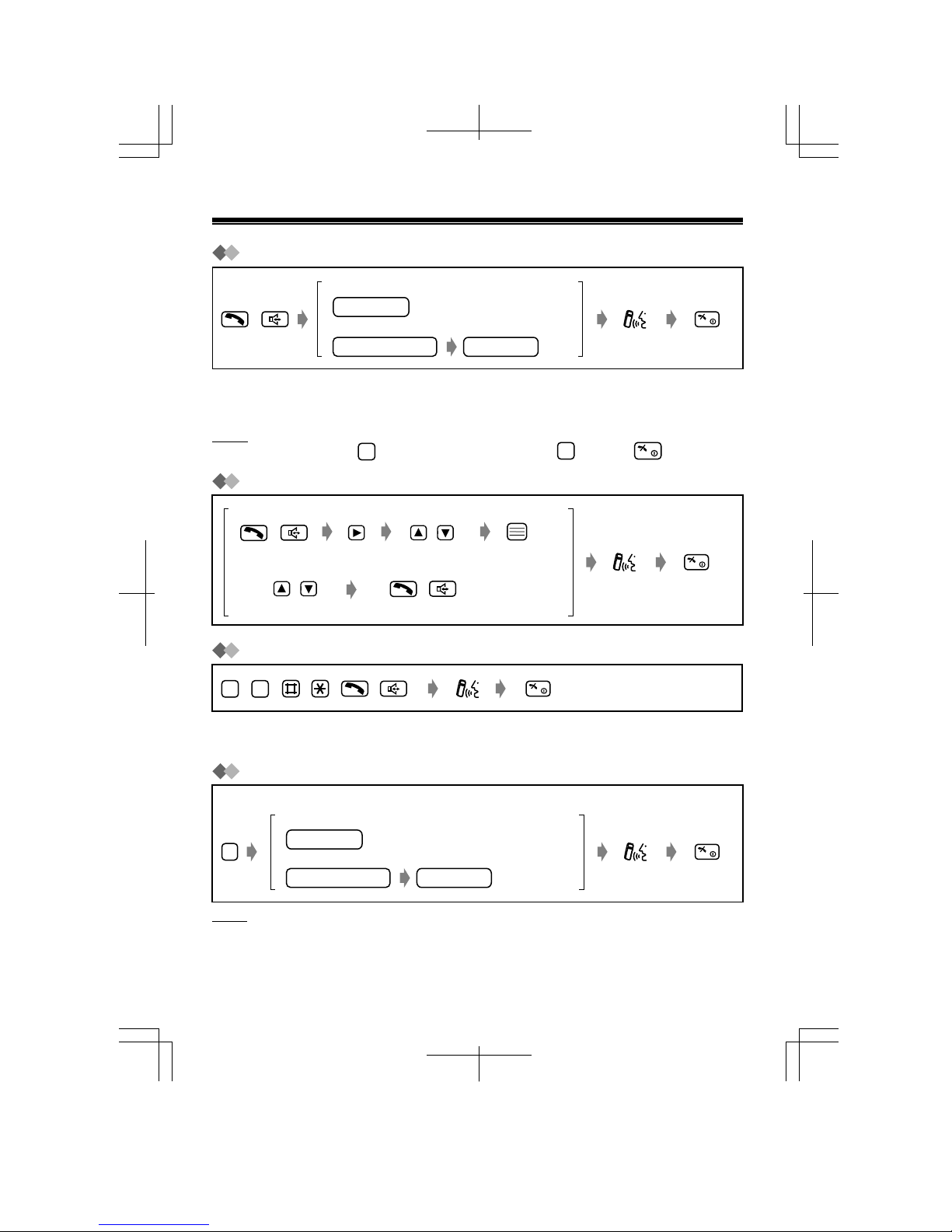

Basic Calling
● When receiving an outside call from a caller registered in the phonebook, the
caller's name and phone number will appear on the display.
Receiving Calls
/
09
–/
//
Transferring Calls
To an extension
To an outside party
R
While talking
extension no.
/
To an extension
To an outside party
phone no.
extension no.
phone no.
/ /
Select "Redial."
Redialling
//
Select the redial number.
To redial the last number
To redial using the redial list
Note
● You can also hang up by placing the handset on the charger.
CC
line access code
line access code

5
Clearing the Number in the Redial Memory
Adjusting the Receiver/Speaker Volume
● The ringer will turn back on for the next call.
● This function will not work when the handset is on the charger.
● The key lock will also be cancelled when the power is turned OFF (p. 3).
To clear the selected number
To clear all numbers
/
Select the redial
number.
/
Select "Clear."
Select "YES."
/
Select "All Clear."
/
While talking
(to increase) (to decrease)
Turning the Handset Ringer off Temporarily
While ringing
(press and hold.)
Select "TONE."
Tone Signalling
During an outside call or while dialling, you can transmit tone signals
automatically using the keypad (e.g., to control answering system remotely).
/
To set
(press and hold.)
Setting the Key Lock
You can lock the handset dialling buttons. Only incoming calls are accepted until
the key lock is cancelled. While locked, "[X]" will be shown on the display.
To cancel
(press and hold.)
English

6
Using the Phonebook
You can store up to 100 names and extension/outside numbers in the
phonebook. All phonebook items are sorted in alphabetical order. Using the
phonebook, you can make a call by selecting a name on the display.
● We recommend you insert access code (p. 12). 
● If the phonebook is locked (p. 12), enter the 4-digit handset PIN to go to the
phonebook list.
●You can exit the phonebook setting mode anytime by pressing .
●When programming is completed, a beep sounds.
Storing Names and Numbers in the Phonebook
*1If the display shows ''Memory Full,'' the display will return to the standby mode. Clear other stored
items in the phonebook (p. 9).
*2See the steps for entering names and symbols (p. 7).
Enter the 4-digit
handset PIN.
Select "New
Phonebook."
Enter the phone
number
(max. 24 digits).
Select the desired
private category
number, "OFF" or "INT."
Handset PIN name
<If required>
*1Enter name
(max. 16
characters).
*2
phone no.
If a pause is required for dialling, press .
A space can be stored in a phone number counting as one digit.
Select "Save."
Using the Private Category Feature
You can assign the caller's information to one of 8 private categories (1-8), "OFF"
and "INT." When storing an extension number in the phonebook, you must select
"INT."; otherwise, you cannot make an internal call from the phonebook. (If both
extension/outside numbers are the same, do not store the extension number in
"INT." in the phonebook.)
For each private category 1-8, you can select the display backlight colour and ring
type (p.11-12). When receiving an outside call, you can easily figure out who has
called. (For example, Category 1 for family, Category 2 for friends and Category 8
for business.) If you do not assign an item to any private category number, the
handset will ring in the preset ring type and light in the preset colour when
receiving an outside call.
For "INT.," you cannot select the ringer type and the display backlight colour.
/
//

7

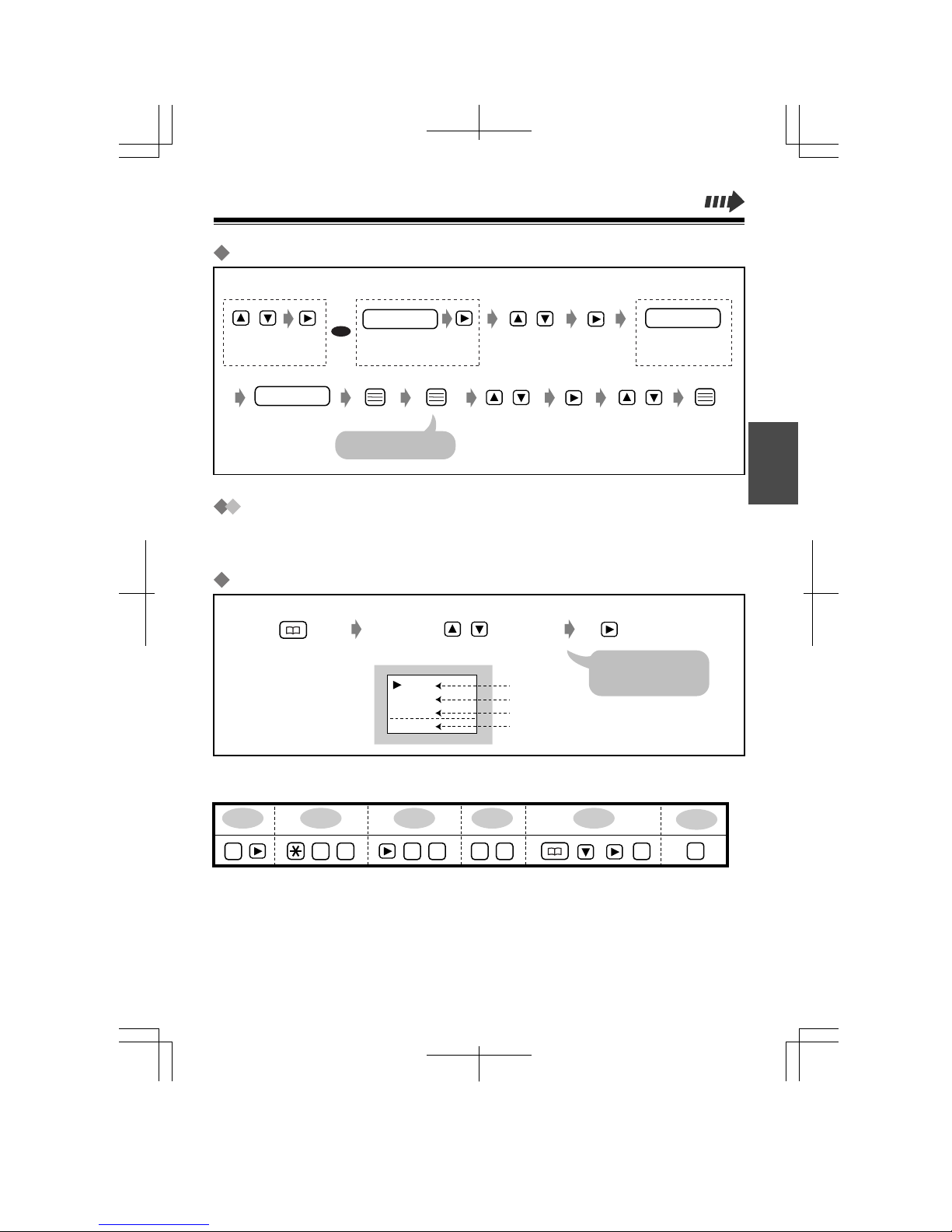

Entering Characters
The dialling buttons can be used to enter letters and character symbols. The
letters are printed on the dialling buttons.
Selecting the Character Mode
For example, to enter "Anne23'':
Select the desired Character Mode. See the "Character
Mode Table" on the
next page.
While entering a name
ABC
0-9
ΑΒΓ
AÄÅ
Alphabet
Numeric
Greek
Extended
A n en 23
2 2 3
336666
Storing a Redial or Predial Number
Enter the 4-digit
handset PIN.
Select the desired
redial number. Select "Save
Phonebook."
Select "Save."
Select the desired
private category
number, "OFF" or "INT."
Handset PIN
<Redial number>
Enter name
(max. 16
characters).
<If required>
phone no.
Enter the desired
phone number.
<Predial Number>
name
//
/
/
/
OR
Confirm the number.
English

8
Character Mode Table
1
C
Buttons ABC (Alphabet) 0-9 (Numeric) ΑΒΓ (Greek) AÄÅ (Extended)
# & ’ ( ) , – . / # & ’ ( ) , – . / # & ’ ( ) , – . /
# & ’ ( ) , – . /# & ’ ( ) , – . /# & ’ ( ) , – . /
1
1
2A B C
a b c
ΑΒΓ
ΑΒΓ
A À Á Â Ã Ä Å Æ B C Ç
a à á â ã ä å æ b c ç
2
2
3D E F
d e f
∆ΕΖ
∆ΕΖ
3
3
4G H I
g h i
ΗΘΙ
ΗΘΙ
4
4
5J K L
j k l
ΚΛΜ
ΚΛΜ
J K L
j k l
5
5
6M N O
m n o
ΝΞΟ
ΝΞΟ
M N Ñ O Ò Ó Ô Õ Ö Ø
m n ñ o ò ó ô õ ö ø
6
6
7P Q R S
p q r s
ΠΡΣ
ΠΡΣ
7
7
P Q R S S ß
p q r s s ß
8T U V
t u v
ΤΥΦ
ΤΥΦ
8
8
T U Ù Ú Û Ü U V
t u ù ú û ü u v
9W X Y Z
w x y z
9
9
W X Y Z
w x y z
0blank
blank
blank
blank
0
0
blank
To move the cursor to the left.
blank
To erase the character. To erase all characters, press and hold.
To move the cursor to the right. (To enter another character using the
same dialling button, move the cursor to the next space.)
To shift from capital to lower case, press . Each time you press ,
the mode will change.
ΧΨΩ
ΧΨΩ
D E È É Ê Ë E F
d e è é ê ë e f
G G H I Ì Í Î Ï I
g g h i ì í î ï

9
* All phonebook items are sorted in the following order:
Character Symbol Number
Press the dialling
button for the first
letter of the
desired name.
Enter the
Handset PIN.
Handset PIN
<If required> <To search for a name by initial>

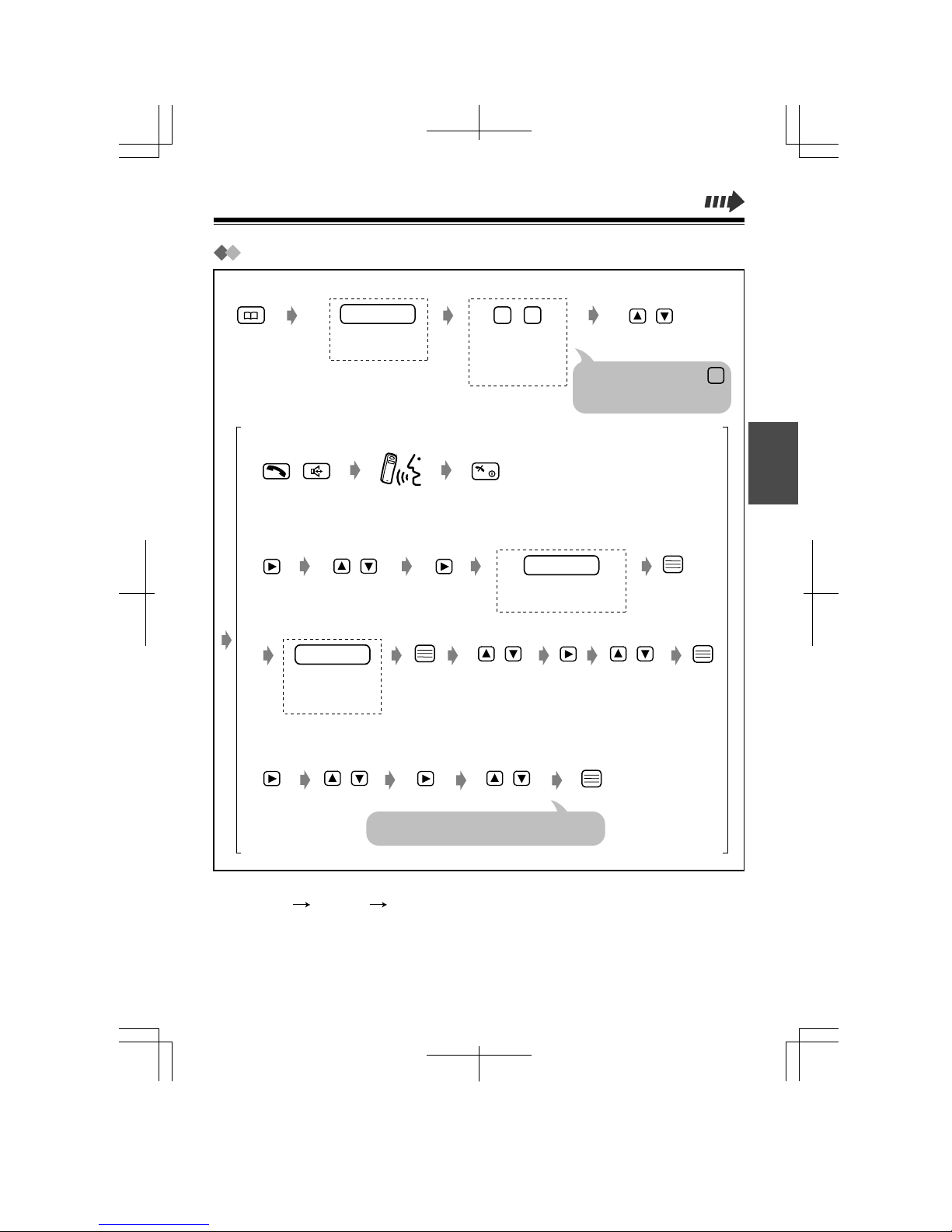

Finding Items in the Phonebook
Select the desired
name.*
/
/
e.g., to find "Felix," press
repeatedly until the first item
under "F" is displayed.
3
Select "YES."
Select "Clear."
After a few seconds, the display will show
the next item.
/ /
Select the desired
private category
number, "OFF" or "INT."
Enter the phone
number
(max. 24 digits).
phone no.
<To edit the number>
Select "Save."
/ /
Select "Edit." Enter name
(max. 16 characters).
namename
<To edit the name>
/
●Dialling from the Phonebook
●Editing an Item in the Phonebook
●Clearing an Item from the Phonebook
09
–
English

10
Dialling a Stored Number
Select the
desired number.
Press and hold
a hot key number.
<To search a number>
19
–
Using the Hot Key Dial Feature
The dialling buttons (1-9) function as one-touch dials. You can assign up to 9
phone numbers from the phonebook items into dialling buttons as hot key dials.
Storing Phonebook Items as Hot Key Dials
Select "Save"
or "Overwrite."
Enter the 4-digit
handset PIN.
Handset PIN
<If required>
If already stored an item, "✓"
will be displayed on the left of
the hot key number.
Select the desired
hot key number.
Select the
desired item.
Select "Reg.
To Hot Key."
//
//
//
Clearing an Item in the Hot Key Dial
While "YES" is at
the arrow.
Select "Clear."
19
–
Press and hold
a hot key number.
Locking the Phonebook
See page 12.
/
Select the
desired number.
<To search a number>
/
