1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-
scribe the functions of the named product and provide the most important information for the safe use of
the device. The description is written in accordance with the valid directives. The information in this op-
erating instructions refers to the product's current development status. The document shall remain valid
provided that the customer does not make any changes to the product.
1.2 Applicable documents
Designation Document
Declaration of conformity A component of these instructions
Tbl. 1: Applicable documents
You can find this document in the Pfeiffer Vacuum Download Center.
1.3 Target group
This operating instructions is intended for persons who
●install,
●operate.
The work described in this document may be carried out only by people who have completed suitable
technical training (experts), or who have received equivalent training from Pfeiffer Vacuum.
1.4 Conventions
1.4.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.4.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
About this manual
6/22

1.4.3 Stickers on the product
This section describes all the stickers on the product along with their meanings.
D-35641 Asslar/Germany
0422
Pfeiffer Vacuum GmbH
Berliner Str. 43 35614 Asslar
Valve PD 100 136
PN 0-2 bar Tamb 75 °C 100 % ED
Made in Germany
S/N 1000
20013549
Rating plate (example)
The rating plate is located on the valve coil
Tbl. 2: Stickers on the product
1
Fig. 1: Position of the stickers on the product
1.4.4 Abbreviations
Abbreviation Meaning in this document
DC Direct current
GB Gas ballast
[P:xxx] Electronic drive unit control parameters. Printed in bold as a three-digit number in
square brackets. Frequently displayed in conjunction with a short description.
Example: [P:312] software version
WAF Width Across Flats
USB Universal Serial Bus
Tbl. 3: Abbreviations used in this document
1.5 Trademark proof
●Hirschmann® is a registered trademark of Hirschmann Electronics GmbH.
●Loctite® is a trademark of HENKEL IP & HOLDING GMBH.
About this manual
7/22

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Low Voltage Directive 2014/35/EU. Where applicable, all life cycle phases of the prod-
uct were taken into account.
Risks during operation
CAUTION
Danger of injuries from contact with vacuum at gas ballast connection
There is a danger of minor injuries during operation due to limbs being sucked in (hematoma) at the
open gas ballast connection.
►Keep a sufficient distance away from automatic gas inlet or ventilation systems.
►Always mount the sinter filter or a secure hose supply line at the gas ballast connection.
2.3 Safety precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Safety
8/22

Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Never disconnect plug connections during operation.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Observe the unit protection degree prior to installation or operation in other environments.
►Do not carry out your own conversions or modifications on the unit.
2.4 Limits of use of the product
Parameter Air cooling
Permissible ambient temperature 5 – 40 °C
Permitted pressure range 0 – 1500 hPa (absolute)
Protection degree IP54
Relative humidity of air ≤ 85 % not condensing
Tbl. 4: Permissible ambient and operating conditions
2.5 Proper use
►Use the solenoid valve as accessory for the automatic inert gas supply at the manual gas ballast
valve of a Pfeiffer Vacuum HiScroll.
2.6 Foreseeable misuse
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use, in particular:
●Connection to vacuum pumps or equipment which are not suitable for this purpose according to
their operating instructions
●Connection to equipment with exposed live parts
2.7 Personnel qualification
The work described in this document may only be carried out by persons who have appropriate profes-
sional qualifications and the necessary experience or who have completed the necessary training as
provided by Pfeiffer Vacuum.
Training people
1. Train the technical personnel on the product.
2. Only let personnel to be trained work with and on the product when under the supervision of
trained personnel.
3. Only allow trained technical personnel to work with the product.
4. Before starting work, make sure that the commissioned personnel have read and understood
these operating instructions and all applicable documents, in particular the safety, maintenance
and repair information.
Safety
9/22

3 Product description
3.1 Function
The solenoid valve is used for the automation of the gas ballast valve of scroll pumps. The solenoid
valve opens or closes the inert gas supply by means of vacuum pump monitoring.
14
23
5
7
6
Fig. 2: Design of the solenoid valve for gas ballast valve
1 Double nipple, G 1/8" 5 Cable socket
2 Valve body 6 Fastening nut
3 Gas inlet, 1/8” thread 7 Valve coil
4 Power supply plug
3.2 Identifying the product
►To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
►Learn about certifications through test seals on the product or at www.certipedia.com with compa-
ny ID no. 000021320.
3.3 Scope of delivery
The scope of delivery includes the following parts:
●Solenoid valve
●Connecting cable with Hirschmann cable socket
●Cable clip, 2×
●Double nipple
●Operating instructions
Product description
10/22

4 Installation
4.1 Installing solenoid valve
NOTICE
Property damage from impermissibly high inlet pressure
Increased inlet pressure compromises the operational reliability of the vacuum pump and causes an
increase in power consumption and operating temperature.
►Observe the max. permissible inlet pressure of 1,500 hPa (absolute).
►Dose the flushing gas quantity with the dosing screw in the gas ballast valve or on site.
NOTICE
Property damage caused by unfiltered media supply
Using unfiltered media for the gas inlet of a vacuum pump may result in particle contamination. There
is a risk of damage to, and even destruction of, vacuum components.
►Install suitable filters from the Pfeiffer Vacuum accessories range upstream of the gas inlet, be-
fore you use ambient air or other unclean media.
NOTICE
Loss of leak tightness due to improper installation of gas connections
Inadequate cleanliness when handling the pipe connections will result in leakages and potential proc-
ess damage.
►Always wear suitable gloves before touching or installing components.
►Install all seals dry and free of grease.
►Look out for damaged surfaces and sealing surfaces.
►Replace any damaged components.
Prerequisites
●External inert gas supply dismantled, if present
Required tools
●Open-end wrench, 15 mm
●Allen key, WAF 5
●Calibrated torque wrench (tightening factor ≤ 2.5)
Required aids
●Loctite 577 thread sealant
Installation
11/22

GAS-
BALLAST
Position ″0″:
● Switch setting for media without condensation
● The gas ballast valve is closed
● No gas flow into the suction chamber
GAS-
BALLAST
Position ″1″:
● Switch setting for slight to medium condensation
● The gas ballast valve is open
● The gas flow depends on the type
GAS-
BALLAST
Position ″2″:
● Switch setting for medium to severe condensation
● The gas ballast valve is open
● The gas flow depends on the type
Tbl. 5: HiScroll gas ballast valve switch settings
Presetting manual gas ballast valve
►Turn the selector switch for the gas ballast valve to "1" or "2", depending on the accumulation of
condensate.
–Allow the selector switch to completely engage in position.
12
Fig. 3: Preparing gas ballast valve
1 Gas ballast valve, selector switch 2 Sinter filter
Preparing gas ballast valve
►Unscrew the sinter filter from the selector switch for the gas ballast valve.
Installation
12/22

1
43
2
Fig. 4: Installing and aligning solenoid valve
1 Solenoid valve, valve body 3 Threaded nipple II with lock nut
2 Lock nut, WAF 15 4 Threaded nipple I
Installing and aligning solenoid valve
1. Apply the Loctite thread sealant economically onto the turns of the threads of both threaded nip-
ples.
2. Screw threaded nipple I into the G 1/8" filter bore in the selector switch of the gas ballast valve.
–Tightening torque: 2.5 Nm
3. Screw threaded nipple II with the lock nut into the G 1/8" bore in the valve body of the solenoid
valve.
–Tightening torque: 2.5 Nm
4. Wait for the drying time of the threaded sealant to pass.
5. By hand, screw the solenoid valve with the lock nut onto threaded nipple I.
6. Turn the solenoid valve into the desired position and screw the lock nut tight.
7. Install the external inert gas supply on the inlet side of the solenoid valve, if present.
4.2 Establishing electric connection
NOTICE
Property damage to the electronics or the sensor
Disconnecting the plug-and-socket connection with the voltage supply switched on may lead to the
destruction of electronic components.
►Always interrupt the voltage supply before you plug in or unplug the sensor connection cable.
Required tools
●Crosshead screwdriver
Required materials
●Preconfigured connecting cable with Hirschmann cable socket
●Cable clip, 2×
Installation
13/22

1
2
3
4
5
6

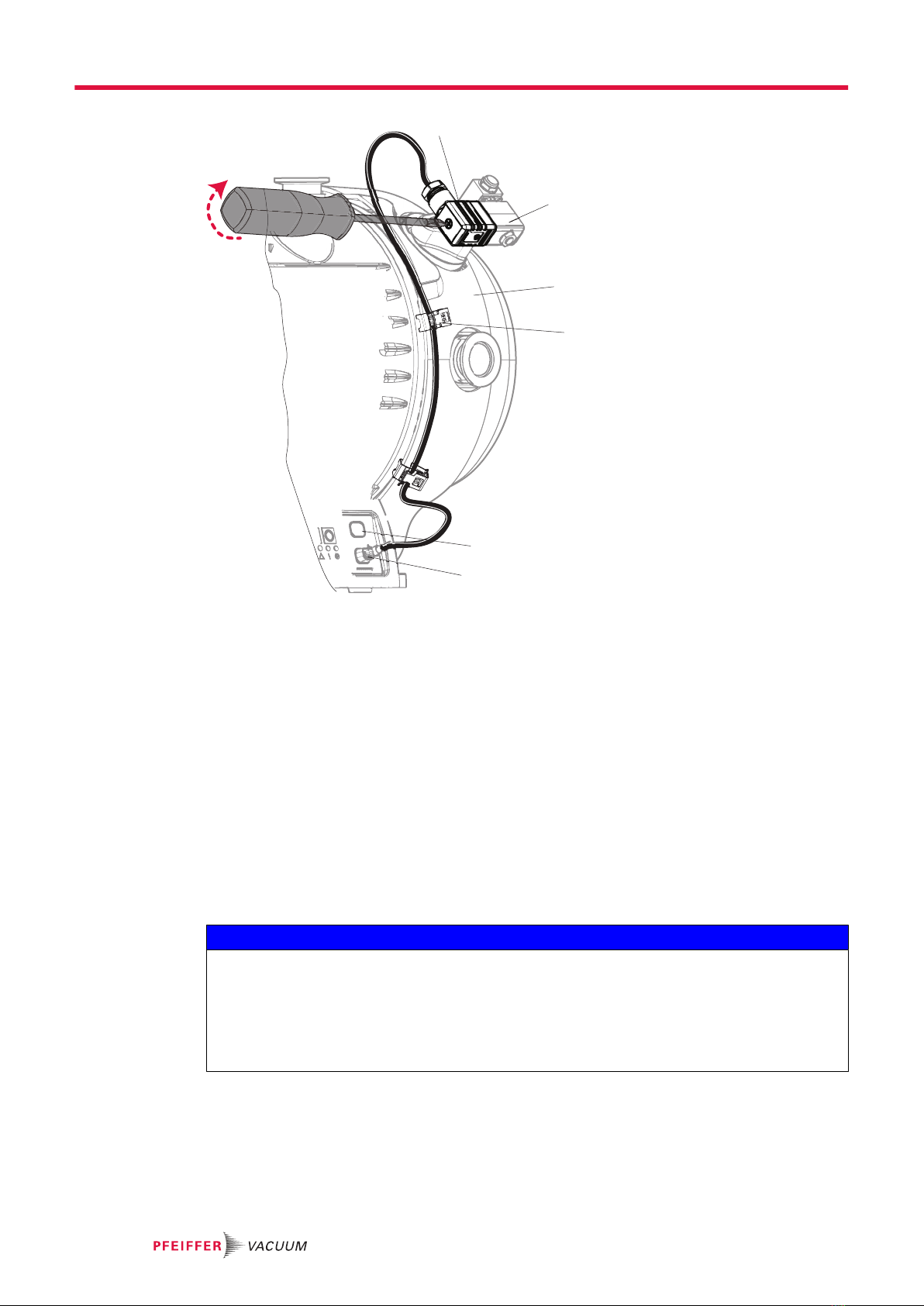

Fig. 5: Electric connection of solenoid valve
1 Cable socket 4 Cable clip, 2×
2 Valve coil 5 Accessory connector "C" for pressure sensor
3 Fan cover 6 Accessory connector "D" for gas ballast valve
Establishing the cable connection
1. Check the pressure sensor connection (option).
–Use accessory connector "C" always for the pressure sensor, if present.
2. Screw the cable socket of the connecting cable onto the valve coil.
–Tightening torque: ≤ 0.2 Nm
3. Stick 2 cable clips onto the edge of the fan cover.
4. Lay the cable and secure it with the cable clips.
5. Plug the connecting cable into a free accessory connector "C" or "D" at the electronic drive unit of
the vacuum pump.
4.3 Configuring accessories
NOTICE
Property damage to third-party electronic devices
The accessory connections on the vacuum pump do not meet any USB standard. The connection as-
signment does not comply with any standard. Depending on their configuration, the 24 V DC supply
voltage may damage or destroy third-party electronic devices, e.g. tablet computer.
►Do not connect any third-party electronic devices to the accessory connections.
►Only use the connecting sockets for pump-specific accessories.
Accessory connectors "C" and "D" are each used to connect an accessory. The software of the elec-
tronic drive unit automatically detects accessories connected to interfaces.
Approved accessories
●Pressure sensor
●Solenoid valve for gas ballast
●Vacuum safety valve
Installation
14/22

5
4
3
2
1
Fig. 6: Accessory connector assignment
1 + 5 V (blue) 4 + 24 V (depending on software configuration)
2 Sensor RxD / master TxD (white) 5 GND (black)
3 Sensor TxD / master RxD (green)
Configuring accessories
►Configure connected accessories with parameters [P:068] and [P:069], if necessary.
–The manual configuration overwrites the automatically detected value.
Installation
15/22

5 Operation
CAUTION
Danger of injuries from contact with vacuum at gas ballast connection
There is a danger of minor injuries during operation due to limbs being sucked in (hematoma) at the
open gas ballast connection.
►Keep a sufficient distance away from automatic gas inlet or ventilation systems.
►Always mount the sinter filter or a secure hose supply line at the gas ballast connection.
Important settings and function-related variables are programmed ex factory as parameters in the vac-
uum pump electronic drive unit. Each parameter has a three-digit number and a description. Parameter-
driven operation and control is supported via Pfeiffer Vacuum displays and control units, or externally
via RS-485 using Pfeiffer Vacuum protocol.
Parame-
ter
Display Designation Setting/display de-
fault
[P:030] VentMode Valve mode 0 = auto
1 = closed
2 = open
0
[P:052] BalGasValv Gas ballast valve con-
trol
0 = off
1 = on
0
[P:068] CfgAccC1 Accessory connection
C11)
15 = gas ballast valve, closed without
current
16 = vacuum safety valve IV 16 M
17 = pressure sensor2)
18 = vacuum safety valve ISV 25
[P:069] CfgAccD1 Accessory connection
D13)
15 = gas ballast valve, closed without
current
16 = vacuum safety valve IV 16 M
17 = pressure sensor
18 = vacuum safety valve ISV 25
[P:721] SlgVlvTime Opening interval of gas
ballast valve
5 min.
[P:740] Pressure Current pressure value hPa
Tbl. 6: Parameter settings at the electronic drive unit of the scroll pump
Gas ballast valve operated automatically
1. Select valve mode with [P:030].
2. Switch on monitoring of the gas ballast valve with [P:052] = 1.
If the gas ballast valve control is open, [P:030] defines the valve mode. There are 2 flow scenarios for
the automated gas ballast valve, depending on the pressure sensor (option).
5.1 Controlling gas ballast valve with a pressure sensor
Automatic valve control
The solenoid valve opens automatically depending on the parametrization and the respec-
tive operating status.
●Observe the preset parameters before commissioning.
1) Detection via interface
2) Preferred plug-in position
3) Detection via interface
Operation
16/22

RS-485
[P052]
GB valve
RS-485
[P030]
valve mode
RS-485
[P010]
HiScroll on/off
RS-485
[P740]
pressure value
valve control
0
[deactivated]
1
[activated]
0
[auto] [valid]
1
[closed]
2
[open]
permanent
closed
permanent
closed
permanent
open
1
[on]
closed
> 3 mbar
[P:721]
< 3 mbar
p
t
GB
permanent open
Fig. 7: Pressure-dependent gas ballast valve control in automatic mode
Procedure
►Set the desired opening interval for the gas ballast valve with [P:721].
Sequence in automatic mode for version with pressure sensor
●The gas ballast valve opens each time the pump is started. If the pressure value falls to ≤ 3 mbar,
the solenoid valve closes after the time set in [P:721].
●The gas ballast valve is permanently open if the pressure value remains > 3 mbar.
5.2 Controlling gas ballast valve without a pressure sensor
Automatic valve control
The solenoid valve opens automatically depending on the parametrization and the respec-
tive operating status.
●Observe the preset parameters before commissioning.
RS-485
[P052]
GB valve
RS-485
[P030]
valve mode
RS-485
[P010]
HiScroll on/off
RS-485
[P740]
pressure value
valve control
0
[deactivated]
1
[activated]
0
[auto] [invalid]
1
[closed]
2
[open]
permanent
closed
permanent
closed
permanent
open
15 min
[P:721]
open
closed
1
[on]
Fig. 8: Gas ballast valve control in automatic mode
Procedure
►Set the desired opening interval for the gas ballast valve with [P:721].
Sequence in automatic mode for version without pressure sensor
●The gas ballast valve opens automatically for a time of 15 min. plus the time set in [P:721] each
time the pump starts.
●The gas ballast valve then opens every 15 min. for the time set in [P:721].
Operation
17/22

6 Accessories
Description Order number
Flange with pipe thread, DN 16 ISO-KF, G 1/8" PM 016 780 -T
Push-in fitting for 6 mm tube, G 1/8" PM 016 781 -T
Push-in fitting for 8 mm tube, G 1/8" PM 016 782 -T
Hose nozzle for 9 mm hose, G 1/8" PM 016 783 -T
Tbl. 7: Accessories for inert gas supply
Accessories
18/22

7 Technical data and dimensions
7.1 Technical data
Selection field Automated gas ballast valve, 24 V DC, G 1/8"
Part number PD Z10 100
Connection flange (in) G 1/8"
Connection flange (out) G 1/8"
Inlet pressure max. 1500 hPa (absolute)
Integral leakage rate 1 · 10-7 Pa m³/s
Gas flow at atmospheric pressure min. 0 sccm (20 °C)
Gas flow at atmospheric pressure max. 24 sccm (20 °C)
Supply: Voltage V DC 24 V DC
Voltage: Range ± 10 %
Power consumption 5 W
Electrical connection C industry (micro)
Version Valve is closed without current
Protection degree IP54
Ambient temperature 5 – 40 °C
Weight 200 g
Tbl. 8: Technical data for solenoid valve
7.2 Dimensions
29.25
32.6
15
20
4x M3
11
6
8.5
25
8
G
⅛″
420
28.6
28.3
SW 13
17 20.6
n18
5.5

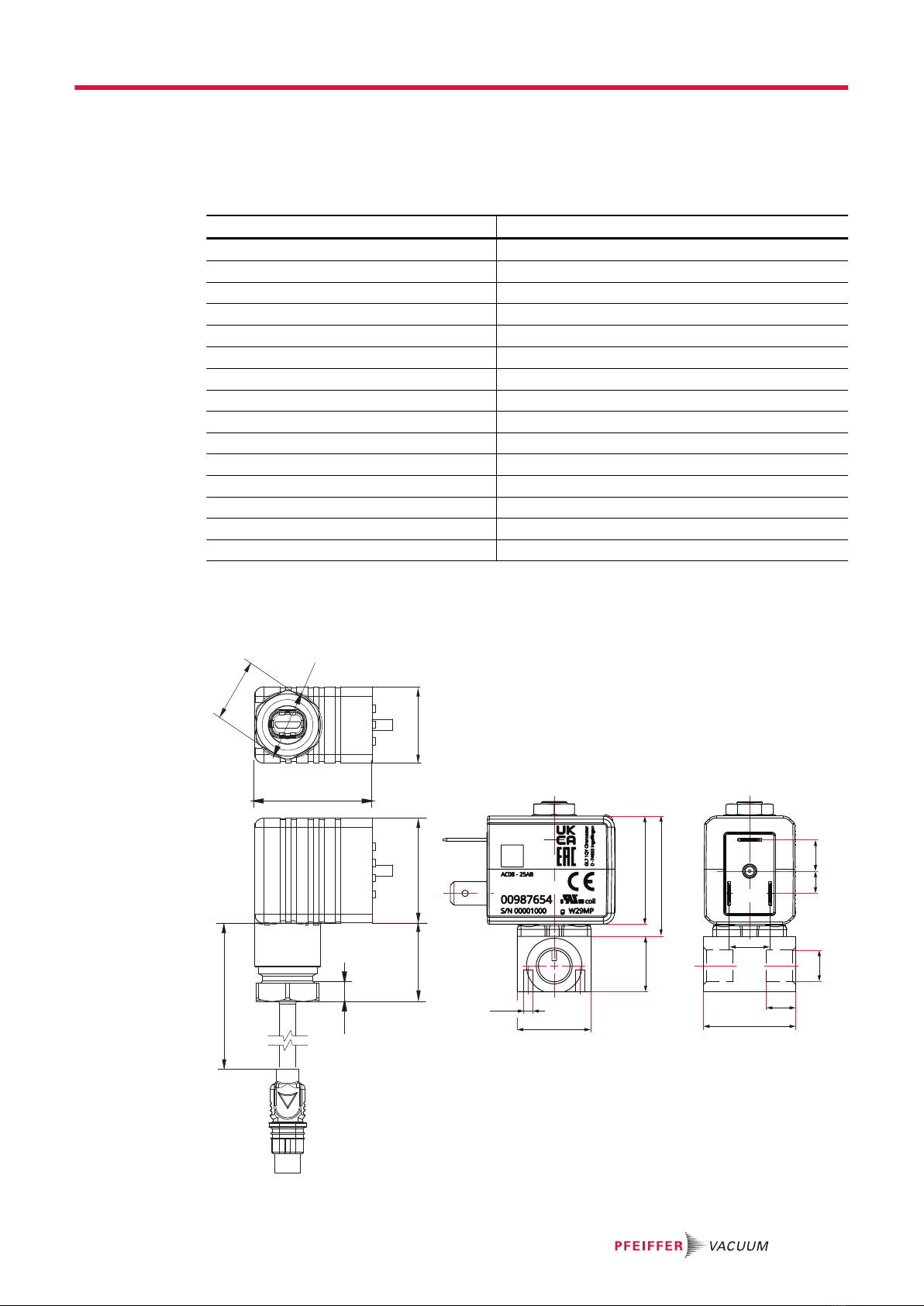

Fig. 9: Solenoid valve dimensions
Technical data and dimensions
19/22

Declaration of Conformity
Declaration for product(s) of the type:
Solenoid valve
for HiScroll gas ballast valve
We hereby declare that the listed product satisfies all relevant provisions of the following
European Directives.
●Electromagnetic compatibility 2014/30/EU
●Restriction of the use of certain hazardous substances 2011/65/EU
●Restriction of the use of certain hazardous substances, delegated directive
2015/863/EU
Harmonized standards and applied national standards and specifications:
DIN EN 61000-3-2 : 2019
DIN EN 61000-3-3 : 2020
DIN EN 61326-1 : 2018
DIN VDE 0580 : 2011
Signature:
Pfeiffer Vacuum GmbH
Berliner Straße 43
35614 Asslar
Germany
(Daniel Sälzer)
Managing Director
Asslar, 2022-07-14
