1
Thank you for choosing the SoundPoint®
IP 301 SIP. This unit provides business
telephony features and functions such as
Multiple Call Appearances, Call Hold,
Transfer, and Conference over an IP
network. In this User Guide you will find
everything you need to quickly use your
new phone. Be sure to verify with your
system administrator that your network
is prepared for configuring your Sound-
Point®IP 301 SIP phone. As well, be
sure to read the Parts List and the Safety
Notices section in this guide before you
set up and use the SoundPoint®IP 301 SIP
phone.
Introduction
Parts List

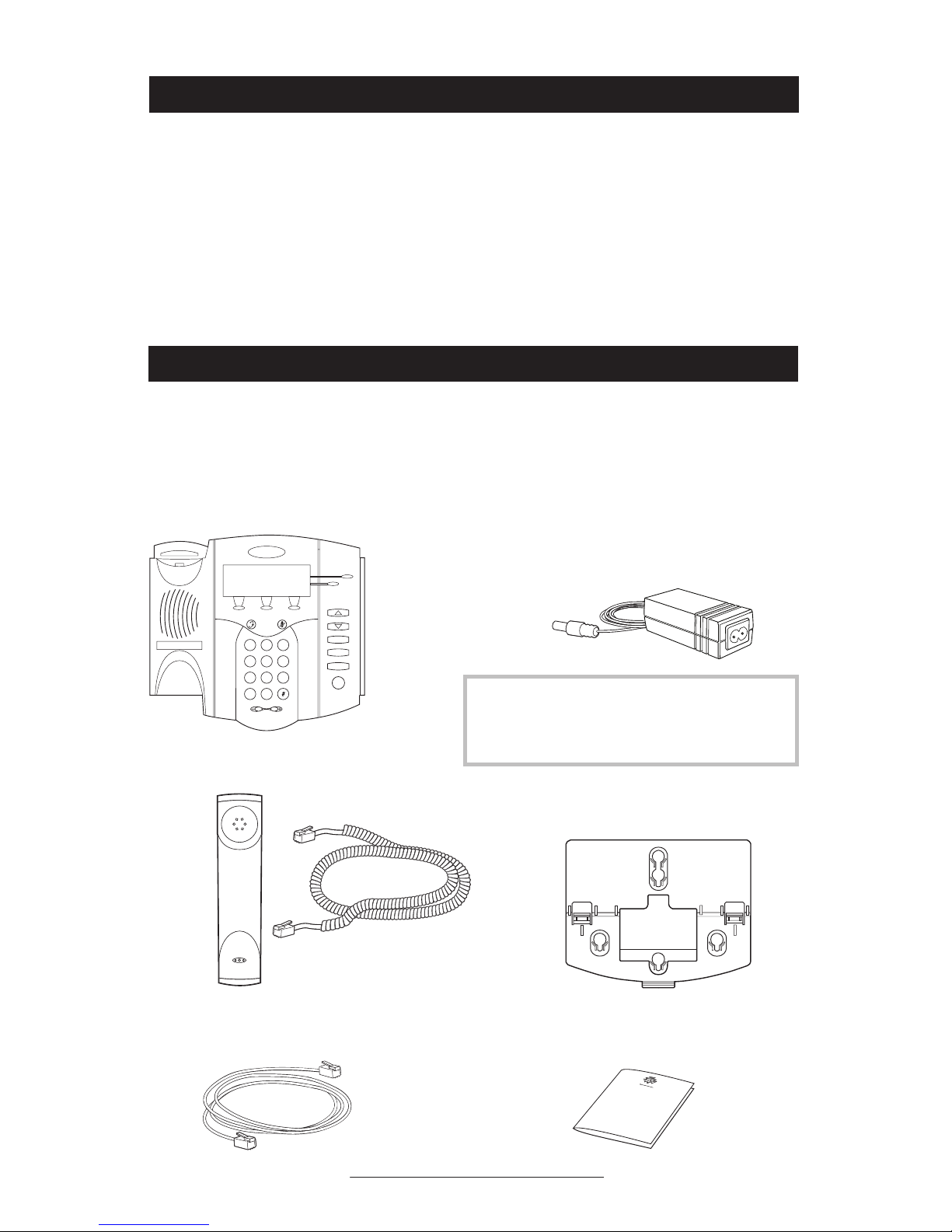

The following items are included in your
SoundPoint®IP 301 SIP package. Check
this list before installation to ensure that
you have received each item. If you are
missing any items, please contact your
system administrator.
Polycom SoundPoint®IP 301 SIP
Handset & Handset Cord
Network / Power Cable
Power Adapter
(specification varies according
to country)
Phone Base
Quick Start Guide
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
For SoundPoint®301, the power adapter is not
included in the PoE bundle. See your system
administrator if you require one.

2
Installing SoundPoint®IP 301 SIP
This section provides basic installation
instructions and information for obtaining
the best performance with the Sound-
Point®IP 301 SIP phone. If you require
additional information or assistance with
your new phone, please contact your sys-
tem administrator.
The SoundPoint®IP 301 SIP User Guide
includes regulatory compliance informa-
tion that your system administrator should
review and can also be found at: www.
polycom.com
Connecting Network and Power Source
AC Power Option
Power over Ethernet (PoE) Option
Cisco™Catalyst™ In-Line
Power Switch
IEEE 802.3af compliant
In-Line Power switch

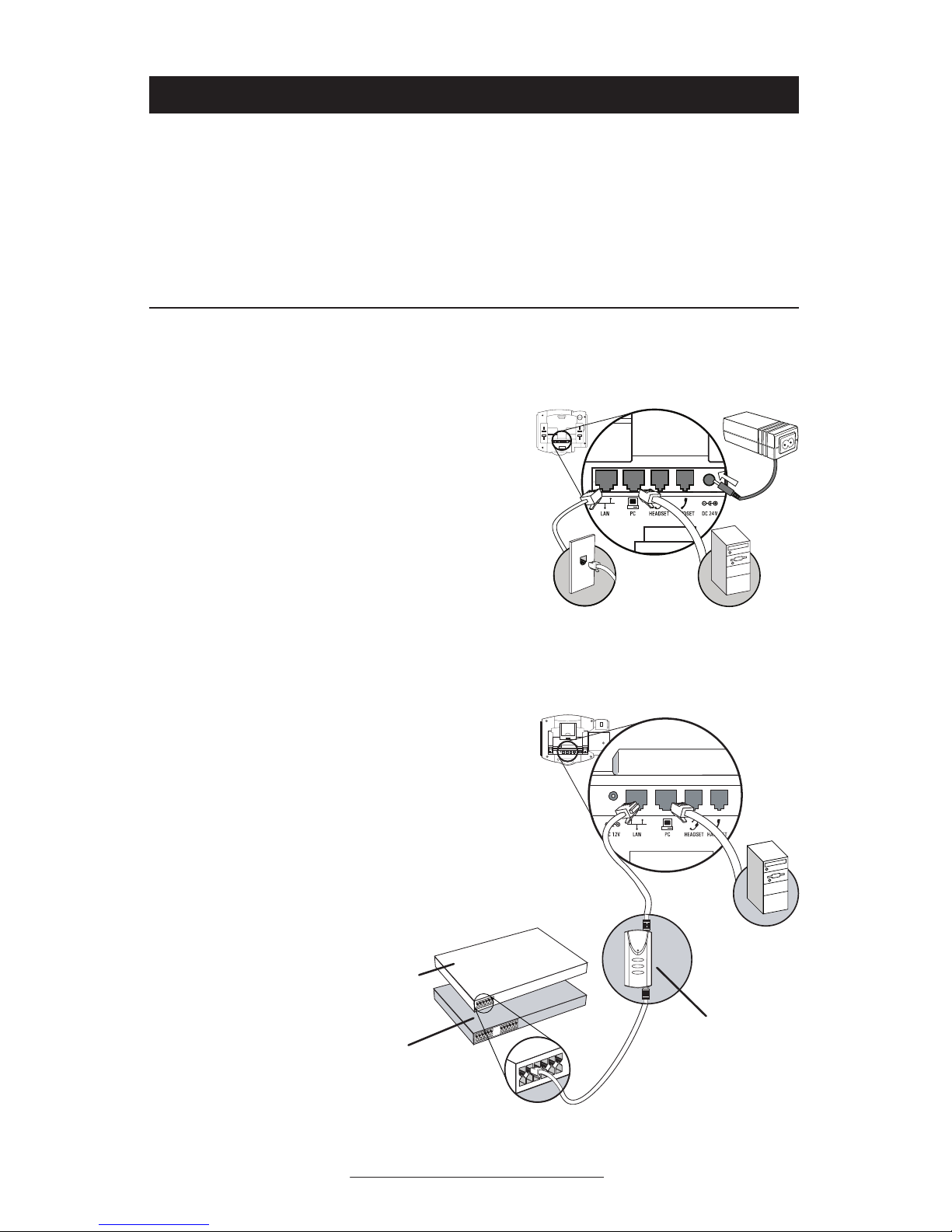

Connect the supplied Network Cable
between the LAN jack on the phone and
the LAN port on the wall or hub/switch
device port. Connect the DC plug of the
AC wall adapter into the supplied LAN
cable as shown.
Using an Inline Power Cable (optional acces-
sory from Polycom), the phone can be alter-
nately powered from a Power over Ethernet
(PoE) compliant switch or hub. Inline Power
Cables exist for both IEEE 802.3af and Cisco
pre-standard PoE options. Plug the keyed end
of the Inline Power Cable into the LAN jack
on the phone and the other end to an available
port on the POE switch or hub.
Cisco™ In-Line Power
Cable
(Part No. 2200-11014-002 Rev A)
OR
IEEE 802.3af In-Line
Power Cable
(Part No. 2200-11077-002 Rev A)

3
Connecting the Handset and Optional Headset
Attaching the Base
(Optional)

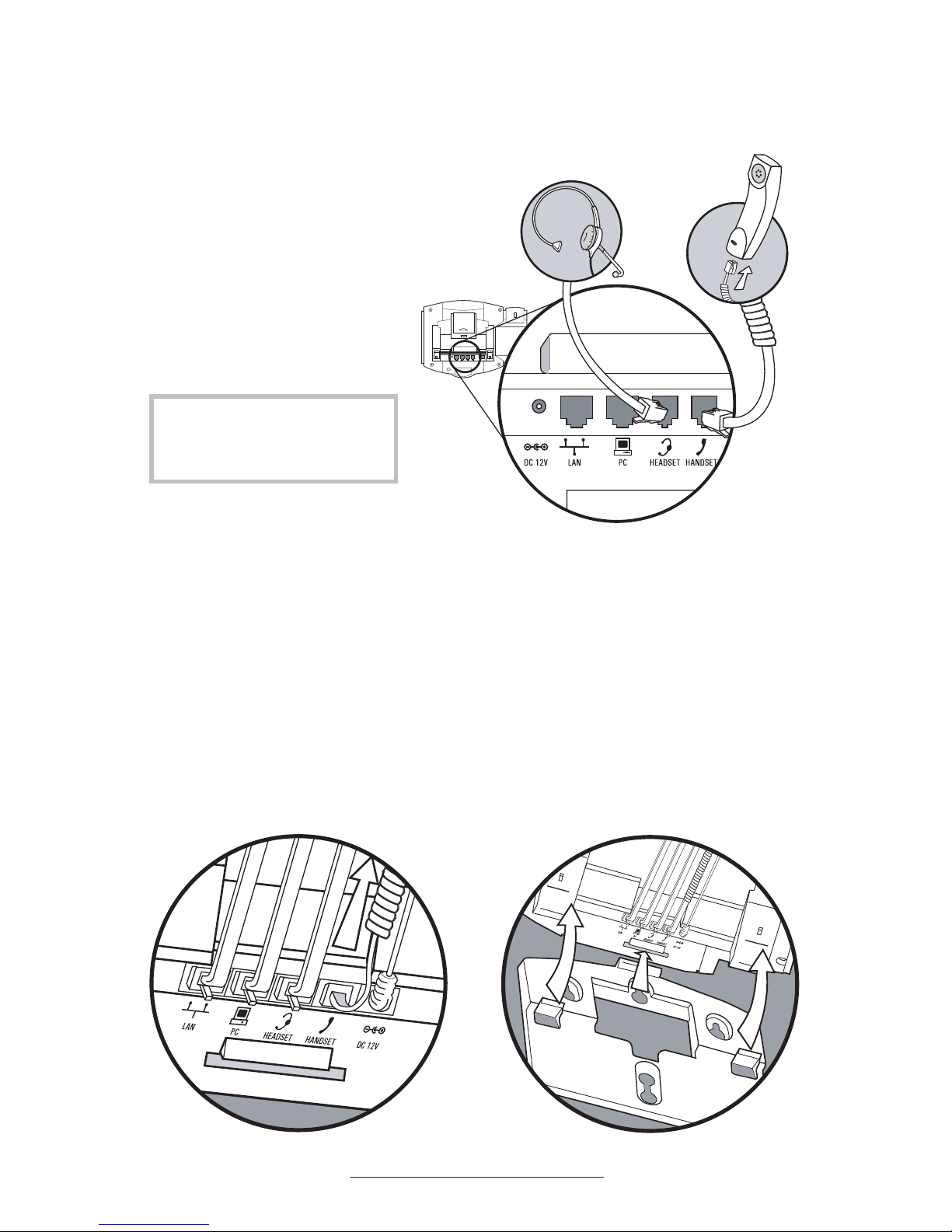

1. Connect the short straight end
of the phone cord to the handset
and the corresponding longer
straight end of the cord to the
handset jack on the back of the
phone.
2. Connect the headset (optional
accessory) to the headset jack on
the back of the phone.
1. Place all cords in the recessed area
above the modular jacks as shown.
2. Align the two protrusions on the
bracket with their corresponding
holes in the phone and snap them to-
gether to lock the base to the phone.
For information on headsets,
please visit www.polycom.com
and choose the Support link.

4
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
Line/Speed Dial Keys
Use these keys to activate up to
two lines or one line and a speed
dial that can be assigned to your
phone.
Microphone Mute
Headset
Feature Keys
Access important features using
these keys.
Hold
Hookswitch
Speaker
For ringer and
hands-free audio
output.
Indicator
This will alert you to
incoming calls, new
messages, and other
events.
Character
Display
Shows information
about calls, messages,
soft keys, time, date,
and other relevant
data.
Display Control Keys
Use the arrow keys to scroll
through the displayed information.
Soft Keys
The screen will display
labels for these keys, to
identify their context-sensi-
tive functions.
Volume Keys
Use these to adjust the volume of the
handset, headset, speaker, and ringer.
Features
Dial Pad
These 12 keys provide the 10
digits, alphabetic and special
characters available in context
sensitive applications.

5
Feature Key Description
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Mutes audio transmission locally during calls.
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Allows you to place and receive calls through an optionally con-
nected headset.
Line or Speed Dial keys.
Scrolls through menu options.
Scrolls through menu options.
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Access local and server features.
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
Cancels ringing and directs incoming calls to your Voice Mail (if
supported).
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Dials last connected party from the phone.
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Places current active call in Hold state.
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
Soft keys to select from various context-sensitive options.
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
Volume keys to adjusts audio and ringer volume.
Dial Pad General dialing and alphanumeric entry (including special charac-
ters).
Key Descriptions

6
Using SoundPoint®IP 301 SIP
Placing a Call
Using the Handset:
1. To obtain dial tone, pick up the handset.
2. Dial the desired number.
Using Listen Mode:
1. With the handset on-hook, press
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
CallLists
Conference
Transfer
Redial
, and choose Features, fol-
lowed by Listen Mode.
2. Dial the desired number.
Using the Headset:
1. With the optional headset connected,
press a line key,
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
, or NewCall to
obtain dial tone.
2. Dial the desired number.
See also Headset Memory Mode.
During a call, you can alternate
between handset or headset modes
by pressing the
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
key, or picking
up the handset.
You also have the option to dial directly from the dial pad without
first getting dial tone. Simply enter the number then lift the handset
or press the Dial soft key or press the
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
key.
In all cases, the active call will appear on the display showing call
duration and destination.
To obtain the IP address of your phone, press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Conference
Forward
Transfer
CallLists
SpeedDial
Redial
Menu
Voice Mail
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
followed by Status, Platform and Phone. The
IP address is listed together with other network information.
Listen Mode can be used for
listening to a conference call but
not actively participating, or for
checking voice mail.

7
Answering a Call
Using the Handset:
Pick up the handset.
Using Listen Mode:
Press the Answer soft key or the line key
( ).
Using the Headset:
Pressing
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
will answer the call
through an optionally connected
headset. If headset memory mode is
enabled, pressing the line key ( )
will do the same.
In all cases, the active call will appear
on the display showing call duration and
destination.
Call Hold and Resume
During a call, press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
or the Hold soft key.
The call will be placed on hold and this will
be indicated on the display. Press the Resume
soft key to retrieve the call.
Multiple Calls on Hold
Incoming calls may be ignored
by pressing the Reject soft key or
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
during ringing. Note that
Do Not Disturb stays active when the
call is dropped and will remain so
until toggled off.

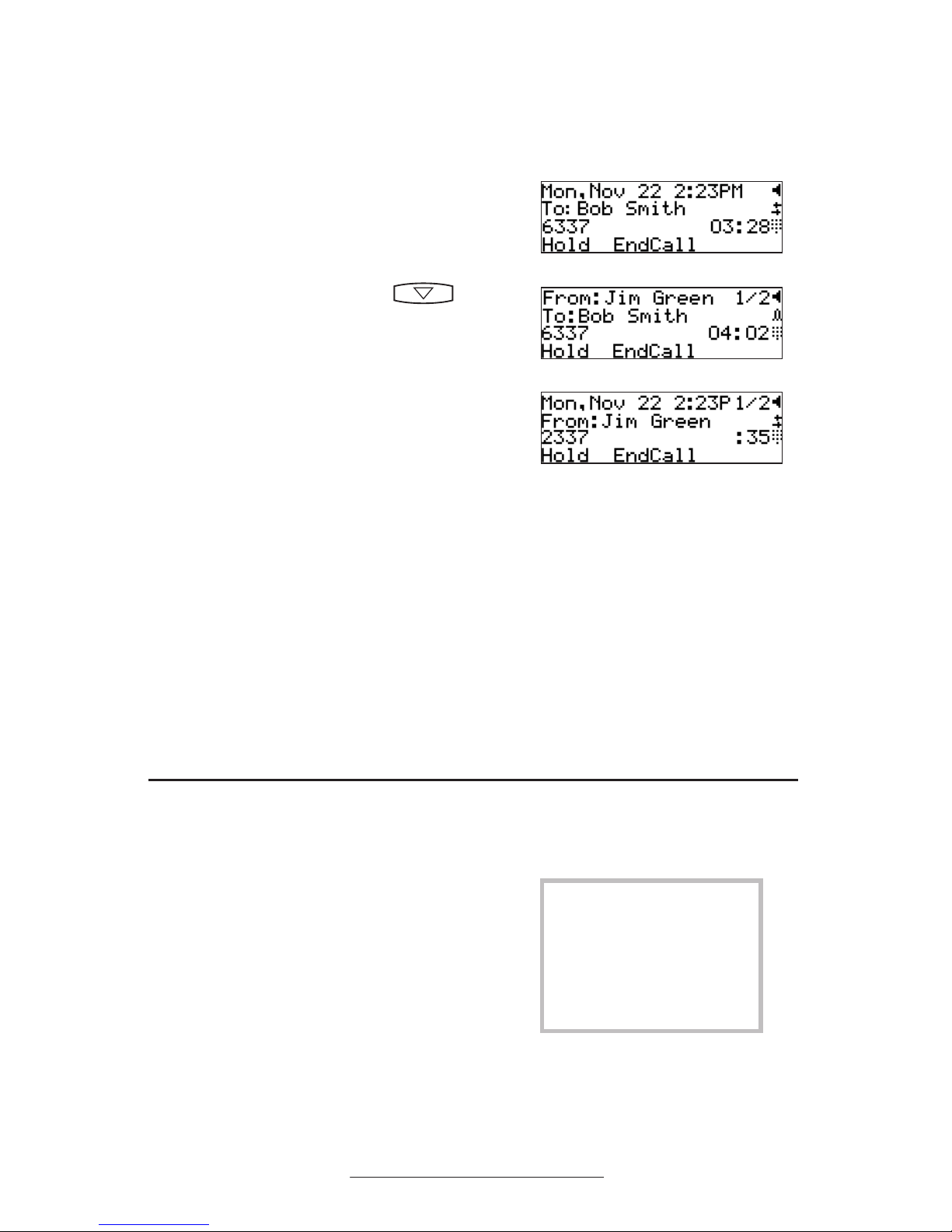

If multiple calls are on hold on a single line
key, use the arrow keys to switch between
the calls then press the Resume soft key to
retrieve the desired call. If more than two
calls are on hold on a single key, an indica-
tion will appear on the display, for example
“2/3” shows that this is the second call out
of three calls.
If calls are on hold on more than one line
key, the details of the calls on any line key
can be viewed by pressing that line key and
holding it down for a few seconds. If a line
key is pressed briefly, the first call on hold
on that line key will be retrieved.
Microphone Mute
During a call, press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
My Status
Redial
Menu
Messages
Do NotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
. The LED on the
phone lights up and a flashing microphone
on the display indicates that the other party
(parties) cannot hear you.
Microphone Mute applies to handset and
headset modes. You can still hear all other
parties while Mute is enabled.
To turn off Microphone Mute, press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
My Status
Redial
Menu
Messages
Do NotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
again.
When your SoundPoint IP 500/501
phone is configured for silent ring,
press the ringing Line key or the An-
swer soft key and you will answer the
call. If your handset is off hook, the
call is routed to the handset. If your
handset is on hook, the call is routed
to the speaker.

8
General Key Use
To navigate through menus and to enter data, these are useful tips:
1. Use and or the
Next and Prev soft keys to scroll
through lists. In some lists the
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNot Disturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
and
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNot Disturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
keys can be used as “Page
Up” and “Page Down”.
2. Many soft keys can only be ac-
cessed by pressing the More soft key.
3. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
to exit from any
menu.
4. To enter text using the dial pad,
press the number keys one or more
times. For example, for ‘A’ press
‘2’ and for ‘C’ press ‘222’. When
in text entry mode the display title
will show whether keys will gener-
ate numbers (1), upper-case (A) or
lower-case (a) characters and the
1/A/asoft key can change this.
Local Conferencing
You can create a conference with two other parties
using the phone’s local conferencing feature.
1. Place a call to the first party.
2. Press the Conf soft key to obtain a
new line (the active call is placed
on hold).
3. Dial the number of the second party
or use the arrow keys to access
speed dial numbers or the missed
call list, or use the Features menu to
access placed and received call lists.
From one of these lists press the Dial
soft key.
4. When the second party answers,
press the Conf soft key again to join
all parties in the conference, or
press the Split soft key to put the first
call on hold and keep the second
call as the active call.
A conference may be created at any time
between an active call and a call which is
on hold (on the same line) by pressing the
Join soft key.
Splitting a Conference
Ending the call on the conference originator’s
phone will not end the conference; the other
two parties can continue to talk
When a conference has been established,
a Split soft key is available. Pressing this
key will split the conference into two calls
on hold.

9
Transferring a Call
A blind transfer (without consulta-
tion) can also be supported by press-
ing the Blind soft key.
1. During a call, press the Trnsfr soft
key (the active call is placed on
hold).
2. Dial the number to which you want
to transfer the call or use the arrow
keys to access speed dial numbers
or the missed call list, or use the
Features menu to access placed and
received call lists. From one of
these lists press the Dial soft key.
3. Press the Trnsfr soft key again or
hang up to complete the transfer.
This can be done as soon as the
ringback sound is heard or you can
wait until the third party answers
and talk to them before completing
the transfer. Press the Split soft key
to put the first call on hold and keep
the second call as the active call.
Transfer may be cancelled during estab-
lishment by pressing the Cancel soft key.
The original call is resumed.
Call Timer
Call progress on an active call is monitored
through a local call timer. This is visible
within the active call window on the display.
Ending a Call
Press the EndCall soft key.
OR
Replace the handset, or press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
if in Head-
set Mode.
Redial
Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
to dial the last call placed
from your phone.
To redial another previously dialed number,
press the Menu soft key, and select Features,
Call Lists, then Placed Calls.
You will see a list of previously placed calls.
Choose the number you wish to redial and
press Dial.

10
You can congure your phone so that all
incoming calls are forwarded to another
party (known as static forwarding). You
can also forward calls while the phone is
ringing (known as dynamic forwarding).
All incoming calls can be forwarded to
another party while Do Not Disturb is
enabled on your phone. For more informa-
tion, contact your system administrator.
Call Forwarding
Call forwarding is not available on shared
lines.
This feature is local to the phone, and may
be overridden by call server settings.
For more information, contact your system
administrator.
Static Forwarding
To enable call forwarding to another
party:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21 DEF 3
54 MNOJKLGHI 6
TUV
87
WXYZ
9
OPER
PQRS
0
and select Features
and Forward,
OR press the Fwd soft key from the
idle display.
2. (Optional) If multiple lines are in
use, select which line to forward
form the list using
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNotDisturb
ABC
21 DEF 3
54 MNOJKLGHI 6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
and
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNotDisturb
ABC
21 DEF 3
54 MNOJKLGHI 6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
.
3. Using
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNotDisturb
ABC
21 DEF 3
54 MNOJKLGHI 6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
and
Hold
Del
Sel
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Menu
Messages
DoNotDisturb
ABC
21 DEF 3
54 MNOJKLGHI 6
TUV
87
WXYZ
9
OPER
PQRS
0
Directories
Services
Conference
Transfer
Redial
, select the for-
warding type you want to change
and then press the Select soft key.
The options are:
• Always - For all incoming calls.
• No Answer - If you do not
answer an incoming call.
• Busy - When you ate already in a
call.
4. Depending on your selection:
• If you select Always, enter a
number to foraward all incoming
call to.
• If you select No Answer, enter a
number to forward all unanswered
incoming calls to and how many
rings to wait before forwarding.
• If you select Busy, enter a num-
ber to forward all future incoming
calls to when you are already in
another call.
Dynamic Forwarding
To forward an incoming call to another
party:
1. With the phone ringing, press the
Fwd soft key.
2. Enter a number to forward the
incoming call to.
3. Select Enable.
The incoming call is forwarded to
the other party. If call forwarding is
disabled, all future calls will not be
forwarded and forwarding will remain
disabled.

11
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Conference
Forward
Transfer
CallLists
SpeedDial
Redial
Menu
Voice Mail
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
.
2. Select Settings followed by Basic,
Preferences, Time & Date;
3. Select from Date Format, Time For-
mat, Clock Order or Enable/Disable.
4. Scroll through the options via the up
and down arrow keys.
5. Press Select to confirm and
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
to return directly to the idle display.
Do Not Disturb
Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
to prevent the phone from
ringing on incoming calls. A flashing icon
and text on the display indicates that Do Not
Disturb is on.
Calls received while Do Not Disturb is
enabled are logged in the Missed Call list.
To turn off Do Not Disturb, press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
again.
Time and Date
Time and Date is clearly displayed on the
SoundPoint®IP 301 SIP phone. If the
phone cannot obtain a time and date from
the server, the display will flash. Contact
your system administrator if either time or
date is incorrect. You have control over the
format of the display and can turn it off.
Select options which are right for you as
follows:
Headset Memory Mode
As an option, the headset can be perma-
nently enabled. This is especially useful for
regular headset users.
To do this:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
.
2. Select Settings followed by Basic,
Preferences, Headset Memory.
3. Use the up or down arrows and Select
soft key to enable Headset Memory
Mode.
4. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
to return directly to
the main menu.
(Optional) If multiple lines are in use, Do
Not Disturb can be set on a line-by-line
basis. Contact your system administrator
for further details. When Do Not Disturb
is enabled for a particular line, this is
indicated by a flashing “ X ” beside the
line indicator on the display.
Subsequent calls to or from this phone
using the headset will activate a flashing
headset icon on the display. Pressing the
line keys or Answer soft key to receive a
call will now connect to the user’s head-
set automatically.
Repeat steps 1-3 and select Disable to turn
Headset Memory Mode off.
Volume Adjustment
Press the volume keys to adjust receiver
volume during a call. Pressing these keys in
idle state adjusts the ringer volume.
To conform to regulatory requir-
ments, handset and headset volume
will return to a preset level after each
call. Hands-free volume settings will
be maintained across calls.

12
Display Contrast
To adjust the contrast on the display to a
comfortable level:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
. Select Settings fol-
lowed by Basic, Contrast.
2. Press the Up or Down soft keys (or
volume keys) to increase or decrease
the display contrast.
3. Press the Ok or Cancel soft keys to
accept or cancel changes.
4. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
or the Exit soft key
to return to the idle display.
Ring Type
Many ring types are available. You can
select different rings to distinguish between
lines or to have a different ring from your
neighbor’s phone.
To change the incoming ring:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
. Select Settings fol-
lowed by Basic, Ring Type.
2. (Optional) If multiple lines are used,
first select which line to change.
3. Using the arrow keys, highlight the
desired ring type. Press the Play soft
key to hear the selected ring type.
4. Press Select to change to the selected
ring type.
5. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
or the Exit soft key to
return to the idle display.
Call Lists
A local list of calls missed, received, and
placed is maintained by the phone (up to
100 for each).
Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
. Select Features followed
by Call Lists. Select Missed, Received, or
Placed Calls as desired. Call information
will be displayed.
Choose:
1. Edit to amend the dial string if neces-
sary.
See also Distinctive Ringing /
Call Treatment.
2. Dial to return the call.
3. Exit to return to the previous menu.
4. Info to view information about the
call.
5. Save to store the contact to the Con-
tact Directory.
6. Clear to delete the call from the list.
Press the Exit soft key to return to the idle
display.
To quickly view the Missed Calls list
from the idle display press .
If “Silent Ring” is selected, incoming
calls can only be answered by pressing
the Answer soft key.
When your SoundPoint IP 301 phone
is configured for silent ring, press the
ringing Line key or the Answer soft key
and you will answer the call. If your
handset is off hook, the call is routed to
the handset. If your handset is on hook,
the call is routed to the speaker.

13
Contact List
In addition to a directory of missed, placed, or received calls, the
phone can store a local directory of 200 or more contacts*. You can
add, delete, edit, dial, or search for any contact in this list through
just a few key strokes.
To add or edit a contact:
*Limit depends on Server configuration. Contact
your system administrator for full details.
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
, select Features
and Contact List.
2. Press Add to enter another contact
into the phone’s database or press
Edit to edit an existing entry.
3. To move between fields when edit-
ing, use the Next or Prev soft keys.
Enter first and/or last name from
the keypad. Press the 1/A/a soft
key to select between numeric and
upper/lower case alphanumeric
modes.
4. Enter the Contact number. This
is a required field and it must be
unique (not already in the direc-
tory).
5. Speed Dial Index, Ring Type and
Divert Contact may be left blank.
6. Use and or the
Change soft key to switch between
Enabled and Disabled settings for
the last four fields.
7. Press Save to confirm or Cancel to
abandon the changes, then press
Exit to return to the idle display.
To search for a particular contact:
1. Press Search from the Contact List
menu.
2. Using the dial pad, enter the first
few characters for First or Last
names.
3. Press Search to search for contacts.
4. Successful matches can be dialed
from the resulting screen.
Contacts can be easily added from
Call Lists. See Call Lists for more
information.

14
Multiple Lines
Your SoundPoint®IP 301 SIP can support
up to two lines, each associated with its own
line key. Lines can be configured for private
or shared lines.
Typically, the top-most line key is reserved
for the principal directory number of the
phone. Depending on how your phone is
configured, the display could resemble one
of the screens shown:
To change a Speed Dial assignment:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
, select Features and
Contact List. Scroll to the desired
entry and press Edit,
►OR press and hold the line key
which already has a speed dial
number assigned to it. That contact
in the list will automatically be
displayed.
2. Delete the Speed Dial Index number
using the and then the Delete
Speed Dial
Pre-assigned numbers can be associated with speed dial entries for
rapid automated dialing. Speed Dial entries are consecutively placed
next to assigned line keys on the phone. When a new entry is added
to the Contact List, it is automatically assigned the next available
speed dial index.
soft keys.
3. If desired, enter a new speed dial
index.
4. Press Save and Exit to return to the
idle display.
Idle display could now be as shown:
Multiple Keys Per Line
A line on the phone can be configured to
have two line keys associated with it. If this
is the case, the display could look some-
thing like this:
Incoming calls to this line will be distrib-
uted evenly among the two available keys.
Similarly, outgoing calls will be distributed.
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
To quickly view the list of speed dial entries,
press from the idle display.

15
Multiple Call Appearances
Each line on the phone can be configured to
have one or more call appearances. More than
one call appearance is useful if there is an
active call and an incoming call arrives on the
same line. In the example shown, there is in
an outbound call with Bob Smith. The second
figure shows an incoming call from Jim
Green. To answer this incoming call, put the
original call on Hold or press the key
to access the new call. Soft key labels will be
updated on the display with these options:
1. Answer this incoming call.
2. Reject the second incoming call.
3. Forwrd the incoming call to another
extension.
Answering the incoming call places the origi-
nal on Hold and refreshes the soft key labels
as indicated (last figure).
If more than one call appearance is in use,
one will appear on the display and the total
number will be indicated by a counter at the
top right corner of the display. For example,
“2/3” indicates that the call on the display is
the second one out of a total of three.
A user can also place another outbound call on
the same first line. Press Hold during the first
call and press NewCall to obtain dial tone for a
second call.
Shared Lines
*Shared lines are an optional
feature configured on the
server and may not be sup-
ported on your particular
system. Contact your system
administrator to find out.
The phone supports shared lines*. If two
phones share a line, an incoming call to that
number will cause both phones to ring. The
call can be answered on either phone but
not both.
The shared line icon changes to a moving
icon when the line is in use remotely.
Calls on shared lines can be transferred, put
on hold, or added to a conference.

16
Voice Mail
*Voice Mail is an optional feature configured
on the server and may not be supported on your
particular system. Contact your system adminis-
trator to find out.
†Screen options may vary with server-based
application. Voice Mail can be accessed with a
single key press. Contact your system adminis-
trator to configure this option.
Received messages will be indicated by a
flashing Message Waiting Indicator LED
on the front of the phone and optionally a
visual notification on the display.
Individual line indicators reflect voice
messages left on that line (useful if mul-
tiple lines are in use).
A stutter dial tone in place of normal dial
tone is used to indicate that one or more
voice messages are waiting at the message
center.
To listen to voice messages:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
and select Fea-
tures, Messages*,†.
2. (Optional) If multiple lines are in
use, select from which line mes-
sages are to be retrieved.
3. Display indicates number of mes-
sages and their importance. Press
Connect to initiate retrieval from the
Message Center,
OR
Press Clear to turn off the flashing
LED without listening to messages.
4. Follow voice prompts to listen to
messages.
Distinctive Ringing / Call Treatment
You can set distinctive incoming ringing tones for con-
tacts in their local directory. This allows identification
of a contact by a specific ring tone.
To set a distinctive ring for a local contact:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
, select Features,
Contact List.
2. Using the arrow keys, scroll
through the directory to choose a
contact.
3. Press Edit and scroll down using the
Next soft key to Ring Type.
4. Enter a number corresponding
to one of the ring types available
(press then the Delete soft
key to remove an existing value).
5. Press the Save soft key or Cancel to
abandon the change.
Incoming calls from this contact
will now have the distinctive ring-
ing pattern applied.
See Ring Type in this guide for further
details.
This feature is local to the phone, and may be over-ridden by
server settings. Contact your system administrator for more

17
Phone Reboot
Periodically, the phone may require a user
reboot. Reasons for this include accepting a
new configuration or new software.
There are two ways to reboot the phone:
►Simultaneously press and hold the Do
Not Disturb, Hold, and Volume keys
(highlighted in the figure) for more
than 3 seconds
►Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
and select Settings,
Advanced, Restart Phone (the user
password is required to access this
menu).
The reboot process will begin and is complete
when the idle display is shown.
Text Messaging
You can send and receive Text messages
on your phone. SIP Instant (Text) Mes-
saging is supported in real-time. Received
messages will be indicated by a flashing
Message Waiting Indicator LED on the
front of the phone and optionally a visual
notification on the display.
1 3
54 6
87 9
0
*
ABC
2
DEF
MNOJKLGHI
TUV WXYZ
OPER
PQRS
Hold
Menu
Redial
DoNotDisturb
Optional Features
In the case of problems, it may be possible to restore normal operation of your phone
without rebooting. Contact your system administrator before attempting to reboot the
phone.
To read text messages:
1. Press
Hold
Del
Sel
Conference
1 3
DEF
5
JKL
4
GHI
6
MNO
8
TUV
7
PQRS
9
WXYZ
0
OPER
*#
2
ABC
Hold
Del
Sel
Directories
Services
CallLists
BuddyStatus
MyStatus
Redial
Menu
Messages
DoNotDisturb
ABC
21
DEF
3
54
MNOJKLGHI
6
TUV
87
WXYZ
9
OPER
PQRS
0
and select Fea-
tures, Messages, Instant Messages,
OR
Press the InstMsg soft key to read a
message just received.
2. (Optional) If multiple lines are in
use, select from which line mes-
sages are to be retrieved.
3. Messages appear first to last in sent
order.
4. Press the Next or Prev soft keys to
cycle through messages in order.
