Rath 2100-CDC User manual

Installation & Operations Manual
36” Emergency Call Station
• 2100-CDC Cellular Dusk2Dawn Call Station
• 2100-CDL Landline Dusk2Dawn Call Station
• 2100-CDV VoIP Dusk2Dawn Call Station
• 2100-CDW Wi-Fi VoIP Dusk2Dawn Call Station
N56W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 www.rathcommunications.com
RP8500CD
Ver. 6
04/21
Made in the USA
2 Year Warranty

Thank you for purchasing RATH’s Dusk2Dawn Call Station. We are the largest Emergency
Communication Manufacturer in North America and have been in business for over 35 years.
We take great pride in our products, service, and support. Our Emergency Products are of the highest
quality. Our experienced customer support teams are available to remotely assist with site preparation,
installation, and maintenance. It is our sincere hope that your experience with us has and will continue
to surpass your expectations.
Thank you for your business,
®
N56W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 www.rathcommunications.com
Table of Contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Items Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Programming . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting The Volume . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 3
Page 3
Page 4
Page 4
Page 5
Page 6
Page 7
Page 7
Page 8
Page 9

36”
10”
8”
9”
3”
1-9/16”
4-1/4” 4-1/4”
9-1/4”
5-1/4”
3”
3”
11” 12”
Description
Safety Guidelines
Figure 1: Front & Back View
FRONT BACK
Bottom of Call Station
to Center Button
• ADA compliant (hands free operation)
• LED call status indicator
• Powder coated aluminum construction
• NEMA 4 enclosure for electronics
• Conduit holes for easy installation
• Security torx screws for internal access
• Weather and vandal resistant
• Blue beacon and strobe
• Strobe turns on upon phone activation
• Recessed illuminated face plate
• Ability to program up to 5 emergency numbers
• Remote or on-site programmable*
• Save these instructions. This manual contains important instructions that will assist you during installation
and with maintenance.
• Keep all the components secure and protected during storage.
• Be careful of nished surfaces during transport and installation to avoid damaging the nish.
• Installation and maintenance should only be performed by qualied electricians.
• It is recommended a minimum of 2 people perform installation.
• Do not install phone during extreme weather conditions.
• Do not touch uninsulated phone wires or terminals unless the phone line has been disconnected at the
network interface.
• To comply with Americans with Disabilities Act (ADA) requirements, the Call Station must be mounted so that
the push button is less than 48” above the ground.
Features:
Height 36”
Width 10”
Depth 8”
Thickness of Aluminum* 0.090”
Weight 29 lbs.
Call Station Specications:
*Stainless Steel Call Stations are 14 Gauge Steel
Page 3
*Not applicable for Cellular applications

Items Needed for Installation
Item Description
Wall Mounting Hardware If Mounting to Wall
Pole Mount Bracket (Part # RP7700098A) If Mounting to Pole
#1 Phillips Screwdriver
Voltage Meter
Security Torx Bit Provided by RATH®
Adjustable Wrench
120v Power Source
Analog Phone Line If Using Landline
Phone Cable If Using Landline
Installation
1. Remove the 12 security screws from unit.
2. Remove top cap from unit.
3. Pull front assembly away from back unit.
4. Disconnect the gray Wago connector (see diagram on page 9).
5. If wall mount, mount to wall.
6. If pole mount, attach unit to pole using Pole Mounting Bracket (Part # RP7700098A).
7. Locate the Blue (positive), Brown (negative), and Green (ground) wires coming out of the bottom of the Call
Station from the charging station.
8. Connect the electrical wires from the 120v power supply ran through conduit to the wires in the Call Station
using the waterproof wire nuts located on the wire.
If using 480v or 277v, an additional transformer will be installed in the Call Station and the following will need to be
performed: Warning! Electrical Connection Should Be Performed by a Qualied Electrician!
480 Volt AC Supplies:
Connect H1 and H4 on the transformer to the hot and neutral of the 480 volt supply. Connect H2 and H3
together. X2, X4 and the blue and the yellow wires on the charger should be connected to the ground lug on the
transformer. The ground lug should be connected to an earth ground. X1 and X3 should be connected to the brown
wire of the charger.
277 Volt AC Supplies:
Connect H1 and H6 on the transformer to the hot and neutral of the 277 volt supply. Connect H2 and H3
together. X2, X4 and the blue and the yellow wires on the charger should be connected to the ground lug on the
transformer. The ground lug should be connected to an earth ground. X1 and X3 should be connected to the brown
wire of the charger.
Once the electrical is “live”, the phone needs to be programmed and tested. Reconnect the Wago connectors that
attach the front plate to the NEMA 4 box. If the phone will be programmed remotely, secure the front assembly to the
back panel and reinstall the 12 screws to the sides of the unit. If the phone will be programmed on-site, proceed to
the directions for “On-Site Programming”.
Page 4

Landline:
To connect your analog phone line to the Emergency Call Station:
1. Remove front Stainless Steel plate using the security torx bit to remove the 6 security screws.
2. Locate the gray phone cable coming out of the NEMA 4 box.
3. Connect the incoming phone line by connecting the tip and ring of the phone line to red and green of provided
gray line cord.
Communication
Page 5
LTE Cellular (Units Are Carrier Specic):
1. Open the Cellular Gateway by unscrewing the screw on the left side of the front cover with a Phillips screwdriver
and gently pull up on the left side.
2. Insert standard size SIM card (25mm x 15mm) into J4 with the perforated edge rst and the gold contact side facing
downward. Push until you hear it click. If SIM card does not click into place, the wrong size SIM card is being used.
Note: Do NOT use a nano or micro size SIM card with an adapter. The adapter edge can catch and cause
permanent damage.
3. Wait for the LED lights to turn on. Check the SIM LED to make sure it is amber colored. If it is ashing red, check
that the SIM card has been inserted correctly and has an active 4G data/voice plan.
4. A signal strength test is recommended. Check the signal strength by using the built-in network signal strength
scanner. To use the scanner function, turn on SW1 dipswitch 1 to ON (check that dipswitch 4 is also ON). When
nished, turn SW1 dipswitch 1 back to “OFF”.
5. The RUN LED should change color to ashing green when the main power connection is made. If you see any
other color, please consult the LED indication chart below.

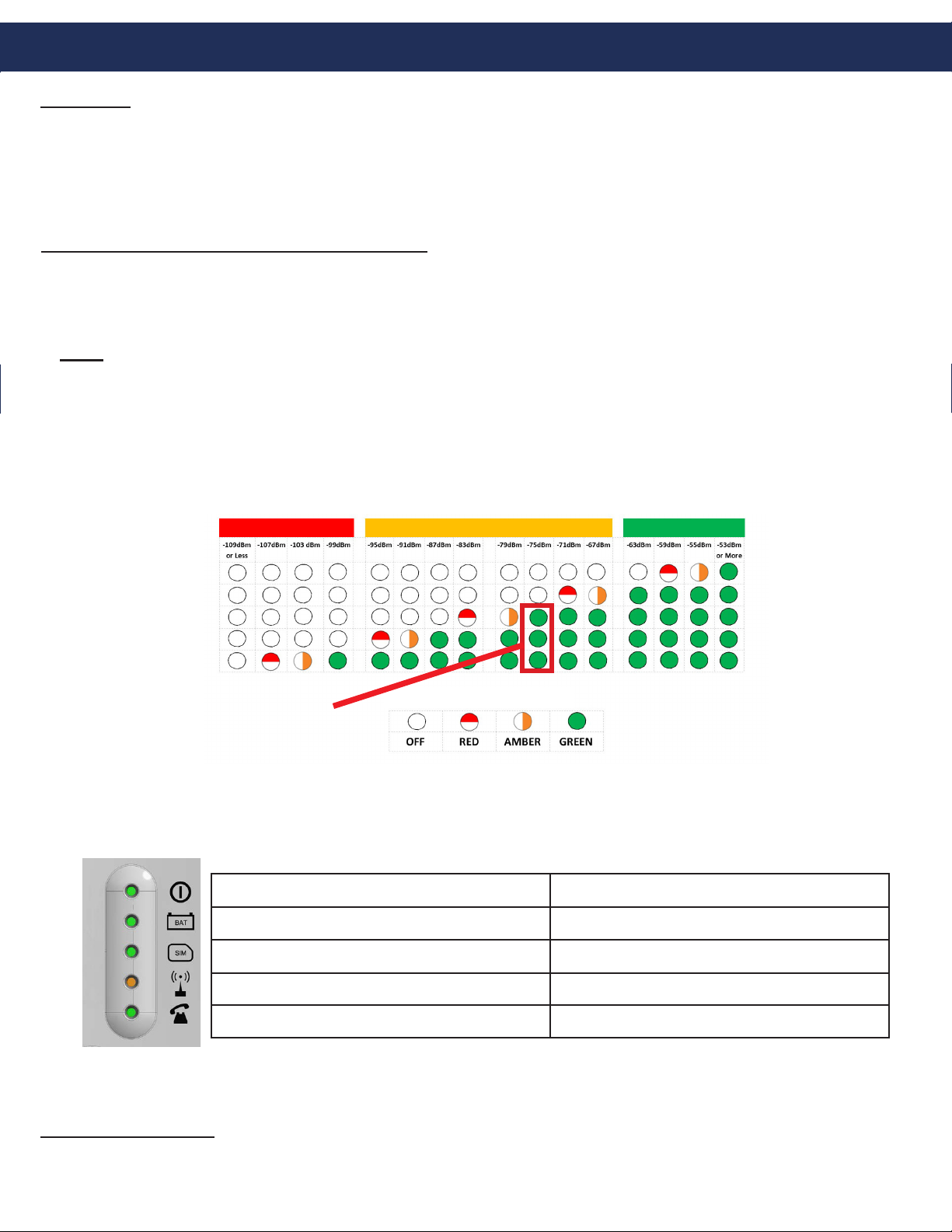

LOW COVERAGE MEDIUM COVERAGE
LED COLORS
OPTIMAL COVERAGE
Minimum
Signal Strength
for Operation
6. Place the lid back on the top of the Cellular Gateway and fasten the lid with the screw.
VoIP & Wi-Fi VoIP:
See additional manual.
RUN LED FLASHES GREEN POWER SUPPLY IS OK
BAT LED IS ALWAYS ON BATTERY IS OK
SIM LED IS AMBER DEVICE IS CONNECTED TO THE NETWORK
COVERAGE LED IS GREEN OR AMBER GOOD COVERAGE
SLIC LED IS GREEN DEVICE IS IN STANDBY

Phone Programming
1. You can program the phone on-site or remotely.
Note: Cellular applications cannot be remotely programmed.
2. If programming on-site, remove 12 security screws from unit, remove top cap, and pull front assembly
away from back unit.
3. Remove the cover of the NEMA 4 enclosure by loosening the 4 corner screws.
On-Site Programming:
Remote Programming:
Step 1: To Begin Program Mode
A. Press Enter
Step 2: To Program Emergency Numbers
A. Press 1, Enter, (phone number), Stop
Note: Press 2-5 in step 2A for emergency numbers 2-5 as needed
Step 3: To Program Location Message
A. To turn on message Press 1, 3, Enter, 2
B. Press 6, Record (speak message) Stop (to replay message Press 6, Play)
C. For no message Press 1, 3, Enter, 0
Step 4: To Program Auto Disconnect Time (Default is 5 minutes, lowest interval is 1 minute)
A. Press 8, Enter, (3 digit number in minutes)
Ex: 2 minutes = 002
Step 5: To Exit Program Mode
A. Press Stop for 3 seconds
Step 1: To Begin Program Mode
A. Call into phone by dialing the number of the Call Station
B. After rst simulated ring, Press #, # (Wait for 4 tones)
C. Key in security code (Default is 1111) (Wait for conrmation tones)
Step 2: To Program Emergency Numbers
A. Press 1, *, (Phone number), *, # (Wait for conrmation tones)
Note: Emergency numbers (2-5) repeat step 2A pressing (2-5) as needed
Step 3: To Program Location Message
A. To turn on message press 1, 3, *, 2 (Wait for conrmation tones)
B. Press 6, *, (Speak message) #, *, # (Wait for conrmation tones)
i. To replay message Press 6, # (Wait for conrmation tones)
C. For NO message Press 1, 3, *, 0 (Wait for conrmation tones)
Step 4: To Program Auto Disconnect Time (Default is 5 minutes, lowest interval is 1 minute)
A. Press 8, *, (3 digit number in minutes)
Ex: 2 minutes = 002
Step 5: To Exit Program Mode
A. Press *, #, 0 (You will hear a beep, beep) *, # (You will hear a buzz)
Keypad
Page 6

Phone Testing
Did you hear a dial tone?
Did the strobe start ashing immediately after the button was pushed?
Did the red LED become a solid light when you pushed the button?
Did the red LED ash and approximately 15-20 seconds later the called party started
talking to you? (Delay is due to the phone telling the other party your location via the
“Location Message”)
Can you hear the other party clearly? (If not, see “Adjust Speaker” below)
Can the other party hear you clearly? (If not, see “Adjust Microphone” below)
When the party you called hangs up, does the strobe stop?
If you have answered YES to all questions, you have successfully installed and tested
the phone. If you answer NO to any question, proceed to the Troubleshooting Section.
Push the emergency button on the front of the Call Station: Yes No
*RATH®recommends the Call Station be tested on a regular basis to ensure proper operation.
Adjusting the Volume
Volume Adjust VR1
Mic Sensitivity VR2
If the volume is too low or high, adjust it by referring to the diagram and instructions below.
Note: Refer to the instructions under “Programming the Phone” to access the circuit board. Reinstall the cover on
the NEMA 4 enclosure and close the Call Station when nished.
Adjusting the Microphone:
If the person you are calling reports your voice is not loud enough, increase the Microphone Sensitivity by
adjusting VR2 a 1/4 turn clockwise (requires a small Phillips screwdriver).
Adjusting the Speaker:
If the voice of the person you call is not loud enough in the phone speaker, increase the volume by adjusting
VR1 a 1/4 turn clockwise.
Page 7
RATH®SmartPhone

Troubleshooting
Problem Possible Cause & Solutions
No dial tone when the button is
pushed:
• Check to make sure the phone line is connected to SmartPhone board.
• Verify dial tone and voltage on phone line going into unit.
Audio is low from the speaker: • Speaker control needs to be adjusted. Go to “Speaker Adjustment”
on page 7.
• Make sure the speaker holes are not blocked.
Audio is distorted from the speaker: • Speaker control needs to be adjusted. Go to “Speaker Adjustment”
on page 7.
• Make sure there are no items touching the speaker inside of the
Call Station.
When the called party hangs up,
strobe continues to ash:
• Phone company or phone system is not providing a disconnect
signal. Contact the appropriate party to make sure the disconnect
signal is provided.
When the called party hangs up,
busy signal is heard through
speaker:
• Phone company or phone system is not providing a disconnect signal.
• Operator needs to press *, # to disconnect the call.
• Disconnect time on phone needs to be lowered (see page 6).
Call Station appears non-functional.
Strobe does not ash and no audio
is heard from the speaker when
button is pushed:
• Check to make sure the phone line is connected from the
communication source.
• Check electrical connections and 120v supply to transformer.
• Push button may be non-functional.
LED above push button comes on
and goes off immediately:
• No dial tone or operating voltage from communication source.
• Remove line from SmartPhone and connect to analog phone.
Verify 2-way calling.
Page 8

Page 9
Wiring
Phone line
to 900 MHz, Radio, or Cellular Communication
Source
LED for
Panel
FRONT
COVER
Note:If using landline phone,
cable will just run out of the
bottom of the NEMA 4
enclousre
Strobe
Wago Connector to front plate
1
45
7 8
0
9
6
3
2
Enter
Record
Play / Pause
Stop
*
#
Constant
Strobe
120vac
Charging/Finishing/Ready
Dusk2Dawn Charging Station
Ground
Positive Negative
Photocell
yrettaB
BATTERY
Transformer
(Only if using 277
or 480vac power)
277vac Source Connects to H1, H6
and Ground on the Transformer.
480vac Source Connects to H1, H4
and Ground on the Transformer.
Optional
