Rath 2100-EPV2 VoIP User manual

30” Eco Light Weight Call Station
• 2100-EPL2 Landline 120v Call Station
• 2100-EPV2 VoIP 120v Call Station
N56W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 www.RATHCommunications.com
RP8500SCS
Ver. 3
10/17
Installation & Operations Manual
Made in the USA
2 Year Warranty

Thank you for purchasing RATH’s Eco Call Station. We are the largest Emergency Communication
Manufacturer in North America and have been in business for over 35 years.
We take great pride in our products, service, and support. Our Emergency Products are of the highest
quality. Our experienced customer support teams are available to remotely assist with site preparation,
installation, and maintenance. It is our sincere hope that your experience with us has and will continue
to surpass your expectations.
Thank you for your business,
®
N56W24720 N. Corporate Circle Sussex, WI 53089
800-451-1460 www.RATHCommunications.com
Table of Contents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Items Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Programming . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting The Volume . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 3
Page 3
Page 4
Page 4
Page 4
Page 5
Page 6
Page 6
Page 7
Page 8

Page 3
Description
Safety Guidelines
Figure 1: Front & Back View
• ADA compliant (hands free operation)
• LED call status indicator
• Powder coated aluminum construction
• NEMA 4 enclosure for electronics
• Conduit holes for easy installation
• Security torx screws for internal access
• Weather and vandal resistant
• Blue beacon and strobe
• Strobe turns on upon phone activation
• Ability to program up to 5 emergency numbers
• Remote or on-site programmable
• Save these instructions. This manual contains important instructions that will assist you during installation
and with maintenance.
• Keep all the components secure and protected during storage.
• Be careful of nished surfaces during transport and installation to avoid damaging the nish.
• Installation and maintenance should only be performed by qualied electricians.
• It is recommended a minimum of 2 people perform installation.
• Do not install phone during extreme weather conditions.
• Do not touch uninsulated phone wires or terminals unless the phone line has been disconnected at the
network interface.
• To comply with Americans with Disabilities Act (ADA) requirements, the Call Station must be mounted so that
the push button is less than 48” above the ground.
Features:
Height 30”
Width 10”
Depth 7-1/2”
Thickness of Aluminum* 0.090”
Weight 20 lbs.

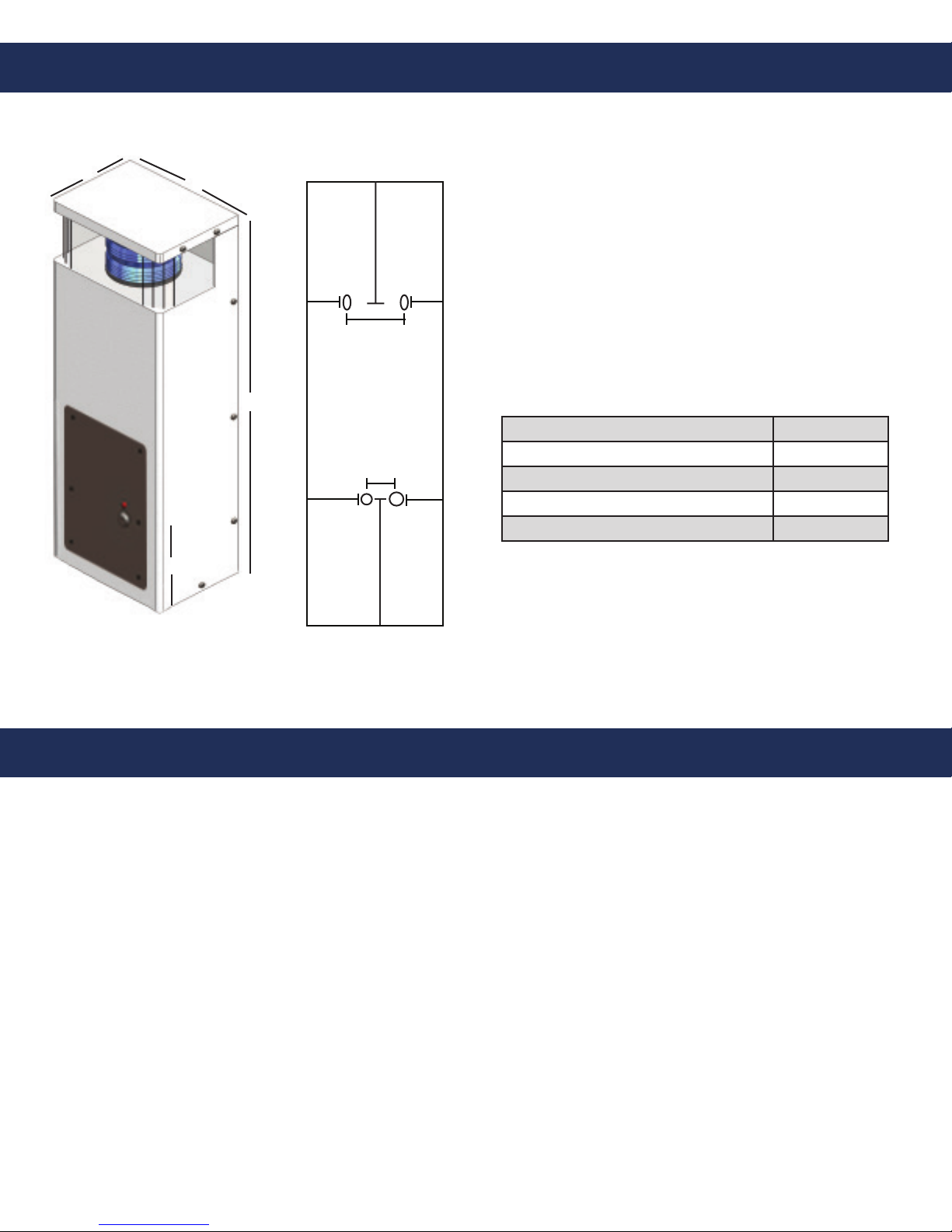

Call Station Specications:
*Stainless Steel Call Stations are 14 Gauge Steel
30”
10”
7-1/2”
8.5”
8”
4-1/2”
2-3/4”
2-3/4”
8”
2”
4”
6”
Front Back
Bottom of Call Station
to Center Button

Items Needed for Installation
Installation
1. Remove 8 security screws from unit.
2. Pull front assembly away from back unit.
3. Disconnect the gray Wago connector (see diagram on page 8).
4. If wall mount, mount to wall.
5. If pole mount, attach unit to pole using Pole Mounting Bracket (Part # RP7700098AE).
6. Connect the electrical conduit of the 110vac power supply to the Call Station and run necessary wires.
7. Connect 110vac wiring to the Call Station power cable (see diagram on page 8).
8. Turn on 110vac power to the Call Station.
Once the electrical is “live”, the phone needs to be programmed and tested. Reconnect the Wago connectors that
attach the front plate to the NEMA 4 box. If the phone will be programmed remotely, secure the front assembly to
the back panel and reinstall the 8 screws to the sides of the unit. If the phone will be programmed on-site, proceed
to the directions for “On-Site Programming”.
Communication
Landline:
To connect your analog phone line to the Emergency Call Station:
1. Remove front Stainless Steel plate using the security torx bit to remove the 6 security screws.
2. Locate the gray phone cable coming out of the NEMA 4 box.
3. Connect the incoming phone line by connecting the tip and ring of the phone line to red and green of
provided gray line cord.
VoIP:
See additional manual.
Page 4
Item Description
Wall Mounting Hardware If Mounting to Wall
Pole Mount Bracket (Part # RP7700098AE) If Mounting to Pole
#1 Phillips Screwdriver
Voltage Meter
Security Torx Bit Provided by RATH®
Adjustable Wrench
120v Power Source
Analog Phone Line If Using Landline
Phone Cable If Using Landline

Phone Programming
Page 5
1. You can program the phone on-site or remotely.
2. If programming on-site, pull front assembly away from unit.
3. Remove the cover of the NEMA 4 enclosure by loosening the 4 corner screws.
On-Site Programming:
Remote Programming:
Step 1: To Begin Program Mode
A. Press Enter
Step 2: To Program Emergency Numbers
A. Press 1, Enter, (phone number), Stop
Note: Press 2-5 in step 2A for emergency numbers 2-5 as needed
Step 3: To Program Location Message
A. To turn on message Press 1, 3, Enter, 2
B. Press 6, Record (speak message) Stop (to replay message Press 6, Play)
C. For no message Press 1, 3, Enter, 0
Step 4: To Program Auto Disconnect Time (Default is 5 minutes, lowest interval is 1 minute)
A. Press 8, Enter, (3 digit number in minutes)
Ex: 2 minutes = 002
Step 5: To Exit Program Mode
A. Press Stop for 3 seconds
Step 1: To Begin Program Mode
A. Call into phone by dialing the number of the Call Station
B. After rst simulated ring, Press #, # (Wait for 4 tones)
C. Key in security code (Default is 1111) (Wait for conrmation tones)
Step 2: To Program Emergency Numbers
A. Press 1, *, (Phone number), *, # (Wait for conrmation tones)
Note: Emergency numbers (2-5) repeat step 2A pressing (2-5) as needed
Step 3: To Program Location Message
A. To turn on message press 1, 3, *, 2 (Wait for conrmation tones)
B. Press 6, *, (Speak message) #, *, # (Wait for conrmation tones)
i. To replay message Press 6, # (Wait for conrmation tones)
C. For NO message Press 1, 3, *, 0 (Wait for conrmation tones)
Step 4: To Program Auto Disconnect Time (Default is 5 minutes, lowest interval is 1 minute)
A. Press 8, *, (3 digit number in minutes)
Ex: 2 minutes = 002
Step 5: To Exit Program Mode
A. Press *, #, 0 (You will hear a beep, beep) *, # (You will hear a buzz)
Keypad

Page 6
Phone Testing
Did you hear a dial tone?
Did the strobe start ashing immediately after the button was pushed?
Did the red LED become a solid light when you pushed the button?
Did the red LED ash and approximately 15-20 seconds later the called party started
talking to you? (Delay is due to the phone telling the other party your location via the
“Location Message”)
Can you hear the other party clearly? (If not, see “Adjust Speaker” below)
Can the other party hear you clearly? (If not, see “Adjust Microphone” below)
When the party you called hangs up, does the strobe stop?
If you have answered YES to all questions, you have successfully installed and tested
the phone. If you answer NO to any question, proceed to the Troubleshooting Section.
Push the emergency button on the front of the Call Station: Yes No
*RATH® recommends the Call Station be tested on a regular basis to ensure proper operation.
Adjusting the Volume

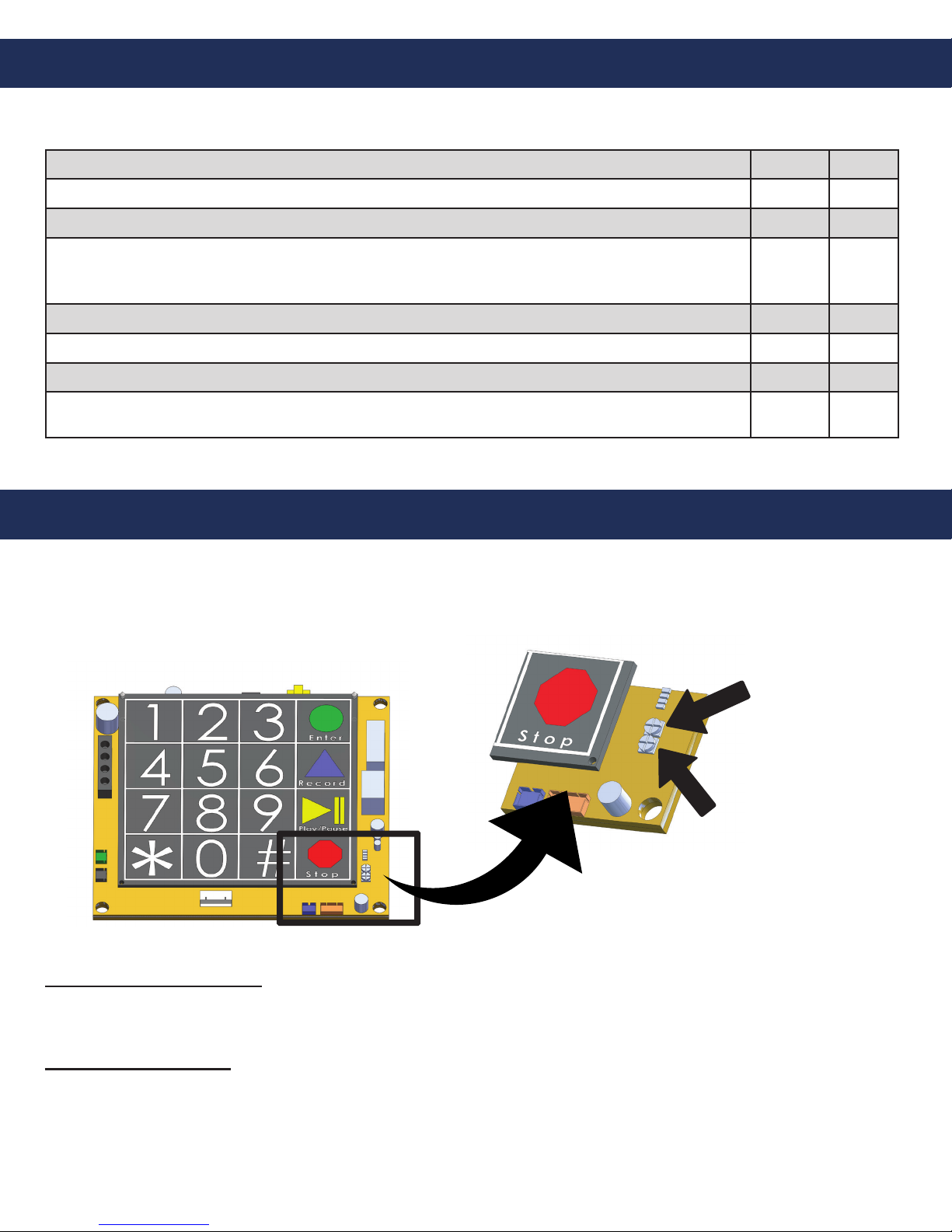

Volume Adjust VR1
Mic Sensitivity VR2
If the volume is too low or high, adjust it by referring to the diagram and instructions below.
Note: Refer to the instructions under “Programming the Phone” to access the circuit board. Reinstall the cover on
the NEMA 4 enclosure and close the Call Station when nished.
Adjusting the Microphone:
If the person you are calling reports your voice is not loud enough, increase the Microphone Sensitivity by
adjusting VR2 a 1/4 turn clockwise (requires a small Phillips screwdriver).
Adjusting the Speaker:
If the voice of the person you call is not loud enough in the phone speaker, increase the volume by adjusting
VR1 a 1/4 turn clockwise.
RATH® SmartPhone

Troubleshooting
Page 6 Page 7
Did you hear a dial tone?
Did the strobe start ashing immediately after the button was pushed?
Did the red LED become a solid light when you pushed the button?
Did the red LED ash and approximately 15-20 seconds later the called party started
talking to you? (Delay is due to the phone telling the other party your location via the
“Location Message”)
Can you hear the other party clearly? (If not, see “Adjust Speaker” below)
Can the other party hear you clearly? (If not, see “Adjust Microphone” below)
When the party you called hangs up, does the strobe stop?
If you have answered YES to all questions, you have successfully installed and tested
the phone. If you answer NO to any question, proceed to the Troubleshooting Section.
Problem Possible Cause & Solutions
No dial tone when the button is
pushed:
• Check to make sure the phone line is connected to SmartPhone board.
• Verify dial tone and voltage on phone line going into unit.
Audio is low from the speaker: • Speaker control needs to be adjusted. Go to “Speaker Adjustment”
on page 7.
• Make sure the speaker holes are not blocked.
Audio is distorted from the speaker: • Speaker control needs to be adjusted. Go to “Speaker Adjustment”
on page 7.
• Make sure there are no items touching the speaker inside of the
Call Station.
When the called party hangs up,
strobe continues to ash:
• Phone company or phone system is not providing a disconnect
signal. Contact the appropriate party to make sure the disconnect
signal is provided.
When the called party hangs up,
busy signal is heard through
speaker:
• Phone company or phone system is not providing a disconnect signal.
• Operator needs to press *, # to disconnect the call.
• Disconnect time on phone needs to be lowered (see page 6).
Call Station appears non-functional.
Strobe does not ash and no audio
is heard from the speaker when
button is pushed:
• Check to make sure the phone line is connected from the
communication source.
• Check electrical connections and 120v supply to transformer.
• Push button may be non-functional.
LED above push button comes on
and goes off immediately:
• No dial tone or operating voltage from communication source.
• Remove line from SmartPhone and connect to analog phone.
Verify 2-way calling.

Page 8

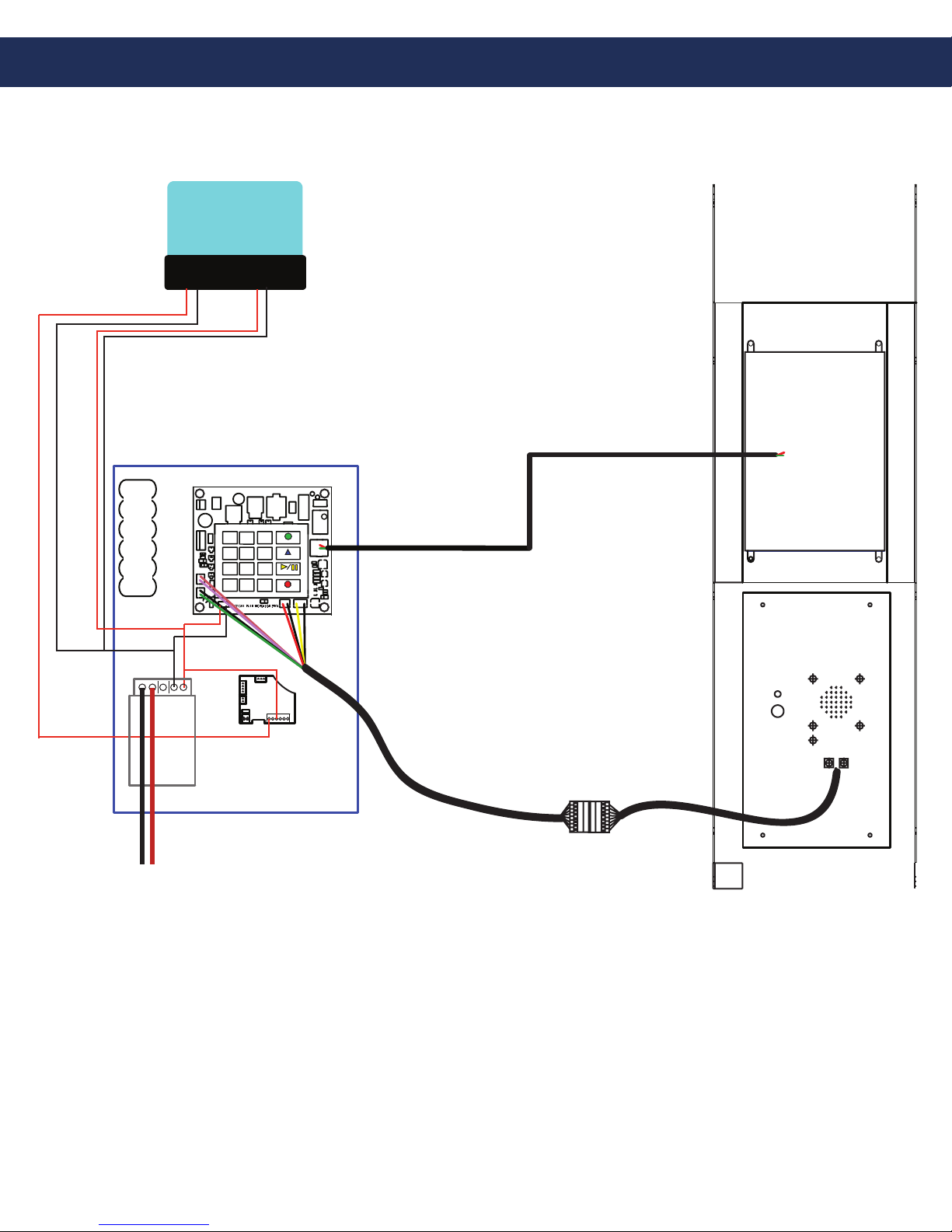

Wiring
Strobe
Phone line
1
45
78
0
9
6
32
Enter
Record
Play / Pause
Stop
*
#
Constant
Strobe
yrettaB
Communication
Source
FRONT
COVER
Note:If using landline, phone cable
will just run out of the bottom of the
NEMA 4 enclousre
-
120v
+
remrofsnarT
LN G +
-
Wago Connector
