Reliable G6-56 User manual

Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model G6-56
Concealed Quick Response
Sidewall Standard Spray Sprinkler
(SIN RA5035)
Bulletin 050
Bulletin 050

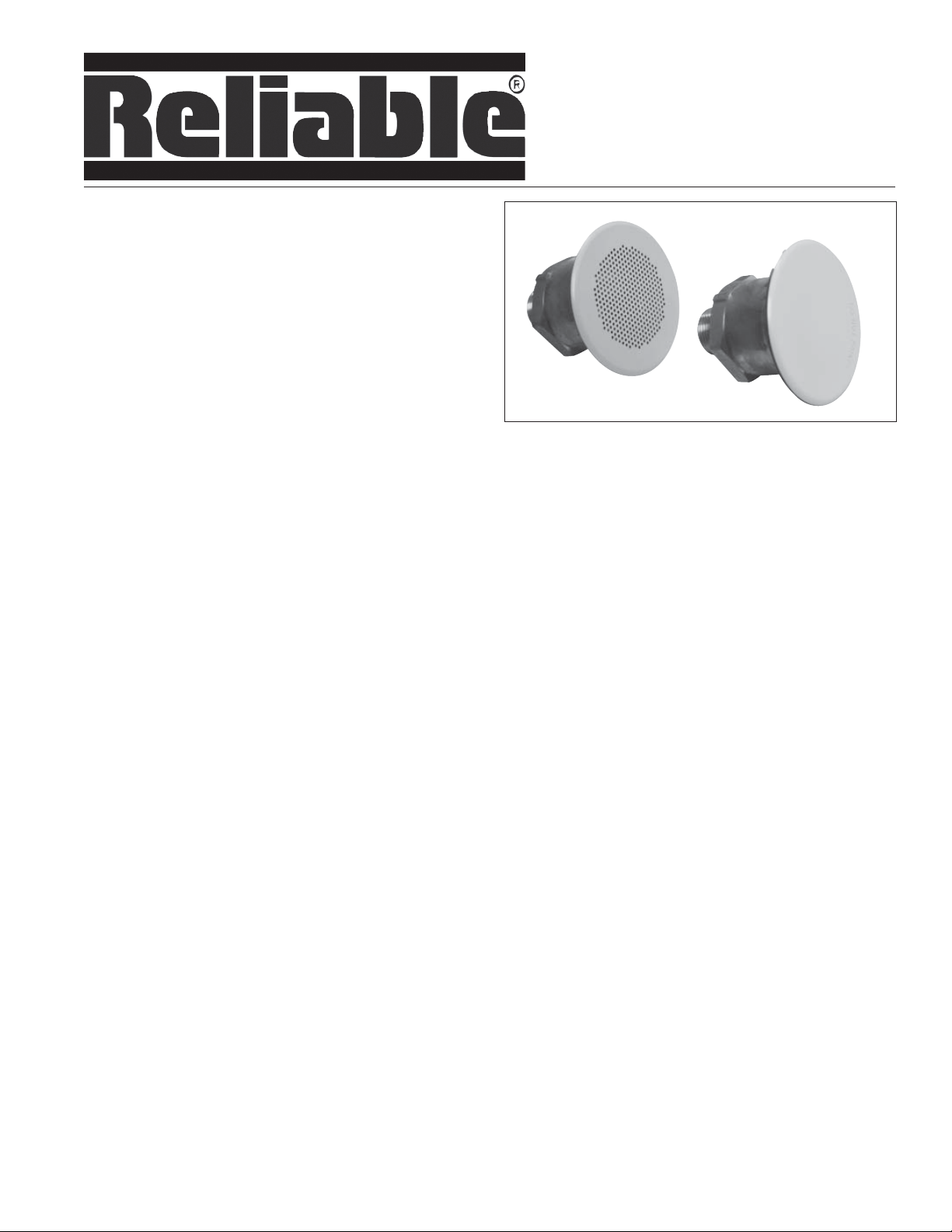

The Sidewall Concealer™
Nominal 5.6 (80 metric) K-Factor
Designed for Light and Ordinary
Hazard occupancies.
Features:
1. Flat cover plate (Solid or Perforated).
2. Sprinkler is approved for 175 psi (12,0 bar)
applications.
3. Quick response, sidewall standard spray
sprinkler.
4. Push-on/pull-off, sturdy convenient flat cover
plate.
5. Sprinkler, shipped complete with factory in-
stalled protective cap.
6. Sprinkler assembly and cover plate pack-
aged separately.
7. Nominal 5.6 (80 metric) K-Factor.
8. ¼” (6 mm) cover plate adjustment.
9. Cover plate available, either solid or perfo-
rated, in a wide variety of colors and finishes.
Approval Organizations
1. Listed by Underwriters Laboratories Inc. and
UL certified for Canada (cULus).
UL Listing Category
Sprinklers, Automatic and Open
Quick Response
Sidewall Standard Spray Sprinklers
Patents:
U.S. Patent No. 7,353,882, other Patents pending
Product Description
The Reliable Model G6-56 Concealed Quick Response
Sidewall Standard Spray Sprinkler is an attractive, con-
cealed sprinkler assembly that utilizes a push-on/pull-off
cover plate assembly. The sprinkler assembly is shipped
with a protective cap.
The flat cover plate is attached to the skirt using 135°F
(57°C) ordinary temperature classification solder. The sprin-
kler is easily installed into the sprinkler fitting using the Model
G6 Sprinkler Wrench.
When the ambient temperature rises, the solder holding
the cover plate melts, allowing the release of this part and
thus exposing the sprinkler inside to the rising ambient tem-
perature.
The Model G6-56 utilizes a Quick Response soldered link.
This quick response enables the sprinkler to apply water to
a fire sooner than standard response sprinklers of the same
temperature rating.
This sprinkler is listed for a maximum service pressure of
175 psi (12,0 bar).
Application and Installation
The Model G6-56 sprinkler is intended for installation in
accordance with NFPA 13. This sprinkler is especially well-
suited for use in student dormitories, hotels, hospitals and
health care facilities.
Model G6-56 Concealed Horizontal Sidewall sprinklers
utilize a sprinkler assembly with spring loaded deployable
deflector feature. The assembly is completed by the instal-
lation of the attractive, 135°F (57°C) push-on/pull-off cover
plate assembly, which provides ¼” (6 mm) of adjustment.
Apply a Teflon* - based thread sealant to the sprinkler
threads. After a 2 5/8” (66.7mm) diameter hole is cut in the
wall, the sprinkler is easily installed and properly oriented
with the Model G6 Wrench, as follows:
Do not remove the factory installed plastic protective cap
since it is sized to fit inside the G6 wrench. Note that the
sprinkler can only mate when the sprinkler’s deflector orien-
tation tab (Fig. 1) is aligned with wrench’s key-way. The G6
wrench is provided with bubble level pad and TOP mark-
ing, to allow the proper orientation of the horizontal sidewall
deflector. Final leveling can be done after leak proof joint is
obtained with a minimum to maximum torque of 8 to 18 ft-lbs
(11 to 24 N.m). Leave the protective cap on to protect the
sprinkler while the wall is plastered, wallpapered or painted.
The protective cap must be removed and the listed cover
plate installed prior to the sprinkler system being placed in
service.
Concealed cover plate/cup assemblies are listed only for
use with specific sprinklers. The use of any other concealed
cover plate/cup assembly with the Model G6-56 Horizontal
Sidewall Sprinkler or the use of this dedicated concealed
cover plate assembly on any sprinkler with which it is not
specifically listed will void all guarantees, warranties, listings
and approvals.
* DuPont Registered Trademark

2.
Technical Data:
Nominal Orifice
Size
“K” Factor Thread Size Maximum Water
Service Pressure
US Metric
½ inch (15mm) 5.6 80 ½” NPT (R½) 175 PSI (12 bar)
Sprinkler Identification
Number (SIN)
Max. Ambient
Temperature
Sprinkler Temperature
Rating
Cover Plate
Temperature Rating
Approval
RA5035 100°F (38°C) 165°F (74°C) 135°F (57°C) cULus
Material Data
Bronze Sprinkler Body, Spring Closure Cap, Yoke, Lever, Slide Pin, Slide Plate, Deflector, Set Screw
Brass Cover Plate, Sprinkler Sleeve, Frame Arms
Stainless Steel Push Spring, Ball, Load Screw, Rivet
Copper Plated Steel Cover Plate Skirt
Nickel Alloy Fusible Element
Nickel Alloy coated with
PTFE Adhesive Tape Sealing Washer
Approval Type
Quick Response Standard Sidewall Spray Sprinkler.
Install below smooth, flat, horizontal ceilings only AS DEFINED BY THE NFPA 13 STANDARD.
Figure 1

3.
Maintenance
Model G6-56 Concealed Sprinklers should be inspected
and maintained in accordance with NFPA 25. Do not clean
sprinklers with soap and water, ammonia or any other clean-
ing fluids. Remove dust by using a soft brush or gentle
vacuuming. Replace any sprinkler or cover plate assem-
bly, which has been painted (other than factory applied) or
damaged in any way. A stock of spare sprinklers should be
maintained to allow quick replacement of damaged or op-
erated sprinklers. Prior to installation, sprinklers should be
maintained in their original cartons and packaging until used
to minimize the potential for damage to sprinklers that would
cause improper operation or non-operation.
Model G6-56 Concealed Quick Response
Sidewall Standard Spray Sprinkler
Sprinklers shall be a cULus Listed quick-response stan-
dard spray sidewall sprinkler with G6-56 deflector and ad-
justable cover plate for interior, non-corrosive applications.
Sprinklers to be of bronze frame construction with brass
cover plate and copper alloy retainer flange assembly. Wa-
ter seal assembly shall consist of a Teflon* coated Belleville
spring washer and machined brass cup containing no plas-
tic parts. Method of attaching the cover plate to the sprin-
kler cup shall be a push-on and pull-off design allowing a
¼” cover plate adjustment. Sprinklers shall have a nominal
K-factor of 5.6 (80 metric), and ½” NPT thread. Sprinkler
temperature rating shall be 165°F (74°C) with a cover plate
temperature rating of 135°F (57°C). Rated working pres-
sure shall be 175 psi (12,0 bar). A plastic protective cap
shall be provided and factory installed inside the sprinkler
cup to protect the sprinkler from damage, which could oc-
cur during construction before the cover plate is installed.
Standard cover plate finish: [White] [Chrome] [Custom Fin-
ish – specify]. Concealed quick response sidewall standard
spray sprinklers shall be Reliable Model G6-56. SIN RA5035
(Bulletin 050).
Ordering Information
Specify:
1. Model G6-56 Sidewall Concealer™
2. Cover Plate Type: Solid or Perforated
3. Cover Plate Finish
Installation Wrench
Model G6 Sprinkler Wrench
Installation Aid
A protective plastic cap is included for use during instal-
lation.
Cover Plate Finishes(1)
Standard Finishes
White Paint
Chrome
Special Application Finishes
Bronze
Black Paint
Flat White Paint
(1) Other colors and finishes are available. Consult factory for details.
Note: Paint or any other coatings applied over the factory
finish will void all approvals and warranties.
*DuPont Registered Trademark

Reliable Automatic Sprinkler Co., Inc.
[phone] Sales Offices
[phone] Sales Fax
[phone] Corporate Offices
www.reliablesprinkler.com Internet Address
Manufactured by
Recycled
Paper
Revision lines indicate updated or new data.
EG. Printed in U.S.A. 03/15 P/N 9999970467
