Sauder Palladia Highboy 411626 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-24
Français pg 25-28
Español pg 29-32
Lot # 387970 01/26/16
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Highboy TV Stand
Palladia Collection | Model 411626
It stands. You sit.
A thing of beauty,
this one.

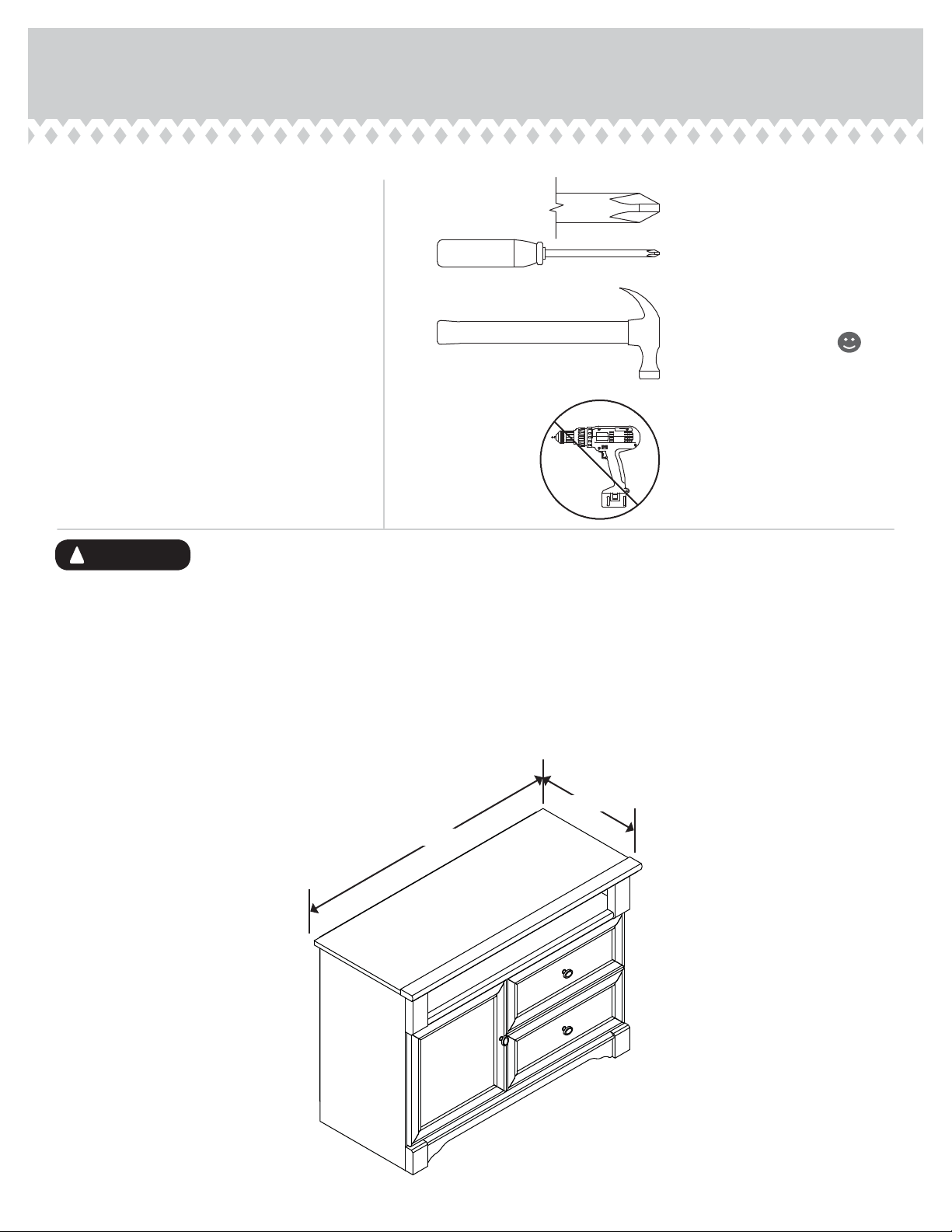

Table of Contents Assembly Tools Required
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Skip the power trip.
This time.
3
4
5-24
25-28
29-32
33-34
35
WARNING
!
Use of a TV that is too heavy or large is hazardous. A TV that is too heavy will create a risk of a tip-over that can cause severe injury or
death. A TV that is too large for the available space might be accidentally pushed or bumped o the furniture, or subject to tip-over.
• Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly!
• This Sauder unit is designed for use with televisions weighing less than 95 pounds. Never use with a TV that weighs more.
• The size of the television, front-to-back and side-to-side, must fit within the space defined in the diagram.
• Never place the front edge of the TV past the front edge of the TV support shelf (or stop molding – if equipped)
• Never allow the sides of the TV to extend past the side edges of the TV support surface.
• If the TV has a CRT picture tube, the picture tube cone may extend past the rear of the support shelf.
• Be sure to apply the warning label as instructed in the last assembly step. The label provides important safety related information.
411626 www.sauder.com/servicesPage 2
95 lbs.
95 lbs.
17-3/4"
17-3/4"
46-7/8"
46-7/8"

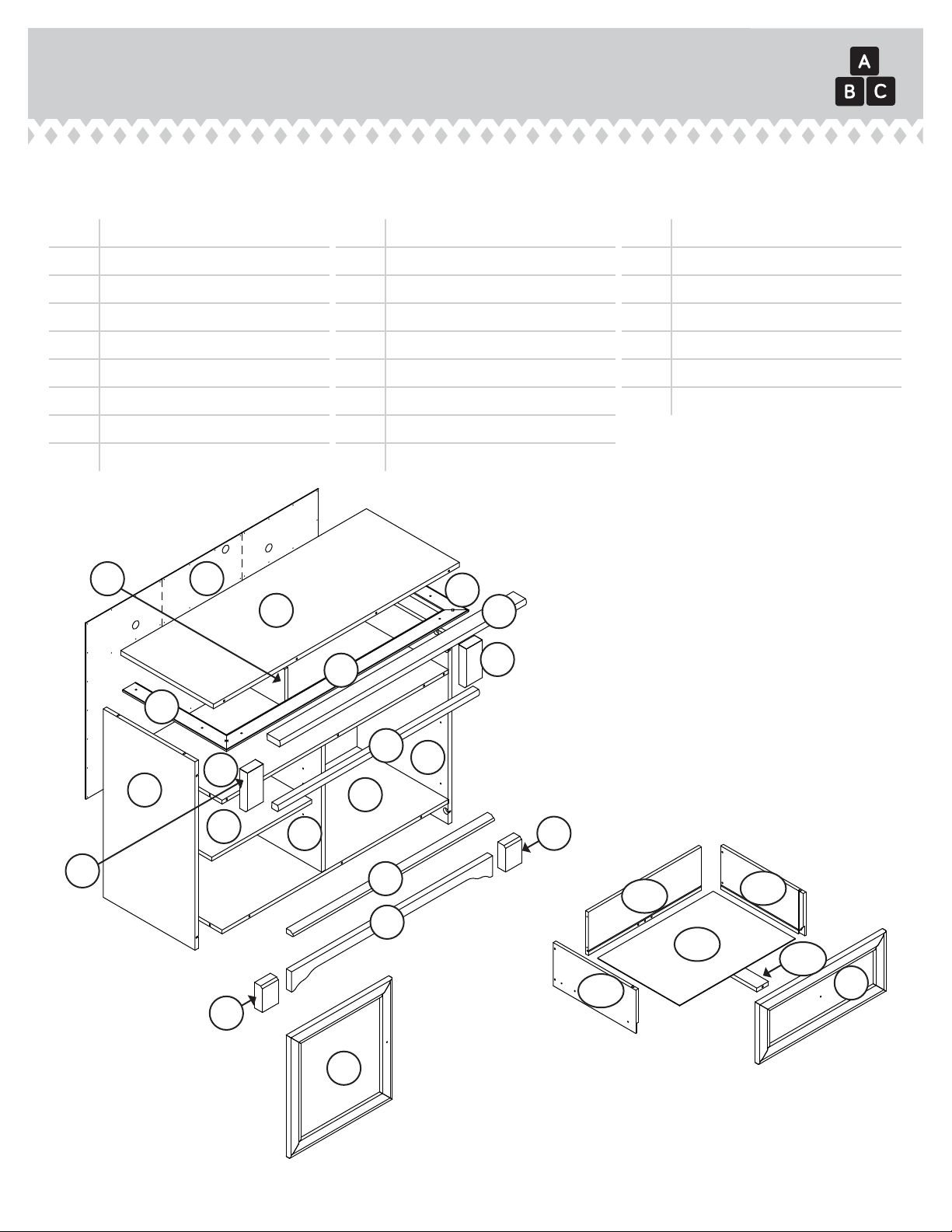

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
A RIGHT END (1)
B LEFT END (1)
C LOWER UPRIGHT (1)
D UPPER UPRIGHT (1)
D50 RIGHT DRAWER SIDE (2)
D51 LEFT DRAWER SIDE (2)
D167 DRAWER BACK (2)
D975 DRAWER BOTTOM (2)
E2 TOP (1)
F BOTTOM (1)
G SHELF (1)
H3 BACK (1)
I DOOR (1)
J2 ADJUSTABLE SHELF (1)
L BASE (1)
M2 DRAWER FRONT (2)
M65 DRAWER BRACE (2)
Q FRONT MOLDING (1)
R RIGHT MOLDING (1)
R2 LOWER PLINTH (2)
S LEFT MOLDING (1)
T STOP MOLDING (1)
U SHELF MOLDING (1)
W BOTTOM MOLDING (1)
X UPPER PLINTH (2)
411626www.sauder.com/services Page 3
A
B
C
E2
F
G
H3
I
J2
L
Q
R
S
T
U
W
X
R2
R2
X
D
M2
M65
D50
D975
D51
D167

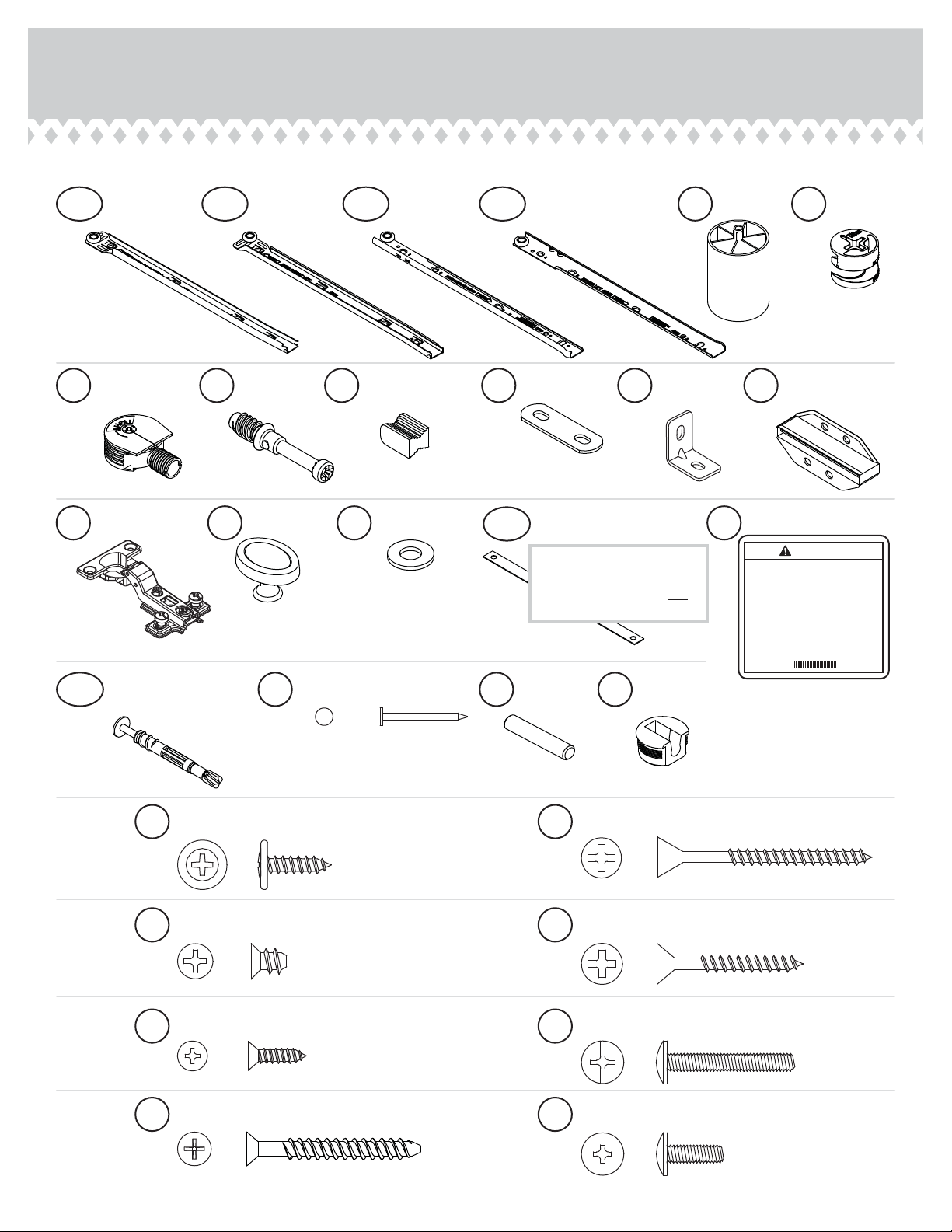

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
411626 www.sauder.com/servicesPage 4
TIE PLATE - 2
3G
TWIST-LOCK®
FASTENER - 18
7F MOLDING
CONNECTOR - 2
17F
METAL
PIN - 8
1R
FOOT - 1
3E
BLACK 1-1/8" MACHINE SCREW - 1
21S
BLACK 9/16" LARGE HEAD SCREW - 23
1S
BLACK 1-1/4" FLAT HEAD SCREW - 7
7S
BLACK 1-7/8" FLAT HEAD SCREW - 2
2S
GOLD 5/16" FLAT HEAD SCREW - 16
3S
NAIL - 48
1N
SILVER 1/2" MACHINE SCREW - 2
38S
BLACK 1/2" FLAT HEAD SCREW - 4
11S
KNOB - 3
33K
1F HIDDEN
CAM - 14
CAM
SCREW - 14
8F
40CB CABINET
LEFT - 2
40CA CABINET
RIGHT -2 40CC DRAWER RIGHT - 2 40CD DRAWER
LEFT - 2
SHELF
SNAP - 4
6R (Refer to step 19 for proper
location and application)
WARNING LABEL - 1
3L
WARNING
Never use this furniture with a TV that is too
large or too heavy. Severe injury or death
can occur.The TV and furniture will be
unstable and may tip.
-The TV must less than 95 lbs.
-The base of the TV must be able to sit
completely on this shelf.
-Refer to instruction book for complete
safety information.
Note: This is a permanent label. Do not try
to remove. Surface will be damaged.
02/ 02 269227
WASHER - 1
13M
SAFETY DRYWALL
ANCHOR - 1
61M
SAFETY STRAP - 1
60M
Locate this nylon SAFETY
STRAP (60M) to be used
later in assembly. Do not
accidentally throw away.
9G DRAWER FRONT
BRACKET - 2
40H HINGE - 2
METAL
BRACKET - 5
4G
30S BLACK 1-9/16" FLAT HEAD SCREW - 10

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (7F) into the large holes in the ENDS (A and B),
LOWER UPRIGHT (C), SHELF (G), and BOTTOM (F).
411626www.sauder.com/services Page 5
7F 7F
7F
A
B
(18 used)
Do not tighten the TWIST-LOCK® FASTENERS in this step.
Some assembly
(and snacks) required.

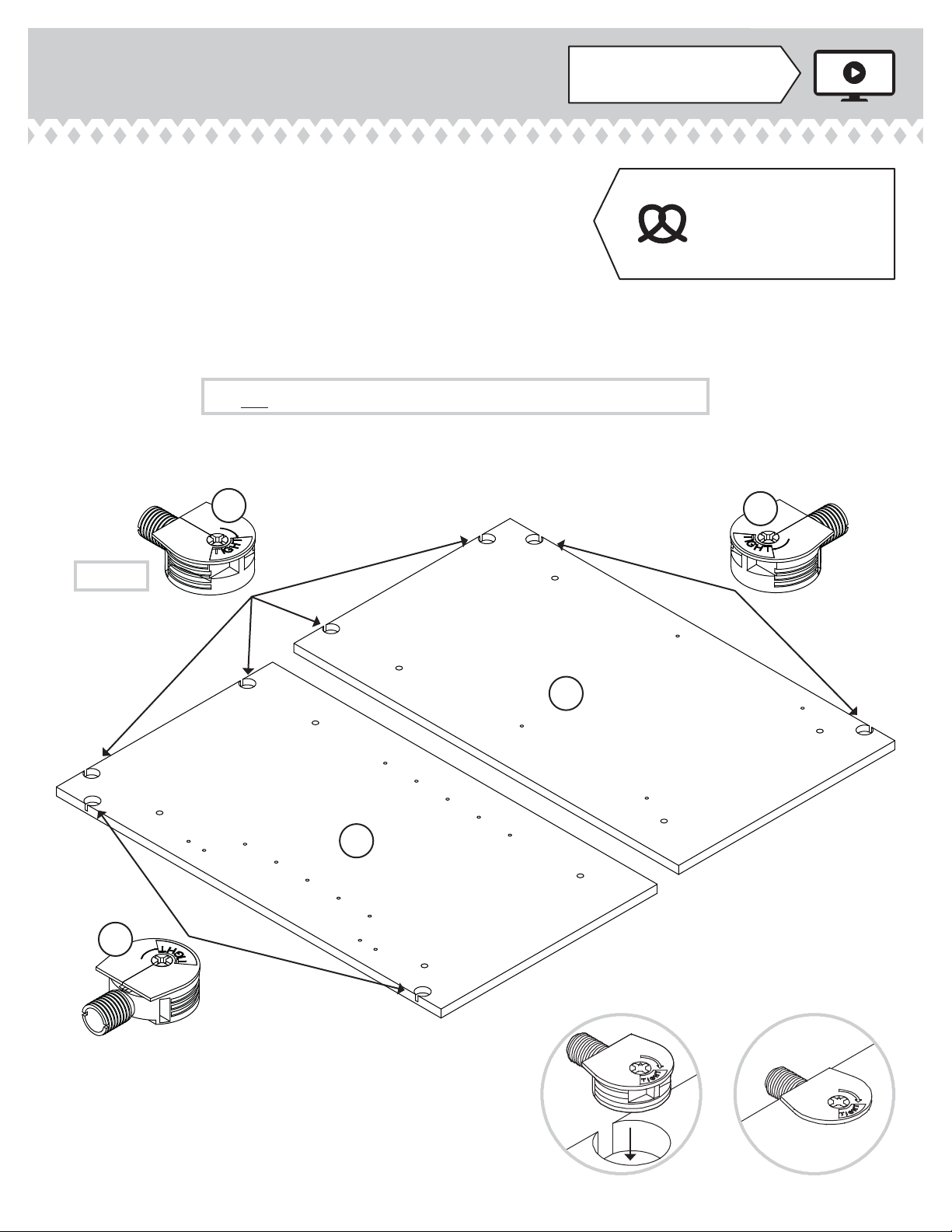

å Push fourteen HIDDEN CAMS (1F) into the TOP (E2),
BOTTOM (F), SHELF (G), and DRAWER BRACES (M65).
Step 2
411626 www.sauder.com/servicesPage 6
F
G
M65
M65
E2
Arrow
1F
Do not tighten the HIDDEN CAMS in this step.
(14 used)
Arrow
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole

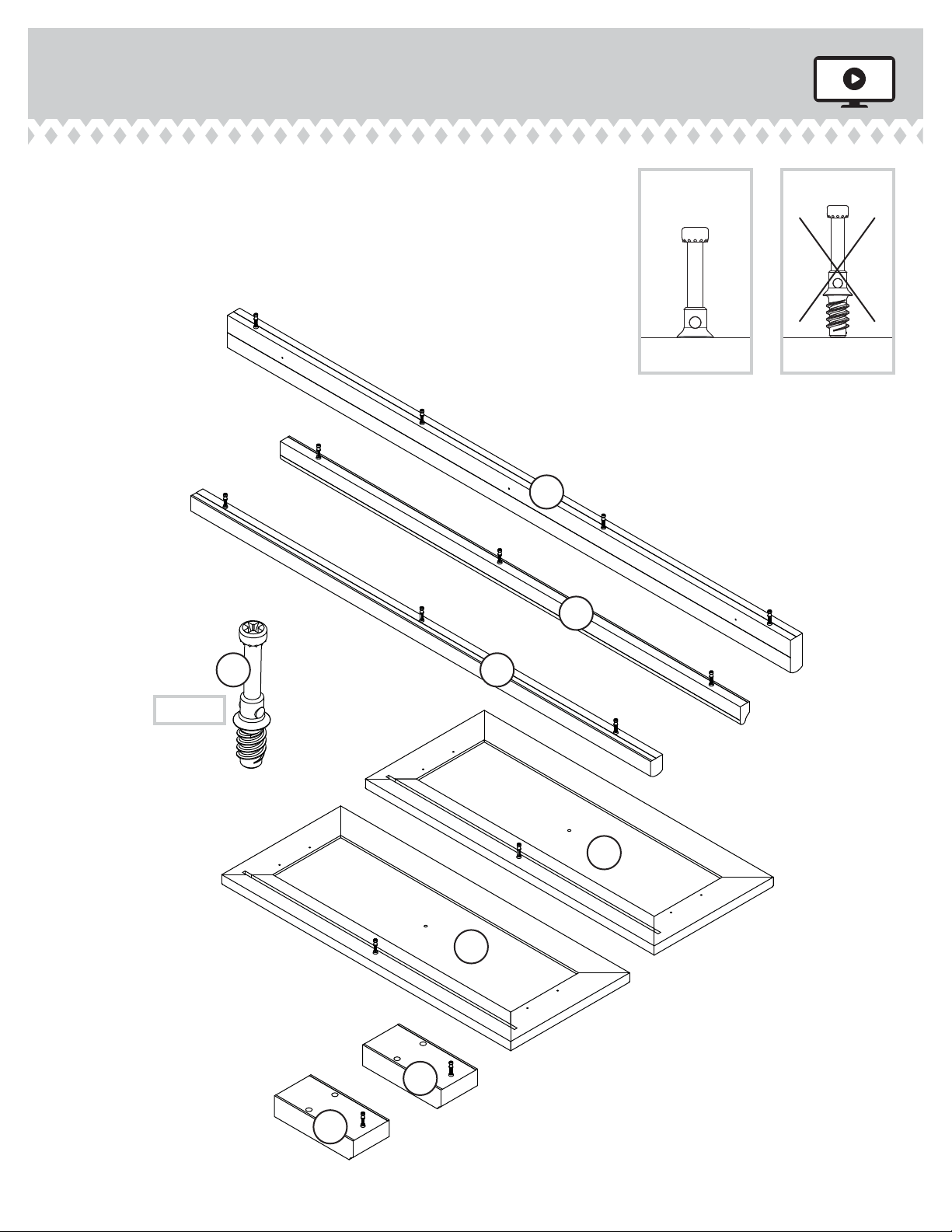

å Turn fourteen CAM SCREWS (8F) into the DRAWER
FRONTS (M2), STOP MOLDING (T), SHELF MOLDING (U),
BOTTOM MOLDING (W), and UPPER PLINTHS (X).
Step 3
411626www.sauder.com/services Page 7
M2
M2
T
U
W
X
X
8F
(14 used)

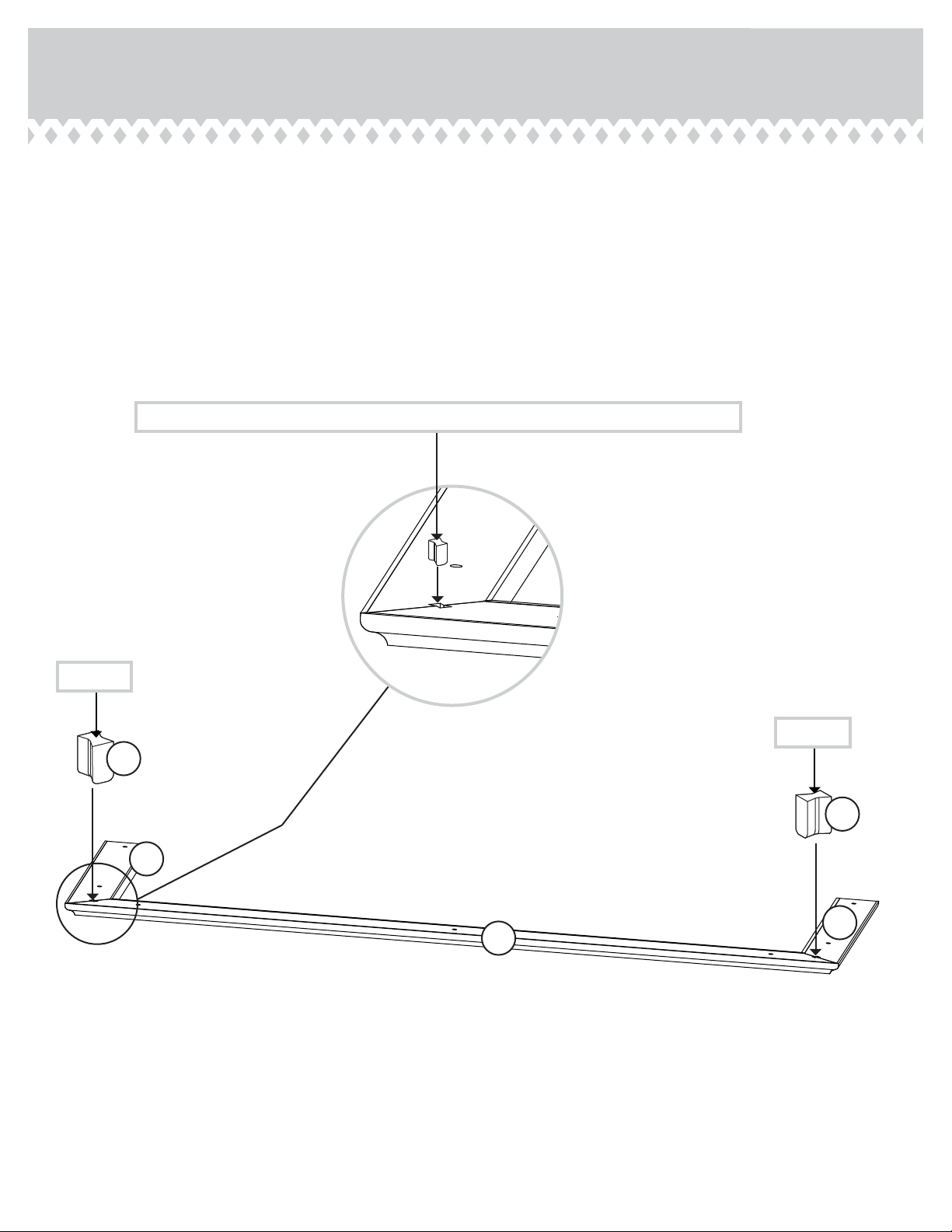

å Tap two MOLDING CONNECTORS (17F) into the notches
in the MOLDINGS (Q, R, and S).
Step 4
411626 www.sauder.com/servicesPage 8
17F
17F
S
QR
Flat end
Flat end
Use your hammer to tap the MOLDING CONNECTORS (17F) into the notches in the MOLDINGS.

å Fasten the STOP MOLDING (T) to the TOP (E2). Tighten
four HIDDEN CAMS.
å Fasten the MOLDINGS (Q, R, and S) to the TOP (E2)
and STOP MOLDING (T). Use seven BLACK 1-1/4" FLAT
HEAD SCREWS (7S).
å NOTE: Do not overtighten the SCREWS into the TOP and
STOP MOLDING.
Step 5
411626www.sauder.com/services Page 9
Finished
Finished
Finished
T
E2
E2
R
S
Q
1
2
BLACK 1-1/4" FLAT HEAD SCREW
(7 used in this step)
7S
Surface with
HIDDEN CAMS
Surface with holes
T
Surface with holes

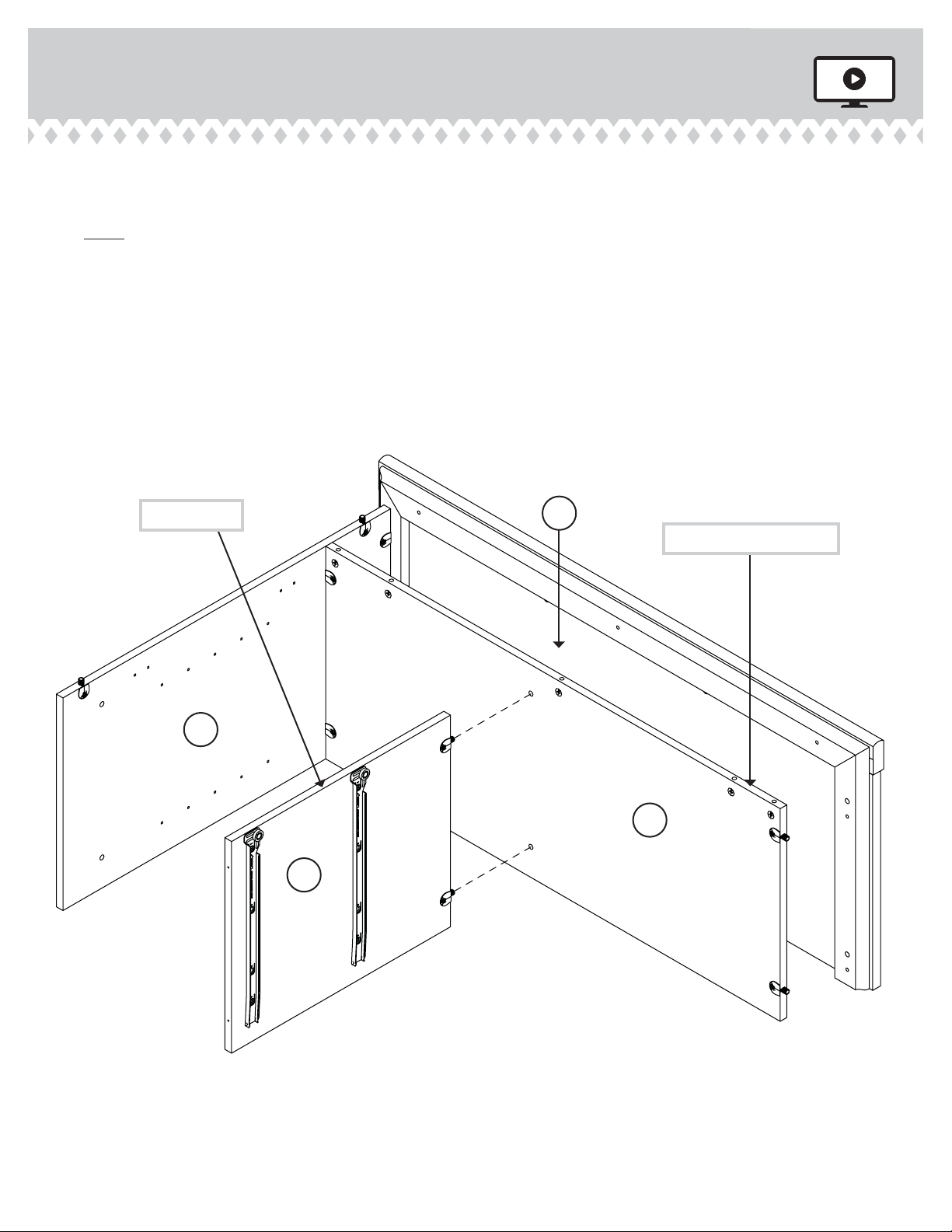

å Fasten the CABINET RIGHTS (40CA) and CABINET
LEFTS (40CB) to the RIGHT END (A) and
UPRIGHT (C). Use eight GOLD 5/16" FLAT HEAD
SCREWS (3S) through holes #1 and #4.
Step 6
411626 www.sauder.com/servicesPage 10
A
C
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
3S
1
2
3
4
1
2
3
4
Roller end
Roller end
Finished edge
1
2
3
4
1
2
3
4
Long edge with
TWIST-LOCK®
FASTENERS
Remember:
Righty tighty.
Lefty loosey.

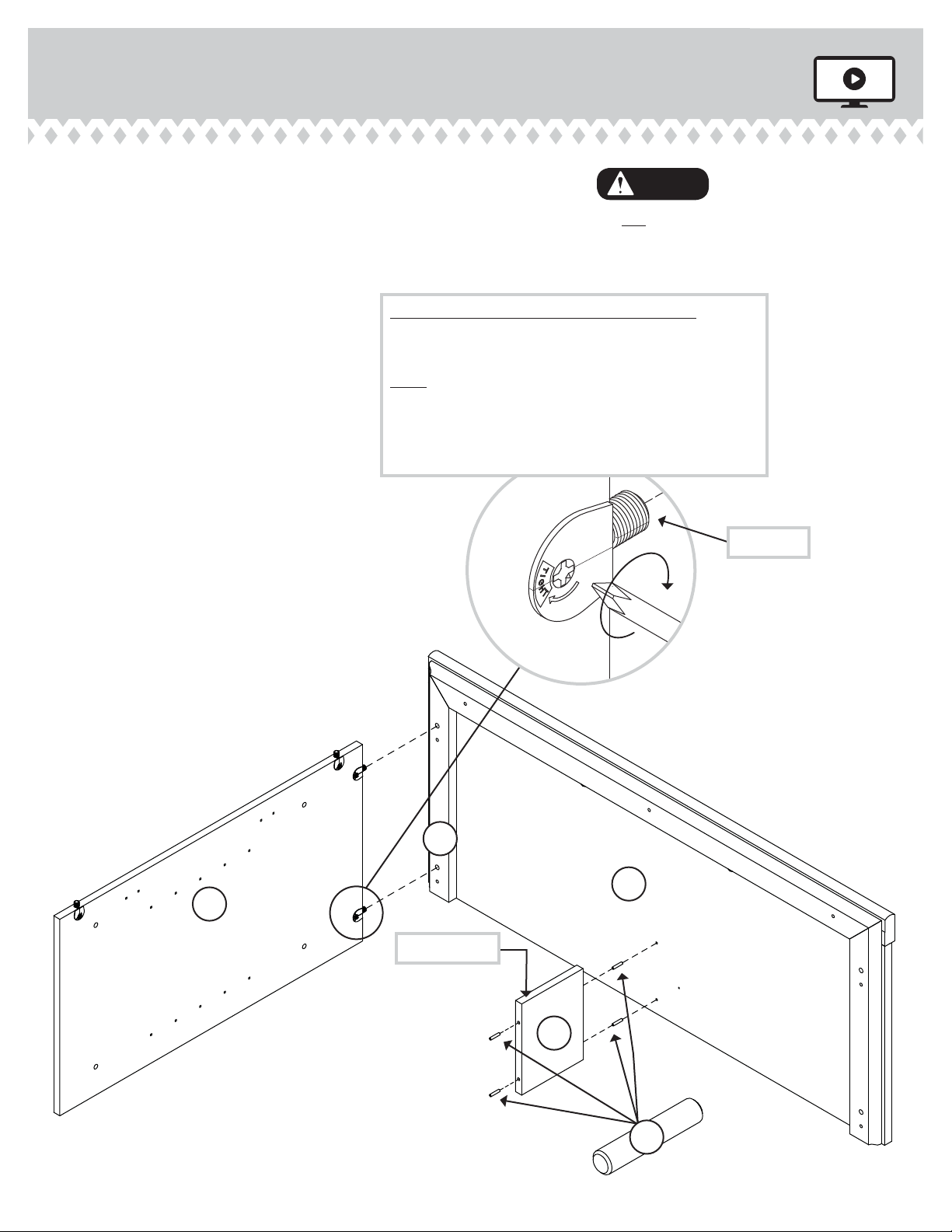

å Fasten the LEFT END (B) to the LEFT MOLDING (S).
Tighten two TWIST-LOCK® FASTENERS.
å Push four METAL PINS (1R) into the edges of the UPPER
UPRIGHT (D). Push two METAL PINS in the UPRIGHT into
the holes in the TOP (E2).
Step 7
411626www.sauder.com/services Page 11
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
B
E2
D
1R
S
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking the
FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
Finished edge
Surface with
TWIST-LOCK®
FASTENERS

å Fasten the SHELF (G) to the LEFT END (B). Tighten two
TWIST-LOCK® FASTENERS.
å NOTE: Be sure the METAL PINS in the UPPER
UPRIGHT (D) insert into the holes in the SHELF (G).
å Fasten the LOWER UPRIGHT (C) to the SHELF (G).
Tighten two TWIST-LOCK® FASTENERS.
Step 8
411626 www.sauder.com/servicesPage 12
G
D
C
B
Finished edge
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Edge with HIDDEN CAMS

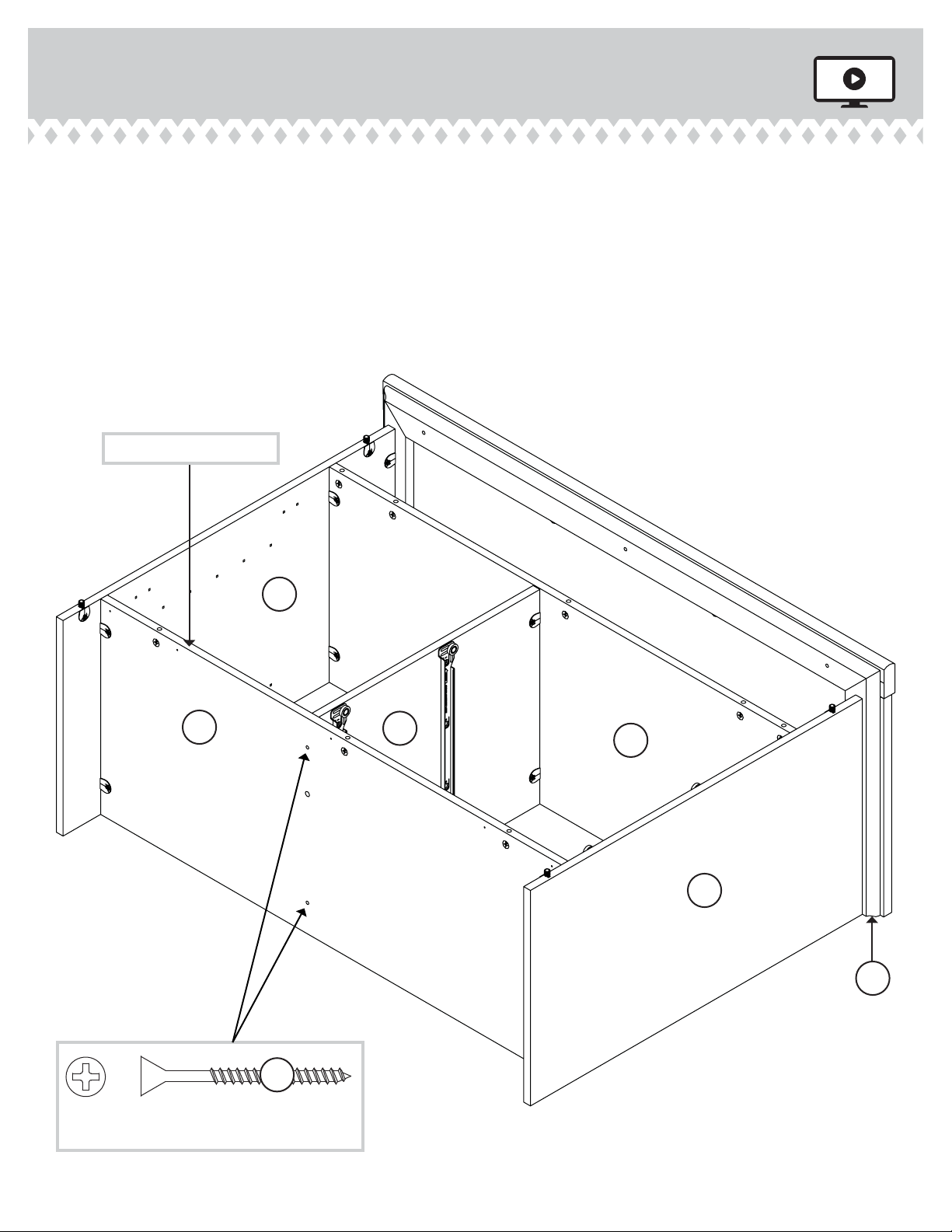

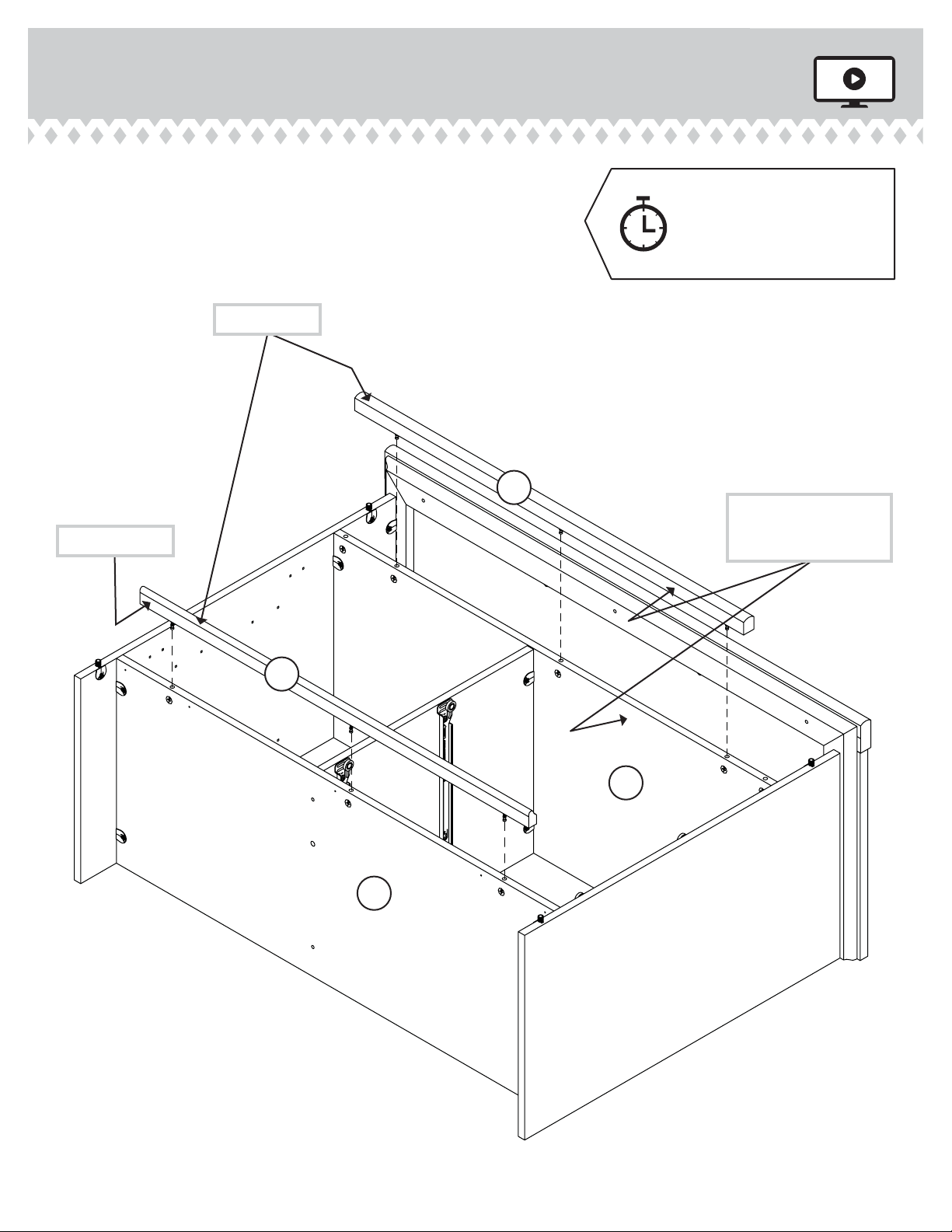

å Fasten the BOTTOM (F) to the LEFT END (B). Tighten two
TWIST-LOCK® FASTENERS.
å Fasten the BOTTOM (F) to the LOWER UPRIGHT (C). Use two BLACK
1-7/8" FLAT HEAD SCREWS (2S).
å Fasten the RIGHT END (A) to the RIGHT MOLDING (R), BOTTOM (F),
and SHELF (G). Tighten six TWIST-LOCK® FASTENERS.
Step 9
411626www.sauder.com/services Page 13
A
FC
B
R
G
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
2S
Surface with
TWIST-LOCK®
FASTENERS
Edge with HIDDEN CAMS

å Fasten the SHELF MOLDING (U) to the SHELF (G).
Tighten three HIDDEN CAMS.
å Fasten the BOTTOM MOLDING (W) to the BOTTOM (F).
Tighten three HIDDEN CAMS.
Step 10
411626 www.sauder.com/servicesPage 14
U
W
F
G
Rounded edge
Unfinished edge
The MOLDING will
overhang the unfinished
surface of the SHELF.
Don't worry. It isn't
Rome. This can be built
in a day.

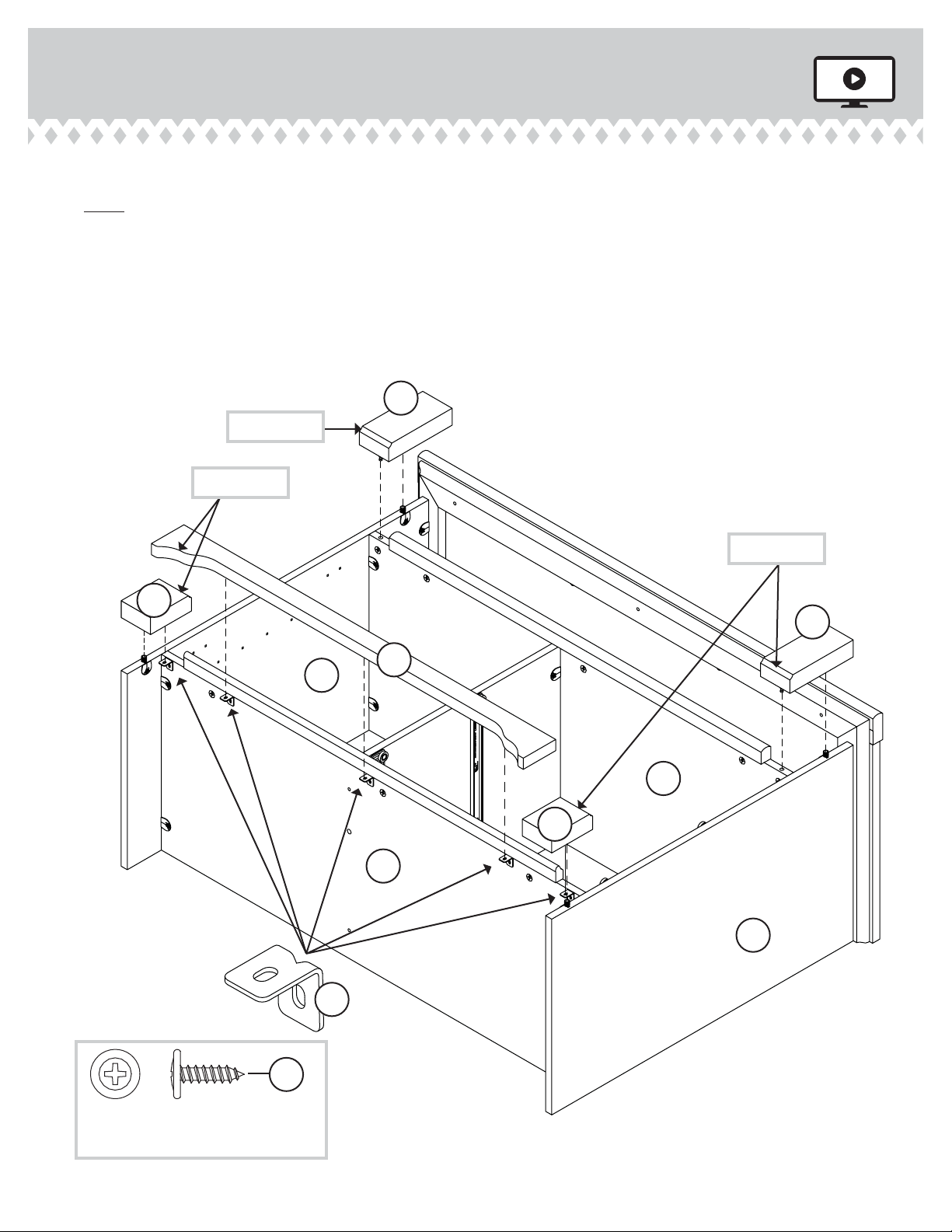

å Fasten five METAL BRACKETS (4G) to the BOTTOM (F). Use five BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure the BRACKETS are even with the edges of the BOTTOM.
å Fasten the LOWER PLINTHS (R2) to the ENDS (A and B). Tighten two TWIST-LOCK® FASTENERS.
å Fasten the LOWER PLINTHS (R2) to the BOTTOM (F). Use two BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten the BASE (L) to the BOTTOM (F). Use three BLACK 9/16" LARGE HEAD SCREWS (1S).
å Fasten the UPPER PLINTHS (X) to the ENDS (A and B). Tighten two TWIST-LOCK® FASTENERS.
å Fasten the UPPER PLINTHS (X) to the SHELF (G). Tighten two HIDDEN CAMS.
Step 11
411626www.sauder.com/services Page 15
A
B
R2
R2
X
X
L
G
F
BLACK 9/16" LARGE HEAD SCREW
(10 used in this step)
1S
Curved edge
Curved edge
Curved edge
4G

å Carefully turn your unit over onto its front edges. Unfold the BACK (H3)
and lay it over your unit.
å Make equal margins along all four edges of the BACK (H3). Push on
opposite corners of your unit if needed to make it "square".
å Fasten the BACK (H3) to your unit using the NAILS (1N).
å NOTE: Be sure to tap NAILS into the holes that line up over the
SHELF (G) and LOWER UPRIGHT (C).
å NOTE: Perforations have been provided for access through the BACK.
Carefully cut out the holes needed.
å Fasten two TIE PLATES (3G) to the BASE (L) and LOWER PLINTHS (R2).
Use four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Push the FOOT (3E) into the hole in the BOTTOM (F).
Step 12
411626 www.sauder.com/servicesPage 16
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
NAIL
(48 used for the BACK)
1N
3G
L
R2
R2
H3
3E F
These holes must line up
over the SHELF (G) and
LOWER UPRIGHT (C).
BLACK 9/16" LARGE HEAD SCREW
(4 used for the TIE PLATES)
1S
This punch out must
be located here.

å Fasten the HINGES (40H) to the DOOR (I). Use four
BLACK 1/2" FLAT HEAD SCREWS (11S).
Step 13
411626www.sauder.com/services Page 17
I
BLACK 1/2" FLAT HEAD SCREW
(4 used in this step)
11S
40H

Step 14
411626 www.sauder.com/servicesPage 18

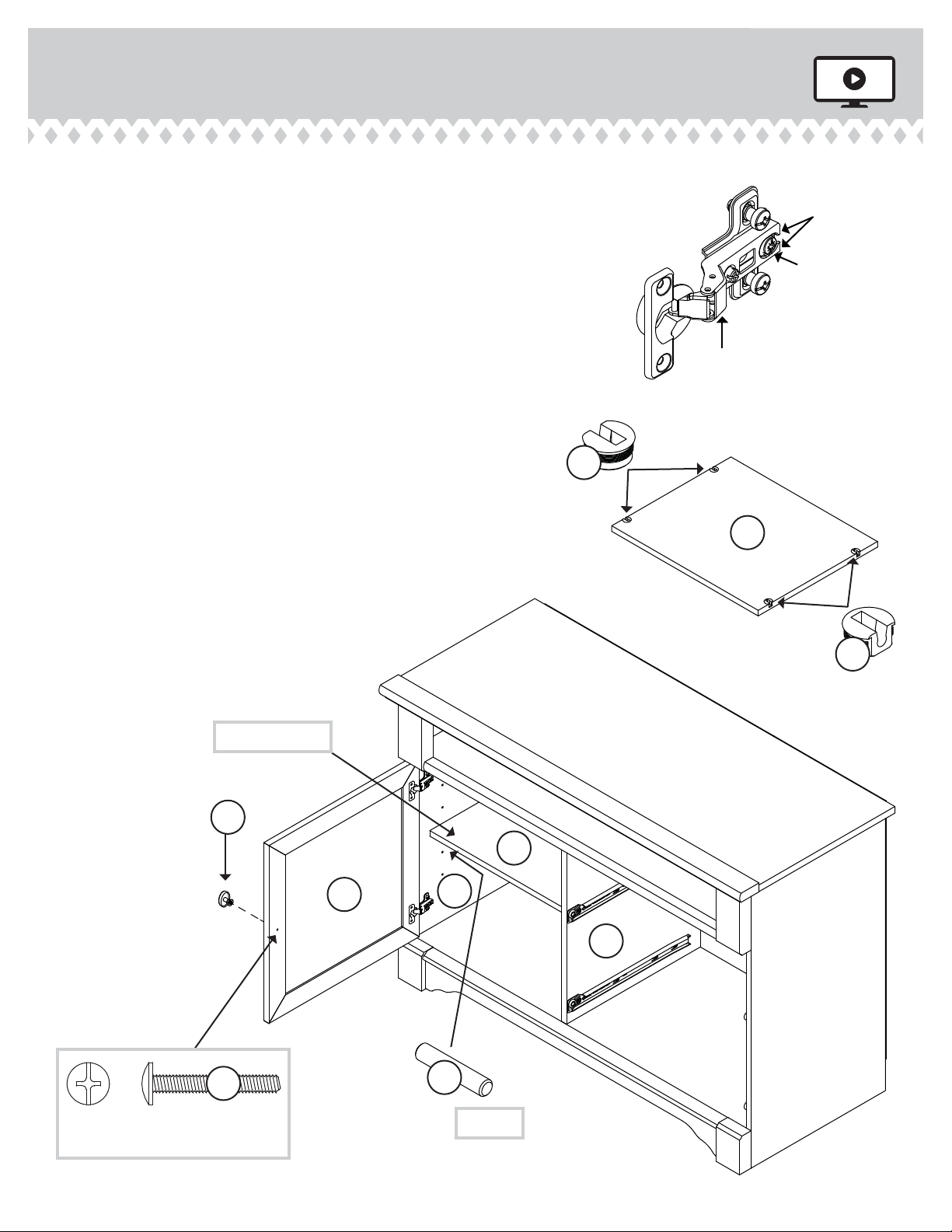

å Carefully stand your unit upright.
å With a hammer tap four SHELF SNAPS (6R) into the
holes in the ADJUSTABLE SHELF (J2) as shown in the
upper diagram.
å Insert four METAL PINS (1R) into the hole locations of your
choice in the LEFT END (B) and LOWER UPRIGHT (C).
å Set the ADJUSTABLE SHELF onto the METAL PINS so
the SHELF SNAPS are resting on the METAL PINS. Push
on the SHELF until each METAL PIN "snaps" into the
SHELF SNAPS.
å Before fastening the DOOR to your unit, be sure the
mounting screw is against the stops as shown in the
diagram. If it isn't, loosen the mounting screw to slide it
against the stops. Then tighten the mounting screw.
å Fasten the DOOR (I) to the LEFT END (B) as shown in
the lower diagram. Use the screws in the HINGES. You
should start each SCREW a few turns before completely
tightening any of them.
å Fasten a KNOB (33K) to the DOOR (I). Use a BLACK
1-1/8" MACHINE SCREW (21S).
å See the next step for DOOR adjustments.
J2
6R
6R
I
33K
B
J2
1R
Finished surface
BLACK 1-1/8" MACHINE SCREW
(1 used in this step)
21S
(4 used)
C
Stop
Mounting
screw
Hinge

Step 15
411626www.sauder.com/services Page 19
å Refer to the enlarged diagram to identify the parts on
the HINGES.
å The DOORS may need some adjustments. Follow the
text below to make needed adjustments.
å DOOR ADJUSTMENTS:
To adjust the DOORS from side to side (horizontal), turn
the adjusting screw in or out.
å To adjust the DOORS up and down (vertical), loosen
both vertical adjustment screws. Move the DOORS up
or down to the desired location. Tighten the screws after
making adjustments.
å To adjust the DOORS in or out (depth), loosen the
mounting screw one turn and move the DOORS in
or out, as needed. Tighten the mounting screw after
making adjustments.
Adjusting screw (horizontal) Mounting screw (depth)
(vertical adjustment)

å Pull the DRAWER FRONT BRACKETS (9G) apart and slide them into the grooves in the DRAWER SIDES (D50 and D51).
å NOTE: The DRAWER FRONT BRACKETS are marked "RH" and "LH" for easy identification.
å Fasten the DRAWER FRONT (M2) to the DRAWER FRONT BRACKETS. Use four BLACK 9/16" LARGE HEAD SCREWS (1S).
å Slide the DRAWER BOTTOM (D975) into the DRAWER SIDES (D50 and D51).
å Repeat this step for the other drawer.
Step 16
411626 www.sauder.com/servicesPage 20
BLACK 9/16" LARGE HEAD SCREW
(8 used in this step)
1S
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
Groove
M2
D51
D50
D975
D51
D50
M2
With the palm of your hand,
tap the DRAWER BOTTOM
down into the groove.
VIEW THE T-SLOT BOX VIDEO
9G
Push down
Unfinished surface
