- make measurements using the projected line as
reference
- switch off the tool by pressing button A
! always lock the self-leveling system after use by
turning knob M counter-clockwise into position
“OFF”
! do not look into the laser beam
! do not point the laser beam at persons or animals
• Leveling of tool in vertical position 7
- place the tool in horizontal position (with base-plate
K beneath) on a flat surface
- lock the self-leveling system by turning knob M
counter-clockwise into position “OFF”
- place the tool in vertical position (with side-plate L
beneath) on a flat surface
- level the tool by turning adjustment knob N in such a
way that the bubble in level E is centered
• Aligning objects horizontally 6
• Aligning objects vertically 7
• Projecting plumb points 8

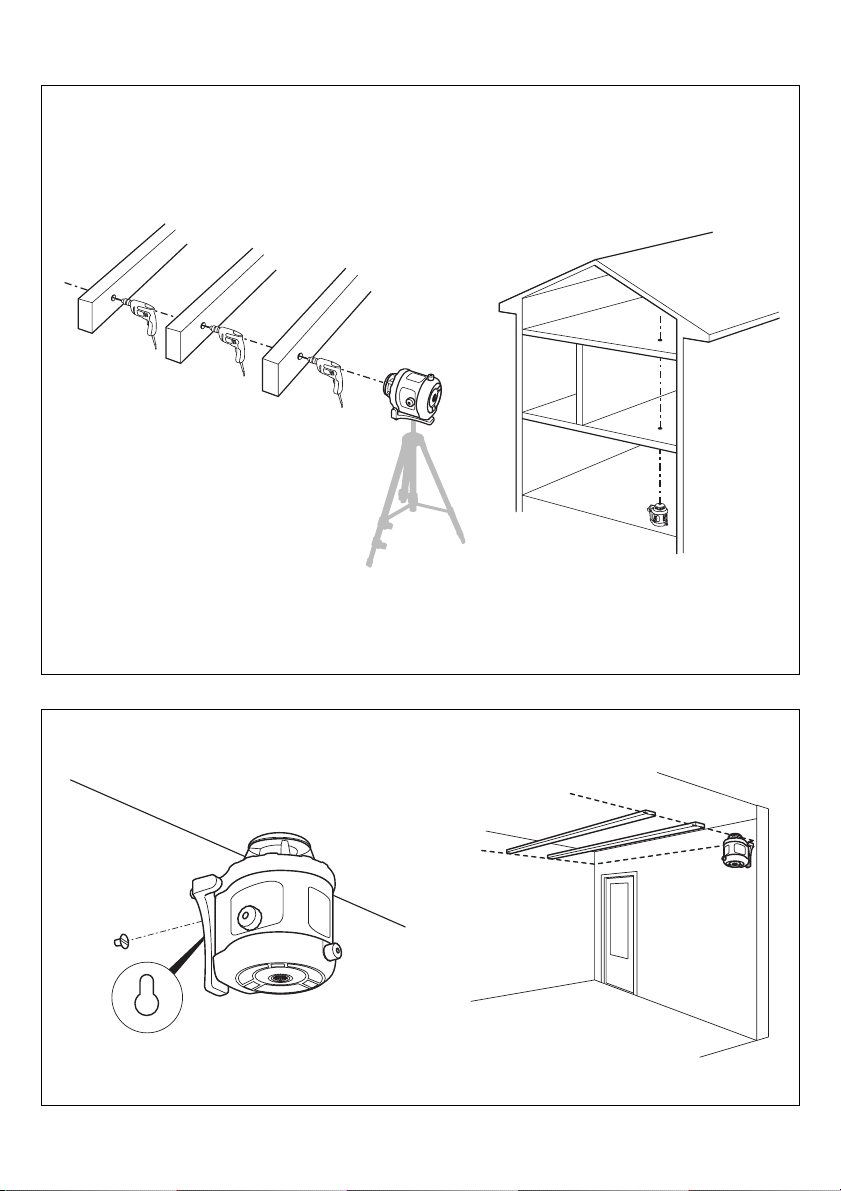

• Working with wall-mounted tool 9
For work exceeding the extension height of tripods,
the tool can be mounted to the wall as illustrated
! ensure the tool is mounted properly and cannot
fall down
• Working with receiver 0
For working at a long distance when the laser line is no
longer visible (e.g. outdoors)
- insert 2 x AAA/LR03 batteries (pay attention to
correct polarisation)
- maximum working range is 100 (Ø 200) metres
- switch on receiver by pressing button S (middle
light T first lights up red and then green while an
acoustic signal sounds simultaneously)
- detect laser beam with receiver (ensure that the
bubble in level V is centered)
- when green light T lights up and an acoustic signal
sounds continuously, the laser beam is received
correctly
- when upper red light T lights up and an acoustic
signal sounds intermittently, the receiver is positioned
too high
- when lower red light T lights up and an acoustic
signal sounds intermittently, the receiver is positioned
too low
- switch off receiver by pressing button S again
(middle light T first lights up green and then red while
an acoustic signal sounds simultaneously )
- the receiver automatically switches off after 5
minutes of inactivity
- be aware that the receiver only functions with leveling
lasers that thave pulsating laser beams (no line laser
beams)

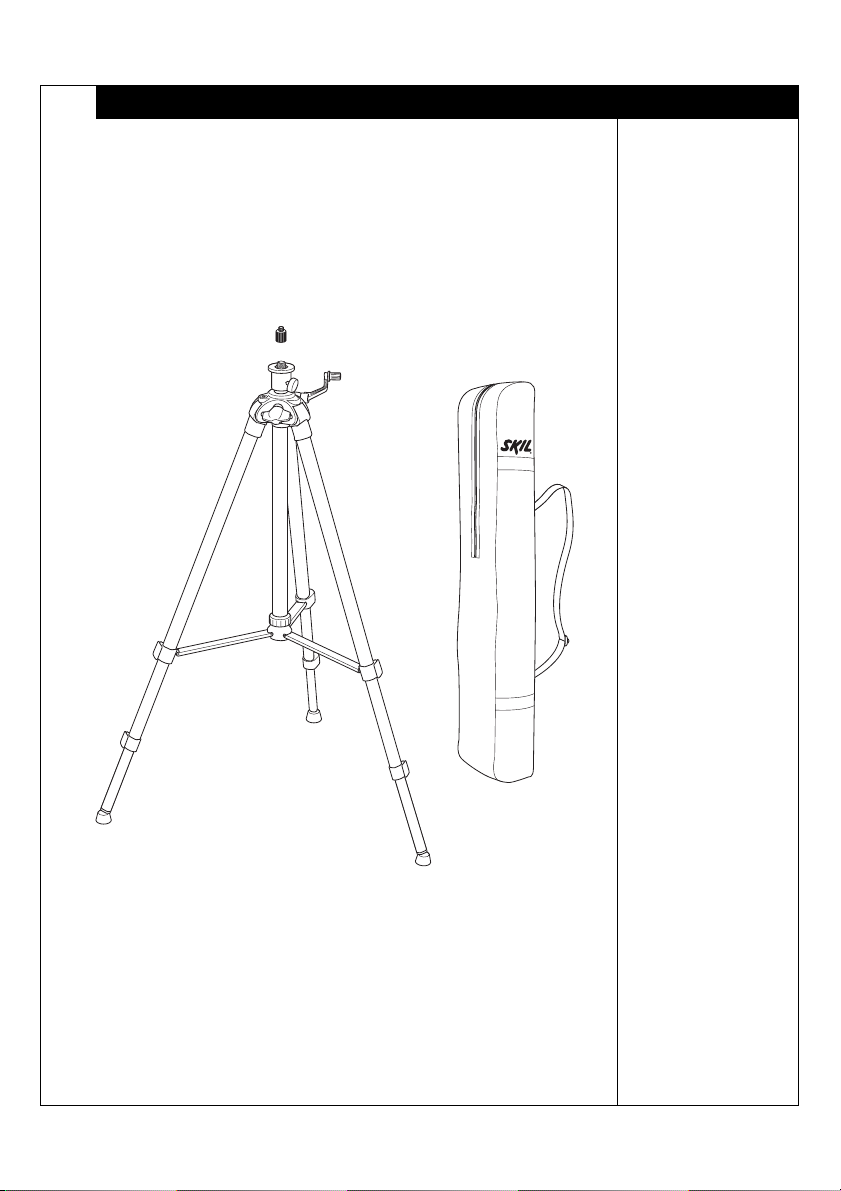

• For using the tool in combination with a tripod (5/8”-11
UNC) !
APPLICATION ADVICE
• Use low rotational speed for increasing the visibility of
the laser line (e.g. when ambient light is too bright)
• When using the receiver in combination with an
adjustable measuring rod, first mount receiver Q on
clamp R as illustrated @
MAINTENANCE / SERVICE
• Do not expose the tool to vibration or extremely hot or
cold temperatures
• Always keep the tool free of dust, moisture and direct
sunlight
• Do not disassemble or modify the tool in any way
• Do not attempt to change any part of the laser lens
• Always store the tool indoors in its protective bag
• Clean the tool with a damp cloth
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skileurope.com)
ENVIRONMENT
• Do not dispose of electric tools, batteries,
accessories and packaging together with household
waste material (only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol #will remind you of this when the need for
disposing occurs
F
360° Niveau laser automatique 570
INTRODUCTION
• Cet outil sert à la projection et au contrôle des plans
horizontaux et verticaux, ainsi que des points
(perpendiculaires) de projection
• Lisez soigneusement ce mode d’emploi ainsi que
l’étiquette d’avertissement située sur l’outil avant
d’utiliser l’outil 1
• Prêtez attention aux consignes de sécurité et aux
avertissements; sinon, vous risquez d’endommager
gravement vos yeux
• Conservez ce mode d’emploi pour vous y reporter à
l’avenir
