SORG Loop RS Service manual

Service Record LoopSORG RS 1 of 40
2019-07-16 Besondere Menschen, besondere Lösungen.
ENG
Besondere Menschen, besondere Lösungen.
LoopSORG RS
Service Record LoopSORG RS
Service Record
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualied rehab
consultant.

2 of 40 Service Record LoopSORG RS 2019-07-16
Imprint
SORG Rollstuhltechnik GmbH+Co.KG
Benzstraße 3-5
68794 Oberhausen-Rheinhausen / Germany
Tel. [phone]
Fax [phone]
E-Mail [email protected]
Web www.sorgrollstuhltechnik.de
Revision status
2019-07-11
Technical status
Technical changes and misprints reserved. The
pictures in this Instructions for use can dier
from the actual equipment components. How-
ever, a corresponding conduction is possible.
Copyright
All texts, pictures and graphics underlie co-
pyright protection. All rights, including co-
pying, publishing, editing and translating,
remain reserved. © by SORG Rollstuhltech-
nik GmbH+Co. KG Benzstraße 3-5, 68794
Oberhausen-Rheinhausen / Germany.
Our terms and conditions can be found
on our order forms and at www.sorgrollstuhl-
technik.de/impressum.

Service Record LoopSORG RS 3 of 40
2019-07-16
1 Wheelchair overview 5
2 General information 6
2.1 General indications 6
2.2 Documentation indications 6
2.3 Required torques and tools 6
2.4 Explanation of symbols 7
2.5 General safety instructions 8
3 Assembly Groups 10
3.1 Assembly Group Wheels 10
3.1.1 Position rear wheel 10
3.1.2
Adjustment of height and position of
the wheel guard for rear wheel
position changes 10
3.1.3 Displacing the wheels without a
camber adapter (20",22",24") 11
3.1.4 Displacing the wheels with a camber
adapter (20",22",24") 11
3.1.5 12"-wheels 12
3.1.6 Track compensation rear wheels 12
3.1.7 Caster 15
3.2 Assembly Group Frame 16
3.2.1 Frame arche for closed frame 16
3.2.2 Frame extension 17
3.3 Assembly Group Seat 18
3.3.1 Horizontal displacement of the
seat plate 18
3.3.2 Vertical displacement of the seat
plate 19
3.3.3 Double gas spring 20
3.4 Assembly Group Back 24
3.4.1 Increase back height 24
3.5 Assembly Group Leg support 25
3.5.1 Positioning the leg supports 25
3.5.2 Leg supports: standard or angle
adjustable 26
3.5.3
Leg supports which swing to the side 27
3.5.4 Multidirectional leg support 28
3.6 Assembly Group Side guard 29
3.6.1 Replace 29
3.7 Assembly Group Brakes 30
3.7.1 Trum brake 30
3.7.2 Cable brake 31
3.7.3 Mounting a knee lever brake 31
3.8 Assembly Group Frame equipment 32
3.8.1 Anit-tipper 32
3.8.2 Tipping lever 32
3.8.3 Outdoor Front End 33
4 Repairs and maintenance 35
4.1 Repairs 35
4.2 Spare parts 35
4.3 Maintenance 35
4.4 Disinfection 35
4.5 Storage 35
4.6 Reinstatement 36
4.7 Disposal 36
4.8 Maintenance/ Inspection 36
5 Technical specications 38
5.1 Data and measurements 38
5.2 Meaning of labels 39
5.3 Declaration of conformity 39
Table of content

4 of 40 Service Record LoopSORG RS 2019-07-16

Service Record LoopSORG RS 5 of 40
2019-07-16
1 Wheelchair overview
1 push handle
2headrest
3side guard
4seat cushion
5foot plate
6 caster fork
7caster
8brake block
9rear wheel
10 handrim
11 Clamping lever height adjustment
push handle
12 brake lever
13 push handle
14 triggering lever tilting
15 Eccentric tensioner for angle
adjustment of the push handle
16 wheel cover
17 rear wheel
18 Triggering for adjustment of the back
angle
19 Side guard
20 brake lever
21 caster
1
3
4
5
6
7
8910
19
18
17
11
12
16
15
14
13
2
20 21

6 of 40 Service Record LoopSORG RS 2019-07-16
2 General information
2.1 General indications
In the following all individual settings, adjustments and repairs as well as the yearly inspection of
the wheelchair are described. These adjustments require tools and specialised knowledge. Ple-
ase leave the adjustments to a qualied rehab consultant.
Should questions or suggestions come up then please contact your medical supply store or our
team ([phone]).
2.2 Documentation indications
Please note:
• Information about before sale can be found in the instructions for use
• Infomation for the user can be found in the instructions for use
• For maintenance instructions see: Chapter 4 (Repair & Maintenance)
2.3 Required torques and tools
For the following screws needed torque:
• M5: 5 Nm;
• M6: 7 Nm;
• M6 (axle plate) 10 Nm
• M8: 20 Nm;
• M10 (nut): 25 Nm; (caster)
• quick release axle tting 40 Nm
Needed tools:
• torque wrench (5-50 Nm)
• open end wrench
• ex ratchet handle with socket wrench inserts
• hexagon screw driver
• Phillips screw driver
• at head screw driver
• plastic mallet
• side cutter
• threadlocker (uid)
• bicycle inner tube repair kit
• work bench/jaw vise with rubber pads

Service Record LoopSORG RS 7 of 40
2019-07-16
2 General information
2.4 Explanation of symbols
ATTENTION! Warnings for perso-
nal Safety aspects that are of the
utmost importance.
CORRECT safety adjustment/ use
WRONG adjustment/ use
NOT ALLOWED
References to additional/conti-
nuing reading.
Setting or adjusting the angle
open/ close
Turn clockwise
Turn counter-clockwise
steps to be done at the same
time
steps to be done after each other
steps to be done on both sides
Use
(A); (B)
1. 1.
1. 2.
;
2x
push/ pull/ insert / move/
Push in specic direction
important detail
correct or proper use/setting
incorrect or improper use/setting
reference from text to detail
point of view
view from top
view from the side
view from the bottom
view from the front
view from the back
fasten parts
remove parts

8 of 40 Service Record LoopSORG RS 2019-07-16
2 General information
2.5 General safety instructions
Before each use be sure to check:
• frame, back tubes, attachments and accessories for visible damage, bends, cracks or mis-
sing/loose scews,
• wheels/quick release axles for rm t,
• sucient tire pressure, tire tread,
• functionality of the brakes,
• rm t of the angle adjustment elements/ eccentric clamps,
• rm t of the seat plate/ the back/ the foot plate,
• functionality of the anti-tipper/ seat and back straps,
• if all previously disassembled parts are re-inserted or rmly locked.
There is a risk of injuries (e. g. such as bruising) on all rotating or folding parts, including
adjustments, repairs and transport.
All wheelchair parts are to be handled with care. Do not throw or drop removable parts.
Before repairs or adjustments are made, clean/didinfect the wheelchair and secure it from
tipping over and/or falling down.
Only use original spare parts.
Safety nuts may only be used once. Lossened safety nuts must be replaced by new ones.
Only the regular maintenance of all safety-relevant parts on the wheelchair by a qualied
rehab workshop protects against damage and maintains our manufacturer's warranty.
Combination with products from other manufacturers
The wheelchair may only be combined with the electrical auxiliary drives apporved by the
manufacturer. Restrictions or adaptations as well as the attachment itself must be done by the
supplier of the additional system or the authorized specialist dealer.
Please check the conditions with the manufacturerer of the audiliary drives.
In combination of wheelchair and electric auxiliary drive, certain strains can occur which
can lead to damage to the wheelchair. Slowly approach obstacles and carefully overcome
them so that little force is applied to the caster, driving wheel and wheelchair as a whole.

Service Record LoopSORG RS 9 of 40
2019-07-16

10 of 40 Service Record LoopSORG RS 2019-07-16

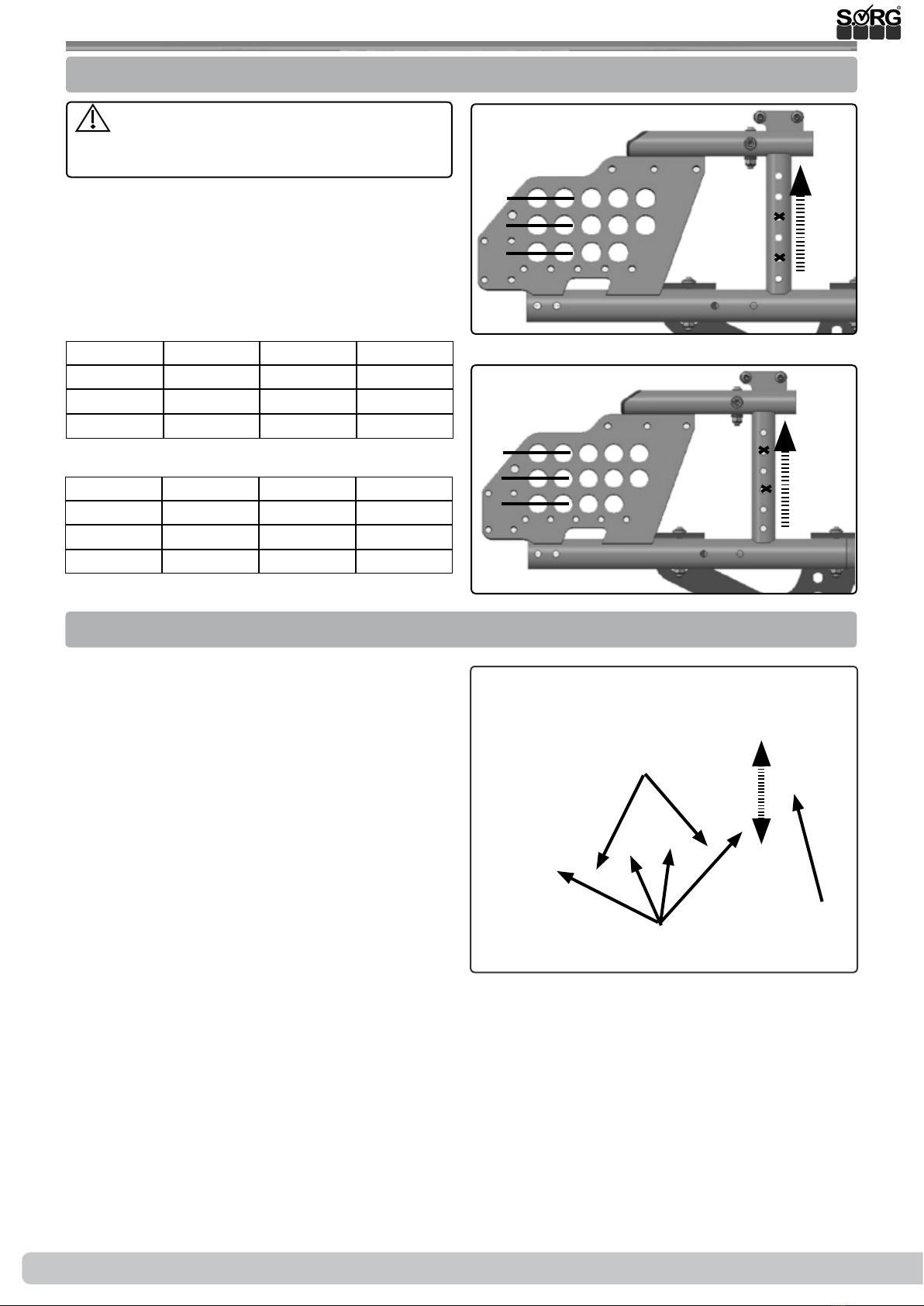

3.1.1 Position rear wheel
3.1 Assembly Group Wheels
(2)
(A)
(B)
(C)
(A)
(B)
(C)
20“ 22“ 24“
A435 460 485
B460 485 505
C485 505 530
+20/
40 mm
+20
mm
(3)
(B)
(A)
(C)
After changing the position, check the tilt
stability of the LoopSORGRS with the patient at
full tilt and, if necessary, modify the position!
(1+2) The position of the drive wheels is ad-
justed depending on the desired seat height.
The seat height can be additionally changed
by vertical displacement of the seat plate.
(1)
Seat height adjustment Seat depth 300-400 mm
20“ 22“ 24“
A410 435 460
B435 460 485
C460 485 510
(2) Seat height adjustment Seat depth 420-480 mm
3.1.2 Adjustment of height and position of the wheel guard for rear wheel position changes
(3) For vertical adjustment:
• Remove drive wheel,
• Loosen screw connections (A) on wheel
guard
• and push the wheel guard (B) all the
way up.
• Adjust the wheel position.
• Replace the drive wheel
• and push the wheel guard (B) down
so that there is a gap of 50 mm / 5 cm
between the wheel guard (B) and the
drive wheel.
• Then remove the drive wheel again
• and tighten the screws (A) on the wheel
guard (B) again.
For horizontal adjustment:
• Remove drive wheel,
• Remove tting (A) on wheel guard (B).
• Place the wheel guard (B) in the alter-
native holes (C) according to the desi-
red position of the wheel and screw it
on slightly so that the wheel guard can
still be screwed in at the height.
• Then proceed according to the vertical
adjustment.

Service Record LoopSORG RS 11 of 40
2019-07-16
3.1.3 Displacing the wheels without a camber adapter (20",22",24")
(A)
(B)
(1)
(2)
(A)
(C)
(D)
(E)
(B)
• (1) Remove the wheels,
• remove the hexagon nut (A) of the
quick-release axle tting (B),
• place the tting (B) in the new hole,
• put the hexagon nut (A) back on, tighten
it and
• place the wheels back on.
Correct the position of the knee lever
brake and be sure that it functions properly.
3.1.4 Displacing the wheels with a camber adapter (20",22",24")
• (2) Remove the wheels,
• remove the hexagon nut (A) of the
quick-release axle tting (B),
• remove the nut (C) from the brake arm
(D) including the inner shell,
• remove both camber adapters (E) and
place them in front of the new position.
• Fixate both camber adapters (E) with the
tting (B) and the shell in the new posi-
tion,
• replace the hexagon nut (A) and tighten
it,
• replace and tighten the nut (C) from the
spacer.
The Camber adapters must always be
mounted opposite. At 0°: inner surface=
thick end facing up.
Correct the position of the knee lever
and be sure that it functions properly.
3.1 Assembly Group Wheels

12 of 40 Service Record LoopSORG RS 2019-07-16
3.1.5 12"-wheels
Changing to 12” wheels subsequently:
• (2) Remove the big wheels including the
brake pad, tting and drum brake arm,
• mount the adapter (A) for the 12” wheels
with the screws (B) in the bottom hole
row (C)
• mount the screw (D) with the delivered
discs in the proper hole.
• Mount the quick-release axle tting (E)
with the brake pad and the drum brake
arm (F) analogously as described above
and
• put the 12” wheels on.
Be sure that the drum brake functions
properly and if necessary establish its func-
tionality (see drum brake).
(1)
(A)(C)
(D)
(E)
(B)
3.1 Assembly Group Wheels
3.1.6 Track compensation rear wheels
Version till 02/2017
If you want to change the camber and / or the seat inclination, you will need to mount corres-
ponding wedge wheels for the track compensation to avoid the so-called eraser eect.
• For replacing / inserting the wedges:
• (2) remove the screw connection (A) of
the plug-in axle tting (D) (also on the
inside),
• insert the required wedge disc (s) (B),
• the mounting notches (C) must point
forward in the direction of travel,
• put all the other discs back in
• and tighten the screw connection (A) of
the plug-in axle tting (D) (also on the
inside) again (torque 35Nm).
Refer to the following table::
Cam-
ber without seat tilting Normal seat tilting (< 5°)* strong seat tilting
(> 5°)*
2° disk 0° disk 0° wedge disc
0,5°
4°-8° disk 0° wedge disc
0,5° wedge disc1°
11° disk 0° wedge disc 1° wedge disc
1°**
**if necessary assemble 2 disc sets (2x inner disc moun-
ted inside, 1x outer disc + 1x inner disc mounted out-
side)
(2)
(A)
(A)
(B)
(B)
(C)
(C)
(D)
Picture shows the perforated
plate on the right as seen in
the direction of travel
Then check the functionality of the knee
lever brake and restore it if necessary.
Whe using a knee lever brake, this must be displaced (see knee lever brake). Correct the
position and be sure that if functions properly.
To change the camber to 0°, please proceed as described.

Service Record LoopSORG RS 13 of 40
2019-07-16
(A)
(B)
(C)
(1)
The tires of the wheel must be at least 10 mm
away from the side panel or clothing guard.
Pay attention to the same distance left and
right!
(1) To insert or remove the quick-release axle
tting:
• loosen the screw connection (B) of the
tting (also the lock nut (2E) on the
inside),
• Turn the complete tting (C) to the
desired position and
• Tighten all screw connections again
(tightening torque of nuts M18 tting
35 Nm).
Be sure to check the functionality of the
knee lever brake and adjust if necessary.
Please note the colored discs for the correct
adjustment of the camber.
(2)
(A)
(E)
Version since 02/2017
The wheelchair is delivered with the appropriate toe-in, depending on the wheel camber adjust-
ment and attachment of the steering and pushing aid. When changing the camber or retrotting
the steering or pushing aid, it may be necessary that the toe must be changed.
(1) In order to avoid the so-called "eraser
eect", we generally assemble the matching
track compensation (A) at the factory. If the
camber is subsequently changed, it may be
necessary to replace the track compensation
adapter (A) with a suitable one (spare part).
To change toe-in:
• Remove drive wheels,
• and remove screw connection (B+C).
•
• Depending on the mounting variant
and camber, please observe the instruc-
tions on the following pages.
• After changing the toe settings:
• replace the screws (B+C) and tighten the screws (B).
• Check / correct the distance between the drive wheel and the side part or clothing pro-
tection by attaching the drive wheel.
3.1 Assembly Group Wheels

14 of 40 Service Record LoopSORG RS 2019-07-16
Illustration shows the mounting on the right
red
blue black
green
black
green
red
blue
(1)
54
3b 3a
2
1
3a 3b
45
1° 0,5°
0,5° 1°
red
blue
black
green
black
green
blue
red
Illustration shows the mounting on the left
(2)
1° 0,5°
0,5° 1°
54
3b 3a
2
1
3a 3b
5
4
(1+2) Assembly of track compensation:
pos.-
nr.
count description
1 1 Screwed M18*1, d=12
2 1 reinforcement axle plate
3a 2 fall-in-track disc 0,5°
3b 2 fall-in-track disc 1,0°
4 2 locking washer S18
5 2 nut M18x1 SW24
For Vector and Jump beta 8 ° camber, as well as Jump alpha 5 ° and 8 ° camber, a spacer block
for wheelbase extension is required (spare part). Here, the toe is already integrated in the broa-
dening.
Which disc has to be used at which setting:
Camber Without seat tilt
0° without track disc
2° without track disc
4-8° without track disc
Camber Normal seat tilt (ca. 5°)
0° without track disc
2° without track disc
4-8° track disc with 0,5°
Camber Strong seat tilt
0° without track disc
2° track disc with 0,5°
4-8° track disc with 1°
For the steering and pushing aid, at least the 0.5 ° track disc must always be mounted
(except for a camber of 0 ° in which no track disc is used).
3.1 Assembly Group Wheels

Service Record LoopSORG RS 15 of 40
2019-07-16
3.1.7 Caster
To adjust the caster adapter:
• (1) loosen the screw (A), also on the
frame inside, with which the adapter is
attached to the frame tube,
• loosen the screw (B),
• bring the adapters into an exactly verti-
cal position by turning the adjustment
disc (C) (with a at-head screwdriver),
• check the position by applying an angle.
• Retighten all screws; Screws (A) with 9
Nm, screw (B) with 7 Nm
• After each change to the drive wheel,
the steering head inclination must be
readjusted.
(1)
(B)
(C)
(A)
(2)
(A)
Safety nuts may only be used once. Once loosened safety nuts must be replaced by new
ones.
An incorrect steering head inclination leads to cornering through the castor wheels to
disturbing and obstructive "ascent and descent".
To replace the caster:
• (2) loosen the screw (A) on both sides,
• remove the steering wheel,
• put the new steering wheel on the slee-
ves.
• Then set the appropriate distances for
the existing steering wheel fork steering
wheel combination
• and tighten the screws (A) again.
Depending on the size of the new steering
wheel, the steering wheel fork may need to be
replaced as well.
3.1 Assembly Group Wheels

16 of 40 Service Record LoopSORG RS 2019-07-16
3.2.1 Frame arche for closed frame
3.2 Assembly Group Frame
For retrotting the frame bows for a frame
closed at the front, proceed in the same way
on both sides of the frame as follows:
• (1) Remove the steering wheel adapter
(3A) including the half-shells (3B) on
both sides as described,
• remove the knee lever brakes if neces-
sary (see chapter "Brakes")
• and remove the caps at the end of the
frame tubes (A) and (B).
• (2) Insert the supplied sleeve (C) from
the front into the upper frame tube and
screw tight with the screw (D) in the
hole (E) provided.
• Place the frame bow on top of the
mounted sleeve (C) and at the same
time insert the pin (F) into the lower
frame tube at the bottom.
• Screw the frame bow at the top with the
screw (G) to the sleeve (C).
• Check the tightness of the ttings (D
and G).
• (3) Move the steering wheel adapters
(A) and half shells (B) from the old
holes (E + F) into the new holes (F + G),
• Mount the adapters (A) including the
half shells (B) with the screws (H) in the
new position (F + G)
• and adjust the steering wheels to an
absolutely vertical position.
• Possibly. you must re-assemble and
adjust the toggle brakes (see chapter
"Brakes").
The steering wheels must be mounted
in the new position as the frame bow is con-
nected to the frame with the screws (H) for
the steering wheel adapter.
(A) (B)
(C)(D)(E) (F)
(G)
(A)
(E) (F) (G)
(H)
(B)
(1)
(2)
(3)

Service Record LoopSORG RS 17 of 40
2019-07-16

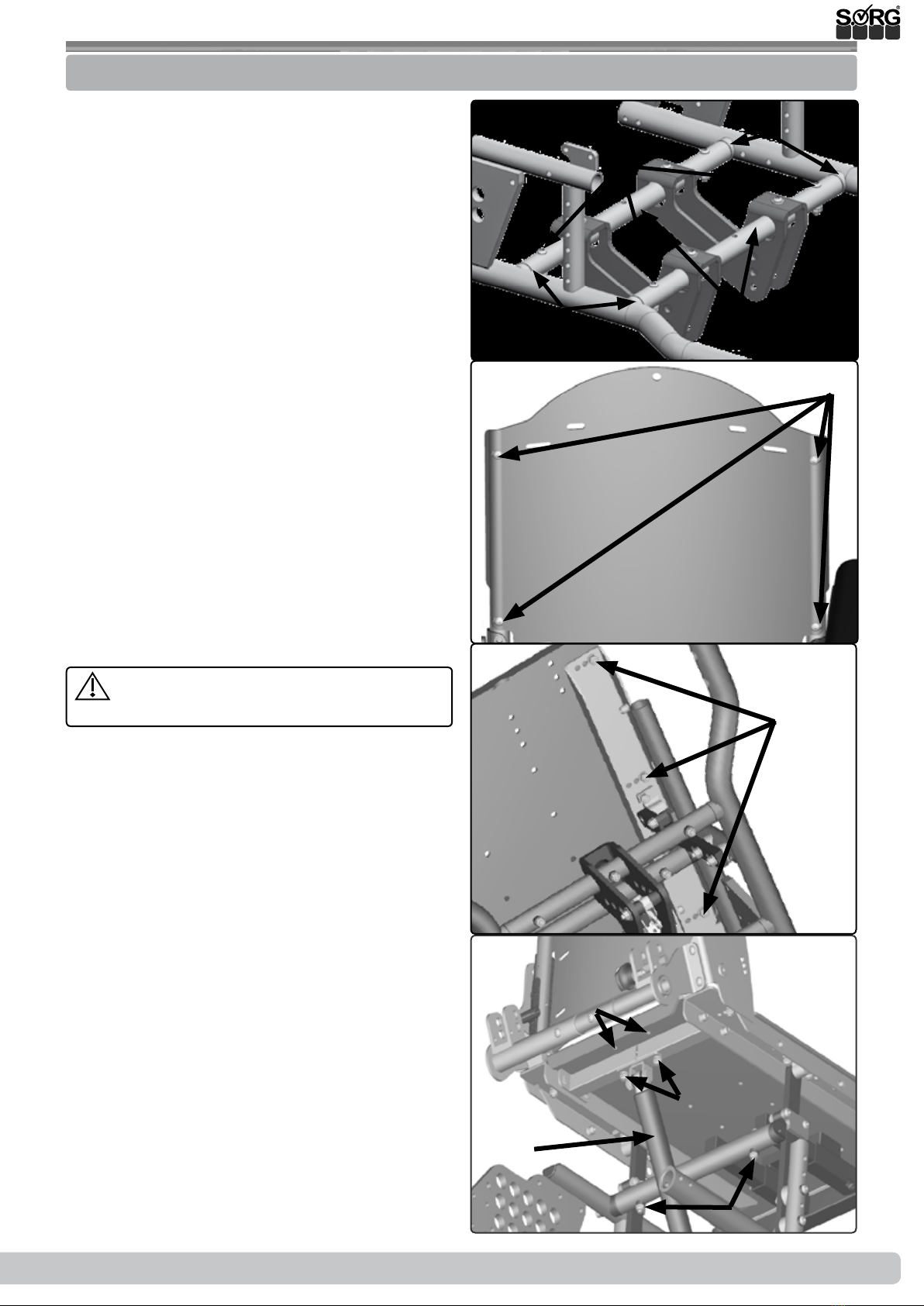

3.2.2 Frame extension
3.2 Assembly Group Frame
When using a standard rm curved back plate,
a new saddleback for the desired width must
be ordered.
To broaden the framework:
• Remove both drive wheels,
• remove the screw connection (3D +
4D) of the seat plate and then the seat
plate itself.
• Now remove the rm curved back plate
(ERGO back: remove the back center
part) by loosening the screws (2A)
• and remove the screwed connections of
the trusses (1A + 4A) on one side.
• Proceed with the use of a back part with
gas spring adjustment, with the traverse
installed there, analog.
• Now pull the frame apart (half desired
broadening)
• and replace the screws loosely.
• Proceed analogously with all screw con-
nections on the opposite side.
• Then tighten the screws again,
• unscrew the seat plate symetrically
• and screw on the new rm curved back
plate (for ERGO back: screw on the cen-
ter of the spine symmetrically).
The trusses must be oset at the same
distance on both sides.
(1)
(A)
(C)
(C) (B)
(2) (A)
(3)
(D)
(4)
(D)
(F)
(E)
(A)

18 of 40 Service Record LoopSORG RS 2019-07-16
3.3.1 Horizontal displacement of the seat plate
3.3 Assembly Group Seat
For moving the seat plate by 20 mm / 2 cm
with the same tilting path to increase the seat
depth:
• (1) Remove the screw (D) of the seat
plate completely on both sides.
• (2) Remove the screw connection (F or
D) of the gas spring (E) completely,
• put the seat plate in the alternative
position,
• and tighten the screwed connections
(1D) again.
• Move the gas spring (2E) to the alterna-
tive position (2F or 2D),
• put the screw back in
• and turn it tight.
We recommend a seat inclination of 3-5 °.
After any change to the seat unit and /
or tipping, the tipping behavior of the Loop-
SORGRS must be retested and practiced with
the help of an experienced, strong helper.
If the LoopSORGRS is equipped with two gas
pressure springs, proceed analogously.
(1)
(D)
(2)
(D)
(F)
(E)
(A)

Service Record LoopSORG RS 19 of 40
2019-07-16
3.3.2 Vertical displacement of the seat plate
In addition to the ability to dene the seat
height by the positioning and size of the drive
and steering wheels, this can also be changed
by vertical displacement of the seat plate.
To change the seat height in 20 mm incre-
ments with the same tilting path:
• (1) loosen both screws (C) of the guide
clamp on both sides and
• remove both screws of the screw con-
nection (A) of the seat unit incl. the
calipers (B) on both sides completely.
• (2) Remove the screw connection of the
gas spring (F) incl. The sleeves comple-
tely.
• (2) Move the seat unit with the supports
(D) to the desired dimension in the hole
pattern (E) (± 20 mm / 2 cm per hole),
• (2) move the gas spring in the hole
pattern (G) (± 20 mm / 2 cm per hole)
to the same extent.
• Insert the screws (1A) with the calipers
(1B) into the new position and turn
them tight.
• Insert the screw (2F) with the sleeves
into the connection of the gas spring
and turn it tight.
After any change to the seat unit and /
or tipping, the tipping behavior of the Loop-
SORGRS must be retested and practiced with
the help of an experienced, strong helper.
If you do not move the seat assembly
in parallel with the gas spring, the result is a
dierent tilt path and a dierent seat angle.
(1)
(2)
(A)
(C)
(D)
(E)
(B)
(G)
(F)
3.3 Assembly Group Seat

20 of 40 Service Record LoopSORG RS 2019-07-16
3.3 Assembly Group Seat

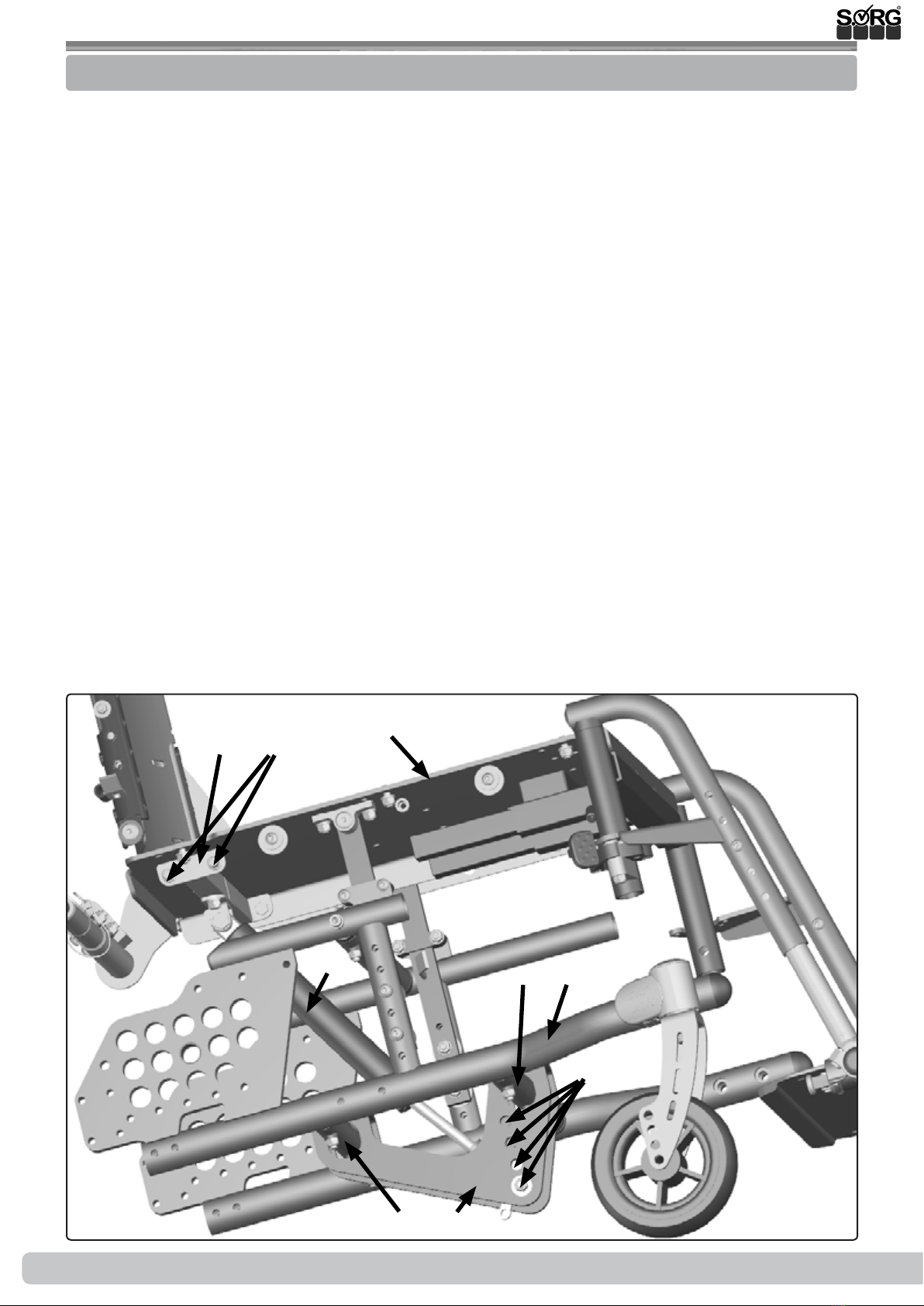

The components involved:
(1) (A) seat plate
(B) top adapter for gas spring
(C) top mounting points for gas spring
(D) bottom adapter for gas spring
(E) bottom mounting points for gas spring
(F) release lever for gas spring
(G) Bowden cables (with release lever
on the push bar)
(H) gas spring
(I) frame traverse
(J) frame half
An oversight of the individual steps to apply a
second gas spring in short form:
1. Remove control lever of the gas spring
and wedge adapter,
2. move the already available gas spring,
3. take o frame half,
4. attach new gas spring adapter,
5. put frame back together,
6. mount the top adapter under the seat
plate,
7. attach new gas spring to the top adapt-
er,
8. attach new gas spring to the bottom
adapter,
9. mount the release lever for the double
gas spring on the bar,
10. determine the max. length of the new
Bowden cable and install it, cut the
Bowden cables,
11. bring the back of the Loop into an up-
right position,
12. mount the Bowden cable on the re-
spective release mechanism of both gas
springs,
13. xate the traction of the release mech-
anisms,
14. if necessary, retighten wedge adapter,
15. test the tilting with max. strain and if
necessary, adjust.
3.3.3 Double gas spring
(1)
(A)
(E)
(F)
(G)
(G)
(D)
(B)
(H)
(C)
