SORG Mio Carbon Design 2018 User manual

1 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
Mio Carbon
Design 2018
Instructions for use
Unique people, unique solutions.
Instructions for use Mio Carbon (Design 2018)
ENG

2 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
Imprint
SORG Rollstuhltechnik GmbH+Co.KG
Benzstraße 3-5
68794 Oberhausen-Rheinhausen / Germany
Tel. [phone]
Fax [phone]
E-Mail [email protected]
Web www.sorgrollstuhltechnik.de
Revision status
2019-07-02
Technical status
Technical changes and misprints reserved. The
pictures in this Instructions for use can dier
from the actual equipment components. How-
ever, a corresponding conduction is possible.
Copyright
All texts, pictures and graphics underlie co-
pyright protection. All rights, including co-
pying, publishing, editing and translating,
remain reserved. © by SORG Rollstuhltech-
nik GmbH+Co. KG Benzstraße 3-5, 68794
Oberhausen-Rheinhausen / Germany.
Our terms and conditions can be found
on our order forms and at www.sorgrollstuhl-
technik.de/impressum.

3 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
Table of content
1 Wheelchair overview 4
2 General Information 5
2.1 Preamble 5
2.2
General use indications 5
2.2.1 Signs and Symbols 6
2.2.2 Intensions 7
2.2.3 Indication 7
2.2.4 counterindications 7
2.3 General safety instructions 8
2.3.1
Transporting without user 10
2.3.2 Other important indications 10
3 Handling 12
3.1 Handling rear wheels 12
3.1.1 General indications 12
3.1.2 Tire pressure 12
3.1.3 Axle wheels 12
3.1.4 Double hand rim wheels 13
3.2 Handling casters 14
3.2.1 General indications 14
3.2.2 caster track lock on taurus frame 14
3.3 Handling push aids 15
3.3.1 General indications 15
3.3.2 Push handles 16
3.3.3 Push bail 17
3.4 Handling leg supports 17
3.4.1 General indications 17
3.5 Handling brake 18
3.5.1 General indications 18
3.5.2 Bowden cable brake 18
3.5.3 Drum brake 20
3.6 Handling anti-tipper 21
3.6.1 General indications 21
3.7 Handling head rest 22
3.7.1 General indications 22
3.8 Handling abduction wedge 23
3.8.1
General indications 23
3.9 Handling side truss pads 23
3.9.1
General indications 23
3.10 Handling outdoor-front-end 24
3.10.1 General indications 24
3.11 Handling sun shade 25
3.11.1
General indications 25
4 Repairs and maintenance 26
4.1 Repairs 26
4.2 Spare parts 26
4.3 Maintenance 26
4.4 Disinfection 26
4.5 Storage 26
4.6 Reinstatement 27
4.7 Disposal 27
4.8 Maintenance/ Inspection 27
5 Technical data 29
5.1 Data and measurements 29
5.2 Meaning of labels 30
5.3 Declaration of conformity 30
6 Verication of yearly inspection 31

4 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
1 Wheelchair overview
1back cushion
2brake lever (for Bowden cable brake)
3anatomical seat cushion
4frame
5caster fork
6caster
7foot plate
8rear wheel
9hand rim
10 back
11 stabiliser bar
12 side guard
13 rear wheel
14 anti-tipper
12
3
4
5
6
7
8
9
10 11 12
1314

5 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
2 General Information
2.2 General use indications
This Instructions for use contains safety instructions which are needed for the proper use of our
product.
All adjustments, repairs and annual inspections beyond these instructions must be carried out by
a qualied specialist retailer.
Before use, the user and rehab technician must have read and understood these instructions. In
this Instructions for use you will nd all equippment possibilities of the product. Have yourself
be instructed on the safe handling of the wheelchair, on an even surface, and its idividual equip-
ment possibilities by your specialist adviser.
Visually impaired people will nd this manual as a PDF and audio le on our website
www.sorgrollstuhltechnik.de.
Should questions or suggestions come up then please contact your medical supply store or our
team ([phone]).
Keep this manual in a safe place. All yearly inspections done must be documented by your spe-
cialist retailer. .
2.1 Preamble
Welcome to the SORG family - thank you for your trust in us and for choosing our product.
This wheelchair has been individually made to measure your particular needs.
In order to be able to use the wheelchair in everyday life, you receive the following
usage and setting instructions which can be done without tools. Please take note
of these intructions and handle the wheelchair carefully so that it gives you pleasure for a long
time.
If you have any questions about this or any other product, please contact us.
We hope you enjoy using your SORG product.
Your SORG-Team

6 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
ATTENTION! Warnings for perso-
nal Safety aspects that are of the
utmost importance.
CORRECT safety adjustment/ use
WRONG adjustment/ use
NOT ALLOWED
References to additional/conti-
nuing reading.
Setting or adjusting the angle
open/ close
Turn clockwise
Turn counter-clockwise
steps to be done at the same time
steps to be done after each other
steps to be done on both sides
Use
(A); (B)
1. 1.
1. 2.
;
2x
push/ pull/ insert / move/
push in specic direction
2 General Information
important detail
correct or proper use/setting
incorrect or improper use/setting
reference from text to detai
point of view
view from top
view from the side
view from the bottom
view from the front
view from the back
fasten parts
remove parts
2.2.1 Signs and Symbols

7 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
2 General Information
8
km/h
2.2.2 Intensions
Mio Carbon (Design 2018) is a light active-wheelchair for children and adults for indoors and
outdoors.
The wheelchair only serves to carry the person for whom it has been adapted, by a qualied
specialist retailer.
In the case of children or persons with impaired ability to act, the parents or authorized caregi-
vers must ensure that the instructions in the Instructions for use are followed.
The most secure use of the tool is only possible on a level, rm and dry ground with activated
anti-tipper with the help of a caregiver.
Any further use involves many dangers that can only be assumed on the user's own res-
ponsibility. This requires sucient competence of hazard detection and prevention and safe
handling of the user with the aid! Increased risk potential must be taken into account especially
in wet conditions, ice, loose ground, inclines, obstacles, proximity to water, road trac, tight
spaces, etc.
Use the wheelchair only according to its purpose. Any improper use entails signicant
risks and will void the product liability.
Due to the great variety of combinations for seat and wheel positions, settings can be
possible which are outside of the safety and application area.
2.2.3 Indication
The use is suitable for the following functional impairments:
• all forms of neuromuscular sicknesses
• all forms of side dominance/paresis,
• all forms of skeletal deformities,
• limited or missing head control,
• brittle bone disease,
• Spina Bida,
• posttraumatic and/or postoperative reactivation.
2.2.4 Counterindication
The use is not suitable with:
• tonicity deregulation,
• high disturbances of equilibrium,
• limb los on both arms
• joint contractures/joint damages on both arms,
• unable to sit,
• not enough eyesight
We cannot be taken accountable for damages done to people or objects originating from
the use of the Mio under the conditions described above.

8 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
2 General Information
-10 to + 41°C
30 - 70%
x y

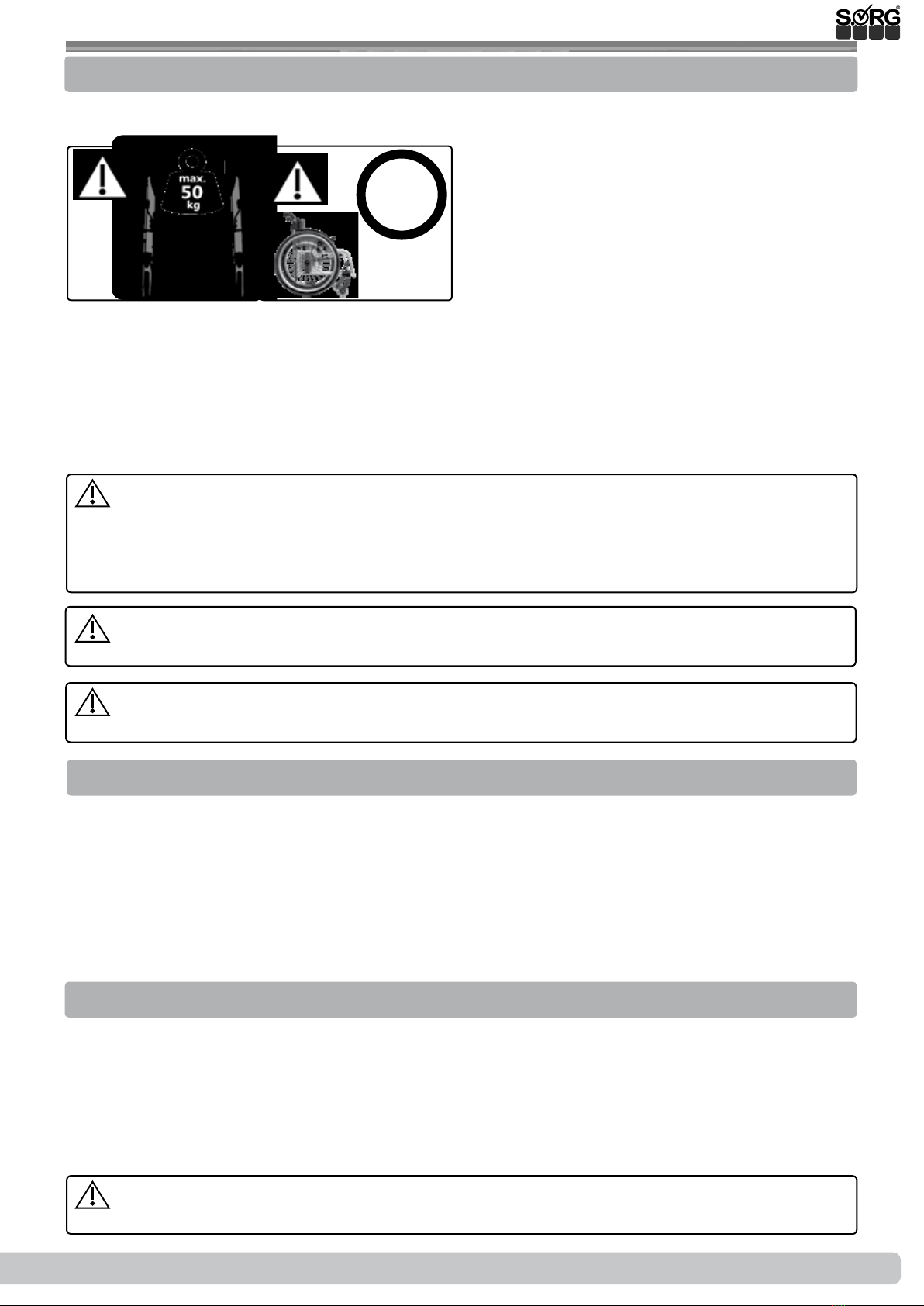

Do not use the footplate(s) to get in and
out. The wheelchair could tip forward.
x >700 mm
y > x + 50 mm
!
2.3 General safety instructions
Before each use be sure to check:
• frame, back tubes, attachments and accessories for visible damage, bends, cracks or mis-
sing/loose scews,
• wheels/quick release axles for rm t ,
• sucient tire pressure, tire tread,
• functionality of the brakes,
• rm t of the angle adjustment elements/ eccentric clamps,
• rm t of the seat plate/ the back/ the foot plate,
• functionality of the anti-tipper/ seat and back straps,
• if all previously disassembled parts are re-inserted or rmly locked.
There is a risk of injuries (e. g. such as bruising) on all rotating or folding parts, including
adjustments, repairs and transport.
danger of tipping and ipping over
Getting in and out can only occur on a at surface and with activated wheel lock.
When dismantling the parts/accessories listed below, the risks listed as examples may
occur:
• cushion: lack of hygiene/pressure points
• head rests: Loss or missing head rest during transport
• rm back extension: Loss or missing head support during transport
• rear wheels: loss of wheels - use is no longer possible

9 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
2 General Information
max 7°
90°

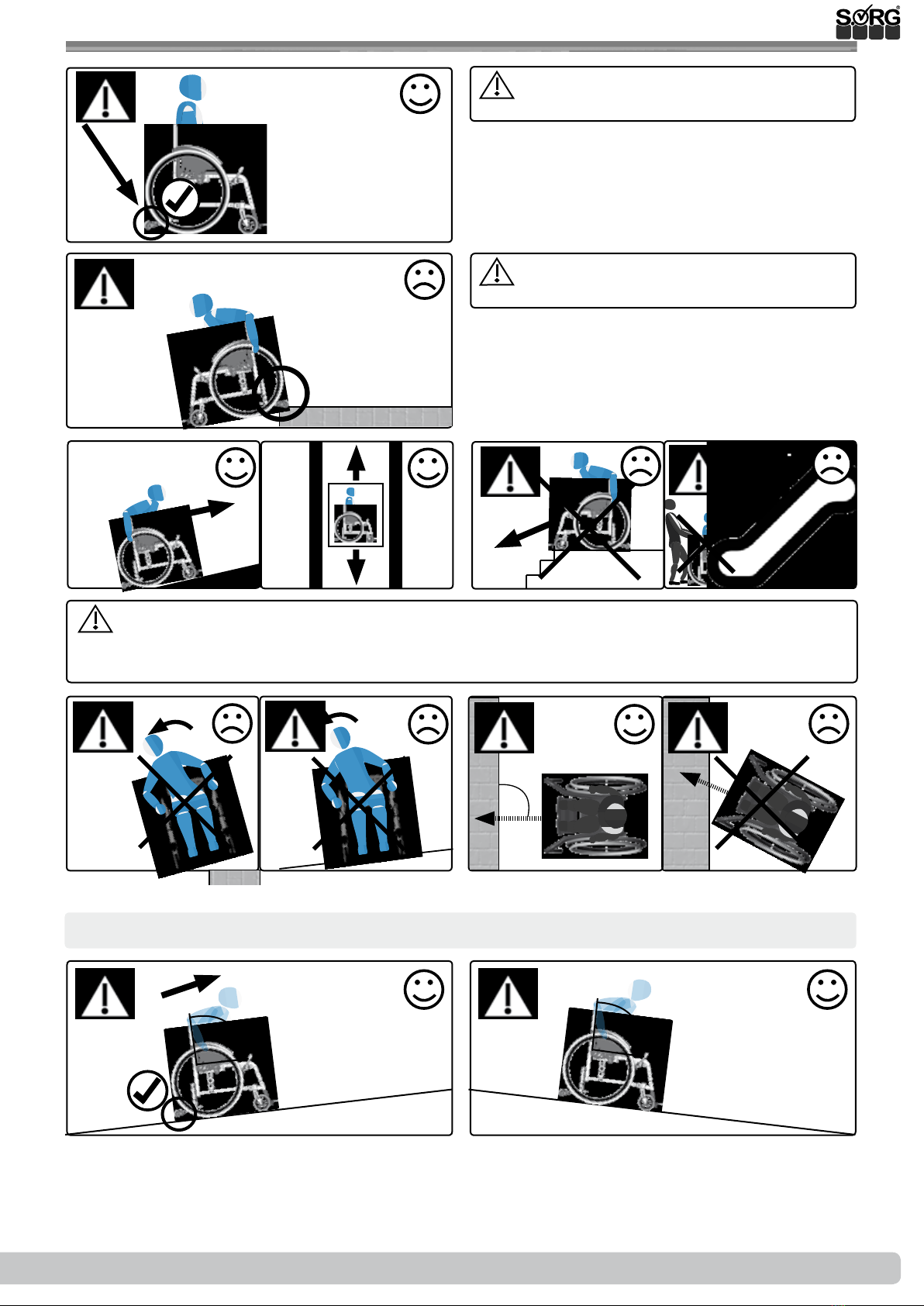

Overcome stairs only with the help of experienced helpers. For this, the anit-tipper must
be deactivated. Only carry the wheelchair by holding the frame, never the seat shell, the push
handles/push bail, the leg support and/or the foot plate/s!
90°
90°
max 7°/ 12% max 7°/ 12%
We generally recommend the use of the
anti-tipper.
inclines, downhill and obstacles
When driving o of curbsides the anti-
tipper must be deactivated.

10 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
2 General Information
2.3.1 Transporting without use
Make the desired packing size and secure the wheelchair and all disassembled parts with ade-
quate load securing. Before transporting a wheelchair, nd out about suitable load securing
measures.
Carrying points:
• seat tubes in a folded position
• front frame tubes le/ri
• back frame tubes le/ri
• however not on the detachable leg supports and/or foot plates.

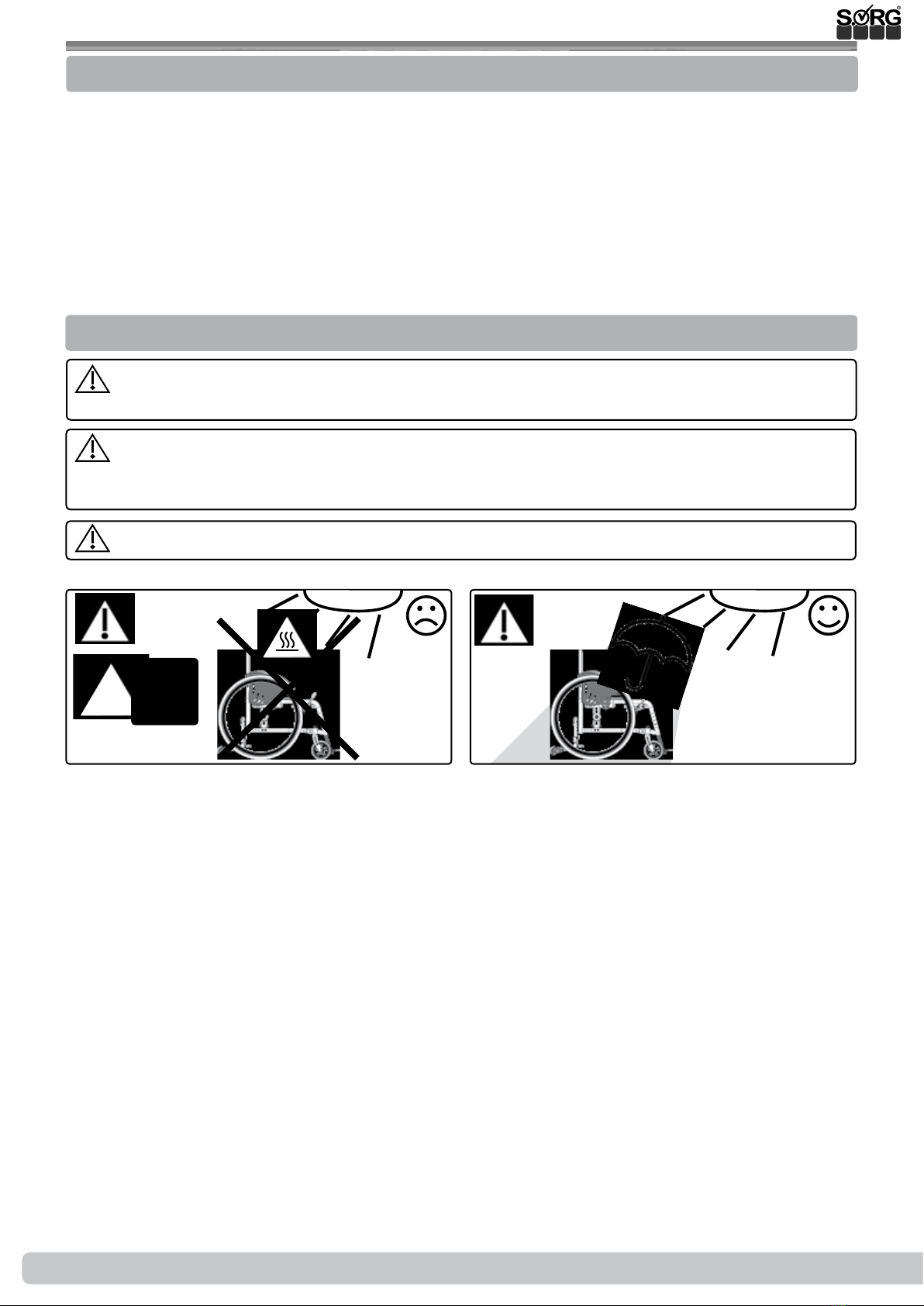

> 42°C
°C
2.3.2 Other important indications
The Mio Carbon (Design 2018) is not zugelassen als Sitz für den Transport in Kraftfahr-
zeugen.
The standard-compliant resistance to inammation of textile materials was tested and en-
sured. Nevertheless there is a risk of ignition of the ammable textile components. Keep igniti-
on sources away from the wheelchair.
The wheelchair must not be exposed to excessive moisture or contact with salt water.
Pelvic restraints (pelvice belts as positioning help) can be ordered as an option in the wheelchair
conguration via the SORG order forms or by ordering via spare parts catalogues. The assembly
is carried out by your retailer.
In some cases, the product may interact with electromagnetic elds (e.g., anit-theft device in
stores). There is no danger for the user and/or the companion.
Due to the wide range of settings, it is not possible to comply with all limit values for all possible
congurations under the EU Interoperability Technical Regulations with regard to the accessibili-
ty of the Untion rail system for persons with disabilities and persons with reduced mobility.
In the case of incidents involving the wheelchair, please contact your specialized retailer or us
as manufacturer. Product recalls etc. are published on our website www.sorgrollstuhltechnik.de.
There you will also nd the respective contact persons.

11 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
Corrosion protection
The product is already designed for corrosion protection when selecting materials (for example:
plastic, aluminum, stainless steel). All materials susceptible to corrosion are surface-treated and
thus protected.
Should the wheelchair get wet, it needs to thoroughly dry.
2 General Information
Combination with products from other manufacturers
The wheelchair may only be combined with the electrical auxiliary drives approved by the
manufacturer. The responsibility of restrictions or adjustmens as well as the attachment itself
lies with the supplier of the additional system or the specialized retailer. Please ask about the
conditions with the manufacturer of the auxiliary drives.
In combination of wheelchair and electric auxiliary drive, certain strains occur that can
lead to damage to the wheelchair. Slowly approach abstacles and carefully overcome them so
that little force is applied to the casters, rear wheels and the wheelchair as a whole.

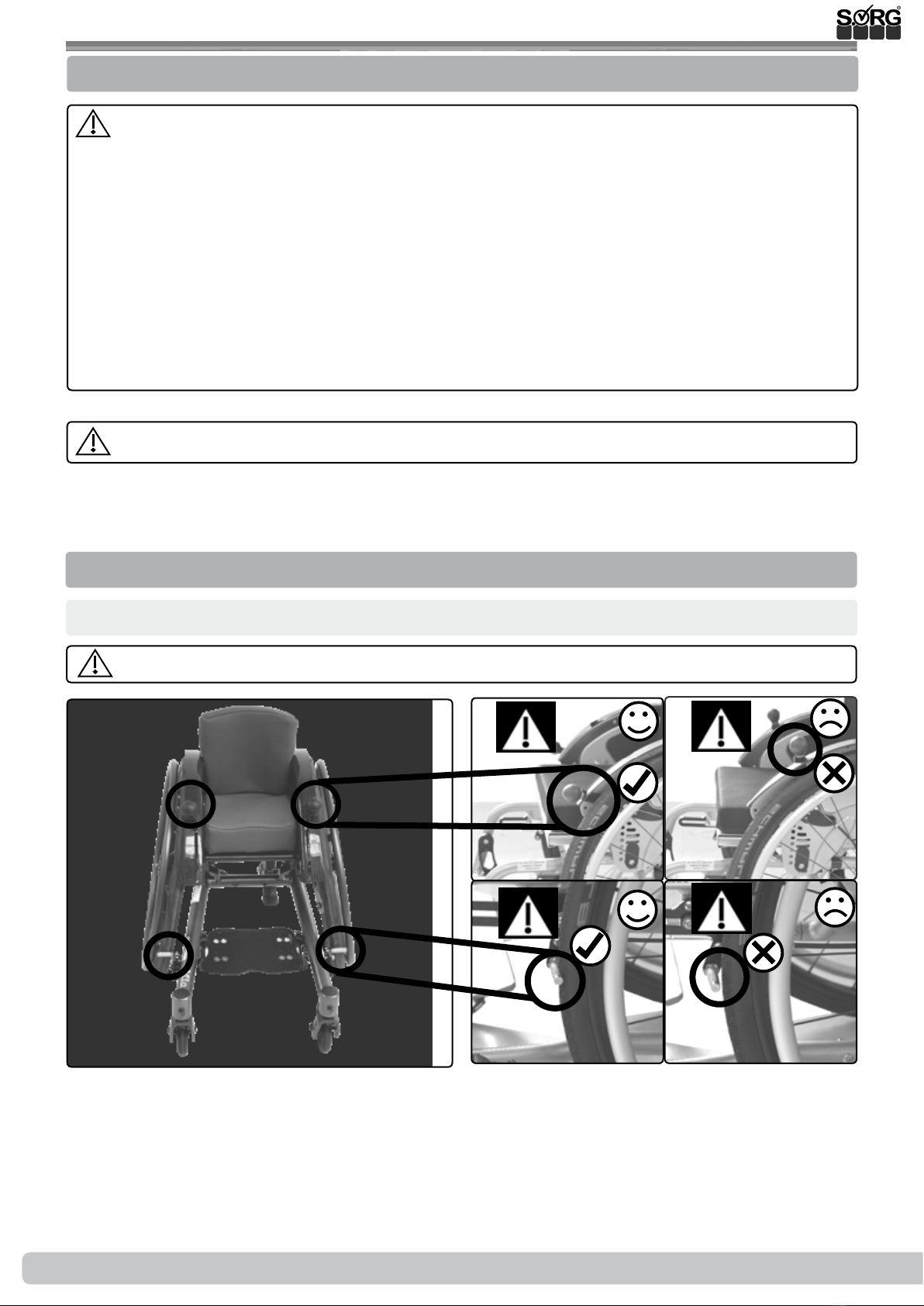

12 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
(2) After inserting, the locking ball (A) must protrude visibly. After each insertion, pull at
least 1x to test whether the quick release axle is engaged. The wheels should not be able to
pull out.
3.1 Handling rear wheels
(1) (2)
(2)
(A)
1. 1.
(1)
(1)
By braking the wheels with the hand rims, friction heat occurs.
Hand rim covers can expand from heat and can come o the hand rims.

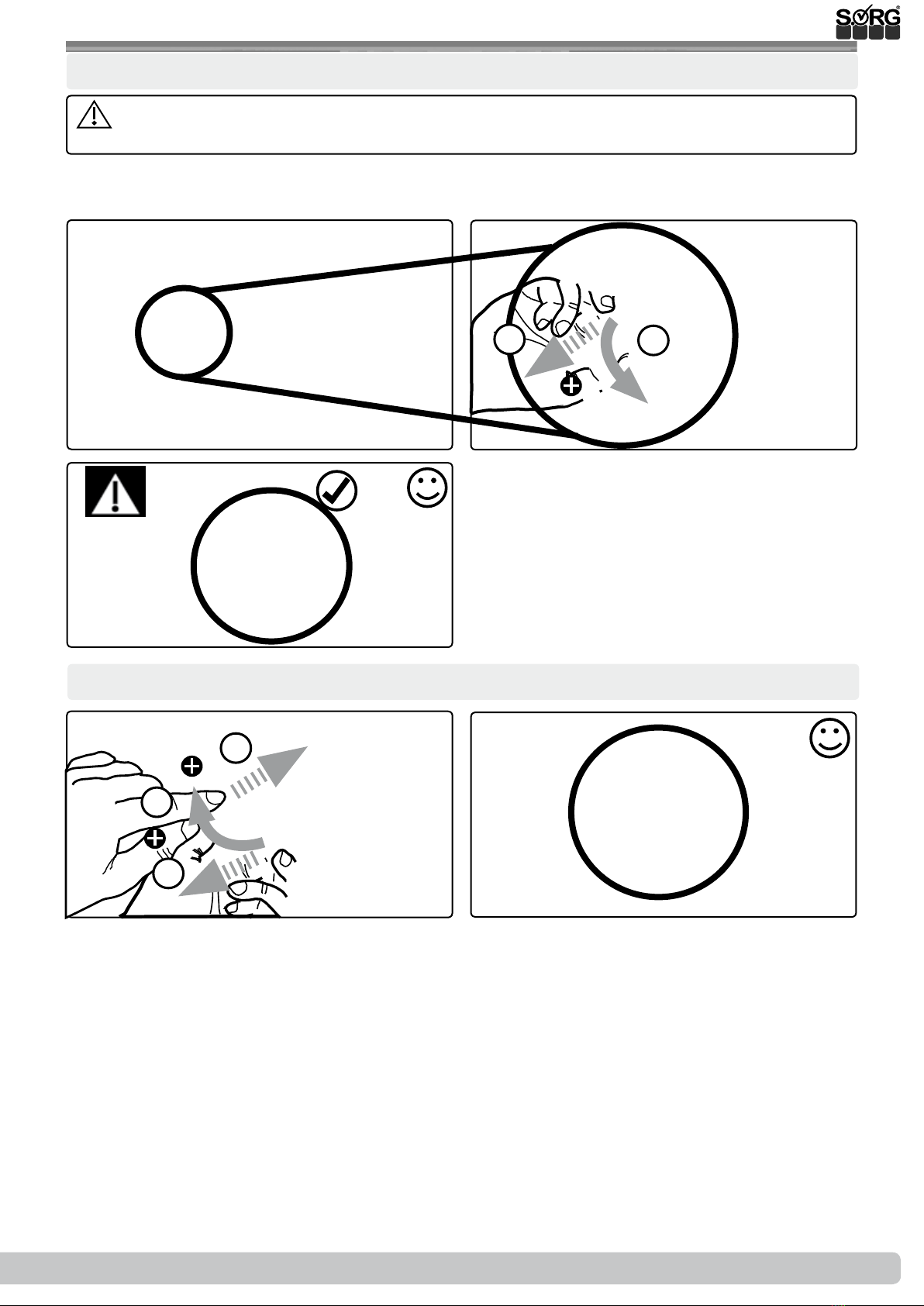

3.1.2 Tire pressure
The appropriate operating pressure can be
found on the tire casing -
usually 3-10 bar. (1)
When you get a at tire, please contact your
retailer.
3.1.3 Axle wheels
Remove:
Put on:
3.1.1 General Indications

13 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
3.1 Handling rear wheels
(4)
(3a)
90°
1.
2.
(1)
(3b)
(1) (2b)
(2a)
(2)
2x
2x
2x
3.1.4 Double hand rim wheels
Put on:
Remove: Proceed analogously in reverse order

14 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
3.2 Handling casters
lock:
(3)
(3)
90°
(2)
1.
2.
90°
(2) 1.
2.
3.2.1 General indications
Incorrectly adjusted casters or driving too fast can causethe casters to utter. At the rst
sign of utter, slow down the drive immediatley and have the casters readjusted by a specialist
retailer.
3.2.2 caster track lock on a taurus frame
unlock:
(1)
(1)
(1)
(1)

15 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
3.3 Handling push aids
(1) (2a) (2b)
reinforce tensioning force reduce tensioning force
(4a) (4b)
(3)
3.3.1 General indications
All height adjustable push aids are designed exclusively to push the occupant in their
wheelchair - not to carry.
Children cannot assess the pivoting range of the push aids and can hurt others while
playing. It is recommended to fold in or remove the push aids for such purposes.
Before each use of the push aids, check that the eccentric clamps are tightly closed and
function properly. The push aids must not be able to move in the closed position of the eccen-
tic clamps.
setting the eccentric clamps:

16 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
(2)
(1)
(3)
putting on (remove: proceed analogously in reverse order):
1.
1.
(4a) (4b)
2x
2x
(1) (2)
(3)
3.3 Handling push aids
(4a) (4b)
2x
2x
3.3.2 push handles
adjusting the height:

17 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
3.3 Handling push aids
(2)
3.3.3 push bail
adjusting the angle:
1. 1.
(1)
2x
(1) (2) (3)
3.4 Handling leg support
3.4.1 General indications
Types of leg supports and their handling:
Model 1:
(1) All adjustments must be made a specialist
retailer.

18 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
3.5 Handling brake
Check the functionality of the brakes before each use! If the braking eect wears o, con-
tact your retailer immediately.
Possible impairments or malfunctions can be caused by:
• dirty or incorrectly adjusted brakes,
• defective cables,
• too great distance between the brake pressure pin and the tire,
• too low tire pressure (information on the tire casing),
• wetness, snow, mud, etc.,
• worn tread,
• worn or dirty brake pressure bolts.
The wheelchair is not ready for use until all malfunctions of the brakes have been corrected.
Always check the functionality and secure lock of the brakes on slopes.
3.5.1 General indications
lock:
(2a) (2b)
(3b)
(1)
(3a)
The Bowden cable brake is a locking brake and not suitable for braking while driving.
3.5.2 Bowden cable brake

19 of 32
2019-08-16 Instructions of use Mio Carbon (Design 2018)
lock:
unlock:
First, put the Bowden cable brake in the wanted position (locked/ unlocked) and xate this as
follows:
(3)
(2)
(1)
(1a) (2)
The use of the lock can lead to dangerous situations. An instructed attendant must super-
vise at all times.
1.
1.
1.
1.
1.
(1)
3.5 Handling brake

20 of 32 Instructions of use Mio Carbon (Design 2018) 2019-08-16
3.5 Handlingbrake
(2a)
(1) (2)
(1)
1.
1.
(2b)
(1) Uneven use of both brake levers creates
cornering
Clean the brake block of the drum brake
wheels in short intervals with a soft brush.
3.5.3 drum brake
brake:
tighten:
loosen:
