Steelcase 9 Series User manual

Series 9 Adjustables Troubleshooting Guide
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©2015 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
®
Page 1 of 7
939500155 Rev C

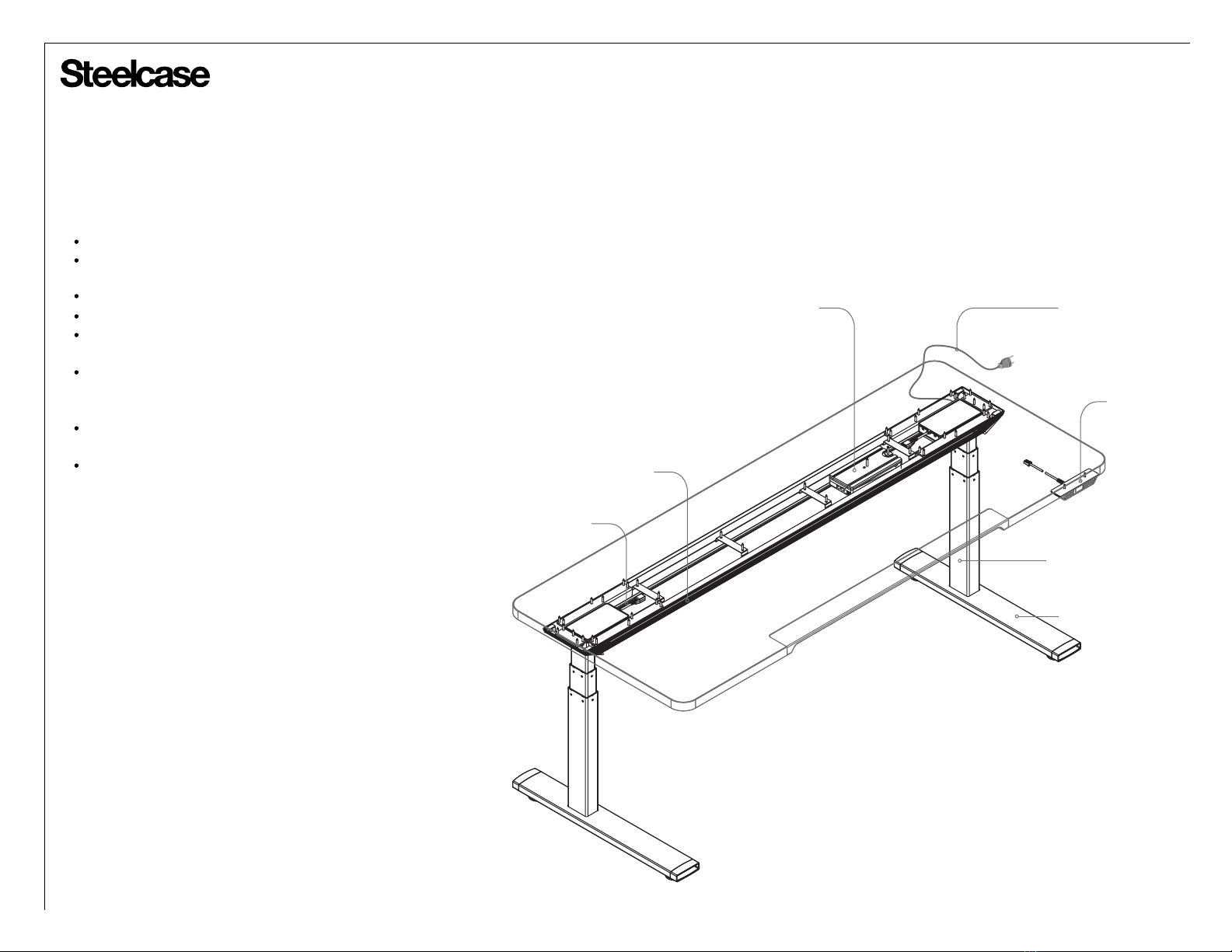

SERIES 9 TABLES: HOW THEY WORK
Each Lifting Column contains an individual motorized lift mechanism.
The Control Box contains a power transformer. This converts high voltage AC current from the wall
outlet (120v or 240v) to low voltage 18v DC current which powers the Lifting Columns.
Only the main power cable carries high voltage. All other cables are Low Voltage.
The Control Box contains a mini-computer, with embedded software controllers.
The Control Box controls all aspects of table motion and synchronizes motion of the individual
Lifting Columns.
The Control Box will shut down the entire table if a fault is detected. For example, if one Lifting
Column is binding or trapped, it will draw significantly more current than the other Lifting
Column, and the Control Box will shut down the entire table to prevent further damage.
The Controller is the user-interface to the table, and directs all table movements
via the up-down buttons and preset buttons.
Preset data is stored in the Controller itself, not the control box. CABLE MANAGER
CONTROL BOX
LOW VOLTAGE CABLE
CONTROLLER
LIFTING COLUMN
FOOT
POWER CABLE

Page 2 of 7
939500155 Rev C
®
READ THE ASSEMBLY DIRECTIONS AND USER GUIDE!
The assembly directions and user guide are available as free public downloads at Steelcase.com.
Many times, problems can be the result of improper assembly. Were the assembly directions followed
in the assembly of your table?
If you are absolutely certain that the table was assembled correctly, then work through the following
troubleshooting steps.
TROUBLESHOOTING PARTS KIT
Having a spare part that is known to work will quickly lead to accurate identification of faulty components.
Without this, it can be little more that guess work.
We strongly recommend that every dealer maintain a small kit of parts for troubleshooting purposes.
This kit of parts should include:
Lifting Column qty=2 Service part no. 946964900SR
Control Box qty=1 Service part no. 841364900SR
Controller (digital) qty=1 Service part no. 005291DSR
Low Voltage Cable qty=2 Service part no. 003066DSR
Power Cable qty=1 Service part no. 003068DSR
Always maintain a complete kit of troubleshooting spare parts that are known to work properly, to quickly
identify the root cause of problems and resolve customer issues on the first try.
TROUBLESHOOTING STEPS
Step 1: Check for power at the wall outlet; ensure table is properly assembled, and all cables are securely
connected.
Step 2: Check all connections of Low Voltage Cables. Are any of the pins in the connectors damaged or
not making contact? (see Fig. 2 page 5)
Step 3: Obtain a Control Box, Controller, Power Cable, and Low Voltage Cable that are known to work.
Step 4: Using the known good components, test the Lifting Columns one by one (see common procedures).
Replace any faulty Lifting Columns.
Between each of the following steps, be sure to initialize the Control Box (see common procedures).
Step 5: If all Lifting Columns operate properly, progressively swap out parts in the test setup as follows:
A. Swap the known good Power Cable with the original from the non-functioning table. if it stops
working, the Power Cable is faulty.
B. Using the original Power Cable, swap the known good Low Voltage Cable with the original from
from the non-functioning table. if it stops working, the Low Voltage Cable is faulty.
C. Using the original Power and Low Voltage Cables, swap the known good Controller with the original
from the non-functioning table. If it stops working, the Controller is faulty.
D. Using the original Power and Low Voltage Cables and Controller, swap the known good Control Box
with the original from the non-functioning table. If it stops working, the Control Box is faulty.
Be sure to go through all the steps above to fully identify all faulty components. there could be more than one.

Page 3 of 7
939500155 Rev C
®
COMMON PROCEDURES
POWER-SAVING CONTROL BOX:
The Control Box automatically powers down into”Standby” mode after approximately 10 seconds of inactivity.
During “Standby” mode, the Control Box consumes 0.1 watt of power.
With the Control Box in “Standby” mode, the table can lose power without affecting the synchronization of the Lifting Columns.
However, if the Control Box is still active, and not in “Standby” mode, a power loss will require that the Lifting Columns be
re-synchronized.
Power fluctuations and brownouts can also cause the need for re-synchronization.
Note: The Control Box does not re-set (initialize) by being unplugged and plugged back in.
Refer to the Initialization procedure below.
INITIALIZING THE CONTROL BOX:
In the unlikely event that an error occurs, press and hold the Up and Down arrows simultaneously for 5 seconds to reset the
Control Box.
Synchronize the Lifting Columns as outlined below.
SYNCHRONIZE THE LIFTING COLUMNS:
Operate the table all the way down to the lowest position, and release the Down arrow.
Press the Down arrow again and hold.
After a couple of seconds, the table will give a small, visible “up-down” motion, where the Lifting Columns are finding there
correct bottomed-out position.
The Lifting Columns are now synchronized via the software in the Control Box.
Operate the table all the way up and all the way down to confirm proper function.
TEST INDIVIDUAL LIFTING COLUMNS:
Lifting Columns can be operated individually, even if they are sitting on a bench, not assembled to the table.
Obtain a Control Box that is known to work. Be sure the Control Box is unplugged, or plugged in but in “Standby” mode.
Connect the Low Voltage Cable of the targeted Lifting Column to the known good Control Box.
Connect only to Port/Channel 1 (furthest from the Power Cable).
Obtain a Controller that is known to work, and connect it to the Control Box.
If the Control Box is unplugged from the wall outlet, plug the power cable back in.
With the system hot, operate the individual Lifting Column.
A. Can the Lifting Column be operated through its full range of motion.
B. Does the Lifting Column appear to function normally.
Caution! If the Lifting Column is assembled to the table, first flip the table upside-down and remove Stretcher. This will
allow full and free motion of the targeted Lifting Column, and will prevent damage to the Stretcher and Lifting Column.
Any faulty Lifting Column must be replaced. There are no field-serviceable parts inside the lifting Column.
-

Page 4 of 7
939500155 Rev C
®
TROUBLESHOOTING: CAUSES AND SOLUTIONS
PROBLEM POTENTIAL CAUSE POTENTIAL SOLUTION
No power to table No power at wall outlet Check outlet with other device; Check circuit breakers/fuses/wiring
Power Cable not plugged Confirm proper cable engagement into wall outlet
into wall outlet
Power Cable not plugged Check that Power Cable is fully-seated into Control Box
into Control Box. (see Fig. 1 next page)
Faulty Power Cable Inspect the Power Cable for damage, replace any damaged cables.
Table wiring not properly Check that all cables are connected per the Assembly Directions.
assembled
Digital Controller does No power at wall outlet See above
not work or illuminate
Controller is plugged into Unplug Power Cable from wall outlet for 20 MINUTES to discharge internal capacitor.
the Control Box after the Connect the Digital Controller to the Control Box BEFORE plugging into wall outlet.
Power Cable is plugged The Digital Controller will not be recognized by the Control Box until the internal
into wall outlet capacitor is fully discharged.
Table will go neither No Power See above
up nor down
Table is severely Maximum table capacity is 295 lbs. (2-leg), including the weight of the worksurface.
overloaded Overloading the table could lead to damage that would not be covered by warranty.
Control Box requires Perform initialization procedure (see Common Procedures). Lower table all the
re-set way down, and perform synchronization procedure (see Common Procedures).
Damaged pins inside Ensure the table is in ”Standby” mode(>10 seconds of inactivity). Unplug each
multi-pin connectors multi-pin connection point, and inspect the pins. Are they all straight, and making
(Low Voltage Cable/ good contact? If not, try using a push-pin to straighten them. (see Fig. 2 next page)
connector) (Otherwise, replace necessary components with undamaged versions.)
Damaged Lifting Column Carefully check the condition of the wiring harness of each Lifting Column (see
wiring harness Fig. 3 next page). This may require removal of the Lifting Columns from the table.
If any wiring harnesses are damaged, the entire Lifting Column must be replaced.
Faulty Lifting Column To prevent further damage, the Control Box will shut the whole table down if one
Lifting Column is faulty. Test Lifting Columns individually (see Common Procedures),
replace any faulty Lifting Columns.
Faulty Low Voltage Swap with Low Voltage Cable known to work. Use an ohm meter to check cables;
resistance should be near zero. High resistance indicates a fault.
Faulty Controller (or) Swap with Controller known to work (and/or) check operation with Controller
faulty Controller plugged into second Controller receptacle in Control Box. Both receptacles can
receptacle in Control Box operate the table equally; two Controllers can be plugged in simultaneously, and
both will operate the table. It does not matter which one you choose.
Outdated Digital Controller Software 0077004-119 is not compatible with the Control Box.
software (see Fig. 4 next page). Replace with a new Digital Controller
that is labeled 0077004-120.

Page 5 of 7
939500155 Rev C
®

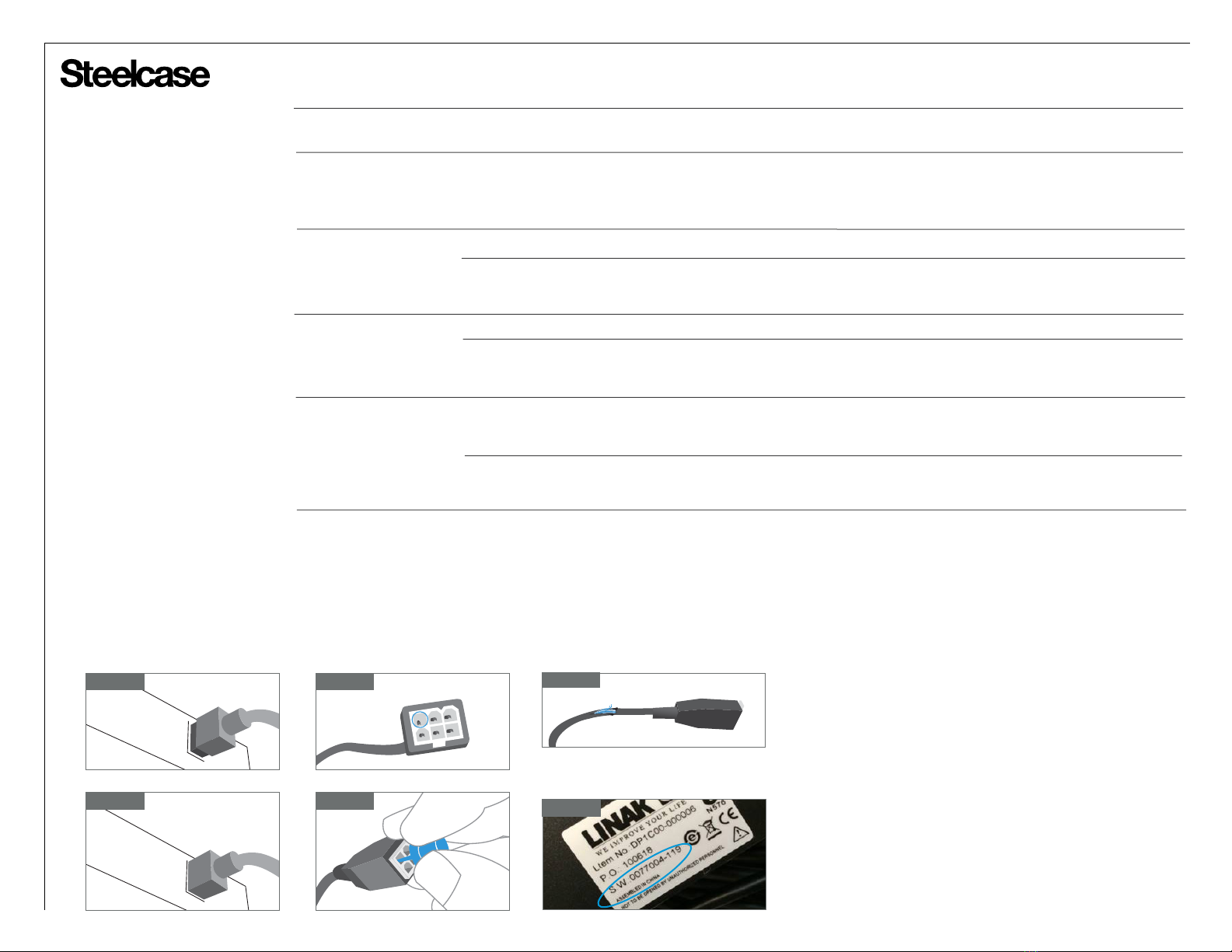

PROBLEM ILLUSTRATIONS OBTAINING REPLACEMENT PARTS
Contact your local Steelcase dealer to help identify
and order Service Parts.
If you need help, call 888.STEELCASE.
Fig. 1 - Power Cable not fully seated
in Control Box
Fig. 2 - Damaged pins in the
Low Voltage wiring connectors
Fig. 3
- Frayed/damaged Low Voltage
Cables (damaged Lifting Column wiring
harness shown)
Fig. 4 - Software 0077004-119 (shown
below) is not compatible; needs to be
0077004-120.
WRONG DAMAGED
DAMAGED
WRONG
CORRECT CORRECT
TROUBLESHOOTING: CAUSES AND SOLUTIONS (cont.)
PROBLEM POTENTIAL CAUSE POTENTIAL SOLUTION
Table does not go Re-synchronize table Refer to synchronization procedure (see Common Procedures).
through full range
of motion Faulty Lifting Column Test Lifting Columns individually (see Common Procedures), and replace any faulty
Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting
Column may have the same problem at a different height.
Lifting Columns not Re-synchronize table Refer to synchronization procedure (see Common Procedures).
synchronized (one is
higher than the other) Faulty Lifting Column Test Lifting Columns individually (see Common Procedures), and replace any faulty
Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting
Column may have the same problem at a different height.
Table movement Faulty Lifting Column Test Lifting Columns individually (see Common Procedures), and replace any faulty
is not smooth; Lifting Columns. Be sure to test all Lifting Columns! Why? Because another Lifting
Lifting Columns jerk Column may have the same problem at a different height.
or hop while raised
or lowered Lifting Columns are not First ensure that glides are properly adjusted, and the table is level.
parallel with one another, Lift one side of the table off the floor and reposition so that both Lifting Columns are
causing them to bind parallel to each other.
Error Code displayed Refer to Error Code listing Follow instructions on error code listing; is table functioning normally anyway?
on Digital Controller Try initializing the Control Box (see Common Procedures).
Table goes up, but not Damaged pins inside Unplug Power Cable from wall. Unplug each multi-pin connection point and inspect
down (or vice-versa) multi-pin connectors the pins. Are they all straight, and making good contact? If not, try a push-pin to
(Low Voltage Cable/ straighten them. (see Fig.2 below) (Otherwise, replace necessary components
connector) with undamaged versions.)
Table will go neither Faulty Control Box Swap with Control Box known to work.
up nor down (Cont’d)

Page 6 of 7
939500155 Rev C
®®
ERROR CODE LISTING
Error codes are only available with the 3-Preset Programmable with Digital Display Controller.
ERROR STATES NAME DESCRIPTION POTENTIAL CAUSE SOLUTION/TROUBLESHOOTING
E01 Position lost The table has unknown position Position error Initialize the Control Box (see Common Procedures)
and needs to be initialized. New Lifting Column added
E08 Watchdog Software failed to activate routine Program fault Unplug Power Cable for 15 sec
that checks calculations Initialize the Control Box (see Common Procedures)
Replace Control Box
E09 Input error Multiple Controllers activated Multiple Controllers being Test Controllers one at a time and then together.
simultaneously activated at the same time One Controller is likely faulty.
E10 Power fail Power fail happened Power Cable pulled during Check Power Cable is not caught, and is allowed to
driving freely travel.
Internal fault Plug table into reliable 120V/240V outlet and test
Replace Power Cable or Control Box
E11 Port/Channel Change in number of Lifting Disconnection Check Low Voltage Cable connections and integrity
mismatch Columns since initialization Lifting Column added Change Low Voltage Cable or Lifting Column
Initialize the Control Box (see Common Procedures)
E12 Position error One Port/Channel has a different Too much back drive occured Move table to lowest position
position than the others Initialize the Control Box (see Common Procedures)
E13 Short Circuit One of motor outputs are Squeezed Low Voltage Cable Check Low Voltage Cable connections
short circuited Short in motor Isolate and replace Low Voltage Cable
Isolate and replace Lifting Column
E16 Key Error Illegal keys pressed Hitting multiple buttons Check Controller
simultaneously
E17 Safety missing LIN bus unit does not support Controller does not have Try a Controller with a more recent software version.
safety feature up-to-date software (see Fig. 4)

Page 7 of 7
939500155 Rev C
®
ERROR CODE LISTING (cont.)
Error codes are only available with the 3-Preset Programmable with Digital Display Controller.
DIAGNOSTIC NAME DESCRIPTION POTENTIAL CAUSE SOLUTION/TROUBLESHOOTING
ERROR
E23, E24, E25 Port/Channel 1, Port/Channel 1, 2, 3 are detected Disconnection Check Low Voltage Cable connections and integrity
2, 3, missing missing respectively Change Low Voltage Cable or Lifting Column
respectively Initialize the Control Box (see Common Procedures)
E26 Port/Channel 4 Port/Channel 4 is detected missing Disconnection Check Low Voltage Cable connections and integrity
missing Change Low Voltage Cable or Lifting Column
initialize the Control Box (see Common Procedures)
E29, E30, E31 Port/Channel 1, Port/Channel 1 is not same Change in Lifting Column type Check Lifting Column type
E32 2, 3, 4, type error type as when initialized Change Lifting Column
respectively Port/Channel 2, 3, 4 are not same initialize the Control Box (see Common Procedures)
type as when initialized or not
same type as Port/Channel 1
E35 E36, E37, Port/Channel 1, Port/Channel 1, 2, 3, 4 had too Loose/faulty Low Voltage Cable Check Low Voltage Cable connections and integrity
E38 2, 3, 4 pulse fail many pulse errors respectively Hall sensor PCB inside Lifting Initialize The Control Box (see Common Procedures)
respectively Column Replace Lifting Column
E41, E42, E43, Port/Channel 1, 2, Overload up occured on Port/ Hit obstruction Remove obstruction
E44 3, 4 overload up Channel 1, 2, 3, 4 respectively Leg is overloaded Remove load
respectively Reached end stop (before initialize the Control Box (see Common Procedures)
initialization at upper end-stop if necessary
occurs)
E47, E48, E49, Port/Channel 1, 2 Overload down occured on Port/ Reached end stop Remove obstruction
E50 3, 4 overload down Channel 1, 2, 3, 4 respectively Hit obstruction initialize the Control Box (see Common Procedures)
respectively if necessary
E53, E54, E55 Port/Channel 1, 2, Anti-collision triggered on Port/ Hit obstruction Remove obstruction
E56 3, 4 anti-collision Channel 1, 2, 3, 4 respectively initialize the Control Box (see Common Procedures)
respectively if necessary
E59, E60, E61 Port/Channel Safety limit switch activated on Hit obstruction Remove obstruction
E62 1, 2, 3, 4 SLS Port/Channel 1, 2, 3, 4 respectively initialize the Control Box (see Common Procedures)
respectively if necessary
E65, E66, E67 Port/Channel 1, Pulses counted wrong direction in Motor poles are crossed Check Low Voltage Cable connections and integrity
E68 2, 3, 4 direction Port/Channel 1, 2, 3, 4 respectively Hall sensor cables crossed Initialize The Control Box (see Common Procedures)
respectively inside Lifting Column Replace Lifting Column
