Texi Art Auto 2 User manual

Art Auto 2
Operation manual and parts book
High speed, automatic, lockstitch sewing machine
with programmable stitches

First of all, I would like to express my heartfelt thanks to you for using our
products. Our company is committed to caring for the earth's environment and has
formulated the basic policy of "intelligent manufacturing and green manufacturing".
Local citizens in environmental protection activities should also do little to the local
community, the environment two aspects of everyone's contribution.
Therefore, I hope you can cooperate with this plan, as part of the
environmental protection activities, when dealing with wastes in peacetime can
pay more attention.
1.Unused packaging materials, in order to be recycled again, please send them to
the local recycling company for disposal.
2.Lubricants used shall be properly handled according to relevant laws and
regulations.
3.When parts need to be replaced in product maintenance or repair, there are
unnecessary circuit boards and electronic parts, and when products are discarded,
please treat them as electronic waste.
In order to create a better environment
Please, read carefully before use

Safe Use
[1]Security Usage Markup And Its Significance
The labels and pattern marks used in this instructions and products are for your
safety and correct use of the products to prevent you and others from being harmed and
damaged.
The methods and implications are as follows.
Sign
anger DThis content indicates that if this mark is mishandled, it will cause death t o become serious.
Warning This content indicates that if this mark is mishandled, people will die or be seriously injured .
ote NThat if this mark is mishandled, it may cause minor or moderate injurys .
Patterns And Symbols
………… The symbol △
( ) i ndicates “points for attention”.
The pattern in the triangle represents the essential content that
must be paid attention to.
(For example, the pattern on the left shows “watch out for injuries”.)
……… …The symbol ( ) indicates “prohibition”.
…………
Thank you very much for purchasing our industrial sewing machine
Before using the sewing machine, please read <for your safe use> and use
instructions carefully.
The characteristic of industrial sewing machine is that it should be operated
near the moving parts such as needles and spindles, which are easy to cause
injury, so place use the sewing machine correctly under the guidance of the
safety operation knowledge of trained or skilled personnel.
The symbol ( )indicates “must”.
The pattern in the circle indicates the substance of what must be
done.
(For example, the pattern on the left shows “must be grounded”.)

[2] Safety Precautions
Danger
Install
!!!
!!!
!!!
!!!
!!!
!!!
!!!
!!!
!!!
!!!
!!!
After closing the power switch and unplugging the power plug from the socket, wait for at least 5 minutes
before opening the control box cover. Touching areas with high voltage can cause casualties.
No liquid is allowed to enter the sewing machine, otherwise it will cause fire, electric shock and operation
failure.
Use Environment
Please don't use in the environment with strong electrical
interference sources such as power line interference and
elec trostatic interference.
Strong electrical interference sources may affect the correct
operation of sewing machines.
The fluctuation of power supply voltage should be used in
the environment of rated voltage less than ±10%.
The large fluctuation of voltage will affect the correct
operation of sewing machine.
The power supply capacity should be greater than the
power consumption of the sewing machine. Insufficient
power supply capacity will affect the correct operation of
sewing machine.
Warning
Be Careful
If any liquid enters the sewing machine (head or control box), turn o ffthe power supply immediately, pull
the plug out of the socket, and contact the vendor or senior technicians.
The ambient temperature should be used in the range of
5-35 degrees Celsius.
Low or high temperature will affect the correct operation of
sewing machine.
Relative humidity should be in the range of 45% - 85%, and
the equipment will not form condensation environment. Dry
or wet environment and dew will affect the correct
operation of sewing machine.
In case of thunderstorm, turn off the power switch and pull
the power plug off the socket. Lightning may affect the
correct operation of sewing machine.
Do not connect devices other than USB memory to USB
connection ports. Otherwise, it may lead to failure.
Ask trained technicians to install sewing machines.
Please commission the purchase shop or electrical
professionals for electrical wiring.
The sewing machine weighs about 38Kg. Installation must
be completed by more than two people.
Please do not connect the power supply before the
installation is completed. If you step on the pedal by
mistake, the sewing machine will cause injury.
Please unplug the plug after cutting of f the power supply.
Otherwise, it will easily become the cause of the failure of
the control box.
It must be grounded.
Insufficient ground connection is the cause of electric shock
or misoperation.
When fixing the cable, do not bend the cable excessively
or fix it too tightly with clamps, which may cause fire or
electric shock.
If a worktable with casters is used, the casters should be
fixed so that they cannot move.
When the head of the sewing machine falls down, please
make sure that the worktable is fixed and not moved at will.
Accidents such as foot clamping have occurred in the
movement of worktable, which is the cause of personal
accidents.
When the sewing machine head falls down or stands up, ple
ase operate with both hands.
One-handed operation can easily cause injury if the weight of
the sewing machine slips.
When lubricating oil and butter are used, it is necessary to
wear protective glasses and gloves to prevent lubricating oil
from falling into serious or sticking to the skin, which is the
cause of inflammation.
In addition, lubricants or butter should not be drunk,
otherwise vomiting and diarrhea will occur.
Keep oil out of reach of children

!!!
!!!
!!!
!!!
!!!
!!!
!!!
Be careful
Sewing
This sewing machine is only used by persons trained in safe
operation.
This sewing machine cannot be used for any purpose other
than sewing.
Protective glasses must be worn when sewing machines are
used.
If you don't wear protective glasses, there will be danger
when you break the needle. The broken part of the needle
may pop into your eyes and cause injury.
When the following happens, please cut off the power
supply. Otherwise, when you step on the pedal, the sewing
machine will cause injury.
· When the needle goes through the thread
· When changing needle or shuttle core
· When a sewing machine is not in use or when a
person leaves the sewing machine
If a worktable with casters is used, the casters should be
fixed so that they cannot move.
For the sake of completeness, please install protective
device before using this sewing machine. If these safety
devices are not installed, use sewing opportunities to cause
personal injury and sewing machine damage.
During the sewing process, do not touch any moving parts
or place the objects on the moving parts, because this will
cause injuries to people or damage to the sewing
machine.When the head of the sewing machine falls down,
please make sure that the worktable is fixed and not
moved at will. Accidents such as foot clamping have
occurred in the move -ment of worktable, which is the
cause of personal accidents.
When the sewing machine head falls down or stands up,
please operate with both hands.
One-handed operation can easily cause injury if the weight
of the sewing machine slips.
If the sewing machine operates incorrectly, or hears
abnormal noise or smells abnormal odor, the power supply
should b e cut off immediately. Then contact the shop or
trained technicians.
If the sewing machine breaks down, please contact the
shop or trained technicians.
Clean
Please cut off the power supply before starting the cleaning
operation.
If you step on the pedal by mistake, the sewing machine will
cause injury.
When the head of the sewing machine falls down, please
make sure that the worktable is fixed and not moved at will.
Accidents such as foot clamping have occurred in the move
ment of worktable, which is the cause of personal accidents.
When the sewing machine head falls down or stands up,
please operate with both hands.
One-handed operation can easily cause injury if the weight
of the sewing machine slips.
When lubricating oil and butter are used, it is necessary to
wear protective glasses and gloves to prevent lubricating
oil from falling into serious or sticking to the skin, which is
the cause of inflammation.
In addition, lubricants or butter should not be drunk,
otherwise vomiting and diarrhea will occur.
Keep oil out of reach of children
Maintenance And Inspection
When the head of the sewing machine falls down, please
make sure that the worktable is fixed and not moved at
will. Accidents such as foot clamping have occurred in the
moveent of worktable, which is the cause of personal
accidents. When the sewing machine head falls down or
stands up, please operate with both hands.
One-handed operation can easily cause injury if the
weight of the sewing machine slips.When replacing parts
or installing optional accessories, be sure to use only
genuine parts.
The Company will not be liable for any accident or
malfunction caused by the use of non-authentic parts.
When removing the safety protection device and installing
it again, be sure to install it in situ and check whether it
can work properly.
In order to prevent accidents and malfunctions, please do
not alter the sewing machine without authorization.
The Company will not be liable for any accident or
malfunction caused by the modification of the sewing
machine.
Only trained technicians can repair, maintain and inspect
sewing machines.
Maintenance, maintenance and inspection related to
electricity should be entrusted to purchasing shops or
electrical professionals.
Turn of ,f the power supply when the following happens.
Pull the plug from the power outlet.
Otherwise, when you step on the pedal, the sewing
machine will cause injury.
Inspection, adjustment and maintenance
Replacement of fragile parts such as spindle and cutter
Before opening the motor cover, be sure to turn off the
power supply, wait a minute, and then perform the
operation. Touching the motor surface can cause burns.
When the power switch must be connected to adjust, be
sure to switch to maintenance mode.
Be careful to observe all safety precautions

Precautions Prior to Startup
Precautions for Use
1
1. The machine head is coated with a thick layer of rust-prevention grease before encasement,
and the encased machine head may possibly be subjected to grease hardening and dust buildup
on the machine surface in process of long storage and
long-haul traffic; therefore, take care to remove the grease and dust from the surface using soft
cloth and gasoline.
2. Though the machine was inspected and tested with care before factory leaving, it might be
affected by violent vibration resulting in looseness or distortion of the machine parts; therefore the
operator shall thoroughly check the machine, turn the upper wheel by hand and check it for
difficulty in free rotation, slight impact, and other uneven resisting force or abnormal noises, and
make appropriate adjustment if any to restore the machine state before formal trial run.
3. Never start up the machine if the oil liquid level in the oil box falls outside the normal range.
4.The upper wheel shall rotate counterclockwise (when it is viewed from the lateral surface of the
upper wheel) when the machine is operating.
5. Check whether the voltage and phases indicated on the electric-control data plate are correct.
6.The date of manufacture is indicated on the certificate of conformity.
2
1.Never touch the needle by hand when the machine is powered on or while it is operating.
2.Never put your finger into the protection cover of take-up lever during operation of the
machine.
3.The operator must not put his finger into the needle guard bracket when he feeds the
sewing materials by hand.
4.Operator must trim off the electricity supply before he turns over the machine head or
removes the hand cover.
5.The operator must trim off the electricity supply before he gets away from the machine.
6.Prohibit the head, hands and anything to approach the upper wheel and bobbin winder
while the machine is operating.
7.Never remove or mount the protection cover or other protection devices before the
machine is stopped.
8. Never wipe up the surface of machine head using paint thinner such as acetone.

Main Techanical Specifications
5000 sti/min
5.5mm(Max)
Lubricating system
Presser foot
lift height
Parameter
For medium-weight materials
220V/550W
Auto
DP ×5 9#～22#
3
Specification
5 or 7mm
10# White oil
Application
Max sewing speed
Max stitch
Length Needle
Lubrication oil
Motor power
Hand lifter
Knee lifter 13mm(Max)

Mounting the Machine (Fig.1, Fig. 2, Fig.3, Fig.4 and Fig. 5)
4
1.Installation of oil pan and machine
Fix the oil pan ② under the table ①with 6
screws ③ as shown in the Fig.1.
As shown in the Fig,2 ,fix two cushions
⑤and two support seats ⑥ in four corner of the
machine table ⑤ respectively , then fix
connecting hook seat ④ on the machine table ①
with 6 screws.
Insert machine head coupling hook⑦ into the
pin holes in the bottom plate such that it is
embedded into the coupling hook seat ④, and
put the machine head onto the seating washer
on four corners of the oil tray.
As shown in the picture,insert head support ⑧
into the machine table firmly.
1.Installation of plastic rear cover
Plug in the connecting wires on the electronic
control.
Fix the plastic rear cover on the sewing
machine as the Fig.5 shown.
①
③
②
Fig.1
Fig.2
④④
⑤⑤
⑥⑥
Fig.3 ⑦
Fig.4 ⑧
Fig.5

Lubrication of machine(Fig.6 )
5
6
Mounting the Thread Stand (Fig.7)
1.As shown in right-hand figure, mount the thread stand component onto the mounting h- ole for
thread stand on the sewing machine table.
2.Screw down retaining nut ① for lower segment of thread stand lever to fix the thread stand.
Caution:
1.Lubrication of gearbox
Fill gearbox if the oil pointer ② below the lower tick mark in the oil window ③ when using the
sewing machine.
The steps of lubrication are as fellow:
1) Remove the rubber plu g ① of oil filler, fill with oil using the oil bottle in accessory box.
(No.10 white oil)
2) Fill oil until the oil point e r ② reaches the upper tick mark in the oil window ③.Do not fill
too much oil otherwise the oil will flow into head when turnover machine.
1.To prevent the unexpected startup of sewing machine, trim off the power supply before
the operation is conducted.
2.When using the new sewing machine for the first time, open the rubber plug ① of oil
filler and fill with 500ml oil.(No.10 white oil)
①
Fig.6 ②
③

①
Fig.7
Mounting the Needle (Fig.8)
7
1. Turn the upper wheel to allow the needle to reach its maximum height.
2. Unscrew needle carrying screw ②
hold needle ① by hand, and align the indentation A of
needle to right direction B.
3. Insert the needle into the bottom of needle hole in direction of arrow till it reaches the end
point.
4. Screw down the needle carrying screw ②
5. Take care to ensure that the elongated slot C on the needle is aligned to the left direction D.
Fig.8
①
②A
B
C
D
Caution:
1. To prevent the unexpected startup of sewing machine, trim off the power
supply before the operation is conducted.
2. Needles are available in different sizes. Please select appropriate needle as
per the thickness of threads and the sewing materials.
A
B
C
Fig.9
Mounting the Bobbin (Fig. 9)
8

1.Hold the rotating hook by hand, and fit t - he
bobbin into the rotating hook.
2.Thread the thread through the thread groove A in
the rotating hook, and draw out the thread in
direction C. In this way, the thread is led out of
hole B through the tension spring.
3.When bobbin thread is drawn, the bobbinshall
turn clockwise in direction of arrow.
Fig.10
①
Installation of bobbin case (Fig. 10)
9
1.Turn the machine pulley to raise the needle until it is above the needle plate.
2.Hold the bobbin case ① (with bobbin) with one hand, then install the bobbin case into the hook.
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the power supply before the
operation is conducted.
10 Windin
g up the Bobbin Thread (Fig. 11, Fig. 12)

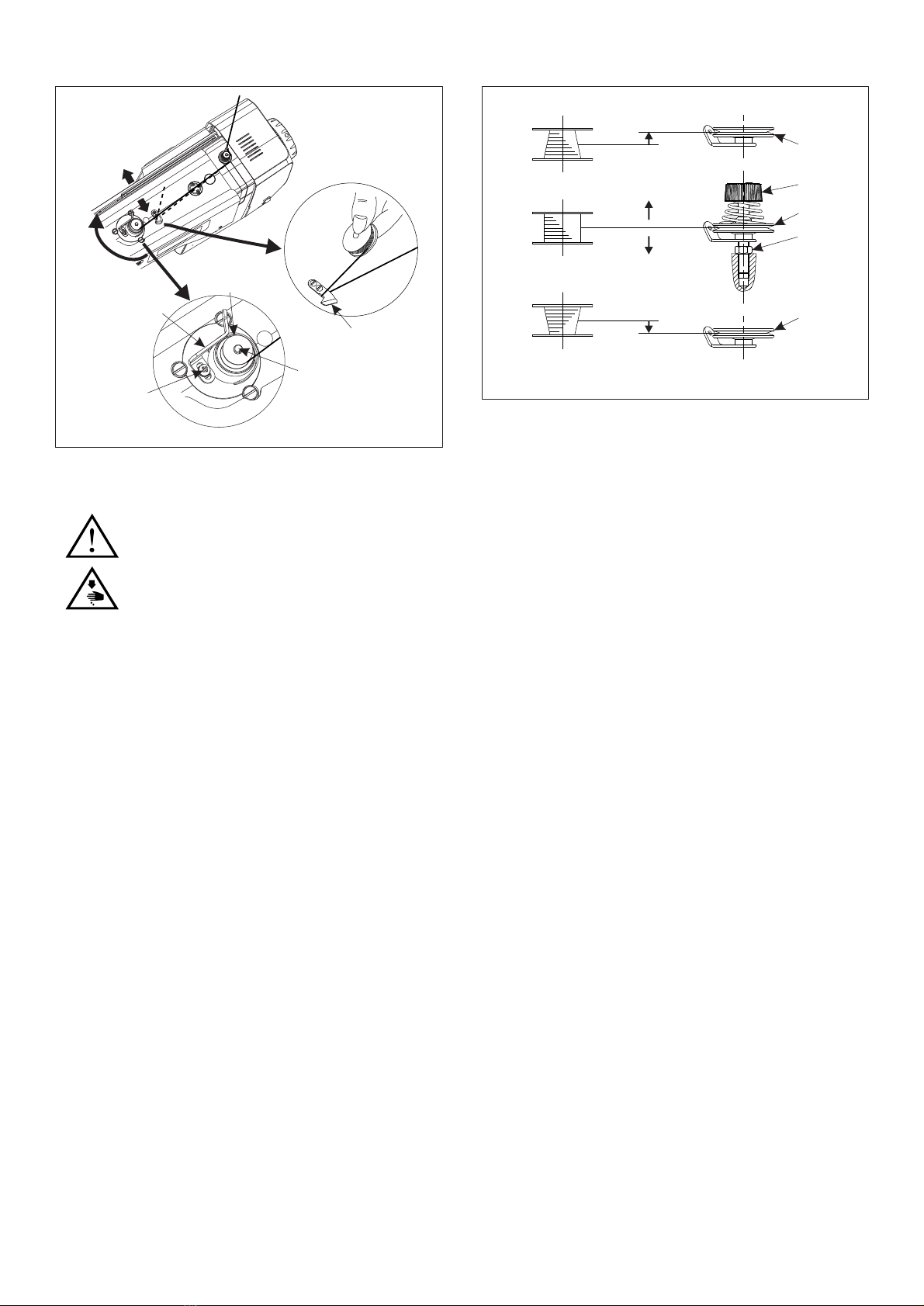

1.Bobbin thread winding-up method
Fit bobbin ① onto spool ②.
2.Thread the right-hand thread coiling onthread stand as shown in right-hand figure,and reel the
thread end rightwards onto the bobbin for several turns.
3.Push winding lever ③
over to directionA, and run the sewing machine. Bobbin ① is rotated in
direction C, and thread is reeled onto bobbin ①. Once the reel is full, winding lever③ is
pushed toward direction B, and winding is over.
Remove bobbin ①, and trim off the thread using winding trimmer④ .

-9-
A
B
Fig.12
④
C
②
①
③
⑤
Fig.12
⑥
⑦
⑧
⑦
⑦
D
E
Caution:
1.To reel bobbin thread onto bobbin① when no sewing is performed, draw the needle
thread out of hole in the take-up lever, remove bobbin ① out of rotating hook.
2.Do not touch or lean anything to any running components when rolling the bottom
line,in order to avoid the safety accident.
1.Ad
justing the bobbin thread winding
1)To adjust the winding capacity of bobbinthread, unscrew fixing screw ⑤ ,set winding lever ③
in direction A or direction B, and fix screw ⑤ again. Direction A is intended for reduction, and
direction B is intended for increase(CCaution:The amount of thread wound onto the bobbin
should be a maximum of 80% of the bobbin capacity).
2.If thread cannot be wound onto the bob
bin flatly, unscrew nut ⑥ , turn the winding tesion disco, and adjust the height of height of thread
gripper plate ⑦.
a. The standard position is reached once the center heights of rotating hook ① and thread
gripper plate ⑦ are identical.
b. If the winding amount on the lower part is bigger, move the winding tension discoin direction
D indicated in the right hand figure.
3.If the winding amount on upper part is bigger, move the winding tension disco in direction E
indicated in the right-hand figure.
When the winding tension disco reaches its suitable position, screw down fixing screw ⑥ .
Adjust the winding tension of bobbin thread by turning thread tension nut ⑧. Thread the needle
thread when needle bar stays in its highest position, lead out the thread end from the thread
stand, and conduct threading as per the serial numbers indicated in the figure.

Lifting o f presser foot(Fig. 14, Fig. 15)
Threading the Needle Thread (Fig. 13)
11
Caution:
1.To prevent the unexpected startup of sewing machine, trim off
the power supply before the operation is conducted.
Fig.13
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
11
12
13
14
15
①
②
③
④
⑤
⑨
⑥
⑦
⑩
11
12
13
14
15
⑧
12

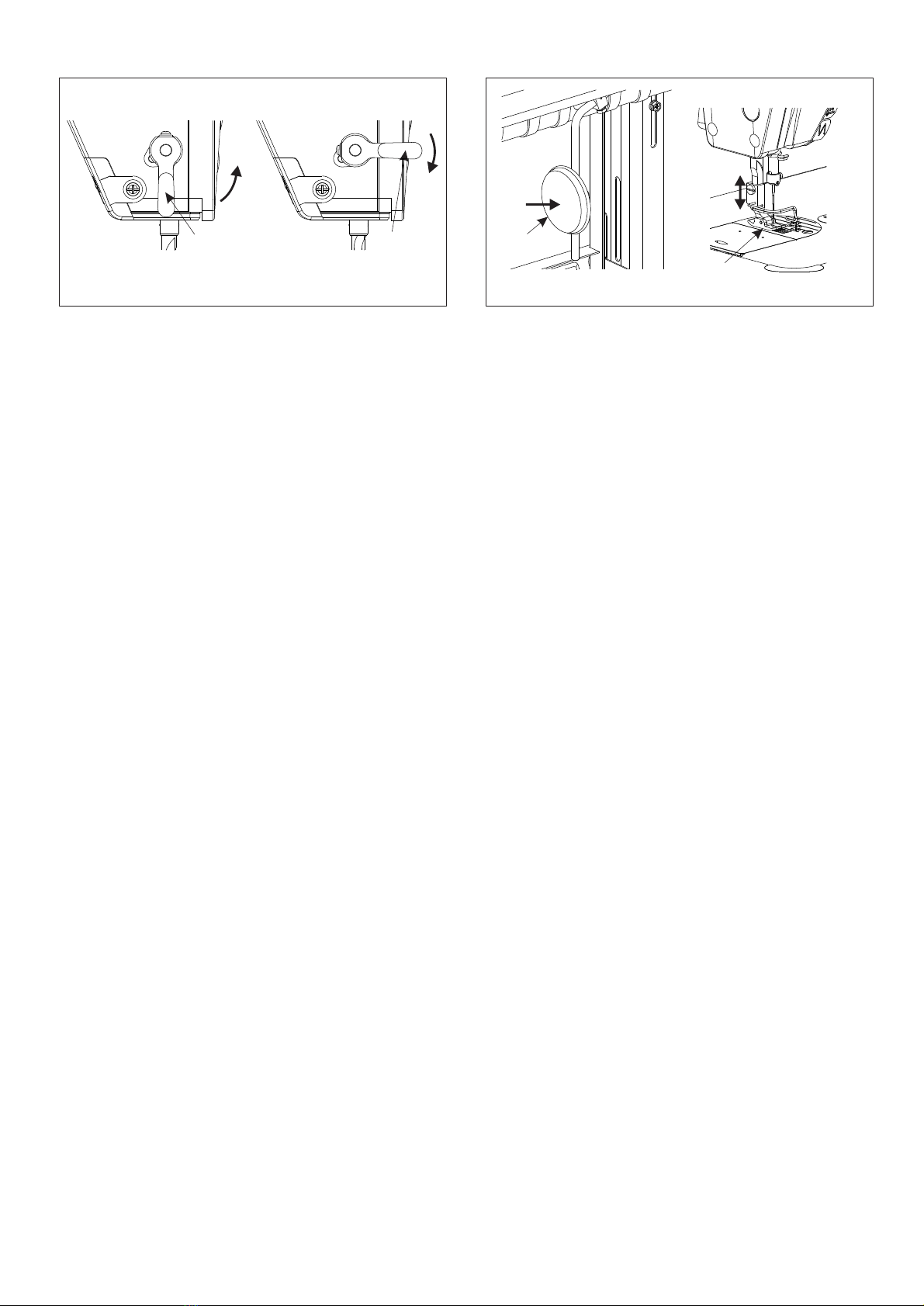

1.Lift presser foot controlled by hands
1)Shut down the machine, turn presser footlever ① in direction A to uplift the presser foot (for
about
5.5 mm).
2)When presser foot lever ①
is turned in direction B, presser foot will be returned to its original
position.
2.Lift presser foot controlled by knees
The presser foot ③ can be raised by pressing the knee lifter plate ②
. (Height of presser lifting is
relate to the degree of knees pressing) The height of presser foot are respectively about 10mm
and 13mm when pressing knees fully. The lifting presser foot ③ lowers as soon as loosing the
knee lifter plate ② release.

Caution: standard and maximal lifting heigh
Fig.14
①
A
B
①
Fig.15
②
③
1.Use of back sewing buttonpush-
1) Push the backstitch switching push-button ①to allow the sewing machine to start backstitch
immediately.
2) Backstitch is implemented only while the push-button is held down.
3) It is changed to forward stitch once the push-button is released.
2. Use of reinforce sewing
Press the reinforce sewing button ②
one time, the sewing machine reinforce forth with half
stitch, press all the time, it continues sewing with forth reinforce.
Caution: in addition to continue back reinforce sewing,the reinforce sewing boutton can be as stop
button ② during any sewing condition.(before trimming)
3. Use of the light push-button
The illuminating lamp goes on at full brightness once the machine is powered on. Push illuminating
lamp control button ③ to reduce in sequence the brightness till turn off.
13 Adjusting the Stitch Length
The stitch pitch is controlled by the stepper motor , and there is no mechanical function
to adjust the stitch pitch . If you need to adjust the stitch pitch , please directly adjust the stitch pitch
on the operation panel. For the specific adjustment method , please refer to the elec-tronic control
operation manual.
14 Hand-touch Backstitch Device(Fig. 16)

Fig.16
①
②
Fig.17
D
C
B
A
E
③
15 Operating the Treadle(Fig. 17)
1.The treadle has 4 operation levels:
1) The machine runs at low sewing speed when you lightly depress the front part of the pedal.
(as
show in the picture B)
2) The machine runs at high sewing speed when you further depress the front part of the pedal.
(as
show in the picture A)
3) Pe
dal back to the initial position when stepping on it and the machine stop working.(needle in
the upper or down position)(as show in the picture C)
4) The machine trims threads when you fullydepress the back part of the pedal (as show in the
picture A).
When the auto-lifer is used,one more operating switch is provided between the sewing
machine stop switch and thread trimming switch.The presser foot goes up when you lightly
depress the back part of the pedal(D),and if you further depress the back part,the thread
trimmer is actuated.

Adjusting the Treadle(Fig. 18, Fig. 19, Fig. 20)
16
1.Adjusting the angle of treadle
1) Adjust the angle of treadle only by adjusting the length of treadle connecting rod:
unscrew screw ①, and adjust the length of treadle connecting rod by moving upward/
downward the
upper connecting rod ② and lower connecting rod ③.
2) Screw down screw ① when adjustment is over.
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the power supply before
the operation is conducted.
①
②
③
Fig.18 Fig.19 abcd
④
⑤
2.Adjustment of the strength of pedal
The sewing machine run at a low speed when step forth on the panel slightly.If the
strength is insufficient, hang the stepping adjustment spring ④ on the panel spiral arm
driving lever ⑤ in order to adjust strength.(a is the minimum stepping strength ,b,c,d
increase gradually)
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the power supply
before the operation is conducted.

3.Adjustment of stepping return strength
1) Loosing nut ⑥ and turn bolt ⑦ to adjust stepping return strength : tighten bolt ⑦t,he
strength increases;loosen bolt ⑦, the strength decreases.
a) Tighten nut ⑥
after adjusting stepping return strength.
Caution:
1.To prevent the unexpected startup of sewing machine,
trim off the power supply before the operation is
conducted.
4.Adjustment of panel moving distance
1) Remove nut
⑧.
2) Move connecting rod joint ⑨
from A to B,panel moving distance is 1.3times than original
one.
3) Move reversely the distance is 0.8 times as original one.
4) Assembly the nut ⑧ after adjusting panelmoving distance.
Caution:
1. To prevent the unexpected startup of sewing machine, trim off the power
supply before the operation is conducted.
2. Stepping strength and stepping return strength both change after adjusting
panel movement,follow the steps above to have adjustments again.
A
⑥
⑦
⑧
⑨
Fig.20 B

Oil mass Adjustment of Rotating Hook (Fig.21, Fig.2 2, Fig.23)
17
1.Adjustment method
1) Adjust the oil mass of rotating hook usingadjusting screw ①
:Screw down (turn it to the right)
adjusting screw ① to raise the oil mass ,or unscrew (turn it to the right) the adjusting screw to
lower the oil mass. Amount repeatedly until the lubrication amount is correct.
2) Check the lubrication amount again after the sewing machine has been used for approximately
two hours.
Fig.21
Special oil mass confirmation paper
70mm
25mm
Position for oil mass confirmation
Bottom plate
③
5-10mm
②
Fig.22
①

4) Place the lubrication amount check sheet ② underneath the rotary hook ③ and hold it
there.Then run the sewing machine at the normal sewing speed for 10 seconds.
(Any type of paper can be used as the lubrication amount check sheet ②)
5) Check the amount of oil which has spattered onto the sheet ②.
Caution:
1.Prior to the above-mentioned operation, remove the knockout plate and check whether
there is oil in the oil box.
2.Do not use fingers to touch the hook or other running components of feeding mechanism
when checking the amount of oil for the hook to avoid the accident.
3.Use the following procedure to check the amount of oil being supplied to the rotary hook
when replacing the rotary hook or when changing the sewing speed.
3.Guide sample of oil mass adequacy
1)The guide sample shown in the right-hand figure(see Fig. 23) may be finely adjusted
图 23Fig.23
Too much Too littleCorrect
Spattered oil
2.Confirming the Oil Mass
1)Remove the thread from all points fromthe
thread take-up to the needle.
2)Use the lifting lever to lift the presser foot.
3)Run the machine at the normal sewing
speed for approximately 3 minute without
sewing any material (following the same
start/stop pattern as when actually sewing)
18 Adjusting t he Presser F oot P ressure(Fig. 2 4)
1.Unscrew pressure adjusting nut ②.
2.Presser foot pressure is:
-increased if pressure adjusting screw ① is turned clockwise ( namely in direction A);
-reduced if the screw is turned counterclockwise (namely in direction B).
3.Screw down pressure adjusting nut ② when adjustment is over.

Fig.24
Caution:
1. To prevent the unexpected startup of sewing machine, trim off the power supply
before the operation is conducted.
2. For ordinary materials, the standard height of pressure adjusting screw① ranges from
32 to 34mm (4.5 kilogram force) approximately.
Fig.25
Adjusting t he height a nd angle of presser foot(Fig. 25)
19
1.Loosen pressure adjusting nut ② and screw ①,free the pressure of presser foot
2.Open rubber plug ③ in panel.
3.Loosen screw ④ in compression rod guide frame, move mobile compression rod
⑤from up and down
to adjust the height and angle of presser foot.(height of presser foot is the distance from needle plate
surface to the bottom of it, the standard height of lifting presser foot by hand is 5.5mm)
4.Tighten the screw
④ in compression rodguide frame and assembly the rubber plug
③ after adjusting.
5.Adjust pressure of presser foot through pressure adjusting screw ①, tighten the nut ② after
adjusting.
②
⑤
①
③④
Caution:
1.To prevent the unexpected startup of sewing machine, trim off the power
supply before the operation is conducted.
2.After adjusting,check that the needle moves down into the center of the groove
in the presser foot.
B
①
A
②
