TMG TMG-184517ST User manual

Page 0of 17
Main Specifications:

Page 1of 17
Main Specifications :
- Assembly size : W5.5 x L13.5 x H5.3 (m) / 18 x 45 x 17 (ft)
- Shoulder height : 4 m / 13 ft
- Front roll up door : 4.09 x 4.26 (m) / 13 x 14 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is important to follow your
local safety regulations and industry standards during installation. Regulations may
include but are not limited to :
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not
make any alterations to the structure. Do not hang any weights on the frame during
installation, including parts. We are not responsible for any damages or injuries caused by
inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and
where it touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all
parts are included prior to setup.
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Choose a solid flat level ground area to set up the building. Do not install the building on
soft ground, wetland, uneven surfaces, sloped surfaces, or on top of structures that are not
rated to hold its weight.
We strongly recommend that you build the structure on a solid foundation such as cement
and use anchor bolts on all baseplates.
Be aware of the surrounding area. Do not set up the building near snowdrifts, open
flames or exposed electrical wires. Do not keep heat sources near the fabric cover.
Keep the building surroundings clear at all times.

Page 2of 17

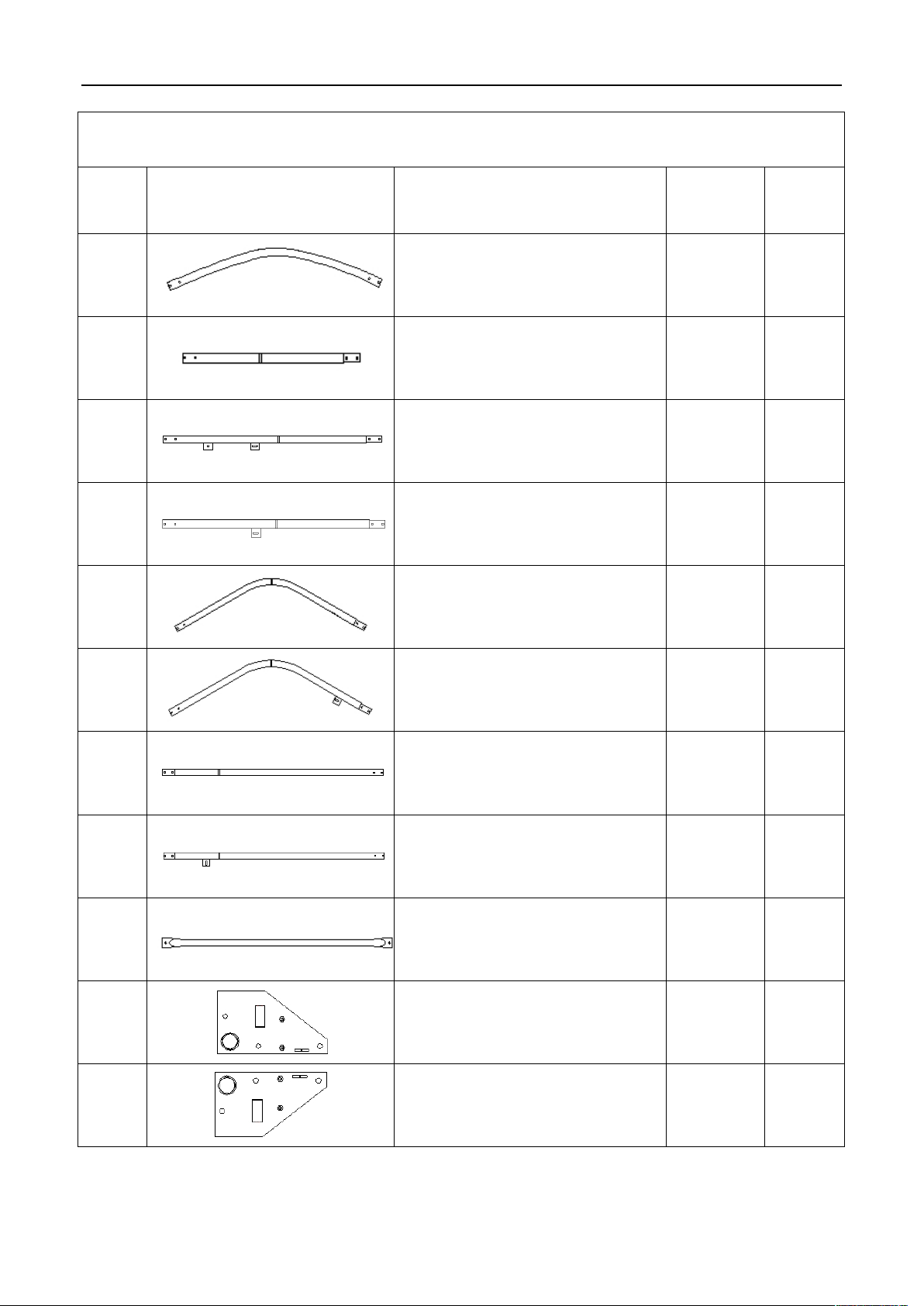

TMG-184517ST Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
10
1/1
2
Upper rafter tube
(middle truss)
16
1/1
2A
Upper rafter tube
(front truss)
2
1/1
2B
Upper rafter tube
(rear truss)
2
1/1
3
Shoulder tube
(middle truss and rear truss)
18
1/1
3A
Shoulder tube
(front truss)
2
1/1
4
Sidewall tube
(middle truss)
16
1/1
4A
Sidewall tube
(front and rear truss)
4
1/1
5
Roof purlin
(horizontal tube)
63
1/1
5L
Left corner baseplate
(front and rear truss)
2
1/1
5R
Right corner baseplate
(front and rear truss)
2
1/1

Page 3of 17
6
Door columnbaseplate
(front truss)
2
1/1
6A
Middle column baseplate
(rear truss)
2
1/1
7
Middle truss baseplate
16
1/1
7A
Ratchets
20
1/1
8
Door frame lower tube
(front and rear truss)
4
1/1
9
Door frame upper tube
(front truss)
2
1/1
9A
Rear frame middle tube
2
1/1
10
Door frame middle horizontal
tube (front truss)
2
1/1
10A
Door frame middle horizontal
tube (rear truss)
2
1/1
10B
Door frame middle horizontal
tube (rear truss)
1
1/1
11
Door center vertical
supporting rod for cross beam
(front and rear truss)
2
1/1
11A
Two wheel rope pulley
(Pre-installed on 2A)
1
1/1

Page 4of 17
11B
One wheel rope pulley
(Pre-installed on 2A)
1
1/1
11C
Ceiling cross bar
(front and rear truss)
2
1/1
11D
Ceiling cross bar
(front and rear truss)
2
1/1
12
Bottom tension bar
(Front cover)
2
1/1
12A
Bottom tension bar
(Rear cover)
2
1/1
12B
Bottom middle tension bar
(Rear cover)
1
1/1
13
Diagonal bracing bar
(1st and last span)
4
1/1
13A
Tube clamp
φ58mm
4
1/1
13B
Tube clamp
φ48mm
2
1/1
14
Top cover tension tube
(for both bottom sides)
2 groups
1/1
15
Door dropping tube
1 groups
1/1
16
Expansion bolt
M16 x 150mm (Not included)
68
1/1

Page 5of 17
17
Half round head bolt
M10 x 80mm
70
1/1
18
Half round head bolt
M8 x 70mm
168
1/1
18A
Half round head bolt
M8 x 80mm
12
1/1
19
Hex bolt
M10 x 30mm
12
1/1
19A
Hex bolt
M10 x 50mm
8
1/1
20
Nylon rope
2
1/1
21
Water plug
16
1/1
22
Top cover
1
1/1
23
Front cover panel
1
1/1
23A
Rear cover panel
1
1/1
24
Braided rope
1 bundle
1/1
25
Ratchet straps
20
1/1

Page 6of 17

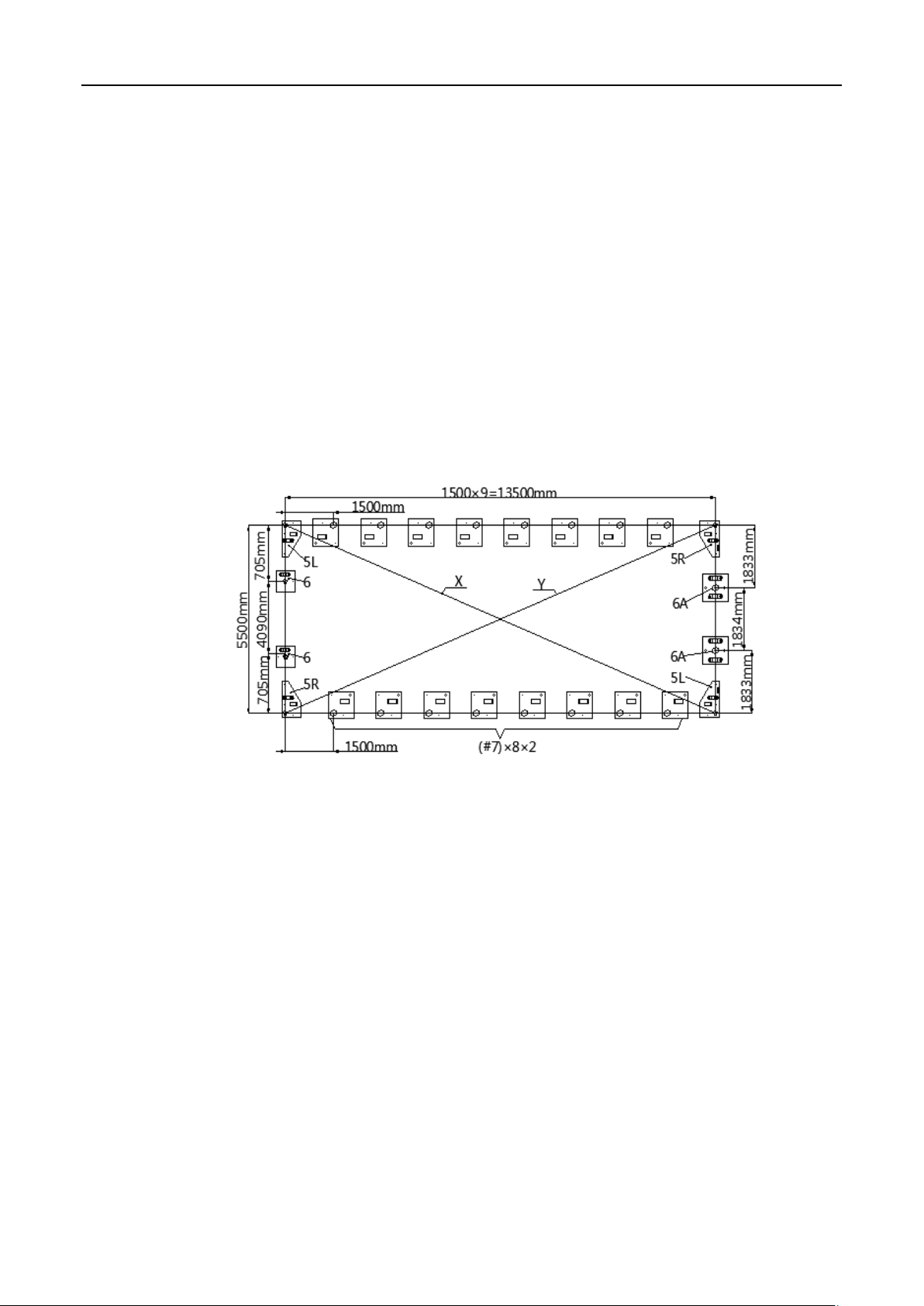

Mark the ground in the final building location with a line showing the positions of
base plates, front, and rear doors. All lines should be drawn from center to center
of all baseplate tubes. Diagonal line X must be equal to Y.
Baseplates : all baseplates must be installed firmly with expansion bolts (#16) on
this step (Picture 1).
Parts used in this step :
- (4) Baseplates (#5L, #5R)
- (16) Baseplates (#7)
- (2) Baseplates (#6)
- (68) Expansion bolts M12 (#16)
- (2) Baseplates (6A)
Picture 1
Step 2 : Assemble all trusses
The building includes 10 trusses : (1) front truss, (1) rear truss, and (8) middle
trusses. The front and the rear truss are to install with the fabric panel (#23
and #23A).

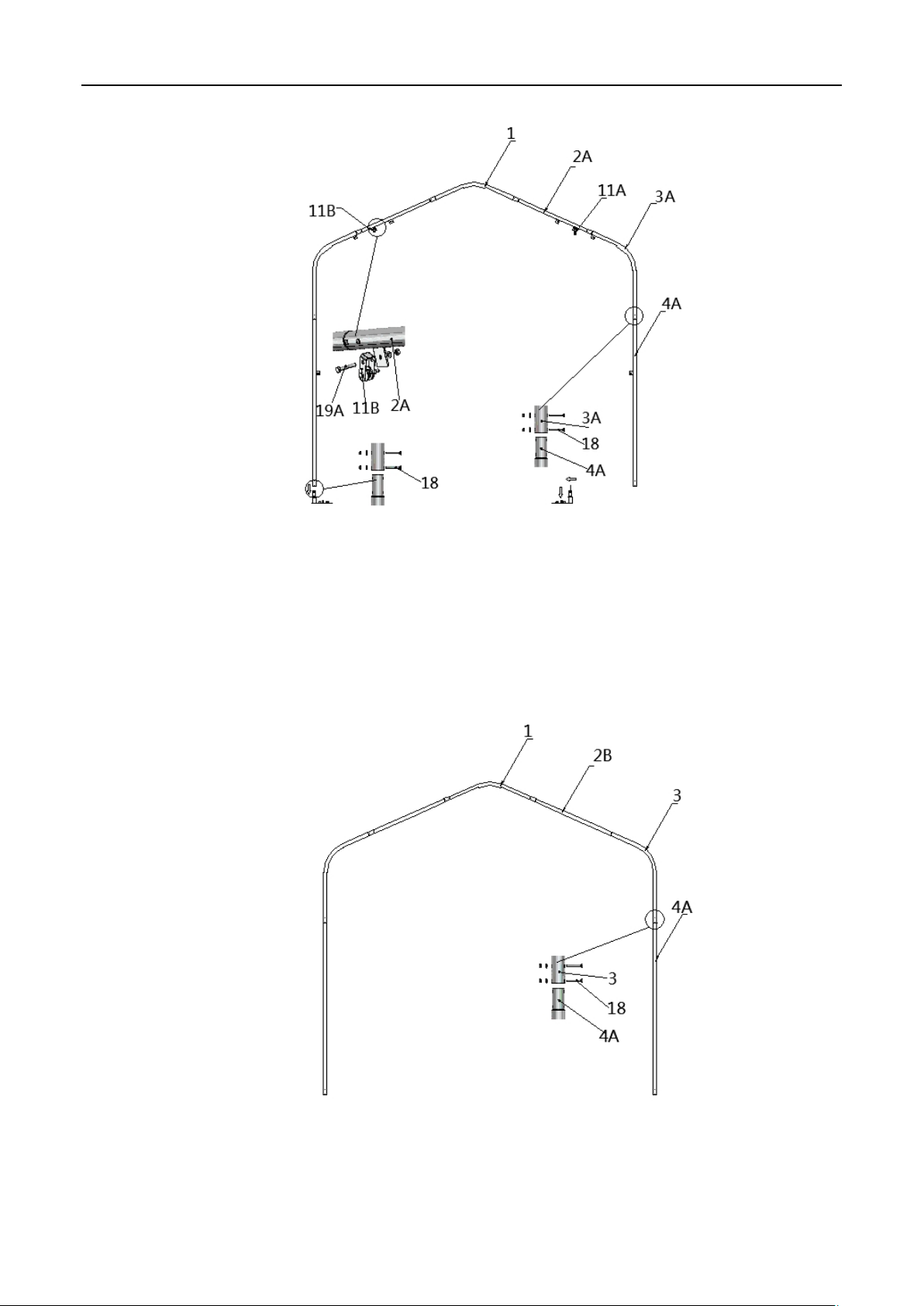

Parts used to install the front truss in this step (refer to Picture 2) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2A)
- (2) Shoulder tube (#3A)
- (2) Sidewall tube (#4A)
- (1) Two wheel rope pulley (#11A)
- (1) One wheel rope pulley (#11B)
- (12) Half round head bolt (#18)
- (2) Hex bolt (#19A)

Page 7of 17
Picture 2
Parts used to install the rear truss in this step (refer to Picture 3) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2B)
- (2) Shoulder tube (#3)
- (2) Sidewall tube (#4A)
- (12) Half round head bolt (#18)
Picture 3

Page 8of 17
 Parts used to install (8) middle trusses in this step (refer to Picture 4).
- (1x8) Peak arch tube (#1)
- (2x8) Upper rafter tube (#2)
- (2x8) Shoulder tube (#3)
- (2x8) Sidewall tube (#4)
- (12x8) Half round head bolt (#18)
Picture 4
 Lay down all (10) trusses on the ground as Picture 5 when the assembly is
all completed and before moving to next step.
Picture 5

Page 9of 17
Step 3 : Put up the front (1st) truss
 Use of a crane or forklift is recommended, otherwise a team can use ropes to
lift the trusses, but you have to make sure it is safe, and have enough
manpower. We recommend 3 to 5 people to pull the truss up from different
directions. When the truss is up, tie the ropes to the heavy objects to make
sure the truss will stay upright and use bolt (#18) to connect the truss to the
baseplate on both sides (Picture 6).
 Parts used in this step: (4) Half round head bolt (#18)
Picture 6

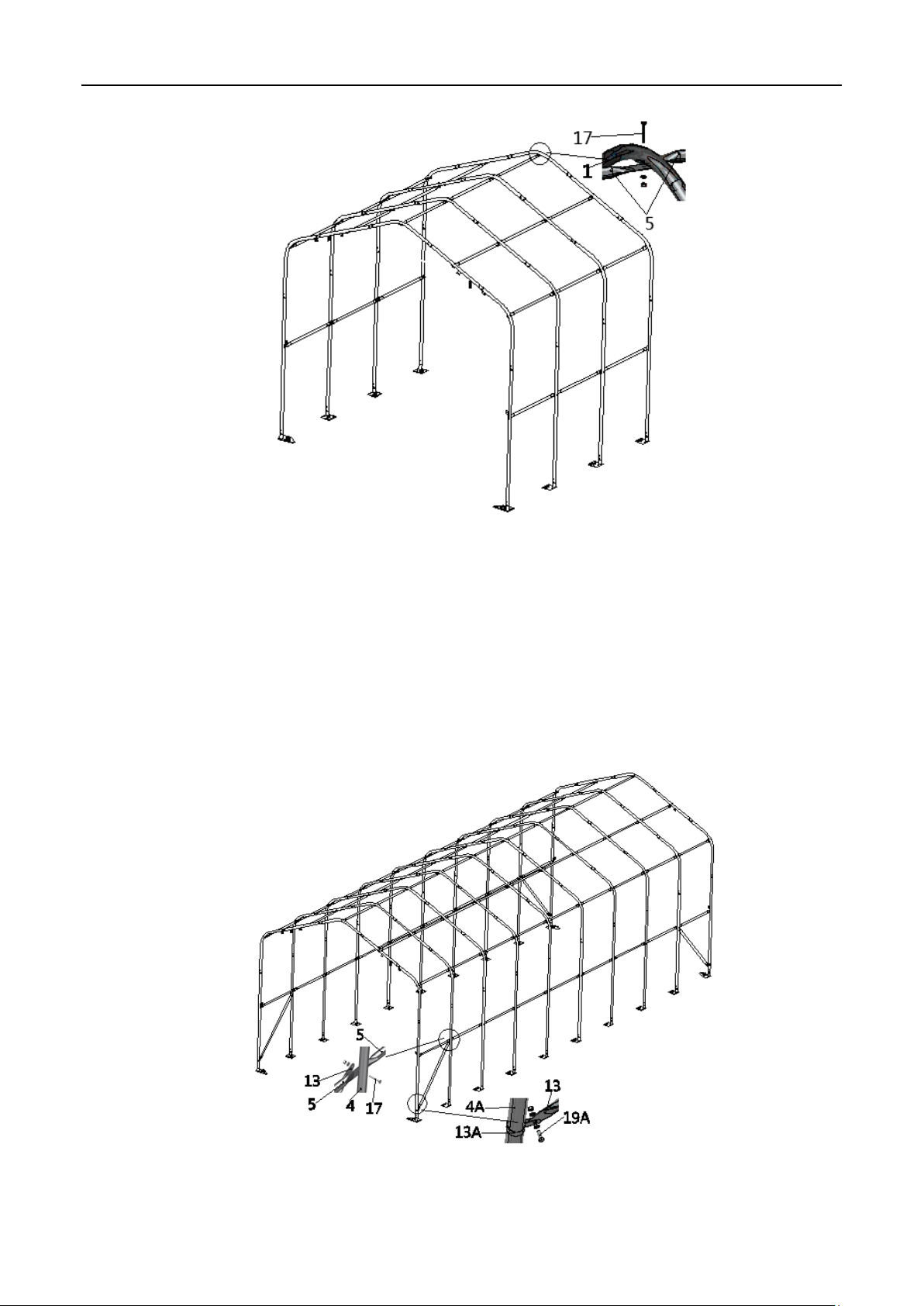

Step 4 : Put up the rest trusses
 Refer to Step 3 to put up the rest trusses, connect all purlins (#5) with bolt
(#17) and secure all bolts firmly on each span before going to next truss
(Picture 7).

Page 10 of 17
Picture 7
Step 5 : Install the diagonal bracing bars (#13)
 Connect diagonal bracing bar (#13) on the first and last span between the
shoulder tube and sidewall tube (#3A and #4) with tube clamp (#13A), use
bolt (#19A) (Picture 8).
 Parts used in this step :
- (2x2) Diagonal bracing bars (#13)
- (2x2) Tube clamps (#13A)
- (2x2) Bolts (#19A)
Picture 8

Page 11 of 17
Step 6 : Install the remaining parts on the front truss (Picture 9)
 Parts used in this step :
- (2) Door frame upper tube (#9)
- (2) Door frame lower tube (#8)
- (2) Door frame horizontal tube (#10)
- (2) Bottom tension bar (#12)
- (4) Half round head bolt (#18)
- (6) Hex bolt (#18A)
- (6) Hex bolt (#19)
- (1) Door center vertical supporting rod for cross beam (#11)
- (1) Ceiling cross bar (#11C)
- (1) Ceiling cross bar (#11D)
Picture 9
Step 7 : Install the remaining parts on the rear truss (Picture 10)
 Parts used in this step :
- (2) Door frame upper tube (#9A)
- (2) Door frame lower tube (#8)
- (1) Door frame middle horizontal tube (front truss) (#10B)
- (2) Door frame middle horizontal tube (rear truss) (#10A)
- (1) Door center vertical supporting rod for cross beam (#11)
- (1) Ceiling cross bar (#11C)

Page 12 of 17
- (1) Ceiling cross bar (#11D)
- (2) Bottom tension bar (#12A)
- (1) Bottom middle tension bar (#12B)
- (4) Half round head bolt (#18)
- (6) Half round head bolt (#18A)
- (6) Hex bolt (#19)
- (2) Tube clamp (#13B)
Picture 10

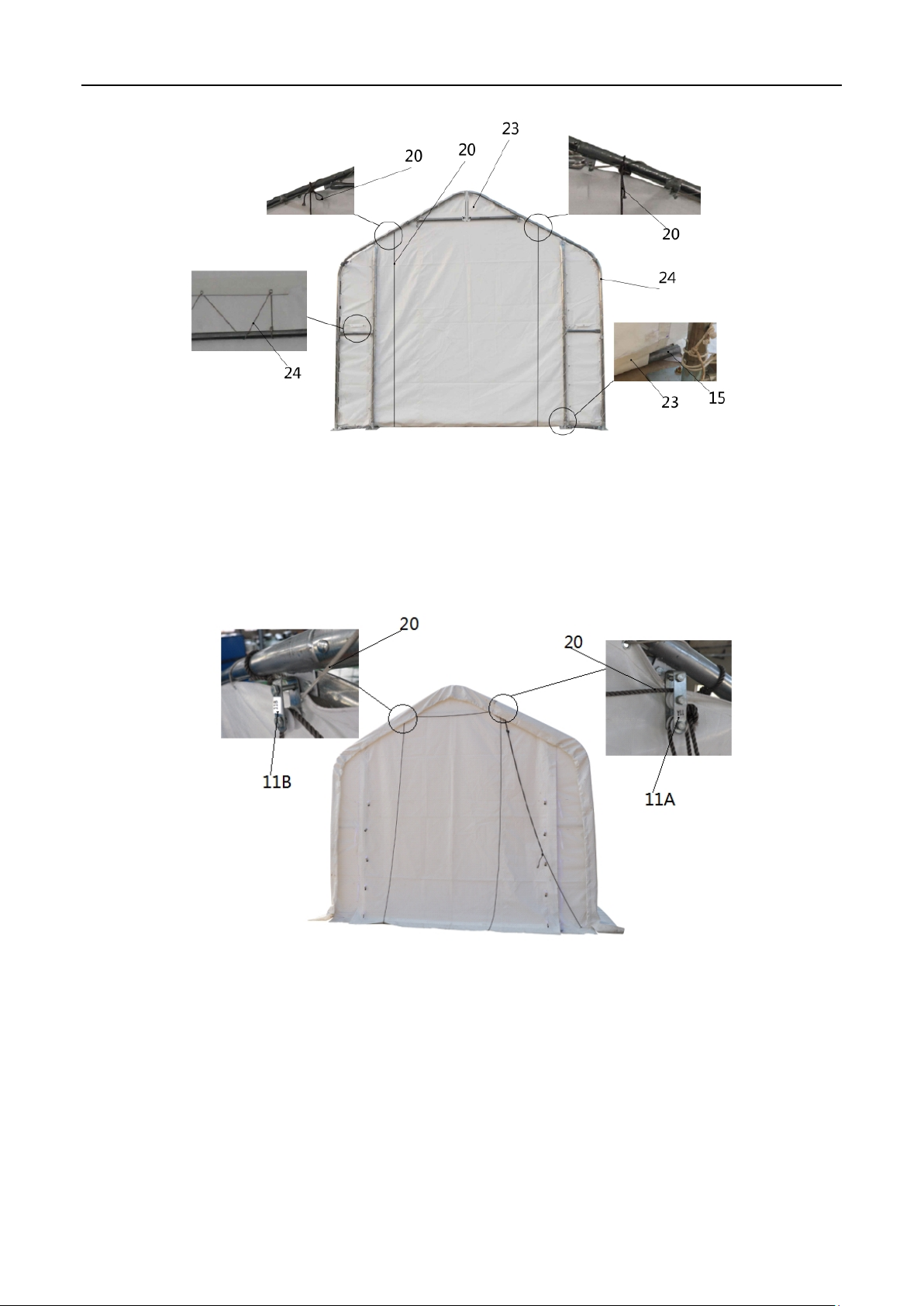

Step 8 : Install front cover panel
 The door cover must be zipped. Use rope (#24) to lift up the front and rear
cover (#23) from the center grommet and tie it firm to the truss tube and
spread toward both sides through each grommet along the tube.
 Insert the dropping tube (#15) into the bottom groove pocket on the door
cover. Tie two ropes (#20) separately on both sides of the peak arch tube.
Pull both ropes under through the bottom of the door cover from the back,
then go up from front and through both pulley 11A and 11B (Picture 11 &
12).
 The rope coming out from pulley 11B must go through the upper wheel of
pully 11A, then pull both ropes together slowly and start to lift the door
cover.
 Tie both ropes to the corner baseplate. Now the door cover is up. When you
drop down the door cover, do not let go too quick, otherwise it might get
stuck and damage the fabric.

Page 13 of 17
(Picture 11-view from inside)
Picture 12
Step 9 : Install rear cover panel
The door cover must be zipped. Use rope (#24) to lift up the rear cover (#23A)
from the center grommet and tie it firmly to the truss tube and spread toward
both sides through each grommet along the tube (Picture 13).

Page 14 of 17
Picture 13
Step 10 : Install the top cover (#22)
Do not install the cover during windy weather!
 Unpack the top cover and place it along one of the long sides of the
structure.
 Use 3 to 5 ropes (#24) to pull the cover over the top of the structure, 2 or 3
people standing inside on ladders to push upwards will help to move the
cover smooth without any damage (Picture 14).
Picture 14

Page 15 of 17

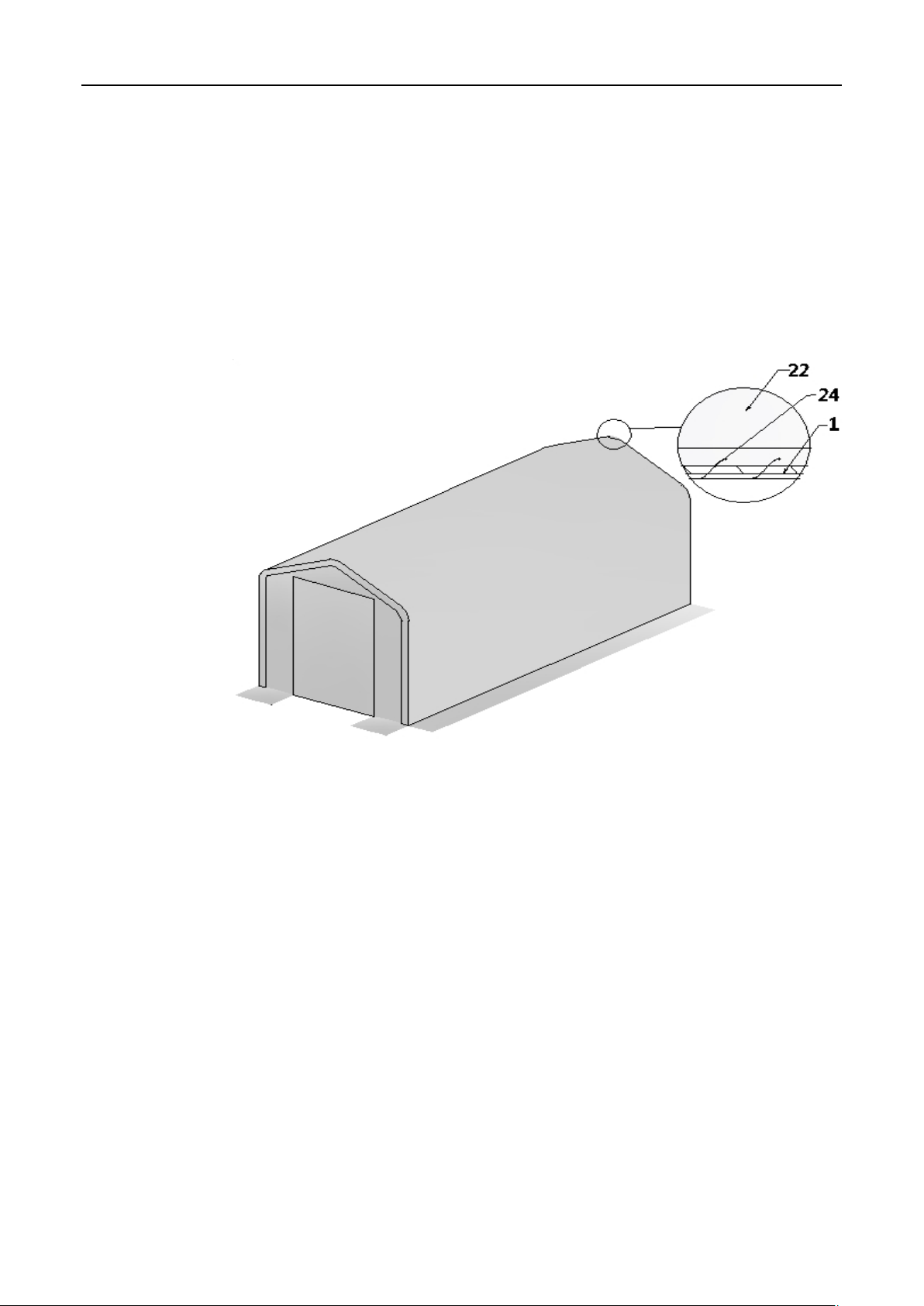

Step 11 : Stretch and tighten top cover
 The roof cover must be stretched and tied to the front and rear truss by rope
going through the flap grommets on the cover. Start from the top center and
go toward both side on each end. Add or cut the rope as needed.
 Pull and stretch the cover enough only to take wrinkles out. Repeat for the
rear truss. Do not over stretch as it could rip off the grommets (Picture 15)
(Picture 15-view from outside)
Step 12 : Tension the cover on the structure from both sides (Picture 16)
 Insert tension tubes (#14) slowly into the bottom groove pocket on both long
sides. Add the water plug (#21) on the first tension tube to avoid tearing the
fabric and add one to the end of last tube as well.
 Repeat the same step for the other side.

Page 16 of 17
Picture 16
Step 13 : Install ratchet straps (Picture 17)
Stretch and adjust the cover from left and right, back and forth, to make sure it is
square and centered. Cut the groove pocket where it aligns with ratchet (#7A),
and use strap (#25) to pull tension tube (#14) toward the ratchet and tie it firmly
there.
Evenly adjust all ratchets on both sides to take wrinkles out and make the cover
flat and smooth.
Picture 17

Page 17 of 17
After the Installation
Walk around and inspect the shelter periodically to make sure all components are still
firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as
all connection points to make sure they are all in good position. Check the base plates,
adjust the ropes and tie downs if required and clean the cover regularly.
Snow accumulating on the fabric cover must be removed as soon as possible. If snow
becomes solid ice on the cover, it will increase the weight on the roof and may collapse
the shelter or reduce the life span.
Keep the shelter on a dry ground most of the time. Do not keep the fabric dirt skirt under
water all the time, otherwise the fabric will deteriorate.
We strongly recommend you remove any snow from the roof immediately. Do not
leave any snow load on the roof overnight. Keep 3 feet of clearance on all sides at all
times. Do not allow snow to accumulate and pile up on the sides of the building.
Otherwise the pressure from the sides will push inwards and could lead to a
collapse.
