Main Specifications :
Overall assembled size : W3.66 x L6 x H2.9 (m) / 12 x 20 x 10 (ft)
Width : 3.66 m / 12ft
Length : 6 m / 20 ft
Ridge Peak Height : 2.9 m / 10 ft
Shoulder wall clearance height : 2.4 m / 7.9 ft
Prior to assembly
Please read the instructions carefully before installation. It is important to follow your
local safety regulations and industry standards during installation. Regulations may
include but are not limited to:
-Safety helmets, protective eyewear, and clothing
-Safety harnesses for all elevated workers
-Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make
any alterations to the structure. Do not hang any weights on the frame during installation,
including parts. We are not responsible for any damages or injuries caused by inappropriate
installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and
where it touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all
parts are included prior to setup.

W W W . T M G I N D U S T R I A L . C O M P 2 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TMG-CP1220 Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
5
1/1
2
Middle rafter tube
10
1/1
3
Shoulder tube
10
1/1
4
Sidewall tube
10
1/1
4A
Short casing
34
1/1
5A
Side edge crossbar
(front and rear truss)
4
1/1
5B
Side edge crossbar
(middle truss)
4
1/1
6A
Foot tube
(front and rear)
4
1/1
6B
Foot tube
(middle)
2
1/1
7
Metal sheet
(front and rear truss)
14
1/1
8
Metal sheet
(middle truss)
14
1/1
9
Edge protector
6
1/1
10
Edge buckle
4
1/1
11
Water plug
4
1/1

W W W . T M G I N D U S T R I A L . C O M P 3 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
12
Steel cable mounting
plate
4
1/1
13
Anchor Hook
（M14x120mm）
4
1/1
14
Steel cable（3.3m）
4
1/1
15
Expansion bolt
(φ16x150mm)
12
1/1
16
Waterproof silicon
sealant
2
1/1
16A
Teroson statu
1
1/1
17
Hex bolt M10x60mm
156
1/1
18
Self tapping screw
M5x30mm
190
1/1
19
Rivet
φ3x6mm
50
1/1
20
Corner protector
4
1/1
21
Sleeve
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 4 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Refer to the foundation structure drawing 1, draw lines on the ground for positioning, all
dimension lines are drawn from the center of the pipe to the center, and the diagonal X
must be equal to Y.
Installation of foundation pipes: all foundation pipes shall be connected here with (#17)
hex bolts as shown in Figure 1, and fixed on the ground with (#15) expansion bolts. (refer
to Figure 1)
Parts used in this step :
-(4) Foot tube (#6A)
-(2) Foot tube (#6B)
-(16) Hex bolt (#17)
-(12) Expansion bolt (#15)
-(4) Short casing (#4A)
Figure 1

W W W . T M G I N D U S T R I A L . C O M P 5 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 2 : Assemble all trusses
The building includes 5 trusses: (1) front truss, (1) rear truss, and (3) middle trusses.
 Parts used to install the front and rear truss in this step (refer to Figure2):
-(1x2) Peak arch tube (#1)
-(2x2) Middle rafter tube (#2)
-(2x2) Shoulder tube (#3)
-(2x2) Sidewall tube (#4)
-(2x2) Steel cable mounting plate (#12)
-(24x2) Hex bolt (#17)
-(12x2) Self tapping screw (#18)
-(6x2) Short casing (#4A)
Figure2

W W W . T M G I N D U S T R I A L . C O M P 6 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

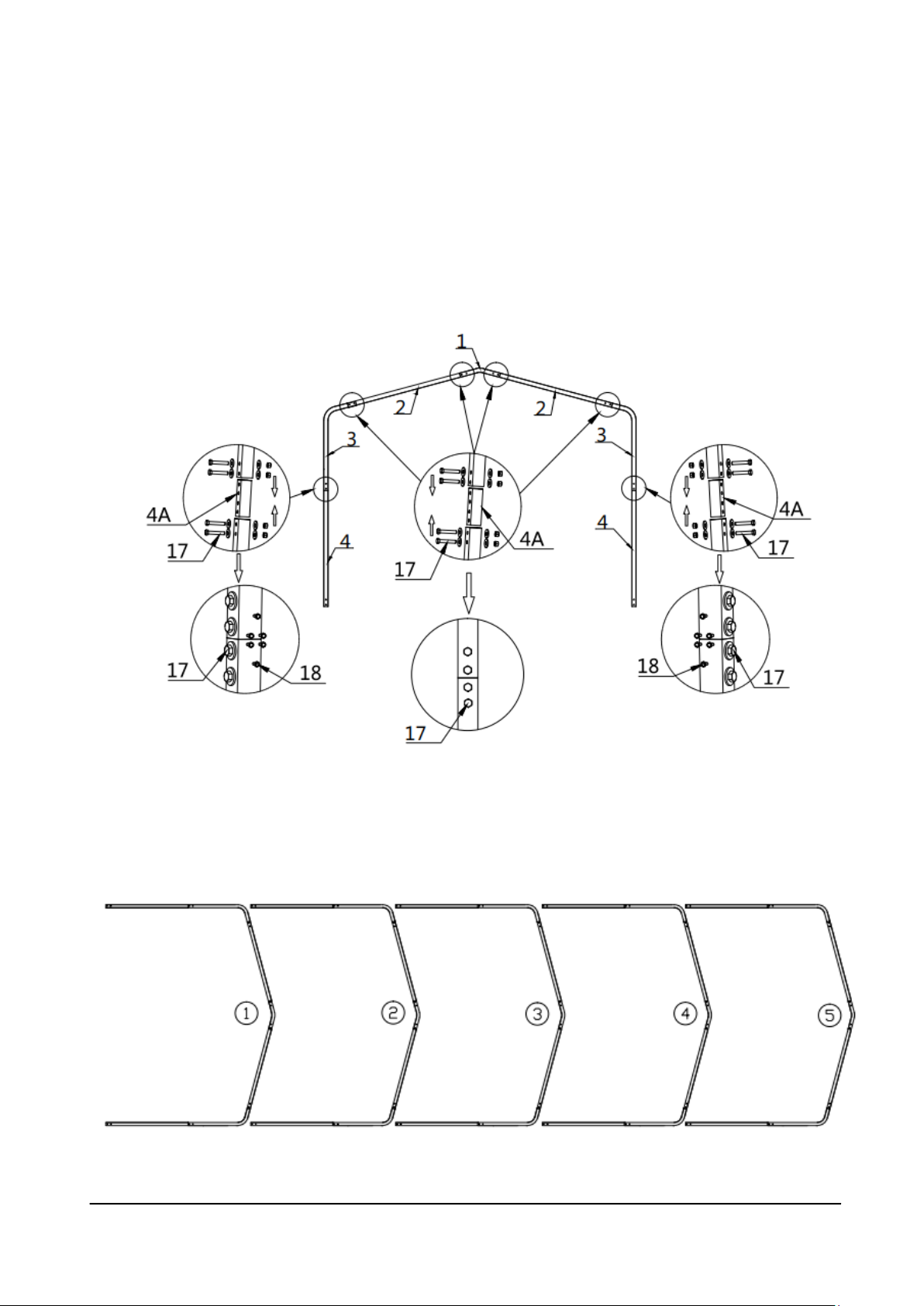

 Parts used to install (3) middle trusses in this step (refer to Figure 3).
-(1x3) Peak arch tube (#1)
-(2x3) Middle rafter tube (#2)
-(2x3) Shoulder tube (#3)
-(2x3) Sidewall tube (#4)
-(24x3) Hex bolt (#17)
- (12x3) Self tapping screw (#18)
-(6x3) Short casing (#4A)
Figure 3
 Lay down all (5) trusses on the ground as Figure4 when the assembly is all
completed and before moving to next step.
Figure4

W W W . T M G I N D U S T R I A L . C O M P 7 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 3 : Assemble all trusses to the foundation pipe and connect them with (#17) bolts
The front and rear trusses are installed with one side of (#12) Steel cable mounting
plate facing outwards. (refer to Figure 5)
Figure 5

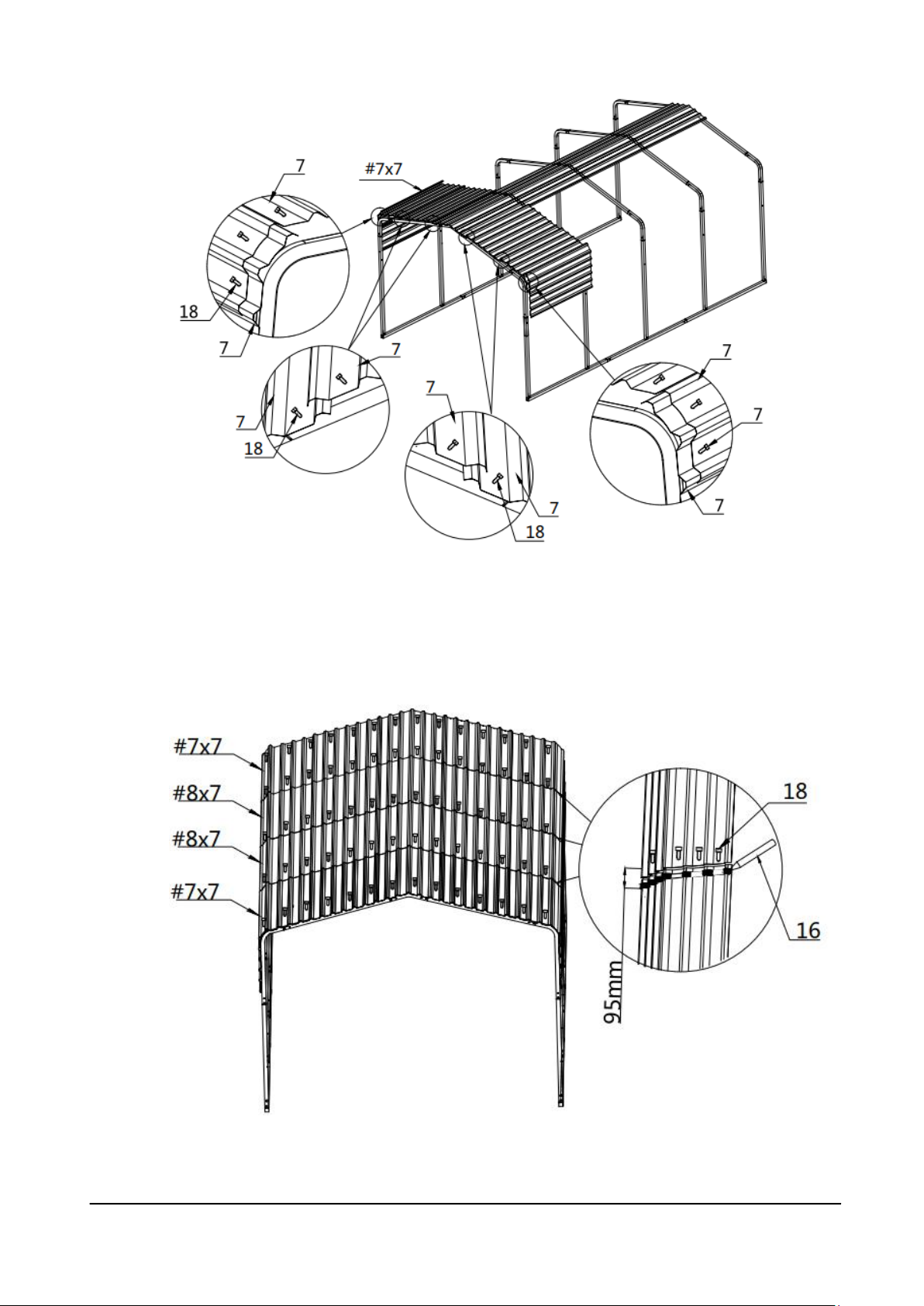

Step 4 : Install the color iron tile
Before installation, ensure that the distance between centers of each collapse is
1500mm. Install the first row of colored iron tiles from the top end. The center of the
colored steel tiles must be aligned with the midpoint of the top arch tube (you can
mark the center of the top arch tube with a line). The extension size of both ends is
50mm. The size of the middle cross overlap position is 95mm, and the cross overlap
position needs to be coated with Waterproof silicon sealant. All color iron tiles are
fixed on the truss with (#18) self tapping screws. (refer to Figure 6)
Parts used in this step :
-(14) Metal sheet (#7)
-(14) Metal sheet (#8)
-(130) Self tapping screw (#18)
-(2) Waterproof silicon sealant (#16)

W W W . T M G I N D U S T R I A L . C O M P 8 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 6
Install the first color iron tile. Take the first colored iron tile at the top as the benchmark,
ensure that both ends of each colored iron tile are aligned, install as shown in Figure 7,
and lock it on the truss with (#18) self tapping screw. (refer to Figure 7)

W W W . T M G I N D U S T R I A L . C O M P 9 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 7
Install all color iron tiles in turn, make sure that both ends of each color iron tile are
aligned, and apply Waterproof silicon sealant (#16) on the butt joint of both ends (refer to
Figure 8)
Figure 8

W W W . T M G I N D U S T R I A L . C O M P 10 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 5 : Install the front and rear edging strips
Start to install the color iron tile edge protector (#9) from one side, and align one end
with the color iron tile edge. The opening of the edge banding strip of the color iron tile
shall be aligned with the end face of the color iron tile, and the bottom buckle can be
pressed into place. It is necessary to use tools to cut out the gap at the corner so that the
edge banding strip of color iron tile can be bent and installed (refer to Figure 9)
Parts used in this step :
-(6) Edge protector (#9)
-(4) Edge buckle (#10)
Figure 9

W W W . T M G I N D U S T R I A L . C O M P 11 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Install the Edge buckle (#10), and the two raised card points of the Edge buckle are aligned
with the square holes at the interfaces of the two color iron tile edge bands, and then press the
buckle in place. The front and rear installation methods are the same. (refer to Figure 10)
Figure 10
Step 6 : Connect the crossbar
 Install the side connecting crossbar, align (#5A) side edge crossbar with the binding
strip, wrap the colored steel tile binding strip and the colored steel tile inside the
opening of the connect the crossbar, and fix them on the (# 4) Sidewall tube with (#18)
self tapping screw. The installation method is the same on both sides (refer to Figure
11)
 Parts used in this step :
-(4) side edge crossbar (#5A)
-(4) side edge crossbar (#5B)

W W W . T M G I N D U S T R I A L . C O M P 12 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 11

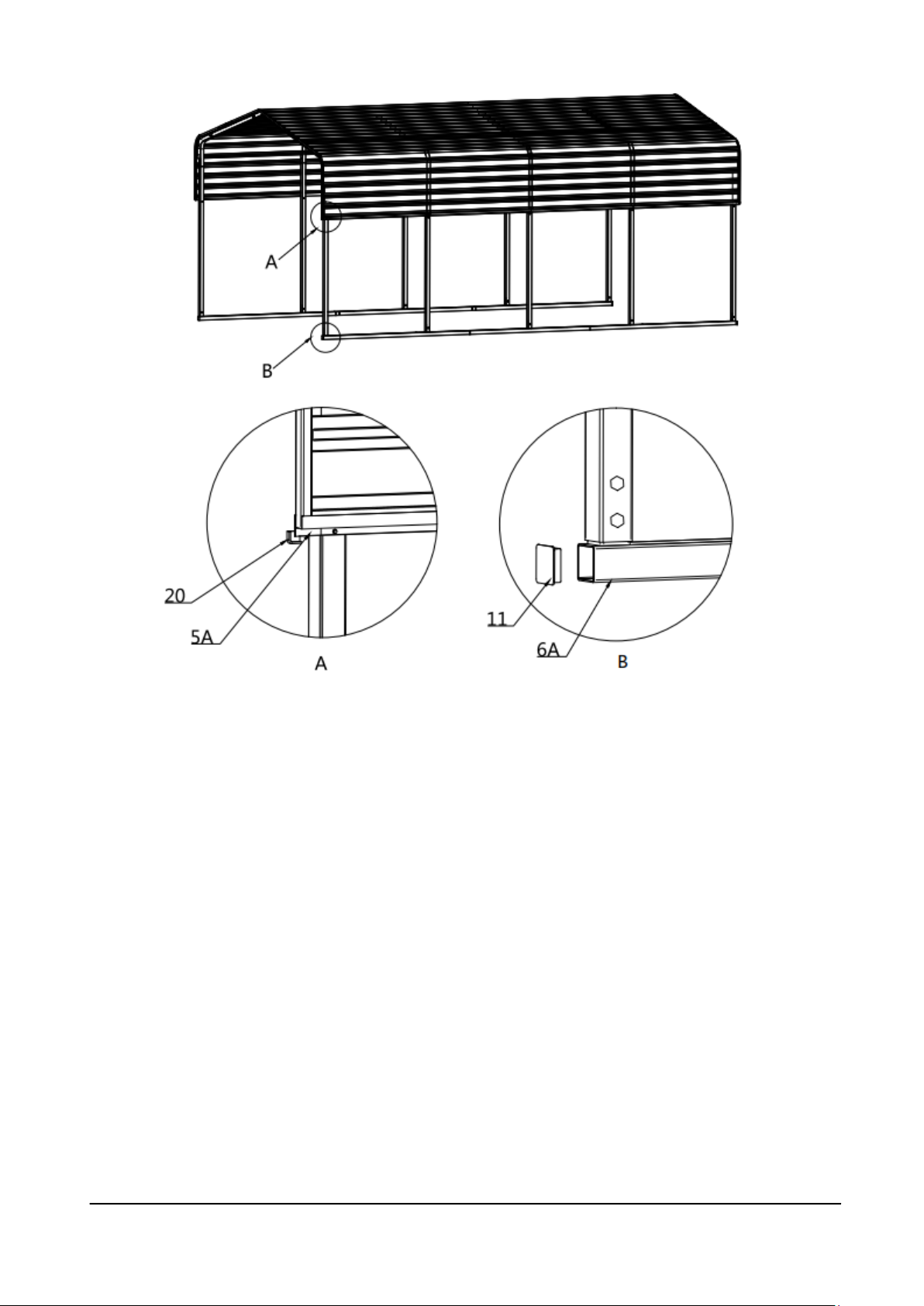

Step 7 : Install the square pipe waterproof plug and anti-collision angle
 Put the waterproof plug into the square pipe head. Tear the 3M adhesive
protective film on the anti-collision angle, and paste the anti-collision angle to
one end of (#5A)side edge crossbar. The front and rear installation methods are
the same (refer to Figure 12).
 Parts used in this step :
-(4) Water plug (#11)
-(4) Corner protector (#20)

W W W . T M G I N D U S T R I A L . C O M P 13 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 12

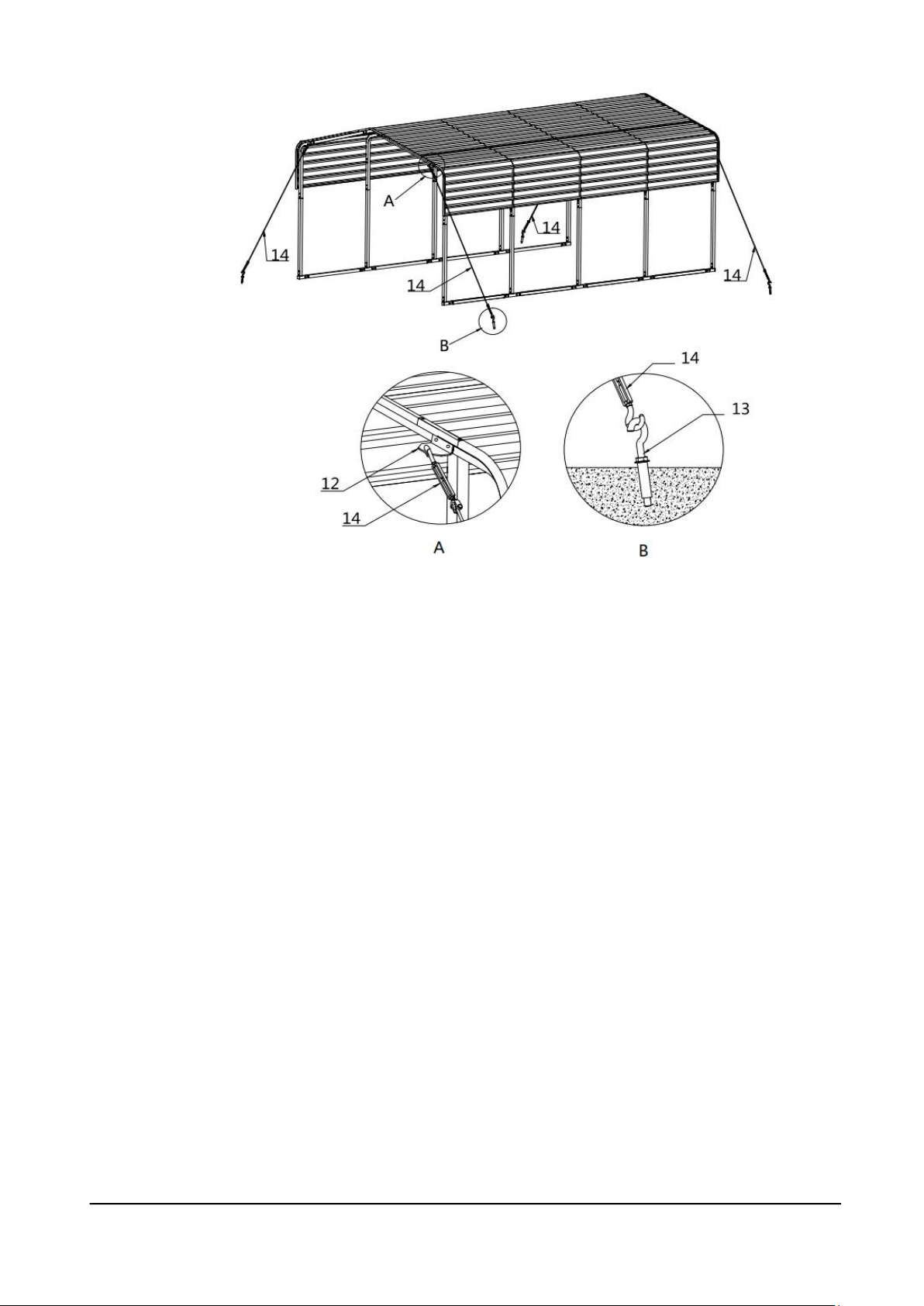

Step 8 : Install the wire rope
 Select a suitable position to fix the expansion bolt of the draw hook on the
ground, hook one end of (#14) Steel cable to (#12) Steel cable mounting plate,
and fix the other end to (#13) Anchor hook of the draw hook, adjust the nut on
the steel wire rope to tighten the steel wire rope (refer to Figure 13).
 Parts used in this step :
-(4) Anchor hook (#13)
-(4) Steel cable (#14)

W W W . T M G I N D U S T R I A L . C O M P 14 / 14 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 13
Now that your building is completely installed, we need to check all components and trusses
to make sure the whole structure is rectangular. Check whether the connection of color steel
tile fits. We provide (#19) rivets, which can be used to fix the color steel tiles where
necessary, so that they can fit together to prevent water leakage.
• All bolts installed in this step can now be tightened. Do not over tighten the bolts,
otherwise the pipes or components will be damaged.
After the Installation
Walk around and inspect the shelter periodically to make sure all components are still firmly
secured and the whole shelter is well supported. Check all bolts and nuts as well as all
connection points to make sure they are all in good position. Check the base plates, adjust the
ropes and tie downs if required and clean the cover regularly.
Snow accumulating on the fabric cover must be removed as soon as possible. If snow
becomes solid ice on the cover, it will increase the weight on the roof and may collapse the
shelter or reduce the life span.
We strongly recommend you remove any snow from the roof immediately. Do not leave any
snow load on the roof overnight. Keep 3 feet of clearance on all sides at all times. Do not
allow snow to accumulate and pile up on the sides of the building. Otherwise the pressure
from the sides will push inwards and could lead to a collapse.
