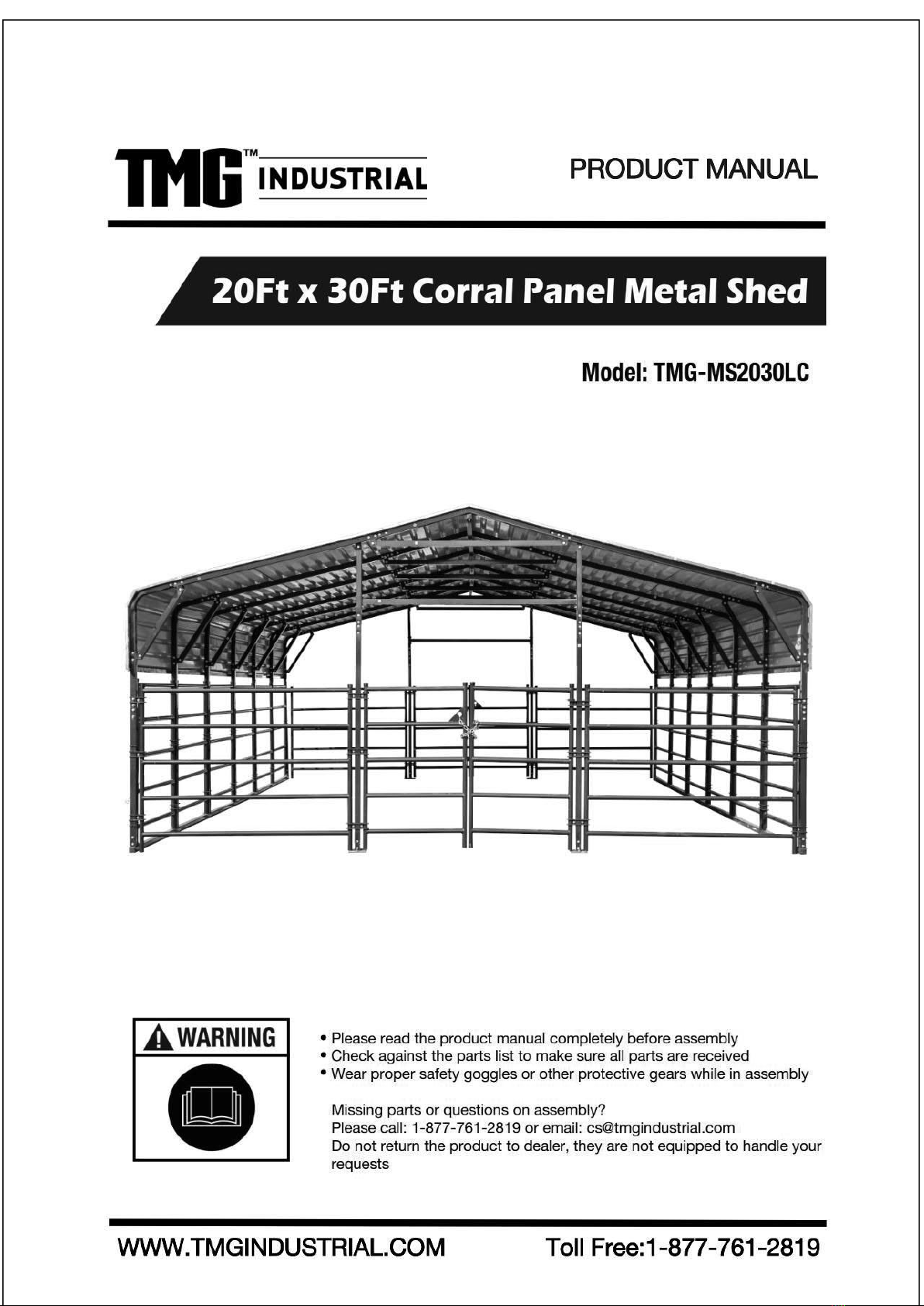

TMG TMG-MS2030LC User manual

W W W . T M G I N D U S T R I A L . C O M P 0 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

W W W . T M G I N D U S T R I A L . C O M P 1 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Main Specifications :
Overall assembled size : W6 x L9 x H3.04 (m) / 20 x 30 x 10 (ft)
Width : 6 m / 20ft
Length : 9 m / 30 ft
Ridge Peak Height : 3.04 m / 10 ft
Shoulder wall clearance height : 2.2 m / 7.2 ft
Door : W1.85 x H2.2 (m) / 6 x 7.2 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is very important to follow
your local safety regulations and industry standards during installation. Regulations may
include but are not limited to:
-Safety helmets, protective eyewear, and clothing
-Safety harnesses for all elevated workers
-Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part
number, please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make any
alterations to the structure. Do not hang any weights on the frame during installation, including
parts. We are not responsible for any damages or injuries caused by inappropriate installation,
unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and where it
touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all
parts are included prior to setup.

W W W . T M G I N D U S T R I A L . C O M P 2 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
TMG-MS2030LC Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
7
1/1
2
Middle rafter tube
10
1/1
2A
Middle rafter tube
4
1/1
3
Shoulder tube
12
1/1
3A
Shoulder tube
(middle)
2
1/1
4
Sidewall tube
14
1/1
4A
Short casing
59
1/1
5A
Side edge crossbar
(front and rear truss)
4
1/1
5B
Side edge crossbar
(middle truss)
8
1/1
5C
Top cross bar A
5
1/1
5D
Top cross bar B
1
1/1
6
Upper reinforcement
tube
7
1/1
6A
Foot tube
(front and rear)
4
1/1
6B
Foot tube
(front and rear)
4
1/1

W W W . T M G I N D U S T R I A L . C O M P 3 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

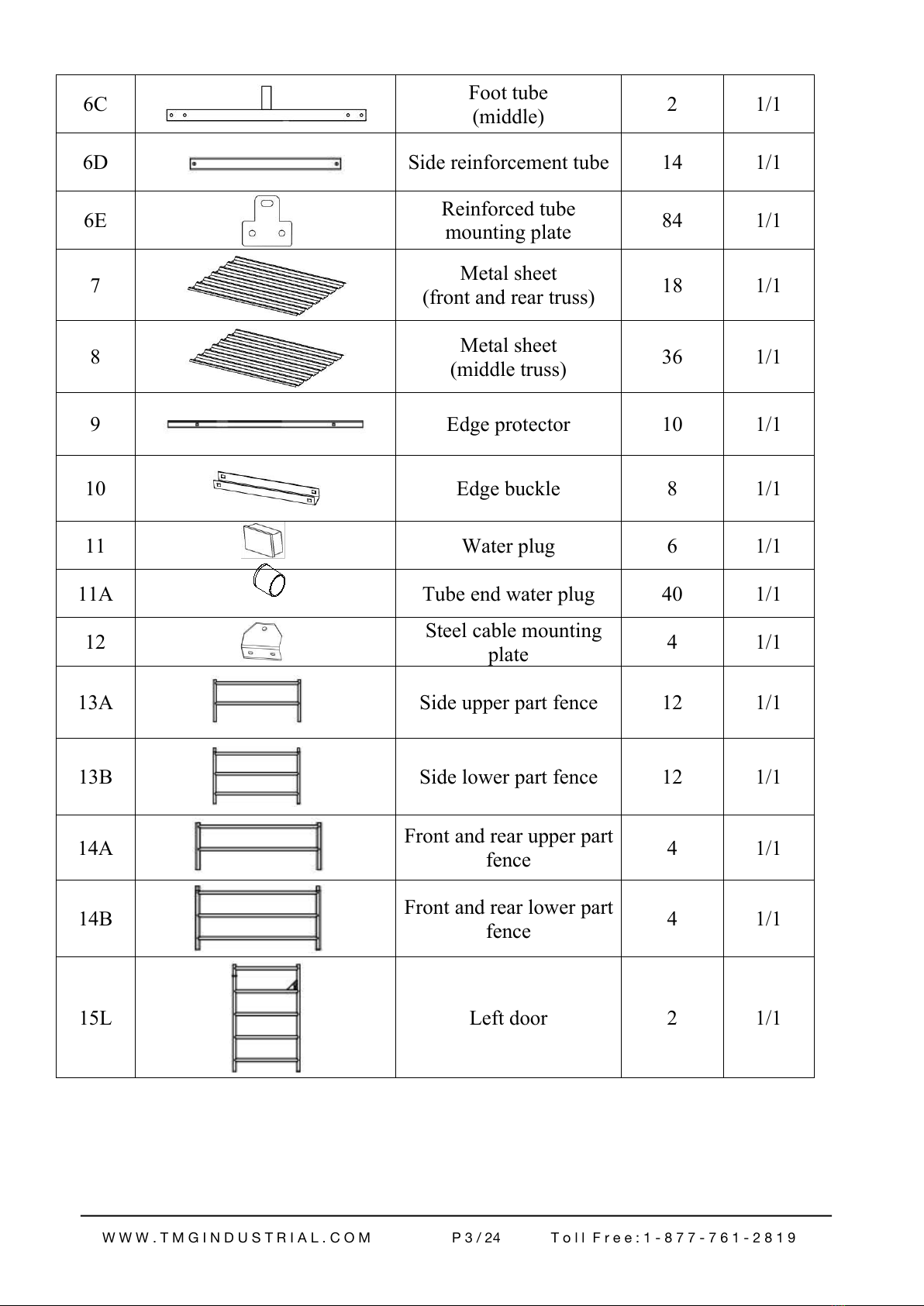

6C
Foot tube
(middle)
2
1/1
6D
Side reinforcement tube
14
1/1
6E
Reinforced tube
mounting plate
84
1/1
7
Metal sheet
(front and rear truss)
18
1/1
8
Metal sheet
(middle truss)
36
1/1
9
Edge protector
10
1/1
10
Edge buckle
8
1/1
11
Water plug
6
1/1
11A
Tube end water plug
40
1/1
12
Steel cable mounting
plate
4
1/1
13A
Side upper part fence
12
1/1
13B
Side lower part fence
12
1/1
14A
Front and rear upper part
fence
4
1/1
14B
Front and rear lower part
fence
4
1/1
15L
Left door
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 4 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
15R
Right door
2
1/1
16
Front door lower
column tube
4
1/1
17
Front door upper
column tube
4
1/1
18
Front door cross pull
tube
2
1/1
19
Baseplate
4
1/1
20
Double fastener
84
1/1
21
Single fastener
48
1/1
22
Anchor hook
（M14x120mm）
6
1/1
23
Steel cable（3.9m）
6
1/1
24
Expansion bolt
(φ16x150mm)
22
1/1
25
Waterproof silicon
sealant
4
1/1
25A
Teroson statu
1
1/1
26
Hex bolt M10x70mm
345
1/1
27
Self tapping screw
M5x25mm
370
1/1
28
Rivet
φ3x6mm
70
1/1
29
Corner protector
4
1/1
30
Hex bolt M10x120mm
7
1/1

W W W . T M G I N D U S T R I A L . C O M P 5 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
31
Sleeve
2
1/1
32
Eyebolt
2
1/1
33
Hex bolt M10x30mm
112
1/1

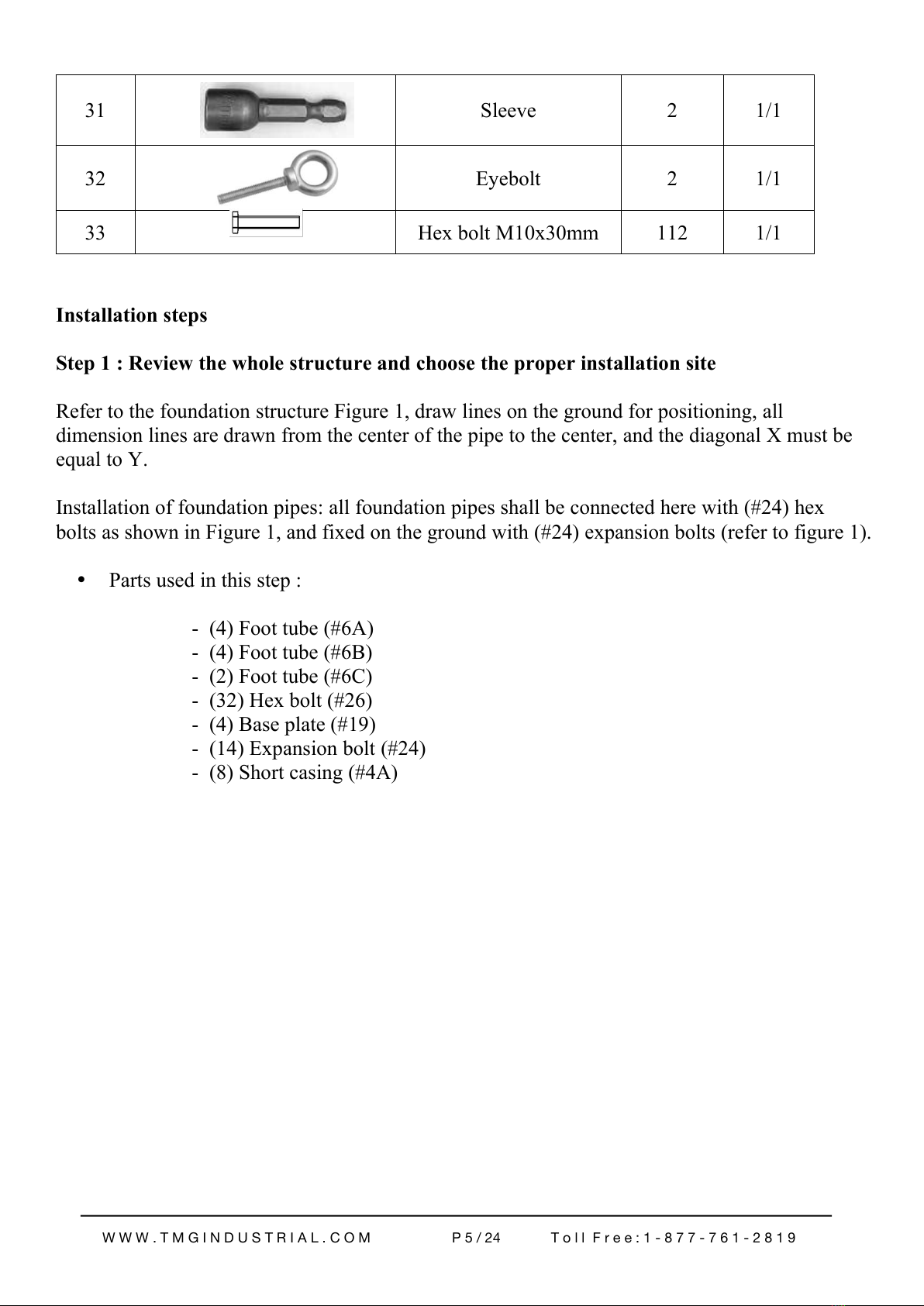

Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Refer to the foundation structure Figure 1, draw lines on the ground for positioning, all
dimension lines are drawn from the center of the pipe to the center, and the diagonal X must be
equal to Y.
Installation of foundation pipes: all foundation pipes shall be connected here with (#24) hex
bolts as shown in Figure 1, and fixed on the ground with (#24) expansion bolts (refer to figure 1).
Parts used in this step :
- (4) Foot tube (#6A)
- (4) Foot tube (#6B)
- (2) Foot tube (#6C)
- (32) Hex bolt (#26)
- (4) Base plate (#19)
- (14) Expansion bolt (#24)
- (8) Short casing (#4A)

W W W . T M G I N D U S T R I A L . C O M P 6 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 1
Step 2 : Assemble all trusses
The building includes 7 trusses : (1) front truss, (1) rear truss, (1) middle trusses and
(4) other trusses.
 Parts used to install the front and rear truss in this step (refer to figure 2).
- (1x2) Peak arch tube (#1)
- (2x2) Middle rafter tube (#2A)
- (2x2) Shoulder tube (#3)
- (2x2) Sidewall tube (#4)
- (6x2) Short casing (#4A)
- (1x2) Upper reinforcement tube (#6)
- (2x2) Side reinforcement tube (#6D)
- (12x2) Reinforced tube mounting plate (#6E)
- (2x2) Steel cable mounting plate (#12)
- (34x2) Hex bolt M10x70mm (#26)

W W W . T M G I N D U S T R I A L . C O M P 7 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

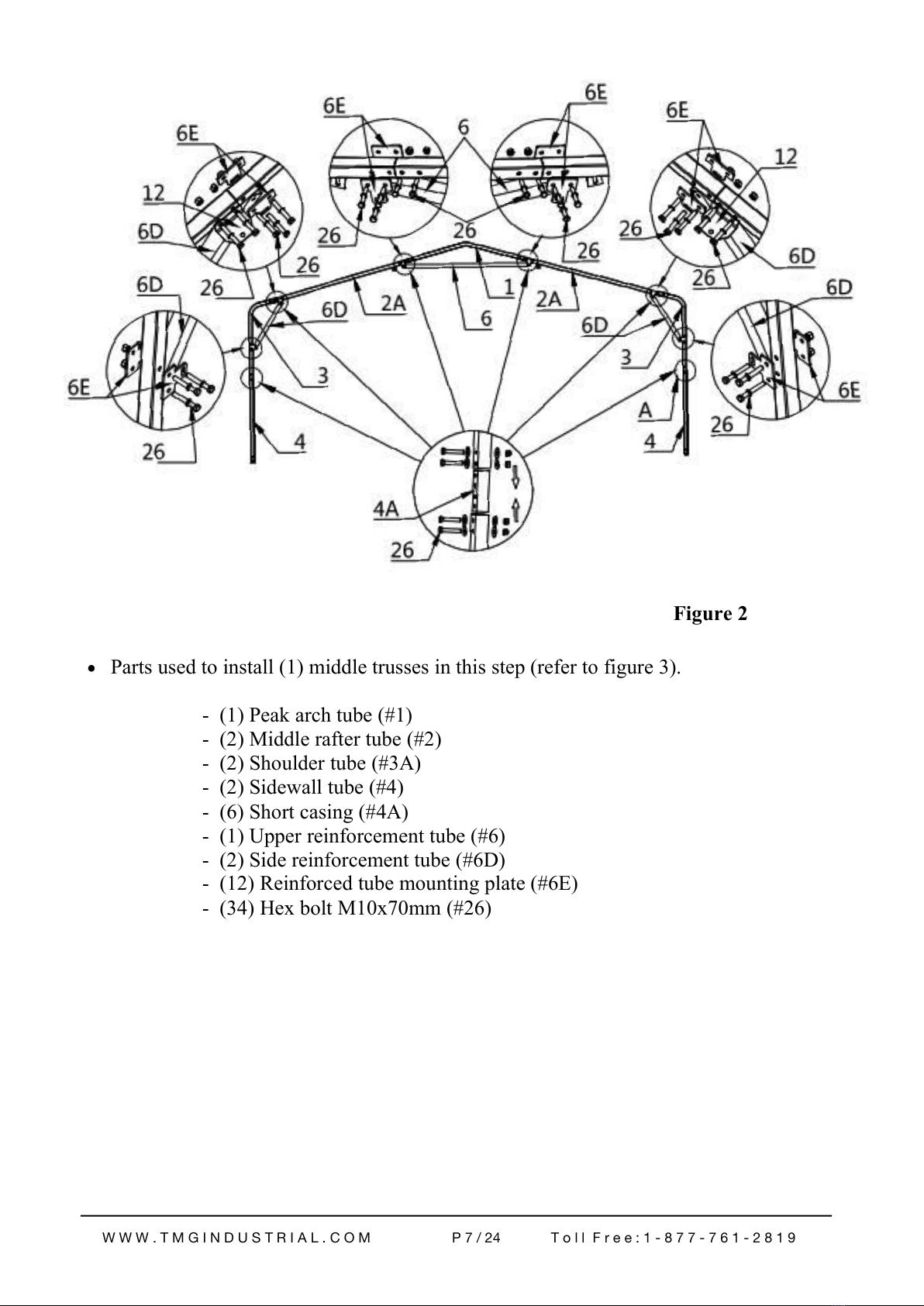

Figure 2
 Parts used to install (1) middle trusses in this step (refer to figure 3).
- (1) Peak arch tube (#1)
- (2) Middle rafter tube (#2)
- (2) Shoulder tube (#3A)
- (2) Sidewall tube (#4)
- (6) Short casing (#4A)
- (1) Upper reinforcement tube (#6)
- (2) Side reinforcement tube (#6D)
- (12) Reinforced tube mounting plate (#6E)
- (34) Hex bolt M10x70mm (#26)

W W W . T M G I N D U S T R I A L . C O M P 8 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 3
 Parts used to install (4) other trusses in this step (refer to figure 4).
- (1x4) Peak arch tube (#1)
- (2x4) Middle rafter tube (#2)
- (2x4) Shoulder tube (#3)
- (2x4) Sidewall tube (#4)
- (6x4) Short casing (#4A)
- (1x4) Upper reinforcement tube (#6)
- (2x4) Side reinforcement tube (#6D)
- (12x4) Reinforced tube mounting plate (#6E)
- (34x4) Hex bolt M10x60mm
(#26)

W W W . T M G I N D U S T R I A L . C O M P 9 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

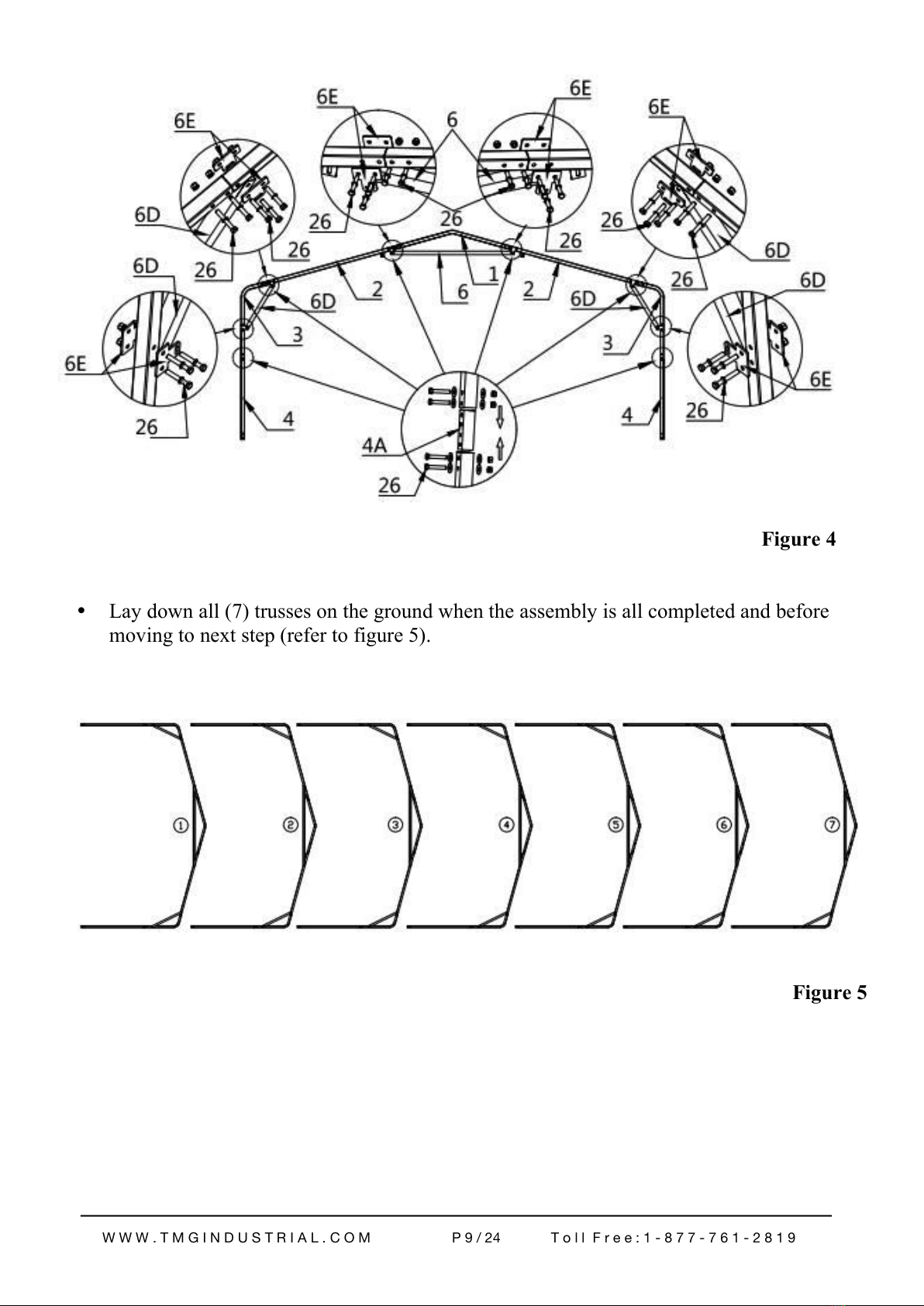

Figure 4
Lay down all (7) trusses on the ground when the assembly is all completed and before
moving to next step (refer to figure 5).
Figure 5

W W W . T M G I N D U S T R I A L . C O M P 10 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 3 : Assemble all trusses to the foundation pipe and connect them with (#17) bolts
The front and rear trusses are installed with one side of (#12) Steel cable mounting plate
facing outwards (refer to figure 6).
Parts used in this step :
- (4x7) Hex bolt (#26)
Figure 6

W W W . T M G I N D U S T R I A L . C O M P 11 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Install top cross bar A (#5C) and top cross bar B (#5D). Use (#30) and (#26) Hexagonal bolt
fixation (refer to figure 7).
Parts used in this step :
- (5) Top cross bar A (#5C)
- (1) Top cross bar B (#5D)
- (5) Short casing (#4A)
- (15) Hex bolt (#26)
- (7) Hex bolt (#30)
Figure 7

W W W . T M G I N D U S T R I A L . C O M P 12 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

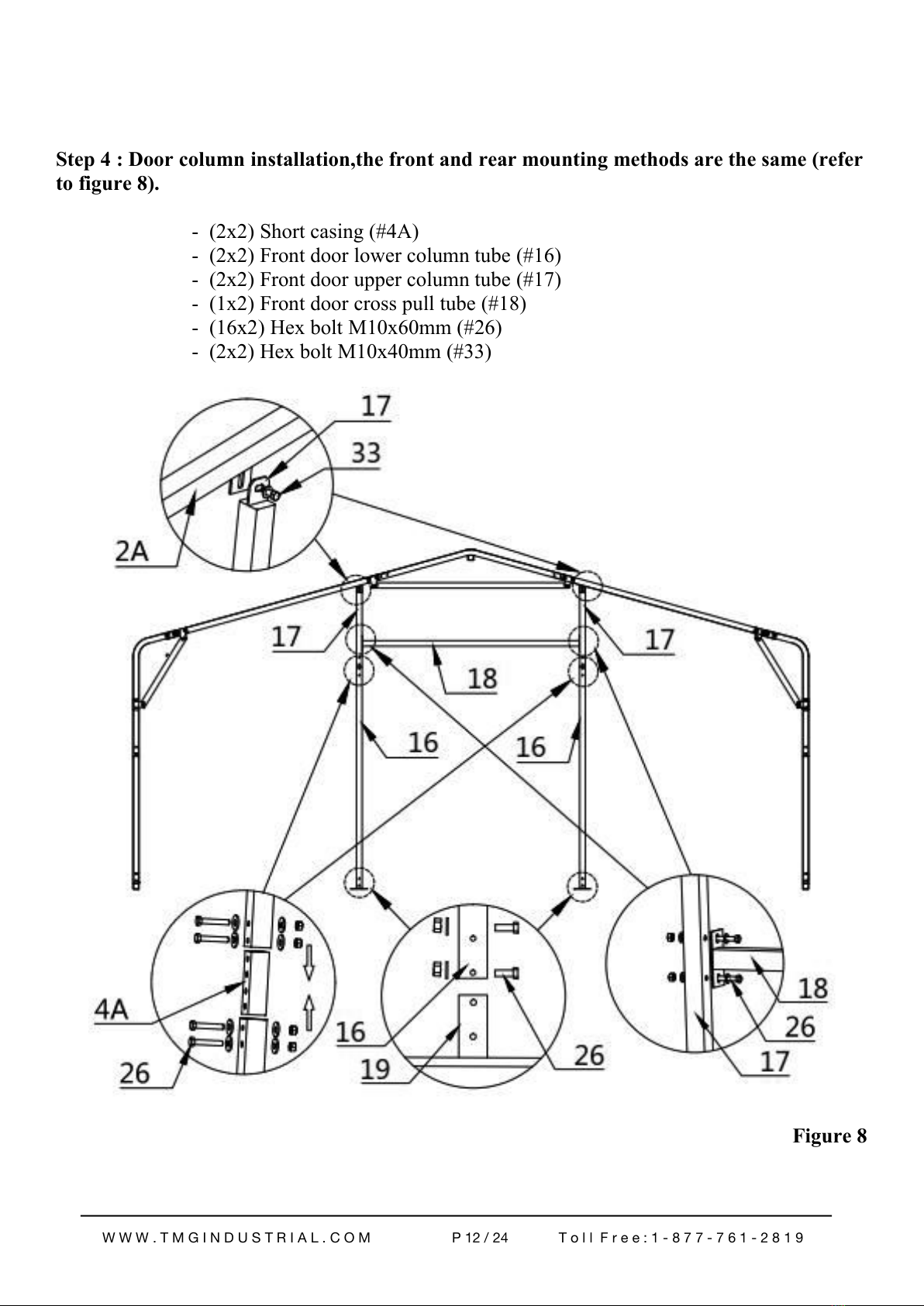

Step 4 : Door column installation,the front and rear mounting methods are the same (refer
to figure 8).
- (2x2) Short casing (#4A)
- (2x2) Front door lower column tube (#16)
- (2x2) Front door upper column tube (#17)
- (1x2) Front door cross pull tube (#18)
- (16x2) Hex bolt M10x60mm (#26)
- (2x2) Hex bolt M10x40mm (#33)
Figure 8

W W W . T M G I N D U S T R I A L . C O M P 13 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

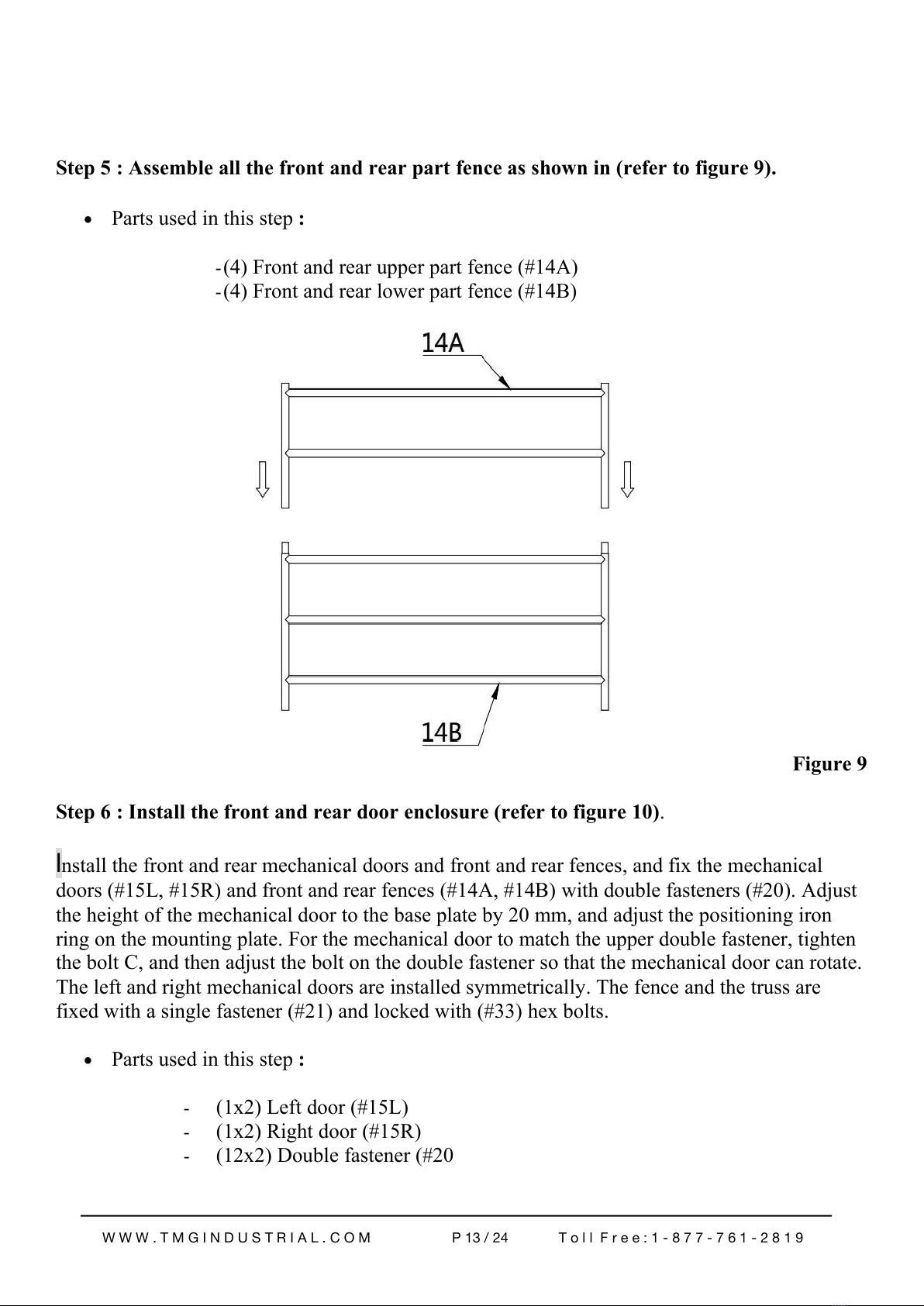

Step 5 : Assemble all the front and rear part fence as shown in (refer to figure 9).
 Parts used in this step :
- (4) Front and rear upper part fence (#14A)
- (4) Front and rear lower part fence (#14B)
Figure 9
Step 6 : Install the front and rear door enclosure (refer to figure 10).
lnstall the front and rear mechanical doors and front and rear fences, and fix the mechanical
doors (#15L, #15R) and front and rear fences (#14A, #14B) with double fasteners (#20). Adjust
the height of the mechanical door to the base plate by 20 mm, and adjust the positioning iron
ring on the mounting plate. For the mechanical door to match the upper double fastener, tighten
the bolt C, and then adjust the bolt on the double fastener so that the mechanical door can rotate.
The left and right mechanical doors are installed symmetrically. The fence and the truss are
fixed with a single fastener (#21) and locked with (#33) hex bolts.
 Parts used in this step :
- (1x2) Left door (#15L)
- (1x2) Right door (#15R)
- (12x2) Double fastener (#20

W W W . T M G I N D U S T R I A L . C O M P 14 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
- (12x2) Single fastener (#21)
- (18x2) Hex bolt M10x40mm (#33)
Figure 10
Step 7 : Assemble all the side part fence as shown in (refer to figure 11).
 Parts used in this step :
- (12) Side upper part fence (#13A)
- (12) Side lower part fence (#13B)

W W W . T M G I N D U S T R I A L . C O M P 15 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 11
Step 8 : Install fences on both sides
 Install the fence between the trusses, the left and right trusses and fences are fixed
with single fastener (#21), middle trusses and fences are fixed with double fastener
(#20), and locked with hex bolt (#33) , same installation method on both sides
(refer to figure 12).
 Parts used in this step :
- (30x2) Double fastener (#20)
- (12x2) Single fastener (#21)
- (36x2) Hex bolt M10x40mm (#33)

W W W . T M G I N D U S T R I A L . C O M P 16 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

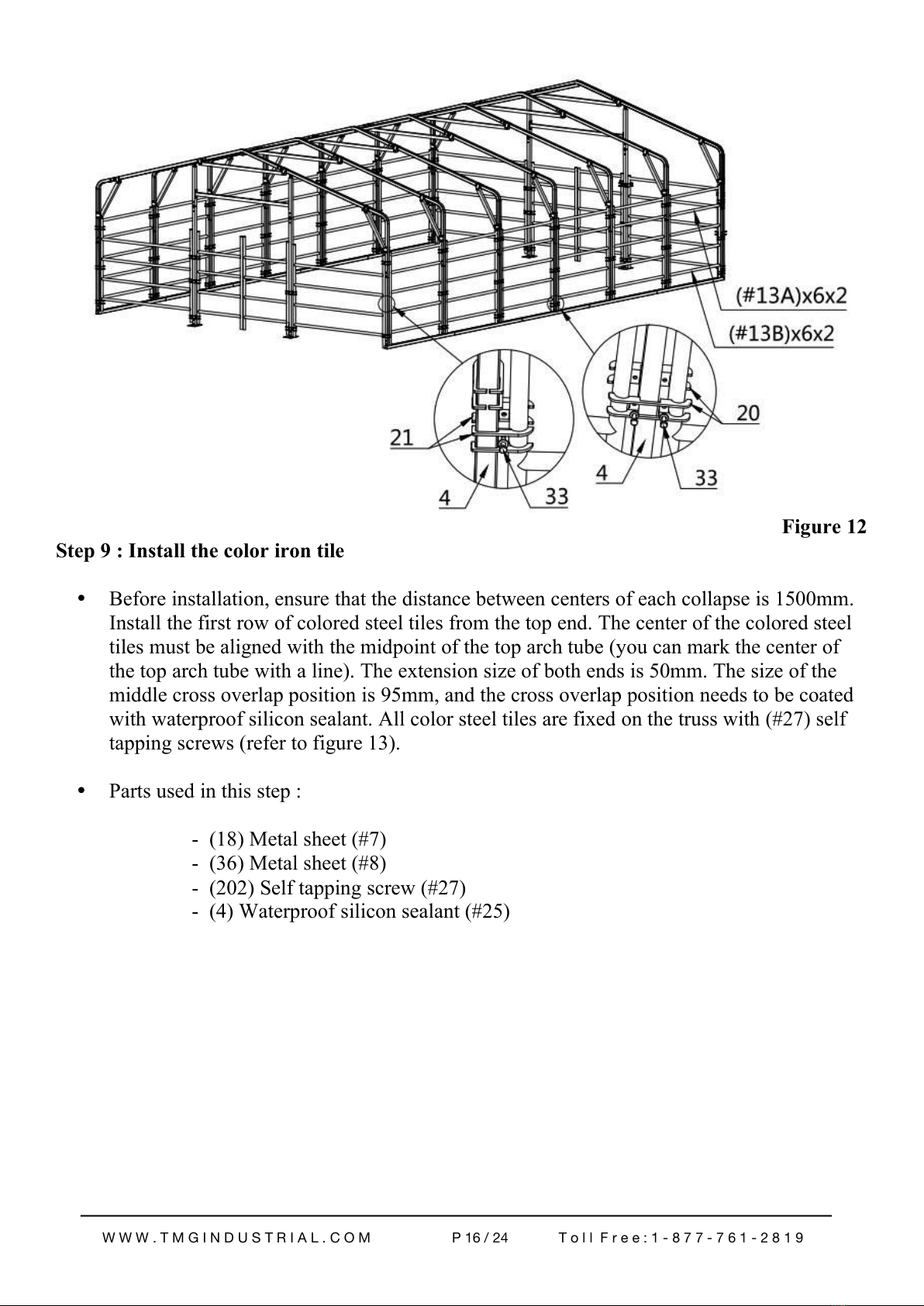

Figure 12
Step 9 : Install the color iron tile
Before installation, ensure that the distance between centers of each collapse is 1500mm.
Install the first row of colored steel tiles from the top end. The center of the colored steel
tiles must be aligned with the midpoint of the top arch tube (you can mark the center of
the top arch tube with a line). The extension size of both ends is 50mm. The size of the
middle cross overlap position is 95mm, and the cross overlap position needs to be coated
with waterproof silicon sealant. All color steel tiles are fixed on the truss with (#27) self
tapping screws (refer to figure 13).
Parts used in this step :
- (18) Metal sheet (#7)
- (36) Metal sheet (#8)
- (202) Self tapping screw (#27)
- (4) Waterproof silicon sealant (#25)

W W W . T M G I N D U S T R I A L . C O M P 17 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 13
Install all color iron tiles in turn, take the first colored steel tile at the top as the benchmark make
sure that both ends of each color iron tile are aligned, and apply waterproof silicon sealant (#25)
on the butt joint of both ends (refer to figure 14).

W W W . T M G I N D U S T R I A L . C O M P 18 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Figure 14
Step 10 : Install the front and rear edging strips
Start to install the color steel tile edge protector (#9) from one side, and align one end with
the color steel tile edge. The opening of the edge banding strip of the color steel tile shall be
aligned with the end face of the color steel tile, and the bottom buckle can be pressed into
place. It is necessary to use tools to cut out the gap at the corner so that the edge banding
strip of color steel tile can be bent and installed (refer to figure 15).
Parts used in this step :
- (10) Edge protector (#9)
- (8) Edge buckle (#10)

W W W . T M G I N D U S T R I A L . C O M P 19 / 24 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

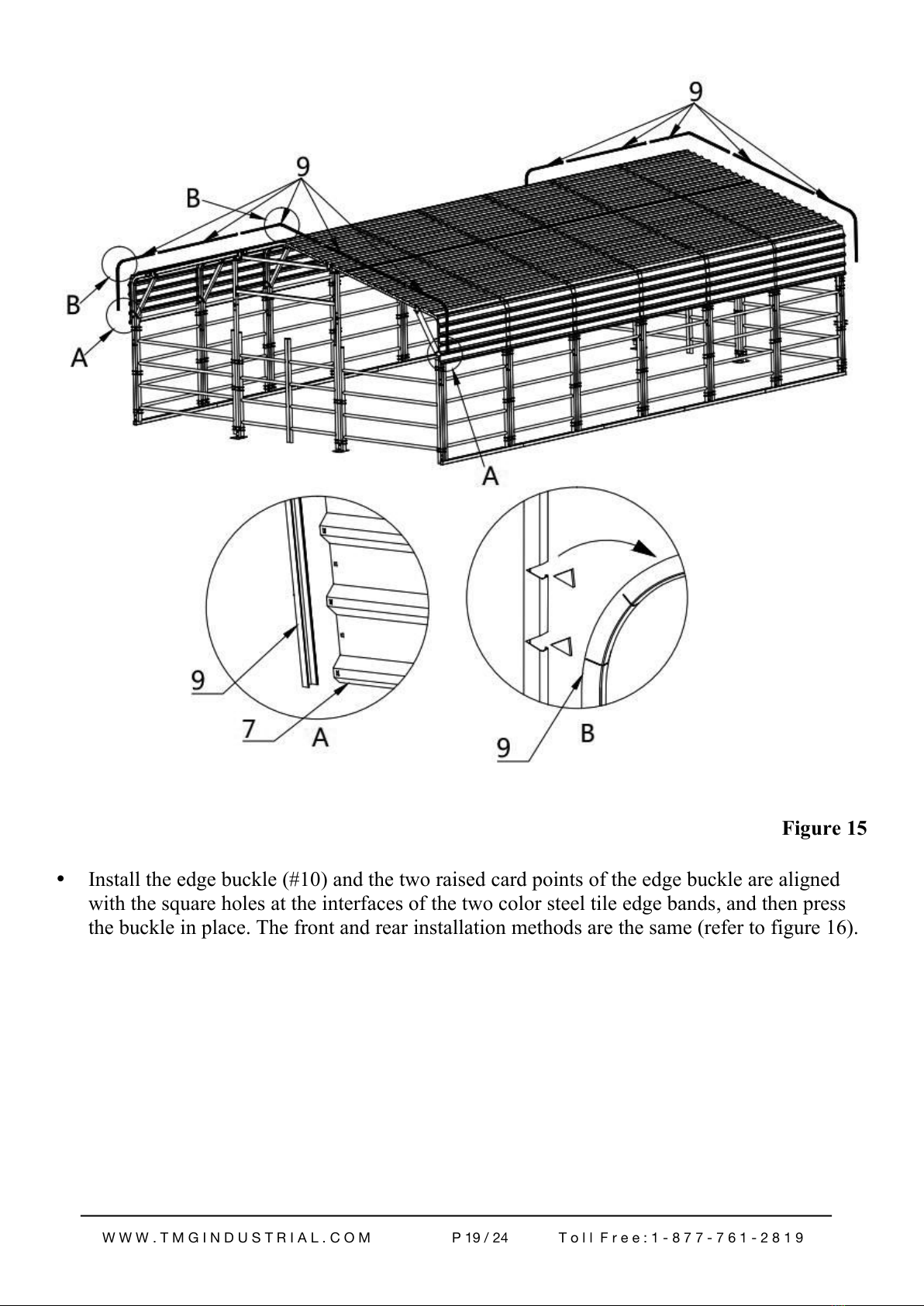

Figure 15
Install the edge buckle (#10) and the two raised card points of the edge buckle are aligned
with the square holes at the interfaces of the two color steel tile edge bands, and then press
the buckle in place. The front and rear installation methods are the same (refer to figure 16).
