MAIN SPECIFICATIONS :
Assembly size : W12.2 x L24 x H6.4 (m) / 40 x 78.7 x 21 (ft)
Outside width : 12.2 m / 40ft, inside width : 11.4 m / 37.4ft, length : 24m / 78.7ft
Ridge peak height : 6.4 m / 21 ft
Peak clearance height : 5.8 m / 19 ft
Front roll up door : 4.6 x 4.7 (m) / 15 x 15.4 (ft)
Rear roll up door : 6 x 4.2 (m) / 19.7 x 13.8 (ft) (wider door side)
Shoulder wall clearance height : 3.5 m / 11.5 ft
PRIOR TO ASSEMBLY
Please read the instructions carefully before installation. It is very important to follow your local safety regulations and
industry standards during installation. Regulations may include but are not limited to:
• Safety helmets, protective eyewear, and clothing
• Safety harnesses for all elevated workers
• Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part number, please refer to the parts
list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make any alterations to the structure.
Do not hang any weights on the frame during installation, including parts. We are not responsible for any damages or
injuries caused by inappropriate installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and where it touches the cover. This
will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all parts are included prior to setup.

►www.tmgindustrial.com 2/27 TOLL FREE:1-877-761-2819
INSTALLATION STEPS
STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE
Choose a solid flat level ground area to set up the building. Do not install the building on soft ground, wetland, uneven
surfaces, sloped surfaces, or on top of structures that are not rated to hold its weight.
We strongly recommend that you put the containers on hard foundations before installing the shelter.
Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames or exposed electrical wires.
Do not keep heat sources near the fabric cover. Keep the building surroundings clear at all times.
Check the parts list below to make sure all parts are received prior to assembly.

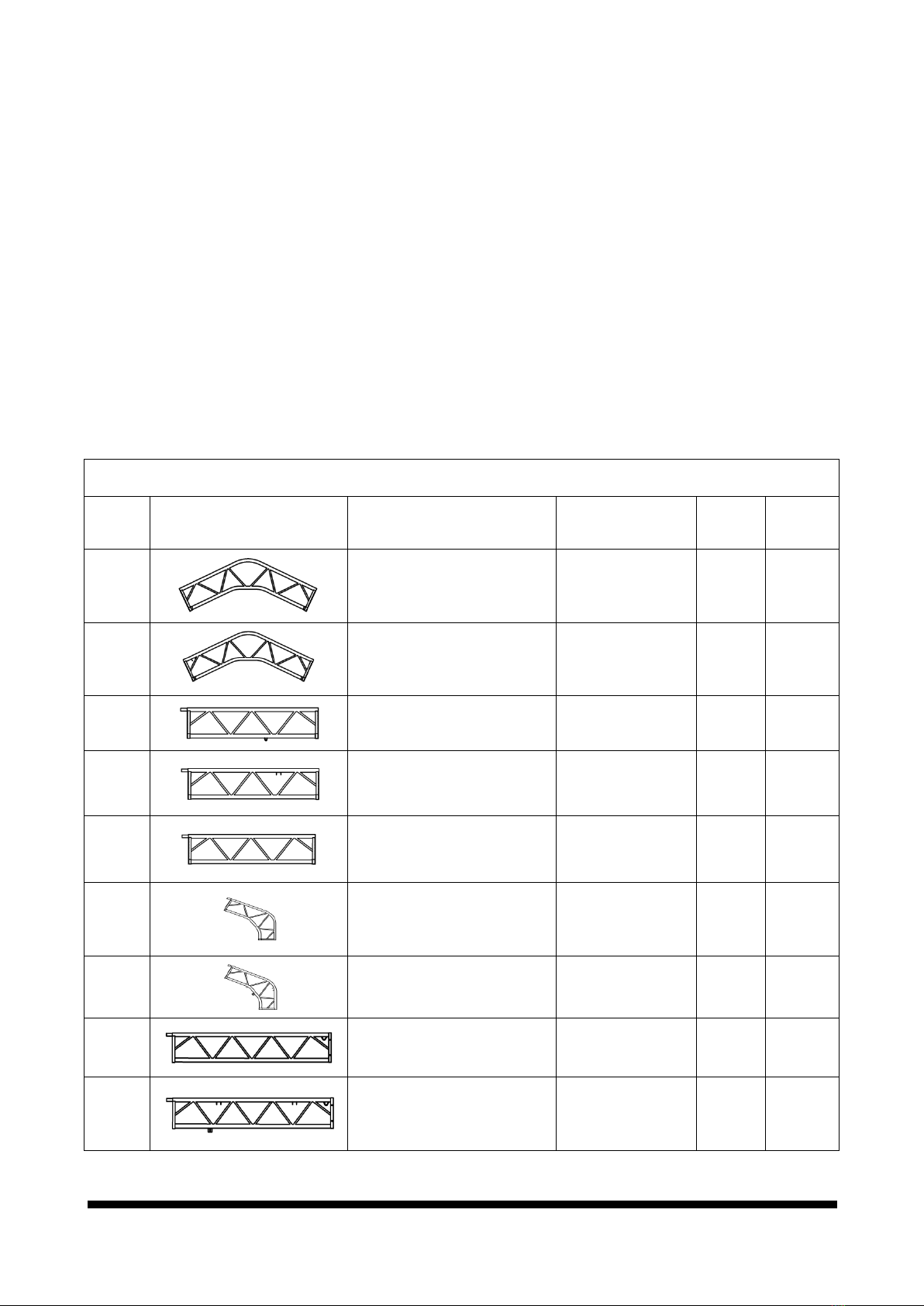

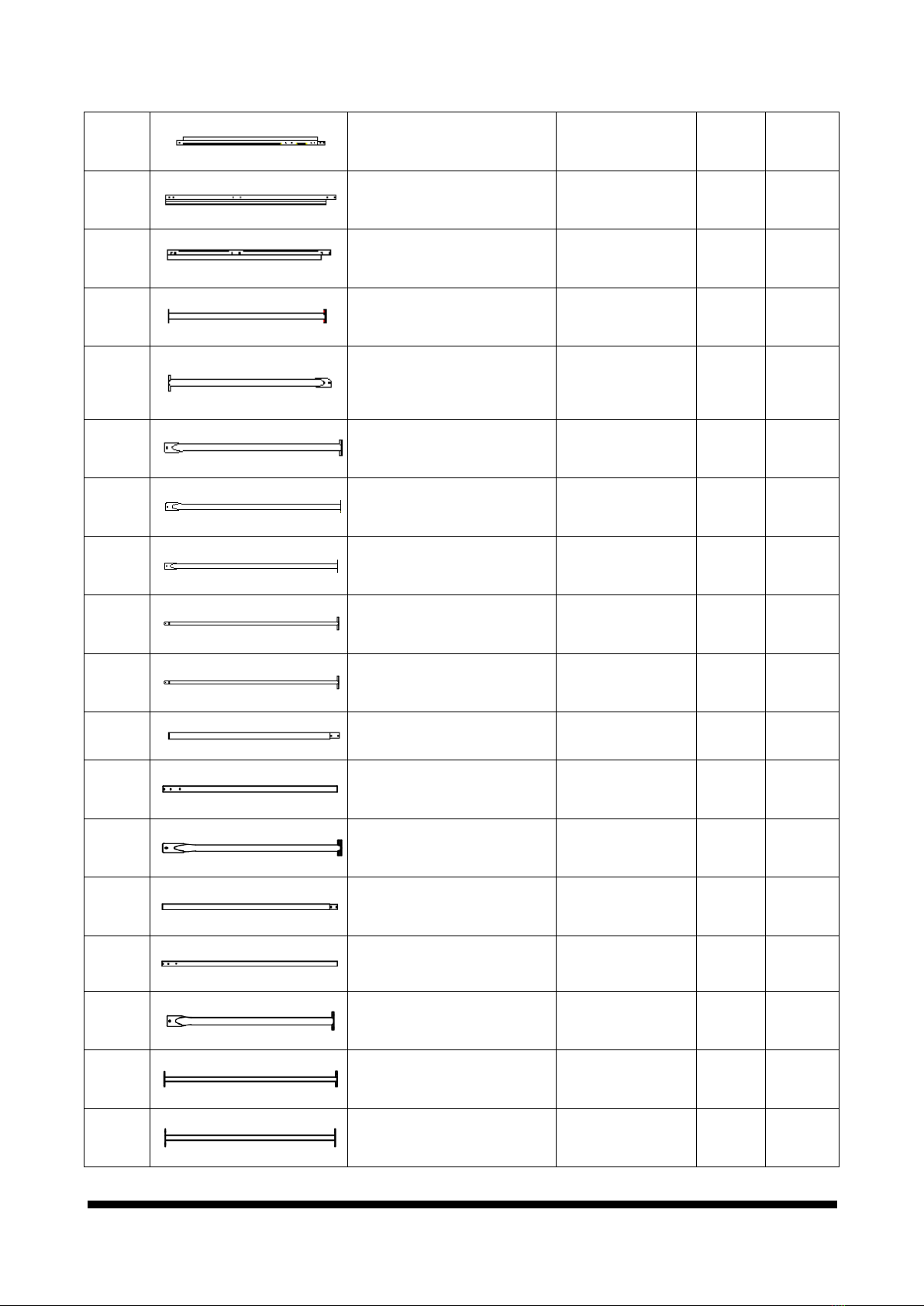

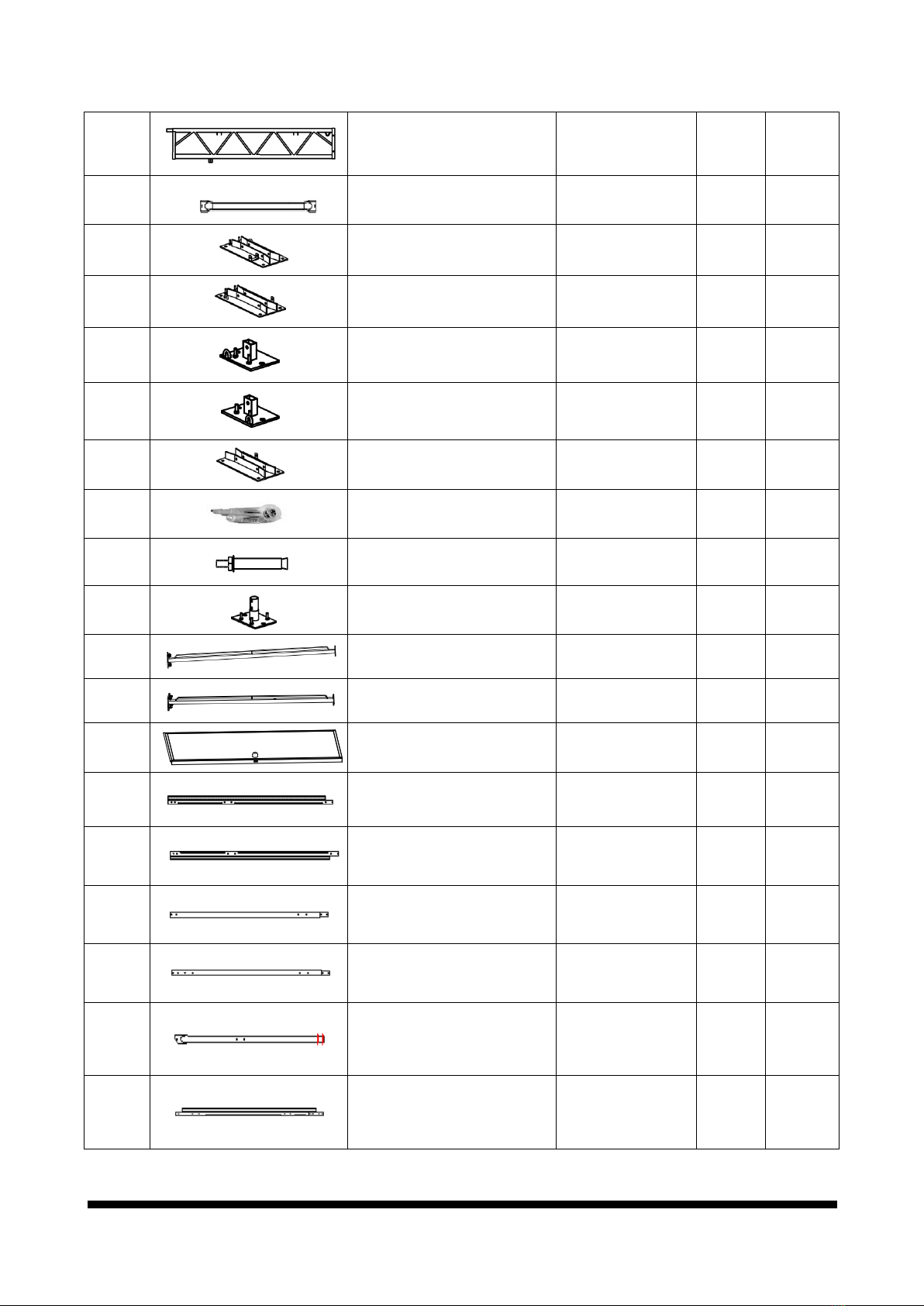

TMG-DT4081-PRO PART LIST
PARTS
CODE
GRAPHICAL
DESCRIPTION
LENGTH
QTY
BOX
1
Peak arch tube
(for 9 middle trusses )
L2550mm
9
B
1A
Peak arch tube
(for front and rear truss)
L2550mm
2
B
2
Upper rafter tube
(for middle truss)
L2113mm
18
C
2A
Up and low rafter tube
(for front and rear truss)
L2113mm
8
D
2B
Lower rafter tube
(for middle truss)
L2113mm
18
Cx14
Dx4
3
Shoulder tube
(for middle truss)
L1987mm
18
Ax8
Bx6
Dx4
3A
Shouldertube
(front and rear truss)
L1987mm
4
B
4
Sidewall tube
(middle truss)
L2758mm
18
A
4A
Sidewall tube
(left and right for front truss
and left for rear truss)
L2758mm
3
A

►www.tmgindustrial.com 3/27 TOLL FREE:1-877-761-2819
4B
Sidewall tube
(right for rear truss）
L2758mm
1
A
5
Roof purl in
(horizontal tube)
L2440mm
90
A
5L
Base plate for front and rear
truss left corners
L520xW260mm
2
B
5R
Base plate for front and rear
truss right corners
L520xW260mm
2
B
6L
Left base plate of front and
rear door frame
L200xW150mm
2
B
6R
Right base plate of front and
rear door frame
L200xW150mm
2
B
7
Base plates for middle truss
L480xW260mm
18
B
7A
Ratchets
3.0T
50
B
7B
Expansion bolts
φ16x150mm
108
B
8A
Front door right column base
plate
L200xW150mm
2
B
9A
Side door left tube
L2027mm
2
D
9B
Side door right tube
L2027mm
2
D
9C
Side door
L2005xW925mm
2
D
9L
Front vertical door rail
(left side upper part)
L2515mm
1
B
9R
Front vertical door rail
(right side upper part)
L2515mm
1
B
10
Left lower vertical tubes for
front trusses
L2180mm
1
B
10A
Right lower vertical tubes for
front trusses
L2180mm
1
B
10B
Upper vertical tubes for front
truss (connect to #10 and
#10A)
L1875mm
2
B
10L
Front and rear vertical door
rail
(left side lower part)
L2255mm
2
B

►www.tmgindustrial.com 4/27 TOLL FREE:1-877-761-2819
10R
Front and rear vertical door
rail(right side lower part)
L2255mm
2
B
11L
Rear vertical door rail
(left side upper part)
L2190mm
1
B
11R
Rear vertical door rail
(right side upper part)
L2190mm
1
B
12
Front door cross tubes
(left and right)
L1664mm
4
D
12A
Front door upper crossing
tubes (connect #12 left and
right)
L1513mm
2
B
12B
Front door lower crossing
tubes (connect #12 right)
L1639mm
1
B
12C
Rear truss upper cross tubes
(left and right)
L2493mm
2
B
12D
Rear truss lower cross tubes
(right)
L2646mm
1
B
12E
Side door upper tube (front)
L1638mm
1
D
12F
Side door upper tube (rear)
L2630mm
1
B
13
Front door cross beam (left）
L2289mm
1
B
13A
Front door cross beam (right)
L2289mm
1
B
13B
Front door center vertical
supporting rod for cross beam
L1097mm
1
B
13C
Rear door cross beam (left)
L2989mm
1
A
13D
Rear door cross beam (right)
L2987mm
1
A
13E
Rear door center vertical
supporting rod for cross beam
L1422mm
1
B
14
Front door hand winch
crossing tube
L1660mm
1
A
14A
Rear door hand winch cross
tube
L2663mm
1
A

►www.tmgindustrial.com 5/27 TOLL FREE:1-877-761-2819
15
Tarp cover tension tubes on
both sides
L1993mm
24
D
15A
Tarp cover tension tubes on
both sides (shorter tube, can
be on either end)
L900mm
2
D
16
Front roll up door dropping
tubes
(to connect #16A)
L2355mm
7
B
16A
Front roll up door dropping
tubes
(to connect #16)
L2353mm
7
B
16B
Rear roll up door dropping
tubes
(to connect #16C)
L3060mm
7
A
16C
Rear roll up door dropping
tubes
(to connect #16B)
L3058mm
7
A
17
Sidewall frame steel tension
cables
L3800mm
24
B
17A
Ridge steel tension cables
(front and rear trusses)
L3240mm
8
B
17B
Rafter steel tension cables
( Front and rear trusses)
L2860mm
8
B
17C
Shoulder steel tension cables
( Front and rear trusses)
L3000mm
8
B
18A
Front truss left steel cables
L4180mm
2
B
18B
Rear truss left right cables
L3700mm
2
B
18C
Middle truss crossing steel
tension cables
L4100mm
9
B
19
Front fabric panel tension
tubes
L1610mm
3
D
19A
Front fabric panel tension
tubes
L440mm
1
D
19B
Rear fabric panel tension
tubes
L1430mm
1
D
20
Rear fabric panel tension
tubes
L2620mm
1
A

►www.tmgindustrial.com 6/27 TOLL FREE:1-877-761-2819
21
Tie down straps
(for #7A and front and rear
arches)
W38xL800mm
50
B
22
Cable connection plate
L91mm
36
B
22A
Pressing plate
L2000mm
12
B
22B
Pressing plate
L1000mm
2
B
23
Roll up door hand winch
1200lb
2
B
23A
Wire rope for front door hand
winch
φ4xL15m
1
B
23B
Wire rope for rear door hand
winch
φ4xL14.2m
1
B
23C
Left pulley system for front
and rear doors
L149mm
2
B
23D
Right pulley system for front
and rear doors
L149mm
2
B
24
Front and rear vertical door
rail connection plate
L240mm
4
B
24A
Front and rear vertical door
rail end plate (floatable to
keep door rail straight)
L215mm
4
B
24B
Pipe clamps for front and rear
vertical tubes to connect to
truss frame
φ58mm
8
B
25
Tension tube end water plug
φ32mm
16
B
26
Self locking bolt and nuts
M10x80mm
99
B
27
Self locking bolt and nuts
M8x80mm
8
B
28
Hex bolt and nuts
M12x30mm
440
B
29
Hex bolt and nuts
M10x30mm
8
B
29A
Hex bolt and nuts
M10x50mm
8
B
30
Hex bolt and nuts
M10x60mm
44
B

►www.tmgindustrial.com 7/27 TOLL FREE:1-877-761-2819
31
Hex bolt and nuts
M10x80mm
32
B
32
Tension ropes
(tie to front and back doors)
φ8xL160m
1
bundle
B
33
Roof fabric tarp cover
L24.62xW21.12m
1
B
34
Front truss fabric tarp panel
L12.2xW6.55m
1
B
34A
Front roll up door fabric tarp
panel
L4.82xW4.56m
1
B
35
Rear truss fabric tarp panel
L12.2xW6.55m
1
B
35A
Rear roll up door fabric tarp
panel
L5.96xW4.53m
1
B
36
Front and rear fabric tarp
secure pin
φ6x200mm
2
A
37
Plastic hose
(in grooves at both ends of
#33)
φ25x4000mm
10
A
37A
Connector (for connection
#37)
φ25
8
B
38
Scratch resistant tape
L10m
5
B
39
Tapping screw
M5x25mm
104
B

►www.tmgindustrial.com 8/27 TOLL FREE:1-877-761-2819
STEP 2 : BASE PLATE POSITIONING AND INSTALLATION.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
5L
2
7
18
5R
2
7B
100
6L
2
8A
2
6R
2

►www.tmgindustrial.com 9/27 TOLL FREE:1-877-761-2819
STEP 3 : INSTALL THE FRONT TRUSS.
PARTS
CODE
PART
QTY
1A
1
2A
4
3A
2
4A
2
28
32

►www.tmgindustrial.com 10/27 TOLL FREE:1-877-761-2819

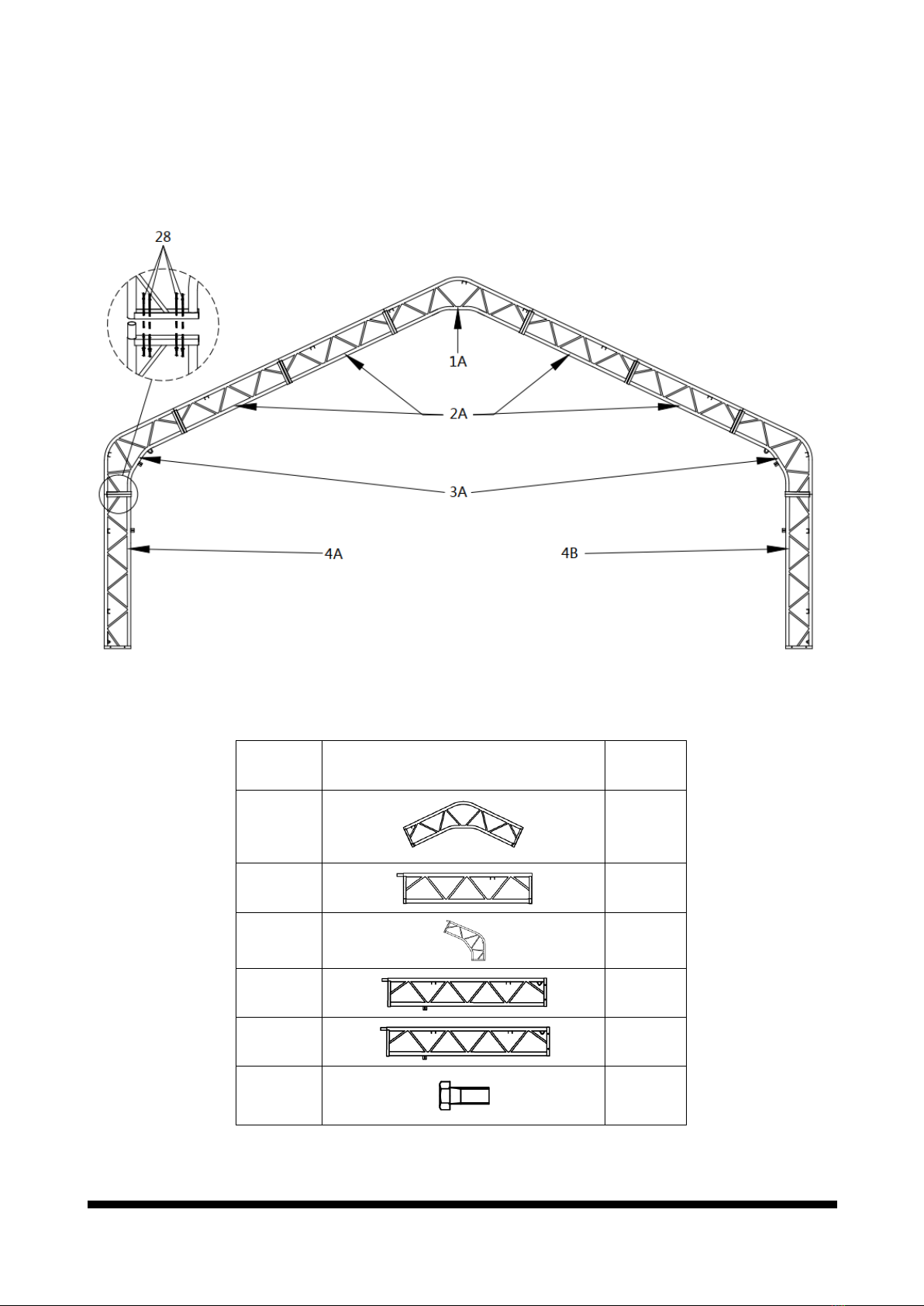

STEP 4 : INSTALL THE REAR TRUSS.
PARTS
CODE
PART
QTY
1A
1
2A
4
3A
2
4A
1
4B
1
28
32

►www.tmgindustrial.com 11/27 TOLL FREE:1-877-761-2819

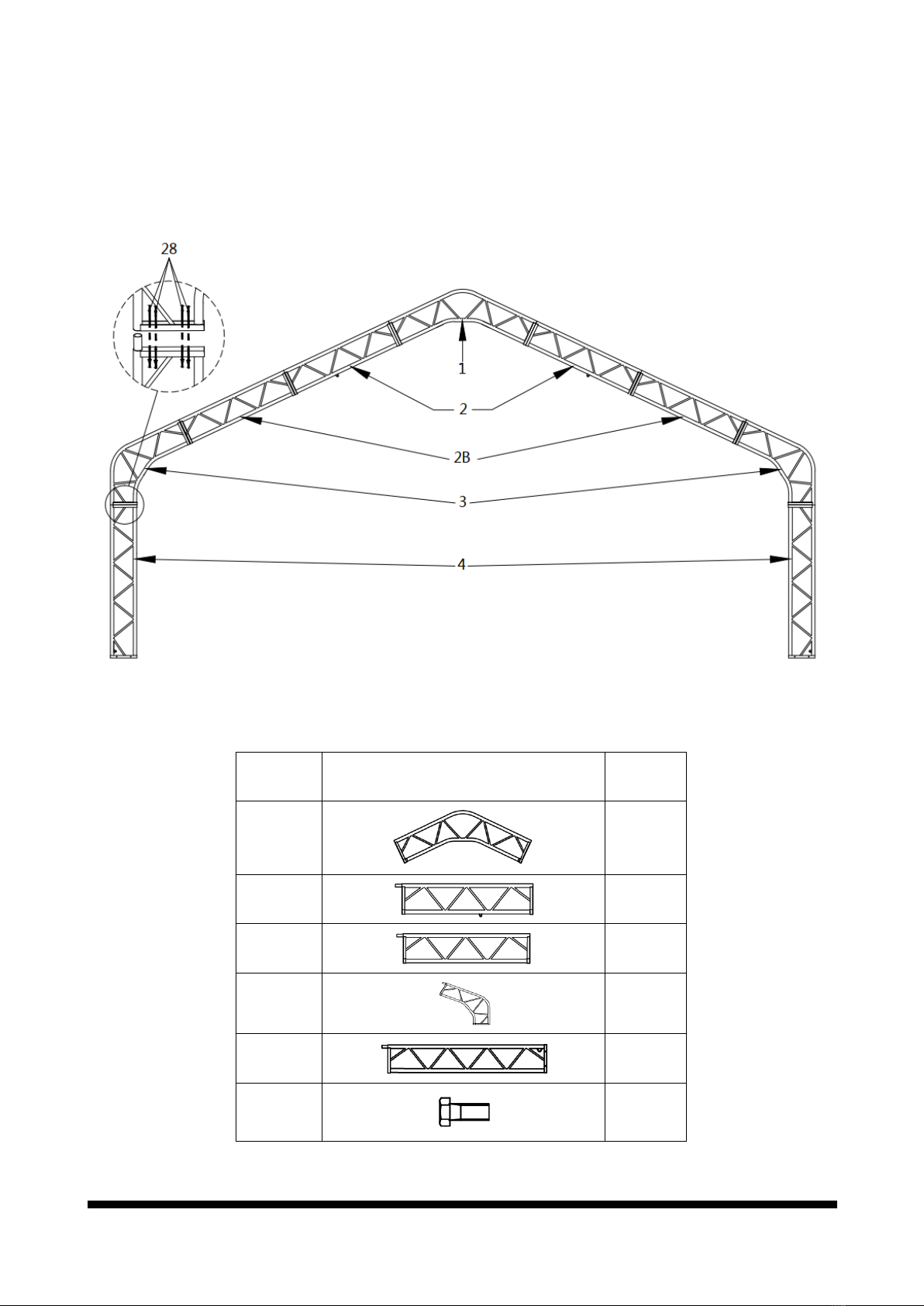

STEP 5 : INSTALL INTERMEDIATE TRUSS.
PARTS
CODE
PART
QTY
1
1x9
2
2x9
2B
2x9
3
2x9
4
2x9
28
32x9

►www.tmgindustrial.com 12/27 TOLL FREE:1-877-761-2819
STEP 6 : WRAP (#38) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND
THE INTERFACE.
PARTS
CODE
PART
QTY
38
5

►www.tmgindustrial.com 13/27 TOLL FREE:1-877-761-2819
STEP 7 : INSTALL THE FRONT TRUSS.
PARTS
CODE
PART
QTY
28
8

►www.tmgindustrial.com 14/27 TOLL FREE:1-877-761-2819

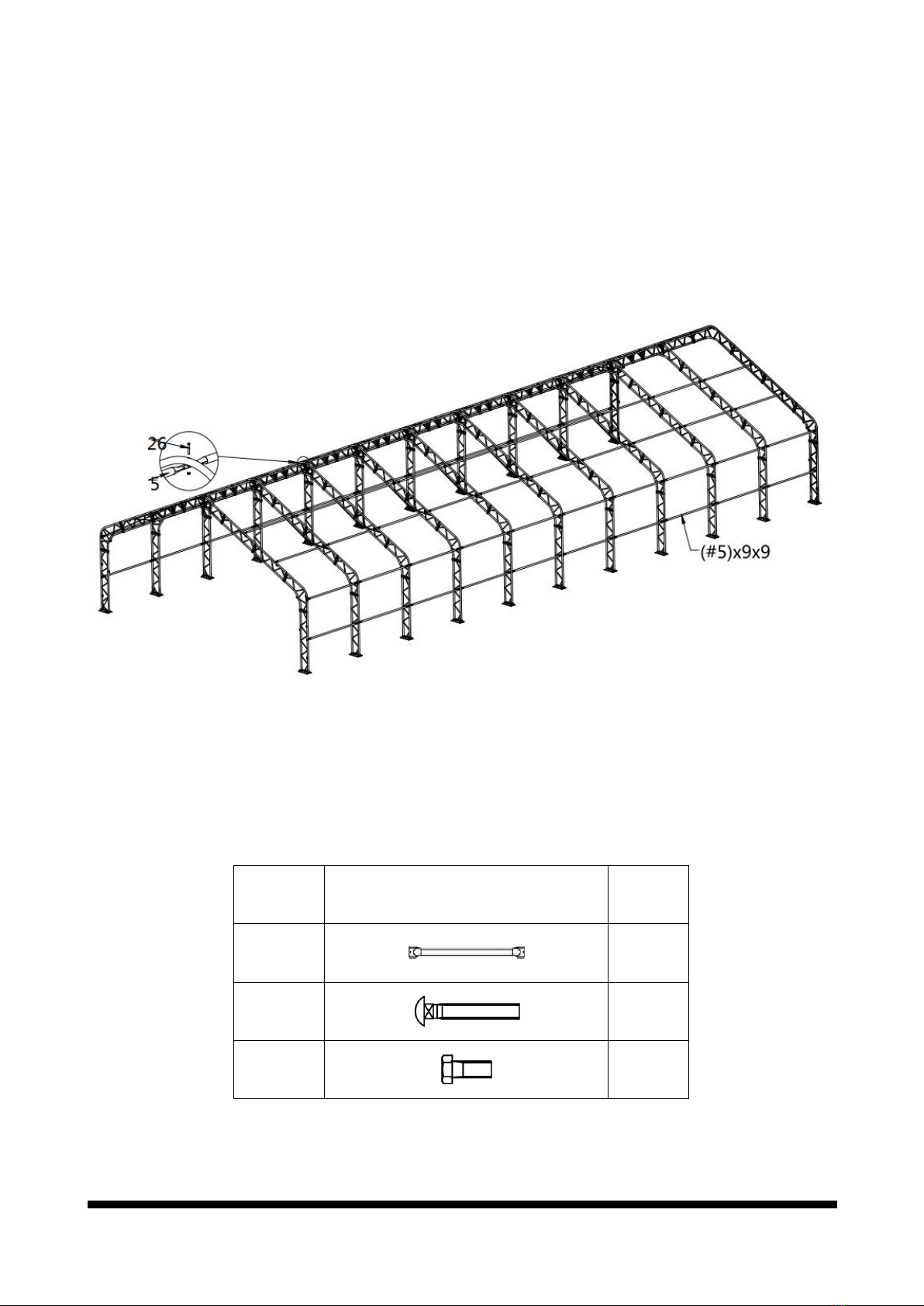

STEP 8 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND TRUSS WITH BOLTS.
PARTS
CODE
PART
QTY
5
9
26
18
28
8

►www.tmgindustrial.com 15/27 TOLL FREE:1-877-761-2819
STEP 9 : INSTALL ALL OTHER TRUSSES. (FROM 3RD TRUSS TO 11TH TRUSS)
PARTS
CODE
PART
QTY
5
9x9
26
9x9
28
8x9

►www.tmgindustrial.com 16/27 TOLL FREE:1-877-761-2819

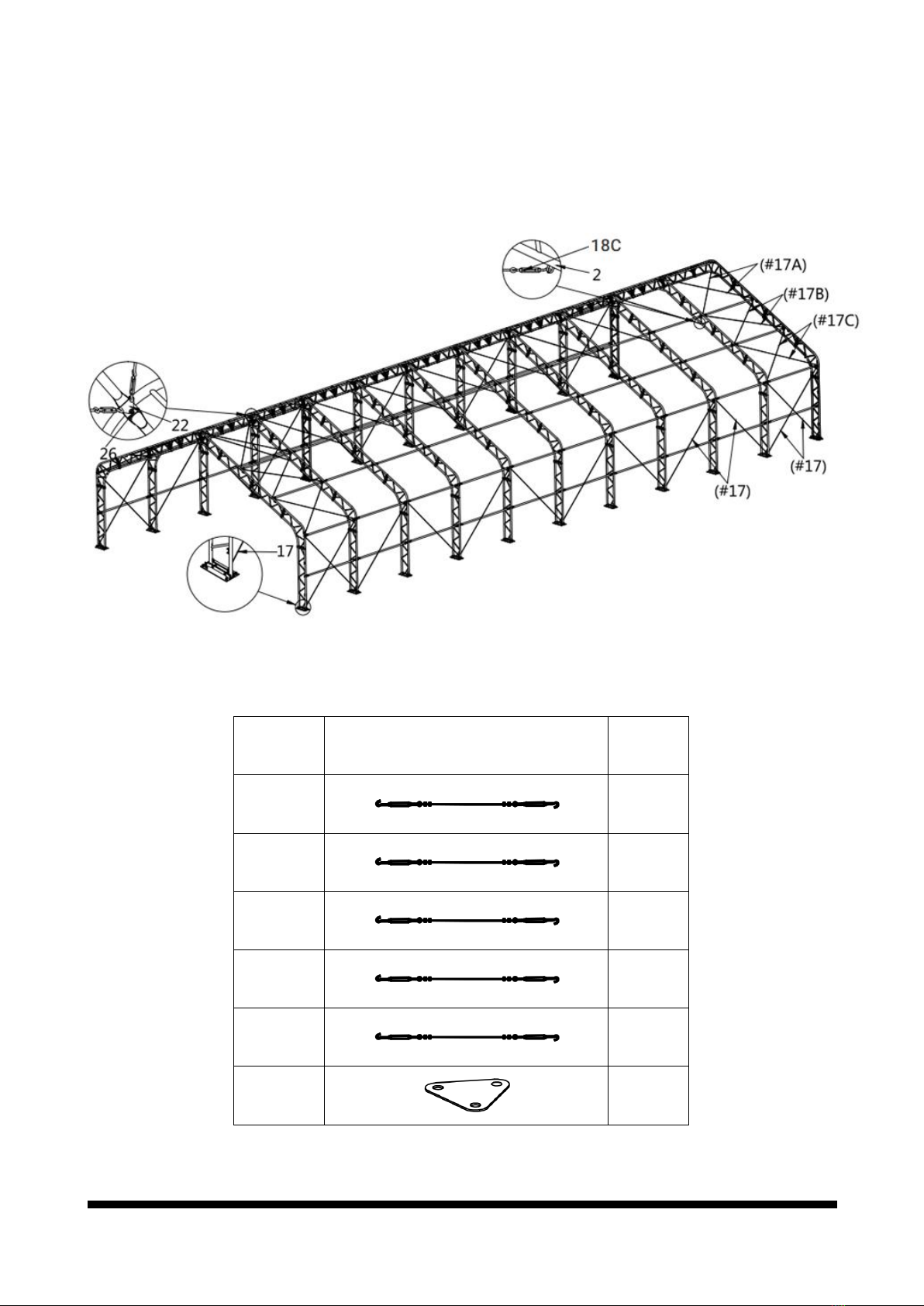

STEP 10 : TENSION CABLE INSTALLATION.
PARTS
CODE
PART
QTY
17
24
17A
8
17B
8
17C
8
18C
9
22
36

►www.tmgindustrial.com 17/27 TOLL FREE:1-877-761-2819

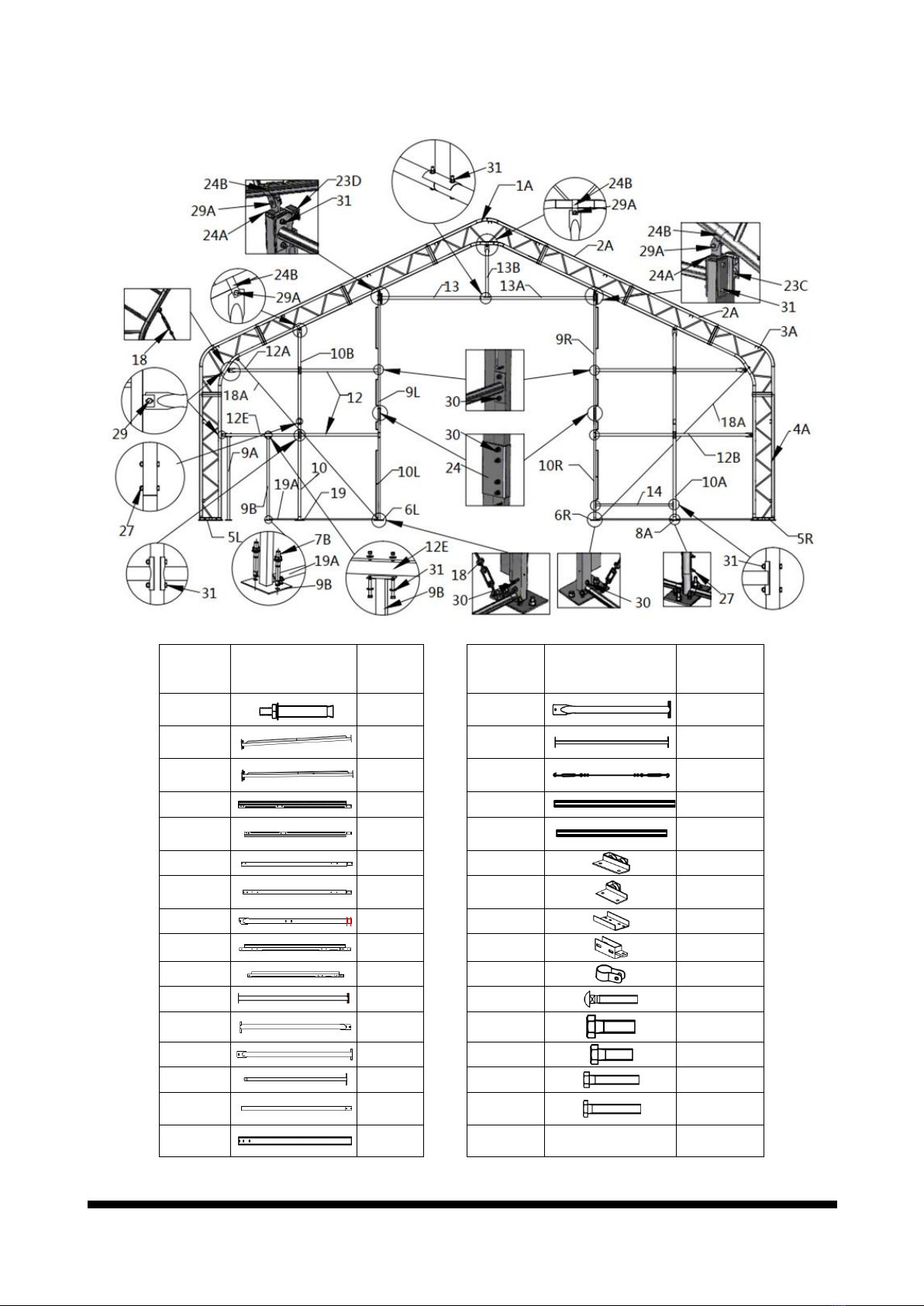

STEP 11 : FRONT TRUSSES TO COMPLETE.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
7B
4
13B
1
9A
1
14
1
9B
1
18A
2
9L
1
19
3
9R
1
19A
1
10
1
23C
1
10A
1
23D
1
10B
2
24
2
10L
1
24A
2
10R
1
24B
5
12
4
27
8
12A
2
29
4
12B
1
29A
5
12E
1
30
20
13
1
31
20
13A
1

►www.tmgindustrial.com 18/27 TOLL FREE:1-877-761-2819
STEP 12 : TRUSS AFTER COMPLETION.
PARTS
CODE
PART
QTY
PARTS
CODE
PART
QTY
7B
4
14A
1
9A
1
18B
2
9B
1
19B
1
10L
1
20
1
10R
1
23C
1
11L
1
23D
1
11R
1
24
2
12C
2
24A
2
12D
1
24B
3
12F
1
29
4
13C
1
29A
3
13D
1
30
20
13E
1
31
12

►www.tmgindustrial.com 19/27 TOLL FREE:1-877-761-2819

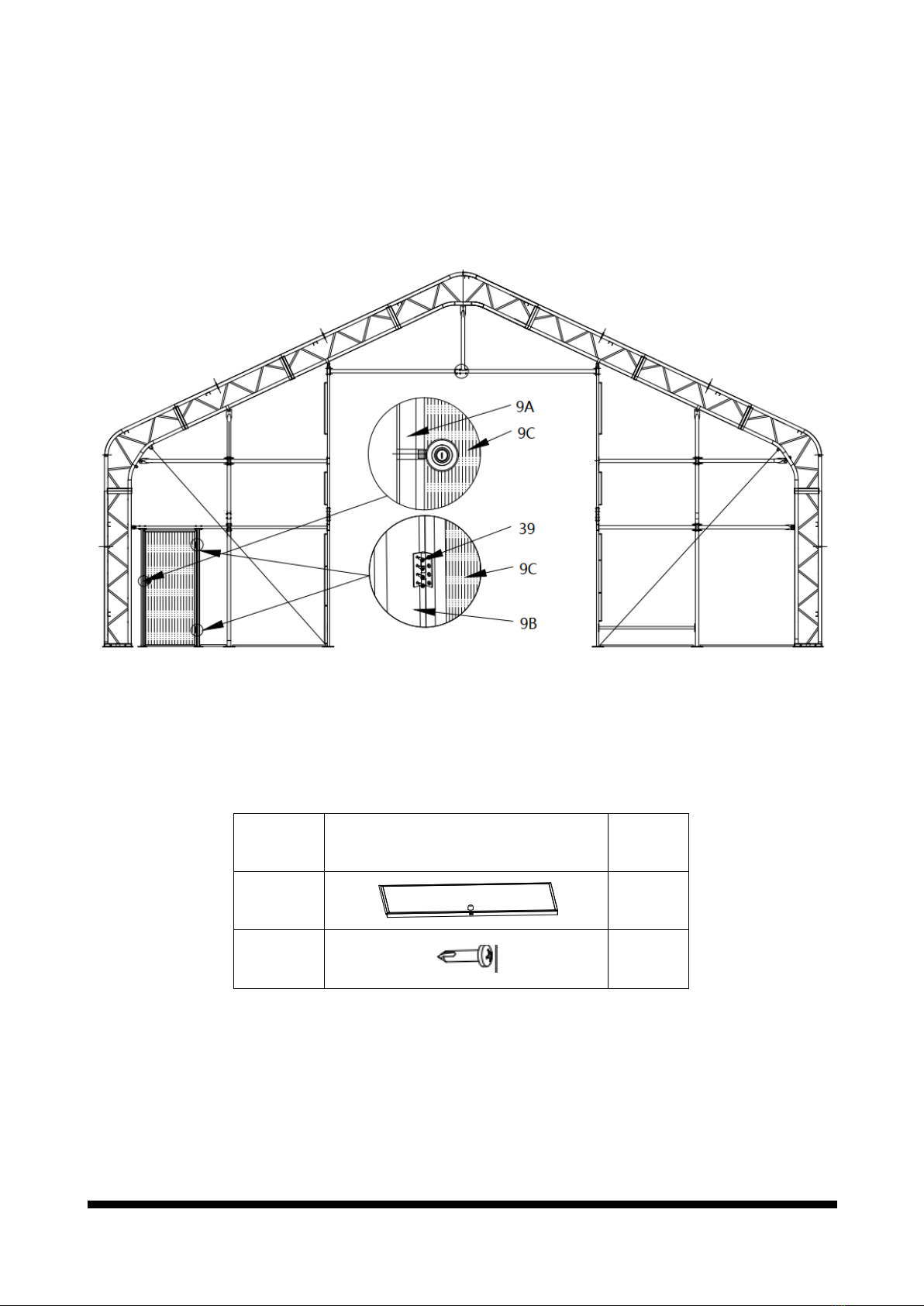

STEP 13 : FRONT AND REAR SMALL SIDE DOOR INSTALLATION.
PARTS
CODE
PART
QTY
9C
1x2
39
8x2
