TMG ST2030 User manual

W W W . T M G I N D U S T R I A L . C O M P 0/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
gui

W W W . T M G I N D U S T R I A L . C O M P 1/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Main Specifications :
- Overall assembled size : W6 x L9 x H3.65 (m) / 20 x 30 x 12 (ft)
- Shoulder height : 2 (m) / 6.6 (ft)
- Front roll up door : 3 x 3 (m) / W10 x H10 (ft)
Prior to assembly
Please read the instructions carefully before installation. It is important to follow your local
safety regulations and industry standards during installation. Regulations may include but are
not limited to :
- Safety helmets, protective eyewear, and clothing
- Safety harnesses for all elevated workers
- Proper ladder, cage, and safety operation
Check all components and parts before installation. All parts are marked with a part number,
please refer to the parts list to make sure you have all parts.
Choose a day with low or no wind to install, assembly is hard in heavy wind. Do not make any
alterations to the structure. Do not hang any weights on the frame during installation,
including parts. We are not responsible for any damages or injuries caused by inappropriate
installation, unauthorized modifications or extreme weather.
This building is not intended for human occupancy.
It is recommended to tape or add foam/rubber on the frame where joints connect and where it
touches the cover. This will help extend the life span of the cover.
Read the following item list carefully and count the number of items to ensure that all parts are
included prior to setup.
Installation steps
Step 1 : Review the whole structure and choose the proper installation site
Choose a solid flat level ground area to set up the building. Do not install the building on soft
ground, wetland, uneven surfaces, sloped surfaces, or on top of structures that are not rated to
hold its weight.
We strongly recommend that you build the structure on a solid foundation such as cement and
use anchor bolts on all baseplates.
Be aware of the surrounding area. Do not set up the building near snowdrifts, open
flames or exposed electrical wires. Do not keep heat sources near the fabric cover. Keep

W W W . T M G I N D U S T R I A L . C O M P 2/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
the building surroundings clear at all times

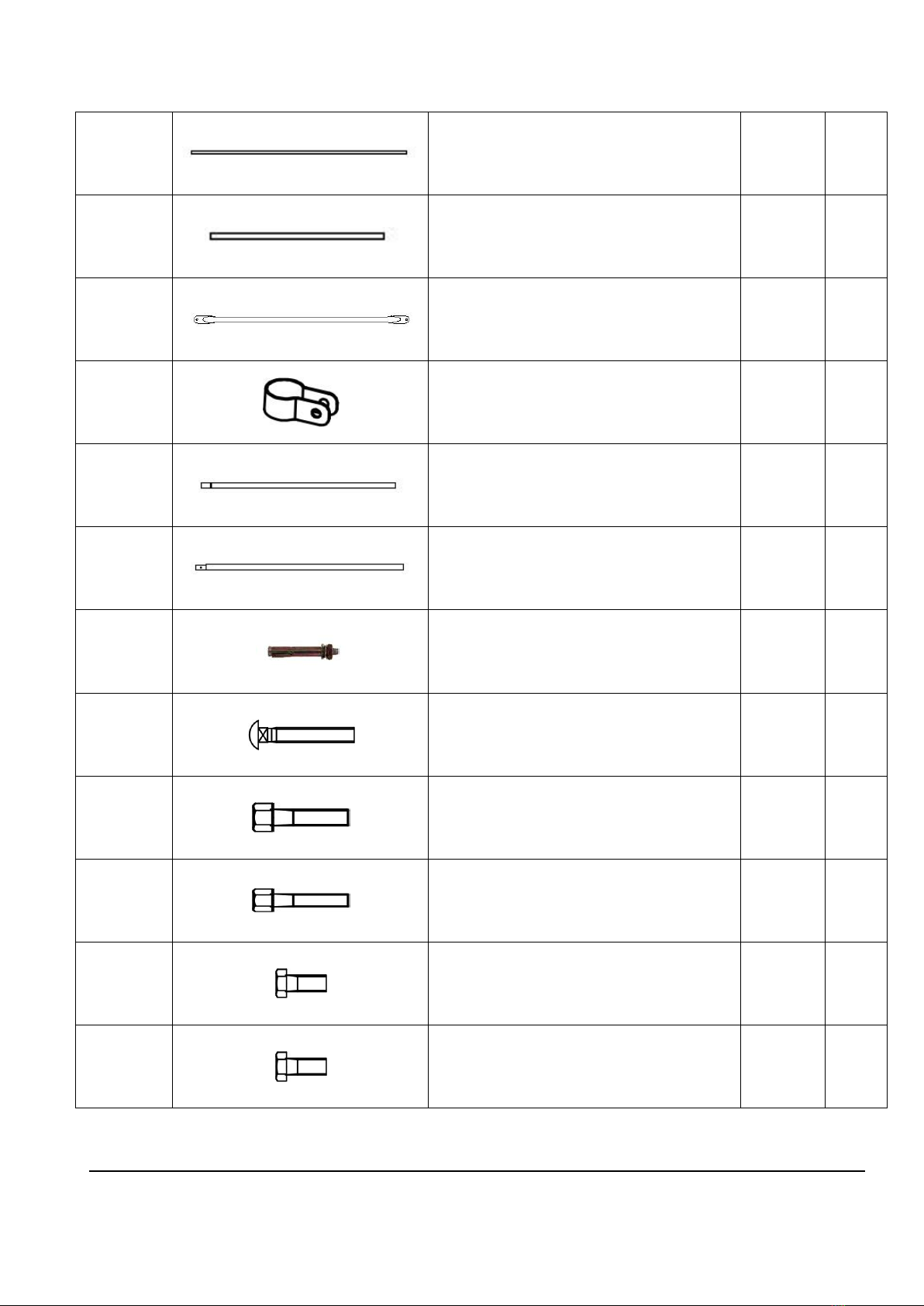

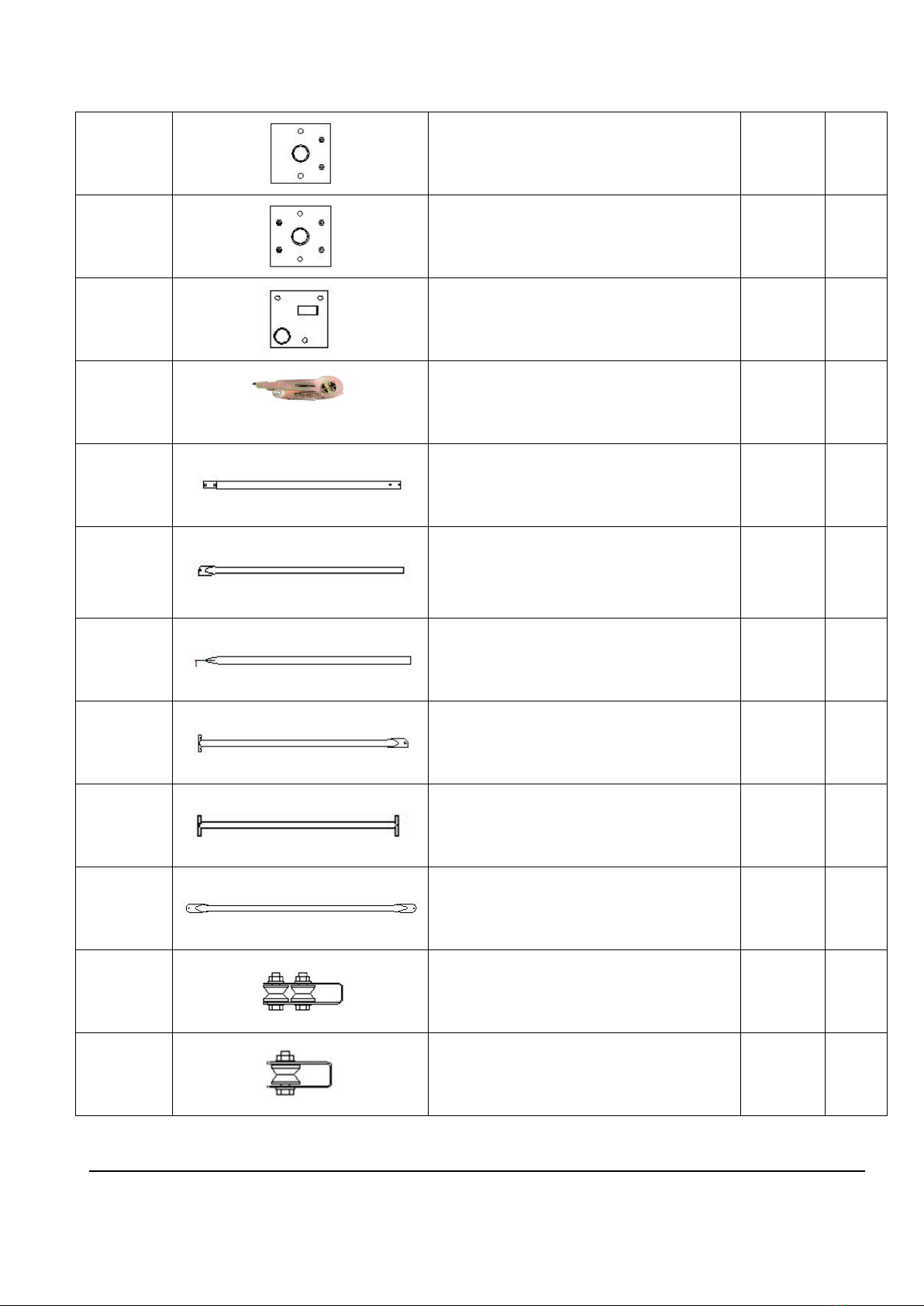

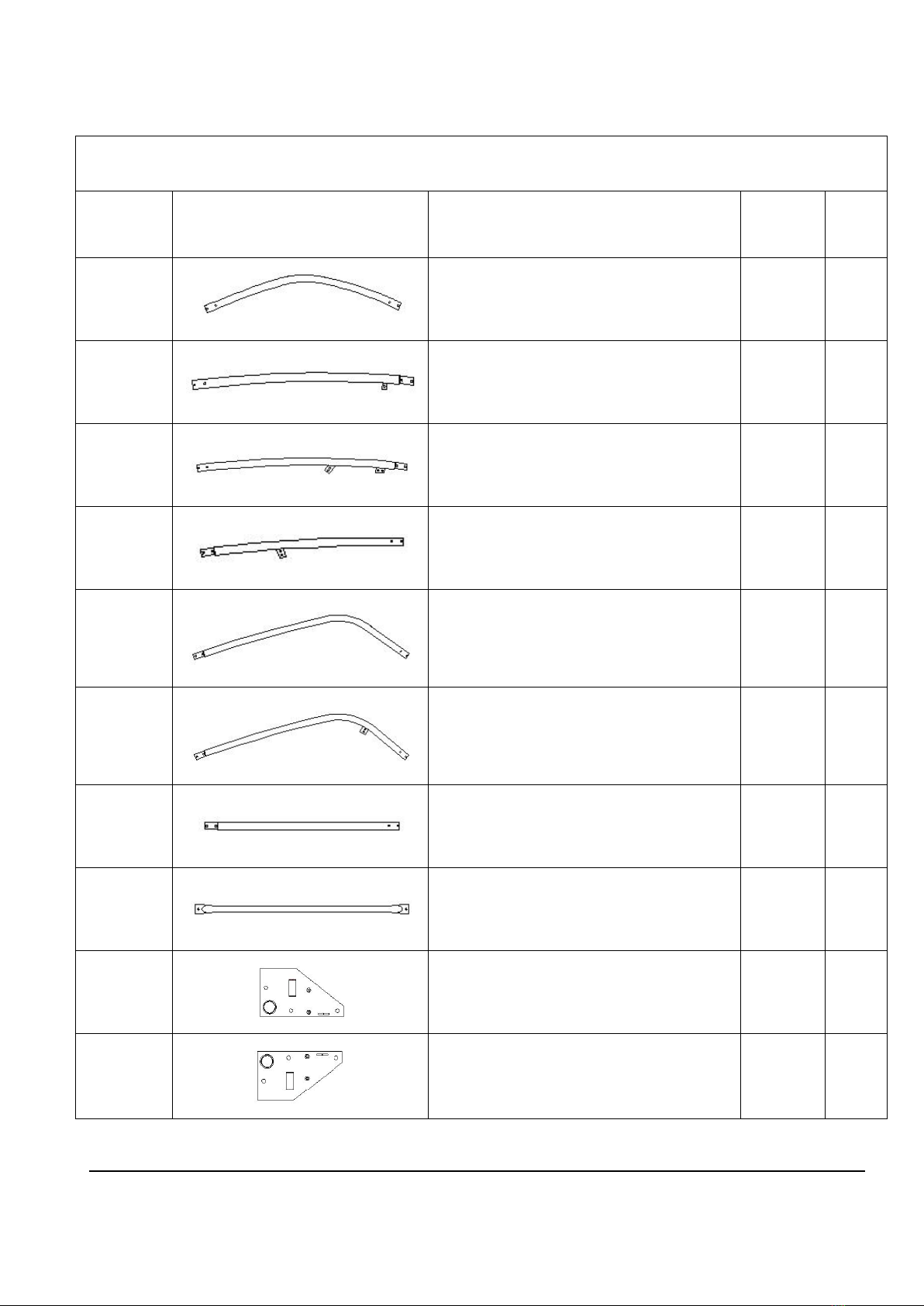

TMG-ST2030 Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
7
1/1
2
Upper rafter tube
(middle truss)
10
1/1
2A
Upper rafter tube
(front truss)
2
1/1
2B
Upper rafter tube
(rear truss)
2
1/1
3
Shoulder tube
(middle truss)
10
1/1
3A
Shoulder tube
(front and rear truss)
4
1/1
4
Sidewall tube
14
1/1
5
Roof purlin
(horizontal tube)
54
1/1
5L
Left corner baseplate
(front and rear truss)
2
1/1
5R
Right corner baseplate
(front and rear truss)
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 3/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
6
Door column baseplate
(front truss)
2
1/1
6A
Middle column baseplate
(rear truss)
3
1/1
7
Middle truss baseplate
10
1/1
7A
Ratchet
14
1/1
8
Door frame lower tube
(front and rear truss)
5
1/1
9
Door frame upper tube
(front and rear truss)
4
1/1
9A
Rear frame middle tube
1
1/1
10
Door frame horizontal tube
(front and rear truss)
4
1/1
10A
Door frame horizontal
tube (rear truss)
2
1/1
11
Ceiling cross bar
6
1/1
11A
Two wheel rope pulley
(pre-installed on 2A)
1
1/1
11B
One wheel rope pulley
(pre-installed on 2A)
1
1/1

W W W . T M G I N D U S T R I A L . C O M P 4/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
12
Bottom tension bar
(front and rear cover)
4
1/1
12A
Bottom tension bar
(rear cover)
2
1/1
13
Diagonal bracing bar
(1st and last span)
4
1/1
13A
Tube clamp
8
1/1
14
Top cover tension tube
(for both bottom sides)
2
groups
1/1
15
Door dropping tube
1
groups
1/1
16
Expansion bolt M12x100mm (not
included)
52
1/1
17
Half round head bolt M10x80mm
63
1/1
18
Hex Bolt
M10x70mm
126
1/1
18A
Hex Bolt
M8x80mm
6
1/1
19
Hex Bolt
M10x30mm
20
1/1
19A
Hex Bolt
M10x50mm
8
1/1

W W W . T M G I N D U S T R I A L . C O M P 5/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
20
Nylon rope
2
1/1
21
Water plug
18
1/1
22
Top cover
1
1/1
23
Front cover panel
1
1/1
23A
Rear cover panel
1
1/1
24
Braided rope
1
bundle
1/1
25
Ratchet straps
14
1/1
26
Scratch resistant tape
2
1/1

W W W . T M G I N D U S T R I A L . C O M P 6/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

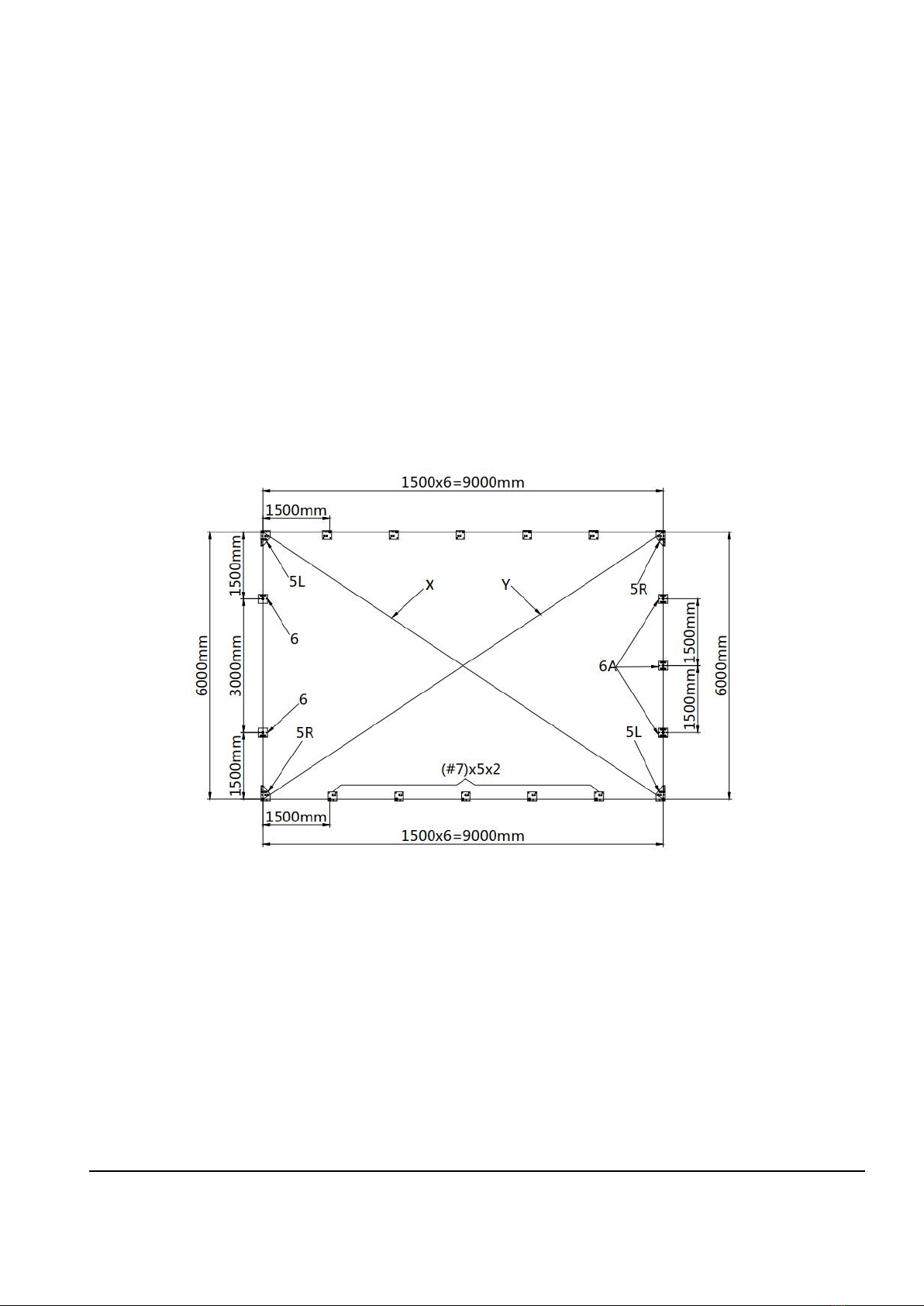

Mark the ground in the final building location with a line showing the positions of base
plates, front, and rear doors. All lines should be drawn from center to center of all
baseplate tubes. Diagonal line X must be equal to Y.
Baseplates: all baseplates must be installed firmly with expansion bolts (#16) on this
step (Picture 1).
Parts used in this step :
- (4) Baseplates (#5L,#5R)
- (10) Baseplates (#7)
- (2) Baseplates (#6)
- (52) Expansion bolts M16 (#16)
- (3) Baseplates (6A)
Picture 1
Step 2 : Assemble all trusses
The building includes 7 trusses : (1) front truss, (1) rear truss, and (5) middle
trusses. The front and the rear truss are to install with the fabric panel (#23 and
#23A).

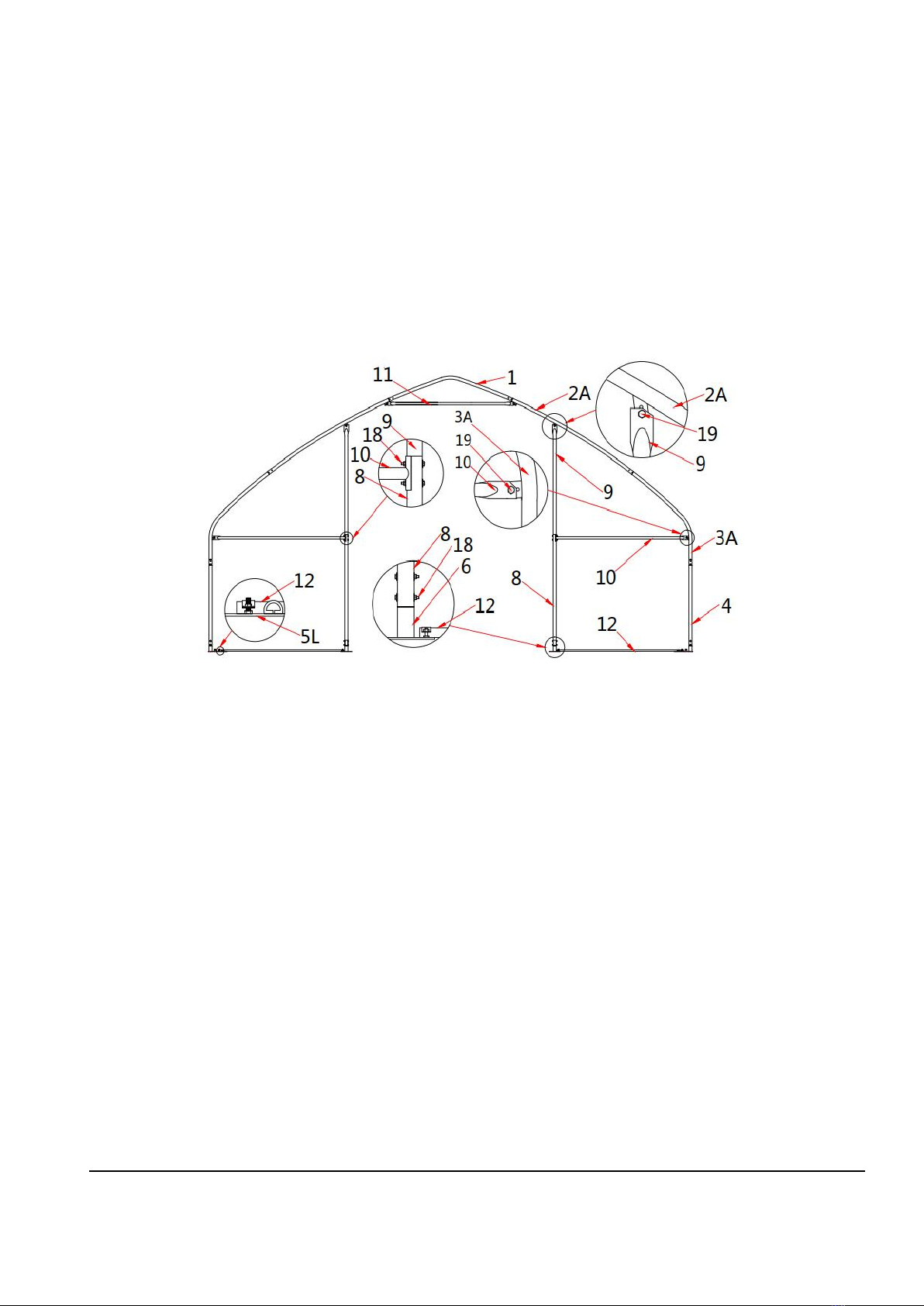

Parts used to install the front truss in this step (refer to Picture 2) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2A)
- (2) Shoulder tube (#3A)

W W W . T M G I N D U S T R I A L . C O M P 7/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
- (2) Sidewall tube (#4)
- (1) Ceiling cross bar (#11)
- (2) Hex bolt (#19)
- (12) Hex bolt (#18)
- (1) Two wheel rope pulley (#11A)
- (1) One wheel rope pulley (#11B)
Picture 2
Parts used to install the rear truss in this step (refer to Picture 3) :
- (1) Peak arch tube (#1)
- (2) Upper rafter tube (#2B)
- (2) Shoulder tube (#3A)
- (2) Sidewall tube (#4)
- (12) Hex bolt (#18)

W W W . T M G I N D U S T R I A L . C O M P 8/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Picture 3
Parts used to install (5) middle trusses in this step (refer to Picture 4).
- (1x5) Peak arch tube (#1)
- (2x5) Upper rafter tube (#2)
- (2x5) Shoulder tube (#3)
- (2x5) Sidewall tube (#4)
- (1x5) Ceiling cross bar (#11)
- (2x5) Hex bolt (#19)
- (12x5) Hex bolt (#18)
Picture 4
• Lay down all (7) trusses on the ground as picture 5 when the assembly is all
completed and before moving to next step.
Picture 5

W W W . T M G I N D U S T R I A L . C O M P 9/ 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 3 : Put up the front (1st) truss
• Use of a crane or forklift is recommended, otherwise a team can use ropes to lift
the trusses, but you have to make sure it is safe, and have enough manpower. We
recommend 3 to 5 people to pull the truss up from different directions. When the
truss is up, tie the ropes to the heavy objects to make sure the truss will stay
upright and use bolt (#18) to connect the truss to the baseplate on both sides
(Picture 6).
• Parts used in this step : (4) Half round head bolt (#18)
Picture 6
Step 4 : Put up the rest trusses

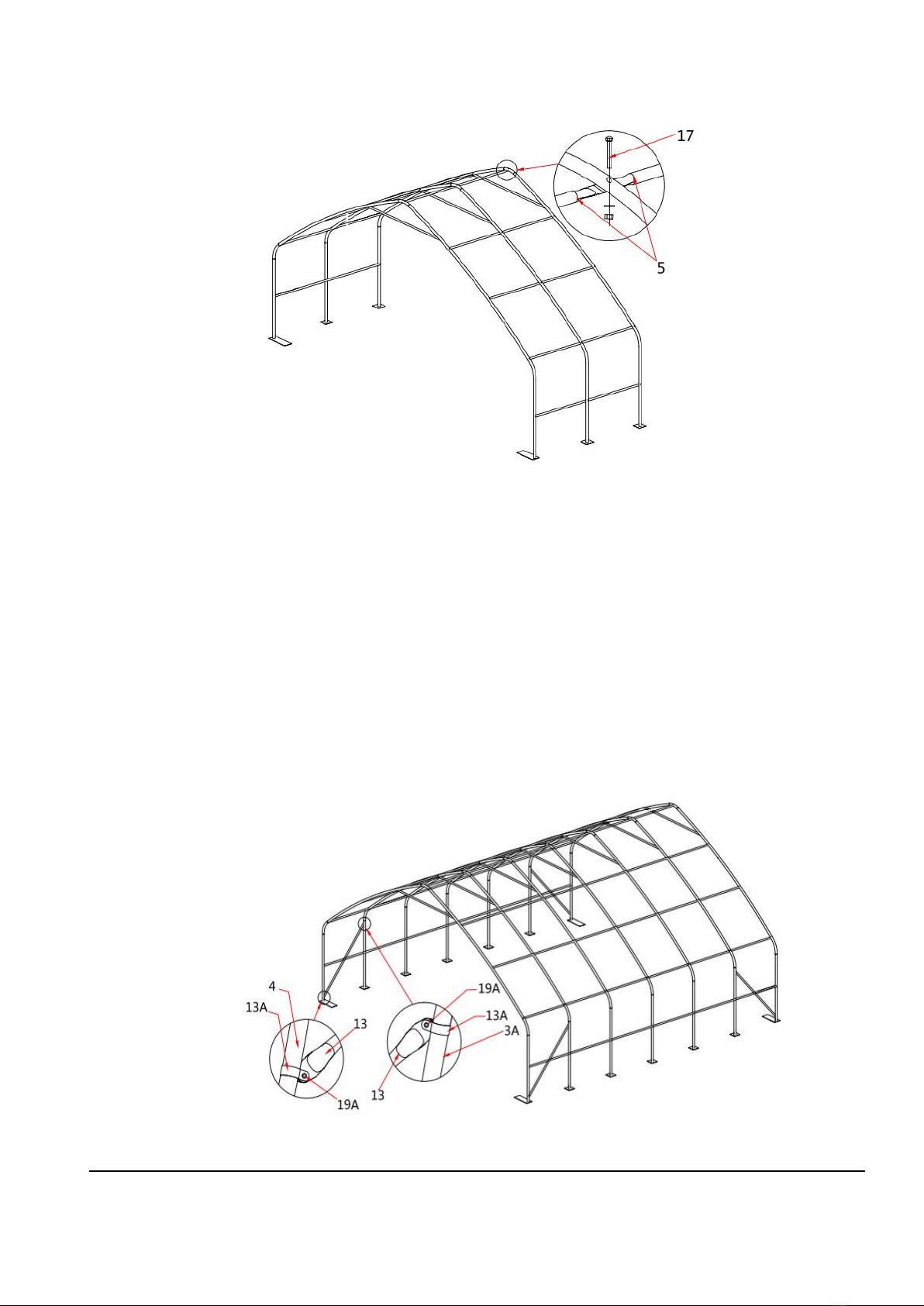

• Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#17)
and secure all bolts firmly on each span before going to next truss (Picture 7).

W W W . T M G I N D U S T R I A L . C O M P 1 0 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Picture 7
Step 5 : Install the diagonal bracing bars (#13)
 Connect diagonal bracing bar (#13) on the first and last span between the
shoulder tube and sidewall tube (#3A and #4) with tube clamp (#13A), use bolt
(#19A) (Picture 8).
 Parts used in this step :
- (2x2) Diagonal bracing bars (#13)
- (4x2) Tube clamps (#13A)
- (4x2) Hex bolt (#19A)
-
Picture 8

W W W . T M G I N D U S T R I A L . C O M P 1 1 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 6 : Install the remaining parts on the front truss (Picture 9)
 Parts used in this step :
- (2) Door frame upper tube (#9)
- (2) Door frame lower tube (#8)
- (2) Door frame horizontal tube (#10)
- (2) Bottom tension bar (#12)
- (8) Hex bolt (#18)
- (4) Hex bolt (#19)
Picture 9
Step 7 : Install the remaining parts on the rear truss (Picture 10)
 Parts used in this step :
- (2) Door frame upper tube (#9)
- (1) Door frame middle tube (9A)
- (3) Door frame lower tube (#8)
- (2) Door frame lower horizontal tube (#10)
- (2) Door frame upper horizontal tube (#10A)
- (2) Bottom tension bar (#12)
- (2) Bottom tension bar (#12A)
- (6) Hex bolt (#18A)
- (6) Hex bolt (#18)
- (4) Hex bolt (#19)

W W W . T M G I N D U S T R I A L . C O M P 1 2 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Picture 10
Step 8 : Install front cover panel
• The door cover must be zipped. Use rope (#24) to lift up the front and rear cover
(#23) from the center grommet and tie it firm to the truss tube and spread toward
both sides through each grommet along the tube.
• Insert the dropping tube (#15) into the bottom groove pocket on the door cover.
Tie two ropes (#20) separately on both sides of the peak arch tube. Pull both
ropes under through the bottom of the door cover from the back, then go up from
front and through both pulley (#11A) and #(11B) (Picture 11 & 12).
• The rope coming out from pulley (#11B) must go through the upper wheel of
pully (#11A), then pull both ropes together slowly and start to lift the door cover.
• Tie both ropes to the corner baseplate. Now the door cover is up. When you drop
down the door cover, do not let go too quick, otherwise it might get stuck and
damage the fabric.

W W W . T M G I N D U S T R I A L . C O M P 1 3 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
(Picture 11 - view from inside)
(Picture 12-view from outside)
Step 9 : Install rear cover panel
 Use rope (#24) to lift up the rear cover (#23A) from the center grommet and tie it
firmly to the truss tube and spread toward both sides through each grommet along
the tube (Picture 13).

W W W . T M G I N D U S T R I A L . C O M P 1 4 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Picture 13
Step 10 : Install the top cover (#22)
Do not install the cover during windy weather!
• Unpack the top cover and place it along one of the long sides of the structure.
• Use 3 to 5 ropes (#24) to pull the cover over the top of the structure, 2 or 3 people
standing inside on ladders to push upwards will help to move the cover smooth
without any damage (Picture 14).
Picture 14

W W W . T M G I N D U S T R I A L . C O M P 1 5 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 11 : Stretch and tighten top cover
• The roof cover must be stretched and tied to the front and rear truss by rope going
through the flap grommets on the cover. Start from the top center and go toward
both sides on each end. Add or cut the rope as needed.
• Pull and stretch the cover enough only to take wrinkles out. Repeat for the rear
truss. Do not over stretch as it could rip off the grommets (Picture 15)
(Picture 15-view from outside)
Step 12 : Tension the cover on the structure from both sides (Picture 16)
 Insert tension tubes (#14) slowly into the bottom groove pocket on both long
sides. Add the water plug (#21) on the first tension tube to avoid tearing the
fabric and add one to the end of last tube as well.
 Repeat the same step for the other side.
Picture 16

W W W . T M G I N D U S T R I A L . C O M P 1 6 / 1 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9
Step 13 : Install ratchet straps (Picture 17)
Stretch and adjust the cover from left and right, back and forth, to make sure it is
square and centered. Cut the groove pocket where it aligns with ratchet (#7A), and
use strap (#25) to pull tension tube (#14) toward the ratchet and tie it firmly there.
Evenly adjust all ratchets on both sides to take wrinkles out and make the cover flat
and smooth.
Picture 17
After the Installation
Walk around and inspect the shelter periodically to make sure all components are still firmly
secured and the whole shelter is well supported. Check all bolts and nuts as well as all
connection points to make sure they are all in good position. Check the base plates, adjust the
ropes and tie downs if required and clean the cover regularly.
Snow accumulating on the fabric cover must be removed as soon as possible. If snow becomes
solid ice on the cover, it will increase the weight on the roof and may collapse the shelter or
reduce the life span.
Keep the shelter on a dry ground most of the time. Do not keep the fabric dirt skirt under water
all the time, otherwise the fabric will deteriorate.
We strongly recommend you remove any snow from the roof immediately. Do not leave
any snow load on the roof overnight. Keep 3 feet of clearance on all sides at all times. Do
not allow snow to accumulate and pile up on the sides of the building. Otherwise the
pressure from the sides will push inwards and could lead to a collapse.
