Universal Space DUO DRIVE User manual

Operation Manual
www.universal-space.com

 DUO DRIVE V1.02
1
Non-technical personnel who do not have technical knowledge and
Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,
unplug or disconnect the machine from the power supply before
servicing.
CONTENT
IMPORTANT SAFETY INSTRUCTIONS .......................................................... 2
1. SPECIFICATIONS........................................................................................ 4
2. PACKAGE CONTENTS................................................................................ 5
3. PART NAME................................................................................................ 6
4. SET UP & INSTALLATION .......................................................................... 7
5. HOW TO PLAY ..........................................................................................11
6. GAME OPTION..........................................................................................11
7. ERROR MESSAGE AND RECOVERY.......................................................14
8. MAINTENANCE & INSPECTION.............................................................. 17
9. OVERALL CONSTRUCTION......................................................................18

DUO DRIVE V1.02
2
Thank you for purchasing DUO DRIVE. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel should
under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may cause
fire, electric shock or personal injury. Unplug the game from the outlet when not in use, when
moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending on
the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.


 DUO DRIVE V1.02
3
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold temperatures to
ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
On unstable or sloped surfaces. The machine may topple or cause unforeseen accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL RISKS.
Note: The contents of this manual may be updated without notice.

DUO DRIVE V1.02
4
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz
Min. Power consumption: 320W
Max. Power consumption：360W

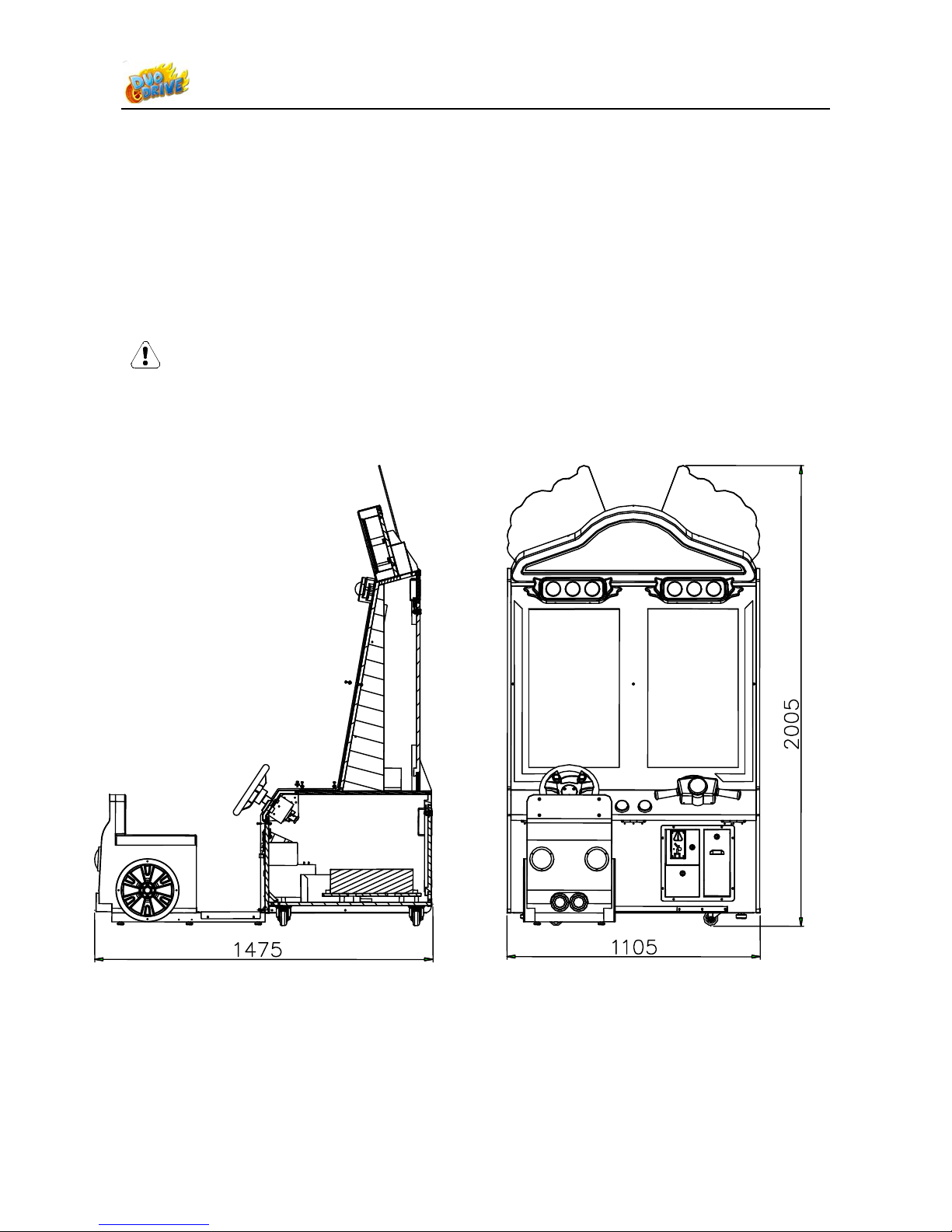

Dimensions：W1105×D1475×H2005 (mm)
Weight：Approximately220kg
NOTICE: After turning off the game, please wait at least 1 minute before
restarting again.
Note: Game parameters are subject to change without notice.

 DUO DRIVE V1.02
5
2. PACKAGE CONTENTS
Open the package and make sure all the items are included:
1 x Body Assembly
Following accessories
If any items are found to be missing, please contact your sales representative
for help immediately.
NOTE: Part models are subject to change without notice.
NO. Part NO. Code No. Name Spec. Qty Illustration
1 D120-801-000 Manual English 1
2 D120-802-000 21901000012
Fuse Φ5×20mm
T5A 250VAC 1
3 D120-803-000 21901000013
Fuse Φ5×20mm
T5A 125VAC 1
4 D120-804-000 23301050002
Power cable 3×0.75mm
0.5m 1
5 D120-805-000 25300171001
Key 171 4
6 D120-806-000 25300172001
Key 171B 1
7 D120-807-000 22501000030
Potentiometer RVQ24YN03
25F B502 1
8 D120-808-000 20101000007
Inner hexagon
screw
M4*20
(black) 5
9 D120-809-000 40607000013
Inner hexagon
spanner 2.5mm 1
10 D120-810-000 40607000014
Inner hexagon
spanner 3mm 1
11 D120-811-000 40607000001
Inner hexagon
spanner 4mm 1

DUO DRIVE V1.02
6

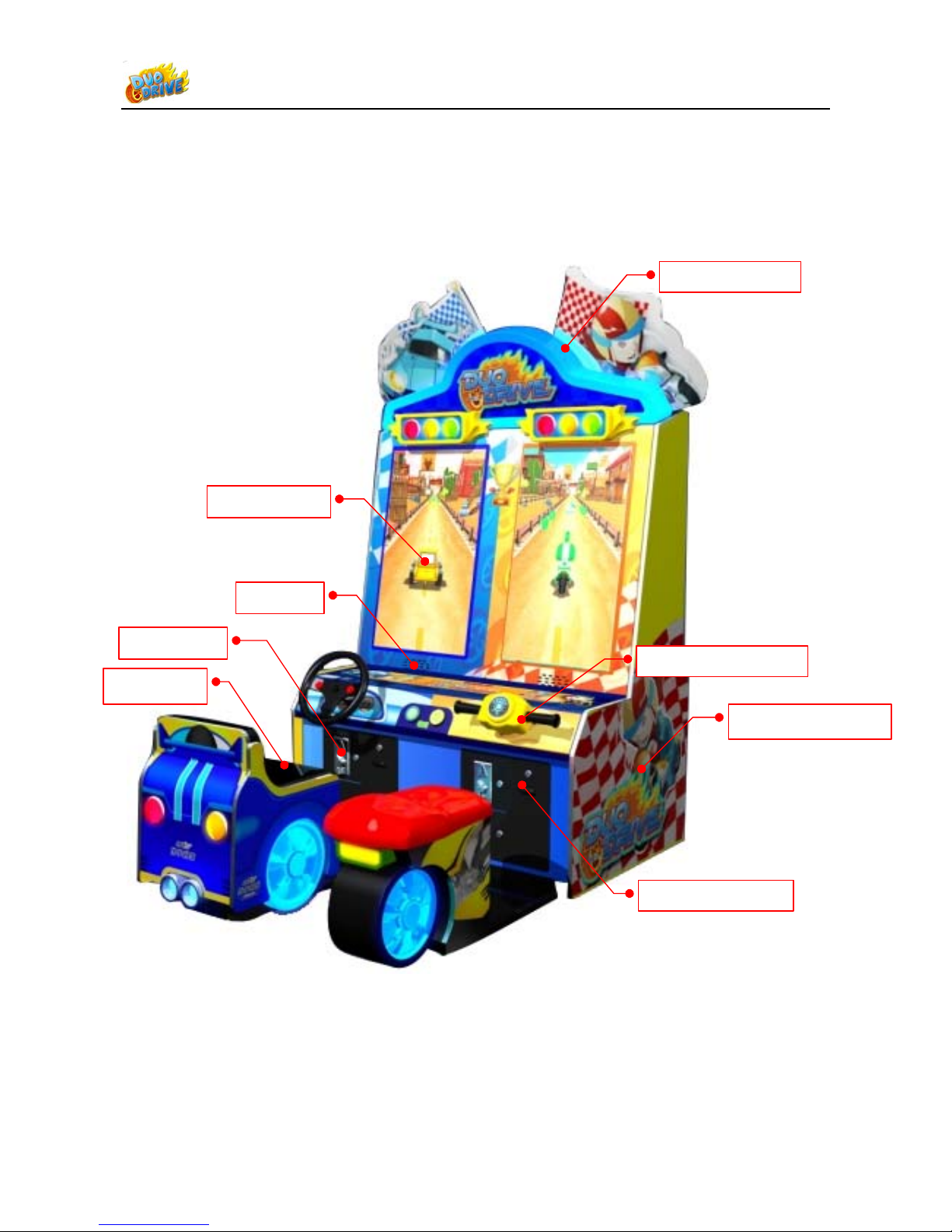

3. PART NAME
Mar
q
uee Ass
y
.
Control
p
anel Ass
y
.
Seat Assy.
Speaker
Wooden box Assy.
T
icket dis
p
enser
Monitor Ass
y
.
Coin mech.

 DUO DRIVE V1.02
7
4. SET UP & INSTALLATION
4-1 Cabinet Installation
Note: 1. According to the above instructions to
connect the L&R POP board to the main cabinet
2. According to the above instructions to
connect the seat assembly to the main cabinet.
3. Fasten two parts with 5 hexagon round head
screws (M4X20).
1. Use the key to open the
ri
g
h
t
t
i
c
k
et
door
.
2. Fine the cable from the base at the right corner.
3.Pull the cable through the
small hole of the main cabinet at
the bottom.
4. Connect the cable.
5.Installation is finished.

DUO DRIVE V1.02
8
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by wall.
4.2 Play Zone

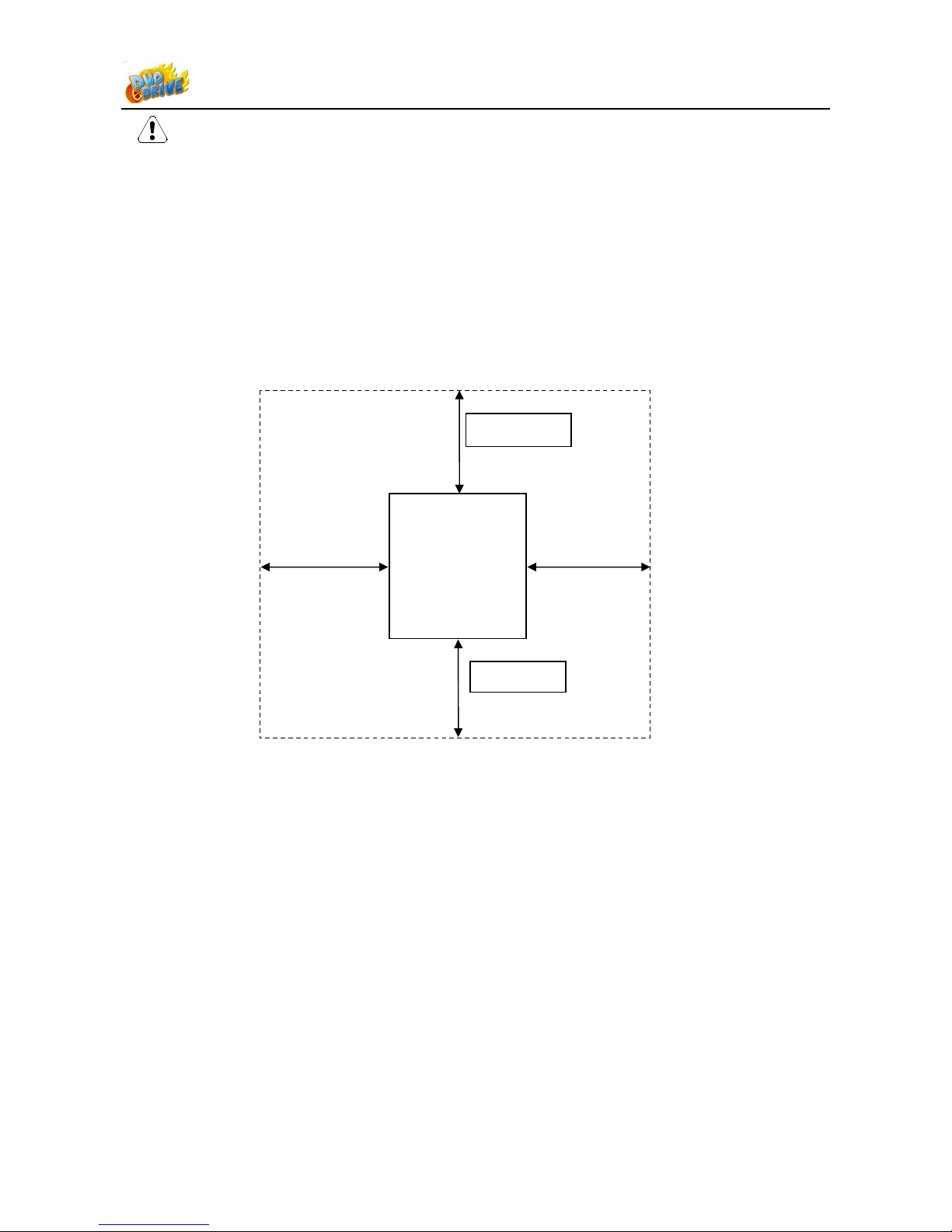

This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service Area: 50cm
Play Area: 50cm
The machine
Service
Pla
y
Area

 DUO DRIVE V1.02
9
4.3 Level Adjustment

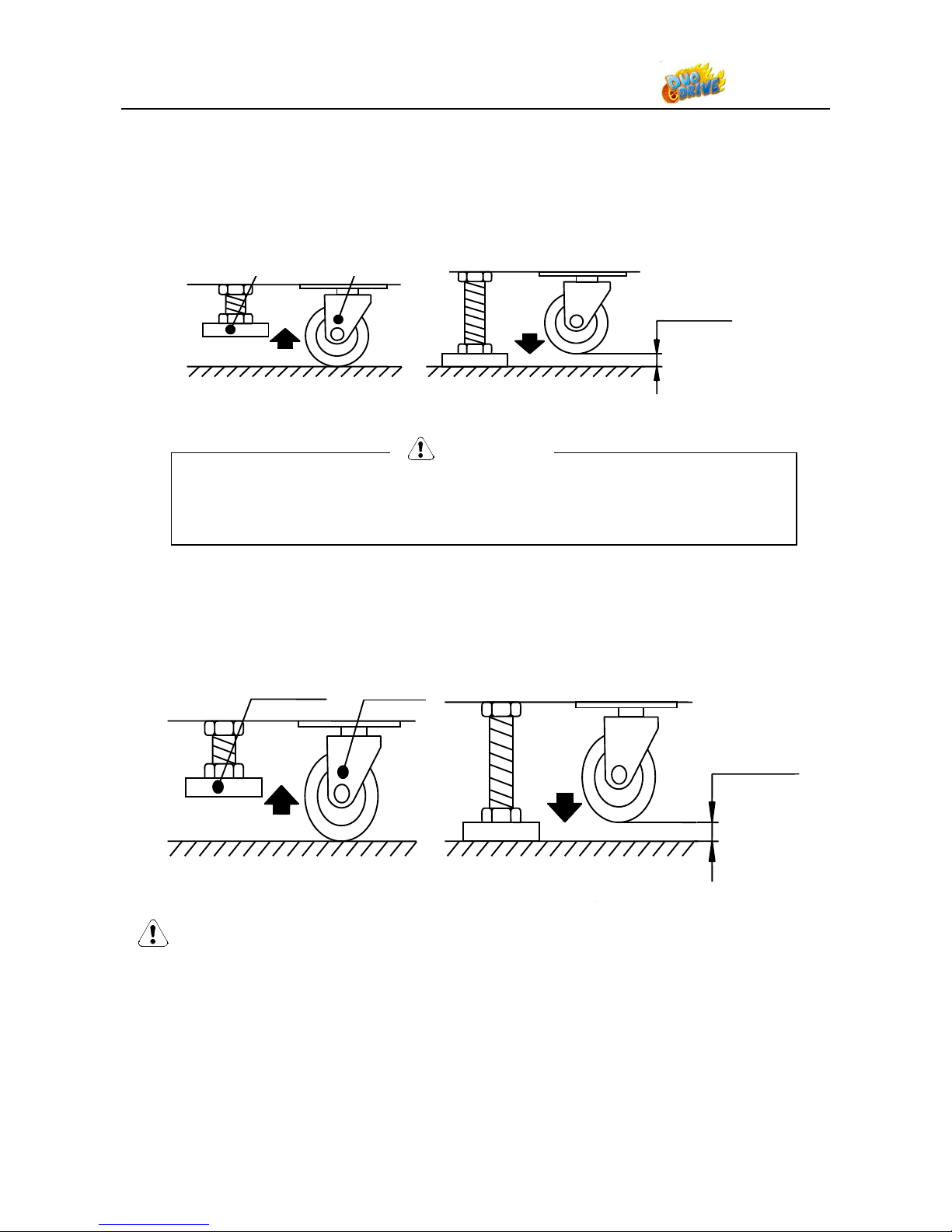

Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 5mm. Repeat the same for all levelers.
4.4 Transporting the Machine
If you need to move the game, adjust the levelers back to an “up” position so the casters
touch the ground.
NOTICE
Be careful not to damage the machine during transport.
The machine should be handled with care when bringing it down from a higher level.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
Leveler Caster
Move
About 5 mm
Fix

Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
NOTICE
Move Fix
Leveler Castor
About 5mm

DUO DRIVE V1.02
10
4.5 Connecting Power

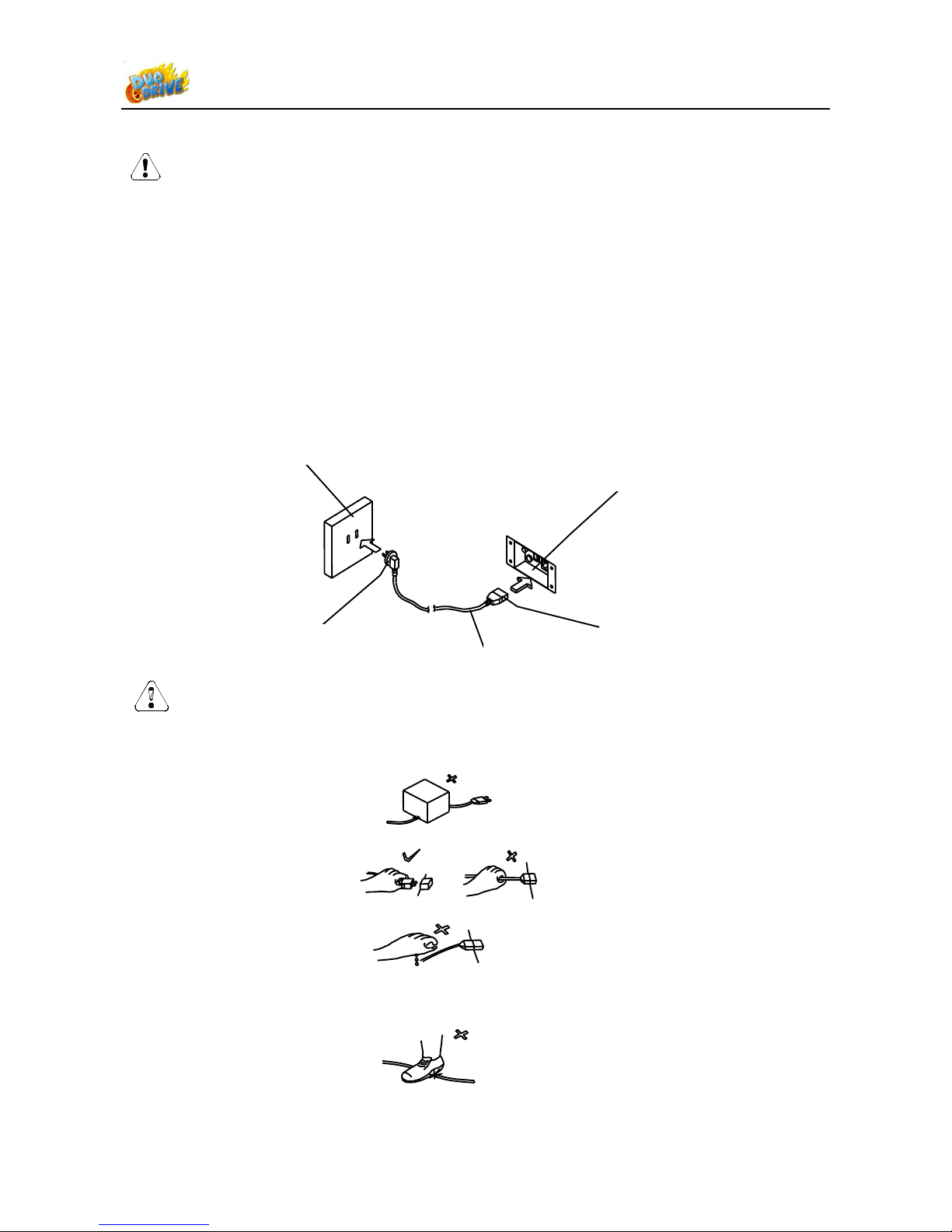

WARNING: Check the voltage rating before you connect the equipment to
an electrical outlet to ensure that the required voltage and frequency match the
available power source. Please refer the label of the machine.
Do not plug the equipment power cables into an electrical outlet if the power cable is
damaged.
Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does
not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be stepped
on or tripped over.
Power outlet
Power plug
Power socket
Power plug
Power cord

 DUO DRIVE V1.02
11

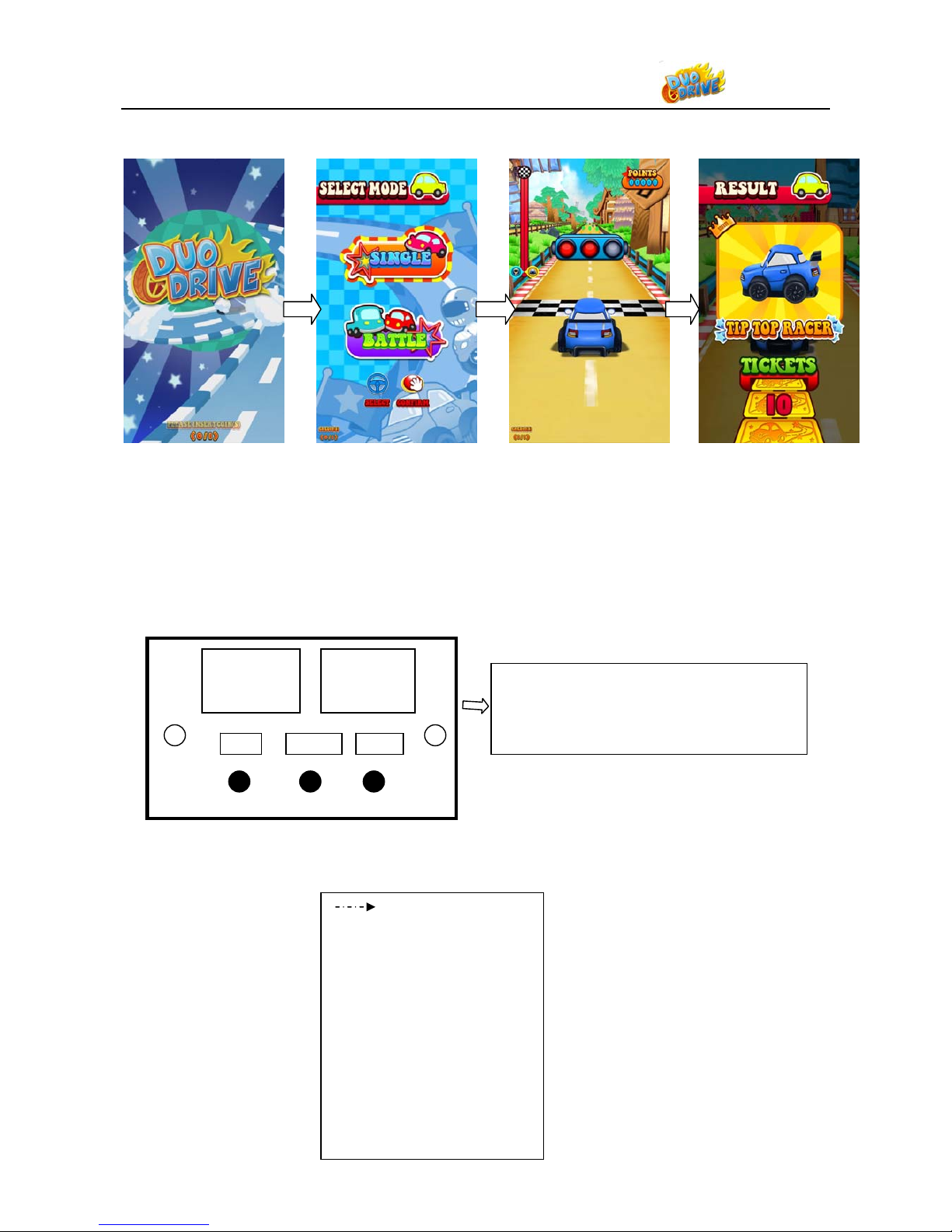

5. HOW TO PLAY
1. Insert coin(s) to start.
2. Select 1 player or 2 players.
3. Use the steering wheel to dodge obstacles and pick up special props.
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main Menu
Test Service Reset
Open the coin door there is a meter
panel. Press test button to get into the
setting menu.
Game Mode
Input
Test
Output test
Game reset
Language 语言
Date/Time setting
PC information
Book keeping
Daily Record
Exit & without save
Exit & save

DUO DRIVE V1.02
12
6.2.2 Game Mode
Note:
No. Item Option Explanation
1 Free Play ON/OFF Play game without credit in.
2 Tickets Out ON/OFF Whether payout tickets after game over.
3 Attract Mode ON/OFF Whether play with sounds during demo
4 Save Tickets ON/OFF Whether save tickets when power is off.
5 Volume 0~10 0 is mute. 10 are max.
6 Coins per Game 1~10 Coins to play one game.
7 Reward Tickets 1~15 Tickets for the winner.
8 Mercy Tickets 0-10 Tickets for the 2nd place.
9 Game time(s) 45-60---80-100 Game play time (seconds).
10 Game Difficult Easy/Normal/Hard Set the difficulty to win.
11 Score mode Star –Ring-Gold coin Select star or ring gold or token stands
for score display on the screen.
12 Ticket Mode Store tickets in memory/
call attendant
Whether continue to play the game when
ticket is owed.
6.2.2InputTest 6.2.3OutputTest

Coin 1 NO/OFF
Coin 2 NO/OFF
Service button NO/OFF
Reset button NO/OFF
Select Button1 NO/OFF
Select Button2 NO/OFF
Wheel POT1 0~255
Wheel POT2 0~255

Select Button1 light
Select Button2 light
Ticket Drive 1
Ticket Drive 2
Back
Free Play OFF
Tickets Out ON
Attract Mode ON
SaveCoins ON
Volume 10
CoinsPerGame 1
RewardTickets 10
MercyTickets 0
Gametime(s) 60
GameDifficulty easy
Scoremode star
Ticketmode callAttendant
Back

 DUO DRIVE V1.02
13
6.2.4Gamereset
6.2.5 Select Language
6.2.6Date/Timesetting 6.2.7PCinformation
6.2.8Bookkeeping 6.2.9DailyRecord
6.2.10 Exit & without save
6.2.11 Exit & save

Reset Game Setting
Delete A1 Record
Clear Tickets
Back
English
中文
Year 2013
Month 8
Day 27
Hour 15
Minute 22
Second 22
Save&back
Back
CPU
Mother board
Disk Drive
Memory
Display adapter
Display RAM size
Press Test button to exit
Player Coin Tickets Payout
1 0 0 0
2 0 0 0
Sum 0 0 0
Reset
Back
Save?
No
Yes
Date Weekday RunTime Coins Tickets Payout
2013-8-27SAT 00:10 0 0 0.00
Reset
Back
Save?
No
Yes
Note:
Reset Game setting: Reset all settings to default.
Delete All Record: Clear all bookkeeping data,
ClearTicket: Clearowedtickets.

DUO DRIVE V1.02
14
7. ERROR MESSAGE AND RECOVERY
7.1 Error Message
Symptom: Screen displays message “Communication ERROR” (there is communication
problem with the game)
Possible Causes & Fixes:
Communication data wire is damaged Replace the data wire.
SCM is not working Ask your technician to check and repair
PC COM port has been used Ask your technician to check and repair
Symptom: Screen displays ““PLEASE CALL ATTENDENT”, “TICKET ERROR” (there is problem in
the ticket payout function)
Possible Causes & Fixes:
No tickets in the game Replenish tickets and then press the TICKET RESET button.
Ticket dispenser is damaged Replace with a new ticket dispenser.
Faulty connection Ask the technician to check and repair.
7.2 System Recover y Operation
1. Turn off the game. Insert the memory stick into the USB port at the back of the computer.
2. Restart PC to enter the system recovery screen as shown.
3. The game will
automatically start recovery
which will take last about 5 minutes. Please wait until process is complete.
4. Once system recovery is finished (as shown below), remove the USB flash drive from the
computer and turn off the PC. Wait at least 30 seconds before restarting the PC.
WARNING: the USB flash drive should only be used to fix software errors. Using it for
other purposes may cause unexpected results and damages.

 DUO DRIVE V1.02
15
7.3 Problem Analysis and Solution
Problem Reason Solution
Plugged machine
without reaction
1.Incongruent power
2. leakage protection switch
3. No 110v voltage
1.Whether power is accord with the
machine
2.Detecting leakage switch is off,
please turn on
3.Change power voltage
After electrify，hear
WINDOWS startup
voice but no game
interface display
and blank screen
1.VGA holding line is loosen
2.Monitor damaged
3.Games reporting error
1. Check PC VGA holding wire is
loosen，If loose to pull plug this line .If
it’s not this port problem, continue to
check display VGA signal wire is loose.
2.Change monitor ，if monitor is
damaged, please dial this No.:
4006-020-321.
3. Update the game again
The power
on ,display
blue-screen and no
sound
1.PC power is loosen
2. VGA holding wire connects
PC and monitor is loosen
3. PC video card loosen
4. PC on safeguard mode
1. Check PC power is loosen
2. Check VGA holding wire connects PC
and monitor is loosen
3.Take apart PC cover, insert video card
again.
4.Open front cover，if boot lamp has
been flash, press start button for 30
seconds，restart again then .If you
cannot solve problems, Please dial this
No.:8008108888
Operation can
appear system
halted sometimes
1. video card loosen or bad
connection
2. PC crash
1. Insert video card again
2. Restart or system restore
Coin mech. No
reaction
1.Coin mech. damaged
2.holding wire loosen
3.No DC12V
4.IO control board damaged
1. Change coin mech.
2. check holding line is loosen
3. change switching voltage
4. change IO control board

DUO DRIVE V1.02
16
7.4 Coin Mech. Instruction
1. Spec.：
Applicable coins diameter：21mm ~28mm
Apply thickness of coins：1.7mm ~2.0mm
Operating voltage：DC +12V
Operating temperature：-15℃～+75℃
2.Usage：
a. Insert coins into groove you need.
b. Cooperate the need with machine of receive signal to inset coins. Changing-over three time
switches—fast, medium, and slow, but the “medium” is the factory settings.
c. VR knob is to adjust the coins ‘sensitivity ， clockwise (+) to spin is loose ， otherwise, tight.
Adjust VR knob according to any kinds of coin ，no coin or less coin，towards to (+)，otherwise，
towards to(-).
Problem Reason Solution
Can play the game
but there was no
voice
1. POT off
2. audio line is loosen
3. amplifier is damaged
4. speaker is damaged
1. Adapt the POT
2. Check audio line is loosen of
PC on picture 1
3. Send to factory to repair
4. change a speaker
The power is
on ,PC, display,
amplifier is normal,
but could not enter
the game screen
1. VGA serial port is loosen
2. IO control board is damaged
3. Dongle is damaged
1. Check PC and IO control
board’s VGA serial is loosen
2. Change IO control board
3. Change dongle
The interface bright
lights didn’t work
1. DC12V connecting line is loosen
2. switching voltage is damaged
3. DC12V connecting line is short
circuit
4. light control panel is damaged
1. check 12V connecting line is
loosen
2. change SW power
3. check 12Vconnecting line is
short circuit
4. change light control board

 DUO DRIVE V1.02
17
8. MAINTENANCE & INSPECTION
8.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running smoothly
8.2 Handling Precautions
When installing or inspecting the machine, be very careful of the following points and pay
attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the
cautionary matters herein stated can cause personal injury or damage to the machine
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the machine.
Unplug the power cord of the service outlet. Operating the machine without correcting the
problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install the
machine in a well-lit location, and keep the labels clean at all times. Make sure the labels
are not hidden behind other game machines.
WARNING

DUO DRIVE V1.02
18
9. OVERALL CONSTRUCTION

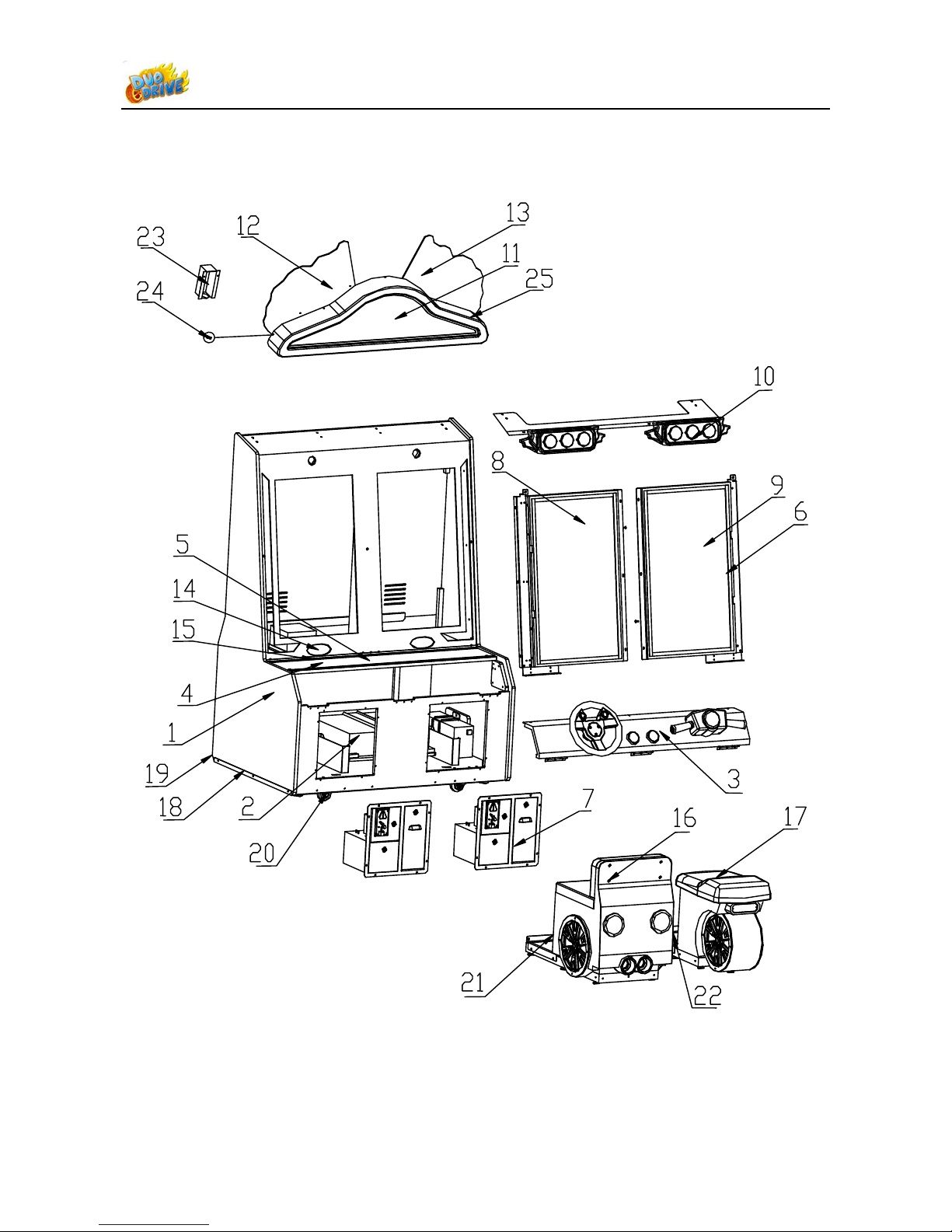

9.1 Assembly drawing

 DUO DRIVE V1.02
19
No Part No. Code No. Name SPEC. Qty
1 D120-001-000 29941317B001
Wooden cabinet 748×1203×1739 1
2 D120-002-000 29941317002 PC assembly Assembly 1
3 D120-003-000 29941317B003
Control panel assembly Assembly 1
4 D120-101-000 20641317B001
Console plate δ1 black EVA 1
5 D120-102-000 20541317B003
Console level decal
T
ransparent plastic 1
6 D120-103-000 20541317B002
Display decal Transparent plastic
1
7 D120-004-000 DZPPL-00-01 Coin door assembly Assembly 1
8 D120-005-000 29941317B004
L_Display assembly Assembly 1
9 D120-006-000 29941317B005
R_Display assembly Assembly 1
10 D120-007-000 29941317B008
Indicator light assembly Assembly 1
11 D120-008-000 29941317B009
Marquee assembly Assembly 1
12 D120-009-000 29941317B010
L_Top decal assembly Assembly 1
13 D120-010-000 29941317B011
R_Top decal assembly Assembly 1
14 D120-104-000 20241317B002
Speaker net δ1 black Q235 2
15 D120-105-000 20241317B003
Lower pressure-plate Q235 1
16 D120-011-000 29941317B006
Car seat assembly Assembly 1
17 D120-012-000 29941317B007
Motorcycle seat assembly Assembly 1
18 D120-106-000 20241317007 Both side plate δ1.2 black 2
19 D120-222-000 20241317B053
Back plate δ1.5 black 1
20
D120-108-000 26000008000 2.5”leveler Q235 4
D120-109-000 26000010000 2.5”caster bracket Q235 4
D120-110-000 25501000056 2.5”caster 3-2689-52 4
21 D120-111-000 20241317B030
Car connection plate Q235 1
22 D120-112-000 20241317B039
Motorcycle connection
plate Q235 1
23 D120-215-000 20241317B001
Marquee back cover plate Q235 1
24 D120-216-000 20241317B046
Plastic bracket δ2 5
25 D120-217-000 20641317B018
Marquee shell δ3 1
