Universal Space Lane Master PRO User manual

www.universal-space.com
Operation Manual
IMPORTANT

Lane Master Pro GMP Manual
07/12/2018
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Lane Master Pro GMP Manual
07/12/2018
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS........................................................................ 3
1. SPECIFICATIONS ..................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT .................................................................... 7
3. PART NAME.............................................................................................................. 8
4. SET UP & INSTALLATION........................................................................................ 9
5. HOW TO PLAY ........................................................................................................12
6. GAME OPTION .......................................................................................................13
7. TROUBLE SHOOTINGS ..........................................................................................19
8. MAINTENANCE & INSPECTION ...........................................................................22
9. OVERALL CONSTRUCTION ...................................................................................24
10. WIRING DIAGRAM ..............................................................................................34

Lane Master Pro GMP Manual
07/12/2018
3
Thank you for purchasing Lane Master Pro. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.

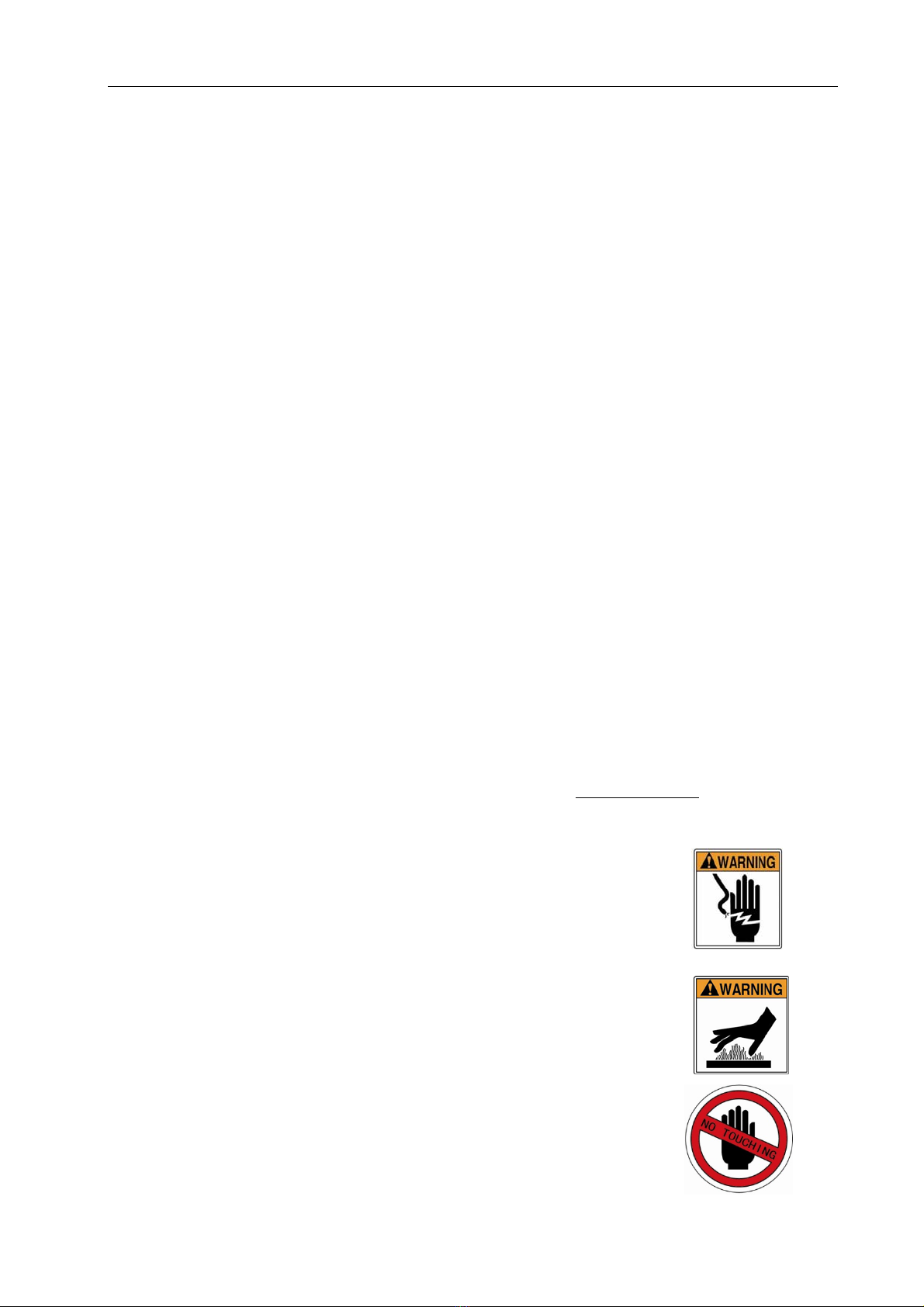

It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Lane Master Pro GMP Manual
07/12/2018
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Lane Master Pro GMP Manual
07/12/2018
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz;
Min. Power consumption: 250W
Max. Power consumption: 300W
Dimension: W26.4×D96.6×H101.2 in
W 670×D2452.5 ×H2568.8 mm
Weight：Approximately 474 lb
Approximately215kg
Part No: L114
Model No: C-525
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Lane Master Pro GMP Manual
07/12/2018
6

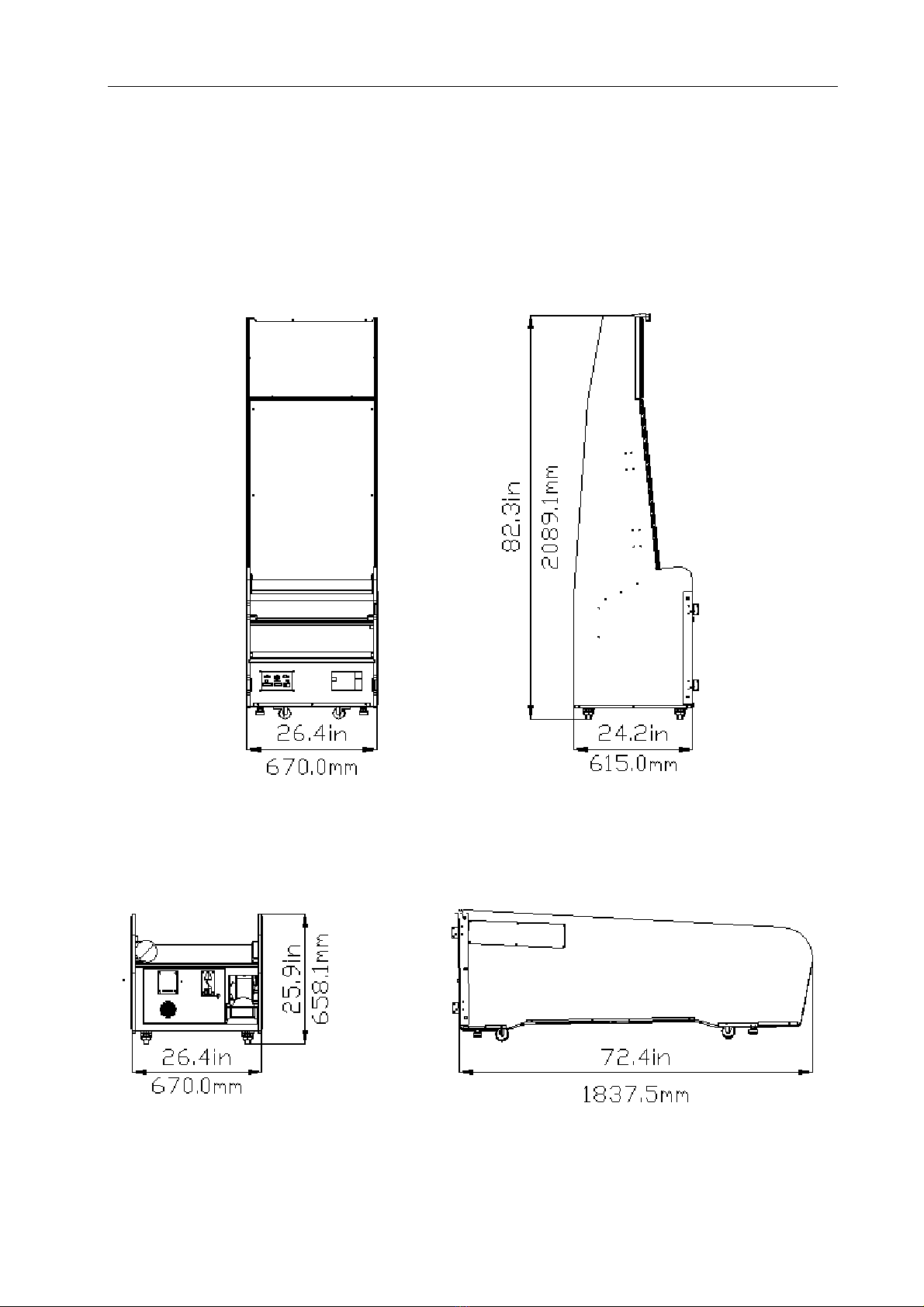

This machine will be divided into two parts during transportation.
Back Cabinet: W26.4×D24.2×H82.3 in
W670×D615×H2089 mm
Ally part: W26.4×D72.4×H25.9 in
W670×D1837.5×H658 mm
Note: Game specifications are subject to change without notice.

Lane Master Pro GMP Manual
07/12/2018
7

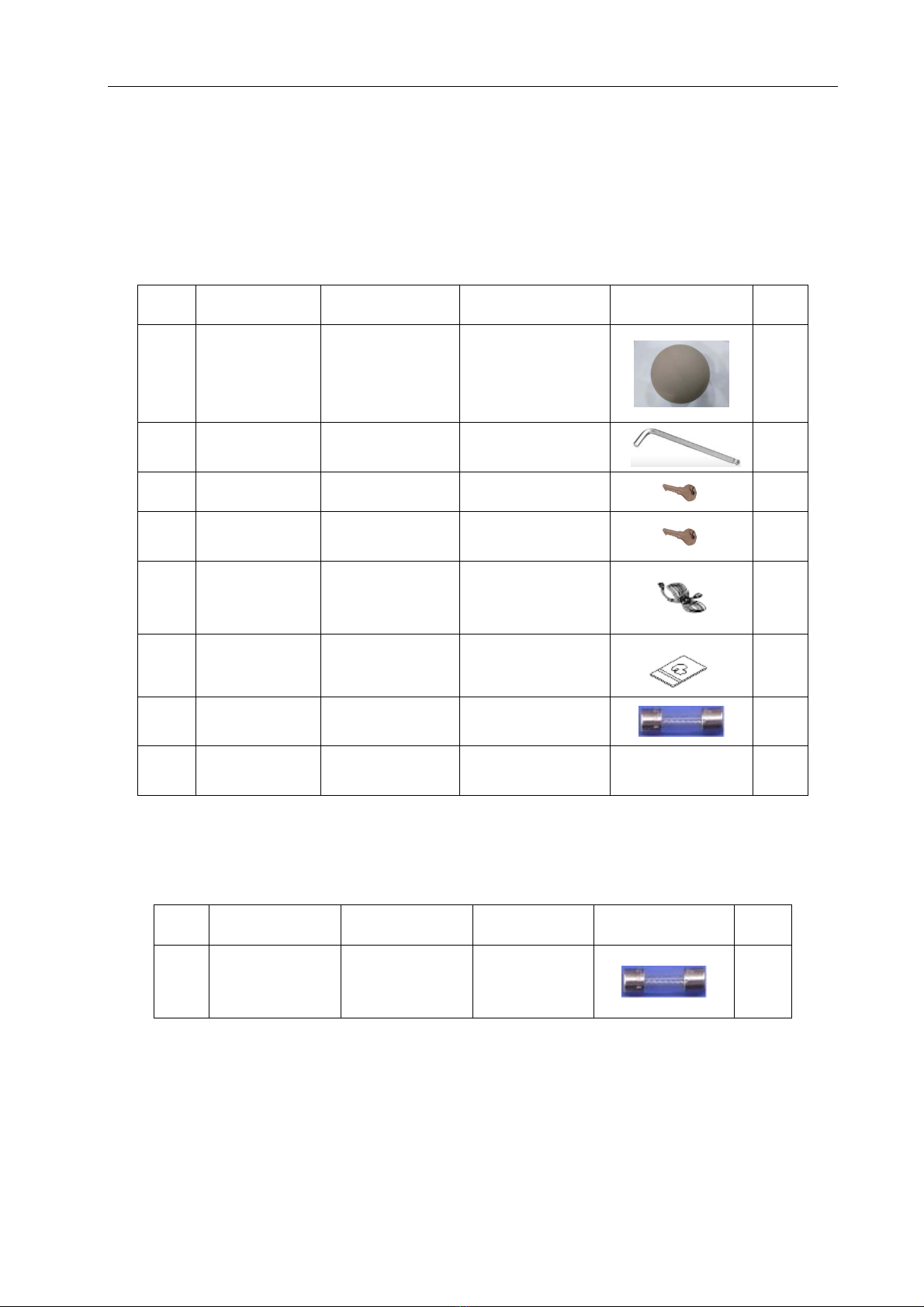

2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
For 110V
For 220V
NOTE: Part models are subject to change without notice.
No. Part No. Code Name Picture Qty
1 L114-170-000 20611605027A Bowling ball 2
2 L114-747-000 40607000012 Wrench 2
3 L114-801-000 25300171002 key 1
4 L114-802-000 25300172002 key 1
5 L114-430-000 23301010020 Power cord 2
6 L114-803-000 41440000173F Manual 1
7 L114-412-000 21901000013 Fuse 2
8 L114-433-00 21107120003
Wireless
keyboard&mouse
1
No. Part No. Code Name Picture Qty
1 L114-411-000 21901000012 Fuse 2

Lane Master Pro GMP Manual
07/12/2018
8
3. PART NAME
Key Components
Ball exit
Mar
q
uee Ass
y
.
42” Monitor
Lane
27” Monitor
Printer

Lane Master Pro GMP Manual
07/12/2018
9
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game
. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move
Caster Leveler
About 0.2 in
Move Fix
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE

Lane Master Pro GMP Manual
07/12/2018
10

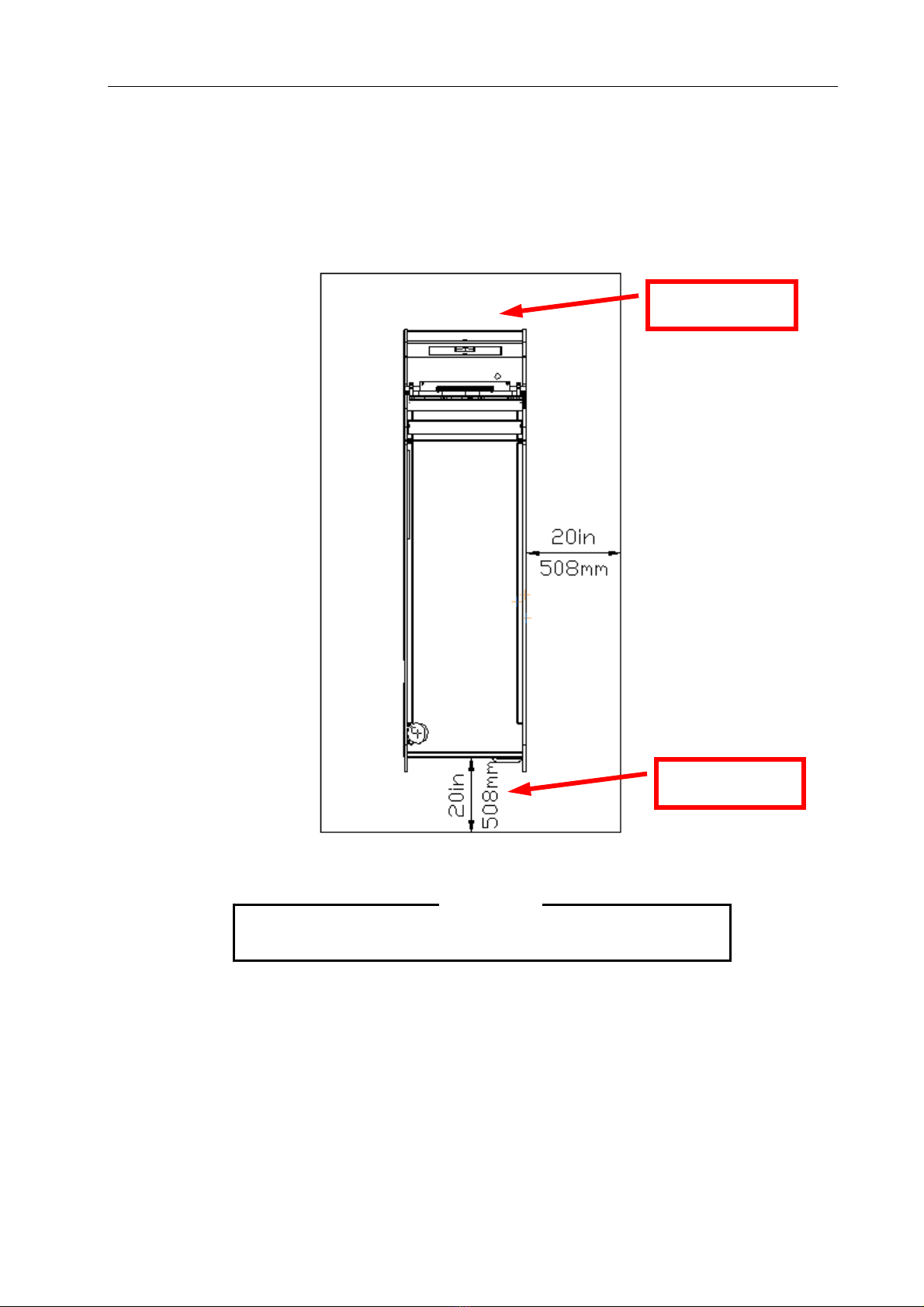

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area
Your unit must be leveled to operate properly.
NOTICE

Lane Master Pro GMP Manual
07/12/2018
11
4.4Machine Installation
4.4.1 Marquee Installation
Before processing with assembly assure you have the following tool.
Step 1 Upright the marquee and use Allen hexagon wrench to install two screws as picture
shown.
No.
Name Picture
1 Allen hexagon wrench
Please install the screws as red arrow shown

Lane Master Pro GMP Manual
07/12/2018
12

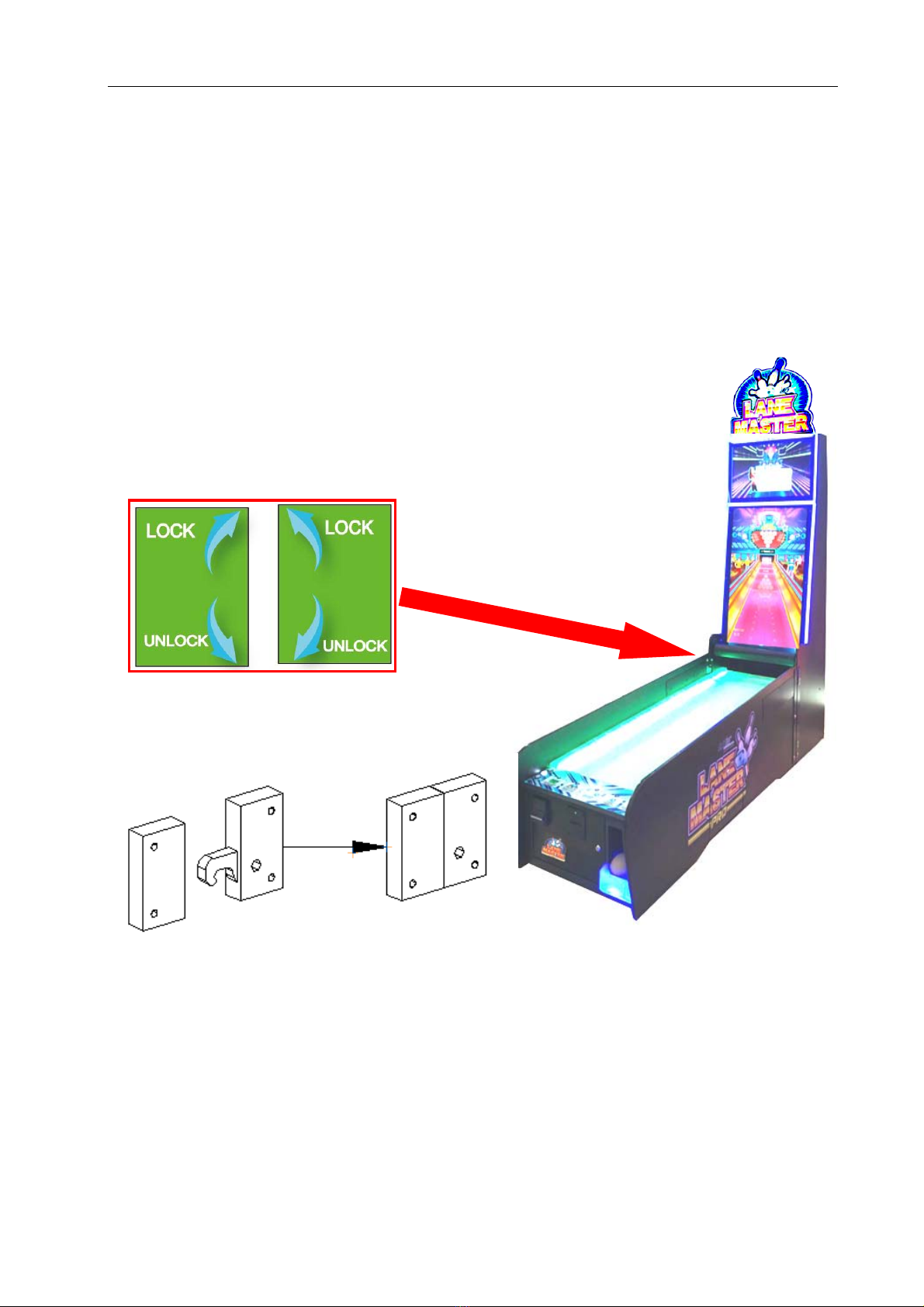

4.4.2 Connect Lane Assembly & Display Assembly
Step 1 Use the Allen hexagon wrench (Provided) to lock the back box with the lanes as
indicated.
Step 2 Lower leg levelers into place for initial leveling of the back box and the lanes if the
floor is uneven.
Step 3 Add ball to each lane and apply power.
Step 4 Once game is powered on and operational place it in position. Utilizing the leg
levelers to assure the back box and lanes are level with each other.
LockUnlock

Lane Master Pro GMP Manual
07/12/2018
13

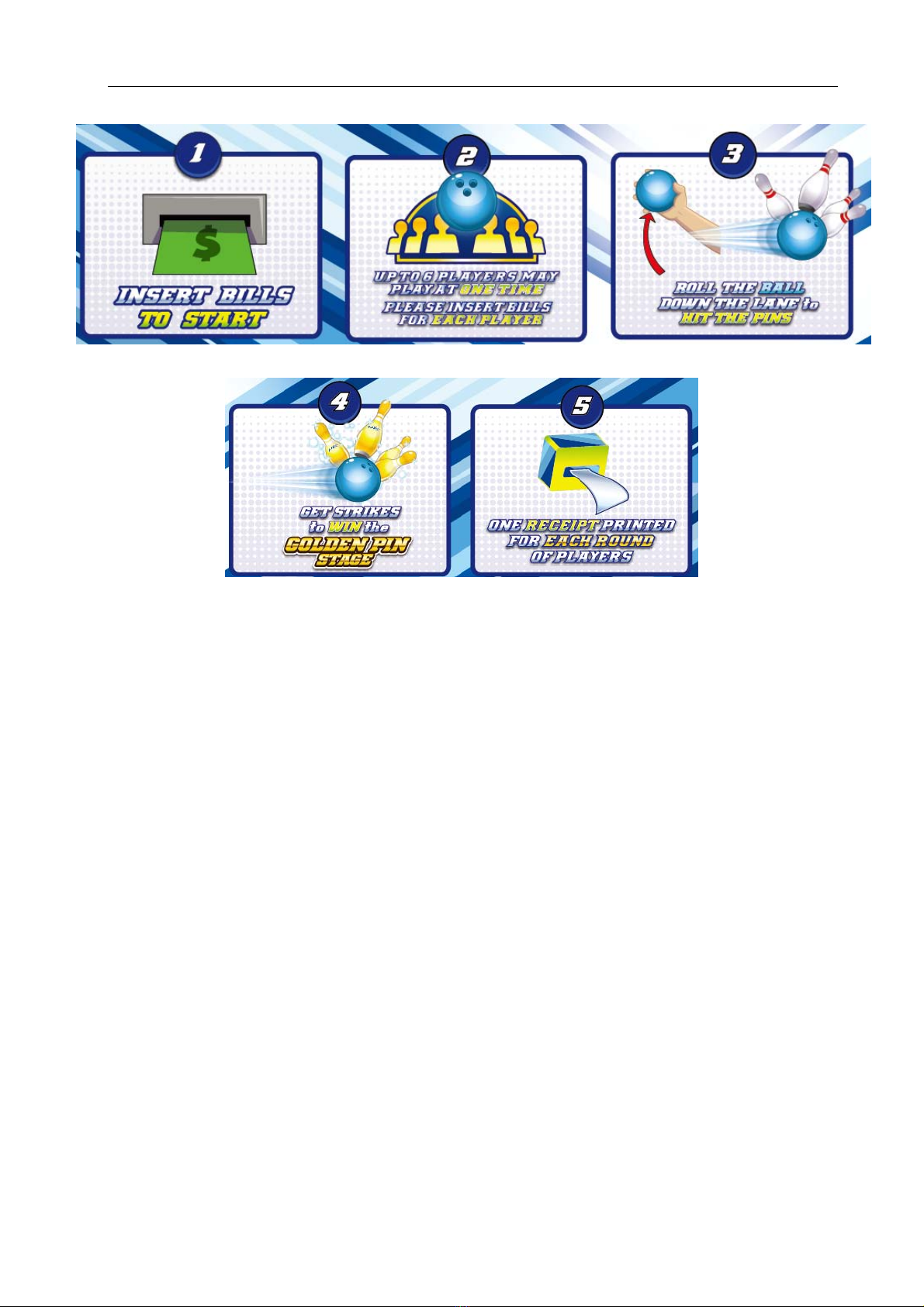

5. HOW TO PLAY

Lane Master Pro GMP Manual
07/12/2018
14
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Basic Setting
Customized Setting
Coupon content setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
About This Game
Bookkeeping
DailyRecord
Back to game
6.2.3 Customized Setting
Coupon input option Prize input/Score input
Regulation Mode OFF/ON(ON)
Alternating Ball Color OFF/ON(ON)
Number of Frames Frame 1-10(3)
Multiplayer Join Time 5-60(20)
Number Of Strike(s)
To Activate Golden Pin
Stage
1-3(1)
Golden Pin Stage OFF/ON(ON)
Golden Pins Set 10-100(100)
Each Golden Pin
Score
1-10(ON)
Bumper Version OFF/ON(ON)
Open the coin door and there is a
meter panel. Press Settings button to
enter into the setting menu.
6.2.2 Basic Setting
Free Play OFF/ON (OFF)
Demo Music OFF/ON (ON)
Memory Save OFF/ON (ON)
Volume 1-10 (7)
Coins Per Game 1-10 (1)
Pay Mode Insert bills
Go Back&Save
Back
Strike Zone
Game Level
Easy/Normal/Difficult
(Normal)
No Ball Found OFF/ON (ON)
Type In Player
Name After
Credit In/ Game Over
(Game Over)
Top Ranking OFF/ON(ON)
Type In Name
Time 5-60(20)
Number of
Top Players 5-20(20)
Minimum
Score to show
on Ranking
100-200-500-600-800-
1000-1200-1500-2000
(100)
Go Back & Save
Back

Lane Master Pro GMP Manual
07/12/2018
15
6.2.4 Coupon content setting
PrizeInput: ScoreInput:
Shop name
(Enter the shop name)
Prize content
1 ST (enter prize name)
2 ND (enter prize name)
3 RD (enter prize name)
4 TH (enter prize name)
5 TH (enter prize name)
6 TH (enter prize name)
Comments
(Enable to enter 256 characters)
Save
Clear All
Test
Exit
6.2.5InputTest 6.2.6OutputTest
Enter Button OFF/ON
Left Button OFF/ON
Right Button OFF/ON
Coin OFF/ON
Send Ball Sensor Initial Position OFF/ON
Ball Detect OFF/ON
Ball Signal OFF/ON
Ball Location 0-100
Ball Speed 0-100
Ball Direction 0-180
Detection Time for Ball to Pass Sensor1 0
Detection Time for Ball to Pass Sensor2 0
Detection Time for Ball to Pass Sensor3 0
Detection Time for Ball to Pass Sensor4 0
Detection Time for Ball to Pass Sensor5 0
Infrared1 OFF/ON
Infrared2 OFF/ON
Infrared3 OFF/ON
Infrared4 OFF/ON
Infrared5 OFF/ON
Send Ball Error OFF/ON
Shop Name
(Enter the shop name)
Comments
(Enable to enter 1000 characters)
Save
Clear All
Test
Exit
6.2.7 Game Reset
Factory Restore YES/NO
Reset Basic Setting YES/NO
Reset Customized Setting YES/NO
Clear All Records YES/NO
Clear Owed Ticket YES/NO
Clear Unused Coin YES/NO
Reset Top Ranking Score YES/NO
Back
Enter Button Light
Left Button Light
Right Button Light
Ball Release Test
Back
Note: Before processing this setting, please set
the Coupon Input Option first.

Lane Master Pro GMP Manual
07/12/2018
16
6.2.10 Bookkeepin
g
Press the Test Button to Go Back
CPU
Motherboard
Disk Drive
Memory
Display Adapter
Monitor
Screen
Year 2010-2100
Month 1-12
Day 1-31
Hour(24) 0-23
Minute 0-59
Second 0-59
Go Back & Save 
Back 
6.2.8 Date/Time Setting 6.2.9 About This Game
Date Weekday RunTime Bills
2014-06-06 Fri 00:00 0
Clear
Back
Player1 Bills
1 0
These Settings Are Non-Resettable
Back
6.2.11 Daily Record

Lane Master Pro GMP Manual
07/12/2018
17
6.3 Display Advertisement Operation
In Version 1.05 or higher version for Lane Master, operator can put advertisement to the
machine and display on the top monitor.
Please note that the advertisement video format has to be AVI.
Please prepare a mouse, a keyboard and a memory stick.
Step 1
Power down the machine. Plug in a mouse and a keyboard. Power up the machine. Insert a
memory stick after the pc shows system interface.
Note: Please do not put any ghost system file to the memory stick and do not insert the
memory stick before powering up the machine. This may cause damage to the system.
Step 2
1&2.Click “Start” and choose ”Computer”
1
1

Lane Master Pro GMP Manual
07/12/2018
18
3.Click” GameDGho”
4.Click ”Videos”
5.Copy the AVI file from memory stick into “Videos” folder.
Step 3
Unplug the memory stick. Power off and restart the machine. The advertisement video will
be shown on the top screen. If the video format is not AVI. It will show an error as below.

Lane Master Pro GMP Manual
07/12/2018
19
7. TROUBLESHOOTING
7.1 Common Problem
Please confirm that all connectors fit tightly.
Symptom Possible Cause Recommended action
Game will not
start
Frame assembly connector is
loose. Check connector.
Frame assembly fault Contact with UNIS Service.
Power off Circuit protector make power SW
in off state.
Turn on power SW again. If appeared
again and again, machine has
anomaly. Please contact with UNIS
Service.
No sound
Low volume Raise the volume.
Connector loose. Check connector.
Speaker fault. Check speaker.
POT installation error. Install POT correctly.
POT fault. Change POT.
Audio cable problem. Reconnect the audio cable or change
it.
PC crash. Restart or system recovery.
Driver problem Restart the audio driver.
Display black
screen
Check connectors. Plug in connector tightly
Display fault. Utilize another source such as a PC to
verity if the display is operational.
RAM is loose. Remove and reinsert RAM.
Display blue
screen
PC power cord is loose Check PC power cord whether is loose.
VGA signal cable is loose. Check VGA cable
PC video card is loose. Reseat video card.
“0X000000A” code appears.
Conflict between computer drive
and software.
Contact service
Note: After replacing component from pc (except for RAM), and replacing monitor, the
game should be recovered again with the memory stick attached to the machine.
