Uplus Lighting 750 BSWF User manual

User manual
750 BSWF
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions……………………………………………………………………………3-4
2.Technical Specifications………………………………………………………………………4-5
3.Description…………………………………………………………………………………………5
4.LED Light Source…………………………………………………………………………………6
5.Control Menu ……………………………………………………………………………………6-8
6.Universal DMX controller control……………………………………………………………8-9
7.DMX Channels …………………………………………………………………………………10-14
8.Dimension…………………………………………………………………………………………15
9.Trouble Shooting…………………………………………………………………………………16
10.Fixture Cleaning………………………………………………………… ………………………16
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is

4
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight of the unit when
installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people.
2.Technical Specifications
Power Supply：100~240V，50/60Hz
Power：The whole lamp power is 950W (90V), power factor: PF ≥ 0.98
Lamp：750W LED module (rated life of bulb: 20000h)
Color temperature：7500K
Electronic control technology：
Display with battery, able to Edit menu without power
Fan intelligent control, temperature electronic sensor detection.
DMX channel level monitoring, LCD screen lamp information query, RDM data two-way transmission.
Non contact magnetic rotary encoder positioning, signal feedback, absolute position memory, offline
power off position recovery.
Optical system:
1.Efficient optical system
2.Strong light output
3.High quality optical lens
Moving：
1.Pan move angle 540°, Accuracy 2.11°/ Step, fine tuning accuracy 0.008 °
2.Tilt move angle 270°,The accuracy is 1.05°/ Step, fine tuning accuracy 0.004 °
3.pan and tilt magnetic rotary encoder positioning reset system.
4.with automatic error correction.
Dimming / stroboscopic:
Fast motorized iris 5-100% linear adjustment, with macro function and multi-effect change Electronic
dimming, 0-100% linear dimming, uniform light spot
The electronic stroboscopic speed is 1-25 times/sec. You can choose pulsation, asynchronous,
synchronous, random slow, medium, fast, etc
Significant: Equipped with a high CRI chip to switch the high CRI mode.
Optics: Spot uniformity 90%, color rendering index:800≥70/800H≥90
Color system: CMY+CTO Color mixing system
Color Wheel：1 color wheel, 6 colors plus white, half-color effect, color film can be positioned
arbitrarily, with rainbow effect of bidirectional rotation.
Gobo Wheel:
1.Gobo wheel：1 fixed gobo wheel, 8 gobo plus white circles; 1 rotating gobo wheel, 6 patterns plus

5
white circles;
2.With pattern jitter and pattern arbitrary positioning function. Magnetic positioning function,
convenient for initial position correction and maintenance
Prism:
Prism 1: 4Prisms, Prism 2: Six-sided gradient mirror；
It can be rotated and superimposed in both directions, and has a prism positioning function.
Atomization: 2 atomizing films, which can be switched independently or superimposed to use light、
Moderate fogging.
Cutting:
Mechanical linear iris, 5%-100% linear adjustment;
4 gratings realize fast and smooth cutting, each grating can be individually controlled in cutting and
degree;
Single light can be turned off completely, and the whole module can be rotated ±45°.
Zoom: 4.5°-50°，With automatic adjustment function.
Heat dissipation:
It adopts one-in-one-out design, cooling fan, and dust-proof window for heat dissipation.
Control:
Standard DMX512 protocol,
Art-net Ethernet control protocol,
SACN protocol and wireless
DMX512 control (optional)
Net weight:29.8Kg Gross weight (carton):34Kg
Product Size:690×400×500mm Packing size (carton):520×420×420mm
3. Description
Rear side of base
1.Fuse：20A Over current protection；
2.Power cable：Connect the power supply.
3.Ethernet interface:Used for network protocol
transfer;
4.DMX interface：For DMX 512 connection, use 3-
pin or 5-pin XLR signal cable to connect to the lamp
and DMX console, and input DMX signal;

6
4.LED Light Source
The ultraviolet light emitted by the LED light source is harmful to the eyes and skin. Please do not
look directly at the lamp when it is running.
1. In order to protect the lamp, when turning off the lamp, please turn off the LED light source first,
and then disconnect the power supply after running for at least 5 minutes.
2.Do not touch the LED light source with bare hands. Once touched by hand, scrub with alcohol
and then dry with a soft linen cloth.
3.Ensure that the LED light source is installed in the central position to ensure the best results.
5.Control Menu
5.1 The main function
Turn on the machine, press the ENTER button to enter the menu mode, use the UP and DOWN
buttons to find the menu. When the preset menu is displayed on the display, press the ENTER
button to confirm. Use the UP and DOWN buttons to select the submenu, press the ENTER button
to save the setting or automatically return to the previous menu.Press the MENU button to return,
or wait for 30 seconds to exit the menu mode automatically.
When there is no power connection, press the MENU button for 3 seconds to enter the menu
mode.After setting, press the ENTER button for 1 second or wait for 40 seconds before powering
off and automatically exit the setting function.
The main functions are shown in the table below.
Menu function
A degree
menu
B degree menu
C degree menu
D degree menu
E degree menu
Set address
0-512
Advanced
settings
Horizontal reverse
Yes/No
Vertical reverse
Yes/No
Display rotation
Reverse/forward
(Default forward)
The screen is
automatically reversed
Yes/No
(Default yes)
The display is always on
Open/close
(Default close)
Optocoupler correction
Open/close
(Default close)
Data retention
Voice
Chinese/English
(Factory default
Chinese)
Error message
Yes/No
Factory settings
Select channel mode
Standard mode
(Factory default)

7
Operating
mode
53（CH）
Reduced mode
37（CH）
View current channel
Level
0-255
.......
Function/Reset
Manual control of lamps
Mode selection
DMX/Self-propelled/Voice
control/Scenes
Scene selection
Self-propelled
1
....
10
Scene selection
Scene selection
01-10
Scene time
01.X axis
0-255
...
0-255
53.Reset/
Function
0-255
Master-slave selection
automatic/
Slave/
Host
Fixture reset
Horizontal and vertical
Yes/No
Color
Yes/No
Pattern
Yes/No
Cutting group
Yes/No
Prism/focusing
Yes/No
All
Yes/No
Communication options
DMX/Art+DMX/
ArtNet/Wireless
(Default DMX)
Network Configuration
DHCP
IP Address
Subnet mask
Port settings
System
message
Device version number
Motor information
Device status
Broken record
Light source time
Equipment running time
Light source
Light source information
Dimming mode
smooth/fast
Fan mode
automatic/theater/Silent
Service Contact

8
Application
service
Equipment maintenance
times
Equipment fine-tuning
and calibration
Device data clear
Equipment usage record
5.2.Error message
Temperature error
The temperature detection board may be damaged.
Fan error
The fan and its control part may be broken
Magnetic error
For the magnetic sensitive function part may be broken.
Optocoupler error
The optocoupler and its control part may be broken.
The above situation may occur when opening or resetting the machine, and some parts
may be damaged. Please contact an authorized repair center.

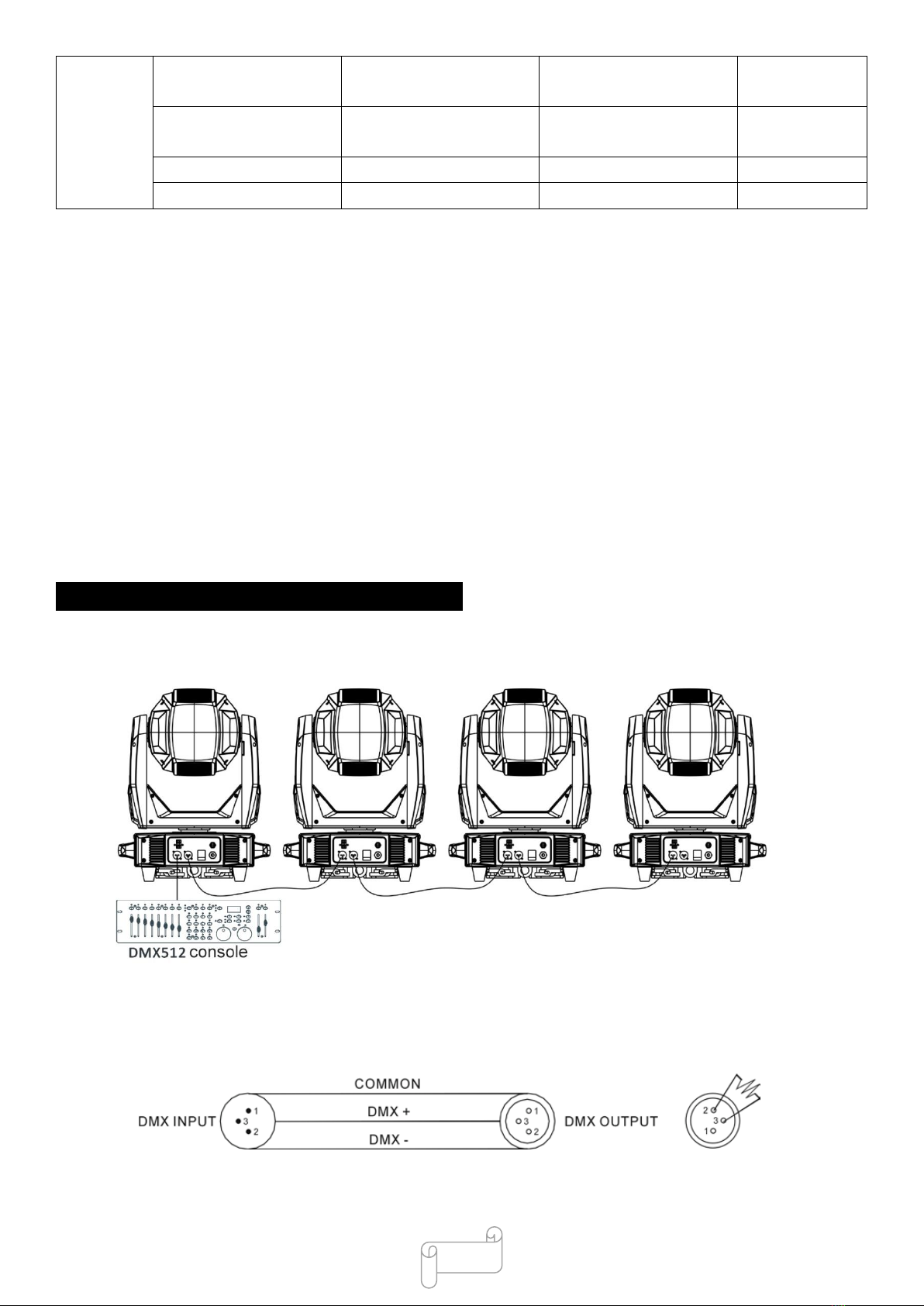

6.Universal DMX controller control
6.1 Connection
1. In order to reduce signal errors and avoid signal weakening and interference during transmission,
a 90-120Ω (0.25W) resistance can be added between the 2 cores and the 3 cores of the DMX
output terminal of the last machine
2. Use the XLR signal cable to connect the lamp, one end to the output port of the lamp, and the
other end to the input port of the next lamp. The XLR signal line can only be used in series, not

9
in parallel. DMX512 signal transmission speed is very fast. Damage to the signal line, weak
soldering, poor contact, etc., will affect the signal transmission and cause the system to shut
down
3. When the machine power supply of a certain unit is disconnected, the connection of DMX output
and input is bypassed in order to maintain the connection of the DMX line.
4. Each lamp must have an address code, which can receive the information sent by the console,
the range is between 0-512（Usually 0&1 is the same as 1）.
5. The terminal of the DMX512 system needs to be equipped with a terminator to reduce signal
transmission errors.
6. 3-pin XLR connector:
3 core XLR ：PIN 1：GND，PIN 2：Negative signal，PIN 3：Positive signal
6.2 Channel settings
Press the ENTER button to enter the menu mode, select the operating mode → select the channel
mode,
Press the ENTER button to confirm.The current channel mode will flash on the display. Use the UP
and DOWN buttons to select standard mode 53 (CH), and press the ENTER button to save.Press
the MENU button to return to the previous menu or wait for 30 seconds to automatically exit the
menu mode.
6.3 Address code setting
When a general DMX controller is used to control the lamp, you need to set the starting address (1-
512) for the lamp so that the machine can receive the DMX signal.
Press the ENTER button to enter themenu mode, select the DMX function, press the ENTER button
to confirm. The current address will flash on the display, then use the UP/DOWN button to select
the address code (1-512), and press the ENTER button to save.
Please refer to the chart below to set the address codes of the first 4 fixtures:
Channel mode
Lamp 1 address code
Lamp 2 address code
Lamp 3 address code
Lamp 4 address code
53Channel
1
54
107
160
37Channel
1
38
76
114
6.4 DMX 512 channel
Please refer to the following channel diagram to control the lamps.
Note:
1. If the DMX signal is cut off, the lamp will keep the state before the signal is cut off, unless it is
reset.

10
7.DMX Channels
Standard
mode
53（CH）
Reduced
mode
37（CH）
Channel name
Channel value
Function
1
1
Level
000-255
0-540°
2
2
Level
fine-tuning
000-255
16bit adjustable
3
3
vertical
000-255
0-270°
4
4
Vertical fine-tuning
000-255
16bit adjustable
5
5
XY Speed
000-255
From fast to slow
6
6
Dimming
000-255
Light spot from dark to bright
7
Dimming fine-
tuning
000-255
16bit adjustable
8
7
Strobe
0-3
Turn off the light
4-127
Pulse stroboscopic, from slow to fast
128-191
Gradual stroboscopic, from slow to fast
192-251
Random strobe, from slow to fast
252-255
Turn on the light
9
8
CMY blue
000-255
Blue CMY，From shallow to deep
10
9
CMY rose Red
000-255
Rose red CMY，From shallow to deep
11
10
CMY yellow
000-255
Yellow CMY，From shallow to deep
12
11
CMY CTO
0-255
CTO，From shallow to deep
13
CMY HONG
0-9
No function
10-255
CMY HONG function
14
CMY HONG speed
0-255
CMY Color chip conversion function，
from slow to fast
15
12
Color wheel
0-8
white
9-17
red
18-26
green
27-35
blue
36-44
yellow
45-53
rose red
54-62
fluorescence
63-70
white+red
71-78
red+green
79-86
green+blue

11
87-94
blue+yellow
95-102
yellow+rose red
103-110
rose red+fluorescence
111-119
fluorescence+white
120-185
Reverse rainbow, from fast to slow
186-189
stop
190-255
Positive rainbow, from slow to fast
16
13
Fixed disk
0-6
white
7-13
gobo1
14-20
gobo2
21-27
gobo3
28-34
gobo4
35-41
gobo5
42-48
gobo6
49-55
gobo7
56-63
gobo8
64-71
gobo 1 jitter effect,from slow to fast
72-78
obo 2 jitter effect,from slow to fast
79-85
obo 3 jitter effect,from slow to fast
86-92
obo 4 jitter effect,from slow to fast
93-99
obo 5 jitter effect,from slow to fast
100-106
obo 6 jitter effect,from slow to fast
107-113
obo 7 jitter effect,from slow to fast
114-120
obo 8 jitter effect,from slow to fast
121-127
white
128-189
The dynamic wheel rotates in reverse,
from fast to slow
190-193
stop
194-255
The dynamic wheel rotates forward, from
slow to fast
17
14
Rotating
gobo wheel
0-8
white
9-17
gobo1
18-26
gobo2
27-35
gobo3
36-44
gobo4
45-53
gobo5

12
54-63
gobo6
64-73
gobo 1 jitter effect,from slow to fast
74-82
gobo 2 jitter effect, from slow to fast
83-91
gobo 3 jitter effect, from slow to fast
92-100
gobo 4 jitter effect,from slow to fast
101-109
gobo 5 jitter effect, from slow to fast
110-118
gobo 6 jitter effect,from slow to fast
119-127
white
128-189
Positive rainbow, from slow to fast
190-193
stop
194-255
Reverse rainbow, from slow to fast
18
15
Rotation pattern
rotation
0-127
0-400°
128-190
Forward rotation, from fast to slow
191-192
Stop
193-255
Reverse rotation,from slow to fast
19
Rotation pattern
rotation
Fine-tuning
0-255
16bit adjustable
20
16
Fire plate
0-9
white
10-255
Linear cutting, it will rotate when cutting
in
21
17
Fire disk rotation
0-124
Forward rotation, from fast to slow
125-130
stop
131-255
Reverse rotation, from slow to fast
22
18
Prism1
0-14
white
15-255
Prism effect
23
19
Prism 1 rotation
0-127
0-400°
128-187
Forward rotation,
from fast to slow
188-195
stop
194-255
Reverse rotation,from slow to fast
24
20
Prism 2
0-14
White
15-255
Gradient mirror
25
21
Prism 2 rotation
0-127
0-400°
128-189
Forward rotation, from fast to slow
190-193
stop
194-255
Reverse rotation, from slow to fast

13
26
22
aperture
0-255
From big to small
27
23
Atomization1
0-6
White
7-255
Atomization 1 effect
28
24
Atomization2
0-6
White
7-255
Atomization 2 effect
29
25
CRI Clip
0-7
No function
8-255
CRI effect
30
26
focusing
0-255
From far to near
31
Focus fine
adjustment
0-255
16bit Adjustable
32
no effect
0-255
33
27
enlarge
0-255
From small to large
34
enlarge and fine-
tune
0-255
16bit Adjustable
35
28
Cutting group 1
motor 1
0-255
0-100% stroke
36
Cutting group 1
motor 1 fine
adjustment
0-255
16bit Adjustable
37
29
Cutting group 1
motor 2
0-255
0-100% stroke
38
Cutting group 1
motor 2 fine-tuning
0-255
16bit Adjustable
39
30
Cutting group 2
motor 1
0-255
0-100% stroke
40
Cutting group 2
motor 1 fine
adjustment
0-255
16bit Adjustable
41
31
Cutting group 2
motor 2
0-255
0-100% stroke
42
Cutting group 2
motor 2 fine-tuning
0-255
16bit Adjustable
43
32
Cutting group 3
motor 1
0-255
0-100% stroke
44
Cutting group 3
motor 1 fine
adjustment
0-255
16bit Adjustable
45
33
Cutting group 3
motor 2
0-255
0-100% stroke

14
46
Cutting group 3
motor 2 fine-tuning
0-255
16bit Adjustable
47
34
Cutting group 4
motor 1
0-255
0-100% stroke
48
Cutting group 4
motor 1 fine
adjustment
0-255
16bit Adjustable
49
35
Cutting group 4
motor 2
0-255
0-100% stroke
50
Cutting group 4
motor 2 fine
adjustment
0-255
16bit Adjustable
51
36
Cutting group
rotation
0-255
0-100% stroke
52
Cutting group
rotation
fine-tuning
0-255
16bit Adjustable
53
37
Function channel
0-49
No function
50-149
Self-propelled effect
150-209
No function
210-215
XY reset more than 6 seconds
216-219
No function
220-235
Head effect reset after 6 seconds
236-239
No function
240-255
All channels reset more than 6 seconds

15
8.Dimension

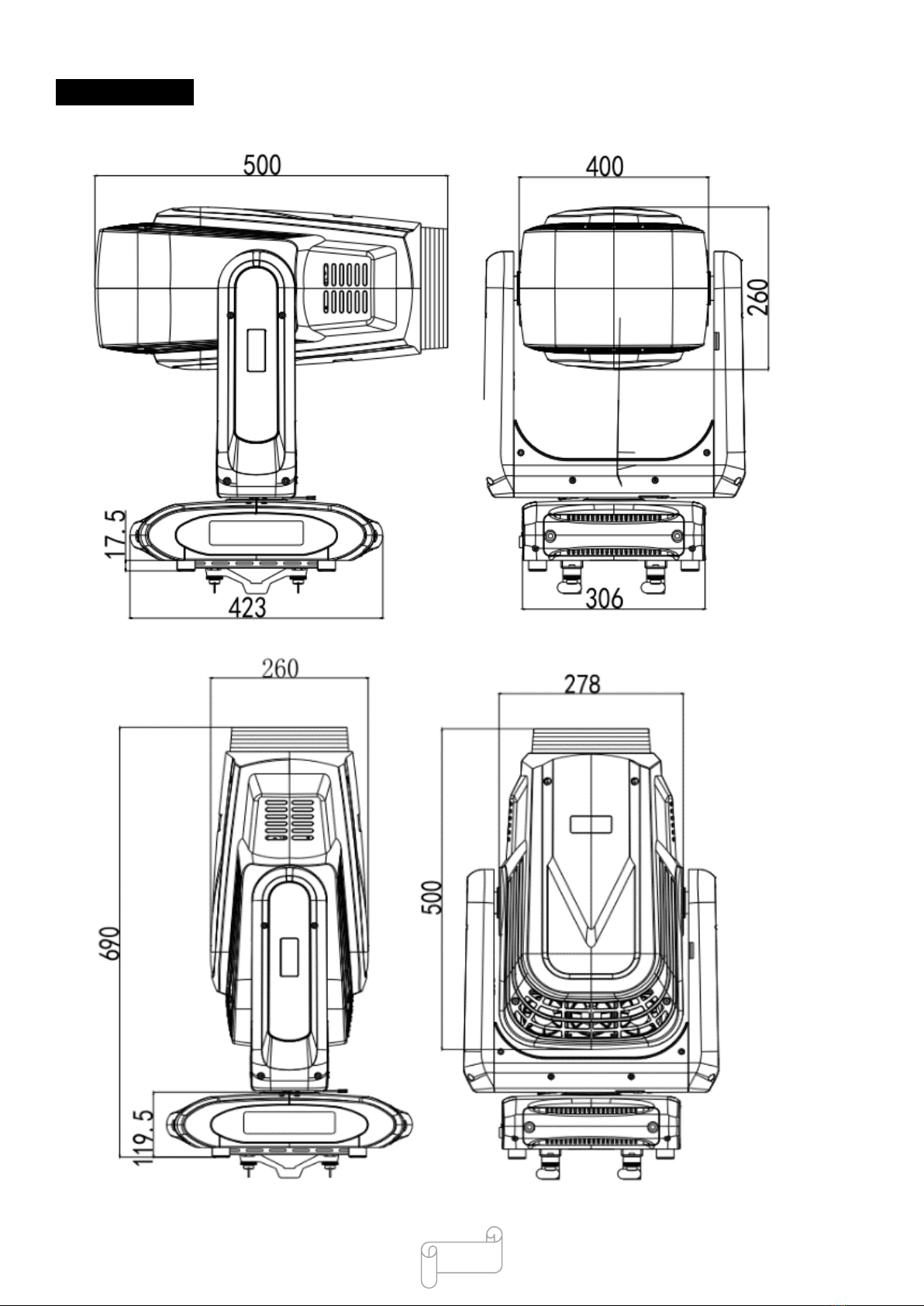

16
9.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X
p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
10.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
