Vicon EXTRA 628 FT User manual

EXTR628 FT - 632 FT -
635 FT
Operator's Manual
Translated from the original instruction manual
Date of publication 10/2011
Date printed 10/2011
Language EN
Valid as from serial No.: KT 419.478
Reference No: 91000203EN
Index 2011-10

Identification of machine
So that your dealer can help you as quickly as possible, he needs to have some information about your ma-
chine. Enter your information here.
Description
Working width
Weight
Machine number
Accessories
Dealer
address
Manufacturer
address
Copyright Kverneland Group Kerteminde, Denmark. Copying,reproduction in any form, translation, or use of excerpts or parts of this document
are not permitted without specific permission from Kverneland. All rights reserved. The contents of this instruction manual may be changed without
prior warning. Rights reserved for technical amendments and printing errors in this manual.
Kverneland Group Kerteminde AS
Taarupstrandvej 25
DK-5300 Kerteminde - Denmark
Tel./fax: [phone]
web: www.kvernelandgroup.com
Extr628FT - 632FT - 635FT
Extr628FT: 2.8 m, Extr632FT: 3.2 m
Extr635FT: 3.5 m
Extr628FT: 1147 kg, Extr632 FT: 1165 kg
Extr635FT: 1286 kg

Contents
3
Contents
Contents ...........................................................4
Instruction manual target group 4
The meaning of the symbols 4
Safety................................................................5
For your own safety 5
Who can operate the machine? 9
Connecting 9
Load capacity 10
Transport on public roads 11
Use 12
Disconnection 14
Maintenance 15
Further safety instructions 17
About the machine.........................................18
The field of application of the machine 18
Machine characteristics 19
Synopsis 20
Technical data 21
Tractor requirements 23
Preparation.....................................................24
Preparing the machine 24
Assembly - attachment..................................29
Attachment of the tractor 30
Hydraulic 39
Connection 40
First start-up of machine 40
Transport on public roads ............................46
Safety 46
Before travelling on public roads 46
Checking the machine 46
Travelling on public roads 46
Operation........................................................47
Safety 47
Before operating 47
Operation 48
Cleaning..........................................................63
Before cleaning 63
Cleaning 64
After cleaning 64
Parking and Storage......................................65
Before storage 65
Parking/disconnection of the machine 65
Storage 69
Maintenance...................................................70
For your own safety 70
General instructions 71
PTO shaft check 73
Lubrication 74
Service - check 78
Replacement 98
Optional equipment.....................................114
High skids 114
Throwing wings 114
Chain for locking the front lift device 115
Quick release of knives 115
Straw divider 116
A-frame 116
PTO shaft 116
Lighting kit 117
Nylon Y-fingers 117
Extension pieces for the deflector plates 118
Troubleshooting ..........................................119
Guarantee.....................................................121
Guidelines for warranty 121
Disposal........................................................122
Metal parts 122
Rubber parts 122
Plastic 122
Hydraulic oil 122
Electronic parts 122
EU declaration of conformity......................123
EU Directive 2006/42/EC 123
Notes.............................................................124
Technical information .................................125
Index .............................................................126

4
Contents
Contents
Instruction
manual target
group
This instruction manual is intended for trained farmers and others who
are qualified to work in agriculture and who are familiar with
assembling equipment.
For your own safety
Read this instruction manual thoroughly before use and mounting. By
doing this you have optimal working conditions and you can work in
safety.
For the employer
Every employee must be trained in how to use this machinery at
regular intervals (at least once a year) in accordance with the
employer's insurance guidelines. Untrained or unauthorised persons
must not use this machine.
Instructions
Your dealer willassistwith instructions on how to use andmaintain this
machinery.
The meaning of
the symbols
We have used different symbols to make the text clear.An explanation
follows:
•A dot symbol marks a list.
> A triangle marks an action you must carry out.
An arrow refers you to other parts of the text.
We also use pictograms to help you find relevant places in the text.
T IP ! The word 'tip' indicates tips or instructions on use.
NB “NB” denotes information that requires particular attention.
A spanner indicates tips for assembling and settings.
A warning triangle indicates important safety instructions. If these are
not adhered to, it may result in:
•Serious errors in the machine function.
•Damage on the machine.
•Personal injury or an accident.
A star indicates examples that can be used for clarification.

Safety
5
Safety
For your own
safety
This chapter includes general safety instructions. Furthermore, each
chapter in the instruction manual includes specific safety instructions
that are not described here. The safety instructions must be complied
with
•In terms of your own safety.
•In terms of others safety.
•To assure the safety of the machine.
When working with agricultural machines wrong handling can result in
various dangers. Therefore, you should always be very thorough and
never work under pressure.
The operator must be informed regularly
Inform the persons working with the machine about these safety
instructions regularly.
The safety instructions should be complied with according to local law
for agricultural machines.

6
Safety
Safety symbols

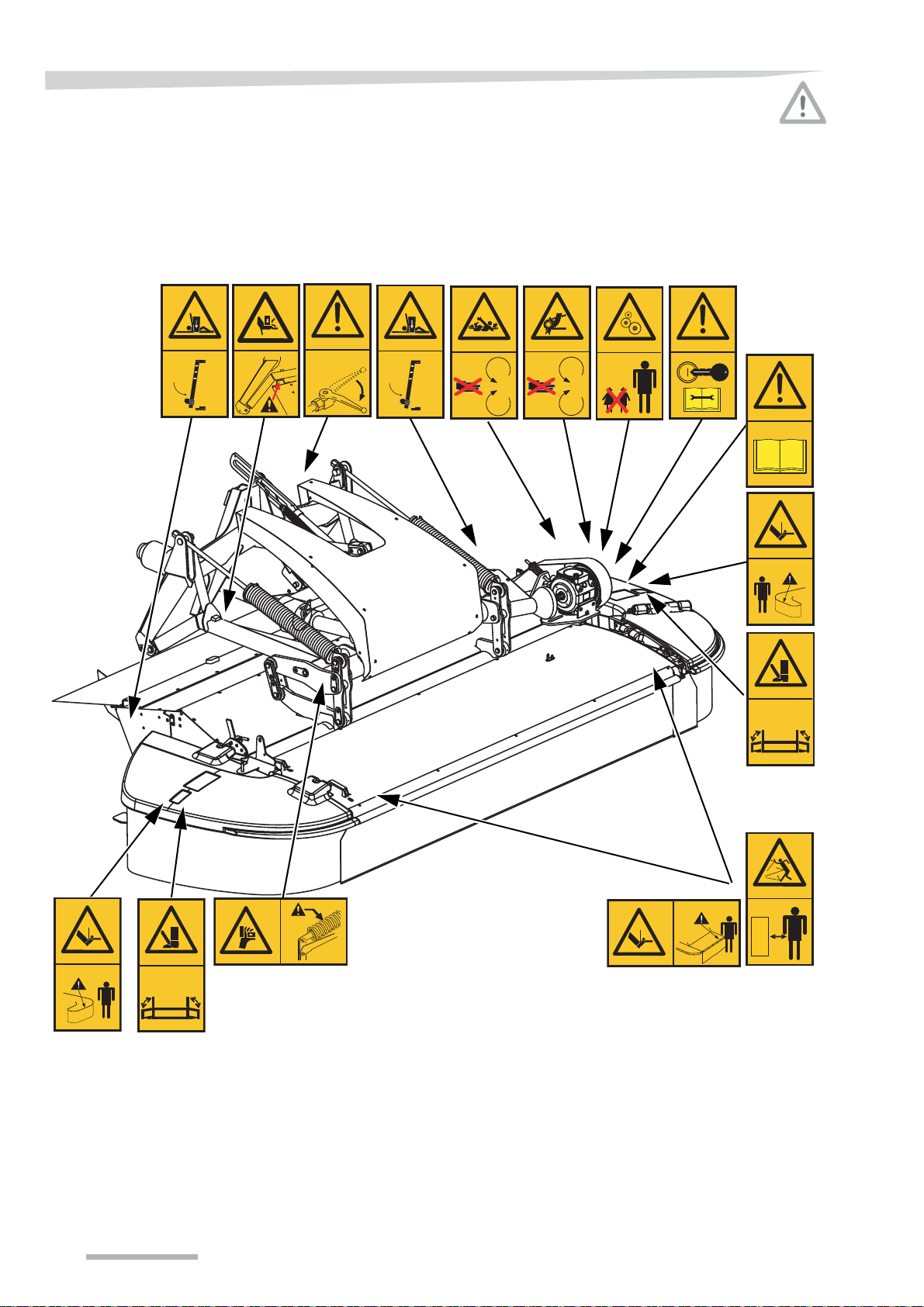

On the machine you will find labels relating to your safety. These
labels must not be removed. If the labels become illegible or fall off,
you can order some new labels and affix them to the relevant areas.
STOP
Transport
STOP

Safety
7
The meaning of the
symbols
Stop the tractor before working on the machine
Be attentive! The tractor engine must ALWAYS be stopped and the
ignition key removed before carrying out repairs, cleaning, lubricating
or maintaining the machine.
Read and observe the instruction manual
Be attentive! Read and understand the instruction manual before the
machine is put into service.
Ensure no clothing or body parts get caught in the PTO shaft
Guards may not be removed or opened, before the machine has
stopped rotating. The tractor engine must be stopped, the ignition key
removed and the handbrake applied.
Risk of thrown up pebbles
Keep a safe distance from the machine. Persons may not stand near
the machine when it is working. If the guard is damaged, it must be
replaced.
Use the correct support for the machine
Your body could become caught!
Never work under the machine without using the correct support. The
tractor engine must be stopped, the ignition key removed and the
handbrake applied.
Ensure no body parts get caught in the machine
No work may be carried out on the machine's rotors or cutterbar until
the machine has stopped rotating. The tractor engine must be
stopped, the ignition key removed and the handbrake applied.
Danger: rotating machine parts
Children must never be allowed near the machine. Only the operator
is allowed near the machine.

8
Safety

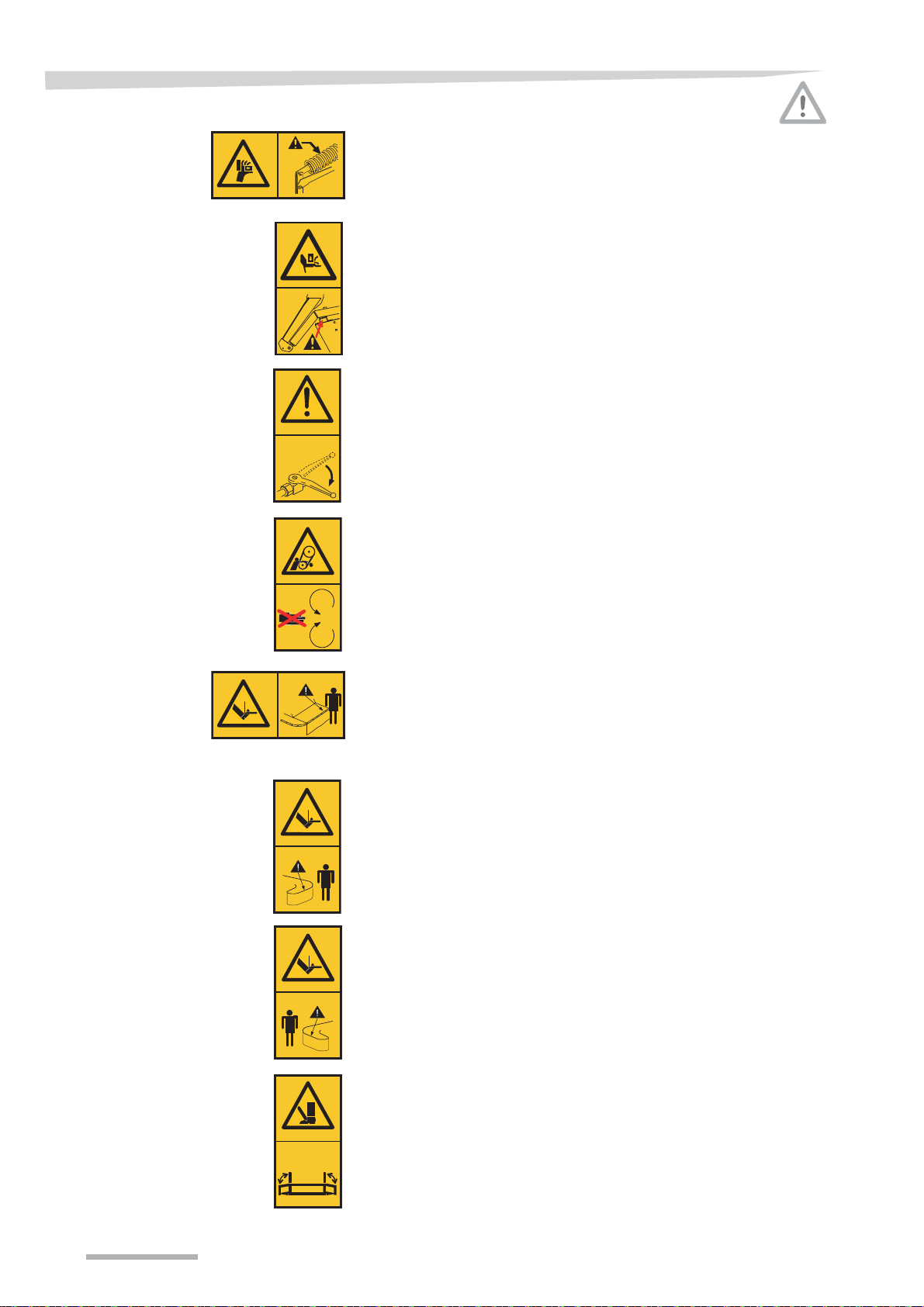

Risk of trapping fingers or hands
Be careful as there is a risk that hands or fingers may be trapped when
the machine is raised.
Risk of trapping fingers or hands
Be careful as there is a risk that hands or fingers may be trapped when
the machine is lowered.
The safety valve must be closed
During transport, the safety valve must be closed.
Ensure no body parts get caught in the V belt transmission
Guards may not be removed or opened, before the machine has
stopped rotating. The tractor engine must be stopped, the ignition key
removed and the handbrake applied.
Risk of injury to feet
The guard must not be opened before the machine has stopped
rotating.
The tractor engine must be stopped, the ignition key removed and the
handbrake applied.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Transport
STOP

Safety
9
Who can operate
the machine?
Operators of this machine should only be educated farmers and
persons who in other ways are qualified to perform agricultural work
and who have knowledge on installing the equipment.
Untrained or unauthorised persons must not use this machine.
Connecting
Correct attachment of the machine
The machine must be correctly connected, following the instructions.
The machine can become disconnected from the tractor without
proper coupling.
Improper coupling can lead to accidents.
When attaching the machine to the tractor you must therefore:
•Make sure that the tractor cannot roll.
•Make sure that the tractor and the machine belong to the same
category.
•Never stand between the tractor and the machine during
attachment.
•Use the hydraulic three point suspension slowly and carefully.
Attention to the above instruction points will protect you and others
from injury.
Failure to follow the above instructions may result in serious injuries.

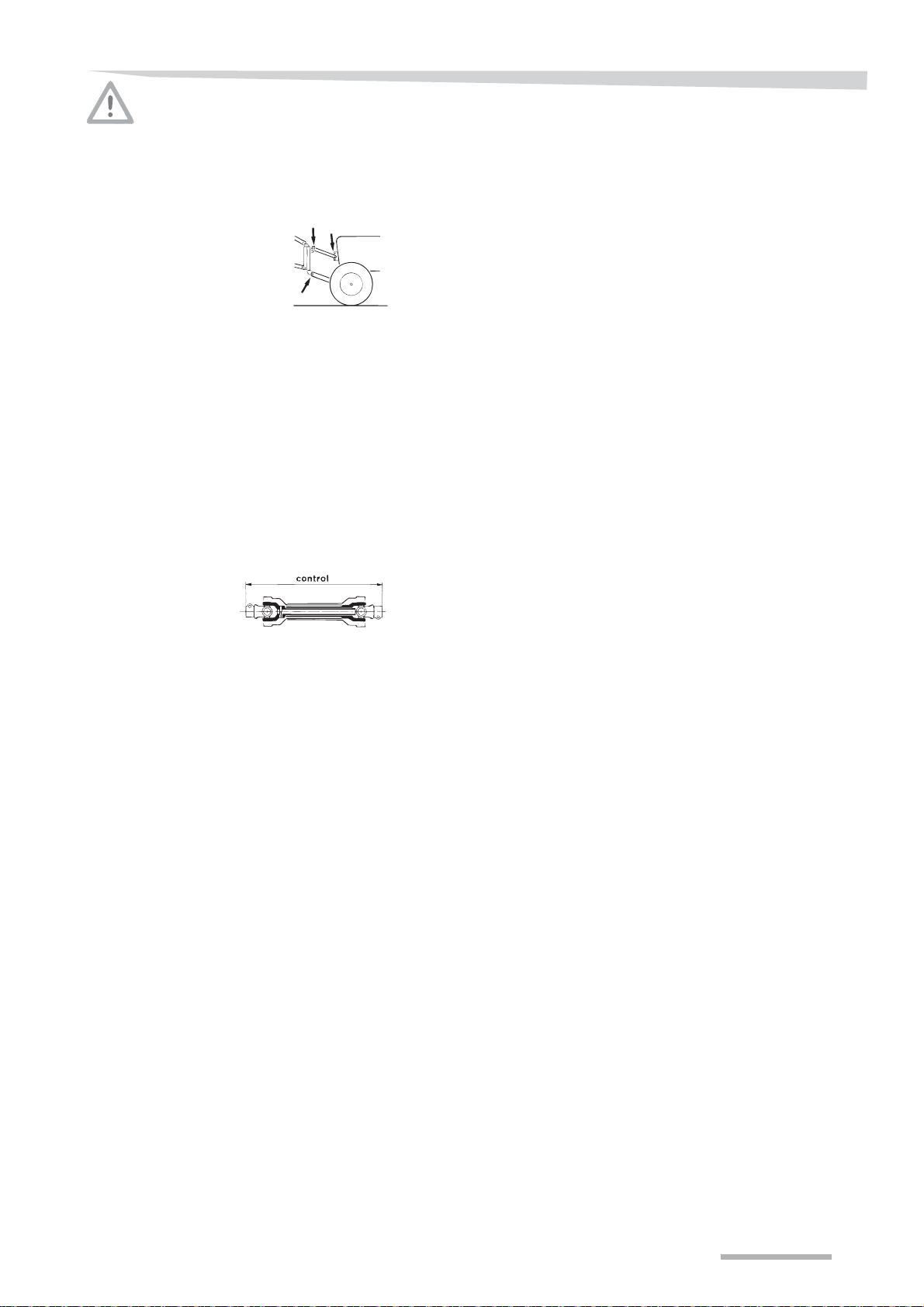

P.T.O. shaft check
Refer to the manufacturer's service and maintenance instructions
delivered with the PTO shaft.
Carry out the electrical connections after attachment
When mounting the lighting device, the power supply to the tractor
must be turned off.
This will prevent short-circuiting and damage to the electric circuit.
There is a risk of burns and other serious injuries if the electrical
systems short circuit.
95-015 fr

10
Safety

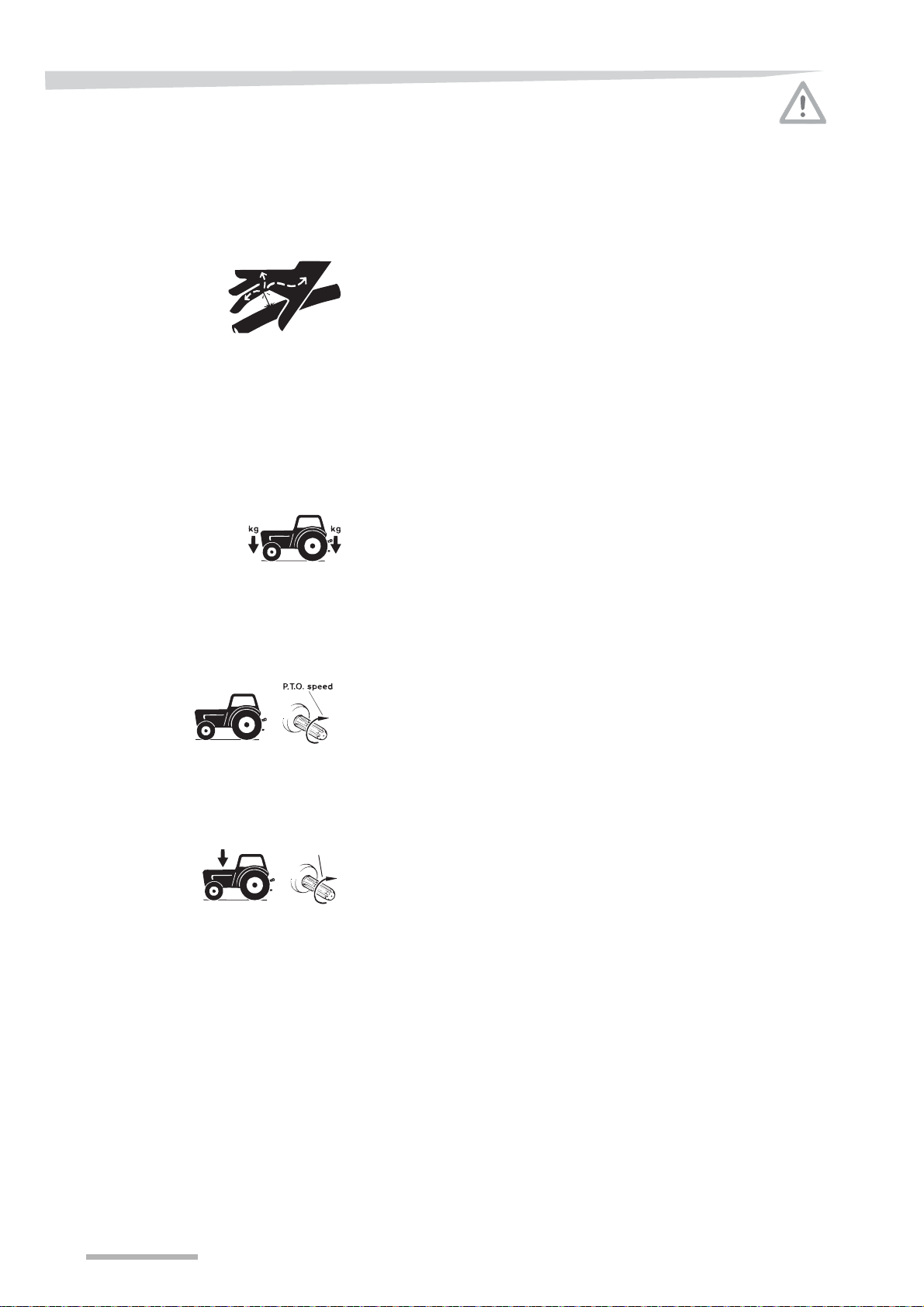

Only connect the hydraulics when the system is depressurised
You should only connect the hydraulic hoses to the tractor's hydraulics
when the hydraulic system on both tractor and machine is
depressurised.
There is a risk that the machine will move unintentionally.
Unintentional movement of the machine may result in serious injuries.
The hydraulic system should be checked regularly
All hoses and fittings should be checked regularly for visual damage.
Hydraulic hoses also age without visual damage.
Defect hydraulic hoses can result in personal injury or fire.
Colour marking of the hydraulic connections
The hydraulic connections between the tractor and the machine must
be colour marked.
By colour marking the hydraulic connections you avoid wrong
operation of the machine.
Incorrect operation or unintentional movement of the machine may
result in serious injuries.
Load capacity
Comply with total weight, axle pressure, the carrying capacity of
the tyres, and minimum weight
Neither the tractor's total weight, axle pressure or thecarrying capacity
of the tyres may be exceeded with front mounted and rear mounted
machines.
To ensure the manoeuvrability of the tractor, the load on the front axle
must be minimum 20% of the tractors own weight.
Transgression can result in uncontrolled driving and accidents.
Be attentive when working around the P.T.O shaft
When working on the PTO shaft, the tractor PTO outlet must be
disconnected, the tractor must be stopped and the ignition key
removed.
This prevents the PTO shaft from suddenly starting to rotate.
If the tractor and the PTO shaft have not been connected according to
the instructions serious accidents resulting in torn off limbs can occur.
Weight/power ratio between machine and tractor
The machine may only be connected to a tractor with a proper size
and performance.
The tractor size and P.T.O must correspond to the machine’s power
consumption and weight.
Wrong weight/power ratio can result in damages on both machine and
tractor.
95-009
fr
95-006-2 fr
95-006-1 fr
95-006-3 fr
kg
HP/kW
