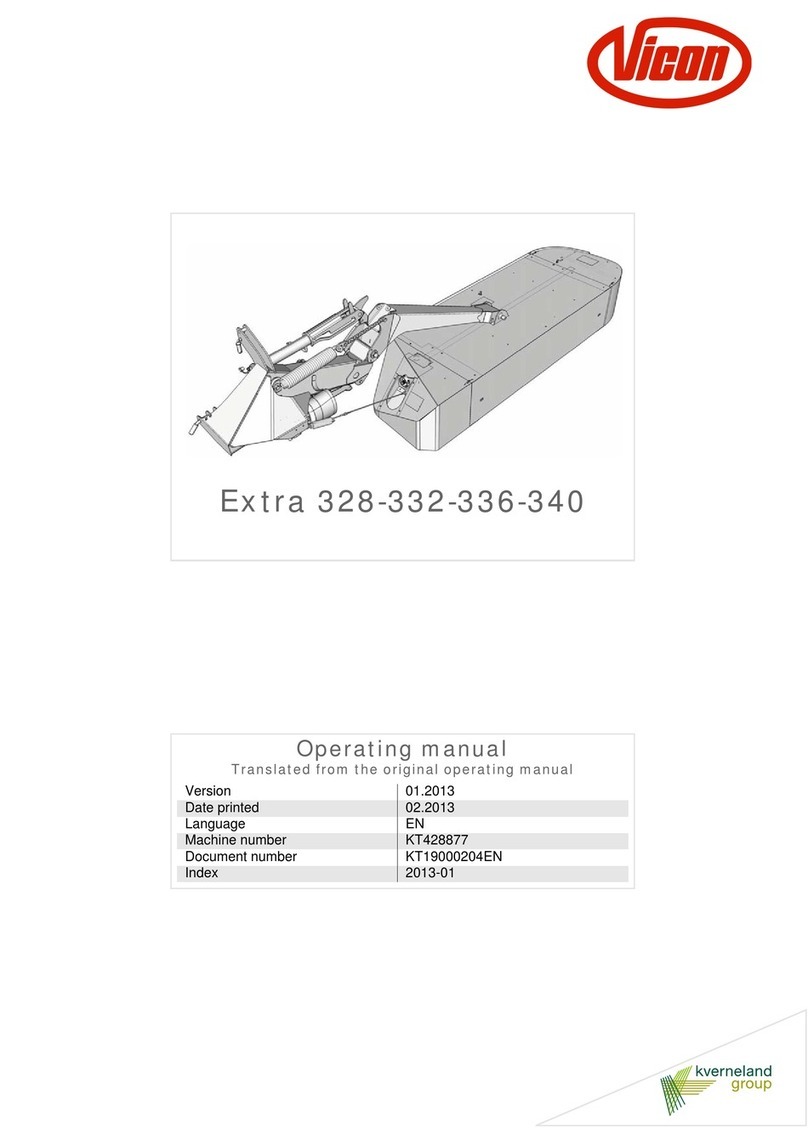

Vicon Extra 328 User manual

Other manuals for Extra 328

1

This manual suits for next models

3

Other Vicon Farm Equipment manuals

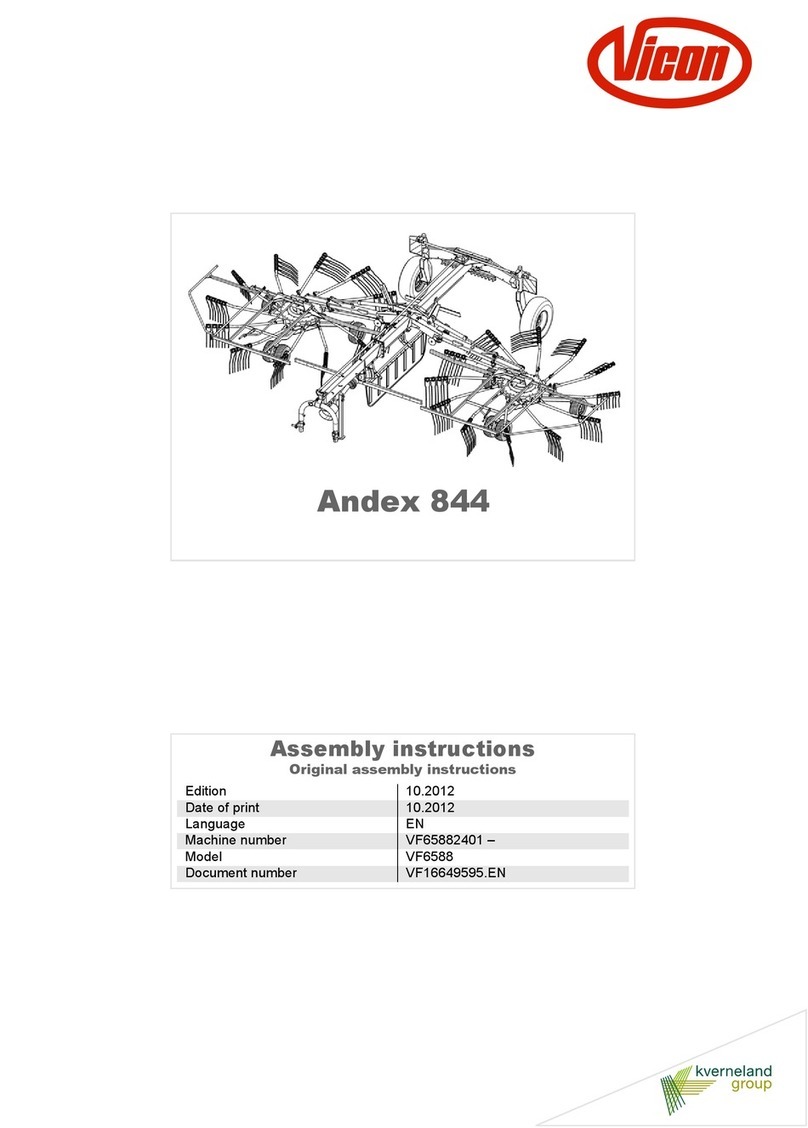

Vicon Andex 844 User manual

Vicon

Vicon Andex 844 User manual

Vicon Extra 532 User manual

Vicon

Vicon Extra 532 User manual

Vicon EXTRA 624 T User manual

Vicon

Vicon EXTRA 624 T User manual

Vicon Extra 832R PRO User manual

Vicon

Vicon Extra 832R PRO User manual

Vicon EXTRA 690 T User manual

Vicon

Vicon EXTRA 690 T User manual

Vicon Extra 228 User manual

Vicon

Vicon Extra 228 User manual

Vicon Extra 328 User manual

Vicon

Vicon Extra 328 User manual

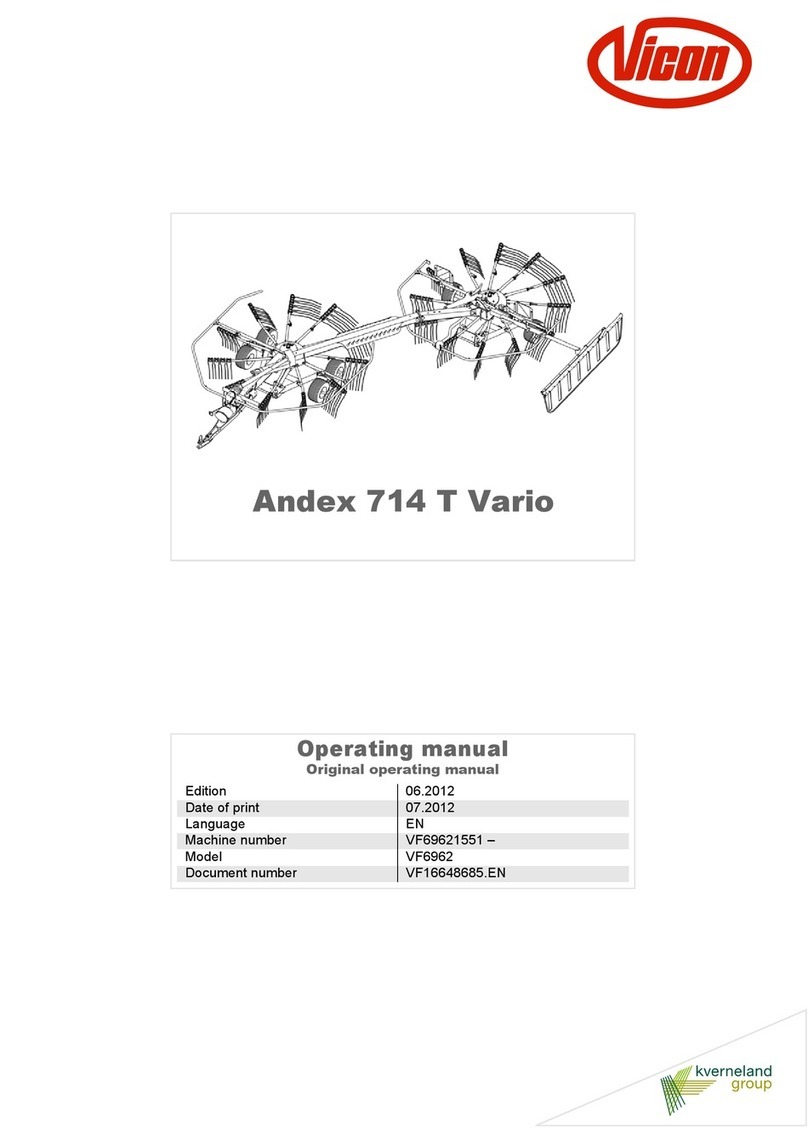

Vicon Andex 714 T Vario User manual

Vicon

Vicon Andex 714 T Vario User manual

Vicon EXTRA 628 FT User manual

Vicon

Vicon EXTRA 628 FT User manual

Vicon Andex 764 User manual

Vicon

Vicon Andex 764 User manual

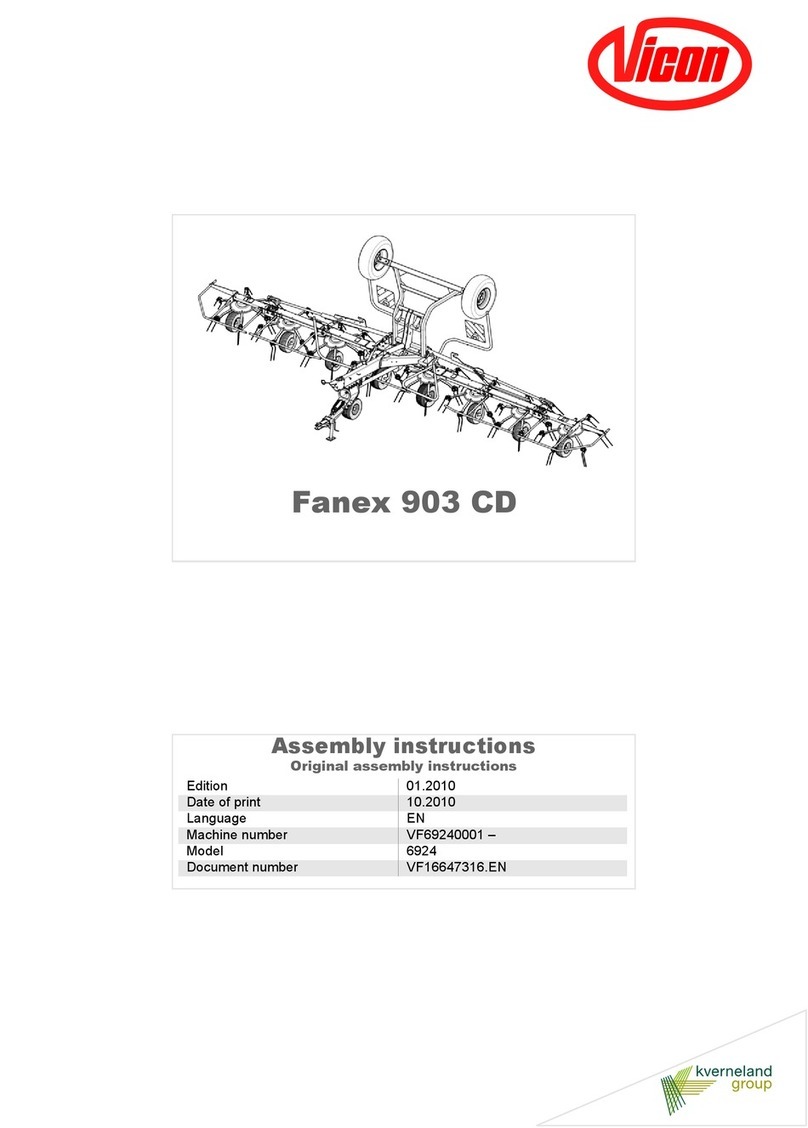

Vicon Fanex 903 CD User manual

Vicon

Vicon Fanex 903 CD User manual

Vicon Extra 390 User manual

Vicon

Vicon Extra 390 User manual

Vicon EXTRA 632 FR User manual

Vicon

Vicon EXTRA 632 FR User manual

Vicon EXTRA 690 T User manual

Vicon

Vicon EXTRA 690 T User manual

Vicon Andex 474 T User manual

Vicon

Vicon Andex 474 T User manual

Vicon Extra 224 User manual

Vicon

Vicon Extra 224 User manual

Vicon EXTRA 632 T User manual

Vicon

Vicon EXTRA 632 T User manual

Vicon BW 2400 M User manual

Vicon

Vicon BW 2400 M User manual

Vicon Fanex 834 T User manual

Vicon

Vicon Fanex 834 T User manual

Vicon RF121 R User manual

Vicon

Vicon RF121 R User manual

Vicon Extra 117 User manual

Vicon

Vicon Extra 117 User manual

Vicon Andex 474 T User manual

Vicon

Vicon Andex 474 T User manual

Vicon Andex 694 EVO User manual

Vicon

Vicon Andex 694 EVO User manual

Vicon Andex 1104 User manual

Vicon

Vicon Andex 1104 User manual

Popular Farm Equipment manuals by other brands

Schaffert Rebounder Mounting instructions

Schaffert

Schaffert Rebounder Mounting instructions

Stocks AG Fan Jet Pro Plus 65 Original Operating Manual and parts list

Stocks AG

Stocks AG Fan Jet Pro Plus 65 Original Operating Manual and parts list

Cumberland Integra Feed-Link Installation and operation manual

Cumberland

Cumberland Integra Feed-Link Installation and operation manual

BROWN BDHP-1250 Owner's/operator's manual

BROWN

BROWN BDHP-1250 Owner's/operator's manual

Molon BCS operating instructions

Molon

Molon BCS operating instructions

Vaderstad Rapid Series instructions

Vaderstad

Vaderstad Rapid Series instructions

HighLine BM1400 operating manual

HighLine

HighLine BM1400 operating manual

GSi PNEG-2314 installation manual

GSi

GSi PNEG-2314 installation manual

Checchi & Magli TEXDRIVE owner's manual

Checchi & Magli

Checchi & Magli TEXDRIVE owner's manual

Amazone Cenius 4003-2TX operating manual

Amazone

Amazone Cenius 4003-2TX operating manual

MASSEY FERGUSON MF 9313S Operator's manual

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Operator's manual

Cima BLITZ Maintenance Instruction

Cima

Cima BLITZ Maintenance Instruction

Amazone CombiDisc 3000 Original operating manual

Amazone

Amazone CombiDisc 3000 Original operating manual

HE-VA Disc-Roller XL Contour Operating instructions/spare parts list

HE-VA

HE-VA Disc-Roller XL Contour Operating instructions/spare parts list

AGT AGT-SSFM product manual

AGT

AGT AGT-SSFM product manual

Milestone 72-84 manual

Milestone

Milestone 72-84 manual

KUHN Hector 3000 Complementary instructions

KUHN

KUHN Hector 3000 Complementary instructions

Krone X-Disc 6200 operating instructions

Krone

Krone X-Disc 6200 operating instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Extra 328-332-336-340
Assembly instructions
Translated from the original assembly manual
Version 01.2013
Date printed 02.2013
Language EN
Document number KT19001203EN
Index number 2013-01
INSTRUCTIONS FOR RECIPIENTS
These instructions describe how to unpack and assemble the machine.
The machine is split into main components which are out together using these assembly instructions. Follow
the order for assembly given in the instructions and use the size and type of bolt shown for assembling the
parts - see the symbols below.
This warning symbol denotes instructions which concern your safety and that of others.
Generally speaking, machines must only be assembled by trained service personnel who are able to use
workshop equipment in complete safety. Assembly of some machines also requires knowledge of how to use
the tractor's hydraulics or hydraulic pump station.
Avoid loose, trailing clothing that can get caught in the machine's parts!
Use the personal protective equipment required for the work being carried out.
Only use approved, sturdy lifting equipment. Protect the lifting equipment from sharp edges and prevent any
chains form twisting.
For safety reasons, before the machine is used for the first time, the accompanying instructions
must be read carefully.
Kverneland Group Kerteminde AS
DK-5300 Kerteminde - Denmark
Phone/Fax: +45 65 19 19 00 / +45 65 19 19 99
web: www.kvernelandgroup.com
Copyright Kverneland Group Kerteminde AS, Denmark. Copying,reproduction in any form, translation, or use of excerpts or parts of this document
are not permitted without specific permission from Kverneland. All rights reserved. The contents of these operating instructions may be changed
without prior warning. Rights reserved for technical amendments.
Round head bolts
Hex head bolts
Contents
3
Contents
The meaning of the symbols
This symbol indicates tips or additional
information.
This warning triangle indicates important safety
information and dangers. If this is not complied
with, it can lead to:
•Serious errors with the machine's operation.
•Damage to the machine.
•Injury or accidents.
Torque moment
Tightening torque for grade 4.6 - 5.8 - 8.8 - 10.9 -
12.9 black and/or galvanised and ungreased
bolts when tightened on smooth surfaces or plain
washers.
For safety reasons, always use original parts.
Dim.
Bolt grade
4.6 5.8 8.8 10.9 12.9
Nm ft/lb Nm ft/lb Nm ft/lb Nm ft/lb Nm ft/lb
M5 2 1.6 3.5 2.5 5.5 4 8 6 10 7
M6 3.5 2.6 64.5 10 714 10 17 12
M8 9 6.4 15 10.5 24 17 33 23.5 40 28.5
M10 17 12 29 21 47 33.5 65 46.5 79 56.5
M12 3021.55136.581 5811481.513697
M14 48 34 80 57 128 91.5 181 130 217 155
M16 74 53 123 88 197 141 277 200 333 238
M18 103 73.5 172 123 275 196.5 386 275 463 330
M20 144 103 240 171.5 385 275 541 386.5 649 463.5
M22 194 138.5 324 231.5 518 370 728 520 874 624
M24 249 178 416 297 665 475 935 668 1120 800
Assembly
4
Assembly The transport safety device is removed from
the hitch.
Fit the hitch on the tractor.
Connect the hydraulics to the tractor.
Remove the springs from the chain.
Pull in the cord.
Activate the tractor's hydraulic system and
swivel the arm down.
Assembly
5
Remove the bolt and bushing from the arm.
Apply oil or grease to the bushings.
Inject some grease or viscous oil into the
groove for the O-ring on both sides of the
hinged points on the arm.
Fit O-rings on both sides of the hinged points
on the arm.
58.237.000
Groove for O-ring.
58.237.000
Groove for lubricating.
O-rings
Assembly
6
Model 340 only
Fit the bracket.
Fit the guard.
M12x40
M12
M10x30
M10
M10
M10x25
M10
M10
Assembly
7
Fit the tarpaulin.
Fit the shock absorber.
Attach the tarpaulin
M10x60
M10
M10
M10x55
M10
M10
M16
M16
M10x25
M10
M10
Assembly
8
Fit the arm on the cutting unit.
The machine's cutting unit can be moved 130
mm so that the attachment point is moved as
shown.
When the attachment point is moved, the PTO
shaft is shortened.
See the Instruction manual for further instruc-
tions.
Apply oil or grease to the bushings before
fitting.
Tighten the bolt to a torque of 650 Nm (480 ft/
lb).
650 Nm
(480 ft/lb)
58.237.000
58.237.000
Assembly
9
Fit and secure the steel wire on the cutting
unit.
Fit the PTO shaft onto the bevel gear.
Remember that the friction clutch on the PTO
shaft must be fitted with the bevel gear.
Assembly
10
Secure the PTO shaft with the chain.
Fit the PTO shaft onto the cutting unit.
Do not forget the clamping ring!
Fit and secure the guard on the cutting unit.
Rotate the sleeve so that the lubrication hole in the universal joint is turned as
shown.
