Vicon EXTRA 632 FR User manual

EXTR632 FR
Operator's Manual
Translated from the original instruction manual
Date of publication 01/2012
Date printed 01/2012
Language EN
Valid as from serial No.: KT 421.939
Reference No: 91015201EN
Index 2012-01

Identification of machine
For your dealer to help you as quickly as possible, he needs to have certain information about your machine.
Please enter this information here.
Description
Working width
Weight
Machine number
Accessories
Dealer
address
Manufacturer
address
Copyright Kverneland Group Kerteminde, Denmark. Copying,reproduction in any form, translation, or use of excerpts or parts of this document
are not permitted without specific permission from Kverneland. All rights reserved. The contents of this instruction manual may be changed without
prior warning. Rights reserved for technical amendments and printing errors in this manual.
Kverneland Group Kerteminde AS
Taarupstrandvej 25
DK-5300 Kerteminde - Denmark
Tel./fax: [phone]
web: www.kvernelandgroup.com
Extr632FR
Extr632FR: 3.2 m
Extr632 FR: 1227 kg

Contents
3
Contents
Contents ...........................................................4
Instruction manual target group 4
The meaning of the symbols 4
Safety................................................................5
For your own safety 5
Who can operate the machine? 9
Connecting 9
Load capacity 10
Transport on public roads 11
Use 12
Disconnection 14
Maintenance 15
Further safety instructions 17
About the machine.........................................18
The field of application of the machine 18
Machine characteristics 19
Synopsis 20
Technical data 21
Tractor requirements 23
Preparation.....................................................24
Preparing the machine 24
Assembly - attachment..................................29
Attachment of the tractor 30
Hydraulic 39
Connection 40
First start-up of machine 40
Transport on public roads ............................46
Safety 46
Before travelling on public roads 46
Checking the machine 46
Travelling on public roads 46
Operation........................................................47
Safety 47
Before operating 47
Operation 48
Cleaning..........................................................64
Before cleaning 64
Cleaning 65
After cleaning 65
Parking and Storage......................................66
Before storage 66
Parking/disconnection of the machine 66
Storage 70
Maintenance...................................................71
For your own safety 71
General instructions 72
PTO shaft check 75
Lubrication 76
Service - check 80
Replacement 102
Optional equipment.....................................119
High skids 119
Chain for locking the front lift device 119
Quick release of knives 120
Straw divider 120
A-frame 121
PTO shaft 121
Lighting kit 121
Troubleshooting ..........................................122
Guarantee.....................................................124
Guidelines for warranty 124
Disposal........................................................125
Metal parts 125
Rubber parts 125
Plastic 125
Hydraulic oil 125
Electronic parts 125
EU declaration of conformity......................126
EU Directive 2006/42/EC 126
Notes.............................................................127
Technical information .................................128
Index .............................................................129

4
Contents
Contents
Instruction man-
ual target group
This instruction manual is intended for trained farmers and others who
are qualified to work in agriculture and who are familiar with
assembling equipment.
For your own safety
Read this instruction manual thoroughly before use and mounting. By
doing this you have optimal working conditions and you can work in
safety.
For the employer
Employees must be given training at regular intervals on how to use
this machinery (at least once a year) in accordance with the guidelines
issued by the employer's insurance. Untrained or unauthorised
persons must not use this machine.
Instructions
Your dealer willassistwith instructions on how to use andmaintain this
machinery.
The meaning of
the symbols
We have used different symbols to make the text clear. An explanation
follows:
•A dot symbol marks a list.
> A triangle marks an action you must carry out.
An arrow refers you to other parts of the text.
We also use pictograms to help you find relevant places in the text.
T IP ! The word 'tip' indicates tips or instructions on use.
NB “NB” denotes information that requires particular attention.
A spanner indicates tips for assembling and settings.
A warning triangle indicates important safety instructions. If these are
not adhered to, it may result in:
•Serious errors in the machine function.
•Damage on the machine.
•Personal injury or an accident.
A star indicates examples that can be used for clarification.

Safety
5
Safety
For your own
safety
This chapter includes general safety instructions. Furthermore, each
chapter in the instruction manual includes specific safety instructions
that are not described here. The safety instructions must be complied
with
•In terms of your own safety.
•In terms of others safety.
•To assure the safety of the machine.
When working with agricultural machines wrong handling can result in
various dangers. Therefore, you should always be very thorough and
never work under pressure.
The operator must be informed regularly
Inform the persons working with the machine about these safety
instructions regularly.
The safety instructions should be complied with according to local law
for agricultural machines.

6
Safety
Safety symbols

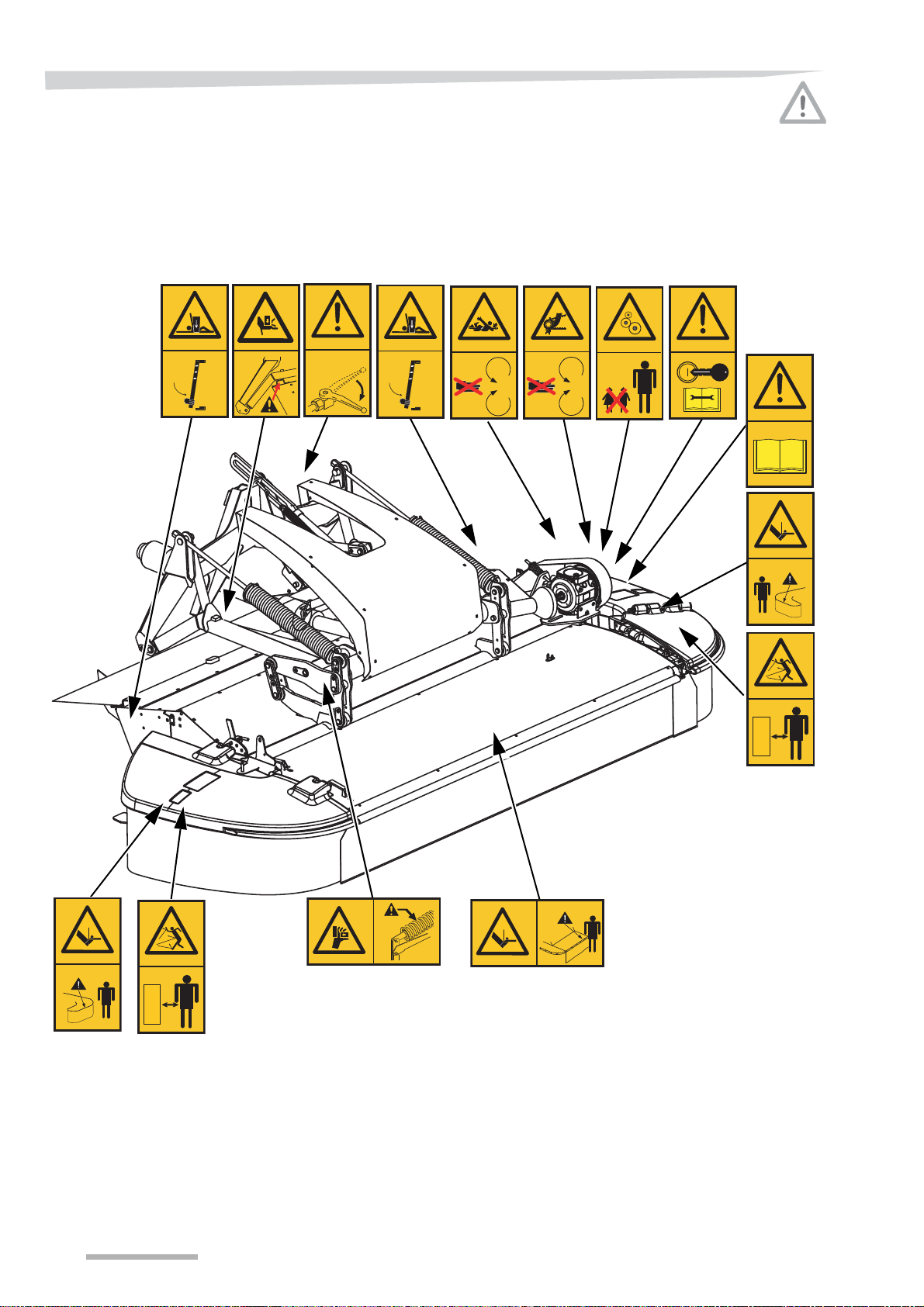

On the machine you will find labels relating to your safety. These
labels must not be removed. If the labels become illegible or fall off,
you can order some new labels and affix them to the relevant areas.
Transport

Safety
7
The meaning of the
symbols
Stop the tractor before working on the machine
Be attentive! The tractor engine must ALWAYS be stopped and the
ignition key removed before carrying out repairs, cleaning, lubricating
or maintaining the machine.
Read and observe the instruction manual
Be attentive! Read and understand the instruction manual before the
machine is put into service.
Ensure no clothing or body parts get caught in the PTO shaft
Guards may not be removed or opened, before the machine has
stopped rotating. The tractor engine must be stopped, the ignition key
removed and the handbrake applied.
Risk of thrown up pebbles
Keep a safe distance from the machine. Persons may not stand near
the machine when it is working. If the guard is damaged, it must be
replaced.
Use the correct support for the machine
Your body could become caught!
Never work under the machine without using the correct support. The
tractor engine must be stopped, the ignition key removed and the
handbrake applied.
Ensure no body parts get caught in the machine
No work may be carried out on the machine's rotors or cutterbar until
the machine has stopped rotating. The tractor engine must be
stopped, the ignition key removed and the handbrake applied.
Danger: rotating machine parts
Children must never be allowed near the machine. Only the operator
is allowed near the machine.

8
Safety
Risk of trapping fingers or hands
Be careful as there is a risk that hands or fingers may be trappedwhen
the machine is raised.
Risk of trapping fingers or hands
Be careful as there is a risk that hands or fingers may be trappedwhen
the machine is lowered.
The safety valve must be closed
During transport, the safety valve must be closed.
Ensure no body parts get caught in the V belt transmission
Guards may not be removed or opened, before the machine has
stopped rotating. The tractor engine must be stopped, the ignition key
removed and the handbrake applied.
Risk of injury to feet
The guard must not be opened before the machine has stopped
rotating.
The tractor engine must be stopped, the ignition key removed and the
handbrake applied.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Risk of injury to feet
The safety guard must always be in place when the machine is
working.
Transport
STOP

Safety
9
Who can operate
the machine?
Operators of this machine should only be educated farmers and
persons who in other ways are qualified to perform agricultural work
and who have knowledge on installing the equipment.
Untrained or unauthorised persons must not use this machine.
Connecting
Correct attachment of the machine
The machine must be correctly attached, in accordance with the
instructions.
The machine can be detached from the tractor if the connection is not
carried out properly.
Improper coupling can lead to accidents.
When attaching the machine to the tractor you must therefore:
•Make sure that the tractor cannot roll.
•Make sure that the tractor and the machine belong to the same
category.
•Never stand between the tractor and the machine during
attachment.
•Use the hydraulic three point suspension slowly and carefully.
Attention to the above instruction points will protect you and others
from injury.
Failure to follow the above instructions may result in serious injuries.
P.T.O. shaft check
Refer to the manufacturer's service and maintenance instructions
delivered with the PTO shaft.
Carry out the electrical connections after attachment
When mounting the lighting device, the power supply to the tractor
must be turned off.
This will prevent short-circuiting and damage to the electric circuit.
There is a risk of burns and other serious injuries if the electrical
systems short circuit.
95-015 fr

10
Safety
Only connect the hydraulics when the system is depressurised
You should only connect the hydraulic hoses to the tractor's hydraulics
when the hydraulic system on both tractor and machine is
depressurised.
There is a risk that the machine will move unintentionally.
Unintentional movement of the machine may result in serious injuries.
The hydraulic system should be checked regularly
All hoses and fittings should be checked regularly for visual damage.
Hydraulic hoses also age without visual damage.
Defect hydraulic hoses can result in personal injury or fire.
Colour marking of the hydraulic connections
The hydraulic connections between the tractor and the machine must
be colour marked.
By colour marking the hydraulic connections you avoid wrong
operation of the machine.
Incorrect operation or unintentional movement of the machine may
result in serious injuries.
Load capacity

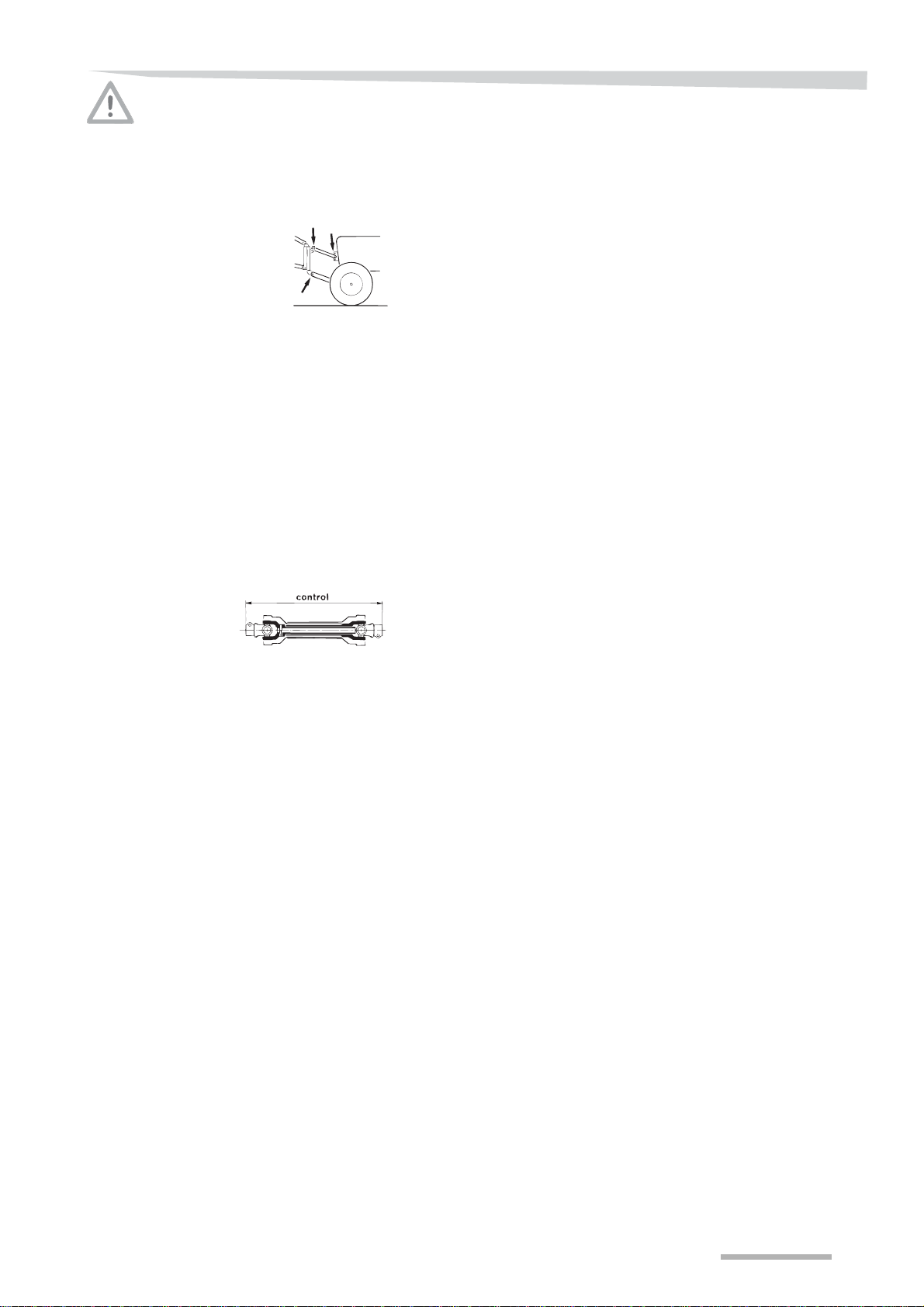

Comply with total weight, axle pressure, the carrying capacity of
the tyres, and minimum weight
Neither the tractor's total weight, axle pressure nor the carrying
capacity of the tyres may be exceeded with front mounted and rear
mounted machines.

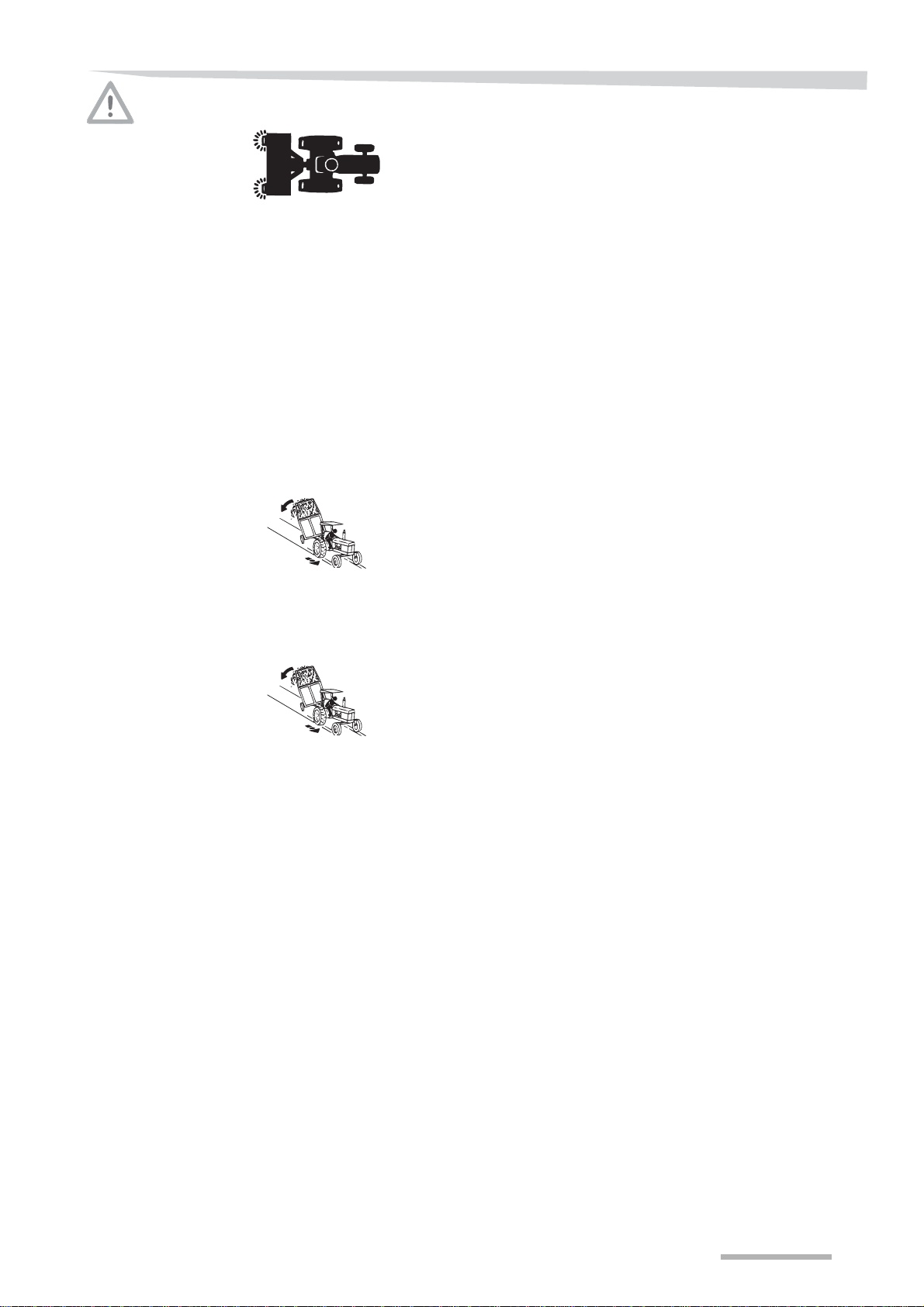

To ensure the manoeuvrability of the tractor, the load on the front axle
must be minimum 20% of the tractors own weight.
Transgression can result in uncontrolled driving and accidents.
Be attentive when working around the P.T.O shaft
When working on the PTO shaft, the tractor PTO outlet must be
disconnected, the tractor must be stopped and the ignition key
removed.
This prevents the PTO shaft from suddenly starting to rotate.
If the tractor and the PTO shaft have not been connected following the
instructions, serious accidents causing damage to limbs can occur.
Weight/power ratio between machine and tractor
The machine may only be connected to a tractor with a proper size
and performance.
The tractor size and P.T.O must correspond to the machine’s power
consumption and weight.
Wrong weight/power ratio can result in damages on both machine and
tractor.
95-009
fr
95-006-2 fr
95-006-1 fr
95-006-3 fr
kg
HP/kW

Safety
11
Transport on
public roads
Control that the machine meets the Road Traffic Act's
requirements concerning its condition
When driving on public roads, the machine must live up to the Road
Traffic Act's current requirements.
This ensures traffic safety both for you and other road users.
Not meeting the requirements can result in accidents.
Meeting the Road Traffic Act's current requirements includes, for
example:
•Attachment of lights, warning devices and safety equipment.
•Compliance with permitted transport width, weight, axle pressure,
tyre carrying capacity and total weight.
Transportation of persons on the machine is prohibited
It is dangerous and illegal to transport persons on the machine.
The machine is not approved for personal transportation.
Transporting persons on the machine may result in serious injuries
and death.
Mounted machines will change the driving and braking abilities
of the tractor
Be aware of changed driving and braking abilities when driving with
mounted machines.
Especially when driving in curves and turns you should be aware of
the machine's width and swing length.
If no attention is paid it will result in uncontrolled driving and serious
accidents.
Adjust the speed according to the road conditions
Adjust driving speed on the road according to the conditions.
Poor road conditions and driving too fast can lead to overloading parts
of the tractor and machine.
Driving too fast can result in accidents and damage to both the
machine and the tractor.
95-012 fr
95-011
fr
95-011
fr

12
Safety
Use
The operator should be instructed carefully before the machine
is put into use
Only use the machine when the operator has been given thorough
instructions.
Thorough machine instruction allows safe usage.
Insufficient instructions can result in wrong usage of the machine and
accidents.
Check that the machine is free of technical errors
Only use the machine if it is free of technical errors.
This ensures that the machine is operating correctly and safely.
A machine with technical errors and defects can be dangerous.
Do not remove the protection guards
Check that all protection guards are in place before use.
This assures that the machine will give maximum protection to the
operator.
If the safety guards are removed or not used, it may result in serious
injuries and accidents.
Control tyre pressure regularly
Carry out regular control of tyre pressure.
This ensures the machine's road holding ability and prevents
unintentional careening in road curves and swings.
Abnormal careening in curves and bends can lead to accidents.
Transportation of persons on the machine is prohibited
It is dangerous and illegal to transport persons on the machine.
The machine is not approved for personal transportation.
Transporting persons on the machine may result in serious injuries
and death.
95-002-1
fr
95-093
fr
95-011
fr

Safety
13
Check the surrounding area before taking machine into use
Before driving and using the machine the surrounding area should be
checked.
This prevents persons and animals in the vicinity from being harmed.
If the surrounding area is not checked, it may result in serious injuries
to persons or animals.
Keep away from the machine
No unauthorised persons should be close to the machine during
operation.
This will ensure that no dangerous situations can arise.
Persons close to the machine during operation are at risk of being
severely injured.
Checking bolts on moving parts
Check that all bolts on moving parts are properly tightened.
Tightened parts prevent jarring sounds from moving parts.
Non-tightened parts can shake loose and result in damage on the
machine.
Maintain the rotational speed on the tractor P.T.O. outlet
Connecting a tractor with P.T.O. is dangerous. = 1000 rpm to a
machine intended for PTO = 540 rpm.
The machine is not designed for this speed.
It can result in damage on the machine and be a danger for persons
nearby.
Check the transmission oil level regularly
Check that the transmission is filled with oil and that the oil level is
correct.
If the oil level is correct, the transmission will have a long and fault-free
service life.
Incorrect oil level will result in damage on the transmission.
Stop the machine immediately in case of malfunction
In case of malfunction the machine should be stopped immediately.
Malfunction on the machine can bring surrounding persons and
animals in danger.
Machines with a malfunction can result in dangerous situations.
95-018
fr
95-006-1 fr
95-017
fr

14
Safety
Disconnection
Heightened risk of personal injury when disengaging
There is an increased risk of personal injury when disengaging the
machine from the tractor.
Adherence to the above instructions will ensure your own safety and
that of others.
Failure to follow the above instructions may result in serious injuries.
Therefore, when disconnecting:
•Make sure that the tractor cannot roll.
•Never stand between the tractor and the machine during
disconnection.
•Use the hydraulic three point suspension slowly and carefully.
•Make sure that the machine is standing on a safe, level surface.
•Ensure the machine's support leg is always used when
disconnecting.
•Hydraulic hoses must first be disconnected when the hydraulic
system is depressurised for both the tractor and the machine.

Safety
15
Maintenance
Comply with the service and maintenance intervals given in the
instructions
Comply with the intervals for service and maintenance as given in the
instructions.
By complying with the maintenance intervals you assure that the
machine will operate without malfunctions and give maximum
protection
to the surroundings.
An incorrectly maintained machine is a danger to its surroundings.
Always use original spare parts on the machine
Always use original spare parts.
For safety reasons original spare parts must be used.
The manufacture warranty becomes void if non-original spare parts
are being used.
High risk when performing service and maintenance work
When performing service or maintenance work there is a higher risk
of personal injury.
Adherence to the above instructions will ensure your own safety and
that of others.
Failure to follow the above instructions may result in serious injuries.
Therefore, when you perform maintenance work:
•Disconnect the P.T.O shaft.
•Make the hydraulic system free of pressure.
•Stop or disconnect the tractor.
•Check that the machine is parked safely, support it if necessary.
•Do not use parts on the machine to climb the machine, but employ
the proper units for climbing.
•Make sure that the machine cannot overturn.
Disconnect the power source when working on the electric
systems
Always disconnect the power source before you start working on the
electric system.
This will prevent short-circuiting and damage to the electric circuit.
There is a risk of burns and other serious injuries if the electrical
systems short circuit.
Replacing the hydraulic hoses
Replace the hydraulic hoses at least once every 4 years.
Hydraulic hoses also age without visual damage.
Defect hydraulic hoses can result in serious injuries.
95-007 fr
95-009
fr

16
Safety
Be careful when cleaning with high pressure cleaner
Only clean bearings, hydraulic hoses, plastic components, electrical
control boxes and electrical equipment with low water pressure.
By cleaning with low water pressure you will protect sensitive
equipment on the machine.
Cleaning with high water pressure could damage vital parts of the
machine.
Disconnect the battery and the alternator before welding
The tractor battery and alternator should be disconnected before
performing welding work on the machine.
This will protect the tractor alternator during welding work.
The tractor alternator could be damaged or destroyed if the electric
connections are not disconnected before performing welding work.
Tighten all fittings on moving parts
Check that bolts on moving parts are tightened after performing
maintenance work.
Tightened parts prevent jarring sounds from moving parts.
If parts are not correctly tightened, they can shake loose and can
cause damage to the machine.
Do not alter the machine construction
The technical construction of the machine should not be altered and
machine maintenance should be performed.
A well maintained machine will offer maximum protection.
A poorly maintained machine will not offer proper protection and could
be dangerous.
95-018
fr
95-014 fr

Safety
17
Further safety in-
structions
Follow the instructions when working on the machine
The machine safety instructions must always be complied with.
It will protect you and others from personal injury.
Failure to follow the safety instructions may result in serious injuries.
Apart from the safety instructions the following should be complied
with:
•Environmental regulations.
•The general technical, medical and road act regulations.
•Instructions in this instruction manual.
•Instructions for use, maintenance and service.
95-005
fr
95-013
fr

18
About the machine
About the machine
This chapter includes general information about your machine.
Furthermore, following information are included:
•The machine application area.
•The machine characteristics.
•View of the machine.
•Technical data.
The field of appli-
cation of the ma-
chine
632 FR is a swather intended to lay common grass and cereal crops
in swathes. The instructions for use are given in the following
chapters.
Proper usage of the
machine
The machine can be used in fields for mowing the following crops:
•All types of grass
•All types of clover
•Whole crop
•Alfalfa
•Sorghum
Incorrect use of the
machine
The machine must not, under any circumstances, be used for the
following:
•Cutting grass in park facilities and lawns
•Cutting grass on the verges of public roads
•Harvesting corn
•Clearing forest floors or other densely wooded areas
Similar use is outside the intended applications of the machine.
The manufacturer does not stand responsible for any damages
caused by improper application of the machine. The user is fully
responsible
for the machine.

About the machine
19
Machine
characteristics

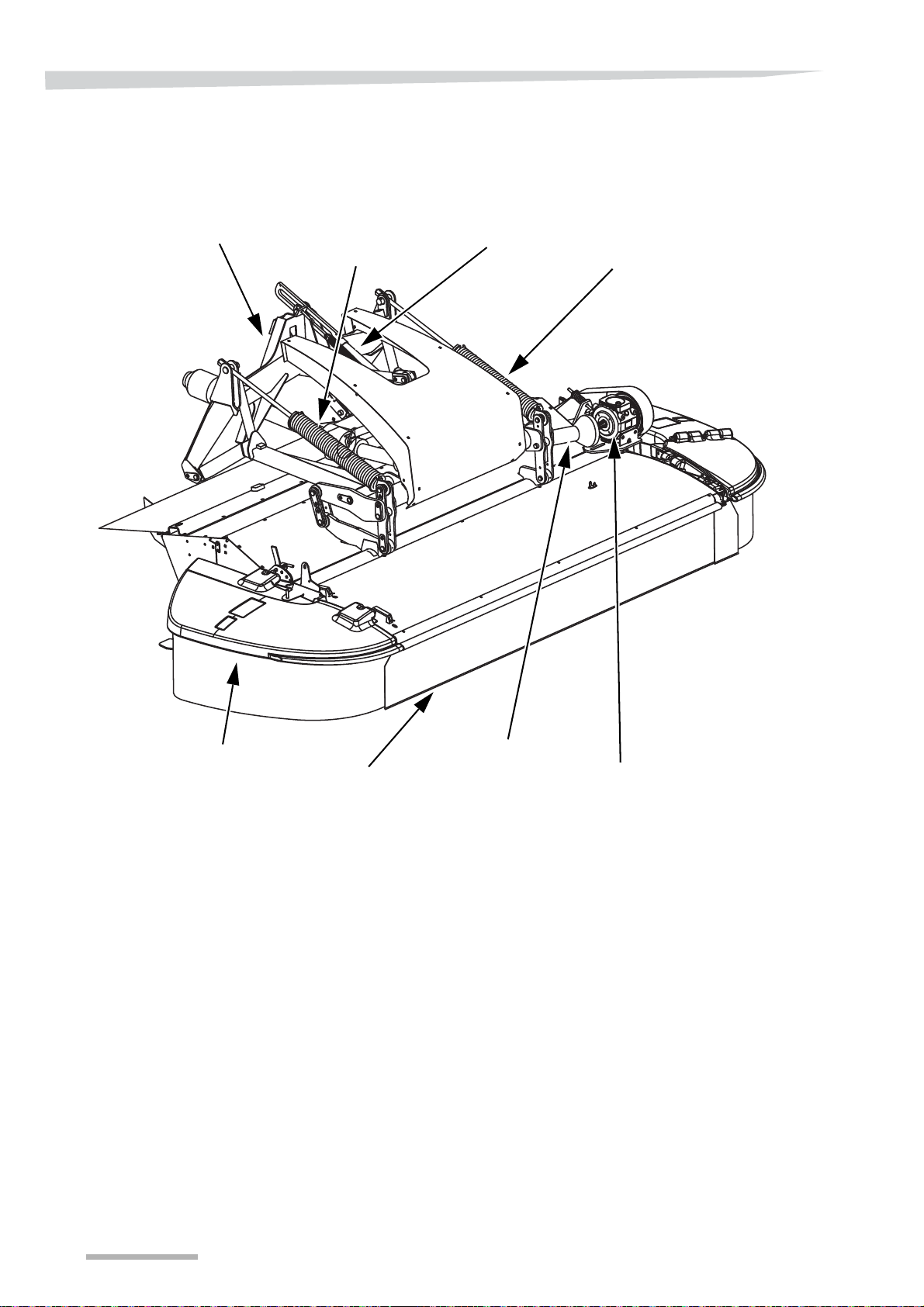

Description of the machine
632 FR is a swather which operates at the front of the tractor and is
coupled to the lift arms on the tractor's front lift device.
The machine's cutting unit is hydraulically connected to the main
frame of the machine and can be raised and lowered using the
tractor's hydraulic system. The cutting unit is balanced using strong
springs which ensure the machine's cutterbar follows the ground
precisely and cuts the crop uniformly.
The machine's cutting discs are equipped with durable, reversible
knives, which have a high capacity when used at a high speed of
rotation, even for difficult crops.
Even at high mowing speeds, the machine is able to mow the crop
cleanly and uniformly. For safety reasons, it is recommended that the
speed does not exceed 15 km/h.
The cutting unit is fitted with powerful rollers that provide effective
conditioning of the crop.
The cutting unit is fitted with a guard, which protects it against moving
objects. The guard, or parts of the guard, must never be removed from
the machine and must always be kept in good condition.
Solid construction
Thanks to a solid construction and a flexible build up the machine is
both strong and reliable.
Quick and easy lifting of the cutterbar when turning on the
headland
The machine's cutterbar is raised hydraulically without the use of tools
on the headland.
Your safety when using the machine
To ensure working with the machine is as safe as possible, it complies
with EC regulations. The machine is CE marked.

20
About the machine
Synopsis
Transmission
Springs
Hydraulic cylinder
Cutterbar
PTO shaft
Guard
Springs
Suspension
