Vicon Fanex 834 T User manual

Fanex 834 T
Assembly instructions
Original assembly instructions
Edition 04.2012
Date of print 07.2012
Language EN
Machine number VF69181501 –
Model VF6918
Document number VF16648880.EN

Kverneland Group Kerteminde AS
Taarupstrandvej 25
DK-5300 Kerteminde
Denmark
Tel: [phone]
Copyright by Kverneland Group Gottmadingen N. V., Germany. Reproduction, transfer to other media, translation or the use of extracts or parts
of this manual without the explicit permission of Kverneland, is not permitted. All rights reserved. The contents of this operating manual are subject
to change without notice. The right to technical revision is reserved.

Table of contents
3
Table of contents
Preliminary information ........................... 4
Target group for
these assembly instructions 4
Meaning of the symbols 4
Safety ......................................................... 5
For your safety 5
Screw and bolt tightening torques 7
Direction information 7
Overview .................................................... 8
Designation of components 8
Assembly groups in crate packaging 9
Assembly group for pallet packaging 10
Small parts 11
Set of lights 11
Crate packaging ........................................ 12
Requirements 12
Fitting the centre and side devices 13
Running wheel axles 14
Fitting the drawbar for the lower hitch 17
Fitting the outer devices 20
Hydraulics for the lower hitch 25
Final assembly for crate packaging 26
Pallet packaging ....................................... 27
Requirements 27
Basic machine 28
Fitting the outer device 30
Fitting the upper hitch drawbar 33
Upper hitch 
hydraulics 36
Coupling the machine 37
Final assembly for pallet packaging 38
Final assembly .......................................... 39
Folding the machine into the
work position 39
Setting straight-ahead travel 40
Fitting the tine supports 43
Fitting the deflector frames 45
Routing electrical cables 47
PTO shaft 48
Setting up work 50
Accessories .............................................. 53
Accessories 53
Hydraulic border tedding system ........... 55
Final operations ........................................ 56
Trial run 56
Environment 56

Preliminary information
4
Prelimi nary inform ation
Target group for 
these assembly
instructions
These instructions are intended for authorised dealers, workshops
and agents qualified in the field of agricultural mechanical engi-
neering.
For your safety
You must familiarise yourself with the contents of these assembly
instructions before assembly or operating the machine. In this way,
you will achieve optimum work results and operational safety. The
assembly instructions form an integral part of the machine and must
always be kept to hand. This will allow:
•accidents to be avoided,
•warranty requirements to be met.
For the employer:
Untrained or unauthorised individuals are not permitted to assemble
the machinery.
Meaning of the
symbols
In these assembly instructions, the following symbols and terms have
been used:
•A bullet point accompanies each item in a list.
A triangle indicates operating functions which must be performed.
[+] A plus sign indicates additional equipment which is not included in
the standard version.
We have also used pictograms to help you find instructions more
quickly:
The "Information" pictogram indicates tips and additional information.
The grease gun indicates lubrication points.
The brush indicates that grease must be applied.
Switch on the tractor.
Switch off the tractor and secure it against rolling away.
The arrow in the diagram shows the direction of travel.
The warning triangle indicates important safety information and
danger. Failure to observe this safety information can result in:
•Serious faults in the correct operation of the machine,
•Damage to the machine,
•Personal injury or accidents.

Safety
5
Safety
For your safety
Please carefully read and observe the safety information in this
chapter prior to assembly. All persons involved in assembling or
setting up this machine must read and pay close attention to the
assembly instructions that follow.
Correct assembly
Non-compliance with the following rules amounts to gross negligence.
As a result, the manufacturer cannot be held liable for any damage
caused by negligence. The risk is then borne solely by the operator.
This machine must only be assembled by trained technicians in
accordance with the current version of the assembly instructions.
Before the implement is coupled to a tractor, transported, or initially
operated, the operating manual and its safety instructions must be
thoroughly read and observed.
It is the responsibility of the operator to ensure that all personnel
involved in the assembly are provided with the relevant accident
prevention regulations, as well as generally applicable health and
safety and road safety regulations. All personnel involved in the
assembly must be aware of these rules and regulations and adhere to
them; they must also be instructed on the potential risks and dangers.
Unauthorised alterations to the machine invalidate any liability of the
manufacturer for resultant damage.
Danger indicators signify the risk of serious injury or death.
Whenever you see this sign in the assembly instructions, please
make sure that you implement all appropriate safety measures.
Moreover, danger indicators warn of damage to machinery as well
as of financial and legal consequences (e.g. invalidation of
warranty, legal liabilities, etc.).
Faulty assembly or misuse results in:
•Risks to life and limb of the operator, third parties, and animals
in the vicinity of the machine.
•Risks for the machine and other property belonging to the
operator or third parties.
•Impairment of the efficient and damage-free operation of the
machine.

Safety
6
General safety and
accident prevention
regulations
Observe the following rules and regulations:
•Responsibilities for the various activities on the machine must be
clearly defined and maintained. There must not be any confusion
regarding responsibilities, otherwise the safety of the assembly
personnel is put at risk.
•Before you start work, familiarise yourself with all the fittings and
actuation elements and their functions.
•For all work on the machine, use only appropriate tools and
implements in perfect condition.
•You must only use parts (accessories, lubricants etc.) which
comply with at least the manufacturer's specifications; you must
use them in accordance with instructions (including specified
torques).
•A part conforms to the requirements only if it is an original part or if
it is expressly approved by the manufacturer.
•Wear close-fitting clothes when operating the machine. Wear
sturdy footwear and prescribed protective equipment.
•Support and secure the machine carefully during assembly.
•Particular care must be taken in dealing with energy accumulators
such as springs and hydraulic or compressed-air assemblies.
•Dispose of oils, grease, and filters in accordance with regulations.
•Protective equipment must be properly attached and swung into its
protective position.
•Actuation elements (cords, chains, and rod assemblies) of
remotely controlled equipment must be fitted in such a way that
they cannot cause unintended movement in any transport or work
position.
•Do not leave the engine running in enclosed spaces.
•All remote-powered and all other movable parts (e.g. hydraulics)
have crush or shear points.
•Pay close attention to the markings on reversible connections and
be aware of the risk of installing a part the wrong way round.
•Always disconnect the power supply before working on the
electrical system.
•When carrying out electric welding on the machine, always
disconnect electric cables from the alternator and battery.

Safety
7
Screw and bolt
tightening torques
Note the tightening torques that are shown in the table or specified in
the text. The torque specifications refer to a dry coefficient of friction
(0.12).
Direction
information
Direction information (right, left, front, rear) is given in relation to the
direction of travel. Rotary direction is defined as follows:
•Rotary direction right = clockwise.
•Rotary direction left = anticlockwise.
•Rotation about a vertical axis, viewed from top to bottom.
•Rotation about a horizontal axis, viewed at right angles to the
direction of travel, from left to right.
•The rotation of screws and nuts, etc. is always viewed from the
operating side.
8.8 10.9 12.9
M 6 9.9 Nm (7.3 ft.lbs) 14 Nm (10.3 ft.lbs) 17 Nm (12.5 ft.lbs)
M 8 24 Nm (17.7 ft.lbs) 34 Nm (25 ft.lbs) 41 Nm (30.3 ft.lbs)
M 10 48 Nm (35.4 ft.lbs) 68 Nm (50.2 ft.lbs) 81 Nm (59.8 ft.lbs)
M 12 85 Nm (62.7 ft.lbs) 120 Nm (88.6 ft.lbs) 145 Nm (104 ft.lbs)
M 14 135 Nm (99.6 ft.lbs) 190 Nm (140 ft.lbs) 230 Nm (166 ft.lbs)
M 16 210 Nm (155 ft.lbs) 290 Nm (214 ft.lbs) 350 Nm (258 ft.lbs)
M 20 410 Nm (302 ft.lbs) 580 Nm (428 ft.lbs) 690 Nm (509 ft.lbs)
Front
Left
Right
Rear
Top
Bottom
Rotary direction right

Overview
8
Overview

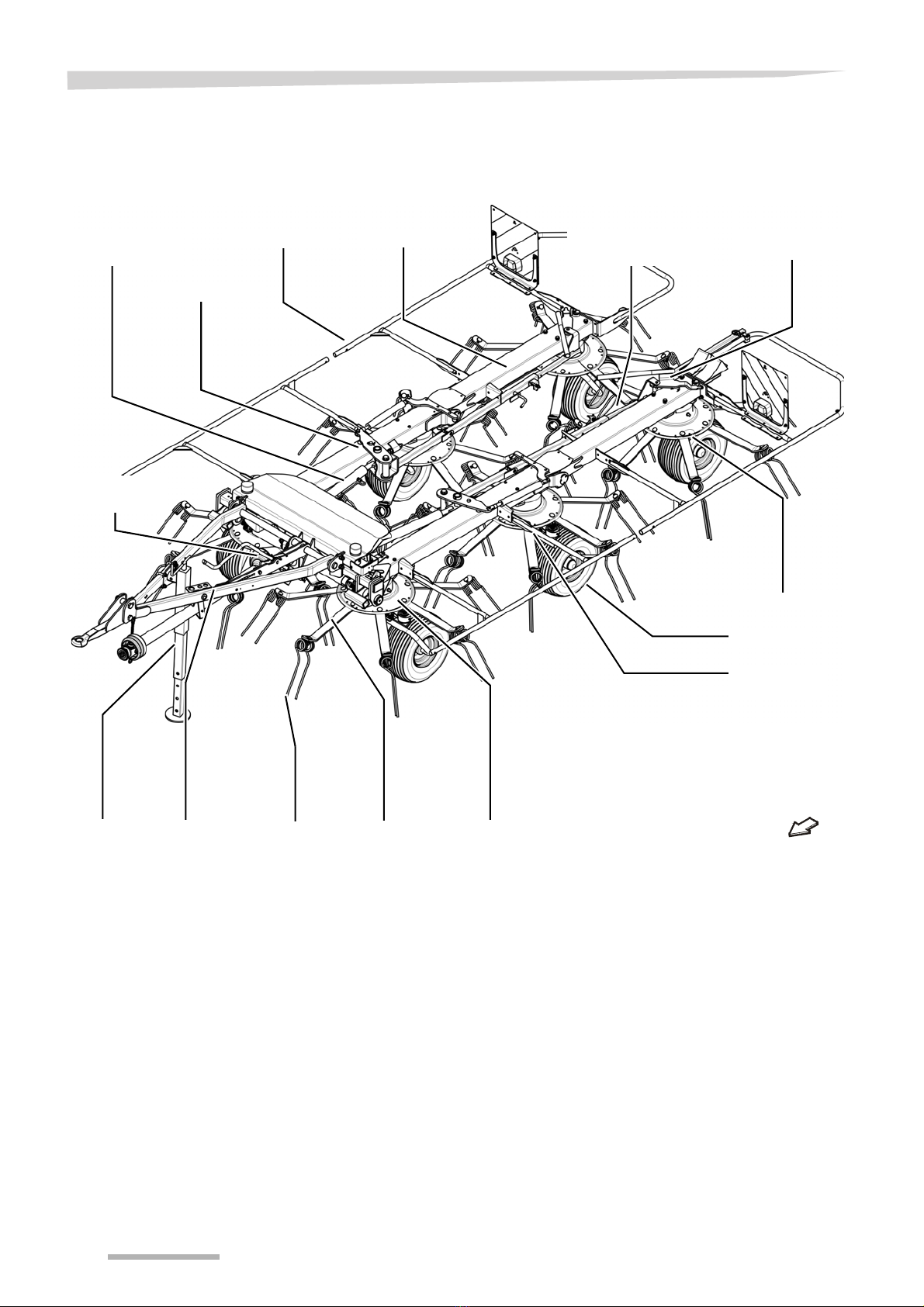

Designation of
components
Tines Rotor
Running wheel
axle
Wheel
Tine arm
Rotor gear
Sustainer
Side device
Central
transmission
Drawbar
Transport locking
bar
Hydraulic cylinder
for swivelling
Deflector frame Adjusting lever for the 
border tedding position
Outer device

Overview
9

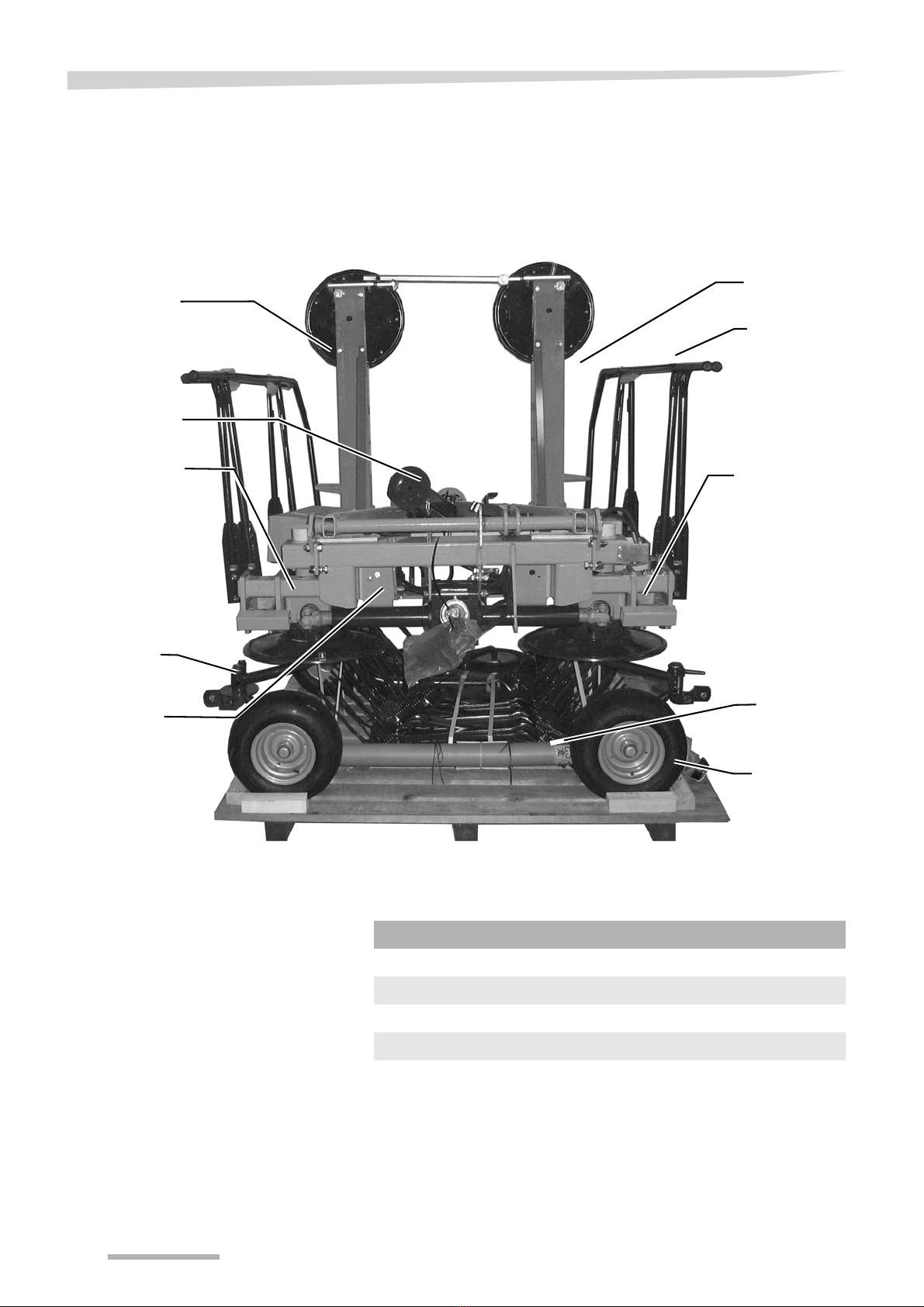

Assembly groups
in crate packaging
Right-hand
outer device
Tine support
PTO shaft
with 2 x single
joints
Centre device
Left-hand
outer device
Flow divider
Steering linkage
Wheel
Deflector frame
Deflector frame
with transport
locking bar
Left
side device
Right-hand
side device
No. Assembly group Page
1 »Fitting the centre and side devices« 13
2»Fitting running wheel axles with wheel swing brakes« 15
3 »Fitting the drawbar for the lower hitch« 17
4»Fitting the drawbar hydraulics for the lower hitch« 18
5 »Fitting the outer devices« 20
6»Fitting the rear running wheel and adjusting lever« 23
7 »Hydraulics for the lower hitch« 25
8»Final assembly« 39

Overview
10
Assembly group
for pallet
packaging
Right-hand
outer device
Tine support
PTO shaft
with 1 x wide-
angle joint
Centre device
Left-hand
outer device
Wheel
Deflector frame
Left
side device
Right-hand
side device
No. Assembly group Page
1 »Basic machine« 28
3»Fitting the outer device« 30
4 »Fitting the upper hitch drawbar« 33
5»Fitting the drawbar hydraulics for the upper hitch« 34
6 »Final assembly« 39

Overview
11

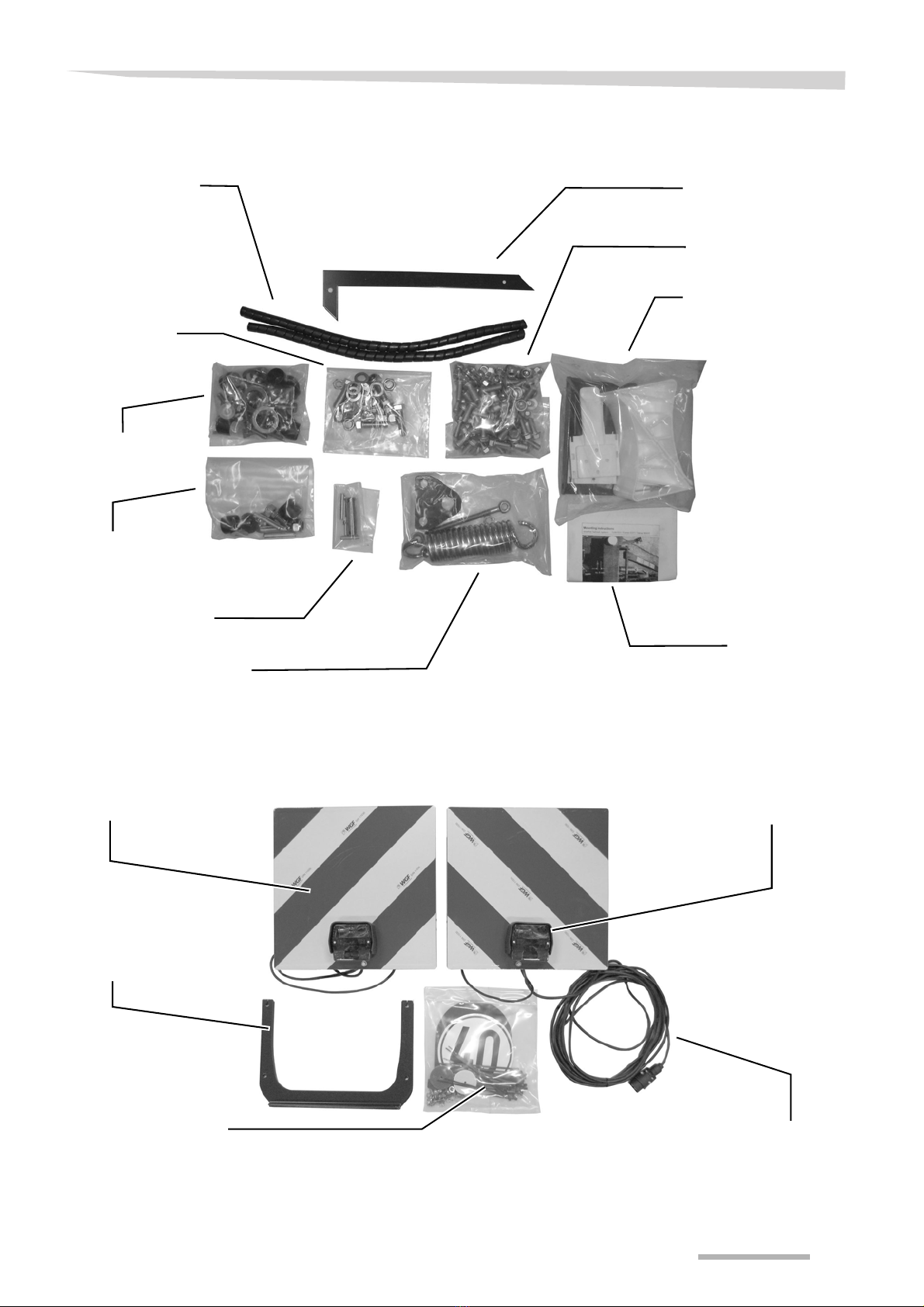

Small parts
Set of lights
Pins for border tedding
system
Tine gauge
Wheel chock with support
and holder
Bearing plate for the drawbar,
eye bolt and spring for the
drawbar hydraulic system
Scouring protection
coil
Assembly
instructions
Assembly parts
for deflector
frame
Assembly parts
for warning signs
Assembly parts 
for drawbar
Bolts and serrated flange
bolts for the tine supports
Rear light
Electric cable
Warning sign holder
Speed sticker, holder, rear
reflectors, cable ties
Warning sign

Crate packaging
12
Crate packaging
Requirements
•Suitable flat surface approx. 10 x 10 m as assembly space.
•Lifting gear with lifting accessories for at least 1,500 kg.
•Floor conveyor (pallet truck or fork lift) with a fork length of at least
1,800 mm.
•Supports for safely depositing machine parts.
•Spanners for tightening bolts.
Preparations for
assembly
Place the wooden crate on level ground (with the pallet floor at the
bottom) and open it without damaging the parts inside.
Take out loose parts (wheels, axles, boxes, etc.).
Clear plenty of space around larger components to make access
easier.
Checking the scope
of delivery
Check that the scope of delivery is complete.
In the event of missing, incorrect or damaged parts, fill in the
“REPORT MISSING PARTS” form and send it to the “ORDER
DESK” in Kerteminde straight away.
Removing the
surface protection
Remove the surface protection (e.g. Tectyl) with which the bare
surfaces (such as tine arms, tine supports and bearing shafts)
have been coated.
Grease the bare surfaces using a brush.
Observe the safety information
Observe the safety information when carrying out all work.
Disregard for safety information can lead to serious or fatal injury.
Ensure that hydraulic connections are correct
Before lowering the machine, you must check that the hydraulic
lines are correctly connected. Wrongly connected hydraulic hoses
can trigger unpredictable movements of the machine. Serious or
fatal injury may be caused as a result.
No persons within the slewing range
There is an acute risk of injury within the slewing range from
machine parts which are slewing or folding. Serious or fatal injury
would be caused as a result.

Crate packaging
13
Fitting the centre
and side devices
Use suitable lifting accessories to remove the machine elements from
the crate.
The side devices are fitted to the centre device ex works.
Loosen all fastenings (wires, lashing straps).
Using a crane, position the centre and side device combination
onto assembly stands and secure.
Side device
Centre device

Crate packaging
14
Running wheel
axles
Overview of the
running wheel axles
Pay attention to the position of the running wheel axles
When fitting the running wheel axles, make sure that they are
correctly positioned. If fitted incorrectly, running wheel axles may
cause damage to the machine.
The rotor discs are not shown in this view.
Running wheel axle
L1
Running wheel axle
L2
Running wheel axle
L3
Running wheel axle
R1
Running wheel axle
R2
Running wheel axle
R3

Crate packaging
15

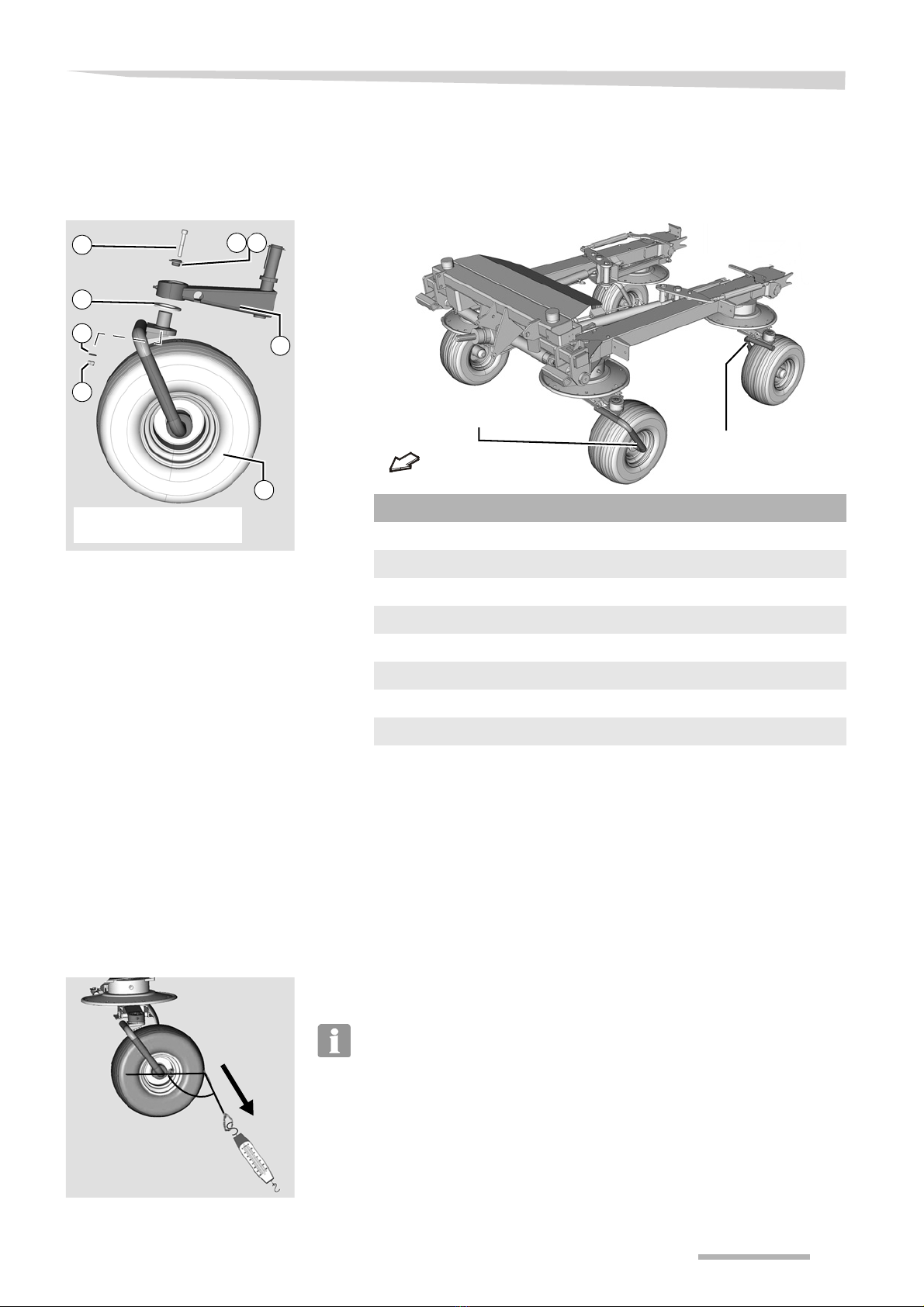

Fitting running wheel
axles with wheel
swing brakes
During assembly, ensure that the running wheel axles are fitted and
screwed in the correct position on the centre and side device.
Fitting the running wheel axles to the centre and side devices:
Place a washer onto the running wheel axle pin.
Insert the running wheel axle with washer into the bush of the
carrier.
Insert the centring bush with 2 disc springs into the carrier bush
from above.
Screw in the Allen bolt for the wheel swing brake so that the wheel
can still swivel slightly.
Secure the Allen bolt from below using a washer and nut.
Adjust the wheel swing brakes to 50 - 70 N using the spring
balance.
The braking force of the wheel swing brakes influences the trailing
behaviour of the running wheels. All wheel swing brakes must be set
to the same force.
»Setting the trailing characteristic«, page 51.
1
2
3 4
5
6
7
8
Running wheel axle with 
wheel swing brake
No. Quantity Part
1 4 Running wheel axle with prefitted wheel
2 4 50 x 80 x 5 washers
3 4 Centring bush
4 8 Disc springs
5 4 M10 x 65 Allen bolts
6 4 10.5 x 21 washers
7 4 M 10 nuts
8 4 Carrier
Front running wheel
axle
Rear running wheel
axle
!
!
90°
50 - 70 N

Crate packaging

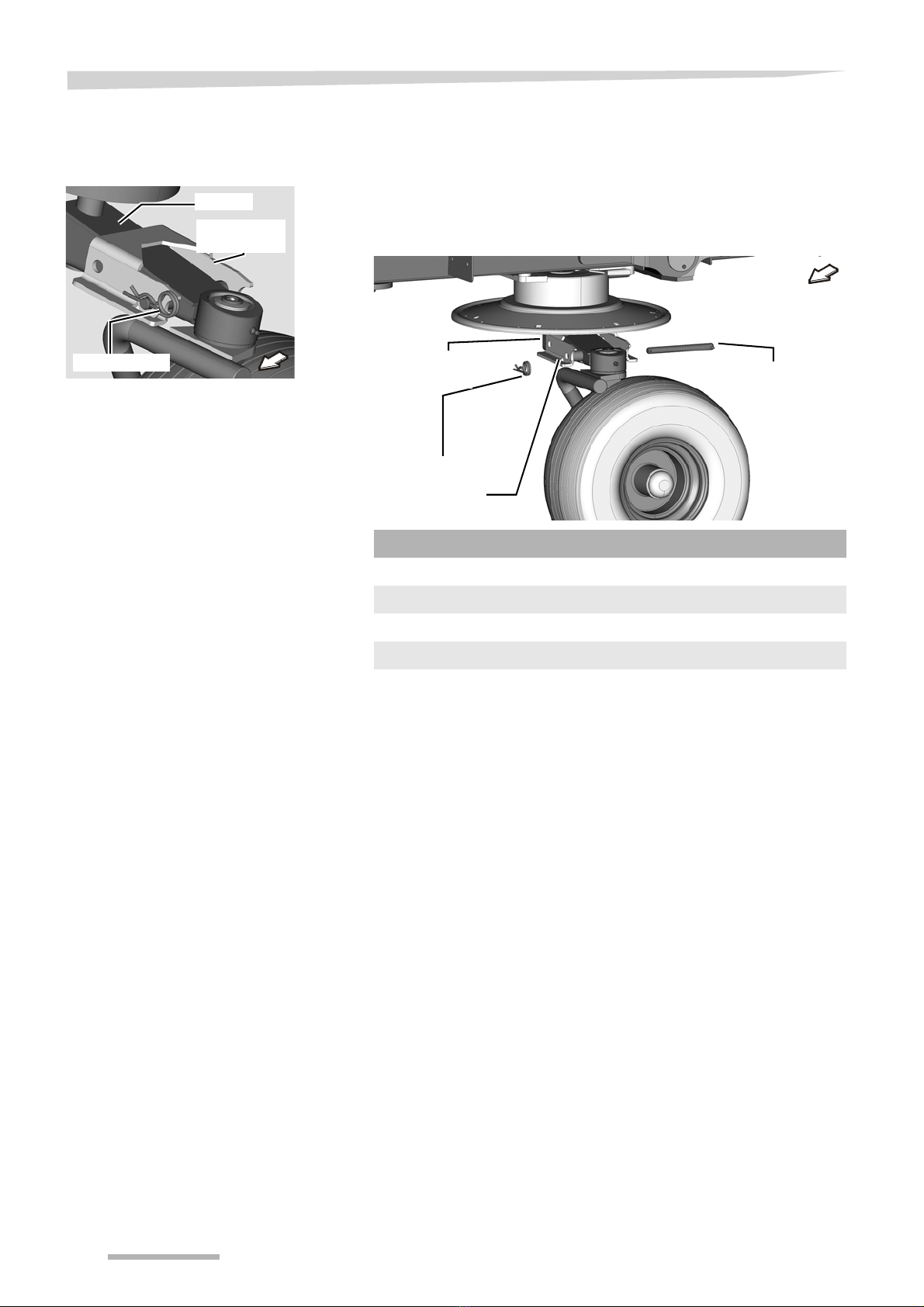

16
Fitting the running wheel
locking mechanism
The running wheel locking mechanism allows even working on slopes.
Place the running wheel locking mechanism onto the carrier.
Insert the pin into the outer hole and secure with a safety splint.
Repeat the process for all wheels.
Removing assembly
stands
Using a crane, lift the centre and side device combination and hold
in position.
Remove the assembly stands.
Using the crane, set down the centre and side device combination
and secure against tipping over and rolling away.
Safety splint
Carrier
Locking
mechanism
No. Quantity Part
1 4 Running wheel axles with prefitted wheel
2 4 Locking mechanisms
3 4 Pin with split pin
4 4 Safety splint
Pin with split pin
Safety splint
Locking
mechanism
Outer hole

Crate packaging
17
Fitting the
drawbar for the
lower hitch
Fit the drawbar to the centre device. Secure the centre device and
drawbar with suitable lifting gear.
Lift the preassembled drawbar and move into the correct position
to the centre device (9).
Attach the bearing plate (7) to the ends of the drawbar shaft.
Drive the dowel pin (8) into the ends of the drawbar shaft.
Screw the bearing plate with supports onto the centre device.
No. Quantity Part
1 1 Preassembled drawbar
2 4 M16 x 50 bolt
3 4 M 16 self-locking nut
412 17 x 28 x 2.5 washers
5 2 M16 x 45 bolt
6 2 M16 self-locking nut
7 2 Bearing plate
8 2 8 x 36 dowel pins
9 1 Centre device
1
2
3
4
5
6
7
8
9

Crate packaging
18
Fitting the drawbar
hydraulics for the
lower hitch
The spindle is prefitted to the drawbar ex works. The drawbar cylinder
is already connected to the machine hydraulics ex works.
Proceed as follows:
Turn the spindle out of the spindle nut.
Lubricate the thread for the spindle in the drawbar cylinder.
Turn the spindle into the spindle nut and the drawbar cylinder
simultaneously.
Guide the drawbar cylinder (3) over the bearing plate for the
drawbar cylinder.
Insert the pin (1) through the bearing plate for the drawbar cylinder.
Secure the pin on both sides using split pins (2).
Hook the spring into the support on the drawbar.
Guide the eye bolt of the spring through the hole in the centre
device, screw tight and secure with a locknut.
Eye bolt
45 mm
No. Quantity Part
1 1 20 x 72 pins
2 2 5 x 32 split pins
3 1 Drawbar cylinder
4 1 M12 x 150 eye bolt
5 1 235 x 61 spring
6 2 M12 nuts
7 2 M12 washers
Spindle
Spindle nut
2
7
64513
Caution.
Note the pin position
for the lower hitch.
Bearing plate for the
drawbar cylinder

Crate packaging
19

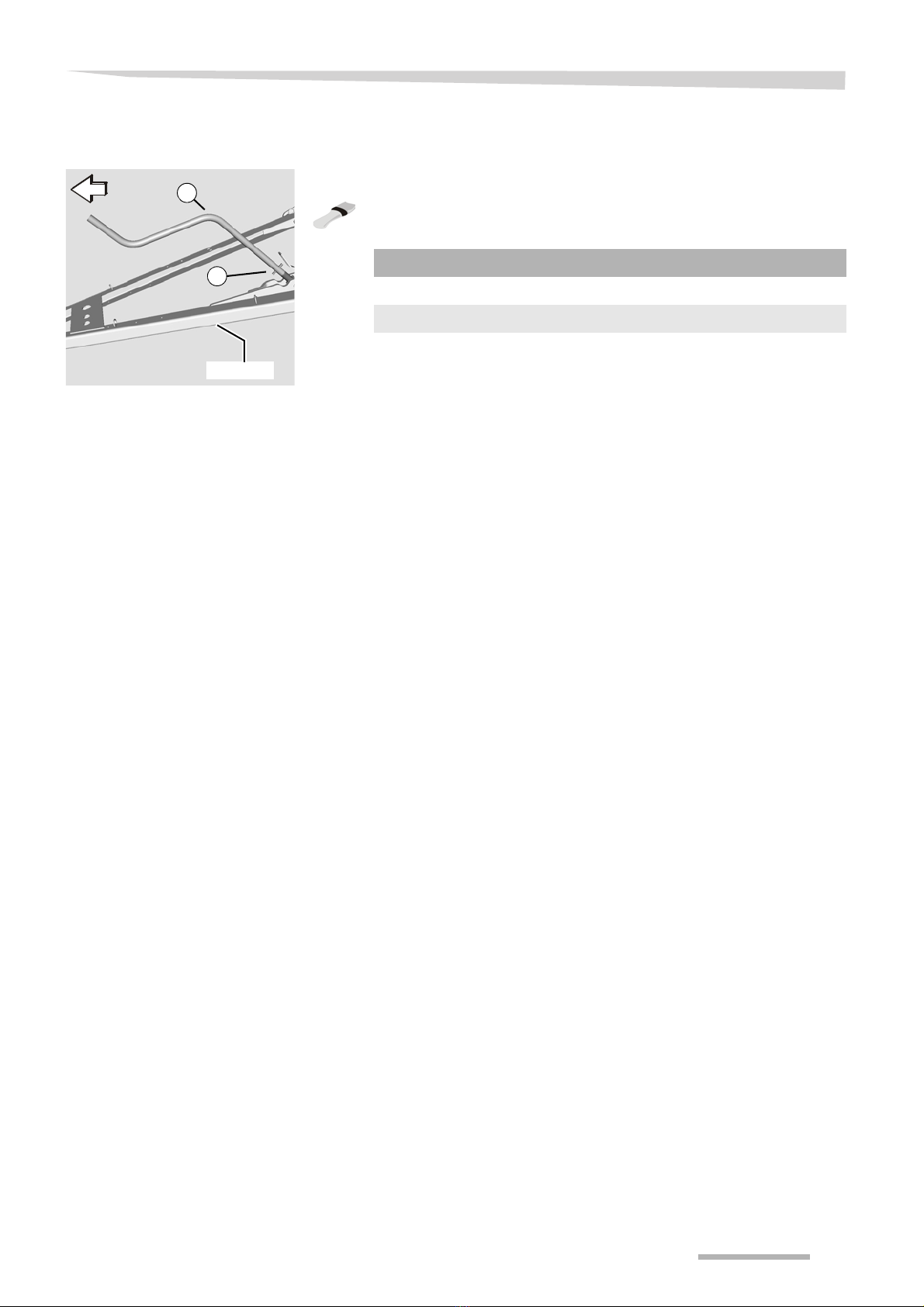

Fitting the crank
Fit the crank onto the spindle and secure with a dowel pin.
Lubricate the spindle with a brush.
Drawbar
1
2
No. Quantity Part
1 1 Crank
2 1 8 x 50 dowel pin

Crate packaging
20
Fitting the outer
devices
Fit the two outer devices to the side devices. Note the position of the
rotor discs. Incorrect positioning of rotor discs will cause damage to
the machine.
Position of the rotor
discs
The tine arm fastening holes act as reference points for adjustment.
Checking the correct
position
Check and correct the position of the rotor discs of the side and
outer devices:
Move the outer devices into position next to the side device using
suitable lifting gear.
Check marks of side device and align outer devices accordingly.
All rotor discs on one side of the machine point in the same direction.
The rotor discs on the other side of the machine point in the opposite
direction.
Position of the reference points:
•Rotor discs on the left-hand side: 1 – 2 – 3
•Rotor discs on the right-hand side: 4 - 5 - 6
Reference point
123
4 5 6
