Yale AYRD110 Technical specifications

1
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Yale Real Living®
Installation and Programming Instructions
Key Free Push Button Deadbolt B1L
®
x3
#8-32 x 5/16"
Machine screws
x4
#7 wood & #8-32
machine x 20mm
Combination screws
x2
M6x47mm
Long through bolt
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO
THE PRODUCT AND VOID THE FACTORY WARRANTY
Before you begin
for step-by-step installation
instructions & to register
your product
DOWNLOAD
THE BILT APP

2
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Preparing Door

3
P/N -110- - - Rev DAYRD STANDALONE INST FUL
O
x4
1
d faute
2-3/8" position
2-3/4" position
Installing Latch & Strike Plate
Press
Pull
optional
Bolt must be in retracted
(unlocked) position. Note
horizontal orientation of
mechanism.

4
P/N -110- - - Rev DAYRD STANDALONE INST FUL
2Installing Keypad Escutcheon
Outside of DoorInside of Door
Bolt must be in retracted (unlocked)
position. Note horizontal orientation
of mechanism.

5
P/N -110- - - Rev DAYRD STANDALONE INST FUL
x2
3Installing Interior Mounting Plate
Loosen screw to
remove cover.

4Attaching the Cable Assembly
6
P/N -110- - - Rev DAYRD STANDALONE INST FUL

7
P/N -110- - - Rev DAYRD STANDALONE INST FUL
x3
5Installing Interior Escutcheon

8
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Testing Operation
Bolt must be in retracted
(unlocked) position before
installing batteries.AA
!

9
P/N -110- - - Rev DAYRD STANDALONE INST FUL

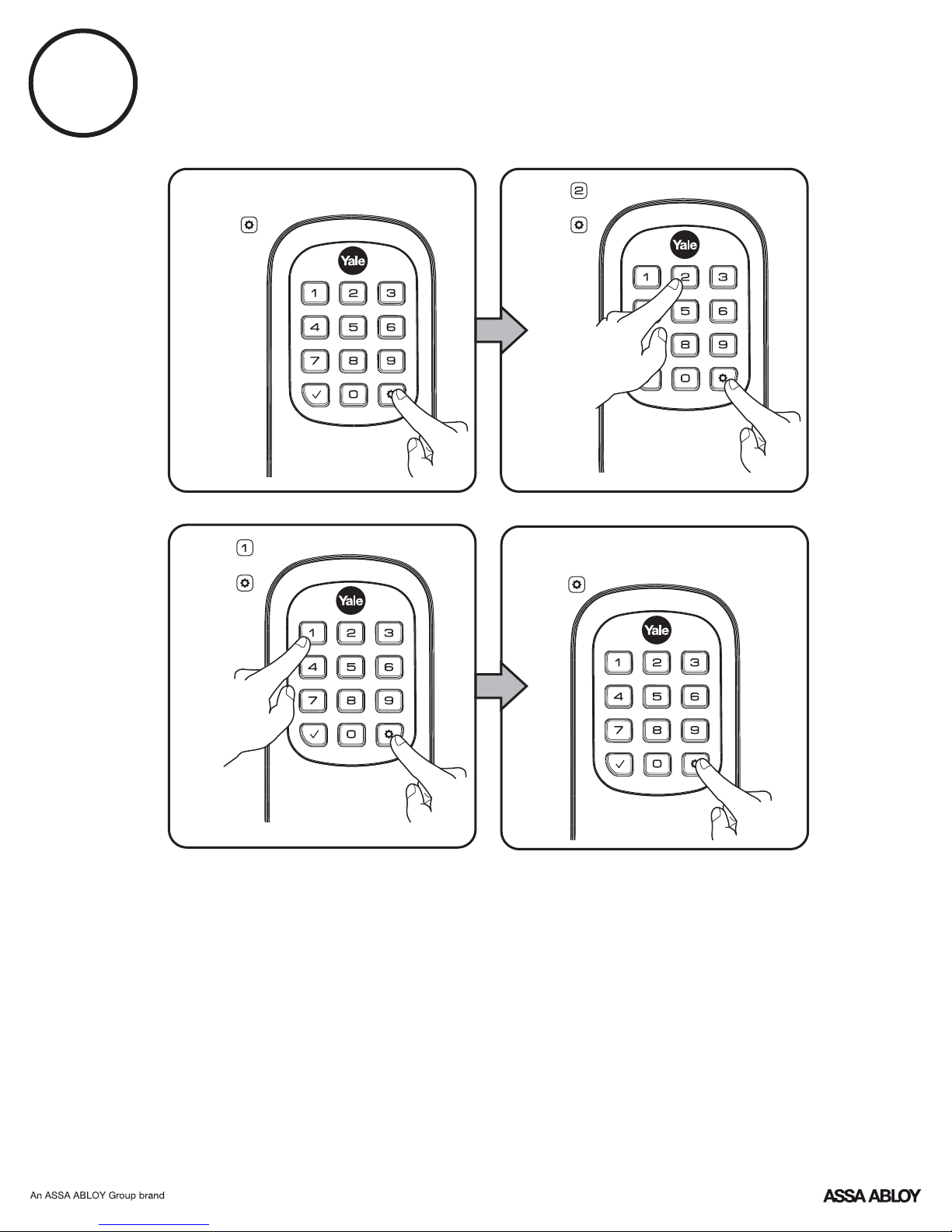

Handing the Lock
Press . Press . Press . Enter
new Master code (4-8 digits).PIN
Press to complete.
After entering the Master code,PIN
press any key to complete handing.

10
P/N -110- - - Rev DAYRD STANDALONE INST FUL

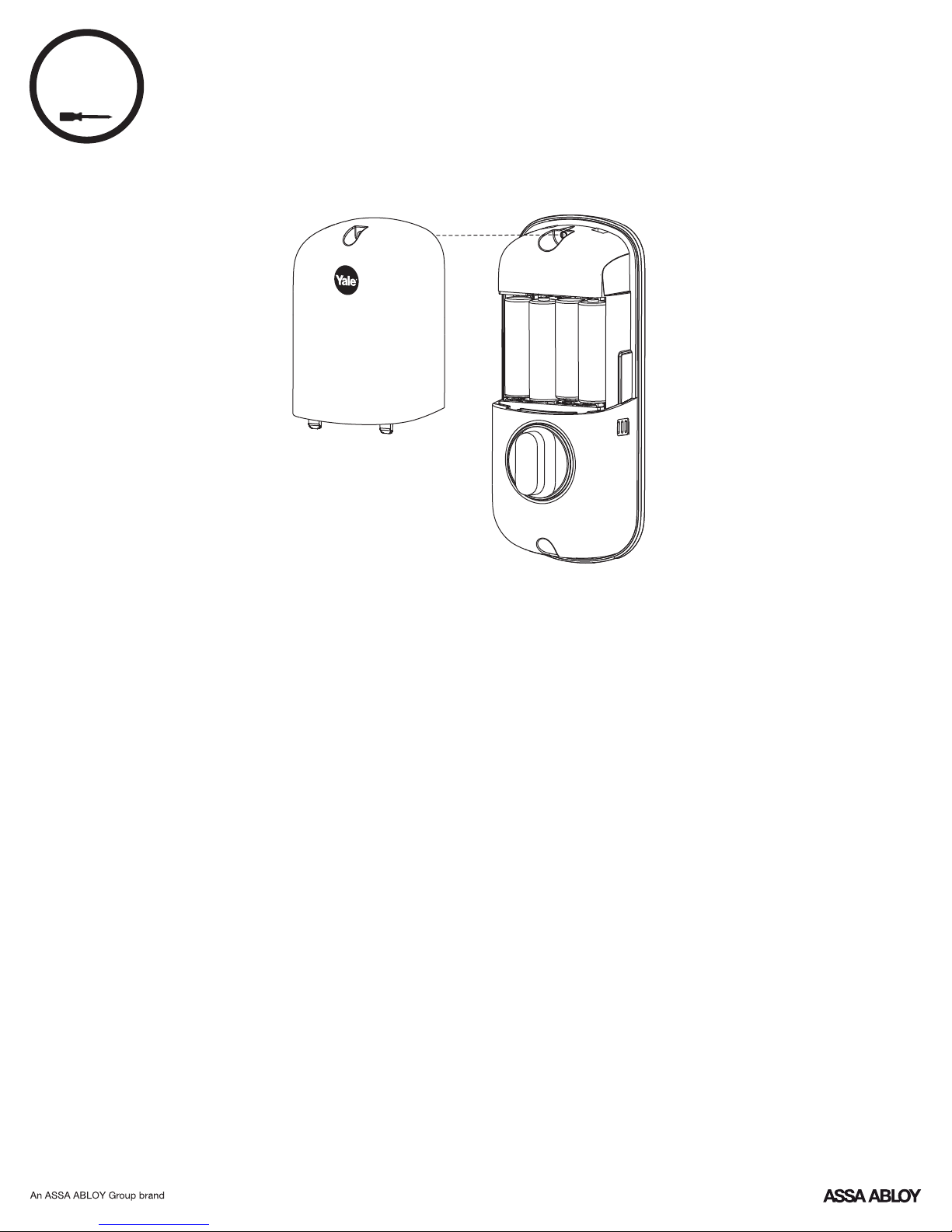

6Installing Cover
Congratulations, you've installed the Yale Real Living®
Key Free Push Button Deadbolt B1L! Turn sheet over for
Programming Instructions to customize your product.

11
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Programming Instructions
Low Battery Warning- Flashes RED
Failsafe 9 volt
Battery Connection
(Use Alkaline battery)
!
Master Code must be created before any further programming.PIN
Max User Codes = 25
Warning: Changes or modifications to this device, not expressly approved by
Yale Security Inc. could void the user's authority to operate the equipment.
Lock-out Mode- Keypad Flashes

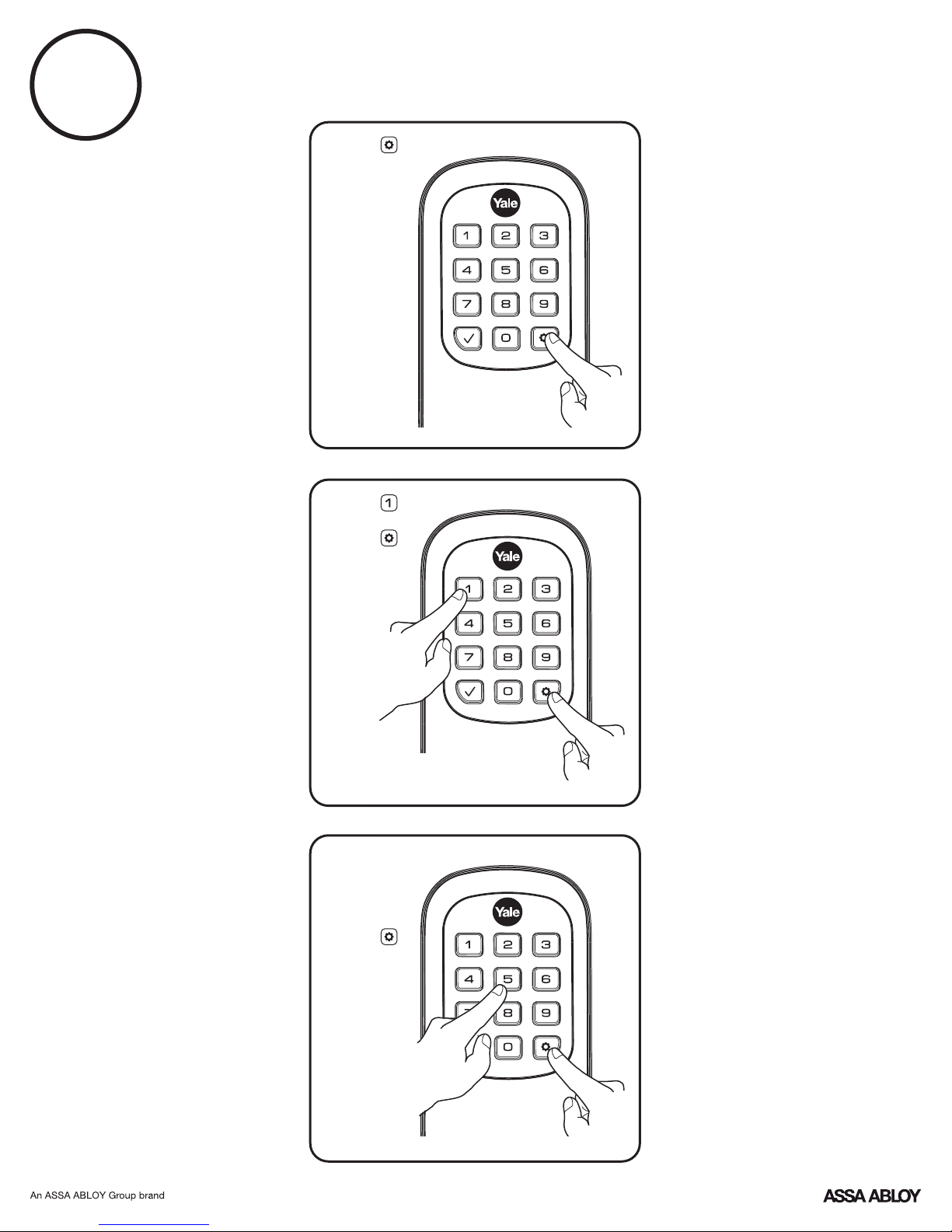

1Creating Master CodePIN
Press
Press
Press
Enter 4-8
digit Master
Code.PIN
Press
12
P/N -110- - - Rev DAYRD STANDALONE INST FUL

2Creating User CodesPIN
Master code must be created first.PIN
*Max User Codes = 25
Enter Master codePIN
Press
Enter 4-8 digit codePIN
Press
Press
Press
Press
Press
13
P/N -110- - - Rev DAYRD STANDALONE INST FUL

14
P/N -110- - - Rev DAYRD STANDALONE INST FUL
3Unlocking Door with CodePIN
"Unlock"
Enter PIN
Press
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
User ___
PIN Code Management (Up to 25 Users)
Duplicate if necessary
User Name User # PIN Code
Master
User ___
User ___
User ___
User ___
Code Chart
User Type
User ___
User ___
User ___

15
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Resetting Lock to Factory Default
When lock is reset to factory defaults all user
codes (including the Master code*) arePIN
deleted and all programming features are reset to
original default settings (see "Factory Default
Settings").
1. Remove the battery cover.
2. Remove the batteries.
3. While pressing the reset button (minimum of 3
seconds) reinstall batteries. Release reset
button.
4. Replace battery cover.
Upon reset, Master Code creation is the only
option available and must be performed prior to
any other programming of the lock.
NOTE: After setting the Master Code, press any
key to complete handing of the lock.

16
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Definitions
All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except
Master) code access. When attempting to enter a code while the unit is in Lockout, the keypad flashes 8PIN
times and the lock beeps 3 times as well.
Audio Mode: Disable (3)Choosing in Audio mode shuts off the code confirmation tone play-back for use in quiet
areas. Audio mode is enabled or disabled through feature programming by the Master code.
Automatic Re-lock Time: After a successful unlock, the unit will automatically re-lock after thirty (30) seconds.
Low Battery: When battery power is low, the Status Indicator flashes . If battery power is completely lost,RED
use the 9Volt battery override. To use the 9V battery override apply 9V battery, in either direction, to terminals
below the keypad for backup power option. Wake up the lock and enter your pin code to unlock the door.
Master Code: It must be createdPIN The Master code is used for programming and for feature settings.PIN
prior to programming the lock. The Master code will also operate (unlock/lock) the lock.
One Touch Locking: When the latch is retracted, activating the keypad will extend the latch (during Automatic Re-
lock duration or when Automatic Re-lock is disabled).
Shutdown Time: The unit will shut down (flashing keypad) for sixty (60) seconds and not allow operation after
the wrong code entry limit has been met.
Tamper Alert: Audible alarm sounds if attempting to forcibly remove outside lock from door.
User Code:PIN The User code operates the lock. Maximum number of user codes is 25.
Wrong Code Entry Limit: After five (5) unsuccessful attempts at entering a valid code, the unit will shutPIN
down and not allow operation.

17
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Feature Programming Through Menu Mode
Using Master code*PIN
Master Code SettingPIN
MM
User Code RegistrationPIN
Register
Delete
Advanced Lock Settings
Audio Mode
N/A
All Code Lockout Mode
Enable
Enable
Disable
Disable
User Number ( ) 1~25 MaxPIN
4~8 Digits
12
U
Automatic Re-lock Enable
Disable
One Touch Locking Enable
Disable
Handing the Lock
For quiet areas, select Disable (3)
in Audio Mode.
1. Enter the 4-8 digit Master PIN code followed by the key.
2. Enter digit corresponding to the function to be performed followed by the key.
Factory Settings
Settings Factory Setting
Master CodePIN Registration
required*
Automatic Re-lock Disabled
One Touch Locking Enabled
Audio Enabled
Automatic Re-lock Time 30 Seconds
Wrong Code Entry Limit 5 Times
Shutdown Time 60 Seconds
*The Master code must be registered prior to any other programming of the lock.PIN
Default settings
in bold.
Performs
automatic
handing of
the lock.
*The Master code must be registered prior to any other programmingPIN
of the lock.
U

18
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Programming Troubleshooting
Symptom Suggested Action
Lock does not respond –
door is open and
accessible.
•Press each keypad button for response when pressed.
•Check batteries are installed and oriented correctly (polarity)
in the battery case.
•Check batteries are in good condition; replace batteries
if discharged.
•Check to see if cable is fully connected and not pinched.
•Batteries may be completely discharged.
•Apply 9V battery to terminals below the keypad for backup
power option.
Unit chimes to indicate
code acceptance, but the
door will not open.
•Check to see if there is another locking device on the door.
•Check the door gaps for any foreign objects between door
and frame.
•Check that the cable is firmly connected to the board.PC
Unit operates to allow
access, but will not
automatically re-lock.
•Check to see if Auto Re-lock Mode is enabled.
•If low battery indicator is lit (see below), change batteries.
PIN codes will not register.
•PIN codes must consist of 4 to 8 digits to register.
•The same code cannot be used for multiple users.PIN
•Registration/management of codes is set by thePIN
authority of the Master Code.
•Contact the Master user.
•User codes must be entered within 5 seconds or the
process will have to be restarted.
•Check mark or gear cannot be used as part of the
Upon entering a codePIN
and pressing the (*) key, the
lock gives a series of beeps,
flashes red & blue s 7LED
times, and does not unlock.
• All Code Lockout Mode is enabled.
• Only the Master can enable/disable All Code Lockout Mode.
• Contact the Master user.
Upon entering a codePIN
and pressing the (*) key,
there are different tones.
• Check to see if the lock is set to All Code Lockout Mode.
• Setting/managing All Code Lockout Mode is done through
Master Code only. Contact the Master user.
The unit operates, but it
makes no sound. •Enable Audio Mode.
The unit displays inter-
mittent flashes.RED
• This is the Low Battery indicator alerting that it is time to
replace the batteries. Replace all four (4) batteries with
new Alkaline batteries.AA
Upon entering a codePIN
and pressing the (*) key,
the unit responds with a
series of beeps and the
keypad flashes three times.
•The digits entered were incorrect or incomplete. Re-enter
the correct code followed by the check mark (*) key.
Lock does not respond –
door is locked and
inaccessible.
code.PIN

19
P/N -110- - - Rev DAYRD STANDALONE INST FUL
FCC:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the Rules. These limits are designed to provide reasonable protection against harmfulFCC
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
Interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ technician for help.TV
Industry Canada:
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à toutes les exigences de l’interférence canadienne causant des
règlements d’équipement. L’opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer
l’interférence nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris l’interférence qui peut
causer l’opération peu désirée.

20
P/N -110- - - Rev DAYRD STANDALONE INST FUL
Yale® and Yale Real Living® are registered trademarks of Yale Security Inc.,
an Group company.ASSA ABLOY
Copyright © 2017, Yale Security Inc., an Group company.ASSA ABLOY
All rights reserved. Reproduction in whole or in part without the express written permission
of Yale Security Inc. is prohibited.
ASSA ABLOY is the global leader in door opening solutions,
dedicated to satisfying end-user needs for security, safety and convenience.
Product Support Tel 800.810.WIRE (9473) • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
YALE, with its unique global reach and range of products, is the world's favorite lock
– the preferred solution for securing your home, family and personal belongings.
NOTE TO INSTALLER AND CONSUMER
While Yale has included several features to prevent lockout (9-
®
Volt battery jumper, low battery warnings), it is still possible for
a lockout situation to occur. Because this product does not
have a mechanical override (a key), Yale recommends to use
®
this product in an environment where there are additional
entry points into the dwelling.
