Yale Keyfree Connected User manual

User Guide
Keyfree
Connected
KFCON-UG Rev. 001
DO NOT FIT KE FREE UNTIL DOOR INSTALLATION IS COMPLETE.
PLEASE READ THE INSTRUCTIONS BEFORE USING KE FREE.

INTRODUCTION
2
Keyfree Helpine:
01902 364606
Email:
[e-mail]
Website:
www.yale.co.uk

CONTENTS
3
Safety Precautions 4
Product Features 5
Lock Overview 7
Set/Change Master Code 8
Set/Delete User Code 9
Opening and locking 11
Set One Day Codes 12
Register/Delete ey Fobs 14
Change Relock Time 16
Silent Mode On/Off 18
Connecting to a Home Automation System 20
Passage Mode 22
Child Safety Mode 22
Handle Alarm 22
Intrusion Alarm 23
Incorrect PIN Lockout 24
Emergency Power 25
User Code Log 29
ey Fob log 30
Introduction
Getting Started
Extra Features
Smart Home

4
Safety recautions
When you leave your home be sure to
lift up the handle in the given time so
the door is fully secure.
For total peace of mind, please store
your back up key in a safe &
convenient place.
To maintain the high quality finish,
clean regularly with a soft
damp cloth taking care not to
scratch the finish.
Do not use any chemicals when
cleaning as this may affect
your warranty.
Be careful not to let any unauthorized
users discover your PIN code.
Please keep your PIN code safe.
Press button & lift inner handle until.
Red LED will show.
If the inner handle is not lifted to securely
lock your door, the door is held on the latch
only.
Please ensure the button is fully
depressed when opening or locking
your door from the inside.
If the button does not pop up when you
release the lever, please slightly lift up
the inside lever to make the button pop
up for the best security.
Make sure to follow the above instructions to avoid any injuries or damage to the product .
Caution
lease read this carefully
Locking from the outside
Locking from the inside

roduct Features
5
Electronic PIN Code System
You can open the door conveniently with up 20 configurable PIN codes, allowing eyfree access.
Smart Home Connectivity (Optional)
By adding the corresponding module, your eyfree lock can be integrated with your home automation system.
ey Fob Entry (Optional)
A Yale key fob can be assigned to allow the lock to be unlocked remotely.
Emergency Backup
In the event of power failure in the lock, a 9 volt battery (PP3) can be connected to the front of the lock
to provide backup power
Alarmed Door Lock
The eyfree lock has a built in damage alarm, if the keypad area is damaged an 80dB alarm will sound
Basic Security Locking
The outside handle will automatically disengage once you have entered your home to prevent anyone from
following in behind you.
Emergency Escape Feature
In the event of an emergency the inside handle will always be engaged, allowing escape without first having to unlock
the door.
Introduction
1.
2.
3.
4.
5.
6.
7.

6
Front (Front Body)
ey Fob
(Optional)
Back (Main Body) Cylinder
User Guide
Keyfree
Connected
KFCON-UG Rev. 001
DO NOT FIT KE FREE UNTIL DOOR INSTALLATION IS COMPLETE.
PLEASE READ THE INSTRUCTIONS BEFORE USING KE FREE.
User Guide
Lock Overview
¨Basic Contents
¨Optional Accessories
The contents of this product may be subject to change without notice for performance or quality improvement.
Basic Contents
Home Automation
Module (Optional)

Getting Started
7
?
?
?
?
??
?
?
?
?
?
?
Pull down Emergency Cover 1 eypad (10- ey)
2 Enter button
3 Lever Handle
4 button
5Emergency Power Supply
Terminal
6 Reset button
7
8
eyhole
1
Battery Cover
2 LED Indicator
3 Lever Handle
4 Speaker Hole
5 Screw Hole
6Slot for Remote control
module (Optional)
7I button
8
9
10
11
12
Passage Mode/Button
1.5V AA Alkaline Batteries
Lock case
Latch Bolt
Dead Bolt to securely lock
Emergency Cover
Lock Overview
(Front Body, install on the outside of the door)
9V Emergency
battery
(Sold separately)
Push Button
?
?
?
?
?
?
?
?
Front
Back (Back Body, installed on the inside of the door)
(Front Body, installed on the outside of the door)
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12

8
Changing Master Code
The master code is the main password to the lock. As well as allowing entry through the door, it is also used to
configure the lock including adding and removing users.
Registration
Step Icon Expected Feedback Description
Press any button Press any button on the
keypad to begin
Enter the master code, 2 tone beep If you are setting the code
followed by # key for the first time the default is
123456.
Select the [1] button 2 tone beep You are now in the lock’s menu,
followed by # key choose option number 1 to
change the master code.
Enter a new master code The master code must be
6 digits
Press the # button Voice saying “completed” This completes the master
code setup.

Getting Started
Setting a User Code
9
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 2 to select the user code setup.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [2] button followed
by # key
Option number 1 adds or modifies a user
code
Press the [1] button and then #
This is the number of the slot in memory
where the code will be saved (1-20)
The lock can hold up to 20 unique user codes, each one has a slot in the locks memory from 1 to 20. If a new code is
written to a slot that already holds a code it will overwrite it. Because of this it is important to record which codes are stored
in each slot. Please use the section in the back of the book to record this.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Enter the slot number for the
user code followed by # key
2 tone beep
The user code can be between 4-10 digits
Enter the new user code
followed by # key
The user code will now be added to the lock.
Press the # button to finish.
3 tone ascending beep
Voice saying “completed”
To add multiple codes please complete the above instructions, record that the memory slot has been filled in the user
code log at the back of this guide, then repeat this process.

10
Deleting a User Code
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 2 to select the user code setup.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [2] button followed
by # key
Option number 2 deletes a user code
Press the [2] button and then #
This is the number of the slot in memory
where the code will be saved (1-20)
To stop a user having access their code will need to be deleted. Before doing this you will first need to know which slot in
the locks memory their code is in. Please see the user code log at the back of the guide.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Enter the slot number for the
user code followed by # key
2 tone beep
The user code will now be deleted from the
lock.
Press the # button to finish. Voice saying “completed”
3 Tone Ascending beep

Getting Started
Opening & Locking
11
Securely Locking Your Door
Opening Your Door
Inside: Press push button & lift the handle.
This can be done anytime and will always fully secure your door.
Outside: Close the door and lift up the handle within the set connection time
Once the lever disengages you must enter your PIN or press any button on the key fob
and lift up the lever within the connection time to securely lock your door.
Front handle engage
Unlocked
Front handle not engaged after
the outside handle relocks
Locked
If the time expires you need to
re-engage the handle to securely lock
your door. You can re-engage by
pressing the remote, pressing the
inner lever down or entering your pin.
Exception : In the Passage mode,
the handle is operable all the time.
The automatic relock time can be varied by user
setting. Refer to section “settings”.
_
Press any button
_
Press (Enter) button
_
Enter registered
PIN code
Press the outer
handle down
PIN Code
Remote Control (Optional)
(Optional)
Simply press any button
on the key fob
_
Press the outer
handle down
IM ORTANT Your door is only securely locked when the inside lever is lifted up & red LED shows.
££

12
Setting a One Day Code
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 5 to enter the one day code settings.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [5] button followed
by # key
The user code must be 4 digits
Enter the new user code
The code will now be active for 24 hours
The one day code is a code that will automatically expire after 24 hours. This allows short term access to be granted to
someone.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Press the # button to finish.
2 tone beep
Voice saying “completed”

Getting Started
Deleting a One Day Code
13
A one day code can be deleted if it is no longer wanted. If not it will expire at the end of the 24 hour period.
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 5 to enter the one day code settings.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [5] button followed
by # key
Press the # to confirm code deletion.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Press the # button to finish. Voice saying “completed”

14

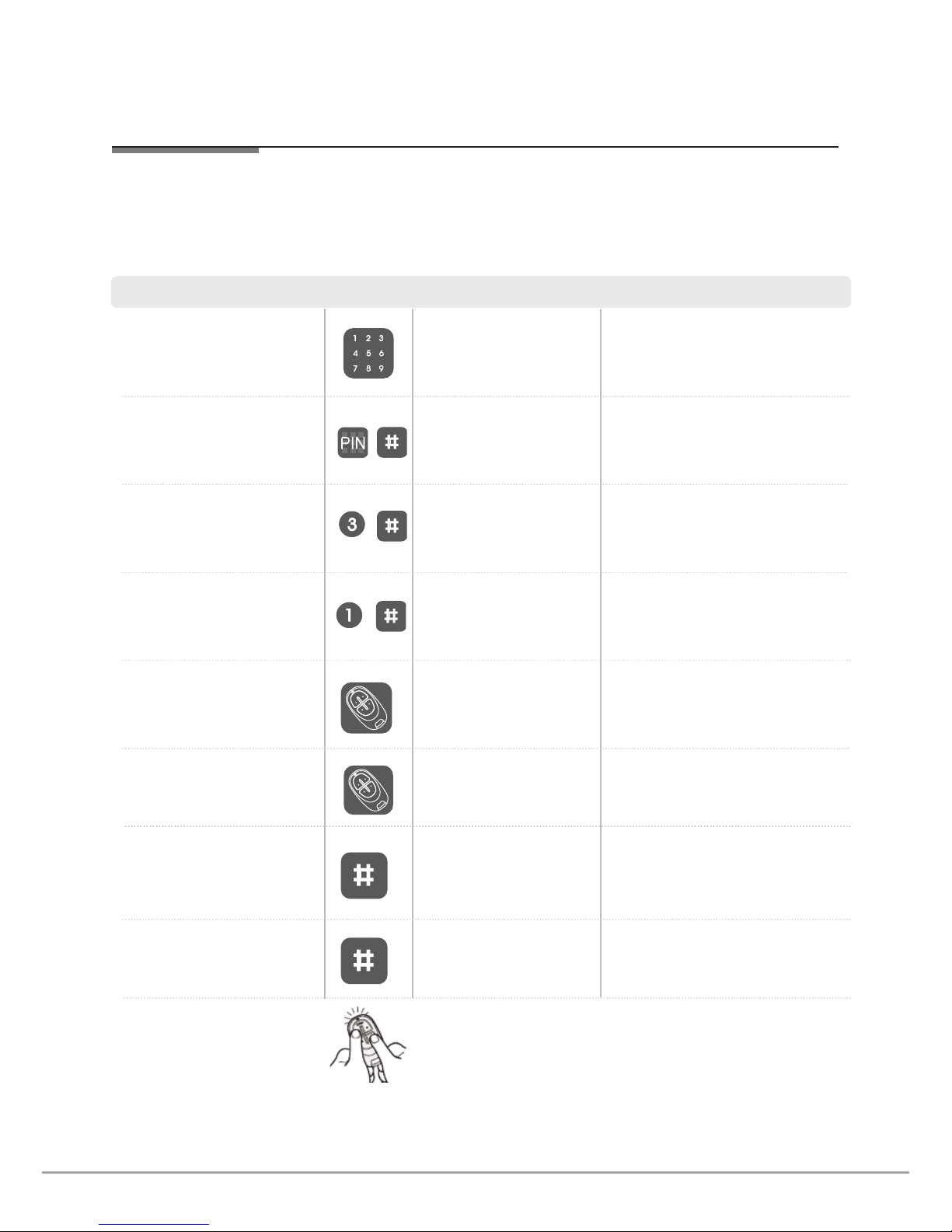

Register Key Fob
Enter the master code,
followed by # key
You are now in the lock’s menu, option 3
contains the key fob settings.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [3] button followed
by # key
Select the number of the slot in memory
where the fob will be saved (1-5)
Enter the slot number for the fob
followed by #
Press both buttons as shown in diagram
below.
Yale key fobs allow you to open the lock at a distance of up to 15 metres. This requires both the Yale key fob and the
corresponding lock module to work. Up to 5 key fobs can be registered on 1 lock, and like the user codes they each have
their unique slot in the lock memory. Adding a new fob into a slot that already contains a fob will override it.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Push both unlock buttons on
key fob
2 tone beep
Single beep
Press the # button to finish.
3 tone ascending beep
This adds the fob to the lock memory
Select the [1] button followed
by # key 2 tone beep This puts the lock into fob add mode
Press the # button to confirm.
Voice saying “completed”
The fob will now unlock the lock.

Getting Started
15
Delete reviously aired Key Fob
Enter the master code,
followed by # key
You are now in the lock’s menu, option 3
contains the key fob settings
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [3] button followed
by # key
Select the number of the slot in memory
where the fob is saved (1-5)
Enter the slot number for the fob
followed by #
If a key fob is lost or stolen it can be removed from the lock so that it can no longer be used to open it.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
2 tone beep, then 3 tone
ascending beep
Press the # button to finish. Voice saying “completed” The fob will now not unlock the lock.
This puts the lock into fob delete mode.
Press the [2] button followed
by # key 2 tone beep

16
Change IN Relock Time
Enter the master code,
followed by # key
You are now in the lock’s menu, option 6
contains the key fob settings.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [6] button followed
by # key
The relock time can be between 7 and 60
seconds.
Input the relock time (7-60)
The relock time will now be set.
The relock time is the amount of time it takes for the external handle to disengage after the lock has been unlocked with a
correct PIN. The default is 7 seconds.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Press the # button to finish. Voice saying “completed”

Getting Started
17
Change Remote Relock Time
Enter the master code,
followed by # key
You are now in the lock’s menu, option 7
contains the key fob relock settings
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [7] button followed
by # key
The relock time can be between 10 and 90
seconds.
Input the relock time (10-90)
The relock time will now be set.
The lock can be set to unlock for longer periods of time unlocked remotely by a key fob or a home automation system.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Press the # button to finish. Voice saying “completed”

18
Silent Mode On/Off
Enter the master code,
followed by # key
You are now in the lock’s menu, option 8
contains the silent mode settings.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Select the [8] button followed
by # key
Select between the two modes
Press [1] to for silent mode and
[2] for sound assisted mode.
The lock can be toggled between two modes. Sound assisted mode will provide a variety of sounds to provide feedback
from the lock, where as in the default silent mode the only sounds will be an alarm, a low battery warning and feedback
while changing settings in the lock’s menu.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Press the # button to finish. Fanfare sound and voice
saying “silent mode on/off”

Smart Home
19
Lock Module
Remove a battery from the
lock
The module is situated in the top left corner above the [P] button. It can be
unplugged by pulling it out.
Remove any of the batteries to cut power to the lock.
Remove inside cover Slide up the black plastic cover of the lock on the inside of the door.
Remove the module
The model number will be on a sticker on the module, and will enable you to
find the current wireless compatibility of the lock.
Record module model number
The Yale eyfree lock can have a removable wireless communication module within the lock. This module is
used for all wireless communications to both home automation systems and key fobs. In order to connect to
a home automation system a new module may be required for the lock, however changing the module has
the potential to disrupt the current wireless communications. For instance while a new module may allow
the lock to connect to a home automation system, it could cause the key fob to stop working. An up to date
list of compatible home automation systems and the corresponding lock modules is available at the following
address on the Yale website:
www.yale.co.uk/en/yale/couk/smart-lock/Which-technology-is-for-me-/
Removing the module.
To find out which module is currently in your lock please follow the ‘removing a module’ instructions.
Step Icon Description
Smart Home
Inserting a Module
Remove a battery from the
lock
The module has 8 pins that are plugged into the small black connector above the
[P] button on the top left of the lock.
Remove any of the batteries to cut power to the lock.
Remove inside cover Slide up the black plastic cover of the lock on the inside of the door.
Insert the module
Step Icon Description

20
Connecting to a Home Automation System
Enter the master code,
followed by # key
You are now in the lock’s menu, option 4
contains the home automation settings
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Press any button Press any button on the keypad to begin
Press the [4] button followed by
# key
This will make the lock look for a compatible
system
Press the [1] button followed by
the hash key
The lock will now be linked to the home
automation system.
Connecting to a home automation system is a two way process and may require the home automation system to be
configured to look for a new device, please consult the manual that came with the system for more information.
Step Icon Expected Feedback Description
2 tone beep
2 tone beep
Please wait up to 60 seconds
2 tone beep
Voice saying “completed”
Smart Home
