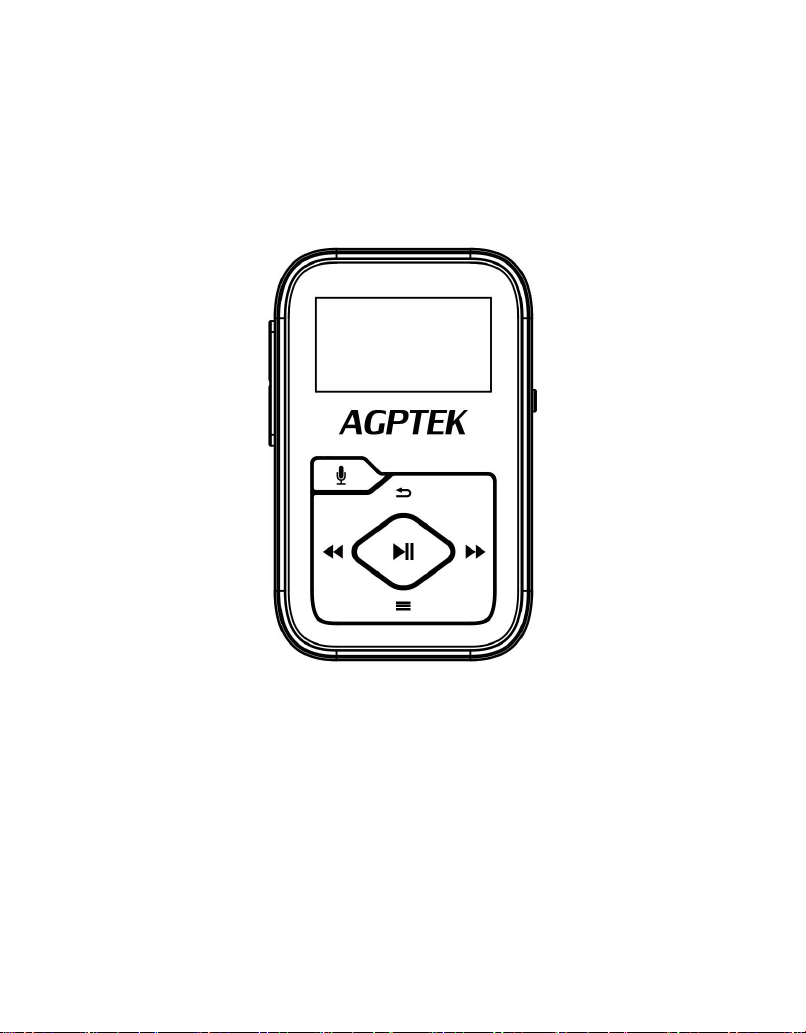

AGPtek B07 User manual

AGPTEK
User Manual
B07 MUSIC PLAYER
English(01/11)
Deutsch(12/24)
Francais(25/37)
日本語(38/47)

CONTENT
English
Important Notice................................................................................... 1
Product Overview...................................................................................2
Main Functions...................................................................................... 3
Help and Troubleshooting.................................................................... 9
Specifications....................................................................................... 11
Deutsch
Wichtige Hinweise...............................................................................12
Produktübersicht..................................................................................13
Hauptfunktionen................................................................................. 14
Hilfe und Fehlerbehebung.................................................................. 22
Technische Daten.................................................................................24
Francais
Avis Important..................................................................................... 25
Présentation du Produit...................................................................... 26
Fonctions Principales........................................................................... 27
Aide et Dépannage..............................................................................34
Spécifications....................................................................................... 37
日本語
ご使用前に............................................................................................ 38
各部名前.............................................................................................. 39
主な機能...............................................................................................40
故障排除.............................................................................................. 45
仕様...................................................................................................... 47

1
Important Notice
Thank you for purchasing AGPTEK Music Player. Please
read the manual carefully before using the product.
Specifications are subject to change without prior
notice.
Charge the Player
• Charge by computer USB port.
• Use 5V/500mA charger (Charger not included).
Connect to the PC & Download audio files
1. Open the Windows Explorer or "This PC".
2. Using the USB cable, connect the player to a USB
port on your PC.
3. Open the new "AGP-B07" folder under "This PC".
4. Copy files to the "AGP-B07" in which you want
them to play.
5. In the left sidebar, right-click the "AGP-B07 " folder
and select "Eject" from the menu.
6. Wait until the computer confirms a safe ejection
before you unplug the USB cable.
7. Note: Please do not disconnect the USB plug
during file transferring. It may cause malfunction
of the player and the files.

2
Product Overview
Buttons and Controls
1. Vol+
2. Vol-
3. Card slot
4. USB interface
5. Earphone jack
6. Clip
7. Repeat all
8. Shuffle
9. Recordings
10.Previous/Fast backward
11.Up/Menu/Screen-lock
12.Next/Fast forward
13.Back
14.Enter/Play/Pause/Power on(off)

3
Basic Operation
•Power on/off. Hold the button to turn on/off
the player.
•Screen lock. Hold down the button to lock
screen and all the buttons will be unavailable.
Repeat the above steps to unlock.
•Screen Display. Press any button to activate screen.
•Browse item. On home menu or list menu, press
button / to browse item, press button to
enter.
• Back. When on any interface, press to go back;
hold down to back to home menu directly.
•Recordings. When on any interface, press the
button to access to Recordings, except on
Bluetooth interface.
•Play modes. Move the button to up to enter into
Repeat all ; Move the button to down to
access Shuffle . (Unavailable when playing
recordings, so it defaults to Repeat all .)
Main Functions
Home Menu
The home menu is the starting point of each
application. There are 7 functions on the home menu:
Music/Record/FM Radio/E-Book/Folder/Settings/
Bluetooth.
Music
Find the icon on home menu with button to
access to its function. A related list will show:

4
•Resume (Now playing).
•All songs.
•Artists/Albums/Genres.
•Playlists. There are 3 default playlists on the player:
Playlist[1]/[2]/[3].
•Update Playlists. Update music files.
•Local folder/Card folder. View music file in the local
folder or card folder. Note: These functions only
available when memory card inserted.
Play the music.
While it’s on music playing interface, hold down the
button to fast forward, press to skip to next track;
hold down the button to fast rewind, press to play
the previous track. Press button to play/pause.
Press the side buttons +/- to adjust volume.
Back mainmenu/Playback settings/Sound
settings/Add to playlist/Remove from
playlist/Delete/Bookmarks.
While it’s on music playing interface, tap button
to access to the submenu. Press button / to
select items or adjust value; press button to enter
or confirm.
1. Back mainmenu. Choose to go to home menu.
2. Playback settings.
A. “Play mode”. Choose repeat mode: Normal,
Repeat 1, Repeat all, Repeat folder.
B. “Shuffle”. Choose to turn on/off shuffle mode.
C. “Replay settings”. A-B repeat mode.
Replay Mode. Set A-B repeat period. Press button
to confirm the starting time A when A is flashing.

5
Then press button to set the ending time B when
B is flashing. The passage from time A to B will be
repeated automatically. The icon for A-B indication
will appear on the screen. Press button again to
back to normal playback.
a. Replay times. Set the replay times from 1 to 10.
b. Replay gap. Set the replay gap from 1 to 10
(seconds).
3. Sound settings. Choose to set Equalizer, Speed
Variable.
A. Equalizer.
B. Speed Variable. Adjust the playback speed from
-8(slowest) to +8(fastest).
4. Add to playlist/Remove from playlist. Choose to
add to or remove from the 3 existing playlist.
5. Delete. Choose to delete the song that is playing
now.
6. Bookmarks. Choose to add bookmark for the song
that is playing now, or go to/delete the bookmark
you added.
Record
The first method: Press the button to access
Recordings when on any interface.
The second method: Find the icon on home menu
with button to access to its function. A related list
will show:
•Record voice. Press button to start voice
recording, press again to pause. Press the button
and choose “Yes” to save the recording file.

6
•Recordings lib. Find the saved recordings in
Recordings>Recordings library. While it’s on
recording playing interface, Press button and
choose “Delete” to delete.
•Storage. Choose to store your recordings in
internal or external memory. Confirm your
selection with button . (Only available when TF
card inserted)
•Record Format/Record settings. Choose the record
format between MP3 (32/64/128/192kbps)/WAV
(512/768/1024/1536kbps).
FM Radio
Find the icon on Home menu with the button
to access to its function. A related list will show:
•Presets. All the saved stations will be listed here.
•Manual tune/Auto tune. When choose “Auto tune”,
the searched stations will be saved in “Presets”
automatically.
•FM radio recordings. View the radio recording files.
The radio recordings will also be saved in
Recordings> Recordings lib.
Start FM radio recording/Save to preset/Clear
preset/Auto tune/Tuner region.
While it’s on radio playing interface, press button
to switch among preset stations, press the button
/ to find tune stations. Press button to access
to its submenu which includes:
1. Start FM radio recording. Press button to
pause/continue, press and select “Yes” to save

7
the recording file.
2. Save to/Clear preset/Auto tune.
3. "Tuner Region". Choose from Common/European/
Japan Band as needed.
4. FM recordings.
E-Book
Find the icon on Home menu with the button
to access to its function. While it’s on text playing
interface, press button / to turn the pages; press
the button to play automatically, press again to
stop; press to enter its submenu and set your
preference, including Play settings (set auto playback
interval: 2-30s), Delete ebook, etc. Note: Only
supports txt format.
Folder
Find the icon on Home menu with the button
to access to its function. All of the files in the player
will be listed. If the Micro SD card is inserted, you can
choose to go to Local folder or Card folder.
Settings
Find the icon on Home menu with the button
to access to its function. A related list will show,
including:
•Language. Choose display language.
•Date and time. Choose “Set Date” to set date
format and date. To set date, press to switch
among year|month|date, press button / to

8
adjust the value of year|month|date and confirm
with button . Set time under “Set Time” and
adjust the time in the same way.
•Shutdown settings. “Timed shutdown”. The device
will shut down automatically when reaches the set
time; “Auto off”. When there is no operation on
the device, the device will shut off automatically
when reaches the set time.
•Display settings. Set Backlight timer, Brightness,
and Screen protection.
•Ear protection. Choose to turn On/Off its function.
When turning on the ear protection, the original
volume of playing music is 12, maximum up to 16,
aimed at protecting your ears.
•Information. Check player information and disk
space about your player.
•Format device/Factory settings. Format the device
or restore to factory default settings. Note: Before
formatting the device, please backup the file so as
not to lose any files.
Bluetooth
Find the icon on Home menu with the button
to access to its function. A related list will show,
including Bluetooth on/off, Search for devices, Device
List. Select the device you want to connect/disconnect,
and then press to connect/disconnect.
After successfully connected, this player is ready to
play music or FM radio by Bluetooth headphones,
Bluetooth speaker, etc.
