Alcatel-Lucent 8028s Premium User manual

8028s Premium DeskPhone
8018 DeskPhone
SIP Business
User Manual
8AL90341ENAAed01

SIP Business
8AL90341ENAAed01
2 /31

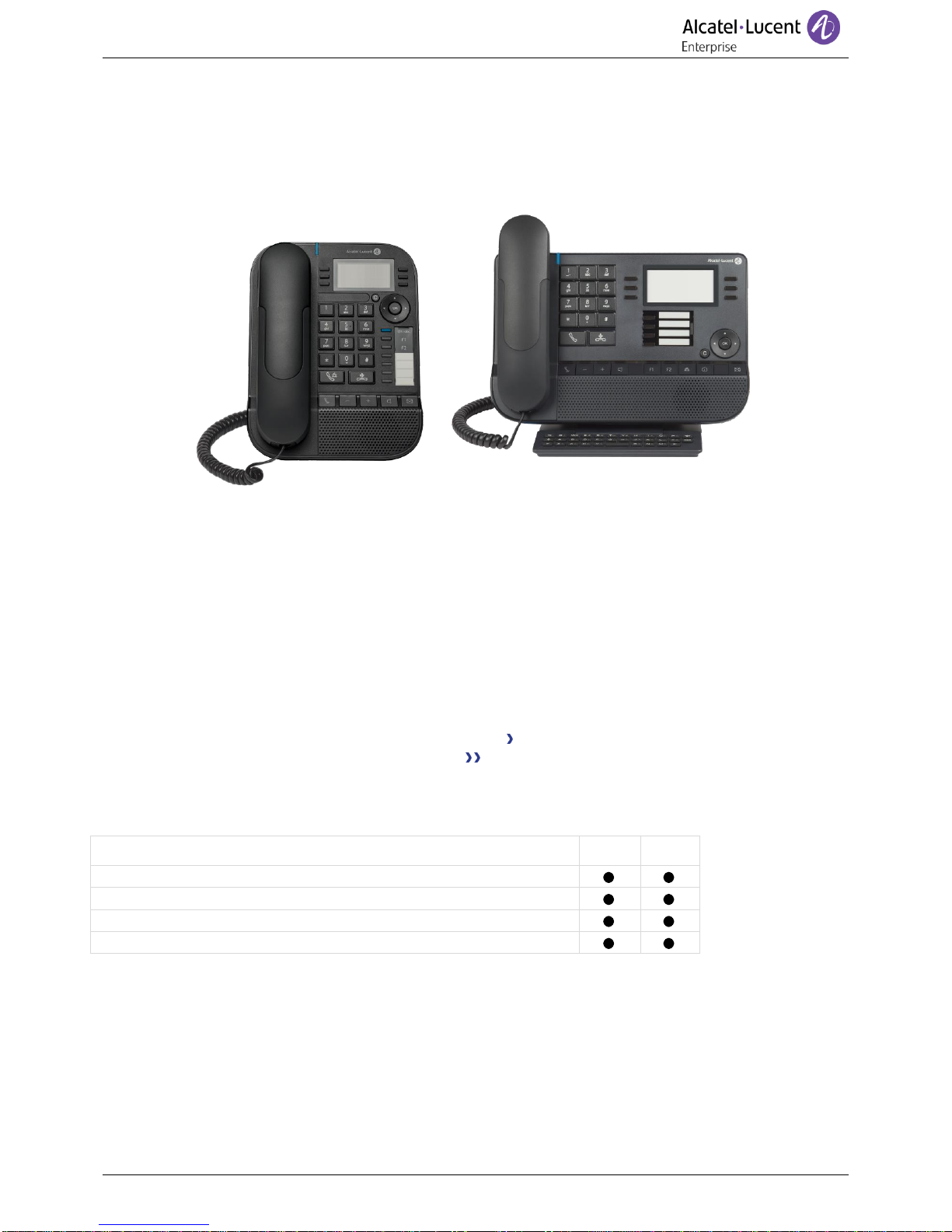

Introduction
Thank you for choosing an ALE International phone.
This model offers enhanced ergonomical features for more effective communication.
This document describes the services offered by the following sets connected to an OmniPCX Enterprise
system in SIP Business mode
•Alcatel-Lucent 8028s Premium DeskPhone (8028s).
•Alcatel-Lucent 8018 DeskPhone (8018).
The label and icons displayed depend on the type and the skin of the set. The label is not displayed if the
corresponding feature is not configured on your telephone system. Depending on the size of the display,
some labels may be truncated. All labels are displayed in color and are italicized. This icon describes a
succession of actions or labels you have to do or select: .
This icon describes the consequence of an action: .
Some features depend on the type of the set.
8028s
8018
IP Phone
Monochrome screen
Two-port Gigabit Ethernet switch with Power Over Ethernet support
Audio services (hands-free, handset and headset)
The labels and icons presented in this document are not contractually binding and may be modified without
prior warning.

SIP Business
8AL90341ENAAed01
3 /31
1 GETTING TO KNOW YOUR TELEPHONE 5
8028S PREMIUM DESKPHONE 5
8018 DESKPHONE 6
PERMANENT FEATURES KEYS 8
HOMEPAGE SCREEN 9
NAVIGATION 9
CALL ICONS 10
KEYBOARD 10
DESCRIPTION OF THE CONNECTORS 12
INSTALL A COMFORT WIRED HANDSET 12
2 CONTACTS MANAGEMENT 13
LOCAL DIRECTORY 13
CONTACT CARD 14
3 USING YOUR TELEPHONE 15
INFORMATION ABOUT THE PHONE 15
MANAGE THE CALL LOG 15
CALLING BY NUMBER 16
CALLING BY NAME 17
CALL FROM CALL LOG 17
MAKE A CALL USING YOUR LIST OF CONTACTS 17
RECEIVING A CALL 18
SWITCHING BETWEEN AUDIO MODES 18
ACTIVATING THE LOUDSPEAKER DURING A CONVERSATION (HANDSET LIFTED)LOUDSPEAKER. 19
REDIALING 19
SENDING DTMF SIGNALS 19
MUTE,SO THAT YOUR CONTACT CANNOT HEAR YOU 19
4 DURING A CONVERSATION 20
MAKING A SECOND CALL DURING A CONVERSATION 20
ANSWERING A SECOND CALL DURING A CONVERSATION 20
TO CANCEL YOUR SECOND CALL AND RECOVER THE FIRST 20
PLACING A CALL ON HOLD (HOLD) 21
SWITCHING BETWEEN CALLS (BROKER CALL) 21
TRANSFERRING A CALL 21
THREE-WAY CONFERENCE WITH INTERNAL AND/OR EXTERNAL CONTACTS (CONFERENCE) 22
HIDE YOUR PHONE NUMBER 22
5 KEEP IN TOUCH 23
DO NOT DISTURB 23
FORWARDING TO A NUMBER OR VOICEMAIL 23
LISTEN TO YOUR VOICEMAIL 24

SIP Business
8AL90341ENAAed01
4 /31
6 PROGRAMMING YOUR TELEPHONE 25
ADJUSTING THE AUDIO FUNCTIONS 25
ADJUST RINGER VOLUME WHILE A CALL ARRIVES 26
CONFIGURING THE WELCOME PAGE 26
SELECTING LANGUAGE 26
ADJUSTING THE CONTRAST OF THE DISPLAY 26
ADJUSTING THE BRIGHTNESS OF THE DESKPHONE (8028S PREMIUM DESKPHONE) 26
PROGRAMMING DIRECT CALL KEYS 27
INSTALL A JACK ACCESSORY (HEADSET,HANDS-FREE,LOUDSPEAKER)
(8028S PREMIUM DESKPHONE) 27
INSTALL A USB ACCESSORY (HEADSET,HANDSFREE,LOUDSPEAKER) 28
MANAGE CONNECTED DEVICES (8028S PREMIUM DESKPHONE) 28
CONTACTING YOUR ADMINISTRATOR (TECHNICAL SUPPORT) 29
7 GUARANTEE AND CLAUSES 30
SAFETY INSTRUCTIONS 30
REGULATORY STATEMENTS 31
The information presented is subject to change without notice. ALE International assumes no
responsibility for inaccuracies contained herein. Copyright© ALE International 2017.

SIP Business
8AL90341ENAAed01
5 /31
1 Getting to know your telephone
8028s Premium DeskPhone
This phone is part of the IP phone range. In addition to a clear monochrome display associated to 6
dedicated function keys and an intuitive navigation key, the 8028s Premium DeskPhone provides 4
programmable keys as a smart add-on module, for a quick access to your favorite contacts or features. It
provides high audio fidelity for telephone calls either in hands-free mode or using the comfort handset.

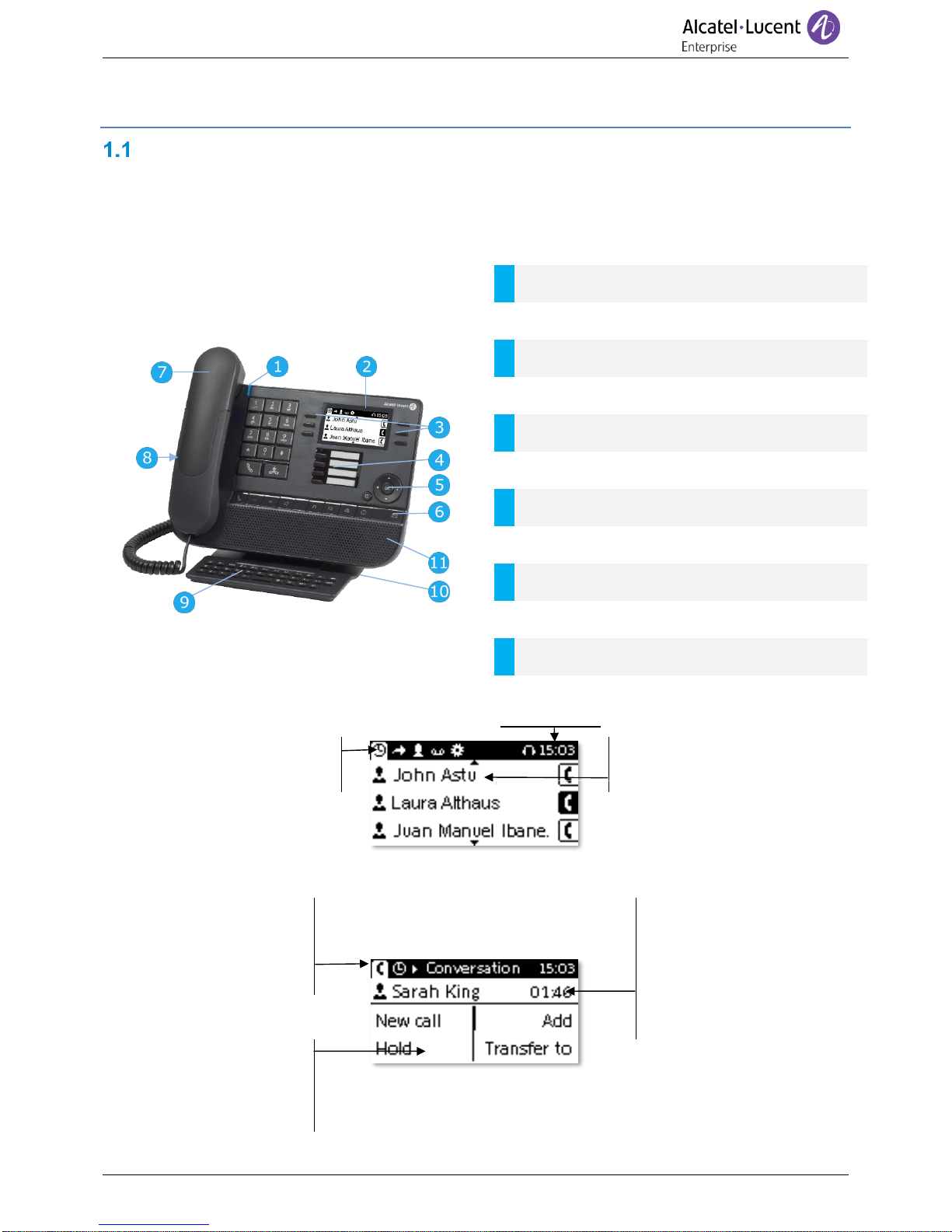

1.1.1 Phone description
1
LED
Flashing blue: incoming call / Appointment alarm.
2
Monochrome screen.
3
6 dedicated functions keys.
4
4 programmable keys with Led and paper label.
5
Navigation.
6
Permanent feature keys: quick access to the phone's
main features.
7
Wired handset.
8
3.5 mm, 4 pole jack (TRRS standards: CTIA).
9
Magnetic alphabetic keyboard.
10
An adjustable and stable foot.
11
Loudspeaker.
1.1.2 Main screen
Date and time
Display the page by selecting
the corresponding tab.
The homepage shows the
history of all your
conversations.
1.1.3 Call management screen
Incoming call icon, Call
in progress, Call on hold,
…
Incoming call and
conversation
presentation screen
Soft keys: actions
available depending on
the call status (when
presentation screen is
not displayed)

SIP Business
8AL90341ENAAed01
6 /31
1.1.4 Changing or updating the paper label
Removing the paper label
•Lift the protective cover at the notch (1).
•Remove the apper label in the same way (2).
•Update or replace the paper label.
Inserting the phone label
•Position the phone label, left side first, making sure it is placed correctly
behind the notches (a,b,c,d).
•Put the protective cover back in the same way.
The application 'LabelSet' is available to help you to print the paper labels. Please contact your business
partner for more information.
8018 DeskPhone
This phone is part of the IP phone range. In addition to a clear monochrome display associated to 6
dedicated function keys and an intuitive navigation key, the 8018 DeskPhone provides 4 programmable
keys as a smart add-on module, for a quick access to your favorite contacts or features. It provides high
audio fidelity for telephone calls either in hands-free mode or using the comfort handset.
1.2.1 Phone description
1
LED
Flashing blue: incoming call / Appointment alarm.
2
Monochrome screen.
3
6 dedicated functions keys.
4
3 preprogrammed keys with Led and paper icon: Alpha-
numeric key, F1, F2.
4 programmable keys with Led and paper label.
5
Navigation.
6
Permanent feature keys: quick access to the phone's
main features.
7
Wired handset.
8
USB connector for headset.
9
Stable foot
10
Loudspeaker.
Your phone has 4 programmable keys with led and paper label. These keys are use to program a direct
call. You can use the paper to describe the key.
a
b
c
d

SIP Business
8AL90341ENAAed01
7 /31
1.2.2 Main screen
Date and time
Display the page by selecting
the corresponding tab.
The homepage shows the
history of all your
conversations.
1.2.3 Call management screen
Incoming call icon, Call
in progress, Call on hold,
…
Incoming call and
conversation
presentation screen
Soft keys: actions
available depending on
the call status (when
presentation screen is
not displayed)
1.2.4 Changing or updating the paper label
Removing the paper label
•Lift the protective cover at the notch and slide it up to take it out of its
housing.
•Remove the apper label in the same way.
•Update or replace the paper label.
Inserting the phone label
•Insert the paper label from the top end, making sure it is placed
correctly behind the notches.
•Put the protective cover back in the same way.
1.2.5 Function keys and programmable keys
The 8018 DeskPhone uses 3 preprogrammed keys to access some features. In this case,
the icon of the feature is printed on the paper. Use the feature by pressing the
corresponding key. When activated, the LED corresponding to the key remains lit up. Press
the corresponding key to deactivate it.
•123<>abc Alpha-numerical keypad
Use this key to switch between alphabetic keyboard and numeric keyboard.
•Programmable keys (F1 and F2 keys). A service or a direct call can be associated to these
keys.
The application 'LabelSet' is available to help you to print the paper labels. Please contact your business
partner for more information.

SIP Business
8AL90341ENAAed01
8 /31
Permanent features keys
They are located just above the loudspeaker.
•Mute and interphony key.
During a call, press this key to stop your contact from hearing you. When idle, press this
key to switch the phone to interphony mode. When you receive a call, the phone hooks off
automatically and you go straight into hands-free mode. When activated, this key is lit
blue.
•Turn down the volume (ringing or call state).
•Decrease the brightness (idle state).
•Decrease the contrast (idle state).
•Turn up the volume (ringing or call state).
•Increase the brightness (idle state).
•Increase the contrast (idle state).
•Pressing this key answers an incoming call in hands-free mode (when activated, the key is
lit blue). When a call is in progress, pressing this key switches from hands-free mode to
headset or handset mode.
•Line keys.
•Programmable keys (F1 and F2 keys).Lit when the function associated with the key is
activated. A service or a direct call can be associated to these keys.
•Last number redial.
For the 8018 DeskPhone, the redial key is associated with the Off-hook key when the
phone is in idle state: .
•Information about the user: lastname, firstname, phone number,...
•123<>abc For the 8018 DeskPhone, information about the user is displayed by long
pressing on the alpha-numeric key.
•Access the voice mail
The message key flashes when you have received a new voicemail

SIP Business
8AL90341ENAAed01
9 /31
Homepage screen
The homepage is the default page displayed on your phone. By default, the homepage shows the history
of all your conversations, but you can choose to display an another page in the settings of the phone.
Use the right navigation key to navigate in the title bar.
Access to the calls log.
Access the forwarding configuration.
Access the local directory.
Access the voicemail. The number of new voice messages is displayed. The number of new
voice messages is displayed.
Access the settings.
Search for a contact in the Company's directory.
Navigation
OK key:
•Short press
Use this key to validate your choices and options while programming or configuring.
•In idle state
Used to access features for managing the call log such as delete a log, delete all logs,
display missed calls only and acknowledge missed calls.
Left-right navigator:
Used to move from one page to another and display information about current calls (call in
progress, calls on hold, incoming call).
Right navigator:
Used to access features for configuring the phone or managing calls.
Up-down navigator:
When information extends over more than one page, use the down navigation key to
display the next page. Use the up navigation key to display the previous page.
Back/Exit key:
Use this key to go back to the previous step.
Use this key to delete one number or character at a time.

SIP Business
8AL90341ENAAed01
10 /31

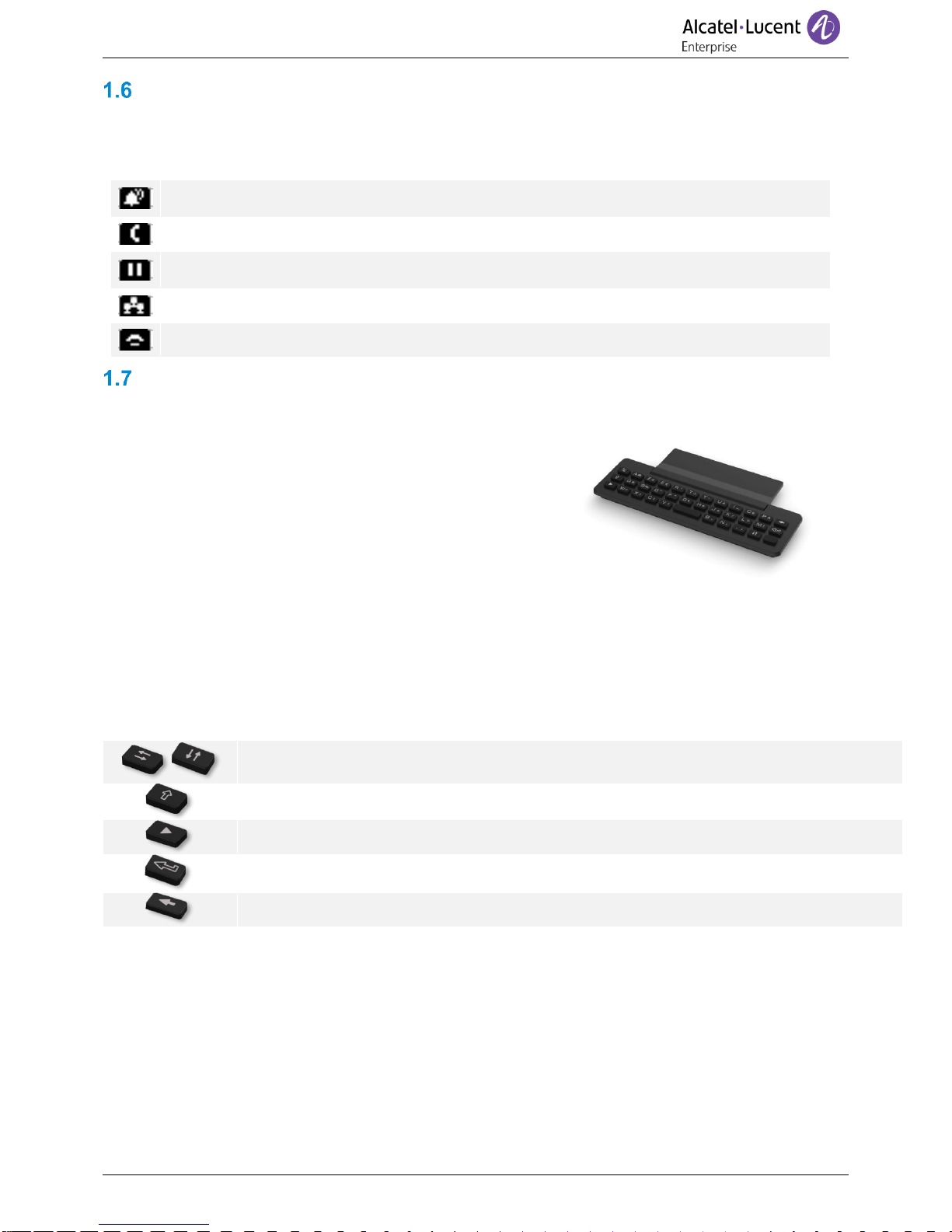

Call icons
Icons giving information about some specific configurations of the phone or about call status are
displayed in the top bar of the screen.
Incoming call icon.
This icon blinks when there is another incoming call.
Call in progress icon.
Call holding icon.
This icon blinks when there is another ongoing call.
Conference icon.
End of call icon. Your contact ended the conversation.
Keyboard
1.7.1 Magnetic alphabetic keyboard (8028s Premium DeskPhone)
Your set is provided with a magnetic alphabetic keyboard. The
keyboard depends on your country and languages. The
magnetic keyboard is automatically fixed on the base of the
set. It is connected to the corresponding connector behind the
phone.
•Country variants:
oAZERTY
oQWERTZ
oQWERTY (international)
oQWERTY (nordic)
Use the keyboard to enter names while configuring the phone. Directly access the dial by name feature
by entering the name of your contact on the keyboard.
Below is a list of the function keys that allow you to access all the symbols.
Cursor moving keys (left, right, up and down). Allows you to navigate edit boxes. Press the
Alt key to access the left and up directions.
Caps lock: to write text in capital letters.
Alt key: to access specific and punctuation characters.
Enter key: to validate edited text.
Backspace key: to delete one character in an edit box.

SIP Business
8AL90341ENAAed01
11 /31
1.7.2 Alpha-numeric keyboard (8018 DeskPhone)
Your phone is equipped with alphanumeric keyboard. You can switch between numeric keyboard to dial
number, and alphabetic keyboard to enter text by pressing the corresponding preprogrammed key
(usually the first preprogrammed key).
•123<>abc Switch the keyboard to the alphabetic mode by selecting the associated
preprogrammed key. When activated, the LED corresponding to the key remains lit up.
•Enter alphabetic characters.
The number pad keys have letters that you can display by successive presses. The number is
the last character in the series. Some special characters can be displayed by successively
pressing the key:
%
$
/
~
&
(
)
[
]
=
*
@
#
space
-
_
1
+
.
,
;
:
/
\
?
!
0
•Use navigation keys to move the cursor into the text.
•Press and hold the '*' key to switch from lowercase to uppercase mode, and vice versa.
•use this key to delete the last entered character. The alphabetic mode remains
activated.
•123<>abc Select the lit preprogrammed key to return to the numeric mode.

SIP Business
8AL90341ENAAed01
12 /31

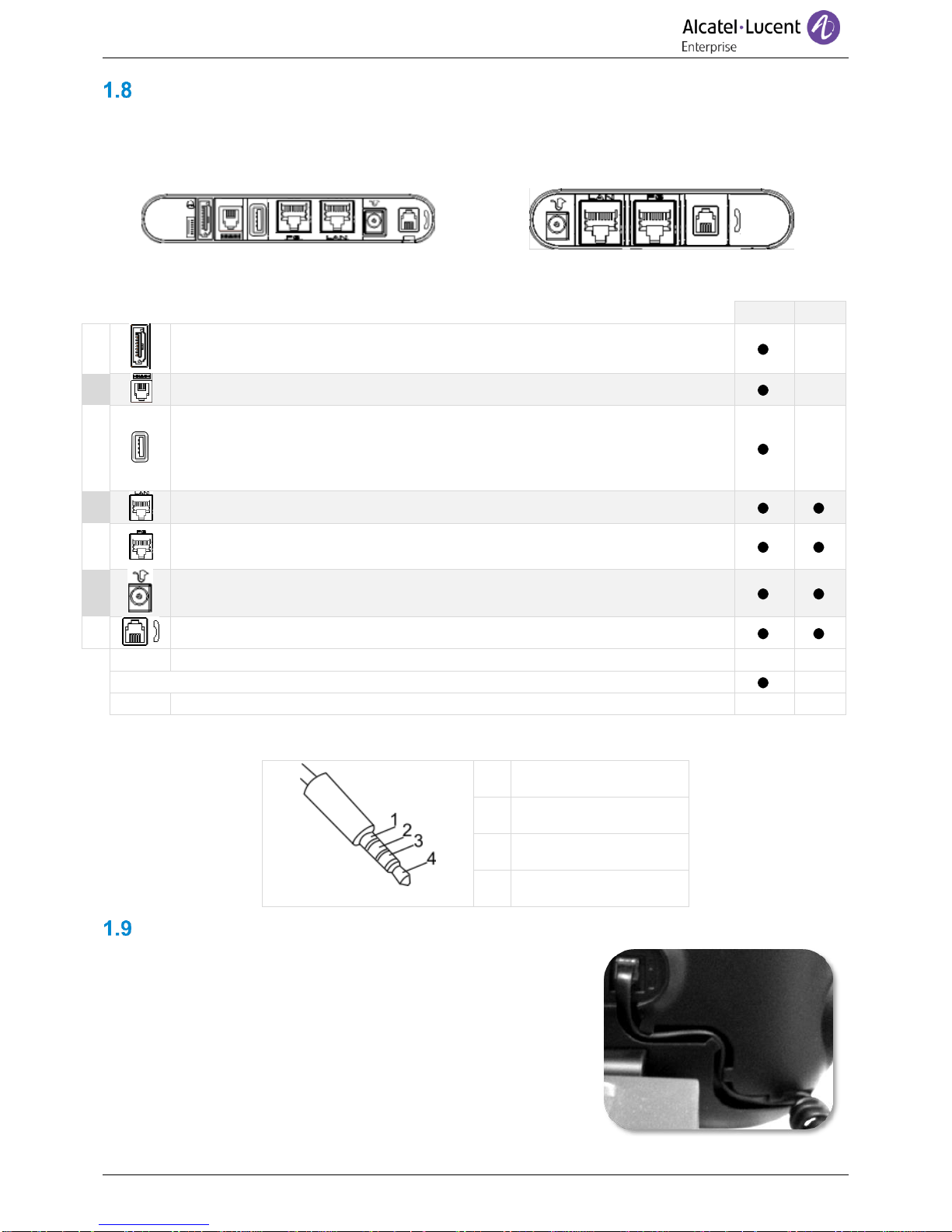

Description of the connectors
Various connections to allow phone extensions. The type of connectors you have depends on your
phone.
1111111111 2 2 3 3 44 4 555 5 66 6 7 77
66666666 4444 5555 5 77777
8028s
8018
8028s
8018
1
Add-on module/external ringer connector (SATA type).
2
Magnetic alphanumerical keyboard connector (RJ 9).
3
Universal Serial Bus (USB-a) connector for an audio equipment, a low
smartphone charger or USB stick.
For the 8018 DeskPhone, the USB connector is on the side of the
deskphone.
4
10/100/1000 Mbps Ethernet connectors to a PC (RJ45).
5
10/100/1000 Mbps Ethernet connectors to the enterprise network (LAN -
RJ45).
6
DC power jack for an external power adaptor.
7
Wired handset connector (RJ9).
3.5 mm, 4 pole jack (TRRS standards: CTIA).
CTIA standards
1
Microphone
2
Ground
3
Audio (right)
4
Audio (left)
Install a comfort wired handset
•Remove the rubber.
•Plug-in the wired handset to the appropriate connector
(refer to phone description).
•Make sure you position the cable correctly in the
compartment intended for that purpose:

SIP Business
8AL90341ENAAed01
13 /31
2 Contacts management
Local directory
Your phone lets you manage contacts in your local directory.
•Use the right navigation key to open your local directory.
•Press ok key to open menu.
New
Create a new contact.
Delete
Delete the selected contact.
Delete all
Delete all contacts in the local directory.
2.1.1 Create a new contact
If your local directory is empty, press the ok key to add a new contact.
•Use the right navigation key to open your local directory.
•Press ok key to open menu.
•New
•Fill in the contact file.
You must provide at least a last name.
•
•Your contact is added to the directory.
Other method:
•Add a contact from the call log (see: Contact card).
•Search for a contact in a corporate directory and add the selected contact in your local
directory (see: Contact card).
For external numbers, we recommend you use canonical address formats comprising '+', followed by the
country code (e.g. '33') then the number without the first digit. For example, for 0390670000, enter the
number [phone]. To get the '+' sign, long press on the '0' key. This example is for calling a number
in France from another country.
2.1.2 Delete a contact
•Use the right navigation key to open your local directory.
•Use one of the following:
oOpen a contact card by selecting the left key: .
Navigate between pages to reach the list of actions.
Delete
oPress ok key to open menu.
Delete: All contacts are listed.
Press the delete icon for the contact to delete the coresponding contact.

SIP Business
8AL90341ENAAed01
14 /31
2.1.3 Delete all contacts in the local directory
•Use the right navigation key to open your local directory.
•Press ok key to open menu.
•Delete all
•
2.1.4 Modify a contact
•Use the right navigation key to open your local directory
•Open a contact card by selecting the left key: .
•Navigate between pages to reach the list of actions.
•Edit
•Fill in the contact file.
You must provide at least a last name.
•

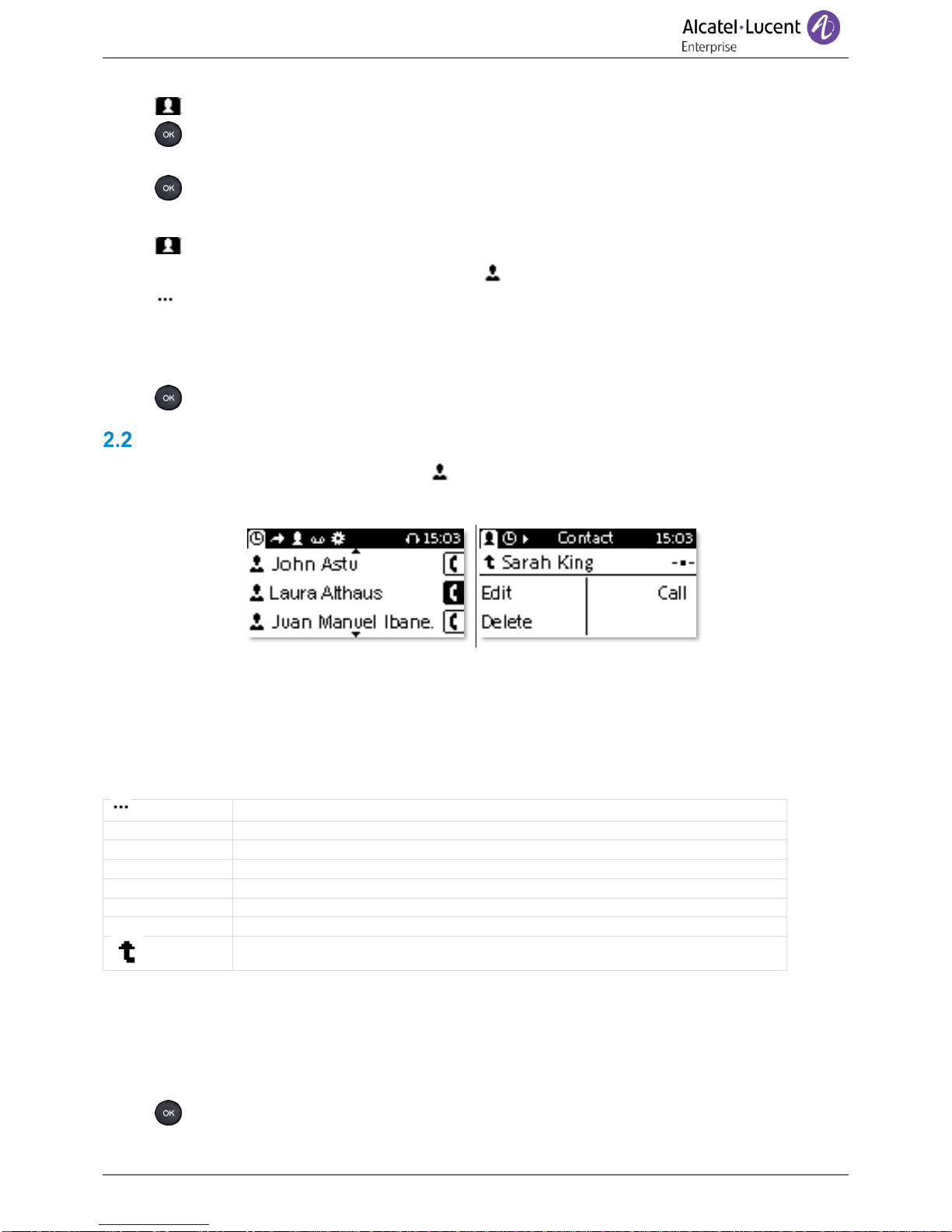

Contact card
Open a contact card by selecting the left key: . A contact card can be opened from your conversation
history, the local directory or from the search result.
A card contains 3 pages.
•Your conversation history with this contact.
•Main information about your contact (photo, phone number, email).
•Action proposed with this contact (call, add to local directory).
When you open the contact card, the conversation history is displayed if there are one or more new
events, otherwise the action page is displayed.
Navigate between different pages.
Call
Call the contact.
Add
Add the contact to your local directory.
Call
Call the contact.
Edit
Modify the contact.
Delete
Delete the contact from your local directory.
Forward
Forward your calls to the selected contact.
Go back to the Homepage.
2.2.1 Add the contact to your local directory
•Open the contact card of the contact you want to add to your local directory.
•Add
•Fill in the contact file.
You must provide at least a last name.
•
•Your contact is added to the directory.

SIP Business
8AL90341ENAAed01
15 /31
3 Using your telephone
Information about the phone
Display all information about the phone: name, number, number of missed calls, number of new
messages, forwarding status.
•Use one of the following:
o8028s Premium DeskPhone: .
8018 DeskPhone: 123<>abc (long press).
oUsing the left-right navigator keys, select the settings menu.
Press the keys associated with: Information.
•Use the up-down navigation key to scroll the page.

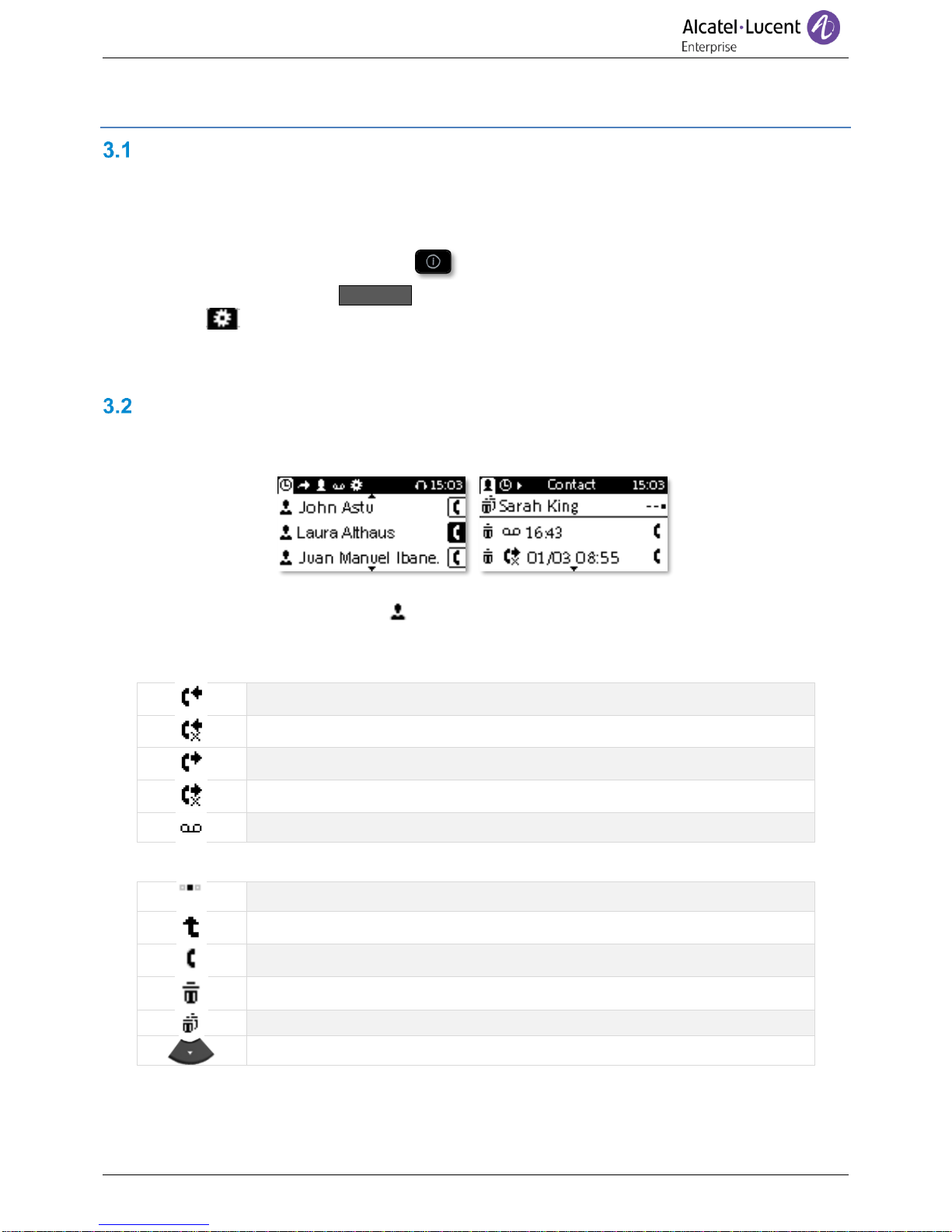

Manage the call log
The call log can be consulted and managed when the phone is in the idle state. The main part of the
screen is used to display the call log.
Left keys –To open the contact card
Pressing the left key associated with a log will display all call logs associated with the selected contact.
All calls are displayed with an icon giving information on the type of call.
Answered incoming calls.
Unanswered incoming calls.
Answered outgoing calls.
Unanswered outgoing calls.
Voicemail.
Actions are available from the call log.
Navigate between different pages.
Go back to the Homepage.
Press the call key to call back the selected contact.
Delete the selected entry.
Delete the entire log associated with the selected contact.
Using the up and down navigation key to scroll through the log.

SIP Business
8AL90341ENAAed01
16 /31
Right keys –To call back the contact
Press the call log key to call the contact back.
This icon means the call was answered or acknowledged.
This icon means the call was not answered (missed call).
You can acknowledge a missed call by opening the associated contact card or
by calling your contact back.
Down navigation key –To display additional pages of the call log
Using the up and down navigation key to scroll through the log.
OK key –To manage the call log
Allows management of the call log by deleting filtering and acknowledging logs.
•Delete
Press the delete key to delete specific logs All call logs are displayed on the screen.
Press the 'delete' key.
•Delete all
Press the key associated with the 'delete all' icon to delete all call logs. Please note that no
confirmation is required before deletion.
•Missed
Press this key to display missed calls only.
•Ack all
Press this key to acknowledge all missed calls.
From the page containing information about the phone, you can open missed calls by selecting the
number of missed calls.
During conversation, you can open the call log by using the right navigation
key to consult it or to make a new call. The conversation key will be blinking (
). Select the flashing conversation key to go back to the conversation
page.
Calling by number
You can unhook the handset or the headset to make a call with the handset or the headset otherwise
you make a call in hands-free mode.
•Dial the number.
•Use one of the following:
oPress the OK key to start the call. Make the call with the headset if connected, or in
hands-free mode.
oPress the call key.
oPress the call icon key. This icon is only displayed when the number is recognized.
If your headset has no Off-hook/On-hook key, use the phone keys and switch on the audio on the
headset ( ).
To make an external call, dial the outside line access code before dialing your contact number.

SIP Business
8AL90341ENAAed01
17 /31
Calling by name
You can call a contact by their name using the search feature in the company directory.
This feature depends on the system configuration. If necessary, contact your administrator.
You can unhook the handset or the headset to make a call with the handset or the headset otherwise
you make a call in hands-free mode.
8018 DeskPhone
123<>abc Use the alpha-numeric keyboard key to switch between the numeric and alphabetic keyboard.
•Enter the first letters of the surname and/or firstname (or full name), or the initials of the
surname and/or firstname.
•Press the search key or the OK key to start the search by name.
All matching names are displayed on the screen (if necessary use the up and down
navigation keys to display additional pages of matching names).
•Call the contact by pressing the call icon key The call is started.
You can also call your contact from the contact card (Call).
Call from call log
You can call back a contact from the call log.
You can unhook the handset or the headset to make a call with the handset or the headset otherwise
you make a call in hands-free mode.
When on the Homepage.
•Use the right navigation key to open the call log.
•Using the up and down navigator (if necessary), find the contact to call.
•Press the relevant callback key in the call log (light grey for answered calls, black for
unanswered calls) The call is started.
You can also call your contact from the contact card (Call).
Make a call using your list of contacts
You can unhook the handset or the headset to make a call with the handset or the headset otherwise
you make a call in hands-free mode.
•Use the right navigation key to open your local directory.
•Using the up and down navigator (if necessary), find the contact to call.
•Call the contact by pressing the call icon key The call is started.
If there are several numbers for the same contact, select the desired number.
You can also call your contact from the contact card (Call).

SIP Business
8AL90341ENAAed01
18 /31
Receiving a call
When receiving a call, you can:
•Lift the handset to take the call.
•Use the headset to take the call. If your headset has no Off-hook/On-hook key, use the phone
keys and switch on the audio on the headset ( ).
•or / Press the 'take the call', 'loudspeaker' or 'line key' key to take the call in
hands-free mode.
•Take call or Take the call with the headset if connected, or in hands-free mode.
•Reject call Reject the call. The incoming call is ended.
•Silent Mute the ringer (the call is still incoming but the phone no longer rings).
•Deflect Deflect the call to another contact:
oUse one of the following:
▪Using the up and down navigator (if necessary), find the contact to call.
▪Enter the number or name of the contact to whom the call will be deflected.
oDeflect the call to the selected contact.
•Deflect VM Deflect the call to your voicemail.
Switching between audio modes
During the conversation, you can switch between different audio modes (handset, loudspeaker, hands-
free or headset, if connected) by pressing the loudspeaker/hands-free key until the desired audio mode
is displayed: . If you are in conversation using the handset, you can take the current call in hands-
free mode or with the headset, and vice versa. The key is lit when the loudspeaker or hands-free mode
is selected.
•Switching to the handset (short press): .
•Switching to the loudspeaker (long press): (The key is lit).
•Switching to the hands-free (short press): (The key is lit).
•Switching to the headset (short press): .
For each audio mode, during the conversation, you can adjust the volume by pressing the volume keys.
The number of levels depends on the audio mode (8 for handset, hands-free, headset 10 for
loudspeaker). The selected volume, for each audio mode, will be saved for future conversations.
•During a conversation.
•Adjust volume by pressing the volume keys.

SIP Business
8AL90341ENAAed01
19 /31
Activating the loudspeaker during a conversation (handset lifted)
Loudspeaker.
Activate or deactivate the loudspeaker when you are in conversation using the handset or the
headset.
•Activate loudspeaker (long press) The key lights up ( ).
•Adjust volume by pressing the volume keys (number of levels: 10).
•Deactivate loudspeaker (long press) The key is no longer lit ( ).
Press and release the loudspeaker key to switch to hands-free mode (light steady).
Redialing
•Last number redial.
For the 8018 DeskPhone, the redial key is associated with the Off-hook key when the phone is in idle
state: .
Sending DTMF signals
Sending DTMF is subject to configuration. Contact your administrator to check that the feature is
enabled.
8018 DeskPhone
123<>abc Use the alpha-numeric keyboard key to switch between the numeric and alphabetic keyboard.
During a conversation you sometimes have to send DTMF signals, such as with a voice server, an
automated attendant or a remotely consulted answering machine.
•Enter DTMF code.
Mute, so that your contact cannot hear you
You can hear your contact but he/she cannot hear you:
•During a conversation.
•Disable microphone The mute key blinks.
•Resume the conversation The mute key no longer blinks.

SIP Business
8AL90341ENAAed01
20 /31
4 During a conversation
Making a second call during a conversation
During a conversation.
•Press the key associated with: New call The first call is on hold.
•Use one of the following:
oCall your contact using the dial by name or the dial a number feature.
Press the call icon key.
oSelect the 'Redial' function.
o/ Open the call log or your local directory by using the right navigation key.
Press the call icon key.
For the 8018 DeskPhone, the redial key is associated with the Off-hook key when the phone is in idle
state: .
Add:add directly a second call to your conversation (conference).
Answering a second call during a conversation
During a conversation, another person is trying to call you. Your are alerted with 3 beeps. The
identity of the caller is displayed as long as the call is presented on your phone.
•Press the 'OK' key or the 'take the call' key: Take call
The first call is on hold.
As long as the call is presented, you can also choose to deflect the call.
To cancel your second call and recover the first
You are in conversation with the second contact and the first one is on hold.
•You or the second contact hangs up.
•Press the key associated with: Retrieve
You are on the line with your first contact.
