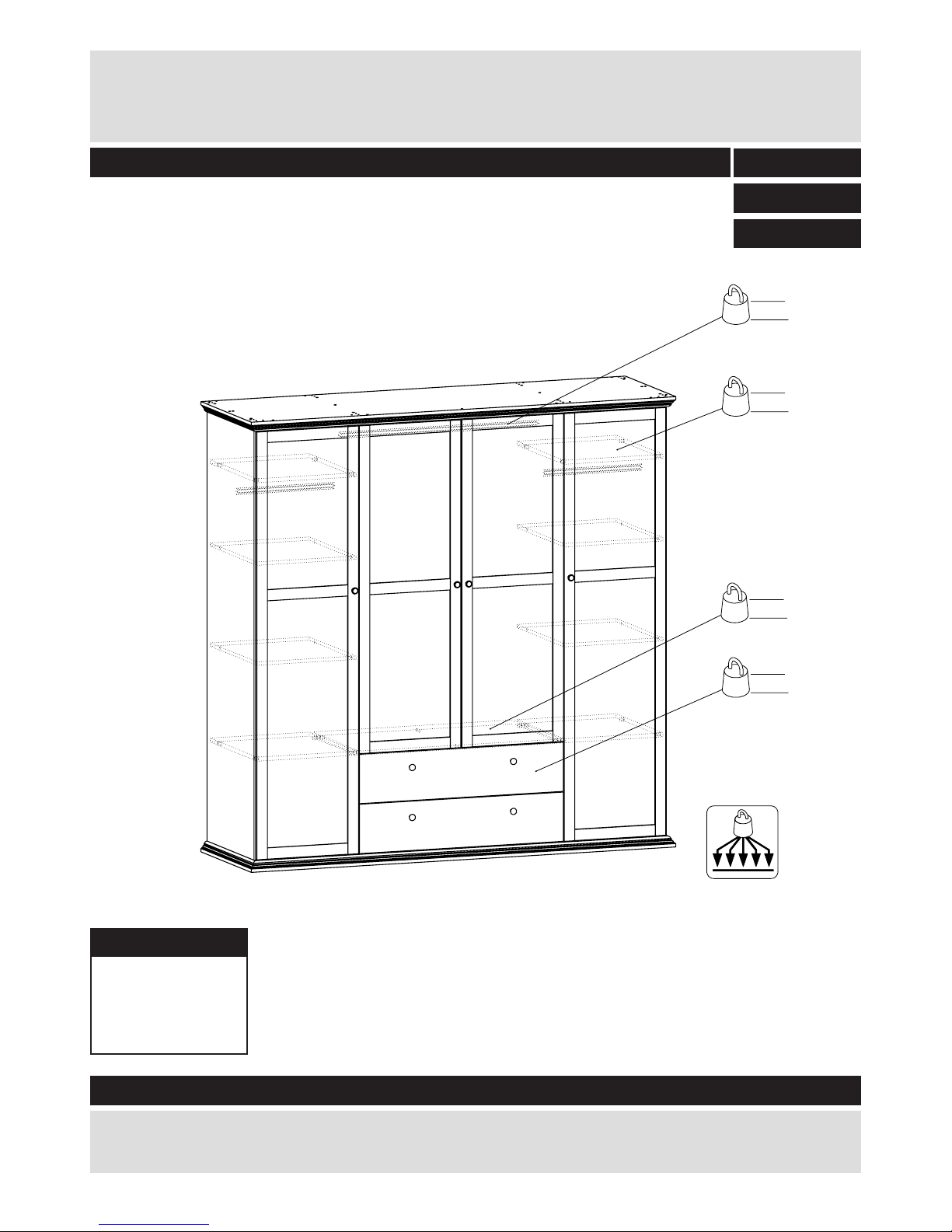

Canterbury 4 DR 2 DRW ROBE
Assembly Instructions - Please save for future reference
724/5882
736/6503
737/8876
Dimensions
Width: 201.3cm
Depth: 62.7cm
Height: 202.1cm
Important – Please read these instructions carefully before starting the assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
71946 Version A Date 27/06/2017

2
Safety and Care Advice
Important – Please read these instructions carefully before starting the assembly
Note: If required, the next
page can be cut out and used
as reference throughout the
assembly. Keep this page with
these instructions for future
reference.
• Check that you have all the
components and tools listed on
the following pages.
• Remove all ttings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area - small
parts can choke if swallowed.
• Make sure you have enough
space to lay out the parts before
starting.
• During assembly, do not stand
or put weight on the product,
this could cause damage.
• Assemble the item as close to
its intended placement (in the
same room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your oor.
• Parts of the assembly will
be easier with 2 people to
complete.
• We do not
recommend the use
of power drivers for
inserting screws, as
this could damage
the unit. Please only use hand
screw drivers.
• Only clean the unit using a
damp cloth and mild detergent.
Do no use bleach or abrasive
cleaners.
• From time to time, check to
see if screws have become
loose. If so, please tighten them
again.
• This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
• The provided tip-over restraint
must be installed in order to
ensure user safety.
Safety

00734
Left drawer side
(45 x 14cm) x2
00733
Right drawer side
(45 x 14cm) x2
03336
Drawer back
(92.2 x 14 cm) x2
07165
Large drawer bottom
(93.3 x 44.7cm) x2
09790
Back panel
(201.5 x 48.9cm) x2
09791
Back panel (201.5 x 96.9cm)
18732
Frame door (146.9 x 48.2cm) x2
76427
Profile side (62 x 2.5cm) x2
76428
Profile side (62 x 2.5cm) x2
76460
Profile front (200.5 x 4cm) x2
FA Side panel (198.8 x 58cm) x2
UB
Large f ixed shelf
(95.5 x 57.9cm) x1
GB Divider panel (198.8 x 58cm) x2
T
Loose shelf
(46.9 x 57.9cm) x4
UC
Small f ixed shelf
(47 x 57.9cm) x4
EE
Drawer front
(96.7 x 22.1cm) x2
ID Bottom / Top panel (201.3 x 62.4cm) x2
18743
Frame door (191.7 x 48.2cm)
18744
Frame door (191.7 x 48.2cm)
71946 -50
3
Components - Panels
Please check that you have all the panels as listed below
If you have damaged or missing components, call the
Customer Helpline: Argos = 0345 6400800

4
Please check that you have all of the ttings listed below
Note: The quantities listed in the following are the correct amount to complete the assembly.
In some cases, more ttings may be supplied than required.
Components - Fittings
Allen key x1
97642
Hanger x2
72501
Drawer runner x4
41421
Hanger x1
72509
Drawer bottom support x2
10503
Bracket x20
11229
Screw (ø5 x 7.5mm) x20
11230
Dowel (ø5 x 30mm) x24
20203
Nail x4
23006
25 pcs
Flat head screw
(ø3 x 12mm) x6
25215
Connector bolt
(ø7 x 50mm) x24
25610
Flat head screw
(ø6.3 x 27mm) x22
26033
Screw (ø7 x 8mm) x28
26071
Wedges x4
33204
Hinge plate x14
50491
Hinge x14
52291
Floor glider x8
63008
Handle x8
81040
Stop x8
9620394009
Strap x2
Machine screw
(M4 x 7mm) x14
26211
Drawer fastener x8
20228
Flat head screw
(ø5.8 x 9mm) x8
26020
Flat head screw
(ø3.5 x 15mm) x4
25233
Cam bolt x4
31513
Cam x4
31687
Shelf support x16
11042
Big nail x36
23010
Screw
(ø4 x 13mm) x8
25440
Machine screw
(M4 x 23mm) x8
26232
Machine screw
(M4 x 9mm) x4
26214
Holder x6
10601
Lock bracket x1
91410

5
Ruler - Use this ruler to help correctly identify the screws
Tools required
Cross head screwdriver
(medium & large)
Wooden block
Books X6
Tape measure
Flathead screwdriver
(medium)
Ruler
Eye protection
(when using a
hammer or glue)
01 02 03 04 05 06 07 08 09 0 100 110 120 130 140 150
01 23 45 6
Hammer

(x2)
(x2)
(x2)
(x2)
Dowel
#20203 x16
Holder
#10601 x2
Flat head screw
#25215 x2
6
Assembly Instructions

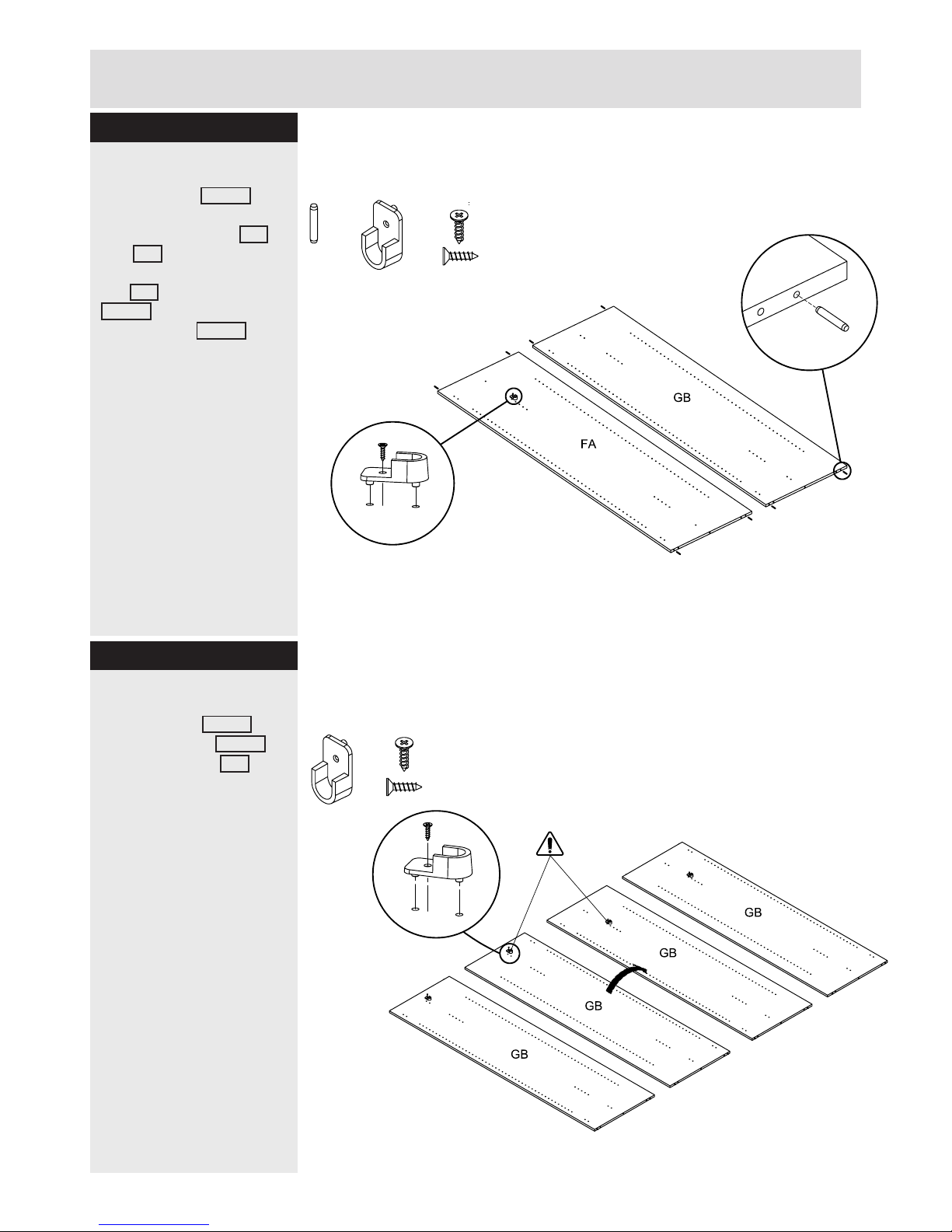

Step 1
Step 2
Insert dowels
Insert dowels 20203
into outer holes on the
ends of side panel FA
and GB .
On FA ,attach holders
10601 while using at
head screws 25215 .
Attach holders
Attach holders 10601 with
at head screws 25215 on
the divide panels GB .
Please note where to
place the holders on the
sides of the panels re-
spectively.
Fittings you will need for this step:
Fittings you will need for this step:
Flat head screw
#25215 x4
Holder
#10601 x4

1
14
15
33
34
14
15
33
34
1
FA GB GB FA
32
3130
10
11
10
11
31
31
30
32
31
71946
-50
1
14
15
33
34
14
15
33
34
1
FA GB GB FA
32
3130
10
11
10
11
31
31
30
32
31
71946
-50
7
Assembly Instructions
Step 3
Attach hinge plates
Fixate each hinge plate
50491 with screws
26071 .
Insert machine screws
26211 in the center of
the hinge plates.
Please note in which
hole rows to place place
the hinge plates when
mounting on the panels.
Fittings you will need for this step:
Screw
#26071 x28
Machine screw
#26211 x14
Hinge plate
#50491 x14

z
1
8
GB
GB
1
8
FA
FA
47
47
GB
GB
71946
-50
1
8
GB
GB
1
8
FA
FA
47
47
GB
GB
71946
-50
8
Assembly Instructions

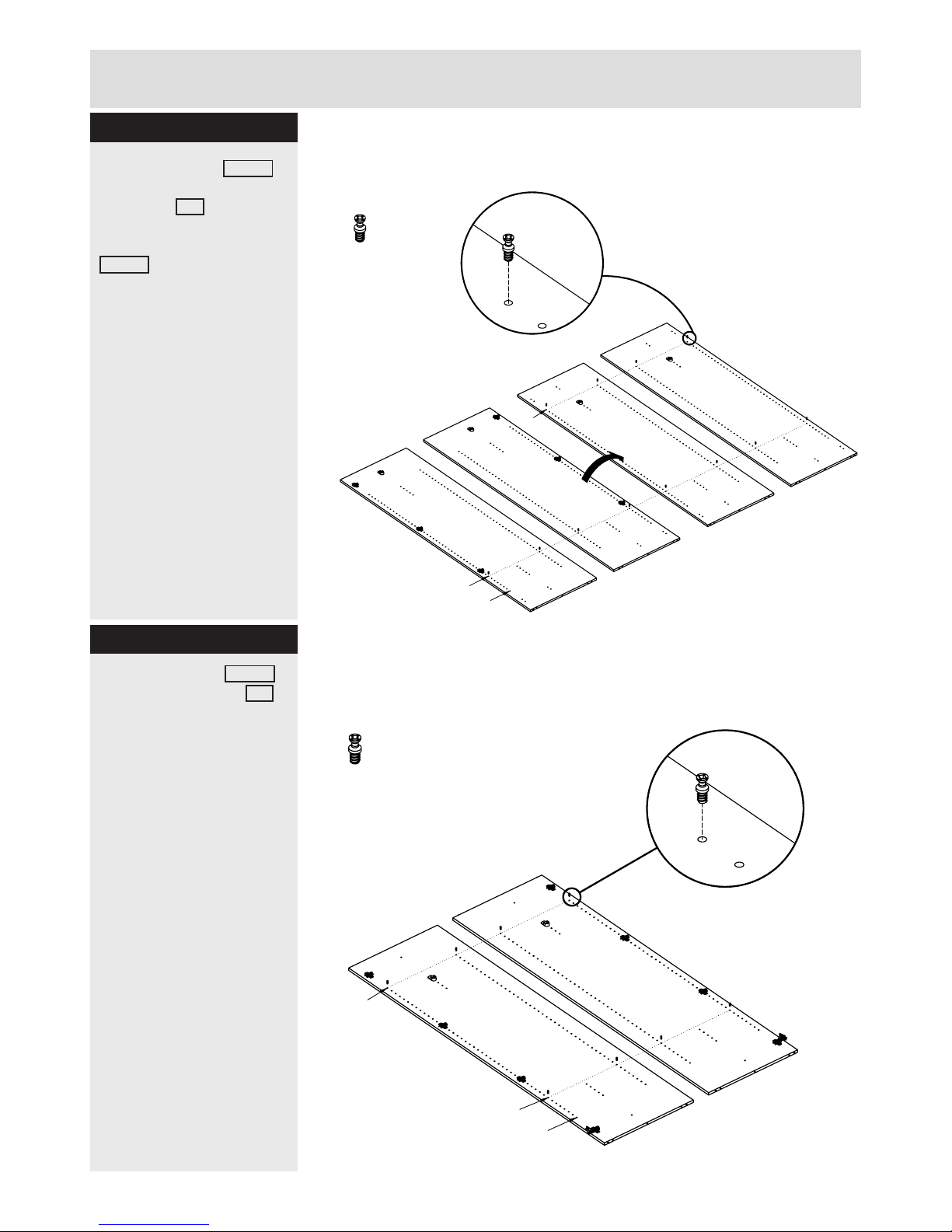

Step 4
Step 5
Fittings you will need for this step:
Fittings you will need for this step:
Screw
#11230 x12
Screw
#11230 x8
Attach 4 screws 11230
on one side of both divid-
er panels GB . Then
turn boft divider panels
over and attach 2 screws
11230 on each of the
other sides.
Please note the hole
rows as pictured for cor-
rect assembly.
Attach 4 screws 11230
on each side panel FA .

# $PRPVIEW:{Pos_Beslag}
x8
x1
3.
1.
x1
24.
2.
x1
15.
3.
# 41421
x4
# 26020
x8
# 25233
x4
170
FH
?
(x2)
5
1
GB GB
FA
?
(x2)
GB
(x2)
Front
12
1
?
Front
Front
-50
6
# $PRPVIEW:{Pos_Beslag}
x8
x1
3.
1.
x1
24.
2.
x1
15.
3.
# 41421
x4
# 26020
x8
# 25233
x4
170
FH
?
(x2)
5
1
GB GB
FA
?
(x2)
GB
(x2)
Front
12
1
?
Front
Front
-50
6
9
Assembly Instructions

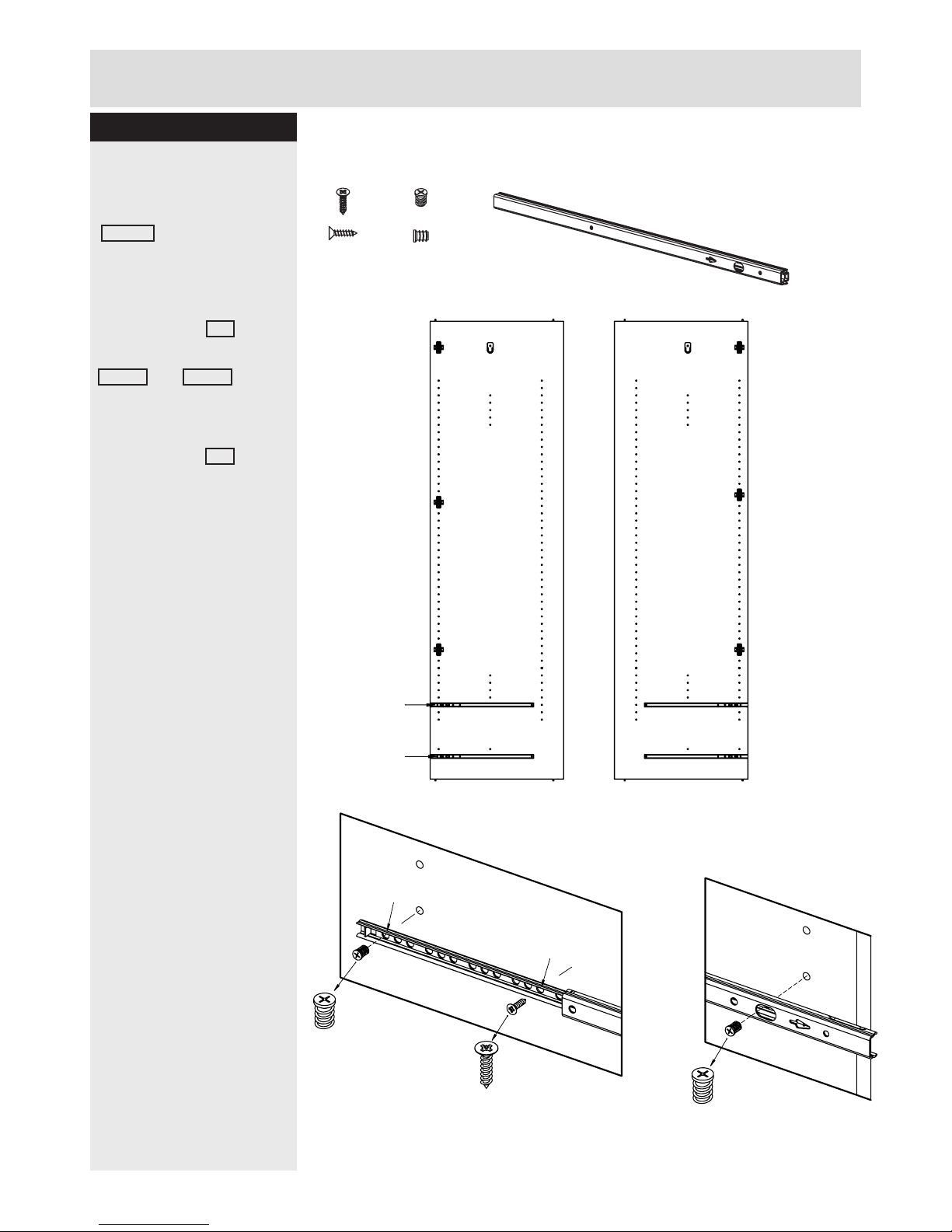

Step 6
Flat head screw
#26020 x8
Flat head screw
#25233 x4
Drawer runner
#41434 x4
Fittings you will need for this step:
Mount drawer runners
1.
Extend drawer runner
41434 .
2.
Attach the drawer
runners at the fronts of
divider panels GB .
Place at head screws
25233 and 26020 into
the correct holes as
displayed at the bottom
of this page, into the
divider panels GB .
Please note the hole
rows in which to place
the drawer runners.
OBS: Tighten the screws
but do not overtighten.

x2
C
ID
B
x2
B 76428
A 76460_01
C 76427
Top
Bottom
71946
-50
x2
C
ID
B
x2
B 76428
A 76460_01
C 76427
Top
Bottom
71946
-50
10
Assembly Instructions
Step 8
Step 7
Fittings you will need for this step:
Flat head screw
#26033 x22
Fittings you will need for this step:
Wedges
#33204 x4
Gathering proles
Insert wedges 33204
into the slots in the angle
ends of side prole B+
C , and front prole A.
Please use a hammer for
this assembly step.
Attach panels
Place bottom panel ID
on top as shown, and
insert at head screws
26033 .

x2
C
ID
B
x2
B 76428
A 76460_01
C 76427
Top
Bottom
71946
-50
GB
FA
GB
FA
ID
UB
UC
(x4)
71946
-50
GB
FA
GB
FA
ID
UB
UC
(x4)
71946
-50
11
Assembly Instructions
Step 9
Step 10
Connector bolt
#25610 x12
Allen key
#97642 x1
Fittings you will need for this step:
Fittings you will need for this step:
Bracket
#11229 x20
Insert bracket 11229
into xed shelf UC and
UB .
Attach bracket
Attach side panels
Insert connector bolt
25610 with allen key
97642 into bottom panel
ID to the bottom ends
of the side panels.
Please use books or the
like to support the side
panels when assembling
this step.

12
Assembly Instructions
Step 11
Step 12
Fittings you will need for this step:
Connector bolt
#25610 x12
Insert connector bolt
25610 with allen key
97642 into top panel ID
to the top ends of the side
panels.
Attach shelves
Place xed shelf UC
as pictured. Slide down
over the screws and then
tighten.
Afterwards, attach
wrench 97642 with
screws 25610 onto the
centered backside of the
front prole A .
Please note the
orientation of the
assembly as pictured.
ID
GB
FA
GB
FA
ID
ID
UC
UC
GB
FA
UC
UB
UC
ID
FA
GB
Allen key
#97642 x1
ID
GB
FA
GB
FA
ID
ID
UC
UC
GB
FA
UC
UB
UC
ID
FA
GB
Fittings you will need for this step:
Screw
#25440 x2
Wrench
#91410 x1

09791
UC
GB
FA
UC
UC
FA
UC
ID
UC
FA
UC
ID
UC
GB
UC
FA
09791
71946
-50
13
Assembly Instructions
Step 13
Fittings you will need for this step:
Big nail
#23010 x6
Fixate back panels
Use nails 23006 to x
the back panels.
Fixate the back panels
with the big nails 23010
and nail 23006 .
Important:
The unit MUST be
square when the
back panels are
attached.

25 pcs
09790
09790
FA
ID
09791
09790
09790
09791
ID
FA
71946
-50
14
Assembly Instructions
Step 14
Fixate the remaining
back panels
Slide the back panels as
shown, so that they meet
back panel 09791 .
Fix the 2 back panels
09790 with nails 23006 .
Fittings you will need for this step:
Nail
#23006 x4
Big nail
#23010 x30

3 cm
94009
09790
09791
09790
FA
ID
UC
09791
GB
FA
UC
UC
UB
UC
ID
FA
GB
ID
09790
09790
71946
-50
15
16
3 cm
94009
09790
09791
09790
FA
ID
UC
09791
GB
FA
UC
UC
UB
UC
ID
FA
GB
ID
09790
09790
71946
-50
15
16
15
Assembly Instructions
Step 15
Step 16
Fittings you will need for this step:
Fittings you will need for this step:
Floor glider
#63008 x8
Strap
#94009 x2
Mount on your wall
Fix the unit to your wall
with strap 94009 .
The screw supplied
with the anti-topple
bracket is to be used
only to x the
anti-topple bracket
to the furniture. In
addition to this, you
will need to choose
a screw or a tting
suitable for securing
the bracket to the
kind of wall you
have.
If you are unsure
about what type of
screw to use, please
contact your local
hardware store for
more information.
Attach oor gliders
Place the oor gliders
63008 in the holes of the
bottom panel ID .
Use a wooden block
between your hammer
and the oor gliders.

ID
UC
09791
UC
FA
GB GB
FA
UC
UB
UC
ID
ID
09791
GB
UC
T
GB
UC
T
FA
T
FA
UC
T
UC
UB
ID
71946
-50
17
18
ID
UC
09791
UC
FA
GB GB
FA
UC
UB
UC
ID
ID
09791
GB
UC
T
GB
UC
T
FA
T
FA
UC
T
UC
UB
ID
71946
-50
17
18
ID
UC
09791
UC
FA
GB GB
FA
UC
UB
UC
ID
ID
09791
GB
UC
T
GB
UC
T
FA
T
FA
UC
T
UC
UB
ID
71946
-50
17
18
16
Assembly Instructions
Step 18
Step 17
Fittings you will need for this step:
Fittings you will need for this step:
Hanger
#72509 x1
Shelf support
#11042 x16

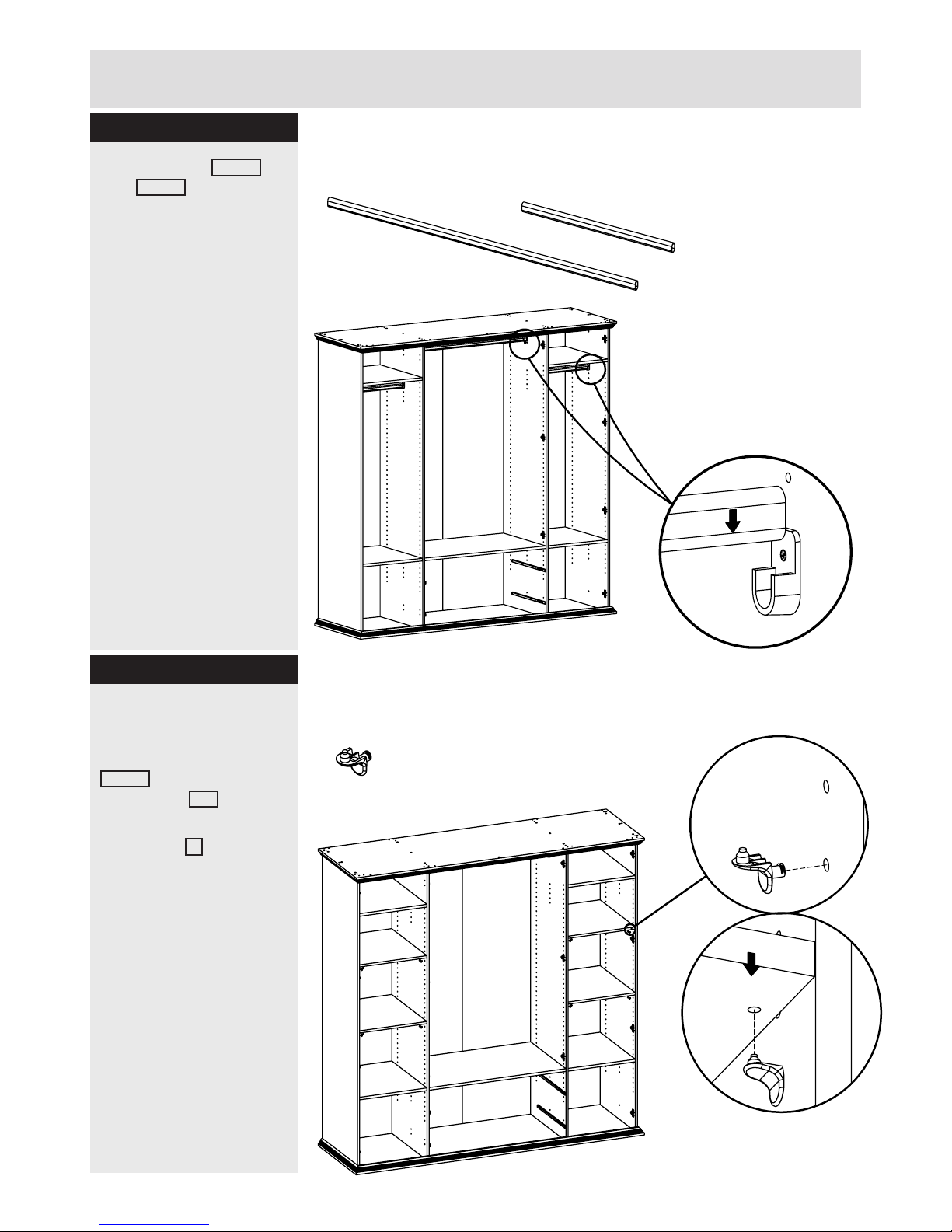

Insert hangers 72501
and 72509 .
Attach the shelf
supports
Press the shelf support
11042 into the holes of
side panels FA .
Press down the loose
shelf panel Tx4.
Hanger
#72501 x2

ID
09791
GB
T
T
T
GB
FA
T
UC
ID
UB
UC
FA
UC
18732
(x2)
18743
18744
19
ID
09791
GB
T
T
T
GB
FA
T
UC
ID
UB
UC
FA
UC
18732
(x2)
18743
18744
19
17
Assembly Instructions
Step 19
Step 20
Fittings you will need for this step:
Fittings you will need for this step:
Stop
#96203 x4
Hinge
#52291 x14

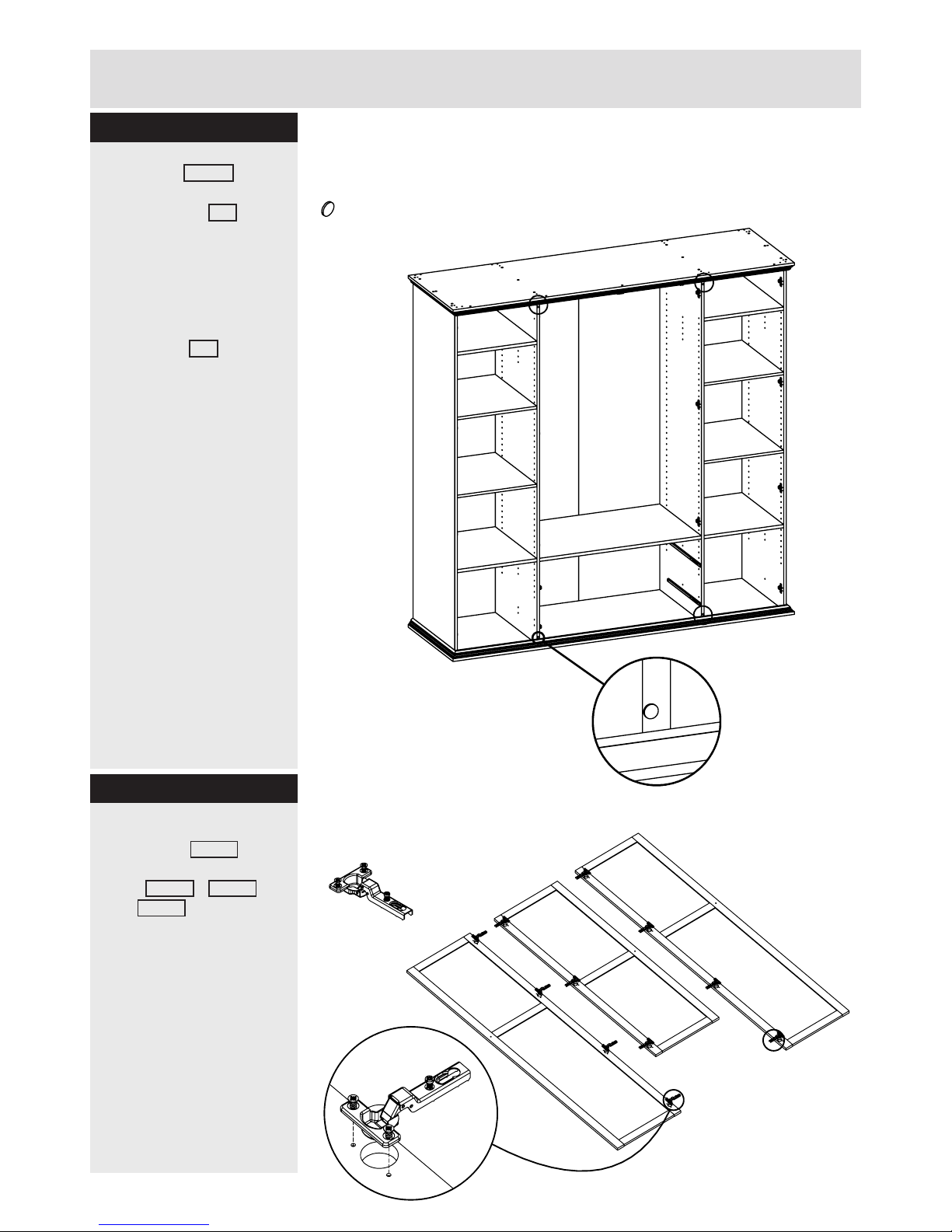

Insert stop 96203 on
the front edges of both
divider panels GB .
Please ensure that the
stops are placed on the
edges as illustrated,
sitting as close to the
side panels FA .
Attach hinges
Press hinge 52291 into
the large holes on the
doors 18732 ,18743
and 18744 . Screw the
pre-attached screws into
the holes on the doors.

ID
UC
UC
FA
UC
UB
ID
UC
GB
FA
09791
18732
18732
18744
18743
T
T
T
T
ID
UC
09791
FA
UC
FA
GB GB
ID
UB
UC
UC
18743
18732
18732
18744
T
T
T
T
71940
-50
21
22
ID
UC
UC
FA
UC
UB
ID
UC
GB
FA
09791
18732
18732
18744
18743
T
T
T
T
ID
UC
09791
FA
UC
FA
GB GB
ID
UB
UC
UC
18743
18732
18732
18744
T
T
T
T
71940
-50
21
22
18
Assembly Instructions
Step 22
Step 21
Fittings you will need for this step:
Attach doors
Slide the pivoting part
of the two hinges over
the hinge plates. Tighten
the screw on the hinge
plate until the doors are
supported by the hinges.
Please refer to the last
page of this assembly
instruction, showing
how to adjust the doors
according to your needs.
Attach door handles
and stops
Pass machine screw
26232 through the
doors, into the handles
81040 and then tighten.
Insert stop 96203 on
shelve UB , and the
wrench as illustrated.
Handle
#81040 x4
Machine screw
#26232 x4
Stop
#96203 x4

x2
00734
00733
x2
00734
00733
EE
-50
x2
00734
00733
x2
00734
00733
EE
-50
19
Assembly Instructions
Step 23
Step 24

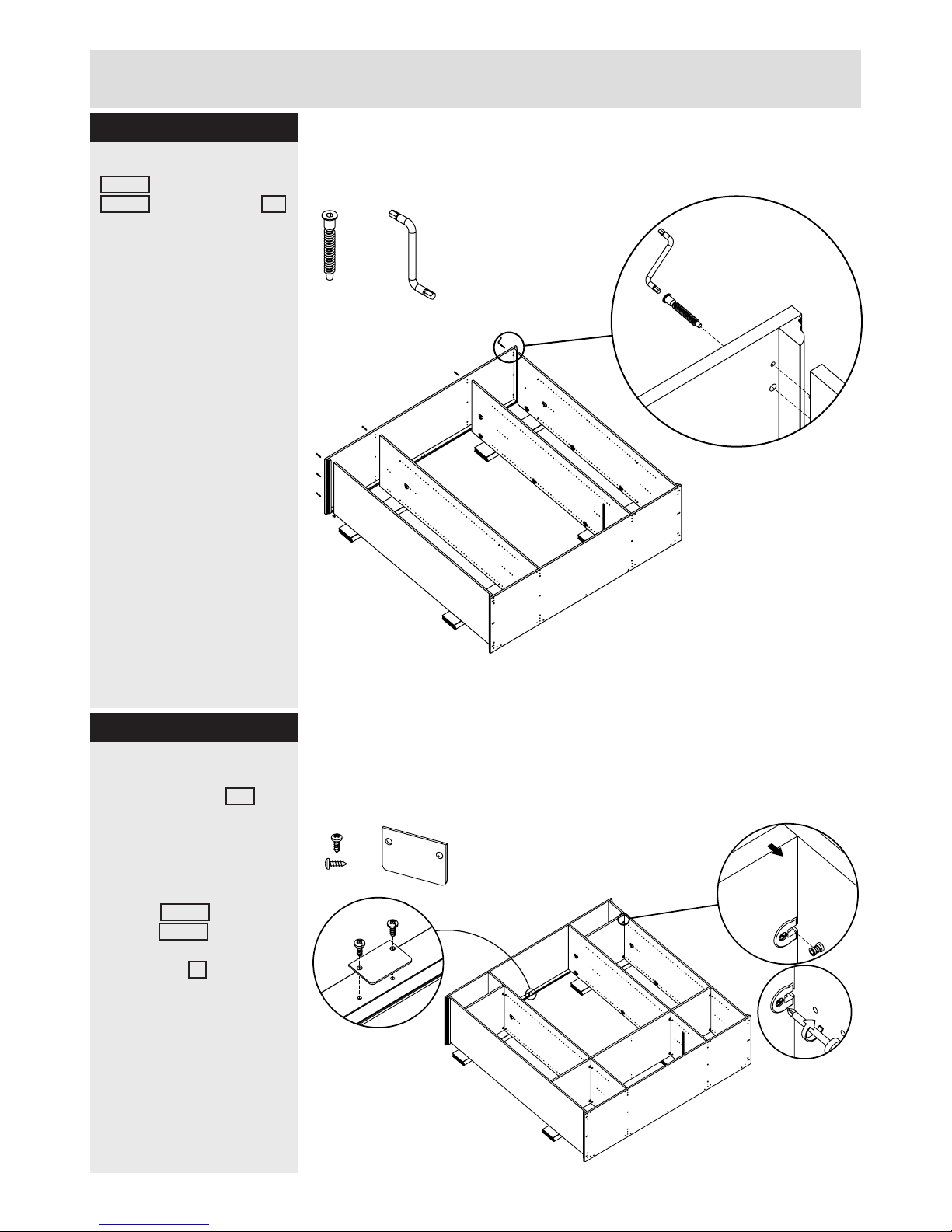

Assemble drawers
Insert cam 31687 into
00733 and 00733 ,
followed by inserting cam
bolt 31515 into drawer
front EE .
Fittings you will need for this step:
Cam
#31687 x4
Fittings you will need for this step:
Dowel
#20203 x8

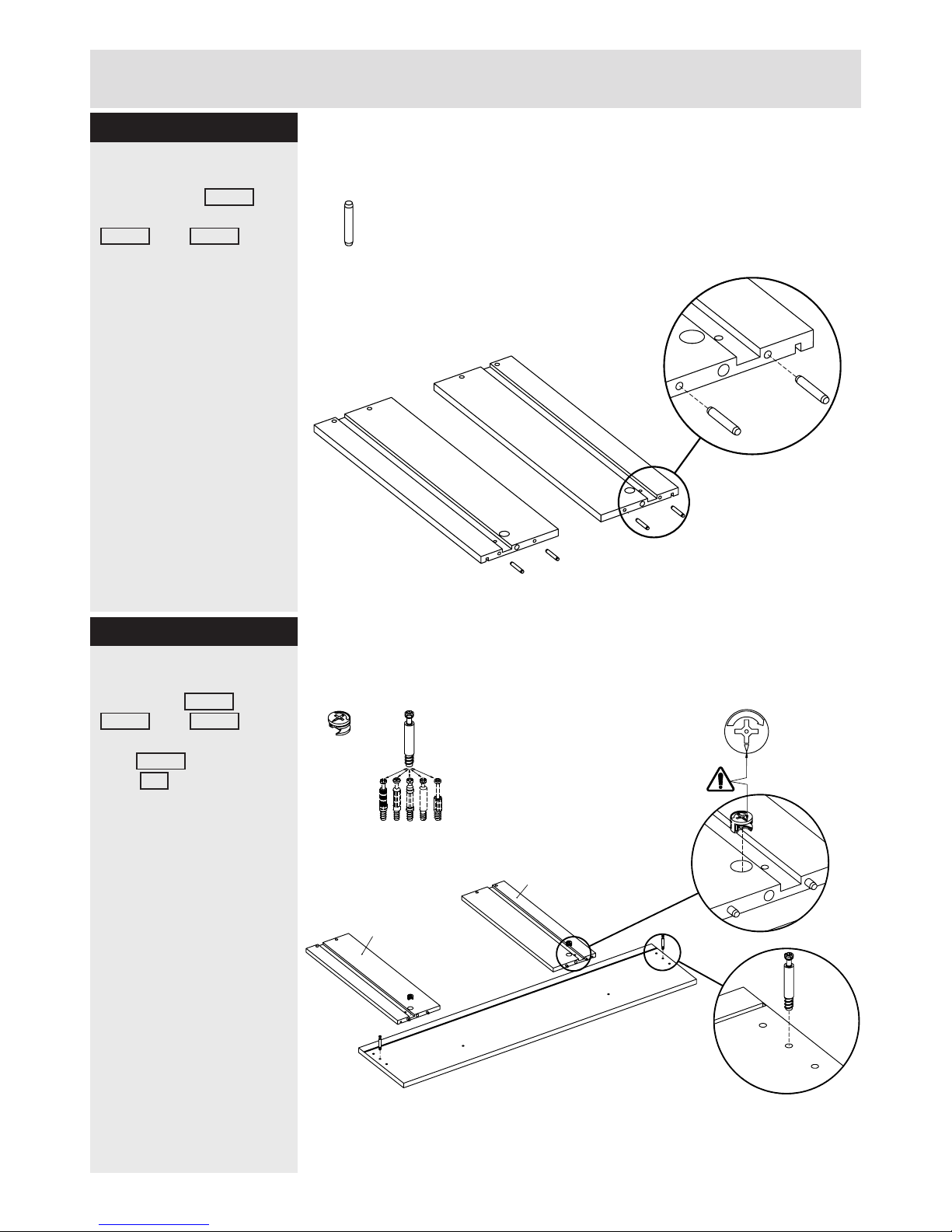

Assemble drawers
Put in dowels 20203
into the end holes of
00733 and 00734 as
illustrated.
Cam bolt
#31315 x4

x2
00734
00733
07165
03336
00733
00734
03336
x2
71940
-50
26
20
Assembly Instructions
Step 25
Step 26
x2
00734
00733
07165
03336
00733
00734
03336
x2
71940
-50
26

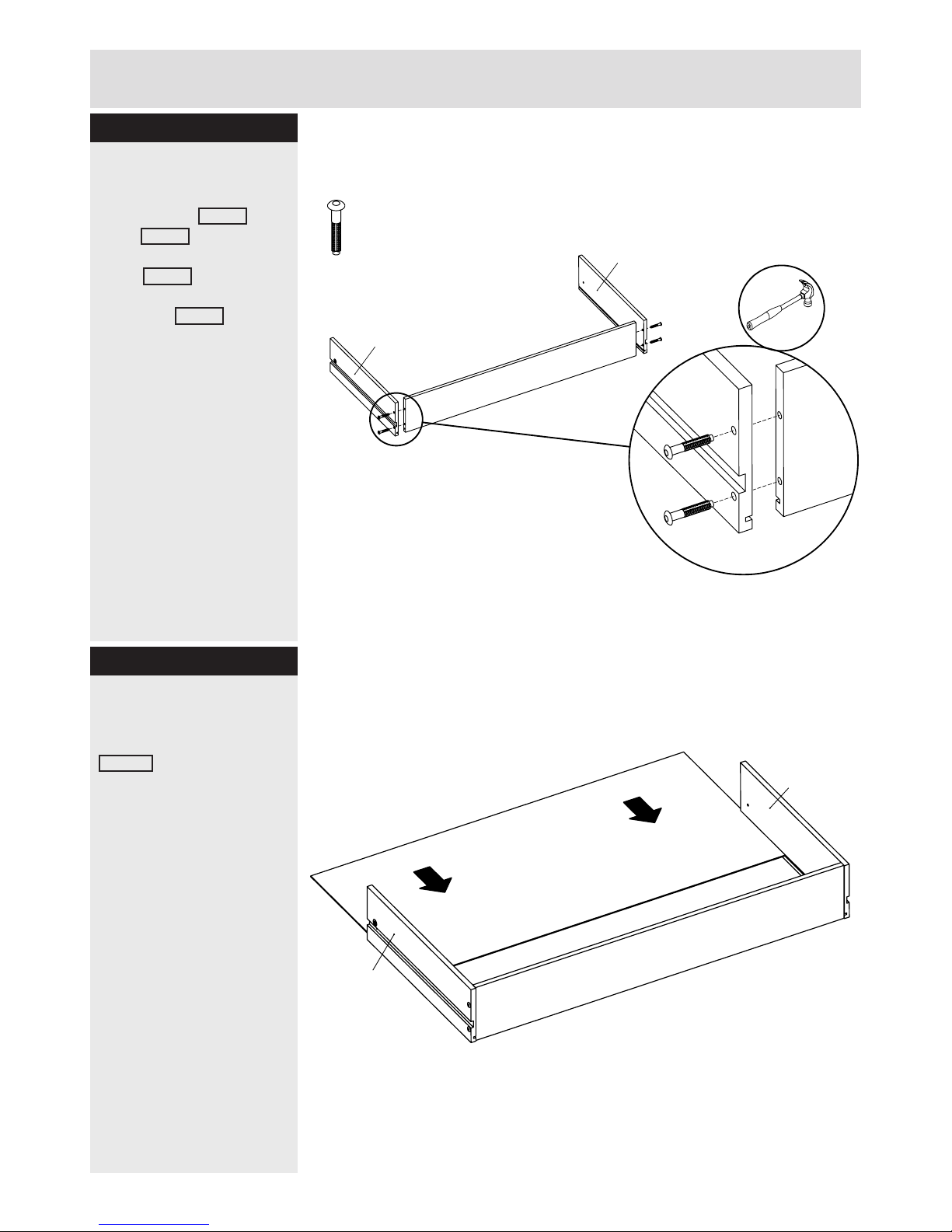

Fix drawer panels
together
Align the left 00734 and
right 00733 drawer
sides with the drawer
back 03336 , as
illustrated. Use drawer
fasteners 20228 with a
hammer to x the drawer
sides and the drawer
back together.
Attach the drawer
bottom
Slide the drawer bottoms
07165 into the grooves
made of the drawer
sides.
Please note to slide
in the drawer bottom
with the nished side
upwards.
Drawer fastener
#20228 x8
Fittings you will need for this step:
