Dea REV Series Product manual
I6160XX Rev. 07 06/12/17
Operating instructions and
warnings
EN-1
REV
Operating instructions and warnings
Index
1Warnings Summary EN-1 6Start-up EN-8
2Product Description EN-3 6.1 Installation Test EN-8
3Technical data EN-3 6.2 Unlocking and manual operation EN-8
4Installation and Assembly EN-4 7Maintenance EN-8
5Electrical Connections EN-5 8Product Disposal EN-9
1 WARNINGS SUMMARY
WARNING! ImpoRtANt sAfety INstRuctIoNs. cARefully ReAd ANd folloW All WARNINGs ANd INstRuc
-
tIoNs thAt AccompANy the pRoduct sINce INcoRRect INstAllAtIoN could cAuse hARm to people, ANImAls
oR thINGs. WARNINGs ANd INstRuctIoNs pRovIde ImpoRtANt INfoRmAtIoN ReGARdING sAfety, INstAllAtIoN,
use ANd mAINteNANce. Keep the INstRuctIoNs toGetheR the techNIcAl documeNtAtIoN ANd foR futuRe
RefeReNce.
WARNING The device may be used by children of less than 8 years of age, people with
reduced physical, mental or sensory impairment, or generally anyone without experience
or, in any case, the required experience provided the device is used under surveillance or
that users have received proper training on safe use of the device and are aware of the
dangers related to its use.
WARNING Do not allow children to play with the device, the xed commands or the ra-
dio controls of the system.
WARNING Product use in abnormal conditions not foreseen by the manufacturer may
generate hazardous situations; meet the conditions indicated in these instructions.
WARNING DEA System reminds all users that the selection, positioning and installa-
tion of all materials and devices which make up the complete automation system, must
comply with the European Directives 2006/42/CE (Machinery Directive), 2014/53/UE
(RED Directive). In order to ensure a suitable level of safety, besides complying with local
regulations, it is advisable to comply also with the above mentioned Directives in all extra
European countries.
WARNING Under no circumstances use the device in an explosive atmosphere or in
areas that may be corrosive or could damage product parts. Check that the temperatures
at the installation site are suitable and comply with the temperatures declared on the
product label.
WARNING When working with the “dead man” switch, make sure that there are no pe-
ople in the area where the automatism is being used.
WARNING Check that there is a switch or an omni polar magneto-thermal circuit bre-
aker that enables complete disconnection in case of over voltage category III conditions
installed upstream from the power system.
EN-2
WARNING To ensure an appropriate level of electrical safety always keep the 230V
power supply cables apart (minimum 4mm in the open or 1 mm through insulation) from
low voltage cables (motors power supply, controls, electric locks, aerial and auxiliary
circuits power supply), and fasten the latter with appropriate clamps near the terminal
boards.
WARNING If the power cable is damaged, it must be replaced by the manufacturer or
its technical assistance service or, in any case, by a person with similar qualications to
prevent any risk.
WARNING All installation, maintenance, cleaning or repair operations on any part of
the system must be performed exclusively by qualied personnel with the power supply
disconnected working in strict compliance with the electrical standards and regulations
in force in the nation of installation.
Cleaning and maintenance destined to be performed by the user must not be performed
by unsupervised children.
WARNING Using spare parts not indicated by DEA System and/or incorrect re-assem-
bly can create risk to people, animals and property and also damage the product. For this
reason, always use only the parts indicated by DEA System and scrupulously follow all
assembly instructions.
WARNING Changing the closing intensity could lead to dangerous situations. Therefore,
qualied personnel should only perform increases to the closing force. After adjustment,
compliance with regulatory limits values should be detected with a force impact-mea-
suring instrument. The sensitivity of the obstacle detection may be adjusted gradually
to the door (see programming instructions). The anti-crushing device operation must be
checked after each manual adjustment. Manual modication of the force can only be
done by qualied personnel by performing the measurement test according to EN 12445.
Modications to the force adjustment must be documented in the machine manual.
WARNING The compliance of the internal sensing obstacles device to requirements
of EN12453 is guaranteed only if used in conjunction with motors tted with encoders.
WARNING Any external security devices used for compliance with the limits of impact
forces must be conform to standard EN12978.
WARNING In compliance with EU Directive 2012/19/EU on waste electrical and elec-
tronic equipment (WEEE), this electrical product should not be treated as municipal
mixed waste. Please dispose of the product and bring it to the collection for an appropri-
ate local municipal recycling.
eveRythING thAt Is Not expRessly pRovIded foR IN the INstAllAtIoN mANuAl Is Not AlloWed. coRRect op
-
eRAtoR opeRAtIoN Is oNly eNsued WheN the RepoRted dAtA Is Respected. the compANy does Not RespoNd
foR dAmAGe cAused by fAIluRe to comply WIth the INstRuctIoNs coNtAINed IN thIs mANuAl. WIthout Af
-
fectING the esseNtIAl feAtuRes of the pRoduct, the compANy ReseRves the RIGht to mAKe ANy chANGes
deemed AppRopRIAte ANd At ANy tIme IN oRdeR to techNIcAlly, stRuctuRAlly ANd commeRcIAlly ImpRove
the pRoduct WIthout beING RequIRed to updAte thIs documeNt.
EN-3
2 PRODUCT DESCRIPTION
Models and contents of the package
The name REV identies a series of electromechanical operators for sliding gates with different features as to motor and control
board power supply voltage, capacity, mechanical adjustment of force, electronic clutch and built-in limit switch. All automated models
involve the use of advanced control units (NET series) equipped with anti-crushing sensor, built-in 433 MHz radio receiver, speed control
and slow down in opening and closing. The REV models are intended primarily for residential / condominium and Semi-intensive/inten-
sive use depending on the duty cycle foreseen for the automation.

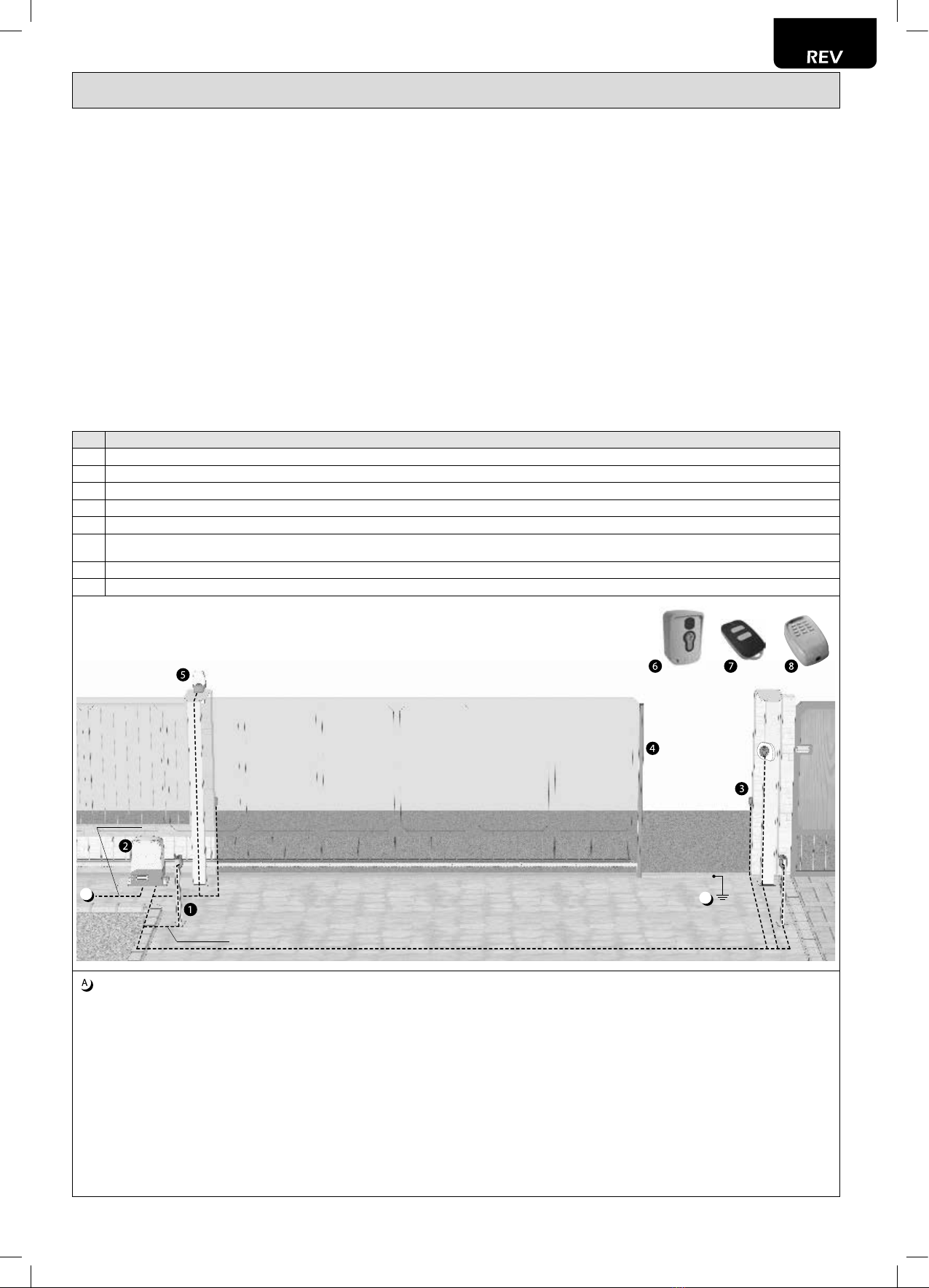

REV is completed by a set of accessories listed in the “PRODUCT ACCESSORIES” table (page I-7).
REV is composed of a mechanical gear motor which rotates the driving gear; This gear, coupled to the rack properly installed on the
gate, converts the circular motion of the gear motor into rectilinear motion thus allowing the movement of the gate on its own guide.

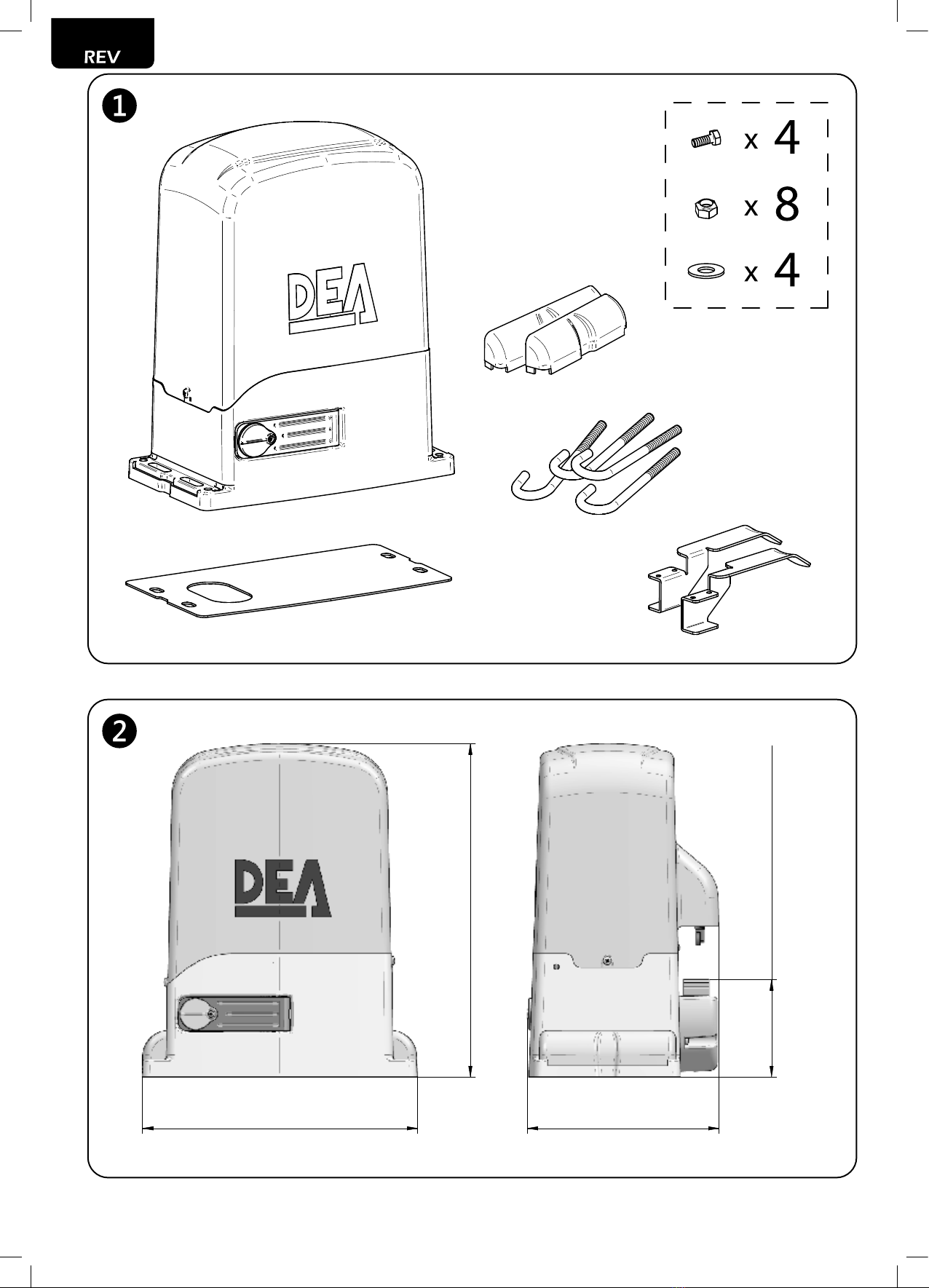

Inspect the “Contents of the Package” (Pic. 1) and compare it with your product for useful consultation during assembly.
Transport
REV is always delivered packed in boxes that provide adequate protection to the product, however, pay attention to all information
that may be provided on the same box for storage and handling.
3 TECHNICAL DATA
REV220 - REV220/M -
REV220/IB
REV220/RF - REV220/RFM
- REV220/RF/IB
REV24/F - REV24/M -
REV24/IB
Motor power supply voltage (V) 230 V ~ ±10% (50/60 Hz) 24 V
Absorbed power (W) 500 250
Max Thrust (N) 900 1200 450
Work cycle (leaf L=8m) up to 1000 Kg 27 cycles/hour 36 cycles/hour
up to 1400 Kg 22 cycles/hour 31 cycles/hour
Maximum n° of operations in 24
hour (leaf L=8m)
up to 1000 Kg 270 300 300
up to 1400 Kg 220 250 250
Built-in capacitor (µF) 14 12,5 -
Operating temperature range (°C) -20÷50 °C
Motor thermal protection (°C) 150 °C -
Opening speed (m/min) 10 12
Weight of product with package (Kg) 18
Sound pressure emitted (dBA) < 70
Protection degree IPX4
OPERATOR
CONTROL BOARD
NET24N
Power supply (V) 230 V ~ ±10% (50/60 Hz)
Rated power transformer (VA) 250 VA (230/22V)
Fuse F1 (A) (transformer) 2A
Batteries 2x 12V 1,3A
Fuse F2 (A) (batteries input) 15A
24V operators outputs 1x 10A
Warning: The above values are calculated by taking the maximum power
supplied by the respective processors. In absolute terms, the maximum
current for each output should not exceed 10A when using a single motor
and 7A when using 2 motors.
Auxiliaries power supply output 24 V
(24V_AUX + 24V_ST =
max 200mA)
Safety devices power supply output
“Warning” output 24 V max 15 W
Electric lock output 24V max 5W or max
1 art. 110
Flashing light output 24 V max 15W
Operating temperature range (°C) -20÷50 °C
Receiver frequency 433,92 MHz
Transmitters type of coding HCS x-code - HCS rolling
code - Dip-switch
Max remote controllers managed 100
NET230N
Power supply (V) 230 V ~ ±10% (50/60 Hz)
Fuse F2 (A) 5A
Fuse F1 (A) 160mA
230V operators outputs 2x 500W (or 1x 600W)
Auxiliaries power supply output 24 V ~ (24V_AUX + 24V_ST
= max 200mA)
Safety devices power supply output 24V
“Warning” output 230 V ~ max 150W
Electric lock output max 1 art. 110 or 24V
output max 5W congurable
230V Flashing light output 230 V ~ max 40W
24V Flashing light output
24 V max 100mA (for led
ashing light) art. LED24AI or
open gate warning light/courtesy
light
Operating temperature range (°C) -20÷50 °C
Receiver frequency 433,92 MHz
Transmitters type of coding HCS x-code - HCS rolling code -
Dip-switch
Max remote controllers managed 100
EN-4
4 INSTALLATION AND ASSEMBLY
4.1 For a satisfactory installation of the product is important to:
• Ensure that the facility complies with current regulations and then dene the full project of the automatic opening;
• Ensure that throughout the course of the gate, while opening and closing, there are no friction points;
• Ensure that there is no danger of derailment and that there are not risks that it goes out of the guides;
• Make sure the gate is in equilibrium: it must not move if it stays in any position;
• Ensure that the mounting area of the motor allows the release and a manual operation easier and safer;
• Ensure that the mounting positions of the various devices are protected from impacts and the surfaces are sufciently robust;
• Do not allow the automation parts are immersed in water or other liquids.
4.2 Dened and satised these prerequisites, proceed to the assembly:
If the supporting plane is already available, the xing of the motor must be done directly on the surface using, for example screw
anchors or chemical means.
Alternatively, proceed as follows:

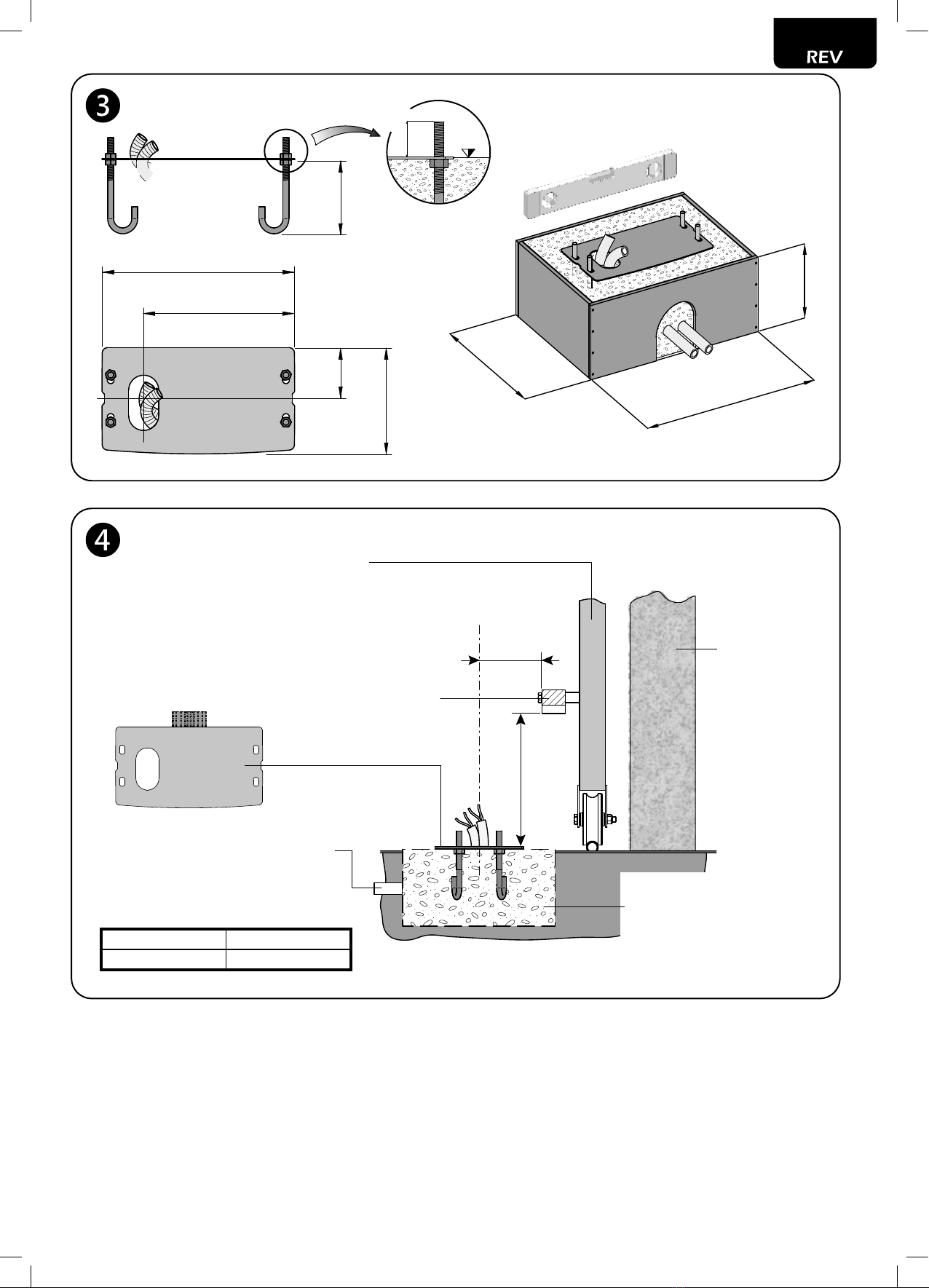

• Make a hole appropriate to the type of land by using as a reference the measurements shown in Fig 3;
• Provide an adequate number of channels for the passage of electrical cables;
Ducts prepared for the passage of electric cables shall be long enough to protrude inside the motor casing (Fig. 14) and operator
and control board power cables (A) must be necessarily divided from the encoder ones and various accessories connected (B), so
to ensure proper insulation of wiring.
• Place the base of the foundation;
• Start casting of concrete and, before you start taking, bringing the base plate to the dimensions shown in Figure 4, making sure that
is parallel to the gate wing and perfectly level. Wait for the complete setting of the concrete;
• Remove the nuts from the plate, then put the motor on the basis of foundation.

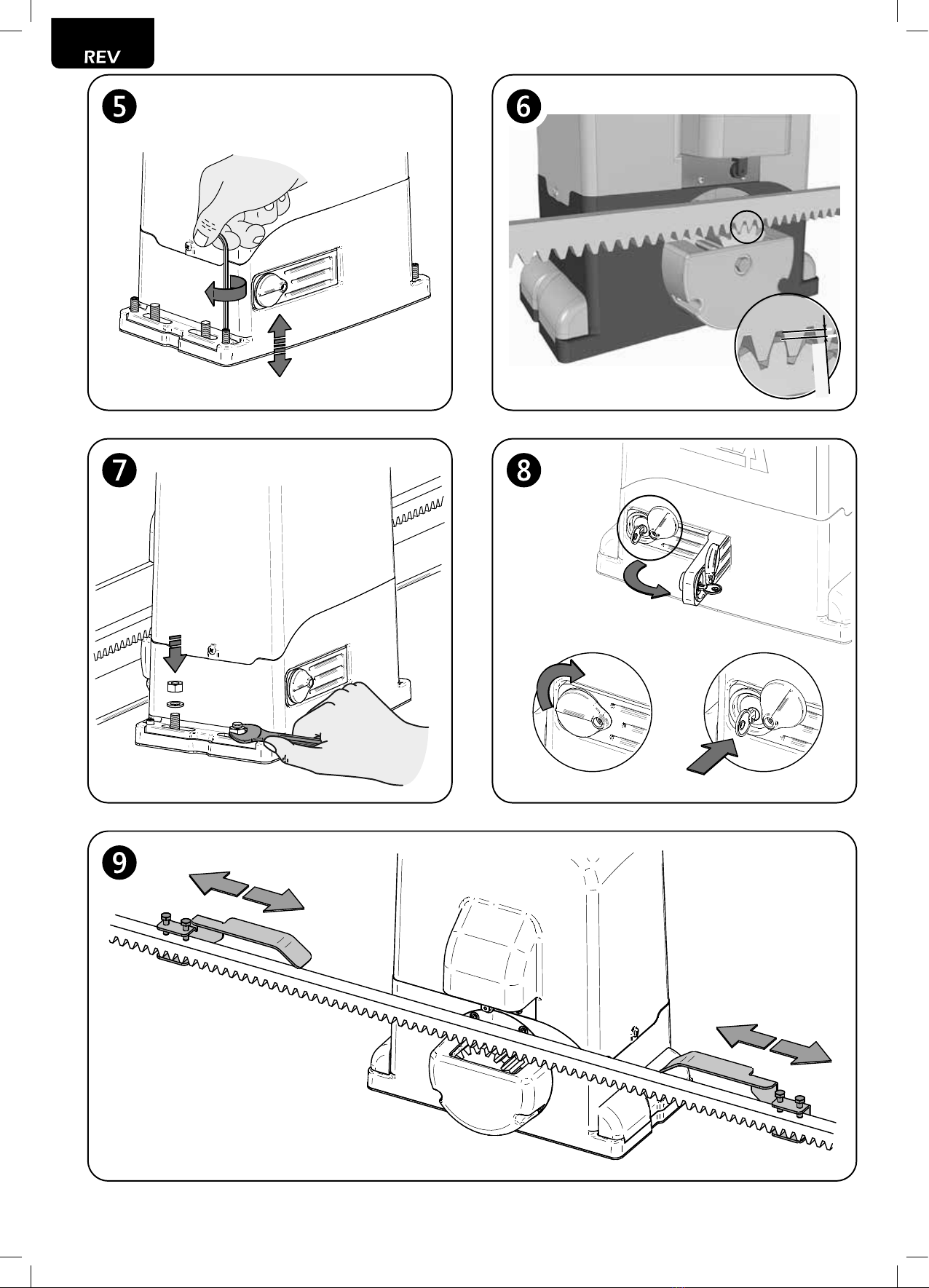

If the rack is already present, place the pinion at a distance of 1-2 mm in order to avoid that the weight of the wing could burden
on the gear motor. To do this, adjust the height of the REV with the grains (Fig. 5) and then tighten the nuts in a robust way.
Alternatively, proceed as follows:
• Unlock the motor and fully open the door;
• Place the rst section of the rack on the wing, making sure that the start of the rack corresponds to the top of the wing. Then attach
the rack to the leaf keeping a game of 1-2 mm from the pinion (Fig. 6);
• Cut off the excess part of the rack;
• Finally, move the door manually several times and verify that the alignment and the distance of 1-2 mm between the rack and pinion
is respected throughout the length;
• Tighten the lock nuts of REV in a robust way (Fig. 7) and cover with plastic caps.

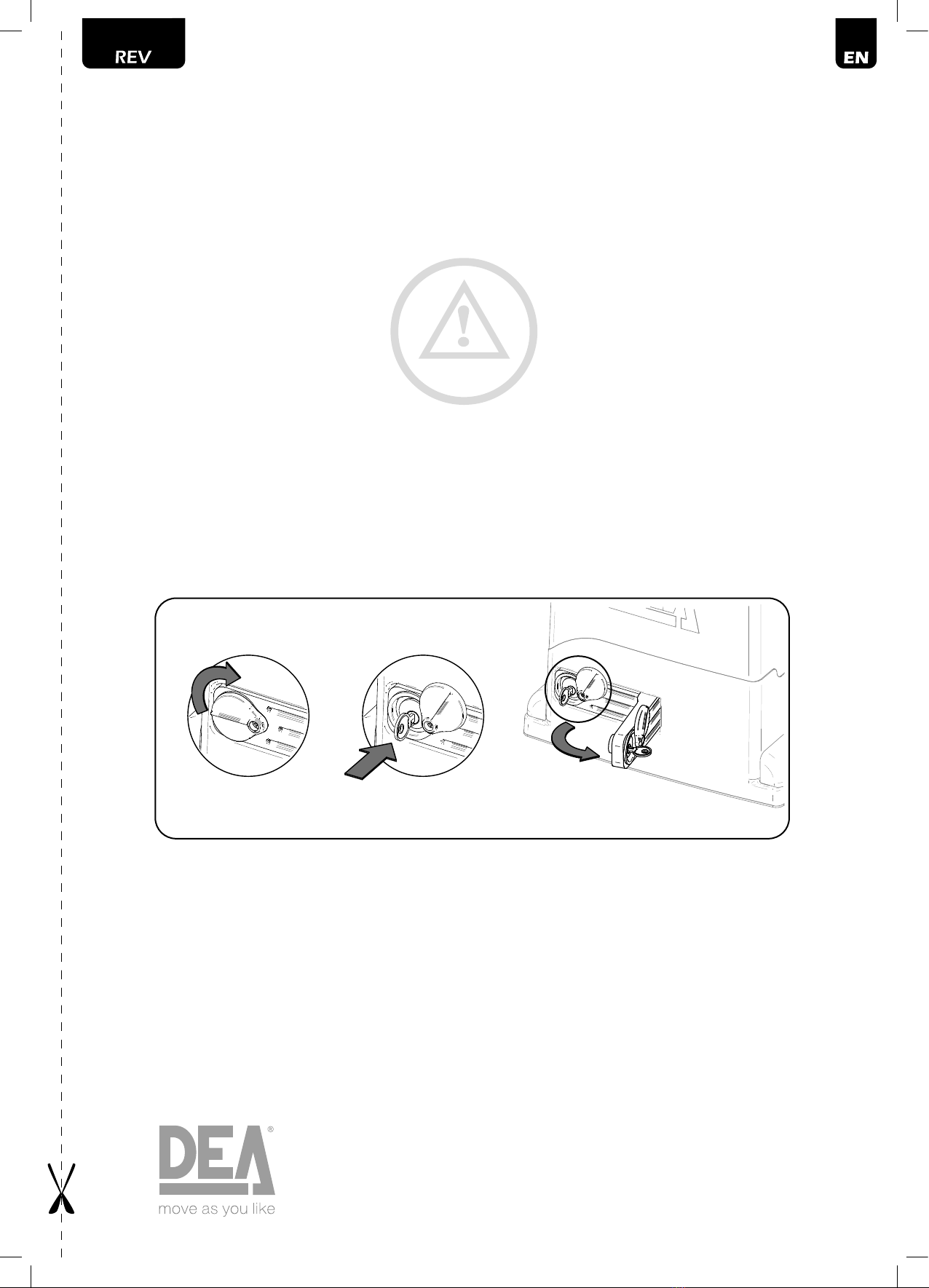

4.3 How to unlock the operator
Once you open the lock on the handle (protected by a plastic cover), the lever must be turned in the direction shown in Fig 8, at this
point the operator is unlocked and the gate, in the absence of other obstacles is free in his movements. The reverse process, turn the
lever until it stops and closing of the lock (remember to protect the lock with the proper cover), keeps REV in working condition.
4.4 Limit-switches
Adjustment of the limit-switches
Some REV models provides a limit-switch whose intervention must be adjusted for each installation. DEA System provides two limit
switches cams (Fig. 9) that are installed on the rack of the gate and subsequently regulated in such a way as to ensure the functionality
and safety distances in opening and closing of the gate.
Keep in mind that when the limit switches trigger, the door will move to another 2-3 cm, and it’s therefore suggested to x the end of
stroke brackets at a sufcient distance from the mechanical stops.
Adjustment of the magnetic limit switch
Attach the mounting brackets to the magnets as shown in Figure 11, making sure to mount the LIGHT BLUE magnet at the closing limit
switch, the GREEN magnet at the end of the opening limit switch (Fig. 12). Connect the cable of the magnetic sensor which is colored
BROWN at the FCC 1 input (Closing Limit Switch 1) and the BLACK one at FCA 1 input (Opening Limit Switch 1) (Fig. 13);
WARNING Refer to control board instructions to correctly identify the limit switch inputs.
WARNING Incorrect installation of the magnets can be dangerous to people or things; observe the conditions prescribed in these
instructions.
Mount the magnetic sensor as shown in Fig. 10. The sensor must protrude from the bracket for supporting at least 30mm, in this way
will avoid any interference.
Adjust the magnets support brackets so as to maintain a distance from the sensor between 10 and 20mm;
WARNING Opening and closing magnets positions are referred to a standard installation (operator placed on the left of the gate). In
case of use of the parameter P063 (NET control boards only) for an inverted installation (operator on the right), the position of the
magnets must not be changed.
EN-5
4.5 Non self locking models
Non self locking models allow the gate to move manually, without having to use a release key when the power fails. Non self locking
versions are equipped with a holding brake when opening/closing, This means the gate will be self locking in normal operation.
Refer to the attached sheet for the correct procedure of cleaning / maintenance of the electro-brake. DEA System reminds that the
operations must be performed by qualied personnel.
5 ELECTRICAL CONNECTIONS
Run the motor connections following the wiring diagrams.
WARNING For adequate electrical safety, keep low safety voltage wires (controls, electro-locks, antenna, auxiliary power) clearly separate
from 230V ~ power wires (minimum 4 mm in air or 1 mm via supplementary insulation) placing them in plastic raceways and securing
them with adequate clamps near terminal boards.
WARNING For connection to the mains, use a multipolar cable having a minimum section 3x1,5 mm² and complying with the current
regulations. For connecting the motors, use a minimum cross section 1,5 mm² cable and complying with the current regulations. As
an example, if the cable is out side (outdoor), must be at least equal to H05RN-F, whereas if it (in a raceway), must be at least equal to
H05VV-F.
WARNING All wires must be striped and unsheathed in the immediate vicinity of terminals. Keep wires slightly longer to subsequently
eliminate any excess.
WARNING Maintain the ground conductor at a major length respect the active conductors so that, if the cable exit from its xing housing,
the active conductors tighten up as rst.
WARNING To connect the encoder to the control panel, use only a dedicated cable 3x0,75mm2.
WARNING For reversible models with electronic brake and without NET230N on board, remember to set the parameter P062=3 (electro-
brake output for reversible motors).
Program the control board to complete all adjustments. It is now possible to supply a complete installation in compliance with all stan-
dards required for gate automation. See the instructions provided with the control panel to be connected.
Finally, verify that all adjustments operations have been correctly performed and that safety devices and unlocking device properly
work.
EN-6
WIRING DIAGRAM FOR 24V
7 98 10 11 12 13 14 15 16 17
18
19
20
21
22
23
24
25
26
27
28
29
31 30
33
32
2
1
4
3
6
5
ABAB
F2
FLASH
LOCK
WARNING
J5 J9
2 x 0,5 mm2
INTERNAL WIRING SET BY THE FACTORY
EXTERNAL WIRING SET BY THE INSTALLER
N.O.
N.O.
PED
N.C.
FCA1
N.C.
RG58
N.C.
START
FCC1
TX RX
PHOTO 1
OPEN GATE WARNING LIGHT
24V 15W
FLASH
LED24AI
max 15W
2 x 1 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
COM
N.C.
N.O.
230V 22V
FN
TRANSFORMER
230V/22V
POWER SUPPLY
230V~ 50Hz ±10%
F1
SAFETY (Only if needed)
To terminal 32/33 for normal connection
To terminal 1/2 for controlled safety devices (P071)
RED
BLUE
Brown
Blue
Black
Blue
COM
IN_1
COM
IN_2
COM
IN_3
COM
IN_4
COM
IN_5
COM
IN_6
EN-7
WIRING DIAGRAM FOR 230V
2
1
9 10 11 12 13 14 15 16
17
18
19
20
21
22
23
24
25
26
27
28
30 2932 31
3 4 5 6 7 8
WARNING LOCK
F2F1
FLASH
230V
MOT 1 MOT 2
34 33
WL/FL24V
2 x 0,5 mm2
To terminal 31/32 for normal connection
To terminal 33/34 for controlled safety devices
N.O.
N.O.
PED
N.C.
FCA1
N.C.
RG58
N.C.
START
FCC1
TX RX
PHOTO 1
2 x 1 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
2 x 0,5 mm2
ENC
M1
F
N
F
N
LED230AI
max 40W
FLASH
230V
3 x 0,22 mm2
4 x 1,5 mm2
3 x 1,5 mm2
COM
N.C.
N.O.
2 x 0,5 mm2
INTERNAL WIRING SET BY THE FACTORY
EXTERNAL WIRING SET BY THE INSTALLER
OPEN GATE WARNING LIGHT
230V max 150W
BROWN
BLACK
GRAY
OMNIPOLAR CIRCUIT BRAKER
POWER SUPPLY
230V~ 50Hz ±10%
SAFETY (Only if needed)
Brown
Blue
Black
Blue
COM
IN_1
COM
IN_2
COM
IN_3
COM
IN_4
COM
IN_5
COM
IN_6
EN-8
6 START-UP
The start-up phase is very important to ensure maximum security and compliance to regulations, including all the requirements of EN
12445 standard which establishes the test methods for testing the automation for gates.
DEA System reminds that all installation, maintenance, cleaning or repair operations on any part of the system must be performed
exclusively by qualied personnel who must be responsible of all texts requie by the eventual risk;
6.1 Installation test
The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper
testing of all the automation in 4 easy steps:
• Make sure that you comply strictly as described in paragraph 2 “WARNINGS SUMMARY”;
• Test the opening and closing making sure that the movement of the leaf match as expected. We suggest in this regard to perform
various tests to assess the smoothness of the gate and defects in assembly or adjustment;
• Ensure that all safety devices connected work properly;
• Perform the measurement of impact forces in accordance with the standard 12445 to nd the setting that ensures compliance with
the limits set by the standard EN12453.
WARNING Using spare parts not indicated by DEA System and/or incorrect re-assembly can create a risk to people, animals and
property and also damage the product. For this reason, always use only the parts indicated by DEA System and scrupulously follow all
assembly instructions.
6.2 Unlocking and Manual operation
In the event of malfunctions or simple power failure, release the motor (Pic. 8) and perform the operation manually.
The knowledge of the unlocking operation is very important, because in times of emergency the lack of timeliness in acting on such
a device can be dangerous.
WARNING The efcancy and safety of manual operation of the automation is guaranteed by DEA System only if the installation has
been installed correctly and with original accessories.
7 MAINTENANCE
Good preventive maintenance and regular inspection ensure
long working life. In the table below you will nd a listo f inspections/
maintenance operations to be programmed and executed periodi-
cally.
Consult the TROUBLE-SHOOTING” table whenever anomalies are
observed in order to nd the solution to the problem and contact
DEA System directly whenever the solution required is not provided.
INTERVENTION TYPE PERIODICITY
cleaning of external surfaces 6 months
checking of screw tightening 6 months
checking of release mechanism operation 6 months
electric brake cleaning 6 months
TROUBLE-SHOOTING
Description Possible solutions
When the opening or closing command is activated the
gate leaf fails to move and the operator’s electric motor
fails to start.
The operator is not receiving correct power supply. Check all connections, fuses, and the
power supply cable conditions and replace or repair if necessary. If the gate does not close
check the correct functioning of photocells.
When the opening command is activated, the motor starts
but the gate leafs fail to move.
Check that the unlocking system is closed (see Pic. 8).
Check the electronic force adjustment device and the mechanical clutch.
Make sure that the motor does not push in the opposite direction, the limit switch electri-
cal connections might be reversed.
The gate moves by ts and starts, it is noisy, it stops at half
run or it does not start.
Make sure that nothing hinders the gate wheels movement and the slide in which they roll.
There always must be backlash between rack and pinion; make sure the rack is accurately
positioned.
The power of the gearmotor may be insufcient for the characteristics of the gate’s wing;
check the choice of model whenever requiredh.
If the operator attachment to the gate bends or is badly fastened, repair and/or buttress it.
EN-9
8 PRODUCT DISPOSAL
REV consists of materials of various types, some of which can be recycled (electrical cables, plastic, aluminum, etc. ..) while others must
be disposed of (electronic boards and components).
Proceed as follows:
1. Disconnect the power supply;
2. Disconnect and disassemble all the accessories connected. Follow the instructions in reverse to that described in the section “Installa-
tion”;
3. Remove the electronic components;
4. Sorting and disposing of the materials exactly as per the regulations in the country of sale.
WARNING In line with EU Directive 2012/19/EU for waste electrical and electronic equipment (WEEE), this electrical product must
not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to your local municipal collection
point for recycling.
I-1
Pos. Descrizione - Description - Description - Beschreibung - Descripción - Descrição - Opis - Описание
1CPilly 60 column
2REV
3Photocells -
4Safety edge -
5Flashing light
6Anti lock-picking key switch
7Remote-control
8Radio keypad -
2 x 0,5 mm² - RG58
2 x 0,5 mm²
4 x 0,5 mm²
B
A
6 x 0,5 mm²
2 x 0,5 mm²
4 x 0,5 mm²
2 x 0,5 mm²
3x1,5 mm²
Make the 230V ± 10% 50 Hz mains connection using an omnipolar switch or any other device that guaran-tees the omnipolar disconnection of the
mains network with a contact opening distance of 3 mm
All metal parts must be grounded
Example of typical installation
DEA System provides the following instructions which are valid for a typical system but obviously not complete for every system. For each automatism the installer
must carefully evaluate the real conditions existing at the site. The installation requisites in terms of both performance and safety must be based upon such
considerations, which will also form the basis for the risk analysis and the detailed design of the automatism.
I-2
113 (Z18 - Irreversible)
223
106 (Z15 - Reversible)
321
388
I-3
200
450
350
35 ÷ 45
117
320
177
250
85
( * )
105 mm.
Base Plate
GATE
Rack,
Fence
Concrete
Cables,
*
Z15 (Reversible) 100 mm
Z18 (Irreversible) 106 mm
I-4
~15mm
1÷2 mm
I-5
Pos. Description Pos. Description
1Light blue 2Green
P063 = 000 P063 = 001
WARNING: In case of use of the parameter P063 (NET control boards only) for an inverted installation (operator on the right), the position of the
magnets must not be changed.
min 30
I-6
Conduit for encoder cables and accessories
Conduit for operator power supply cables and control panel
B
A
B
A
A
B
C
Control Board
Pos. Description
ABlack FCA 1
BBlueCOM
C
Brown
FCC 1
I-7
Article
Code
ACCESSORIES
111
619000
NYLON rack,
112
126001
ZINC PLATED rack 22x22
113
126000
ZINC PLATED rack 30x12,
Pignone Z22
619090
22 pinion to increase speed of REV motors.
INSTRUCTIONS FOR THE FINAL USER
This guide has been prepared for the nal users of the automatism; the installer is required to deliver this gui-
de and illustrate its contents to the person in charge of the system. The latter must then provide similar instruc-
tion to all the other users. These instructions must be carefully conserved and easily available for consultation
when required.
Good preventive maintenance and frequent inspection ensures the long working life of the product. Contact
the installer regularly for routine maintenance and in event of anomaly.
SAFETY RULES
1. Always keep a safe distance from the automatism during operation and never touch any moving part.
2. Prevent children from playing near the automatism.
3. Perform the control and inspection operations prescribed in the maintenance schedule and immediately stop
using the automatism whenever signs of malfunction are noted.
4. Never disassemble parts of the product! All maintenance and repair operations must be performed only by
qualied personnel.
5. The release operation must sometimes be performed in emergencies! All users must be instructed on the use
of the release mechanism and the location of the release keys.
REV RELEASE MECHANISM
All REV models have an unlocking system; the working of this system is the following: after unlocking the lock
on the handle (protected by a plastic cover) turn the lever in the direction shown in gure; the operator is now un-
locked and, if no obstructions hinder its movement, the gate can now move freely. The opposite procedure, that
is the rotation of the lever up to the limit switch and the locking of the lock (remember to protect the lock with the
appropriate cover) returns REV to its normal working conditions.
WARNING: During this operation gate may present uncontrolled movement: operate with extra care so to
avoid any risk.
CLEANING AND INSPECTIONS
The only operation that the user can and must do is to remove branches, leaves, and any other object that
might obstruct the gate’s free movement. Warning! Always disconnect the power supply whenever performing
operations on the gate!
DEA SYSTEM S.p.A. - Via Della Tecnica, 6 - ITALY
36013 PIOVENE ROCCHETTE (VI)
tel. +39 0445 550789 - fax +39 0445 550265
EUDeclarationofConformity(DoC)
andDeclarationofIncorporationof"quasi‐machines"(pursuanttotheMachineryDirective2006/42/CE,Att.II,B)
Companyname:DEASYSTEMS.p.A.
Postaladdress:ViaDellaTecnica,6
PostcodeandCity:36013PioveneRocchette(VI)‐ITALY
Telephonenumber:+390445550789
declarethattheDoCisissuedunderoursoleresponsibilityandbelongstothefollowingproduct:
Apparatusmodel/Product:REV220‐REV220/M ‐ REV220/IB‐REV220/RF ‐ REV220/RFM ‐ REV220/RF/IB ‐
REV220/S‐REV24/F‐REV24/M‐REV24/IB‐REV24/F/120
Type:REV
Batch:Seethelabelonthebackoftheusermanual
TheobjectofthedeclarationdescribedaboveisinconformitywiththerelevantUnionharmonisationlegislation:
Directive2006/42/CE(MDDirective)
•Itisdeclaredthattherelevanttechnicaldocumentationhasbeendrawn‐upincompliancewithattachmentVIIB.
•Itisalsodeclaredthatthefollowingessentialhealthandsafetyrequirementshavebeenrespected:1.1.1‐1.1.2‐1.1.3‐1.1.5‐1.2.1‐1.2.6‐1.3.1‐1.3.2‐
1.3.3‐1.3.4‐1.3.7‐1.3.9‐1.5.1‐1.5.2‐1.5.4‐1.5.5‐1.5.6‐1.5.7‐1.5.8‐1.5.10‐1.5.11‐1.5.13‐1.6.1‐1.6.2‐1.6.4‐1.7.2‐1.7.3‐1.7.4‐1.7.4.1‐1.7.4.2‐
1.7.4.3.
•Theundersigneddeclaresthattheafore‐mentioned“partly‐completedmachinery”cannotbecommissioneduntilthefinalmachine,intowhichithasbeen
incorporated,hasbeendeclaredcompliantwiththeMachineryDirective2006/42/CE.
•Ondulyjustifiedrequest,themanufacturercommitstotransmittingtheinformationregardingthe“partly‐completedmachinery”tothenationalauthorities
withoutprejudicetotheirintellectualpropertyrights.
Theproductisincompliancewiththeapplicablepartsofthefollowingregulations:
EN13241‐1:2003+A1:2011(*);EN12445:2002;EN12453:2002;EN12978:2003+A1:2009
Directive2014/53/UE(REDDirective)
Directive2011/65/EU(RoHS)
Thefollowingharmonisedstandardsandtechnicalspecificationshavebeenapplied:
Title:Dateofstandard/specification
EN61000‐6‐22005+EC:2005
EN61000‐6‐32007+A1:2011
EN301489‐1v2.1.12017
EN301489‐3v2.1.12017finaldraft
EN60335‐12012+EC:2014+A11:2014
EN622332008
EN300220‐1v3.1.12017
EN300220‐2v3.1.12017
EN505812012
Additionalinformation
Signedforandonbehalfof:
Revision:Placeanddateofissue:Name,function,signature
00.04PioveneRocchette(VI)
09/10/17
TizianoLievore
(Administrator)
Other manuals for REV Series
1
This manual suits for next models
9
Table of contents
Other Dea Gate Opener manuals
Dea
Dea LIVI 403E - 6NET Product manual
Dea
Dea MAC Product manual
Dea
Dea Look Series Product manual
Dea
Dea Ghost 100 Series Product manual
Dea
Dea LIVI 500 Product manual
Dea
Dea SPACE Series Product manual
Dea
Dea LOOK 351/SC Product manual
Dea
Dea Spazio Series Product manual
Dea
Dea 203RR Product manual
Dea
Dea LIVI 3/24N User manual
Dea
Dea LIVI Product manual
Dea
Dea WING 302 Series Instruction manual
Dea
Dea OLI/N Series Product manual
Dea
Dea 224RR Product manual
Dea
Dea ghost 200 Product manual
Dea
Dea GEKO Installation guide
Dea
Dea GULLIVER User manual
Dea
Dea LIVI 803E - 9NET Product manual
Dea
Dea REV Product manual
Dea
Dea LIVI 403E Product manual
