SKYSOL
Assembly & Installation Instructions
Parts List

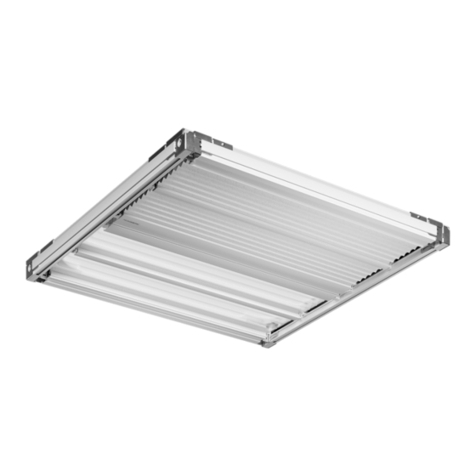

HerculesFrame Large

Assembly Instructions for at packed blinds
Double ended blinds (addition notes for single ended blinds on page 2)
1. Unpack blind and Check
contents against list
Contents
4 Corner brackets
4 mitre corners
8 Grub screws
4 Frame sections
1 Blind and or Fly Assembly
Tools required:
2mm Allen Key
2. Layout frame sections and align dots
4. Place frame on foam packing tube supplied as shown
Flyscreen assembly ready to install at open end of frame, note handle underneath
5. Feed blind into frame evenly ensuring gliders engage and cords are not
trapped
3. Assemble corners as shown to one end only, ensure prole is tight to
mitre corner.
Page 1

10. Fit Flyscreen fabric headrail if applicable as per steps 9a & b,
a
b
a. Rest headrail on clips
b. Press into place from underneath avoiding damage
to fabric.
Page 2
9. Fit night fabric headrail to clips in frame using steps
a& bbelow.
8. Fit remaining frame corners as per step 4.
7. Position fabric in center of frame and check all gliders are engaged by pushing from below
(handle side), the bars should not lift.
6. Engage moving rail gliders into frame, again ensuring cords are not trapped.
Repeat steps 5 & 6 for second fabric if applicable.

Page 3
Single ended 2 fabric assembly, both night and y fabrics
are connected by a central moving rail, note square
guides. Feed central moving rail guides into frame as
shown.
Fitting single ended 2 fabric assembly
Follow steps 1 to 4 and note the following for step 5 (feeding gliders in to frame)
Continue with steps 6 to 9 and note the following for step 10
Fitting opposite headrail for single ended assemblies
as per steps 9a & b.
Troubleshooting
Blind does not operate:
•Ensure blind is installed as per instructions provided
•Check cords are not trapped and gliders are correctly located, see step 6.
•Ensure frame tracks are free from debris
Fabric sags or there is a loss of tension:
• Check spring in headrail
Headrail detached or loose
•Check tting clips ( 9 a & b)
Test blind operation of blind by fully closing and opening,
Unpacking pre assembled blinds
•Please read instructions before unpacking.
•Lay on a at, dry surface, avoid twisting the blind unit.
•Remove all protective packaging, taking care not to damage cords, blind or metal work.
•Ensure that the product is not damaged.
•Measure the blind unit and make sure that it ts the recess (the blind unit should be 4mm smaller overall for an easy t).
•Make sure that the recess is square, if not; it will force the blind out of shape when xing.
11. Test blind operation of blind by fully closing and opening. In the unlikely of any problems,
please follow troubleshooting on page 3.

•If a large frame, ensure a minimum of two people undertake the installation.
•Ensure that the blind unit is the correct way up with the handle facing downwards an in the correct orientation.
•Offer the blind unit up to the recess and ensure that all the sides are square, use packing pieces if necessary. (g1)
•Make sure that the blind unit is not twisted; distortion will damage the blind and affect operation.
•Use suitable screws to x the frame to the recess, using pre-drilled holes (the head of screw to be no larger than 6.0 mm in
diameter and no more than 2.0 mm in height). If using a countersunk screw, countersink the frame holes to suit.
Before installation
Note the full Job ID found on the packaging label for future correspondence.
Headlining
g 1
Frame
Packing
90°
Recess
Care and maintenance
•Minimal maintenance is required. Do not grease, oil or lubricate the blind unit, lubricants will damage the fabric.
•If blind gets wet, deploy blind and allow to dry naturally.
Recommended use
•Blind to be stowed when roof is open over 5 Knots
Safety
•This blind is not designed as a walking surface.
g 2
Page 4
Sub ush xing point
Installation
Support
•Please visit www.webasto.com or contact Webasto directly quoting the Job ID (found on either the blind’s documentation,
packing label or inspection label located on the back of the headrail).
•For spares please see exploded parts list below.
CUSTOMER NAME
Support
•Please visit www.oceanair.co.uk or contact Oceanair directly quoting the Job ID (found on either the blind’s documentation,
packing label or inspection label located on the back of the headrail).
•For spares please see exploded parts list below.

Exploded Parts List
Item
No
Description Qty
1 M3 Nut 8
2 M3 x 5mm grub screw 8
3Headrail endcap 2
4Clip 6
5Headrail 2
6Cover strip 2
7 Grommet 48
8Slide plate 16
9 M4 x 10mm pan head
Pozi-Drive screw
10
10 Grommet (tab removed) 12
Item
No
Description Qty
11 M3 x 8mm grub screw 12
12 Rivet 4
13 Connect rail 12
14 Moving rail end cap 4
15 Cross bar 2
16 Handle 2
17 Corner bracket 4
18 Frame mitre 4
19 M4 x 4mm grub screw 8
20 Mounting prole 4
21 Plate 8
Item
No
Description Qty
22 Spring 0.7mm 8
23 Magnetic strip 2
24 Tape strip 1
25 End cap insert 8
26 Glider spacer 12
27 Moving rail glider 4
28 M4 x 4mm pan head
Pozi-Drive screw
3
29 Inspection Label 1
120 22 216
2428 26
52418 711
27
12
10
3
17
19
25
914 15
238
16 13
29
5
Page 5
Double ended blind shown

Page 6
Notes

Dometic UK Blind Systems Ltd
Atlantic House, 1 Ellis Square, Selsey, Chichester PO20 0AY United Kingdom.
Tel: [phone] Fax: [phone] www.dometic.com
Registered Ofce
Atlantic House, 1 Ellis Square, Selsey, Chichester PO20 0AY
Registered in England No. 2504633
A member of the British Marine Federation © Dometic UK Blind Systems Ltd 2013 Part No. 700000264 Rev 4 ECN 11642 March 2014
Part No. 700000232 Rev 3 ECN 11642 March 2014
