Important notice
There is a fire risk if assembled incorrect-
ly. Please read these assembly instruc-
tions carefully. Take special note of the
measurement details and the following
notes.
• This device has not been designed for
being used by persons (including children)
that are physically or mentally handicap-
ped or have sensory disabilities. Moreover,
it is not allowed to use this device without
sufficient experience and/or knowledge,
unless these persons will be supervised
by persons responsible for their security
or in case they have been instructed how
to use this device.
• Children are to be supervised in order to
make sure that they do not play with this
device.
• The infrared thermal emitter is intended for
a connection voltage of 230 V 50 Hz via an
infrared controller.
• Assembly and connection to the infrared
controller must be carried out in accor-
dance with the connection diagram (Fig.
11).
• Before the emitter is operated via the con-
troller, check that all connectors are firmly
connected with no risk of coming loose.
• The EU 60335-2-53 (VDE 0700 Part 53)
regulations are to be complied with inside
the infrared booth
• Only the number of emitters specified for
the size of the booth should be assembled
in the infrared thermal booth. Please ask
your cabin manifactor or dealer.
• One of the controllers specified below
should be used to regulate or control the
infrared emitter. This controller should be
fixed to the infrared thermal booth in ac-
cordance with the assembly instructions.
• Attention: Covering the infrared
thermal emitter causes a fire risk!
English
Dear Customer,
You have purchased a high quality technical
system which will provide you with many ye-
ars of enjoyable using. This infrared emitter
was constructed in accordance with state-of-
the-art European safety standards, inspected
and manufactured in accordance with the
Quality Standard DIN ISO EN 9001:2000.
This detailed installation and user‘s guide was
created for your information. Please note
especially the important notice and the data
dealing with the electrical connection.
First of all, check whether the infrared emitter
has arrived at your site undamaged. Register
transport damage claims immediately with
the delivering transport company or please
consult the supplier who provided the equip-
ment to you.

4GB
• The assembly of the infrared emitter in
the booth must be carried out in such a
way to assure even all-round emission
for the sauna frequenter.
• The infrared thermal emitter is not sui-
table to assembly on the booth ceiling.
• If the infrared thermal emitter is assem-
bled in the rear area, then appropriate
protective measures must be taken to
ensure that the flocked protection gril-
le cannot be pressed in unintentionally
(e.g. a wooden grille mounted in front).
• Take care to ensure that the main ener-
gy discharge occurs through the infra-
red radiation.
Additionally, however, a thermal heat
discharge arises at the housing in the
vertical assembly. This heat can stress
the emitter thermally! Caution: fire
risk!
Ensure that this hot convection air can
escape by rising freely.
If necessary, appropriate steps should
be taken (e.g. thermal protection slabs)
to ensure that the wood is not exposed
to inadmissible temperatures.
• The infrared thermal emitter is equip-
ped with a silicon connection cable
with a 3-pin connector. This connector
is joined to the connector of the infra-
red controller with a free outlet.
Care must be taken to ensure that the
earth is properly tight.
• Up to 5 infrared thermal emitters may
be connected to this socket distributi-
on.
For practical reasons, the connector
should be fitted to the booth ceiling.
• Take care to ensure that the special
emitter is not subject to any mechani-
cal stresses (knocks, pressure). Risk
of breakage.
Although breakage is unlikely if it
is used properly, if the ceramic
emitter should break, replace it with a
new one. Caution: fire risk in the case
of a broken emitter.
The IR-emitter is designed for mounting in
a IR-warm cabin or sauna only. It just can
be used with a controller. The warranty is
not to apply for other use.
Attention!
If there is any skin desease or
illness, you should ask a doctor
before using.

5
GB

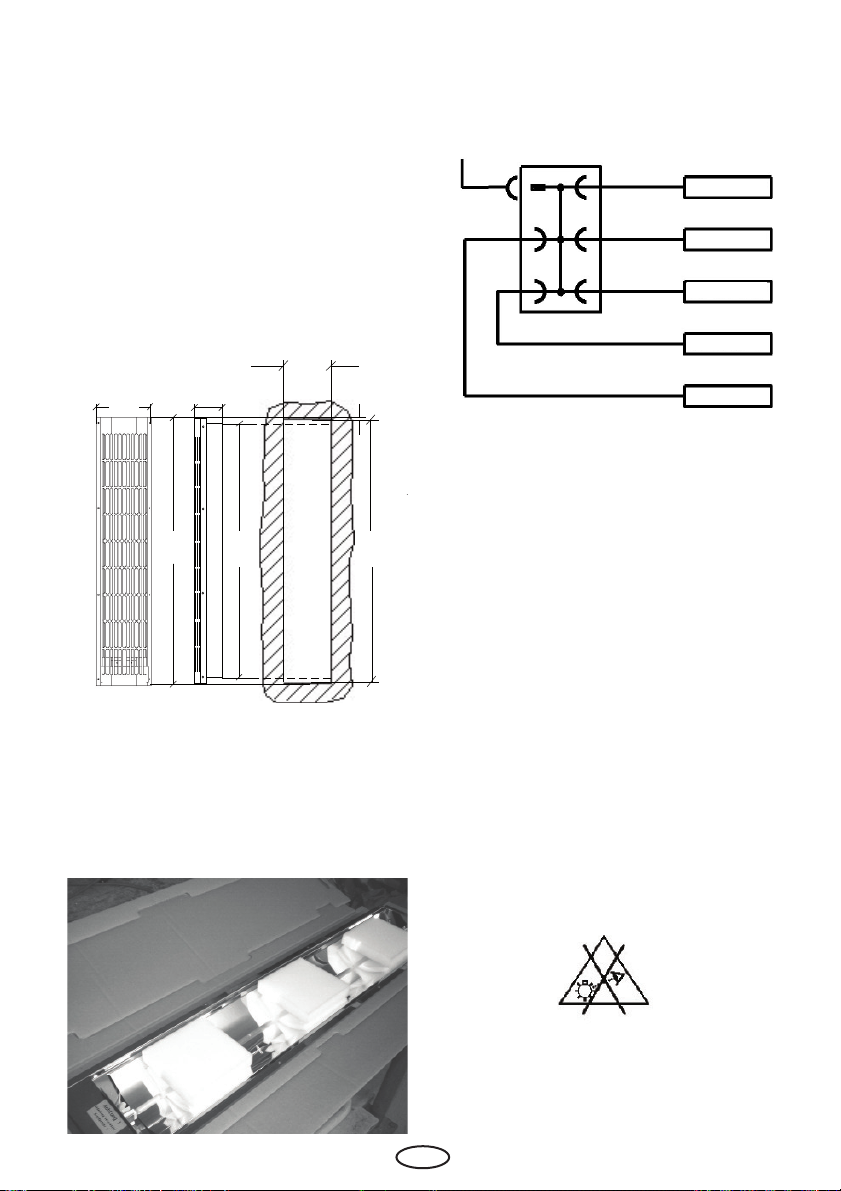

Technical data
Voltage: 230 V 50 Hz
Weight: approx. 2 kg
Power Vitae 350 W, Art.-Nr. 94.2865
input: Vitae 500 W, Art.-Nr. 94.2576
Vitae 750 W, Art.-Nr. 94.2577
emission area: 1,4 mm - 10 mm
measures HWD: 900 x 184 x 65 mm
front sight cutout of the wall
Electrical connection
infrared emit-
ter
Socket
distribution
Supply lead
controllert
An additional clamping distribution with or-
der no. 94 2046 must be used for fitting 6-9
infrared emitters.
Caution:
If the connection cable of this appliance be-
comes damaged, it must be replaced by a
special connection cable which can be ob-
tained from the manufacturer or customer
service department.
For assembly, the connection cables should
be fed through blank tubes or protected from
damage in other appropriate ways.
Fig. 2
For a too long time looking in the emitter,
your eyes can be demaged.
Please use in this case suitable protective
glasses.
Caution!
Remove the transport stabilisers from the
Vitae- emitter, loosening the covering grille.
Remove the foamed pad. Take care that the
Vitae-emitter does not be demaged.
Max. 4 pieces for 750 W per emitter
(3500W)
165
890
184 65
870
900
5

6GB

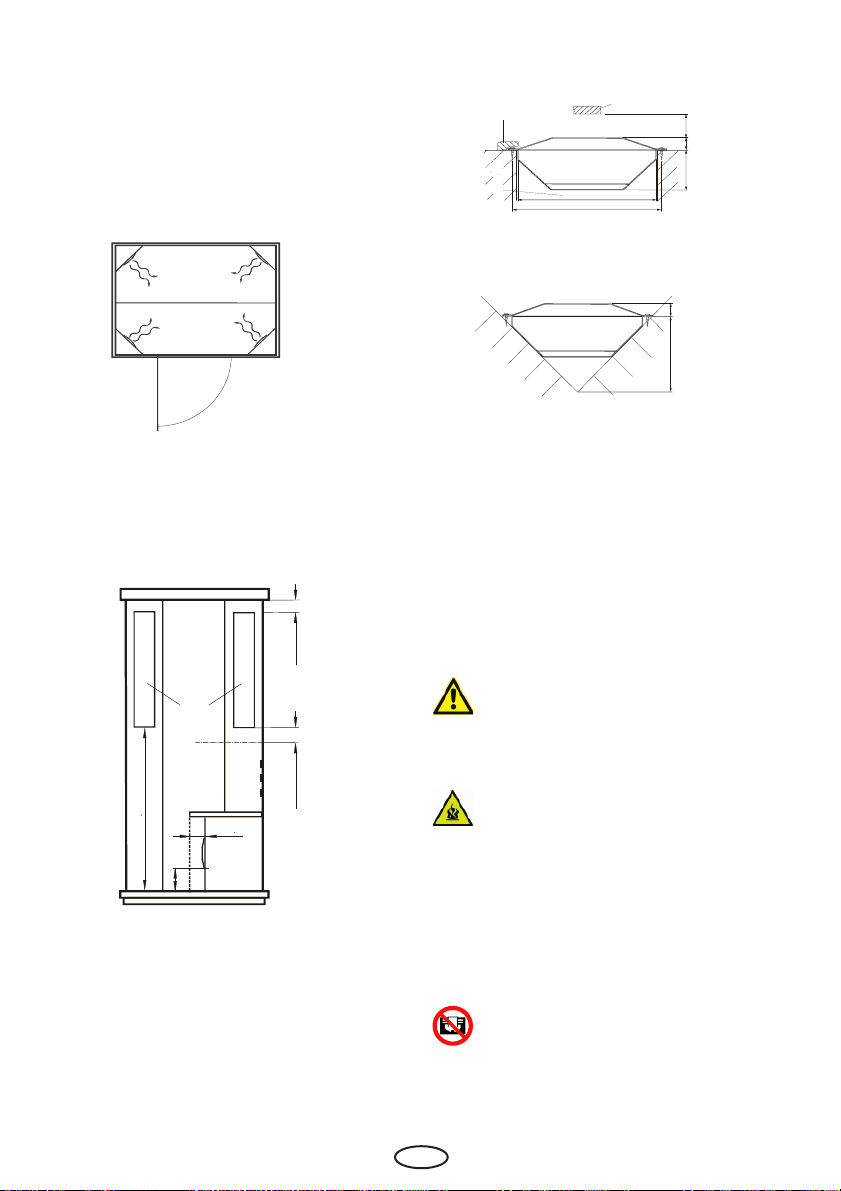

Assembly
The emitter should be assembled in such a
way as to ensure that the body of the fre-
quenter radiates over as large an area as
possible.
Assembly in the four corners of the infrared
booth is recommended.
Fig. 4
Recommended radiation distance between
a person and the infrared emitter: 30-50
min 50 cm
min 7 cm
min 9 cm
min 15 cm
IR-Emitter
Vitae
at least 9 cm with additional upper seat
Fig. 5
Assembly example:
For assembly, a right-angled opening must
be fitted vertically into the wood.
This opening is filled out horizontally for the
net emitter.
The emitter can then be assembled with
the enclosed chipboard screws (see Fig.
6 and 7).
Assembly on the booth wall
Fig. 6
wood border perhaps
appliance should be aerated in the bac
wood protected grid
6 cm
7, cm
cm cmcm

5,5
vertical assembly in the booth cor-
ners
 cm
,5 cm
Fig. 7
Minimum distances
he minimum distance from the emitter upper
edge to the booth ceiling must be 7 cm.
The minimum distance from the emitter lo-
wer edge to the wooden floor of the booth
must be 9 cm (Fig.5).
The horizontal minimum distance between
the emitter and all combustible parts must
be 4 cm (Fig.6).
Very important!
In the case of vertical assembly (connec-
tion always upwards or in accordance
with the booth manufacturer‘s specifica-
tions), the area above the emitter should
not be encased with wood in front (Fig.
1). Hot air rising when the housing is
heating must be able to escape freely.
Fire risk!
In the case of horizontal assembly in
the area of the nets (net emitter), the
emitter may not be covered by objects
such as towels, and must be made
safe if necessary by fitting an additio-
nal wooden grille. Fire risk!
Caution!
For assembly of the net emitter, the
measurements specified in Fig. 5
must be complied with.

7
GB
Service Address:
EOS Saunatechnik GmbH
Adolf-Weiß-Straße 43
35759 Driedorf-Mademühlen, Germany
Tel: [phone]
Fax: [phone]
[email protected]
www.eos-sauna.de
WARRANTY
The warranty is provided according to the
legal regulations at present.
Manufacturer’s guarantee:
- The period of guarantee starts from the
date of purchase and lasts up to 2 years
by commercial use and 3 years by private
use.
- Always include the completed guarantee
certificate when returning equipment.
- The guarantee is void for appliances
which have been modified without
manufacturer’s explicit agreement.
- Damages caused by incorrect operation
or handling through non-authorized per-
sons are not covered under the terms of
guarantee.
- In the event of a claim please indicate the
serial number as well as the item number
and model name with detailed description
of the fault.
- This guarantee covers defective parts
and labour but not the defects caused by
wear and tear.
In case of complaint please return the
equipment in its original packaging or other
suitable packaging (caution: danger of
transport damage) to our service depart-
ment.
Always include the completed warranty
certificate when returning equipment.
Possible shipping costs arising from the
transport to and from point of repair cannot
be overtaken by us.
Outside of Germany please contact your
specialist dealer in case of warranty claims.
Direct warranty processing with our service
department is in this case not possible.
Equipment commissioning date:
Stamp and signature of the authorized
electrician:
Please keep this address in a safe place to-
gether with the installation guide.
To help us answer your questions quickly
and competently please provide the infor-
mation printed on the type shield including
the model, item no. and serial no., in all in-
quiries.

8GB
Handling procedures for return shipments (RMA) - Details for all returns !
Dear customer
we hope that you will rejoice in the ordered articles. Just in case that you are not entirely contented as an
exeption, please follow the procedures specified below.This enabling us to ensure a quick and smooth
handling of the return shipment.
Form of complaint:
Please absolutely respect for all returns!
• Please add the available RMA-voucher always completely filled out together with an
invoice copy to the return shipment! Do not stick it on the goods or on the packaging.
We do not accept the return shipment without these papers.
• Not prepaid parcels will be refused and returned to Sender! Please always ask for the
RMA-No. for the cheapest return.
• Please pay attention that the goods have to be sent back without visible marks of
use in the original scope of delivery and in original packing.
• We recommend to use an additional solid and break-proof covering box which
should be padded out with styrofoam, paper or similar. Transport damages as a result of
faulty packing are for the sender‘s account.
2) Faulty goods
• The implied warrenty pe-
riod is 2 years.Please
contact your dealer in
case of faulty or wrong
articles or missing ac-
cessories. He will discuss
with you the individual
case and try for immediate
and customer-friendly so-
lution.
• For economic returns
within Germany you will
get an RMA-number
from the manufacturer.
• All returns have to be in
the original packing of
the goods with corre-
sponding accessories.
Please repack the goods
to avoid damages. In case
of wrong delivery, please
do not use this article !
3) Problems of installation
and functioning
• Please read the manual
carefully first of all and
pay attention to the indica-
ted assembly or installing
instructions.
• Your dealer should be
the first contact person
because he knows his
products best and also
knows possible problems.
• In case of function
problems with an arti-
cle, please check at first
whether there is an obvi-
ous material defect. The
quality system in our fac-
tory reduces malfunctions
of new appliances to al-
most zero.
.
1) Transport damage
• Please check the content
of your parcel immediately
and advise the forwarding
company of a claim (par-
cel service/ freight forwar-
der)
• Do not use damaged
goods!
• Ask the forwarder for a
written acknowledge-
ment of the damages.
• Report the claim promp-
tly by phone to your
dealer. He will discuss
with you how to act in this
case.
• If the transport box has
been damaged, please
use an additional covering
box. Do not forget to add
the acknowledgement of
the damage of the for-
warding company !
