About your new printer
Thank you for choosing an Evolis printer.
Using your new printer, you will be able to create a wide variety of high-quality cards and badges which can be printed in various
thicknesses, colours and styles. This printer uses consumables and accessories available from Evolis. For further details, visit our website at
www.evolis.com.
Warranty registration
Please register on line at www.evolis.com to receive our special offers and general information.
Once on the website, click on Drivers and Support
printer.
Getting started
The purpose of this user guide is to guide you, step by step, through your printer and how it works. Take some time to read it in order to
better understand your printer and its features, and to save time during installation and use.

emailing us at [email protected].
Contents
The bookmarks found top left of your screen can be used to navigate between the various sections in this user guide.
Icons
The following icons are used in this manual to highlight important information:
Information providing further details or depth about certain points in the main text.
Indicates that failing to take the recommended action is liable to damage your printer.
This symbol indicates that a video showing the procedure is available on the www.evolis.com website.
2

Getting started
1-1 Unpacking
Your printer is supplied with several accessories that we ask you to look at closely.
This list may vary depending on your location.
The printer is shipped in special packaging designed to prevent any damage in transit. If you notice any visible damage, do not hesitate
to contact the shipper and immediately inform your Evolis dealer, who will tell you the procedure to follow.
Evolis takes great care over the quality of its packaging and we ask that you keep this packaging somewhere clean and dry.
You will be asked for the full original packaging (outer box, inner wedges and protective bags) in the event that
the printer is returned. If the printer is returned without its original packaging and components are damaged in
transit, these components will no longer be covered by the warranty. You will be charged for new packaging
for shipping the printer back to you.
Accessories supplied with your printer:
OPower supply unit - VP ELECTRONIQUE or SWITCHBOX Type F10723-A or FDF0503-A.
OMains power cable.
OUSB cable.
OInstallation and documentation CD-ROM.
OStarter cleaning kit.
OQuick installation guide.
OWarranty notice.
OCompliance statement documentation.
If any of these components is missing, please contact your Evolis dealer.
Use only the power supply unit supplied with your Evolis printer.
VP ELECTRONIQUE or SWITCHBOX Type F10723-A or FDF0503-A.
Use only the USB cable supplied with your Evolis printer.
The Evolis printer must be placed in a dry location, protected from dust and draughts but well-ventilated. Take

1
3

1-2 Description of the printer and its functions
1
4
Control
button
End of
ribbon
CleaningNo cards
Cover
open
A- Cover opening button
B- Card input feeder
C- Output hopper
D- Control panel

1
5
E- Thermal print head
F- Ribbon
G- Control button
H- Cleaning rollers
I- Magnetic encoder (option)
J- Power cable socket
K- USB socket (std)
L- DB-9 connector (option)
M- Serial number label

1-3 Installation
1-3a CONNECTING THE PRINTER
³Connection to the power supply
The printer must be connected to a properly protected and earthed electrical installation.
FI: Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan.
NO: Apparatet må tilkoples jordet stikkontakt.
SE: Apparaten skall anslutas till jordat uttag.
Connect the power cable to the power supply unit, then plug the power
cable connector into the printer.
Next, plug the end of the power cable into an earthed power socket.
The printer is powered on, and the printer’s control panel lights up,
indicating that the printer is working properly. If the control panel does
not light, then either installation has not been carried out correctly or the
printer is not working properly. Check the installation.
Before attempting any maintenance, ensure that the power cable is always unplugged. For your personal safety,
ensure that the cable and power supply unit remain easy to access, especially in the event of an emergency.
To save energy, the printer will automatically switch itself to standby mode after 10 minutes of inactivity.
³Connecting the USB cable
Under no circumstances should you connect the USB data cable before installation of the printer driver is
complete.
Refer to the section on printer driver installation for further details, and follow the instructions carefully.
1
6

1-3b RIBBONS
Evolis original ribbons optimise your printer’s operation and avoid causing damage to it. The use of ribbons from other suppliers is liable to
damage your printer and voids the manufacturer’s warranty for the printer.
For optimum print quality, Evolis recommends that the printer is fully cleaned every time the ribbon is changed. See the Servicing and
Maintenance section of this manual.

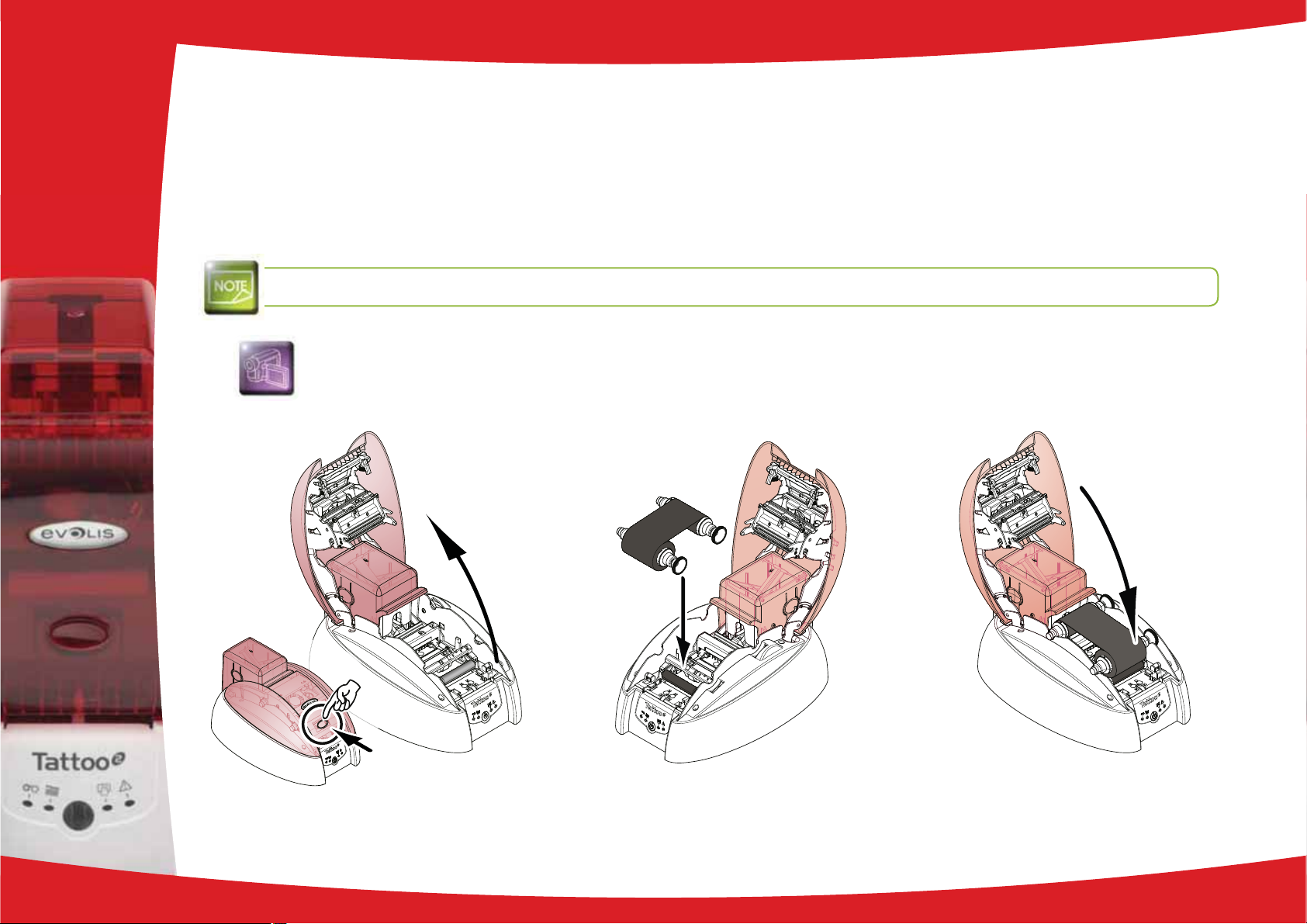

³Fitting the ribbon
Ensure that the appropriate ribbon type is selected in the print driver.
Open the cover.
Insert the ribbon as shown.
Close the cover and press until a click is heard.
1
7


1-3c CARDS

Use only the card types recommended by Evolis.
Do not touch the printable surface of the cards in order to preserve print quality.

Keep your cards protected from dust.
³Loading the cards
The printer accepts PVC cards between 0.50 mm (20 mil.) and 0.76 mm (30 mil.) thick. For optimum quality, the cards used
must meet the CR 80 standard.
There is more than one way to load and collect the cards. The print driver must be matched your requirements and choices.
Loading cards into the card feeder
Cards are loaded into the feeder as follows:
Remove the card feeder from the printer as shown.
Insert the cards in the feeder as indicated, with the side to be printed facing down.
Put the feeder back into the printer, pressing until a click is heard.
1
8


Loading a card manually
Insert a card manually into the manual card feeder. The card will automatically eject after printing.
³Removing printed cards
The printer is supplied with an output hopper with a capacity of 15 x 0.76 mm (30 mil.) cards. This hopper receives the cards once printed

1
9

Cards can be collected in two different ways:
Automatic ejection mode (in this case, use of the detachable output hopper supplied with the printer is recommended)
Manual collection mode (the card needs to be retrieved after printing).
³Adjusting card thickness
The printer is equipped with an automatic adjustment system for card thicknesses from 0.50 mm to 0.76 mm.
1
10


Printing
The information about the procedures described in this section refers to a Windows XP environment.
2-1 Installing the print driver

factor having a negative impact on the quality of card customisation. It is therefore essential to proceed in stages, changing settings only
when you are completely sure. Evolis offers the option to revert to the factory settings at any time if the adjustments made do not give
the expected results.
Your printer is delivered with a CD containing the print drivers for Windows and Macintosh platforms.
To install a print driver, insert the CD into your computer and select the print driver menu. A program will guide you through the entire
installation process.
Do not connect your USB cable to your computer until prompted to do so by the installation program.
For the connection procedure, see the section on Connecting the Printer.
Follow the installation procedure scrupulously. Some versions of Windows and Macintosh require the user to
have administrator rights to install the driver.
2
11

2-2 Managing the print settings
Before using your printer, it is essential to check and/or change the default print driver settings:
ORibbon* type
OCard type
O
O…

list of consumables.

dealer for any advice and assistance needed before making any changes.
These print settings are accessible:
OFrom the Start button found bottom-left on the Windows task bar, select Printers and faxes.
OSelect your printer and double click.
OFrom the Printer menu, select Properties.
O
O“Graphics” and “Tools”.
* does not apply to rewriteable printers
2
12

³“Graphics” tab
ORibbon* or card types
OFront/back printing
OChoice of methods for feeding and collecting cards
OCard orientation, portrait or landscape
ONumber of copies
³“Tools” tab
OSetting and testing magnetic encoding options
OTest card printing
OCleaning the printer
ODialogue interface with the printer.

such as the model and serial number which you could be asked to provide if you call technical support.
* does not apply to rewriteable printers
2
13

2-3 Printing a card

MS-Access, Ms-Excel, MS-PowerPoint).

³In Microsoft®Word
After having set the Evolis printer as the default:
OStart the MS-Word application
OClick on the File in the menu bar, then on Page Setup
OThe Paper tab has a Paper Size option, select CR80 Card
OIn the Margins tab, set all margins to ‘0’, then in the Orientation section, select Landscape.
OClose the window by clicking OK.
Your Word window should now look like this:
You are ready to customise your card by adding the various items that go to make
up a card:
OLogo and Illustration
O
OFixed and variable text
OBar code, etc.
Once ready, click on File and then on Print.
2
14

2-4 Connecting to a network (Ethernet)
              
depending on the model in the range.


in order to comply with the constraints imposed by the corporate LAN:
OPrinter connected in a subnet, in DHCP
O
O

OBy its hostname (NETBIOS)
OBy its IP address.

OThe printer’s IP address
OSubnet mask
OGateway
OWINS server.

genuine technical knowledge may result in a malfunction of the printer, and may even extend to a more
widespread failure of all or part of the LAN. Contact your System and Network Administrator before connecting
to or changing the settings for your local area network.

2
15

Maintenance
3-1 General warranty information
Your Evolis printer has been designed to give you long service and needs only minimal regular maintenance. Please comply with the
instructions given below to ensure that it runs satisfactorily.
Keep your warranty cover!

and in particular the printer cleaning cycles.
Any failure to follow the maintenance and servicing procedures described in this section voids the print head warranty.
Evolis declines any liability where there has been a failure to carry out required maintenance on the printer.
The print head is a wearing part and an extremely sensitive printer component. Its useful life can be seriously curtailed by the presence of
dust, liquids or solids in the printer’s immediate environment, on the print head or on the cards. Users must take all necessary precautions
to insert only clean cards, free of dust deposits or foreign bodies, into the machine.
The frequency and quality of cleaning are decisive factors enabling users to extend the print head’s useful life and to ensure excellent
print quality. Particular care must therefore be taken with cleaning. Users must comply with the servicing and maintenance instructions
as fully described in this section.
In addition, the use of Evolis brand ribbons (Evolis Genuine Ribbons) also ensures that your equipment operates properly. Use of ribbons
not approved by Evolis may as a consequence affect the quality and reliability of print jobs, produce low quality printed output and
even affect the printer’s operation. The manufacturer’s warranty does not cover physical damage or quality problems caused by using
non-Evolis approved ribbons*.
Evolis provides replacement parts and consumables that you can refer to within this user guide or by visiting the website at www.evolis.
com.
* does not apply to rewriteable printers
3
16

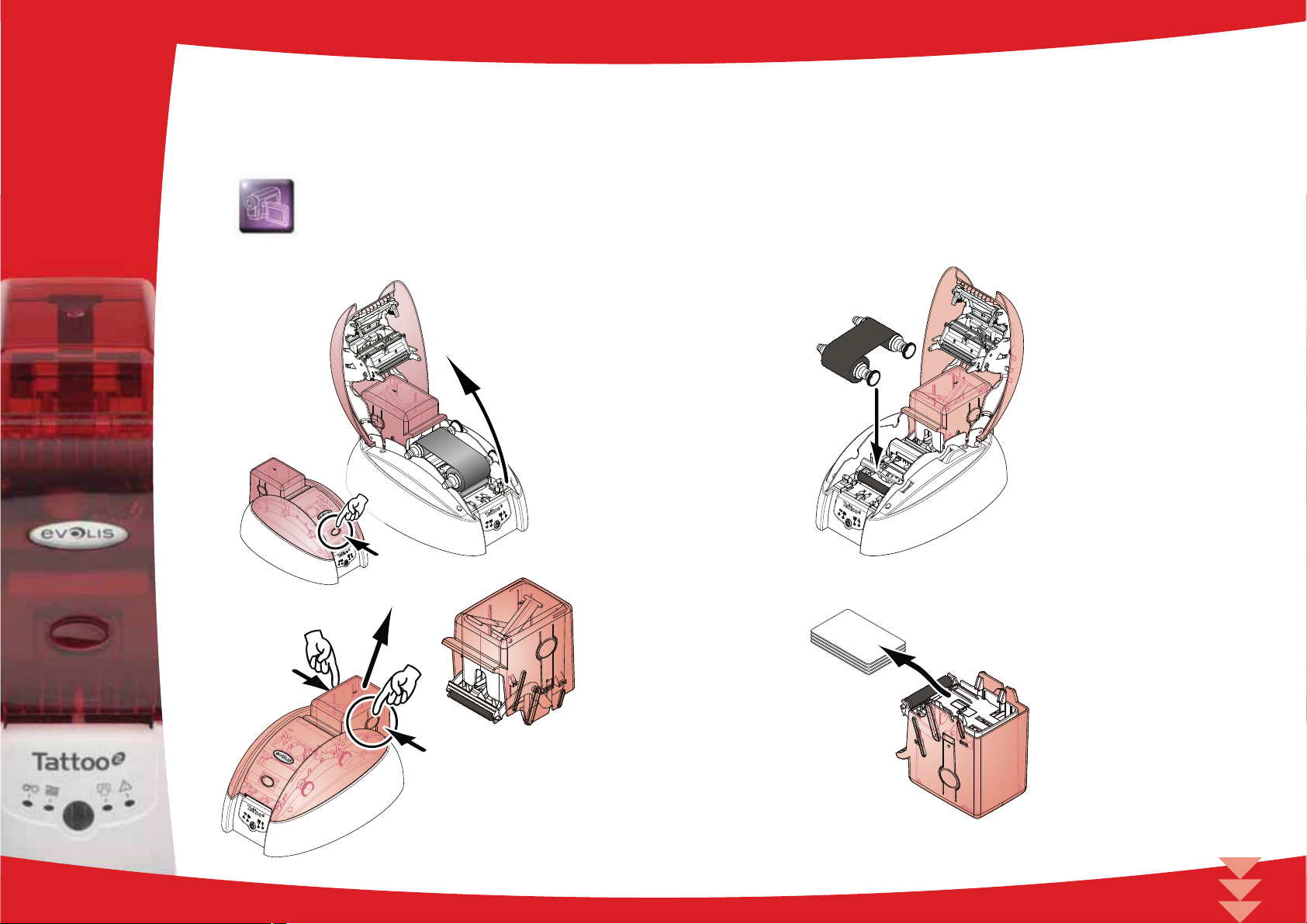

3-2 Routine printer cleaning
The print head warranty is directly linked to routine cleaning of your printer.
If you do not carry out this cleaning at the required times, the print head warranty will cease to be valid.
Recommended cleaning cycle: whenever the ribbon is changed
Mandatory cleaning cycle: when the cleaning warning is triggered
Servicing accessory: cleaning card

been inserted, depending on the model of printer that you have (see table below).
You should proceed with the routine cleaning of your printer as soon as the warning is triggered.

will be automatically voided owing to a failure to comply with your contractual maintenance obligations.
So for example for a Tattoo2 printer, if you insert 50 cards after the cleaning warning is triggered, you have only 50 more cards before
cleaning the printer and keeping your warranty valid.
* does not apply to rewriteable printers
Printer Cleaning required after:
(warning light steady)
Number of cards remaining
before warranty voided
(warning light steady)
Warranty invalid after:

Tattoo2 400 cards 100 cards 500 cards
Tattoo RW 400 cards 100 cards 500 cards
Pebble4 1000 cards 200 cards 1200 cards
Dualys3 1000 cards 200 cards 1200 cards
Securion 800 cards 200 cards 1000 cards
Quantum 900 cards 700 cards 1600 cards
3
17

Follow the procedure below:
Repeatedly running the cleaning card through the printer cleans the feed rollers, the cleaning rollers and the print head.
Open the cover.
Remove the ribbon as shown on the diagram then close the cover again.
Remove the card feeder from the printer.
Remove any cards found in the feeder.
3
18





Insert the cleaning card into the feeder.
Put the feeder back into the printer, then press on the upper section of the feeder until it clicks.
Hold down the control button on the control panel for one second. Cleaning starts.
The used cleaning card is ejected into the output hopper.
Wait for 2 minutes after cleaning before using your printer.
3
19



