1 User instructionsEnglish
Valve terminal type CPV..-GE-ASI-8E6A-Z has been de
signed exclusively for controlling pneumatic actuators and
is intended for use in bus systems in accordance with the
AS-Interface specification 2.1. If additional commercially-
available components such as sensors and actuators are
connected, the specifiedlimits for pressures, tempera
tures, electrical data, torques, etc. must not be exceeded.
AS-Interface bus systems and valve terminals may only be
installed by personnel especially trained for this purpose.
Detailed information on the design and addressing of your
bus system can be found in the manual for your AS-Inter
face master.
Information on the pneumatic components of the valve ter
minal can be found in the Pneumatics manual P.BE-CPV-... .
Warning
SSwitch off the power supply before connecting or
disconnecting plugs (otherwise this could lead to
functional damage).
SConnect the earth connection on the left end plate
with low impedance (short cable with large cross-sec
tional area) to the earth potential.
SCommission only a valve terminal which has been
fitted and wired completely.

Festo CPV10/14-ASI-8E6A 2018-11b English4
2 Connecting and display elements
123 4 5
6
7
8
9
aJaB aA
1AS-Interface bus connection
2Earth/ground connection
3Type plate
4LED status display for inputs (green)
5Address selector button with LED
(red)
6Sensor connections (PNP)
7Inscription fields for addresses
8LED status display for
valves (yellow)
9Valve plates slave 2
aJ Valve plates slave 1
aA Load voltage connec
tion for valves
aB PWR LED (power,green),
Fault LED (fault, red)
PWR LED Fault LED Meaning
on
off
flashes
on
on
off
off
on
flashes
on
AS-Interface voltage applied, no fault
No AS-Interface voltage on the bus
AS-Interface address not set ( = 0)
Short circuit / overload at the inputs or
address selector switch actuated
Bus communication failed (watchdog expired)

Festo CPV10/14-ASI-8E6A 2018-11b English 5
3 Installation instructions
3.1 AS-Interface Addresses
Before connecting to the AS-Interface bus: assign an un
used address to each slave.
Please note
‒ The valve terminal type CPV..-GE-ASI-8E8A-Z contains
2 AS-Interface slaves. The valve terminal behaves on
the AS-Interface bus like two individual valve ter
minals each with 4 inputs and 3 outputs (valve sole
noid coils).
Assignment of the inputs and outputs (valves):
– Slave 1: Inputs I0...I3; outputs O0...O2
– Slave 2: Inputs I4...I7; outputs O4...O6.
‒ Automatic addressing with the function “Automatic
address assignment” of the master is not possible.
‒ It is not necessary to parametrize the AS-Interface
slave.
Address assignment
The assignment of the data bits to the inputs and outputs
of the slave shows the following figure:
Slave 1: IO code 7HSlave 2: IO code 7H
D0 D1 D2 D3
I/O I/O I/O I/O
I0 I1 I2 I3
O0 O1 O2 –
Inputs:
Outputs:
Data bits: D0 D1 D2 D3
I/O I/O I/O I/O
I4 I5 I6 I7
O4 O5 O6 –
E/A = bi directional (B)
The address mapping depends on the configuration of the
master.

Festo CPV10/14-ASI-8E6A 2018-11b English6
3.2 Assigning the AS-Interface addresses
Please note
Addressing valve terminal type CPV..-GE-ASI-8E6A-Z is
only permitted with addressers as per specification 2.1.
Other addressers do not permit clear access to the
slaves and in some cases overwrite the ID1 codes.
Recommendation: Use the Festo addresser type ASI-PRG-
ADR with adapter cable type KASI-ADR.
Factory setting: Slave 1: address #1, A slave
Slave 2: address #1, B slave
The addressing device scans the existing slaves in the
AS-Interface network.
SAssign the desired addresses to the two slaves one
after the other.
Operation with AS-Interface masters < Spec. 2.1
Operation with AS-Interface masters < Spec. 2.1 is possible
but both slaves must be programmed as A slave.
Recommendation: For operation with AS-Interface masters
< Spec. 2.1 use valve terminal type CPV..-GE-ASI-8E8A-Z
instead of CPV..-GE-ASI-8E6A-Z.

Festo CPV10/14-ASI-8E6A 2018-11b English 7
Address selector button
If the same address is assigned to both slaves, no clear
access to the slaves is possible.
In this case slave 1 can be disconnected from the AS-Inter
face bus with the aid the address selector button. You can
unlock the pushbutton by pressing it. Slave 1 will then be
disconnected from the AS-Interface bus. If the AS-Inter
face bus voltage is applied, the address selector LED will
light up to indicate that slave 1 has been disconnected
from the AS-Interface.
Please note
The red address selector LED must not light up when
the valve terminal is operated.
If the adress selector button has been unlocked:
Before connecting the valve terminal to the AS-Inter
face bus, therefore always lock the address selector
button by pressing it again.
3.3 Address assignment of the valves
During addressing, valve terminal CPV..-GE-ASI-8E6A-...
behaves like two individual slaves each with 4 inputs and
3 outputs (see sections 3.1 and 2).

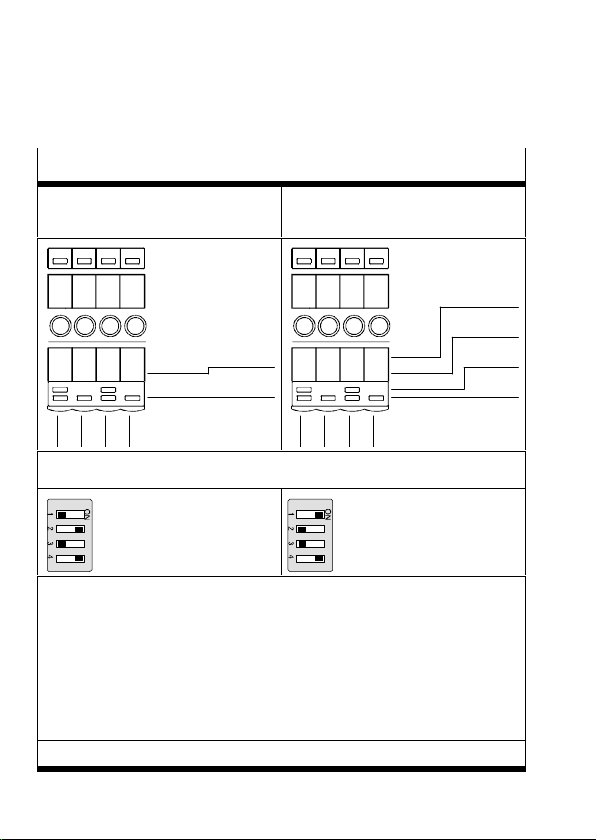

The following fittings are possible for the two valve
terminal halves:

Festo CPV10/14-ASI-8E6A 2018-11b English8
Fitting valve locations 1 to 4 or 5 to 8
3 single-solenoid valves 1 double-solenoid valve,
1 single-solenoid valve
[J 1 2
7776
3
3
[J
1
2
5676
3
3
4
4
Permitted DIP switch setting (see 3.7)
1: OFF
2: ON
3: OFF
4: ON
1: ON
2: OFF
3: OFF
4: ON
[J ... 2Addresses of the solenoid coils for AS-Interface address n/m
3Addresses or LEDs of the solenoid coils 14
4Addresses or LEDs of the solenoid coils 12
5Valve plates with 2 valve solenoid coils, like 2 single-solenoid
valves, 5/2-way double-solenoid valves or 5/3-way valves
(e.g. code J, N, C, H, G, D, I, E) *)
6Only blanking or separator plate permitted (e.g. code L, S, T)
7Valve plates with 1 valve solenoid coil (e.g. code M, F, A) *)
*) or blanking or separator plate

Festo CPV10/14-ASI-8E6A 2018-11b English 9
3.4 Connecting sensors (PNP inputs)
For connecting sensors use cable type KM8-M8-GSGD-...
and plugs with union nut, M8x1 thread.
Fasten the plugs with the aid of the union nut in order to
prevent unintentional loosening, e.g. due to shock. Seal
unused sensor connections with the protective caps type
ISK-M8. Only in this way can you comply with protection
class IP65.
Please note
The inputs are resistant to short circuits. If a short cir
cuit occurs, the slave will be switched off. The AS-Inter
face master regards this slave as missing. When the
short circuit is eliminated, the slave registers immedi
ately as capable of functioning.

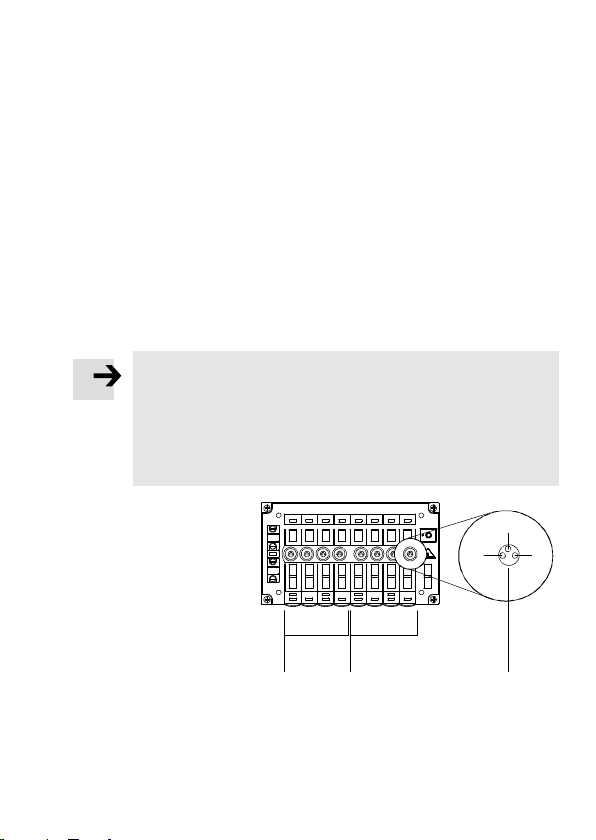

1Inputs of the first
slave
2Inputs of the second
slave
3Pin assignment:
1: 24 V
3: 0 V
4: Input Ix
01234567
12 3
1
4
3

Festo CPV10/14-ASI-8E6A 2018-11b English10
3.5 Connecting the AS-interface bus and the load voltage
Please note
The sensor power supply for the inputs is provided via
the AS-Interface bus.
The power supply for the valves (outputs) is provided
by the additional supply: The valves must be supplied
separately with 24 V via the load voltage connection.
The AS-Interface has an integrated watchdog function
which resets the outputs if there is a bus communica
tion failure.
Warning
Use power supplies which guarantee reliable electrical
isolation of the operating voltage as per IEC/DIN EN
60204-1. Consider also the general requirements for
PELV circuits in accordance with IEC/DIN EN 60204-1.
By the use of PELV circuits, protection against electric
shock (protection against direct and indirect contact) is
guaranteed in accordance with IEC/EN 60204-1 (Electri
cal equipment for machines, General requirements).

Festo CPV10/14-ASI-8E6A 2018-11b English 11
Please note with branch lines:
– the total maximum length of the AS-Interface bus:
100 m (without repeater/extender).
– the cable length of the load voltage connection
(depends on the current consumption of the valve ter
minal and the fluctuations in the load voltage).

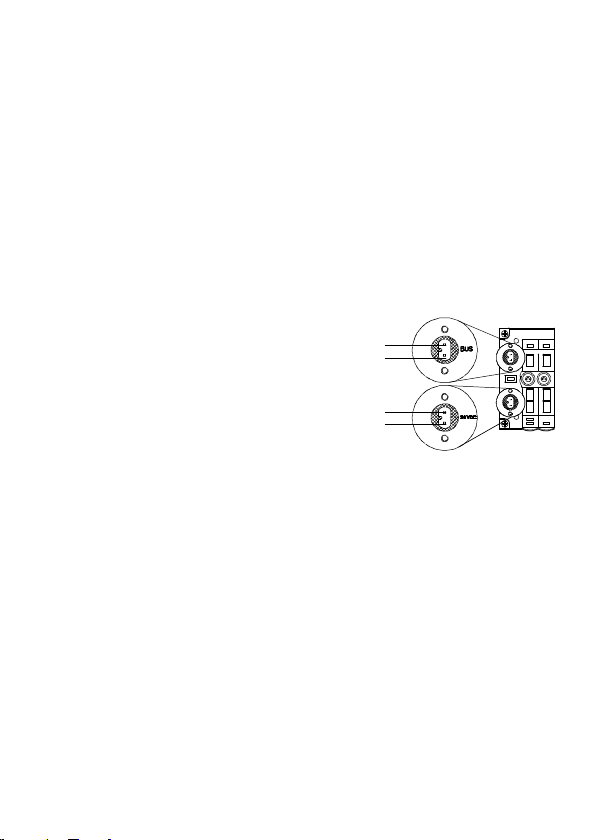

Pin assignment “Bus” (yellow cable):
1Pin 2: AS-Interface + (brown)
2Pin 1: AS-Interface - (light blue)
Pin assignment “24 V DC” (black cable):
3Pin 2: +24 V (brown)
4Pin 1: 0 V (blue)
01
1
2
3
4
For connecting the valve terminal use the Festo cable
sockets type ASI-SD-FK... . You will then comply with
protection class IP65. Proceed as follows:
1. Press the AS-Interface cable into the upper part of the
cable socket.
2. Make sure that the cable is free of tension.
3. Place the cable socket in position and screw it tight
(max. 0.3 Nm).
Seal open flat cable ends with the Festo cable cap type
ASI-KK-FK or the cable sleeve type ASI-KT-FK. In this way
you will avoid leakage currents and comply with protection
class IP65.

Festo CPV10/14-ASI-8E6A 2018-11b English12

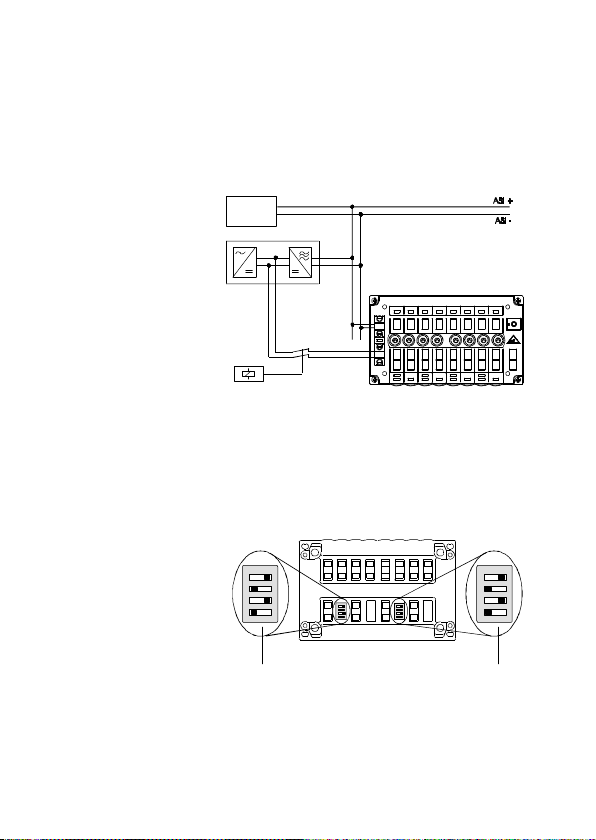

3.6 Connection example – valve terminal type 10
1AS-Interface master
2Combination power
supply from Festo
(electronically safe
guarded/short-
circuit proof)
3Load voltage can
be switched off
01234567
1
2
3
3.7 Converting the valve terminal
The CPV valve terminal can be fitted with double-solenoid
and/or single-solenoid valves. During conversion, the new
valve terminal configuration must be set on the DIP
switches on the bottom of the electric sub-base.
1DIP switch 1:
Valve locations
1 to 4 (slave 1)
2DIP switch 2:
Valve locations
5 to 8 (slave 2)
ON
1234
ON
1234
1 2
Instructions on removign the electric sub-base can be
found in the Pneumatics Manual. The permitted valve com
binations as well as the relevant DIP switch settings can be
found in the table in section 3.3.

Festo CPV10/14-ASI-8E6A 2018-11b English 13
4 Technical specifications
Type CPV...-GE-ASI-8E6A-Z M8
General technical specifications See Pneumatics manual
P.BE-CPV-...
Protection class according to EN60529
plug connector inserted or provided with
protective cap
IP65
Relative humidity 95 %, non-condensing
Electromagnetic compatibility
– EMC interference emission
– EMC resistance to interference
See declaration of
conformity
èwww.festo.com
AS-Interface data
– ID code
– ID1 code 1)
– ID2 code
– IO code
– Profile
ID = AH
ID1 (A slave) = 7H
ID1 (B slave) = FH
ID2 = EH
IO = 7H
S-7.A.E
1) Factory setting: Slave 1 = address #1, A slave (ID1 = 7H)
Slave 2 = address #1, B slave (ID1 = FH)

Festo CPV10/14-ASI-8E6A 2018-11b English14
Type CPV...-GE-ASI-8E6A-Z M8
AS-Interface bus connection
– Voltage range (protected against incorrect
polarity)
– Residual ripple
– Max. current consumption
– all inputs 0-status
– all inputs 1-status, no current
consumption by sensors (e.g. switches)
– all inputs in 1-status, max. current
consumption by sensors 1)
26.5 ... 31.6 V DC
≤ 20 mVpp
CPV10-... CPV14-...
40 mA 40 mA
96 mA 96 mA
278 mA 278 mA
Load voltage connection
– Rated value (protected against incorrect
polarity)
– Residual ripple
– Current consumption for 8 valves
– when switched on (26.4 V) 2)
– when switched on (20.4 V) 2)
– after current reduction (stationary; 26.4 V)
– after current reduction (stationary; 20.4 V)
21.6 ... 26.4 V DC
4 Vpp
CPV10-... CPV14-...
150 mA 233 mA
120 mA 158 mA
53 mA 75 mA
68 mA 90 mA
Valves (see Pneumatics manual) Watchdog function
active after approx.
40 ... 100 ms (see
3.5)
Digital inputs
– Design
– Logic level
– Reference potential
– Response delay
8 digital inputs
based on IEC 1131-2
type 2
24 V DC, PNP,
Status display (LED)
ON: 11 ... 30 V
OFF: -30 ... 5 V
0 V
typ. 3 ms (at 24 V)
1) e.g. per input 30 mA, incl. 7 mA for input circuit
2) for max. 30 ms all valve coils switched simultaneously
