User Manual for Handheld Pulse Oximeter
I
Instructions to User
Dear Customer,
Thank you for purchasing this quality product. Please read the
manual very carefully before using this device.Failure to follow
these instructions can cause measuring abnormality or damage to
the Oximeter.
No part of this manual may be photocopied, reproduced or
translated into another language without the prior written
consent. We reserve the right to revise and amend it at any time
without prior notice.
Version of the Manual: Ver 1.2
Issued Date: November 17, 2023
All rights reserved.
Notes:
⚫The contents contained in this manual are subject to change
without prior notice.
⚫Information furnished by Creative is believed to be accurate
and reliable. However, no responsibility is assumed by Creative
for its use, or any infringements of patents or other rights of
third parties that may result from its use.
3502-1290166

User Manual for Handheld Pulse Oximeter
II
Instructions for Safe Operation
Check the device to make sure that there is no visible damage
that may affect user’s safety and measurement performance. It
is recommended that the device should be inspected minimally
before each use. If there is obvious damage, stop using the
device.
Necessary service must be performed only by qualified
technicians. Users are not permitted to service this device.
The oximeter must not be used with the devices and accessories
not specified in User Manual.
Warnings
Explosive hazard—DO NOT use the oximeter in
environment with inflammable gas such as some ignitable
anesthetic agents.
DO NOT use the oximeter while the Patient is under MRI or
CT scanning. This device is NOT MRI Compatible.
Cautions
Discomfort or pain may occur if using the sensor of this
device continuously on the same location for a long time,
especially for the patients with poor microcirculation. It is
recommended that the Oximeter should not be applied to
the same location for longer than 2 hours or less if any
abnormal condition is found. Frequently check and
re-position the Oximeter sensor.
Misapplication of a SpO2probe with excessive pressure for
prolonged periods can induce pressure injury.
Clip the SpO2probe on the measuring site tightly will cause
venous pulse and effect blood circulation, and lead to
interstitial edema, hypoxia and inaccurate measurement.

User Manual for Handheld Pulse Oximeter
III
Biocompatibility tests have been performed on all the
applied parts, some exceptional allergic patients may still
have anaphylaxis. Do not apply to those who have
anaphylaxis.
For the individual patients, there should be a more prudent
inspecting in the placing process. The sensor can not be
placed on the edema and tender tissue.
The local law should be followed when disposing of the
expired device or its accessories.
DO NOT operate in the environment where strong
electro-magnetic interference exists, such as radiogram,
television, radiophone, etc.
Please pay attention to the SpO2probe cable while using to
avoid strangulating patient.
Notes
☞Keep the oximeter away from dust, vibration, corrosive
substances, explosive materials, high temperature and
moisture.
☞If the Oximeter gets wet, please stop operating it and do not
resume operation until it is dry and checked for correct
operation. When it is carried from a cold environment to a
warm and humid environment, please do not use it
immediately. Allow at least 15 minutes for the Oximeter to
reach ambient temperature.
☞DO NOT operate the button on the front panel with sharp
materials or sharp point.
☞DO NOT use high temperature or high pressure steam
disinfection on the oximeter and probes. Refer to related
chapter for instructions regarding cleaning and disinfection.
☞The intended use of this device is not for therapy purpose.

User Manual for Handheld Pulse Oximeter
IV
☞The equipment is IP22 with protection against harmful solid
foreign objects and ingress of liquid. So that means the
equipment is protected against solid foreign objects of
12.5mm and greater, and protected against vertically falling
water drops when enclosure tilted up to 15°.
☞Please pay attention to the effects of lint, dust, light (including
sunlight), etc.

User Manual for Handheld Pulse Oximeter
V
Table of Contents
1 Overview................................................................................. 1
1.1 Appearance .......................................................................... 1
1.2 Product Name and Model .................................................... 4
1.3 Structure .............................................................................. 4
1.4 Features................................................................................ 4
1.5 Intended Use........................................................................ 4
1.6 Working Environment .......................................................... 5

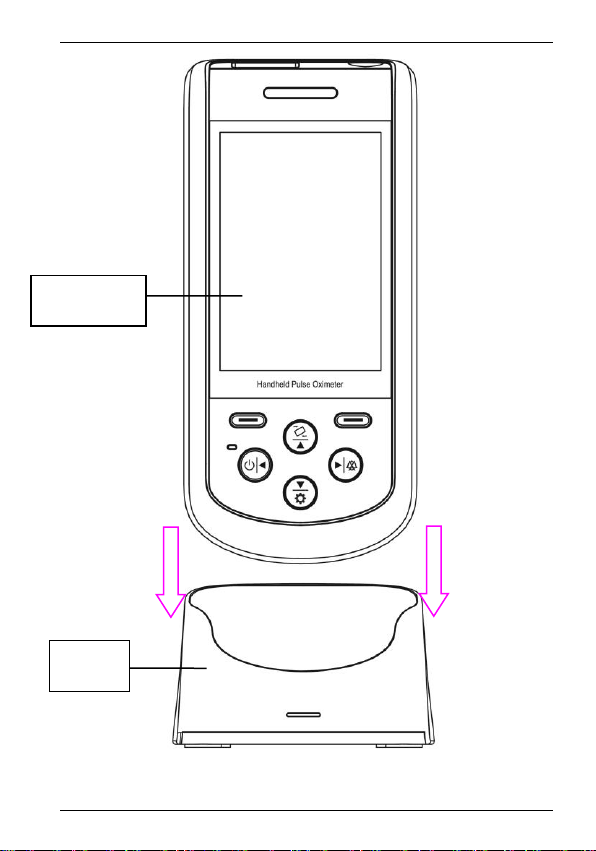

2 Power Supply .......................................................................... 5

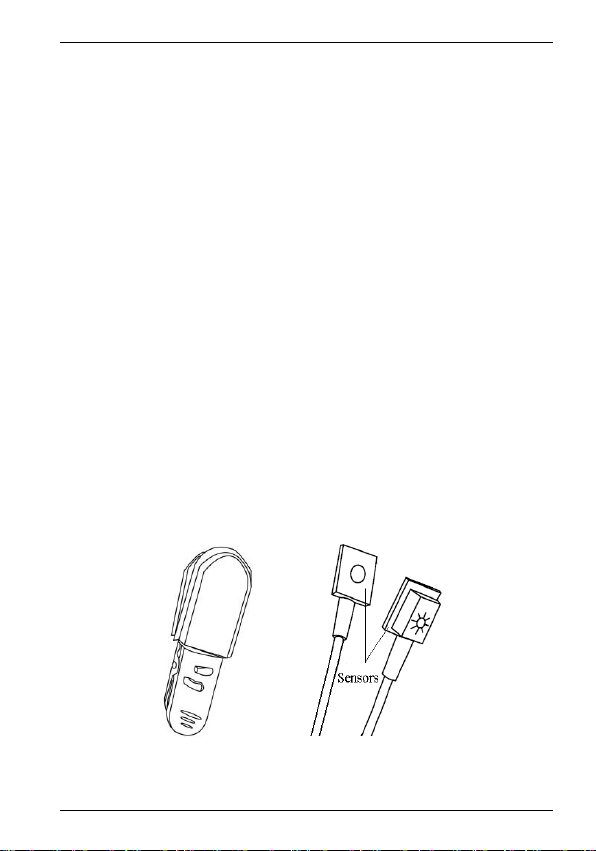

3 SpO2Sensor Connection .......................................................... 9
3.1 Choose SpO2Sensor Adapter ............................................... 9

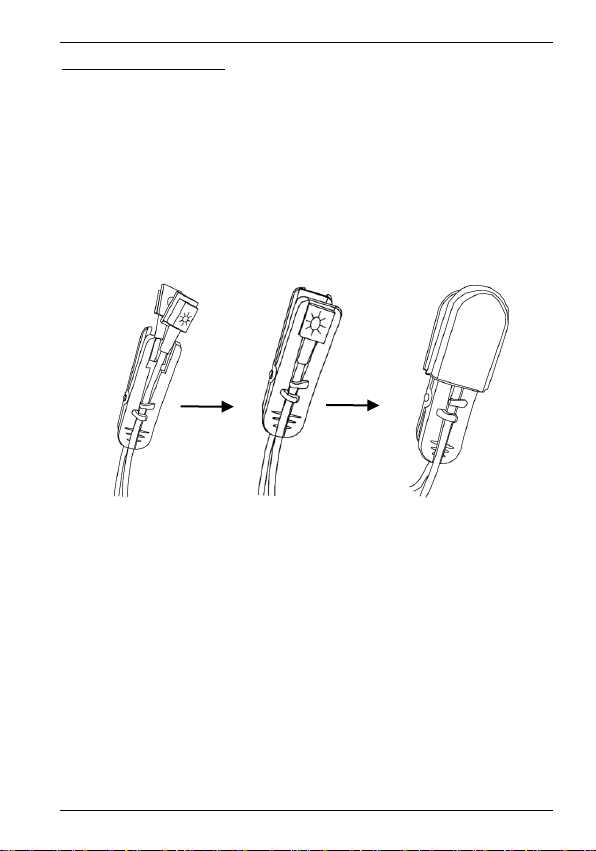

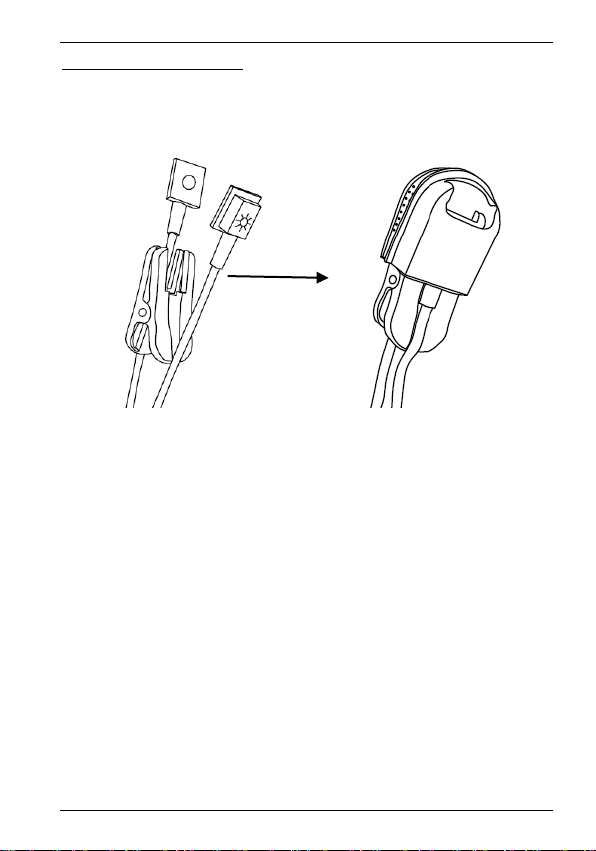

3.2 Install Sensor Adapter onto SpO2Sensor ............................. 9

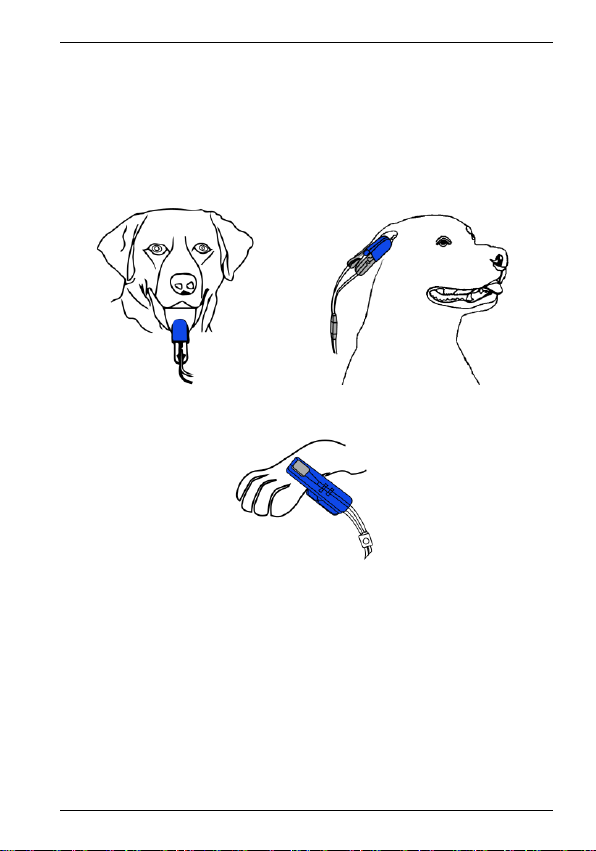

3.3 Placement of Veterinary SpO2Sensor ................................ 11
3.4 Tips for SpO2Monitoring.................................................... 12
3.5 SpO2 Measurement ............................................................ 13
4 Operation.............................................................................. 15
4.1 Power on/off the Oximeter ................................................ 15
4.2 Default Display Screen........................................................ 16
4.3 Menu.................................................................................. 19
4.4 Record ................................................................................ 30
5 Technical Specifications ......................................................... 35
6 Over-limit Indication.............................................................. 38
6.1 Limit settings...................................................................... 38
6.2 Over-limit indication sound mute setting........................... 38
7 Packing List............................................................................ 40
8 Repair and Maintenance........................................................ 40
8.1 Maintenance ...................................................................... 40

User Manual for Handheld Pulse Oximeter
VI
8.2 Cleaning and Disinfecting Instruction................................. 41
9 Troubleshooting .................................................................... 42
Appendix.................................................................................. 45
I Key of Symbols ....................................................................... 45
II Common Knowledge ............................................................. 47
Quality Inspection Certificate ................................................... 50

User Manual for Handheld Pulse Oximeter
1
1 Overview

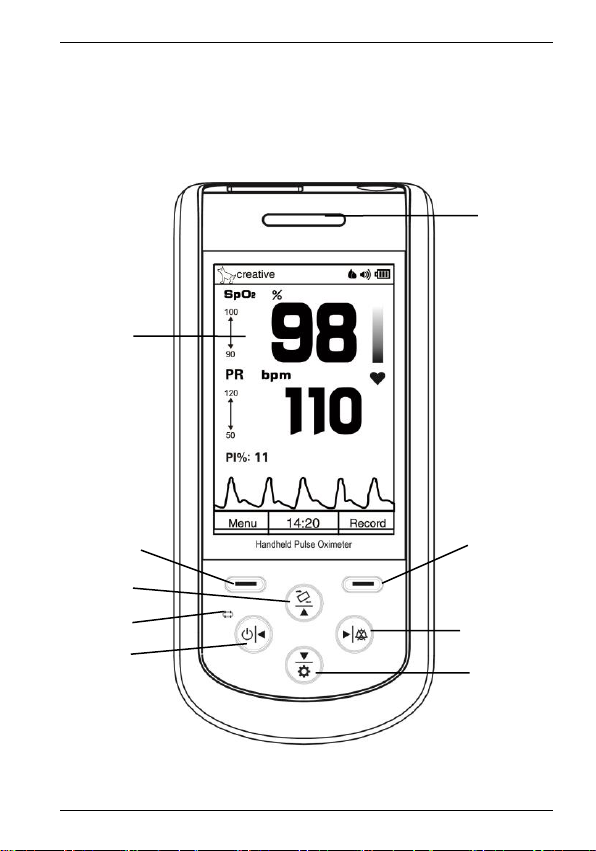

1.1 Appearance
Power/Left
Right/Sound
Display screen
Figure 1.1 Front View
Auto-rotate /Up
Setting/Down
Alert
indicator
Menu/Confirm
Record/Back
Power indicator

User Manual for Handheld Pulse Oximeter
2
1. Display screen: Display measurement result, trends and menus.
2.(Power/Left): Power on/off the device by longtime
pressing; On menu or sub-menu screen, short time press it to
move the cursor left or adjust the parameter values.
3. (Right/Sound): On data recall screen, longtime press this
key, then the delete dialog pops up; On measuring screen,
longtime press it to disable or enable the global sound.
On measuring screen, if the global sound is enabled, and alert
event occurs, then short time press it to perform audible alert
reset (that’s to say, to alert sound will be mute). When the current
alert event ends or a new type of alert event occurs, then status of
audible alert reset will be ended (that’s to say, the alert sound will
be generated again when an alert event occurs). On menu or
sub-menu screen, short time press it to move the cursor right or
adjust the parameter values.

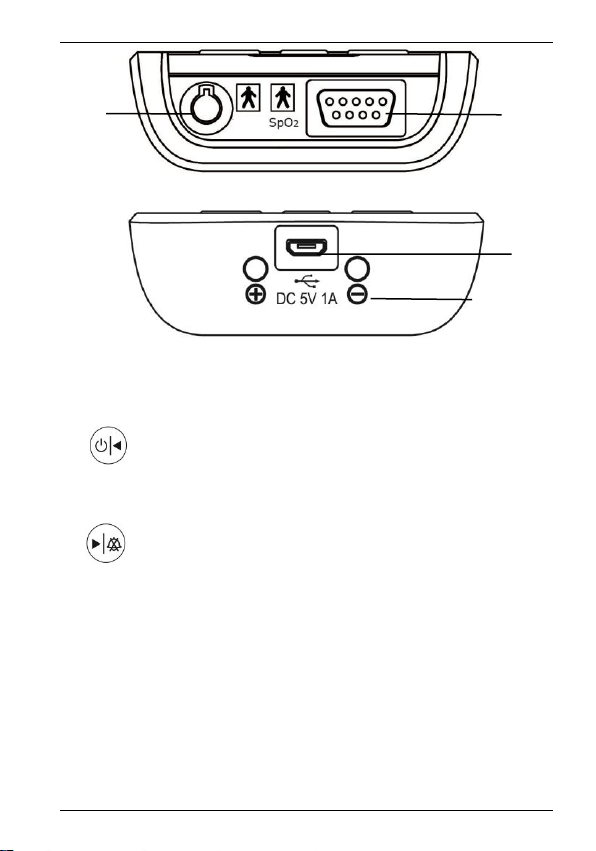

Figure 1.2 Upper-side view
Figure 1.3 Bottom side view
SpO2:
SpO2 probe
connector
Reserved for
future use
DC power input
contact shoes with
polarity indication
USB
connector

User Manual for Handheld Pulse Oximeter
3

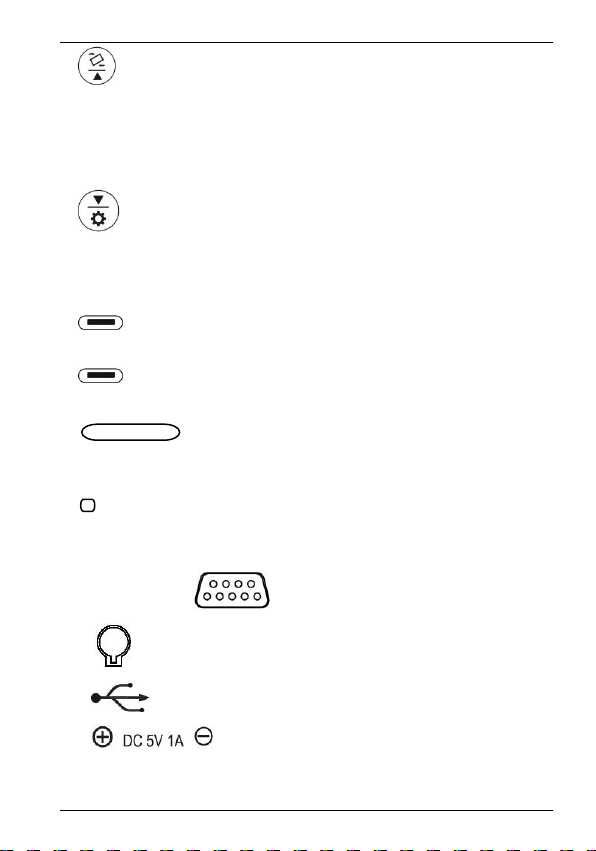

4. (Auto-rotate/Up): On measuring screen, longtime pressing
to enable or disable the automatic screen orientation (on
horizontal or vertical direction); On menu or sub-menu screen,
short time press it to move the cursor upwards or adjust the
parameter value.
5. (Setting/Down): On measuring screen, longtime pressing
to enter into setting screen; On menu or sub-menu screen, short
time press it to move the cursor downwards or adjust the
parameter value.
6. (Menu/Confirm): Short time press it to enter into menu
screen, or to confirm the selection.
7. (Record/Back): Short time press it to enter into SpO2
record list screen, or to back to the previous level of menu.
8. (Alert indicator): If the probe is not well placed or
disconnected, or the measured value exceeds the preset alert limit
value, then the alert indicator will flash with orange color.
9. (Power saving mode indicator): If the device is set as power
saving mode, then the indicator lights up. And on measuring
screen, the indicator flashes with the pulse beep.
10. Icon: "SpO2"( ): SpO2Probe Connector.
11. Reserved for future use.
12.( ): USB connector. Used for data uploading or charging.

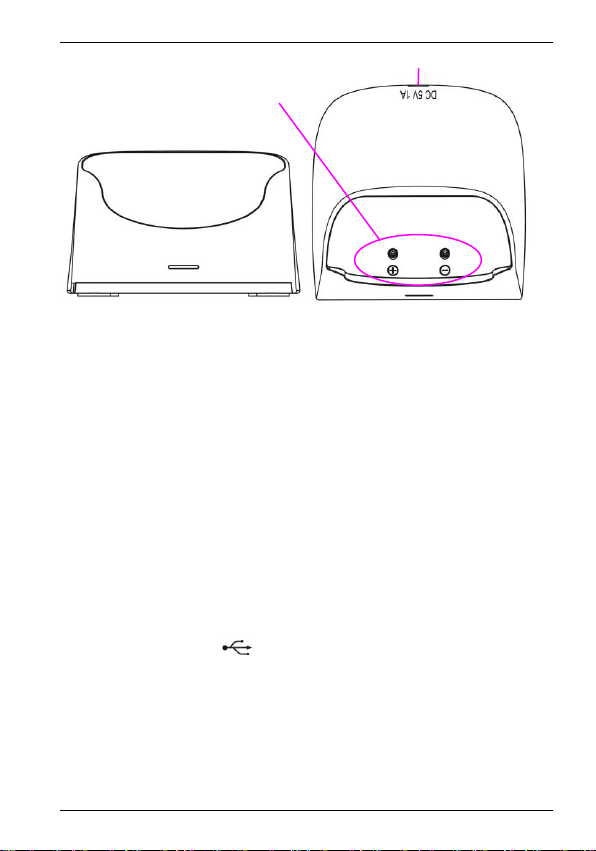

13.( ): DC power input contact shoes with polarity
indication. Used for connecting external DC power input for
charging the built-in rechargeable battery via the base.
