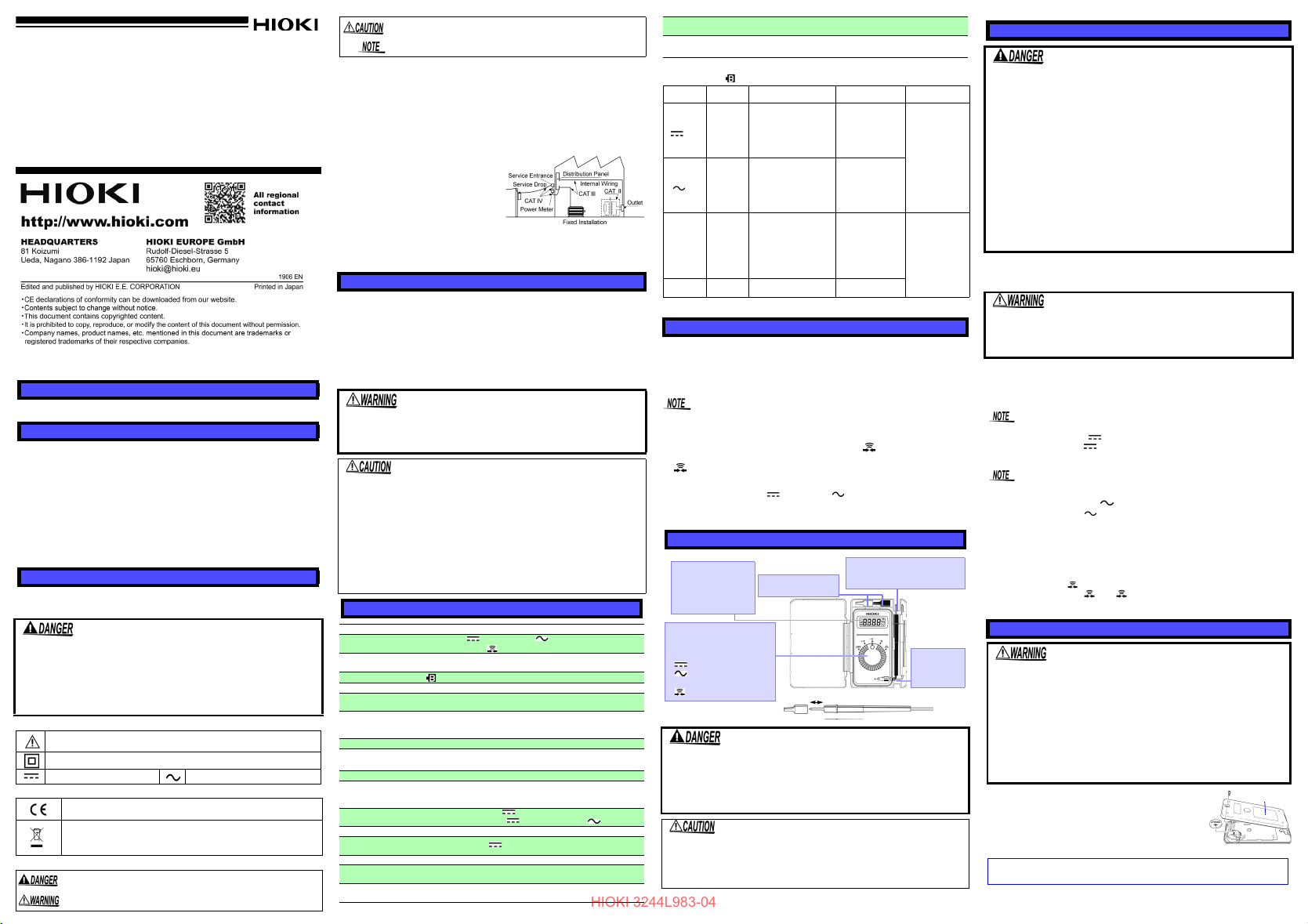

Introduction
Thank you for purchasing the Hioki 3244-60
CARD HiTESTER. To obtain maximum performance
from the instrument, please read this manual first, and keep it handy for future reference.
The 3244-60 is a card-shaped digital multimeter designed to measure DC/AC voltage and resis-
tance, and Continuity check.
Initial Inspection
When you receive the instrument, inspect it carefully to ensure that no damage occurred during
shipping. If damage is evident, or if it fails to operate according to the specifications, contact your
dealer or Hioki representative.
Maintenance and Service
• To clean the instrument, wipe it gently with a soft cloth moistened with water or mild deter-
gent. Never use solvents such as benzene, alcohol, acetone, ether, ketones, thinners or
gasoline, as they can deform and discolor the case.
• If the instrument seems to be malfunctioning, contact your dealer or Hioki representative.
• Pack the instrument so that it will not sustain damage during shipping, and include a
description of existing damage. We cannot accept responsibility for damage incurred
during shipping.
• To avoid corrosion from battery leakage, remove the battery from the instrument if it is
to be stored for a long time.
This manual contains information and warnings essential for safe operation of the instrument and
for maintaining it in safe operating condition. Before using it, be sure to carefully read the following
safety precautions.
Safety Symbols
Symbols for Various Standards
The following symbols in this manual indicate the relative importance of cautions and warnings.
Measurement categories
This product complies with CAT III (300 V), CAT II (600 V) safety requirements.
To ensure safe operation of measurement products, IEC 61010 establishes
safety standards for various electrical environments, categorized as CAT II to
CAT IV, and called measurement categories.
CAT II: Primary electrical circuits in equipment connected to an AC electrical
outlet by a power cord (portable tools, household appliances, etc.)
CAT II covers directly measuring electrical outlet receptacles.
CAT III: Primary electrical circuits of heavy equipment (fixed installations) con-
nected directly to the distribution panel, and feeders from the distribution
panel to outlets.
CAT IV: The circuit from the service drop
to the service entrance, and to the
power meter and primary overcur-
rent protection device (distribution
panel).
Using a measurement instrumentin an
environment designated with a higher-
numbered category than that for which the
instrument is rated could result in a severe
accident, and must be carefully avoided.
Use of a measurement instrument that is not CAT-rated in CAT II to CAT IV
measurement applications could result in a severe accident, and must be care-
fully avoided.
Follow these precautions to ensure safe operation and to obtain the full benefits of the various func-
tions.
Preliminary Checks
• Before using the instrument the first time, verify that it operates normally to
ensure that no damage occurred during storage or shipping. If you find any
damage, contact your dealer or Hioki representative.
• To prevent an electric shock accident, confirm that the white portion (insulation
layer) inside the cable is not exposed. If a color inside the cable is exposed, do
not use the cable. Using the instrument in such conditions could cause an elec-
tric shock, so contact your dealer or Hioki representative for repair.
Accuracy
Accuracy is guaranteed for 1 year at 23
°
C±5
°
C, 80% RH or less, and no condensation.
Battery low display is off.
*1: Input impedance *2: Frequency range *3: Open terminal voltage
*4: Threshold level (buzzer sound) *5: rdg. Displayed value, dgt. Resolution
Auto Power Save Function
• This function automatically switches to the power save state when 30 min-
utes have elapsed since the last operation.
• The auto power save function is activated automatically when the power is
turned on. To restore from the auto power save state, turn the function switch
to the OFF position once.
To Disable Auto Power Save
1. Move the function switch from the OFF position to the (continuity check) position
before all display segments appear.
2. While all display segments appear (about one second), move the function switch from
to Ω.APS →OFF is displayed, and the Auto Power Save function is disabled. Turn-
ing the function switch momentarily OFF and then back on reactivates Auto Power Save.
Auto-range Function
When measuring a DC voltage [ V], AC voltage [ V], or resistance [
Ω
], the measurement
range is automatically set to the most appropriate range. Manual range setting is not possible.
Overflow Display
When the input exceeds the measurement range, "
OF
" is displayed.
]
Pre-Operation inspection
To avoid the possibility of electric shock or incorrect measurement, check the following items before
using the instrument. If the operation check reveals any abnormalities, stop the check immediately
and do not use the instrument.
• For voltage measurement, short the test leads and check that 0 V is displayed.
• For Measuring Resistance or Continuity Check, short the test leads and
check that 0 Ωis displayed.
• Measure a test item with a known value (battery, AC supply, resistor, etc.) to
confirm that the known value can be displayed.
Measuring DC Voltage [ V]
1. Set the function switch to V.
2. Connect the test leads to the object to be measured (Red (+) / Black (-)).
3. Read the display.
Measuring AC Voltage [ V]
1. Set the function switch to V.
2. Connect the test leads to the object to be measured. The polarity of leads can be
ignored.
3. Read the display.
Measuring Resistance [Ω]
1. Set the function switch to Ω.
2. Connect the test leads to the object to be measured.
3. Read the display.
Continuity Check [ ]
1. Set the function switch to . The indication appears.
2. Connect the test leads to the object to be measured.
3. Conductivity is good when the buzzer sounds.
1. Remove the test leads from the test item, and power the
instrument off.
2. Remove the instrument from the case, and remove the
screws on the rear panel.
3. Remove the used battery.
4. Being careful about the polarity, insert the new battery
(CR2032) of the specified type.
5. Replace the rear panel and fasten the screws.
Overview
Inspection and Maintenance
Safety
This instrument is designed to comply with IEC 61010 Safety Standards,
and has been thoroughly tested for safety prior to shipment. However,
mishandling during use could result in injury or death, as well as dam-
age to the instrument Using the instrument in a way not described in
this manual may negate the provided safety features. Be certain that
you understand the instructions and precautions in the manual before
use. We disclaim any responsibility for accidents or injuries not result-
ing directly from instrument defects.
Indicates cautions and hazards. When the symbol is printed on the in-
strument, refer to a corresponding topic in the Instruction Manual.
Indicates a double-insulated device.
Indicates DC (Direct Current). Indicates AC (Alternating Current).
Indicates that the product conforms to regulations set out by the EU
Directive.
WEEE marking: This symbol indicates that the electrical and electronic appli-
ance is put on the EU market after August 13, 2005, and producers of the
Member States are required to display it on the appliance under Article 11.2
of Directive 2002/96/EC (WEEE).
Indicates that incorrect operation presents an extreme hazard that could re-
sult in serious injury or death to the user.
Indicates that incorrect operation presents a significant hazard that could re-
sult in serious injury or death to the user.
3244-60
CARD HiTESTER
Instruction Manual
Feb. 2021 Revised edition 4
3244L983-04 (L981-05) 21-02H
Warranty
Warranty malfunctions occurring
under conditions of normal use
in conformity with the Instruction
Manual and Product Precaution-
ary Markings will be repaired
free of charge. This warranty is
valid for a period of three (3)
years from the date of purchase.
Please contact the distributor
from which you purchased the
product for further information
on warranty provisions.
EN
Indicates that incorrect operation presents a possibility of injury to the user
or damage to the device.
Indicates advisory items related to performance or correct operation of the
product.
Usage Notes
• Do not allow the instrument to get wet, and do not take measurements
with wet hands. The instrument may be damaged.
• Do not use the instrument where it may be exposed to corrosive or com-
bustible gases. The instrument may be damaged or cause an explosion.
• Do not store or use the instrument where it could be exposed to direct sun-
light, high temperature or humidity, or condensation. Under such conditions,
the instrument may be damaged and insulation may deteriorate so that it no
longer meets specifications.
• This instrument is not designed to be entirely water- or dust-proof. Do not use it
in an especially dusty environment, nor where it might be splashed with liquid.
This may cause damage.
• Correct measurement may be impossible in the presence of strong magnet-
ic fields, such as near transformers and high-current conductors, or in the
presence of strong electromagnetic fields such as near radio transmitters.
• To avoid damage to the instrument, protect it from physical shock when transport-
ing and handling. Be especially careful to avoid physical shock from dropping.
Specification
Measurement method Double integration
Function DC voltage ( V), AC voltage( V), Resistance (Ω),
Continuity check( )
Display 3-1/2 digits, LCD, 4199 count max. (except 500 V range)
3 digits, LCD, 549 count max. (500 V range)
Battery low display lights
Sampling rate 2.5 times/second
Dimensions and mass Approx. 55W × 109H × 9.5D mm, Approx. 60 g
(Approx. 2.17"W × 4.29"H × 0.37"D, Approx. 2.1 oz).
Accessories
Instruction Manual, carrying case,
Battery (supplied with this product for monitor),
Sleeves (red and black 1 piece for each)
Power supply Battery CR2032 (3 VDC) × 1
Dielectric strength 4.29 kVrms sin (50 Hz/60 Hz for one minute) between
input and case
Maximum input voltage 500 V DC/ 500 V rms (sin) or 3×106V•Hz (DCV/ACV)
Maximum rated voltage
to earth
When sleeve is installed : CAT III (300 V)
When sleeve is uninstalled: CAT II (600 V)
(Anticipated Transient Overvoltage: 4000 V)
(50/60 Hz)
Noise rejection ratio
NMRR:40 dB or more [ V]
CMRR:100 dB or more [ V], 60 dB or more [ V]
Maximum rated power 15 mVA
Continuous operating
time Approx.150 hours [ V]
Operating Environment Indoors, Pollution Degree 2, up to 2000 m (6562-ft.)
Operating temperature
and humidity 0°C to 40°C (32°F to 104°F), 80% RH max (no condensation)
Storage temperature
and humidity range
-20°C to 60°C (-4°F to 140 °F),
70% RH max (no condensation)
Temperature character-
istics Measurement accuracy x 0.1 /°C (except 23°C±5°C)
Standards accuracy Safety :EN61010
EMC :EN 61326
Function Range Accuracy *5Remarks Over load
protection
DCV
[ V]
420.0 mV ±2.0% rdg. ±4 dgt. 100 M Ωor over*1
500 V DC/
ACrms (sin)
or
3×106V•Hz
4.200 V ±0.7% rdg. ±4 dgt. Approx. 11 MΩ
42.00 V ±1.3% rdg. ±4 dgt. Approx. 10 MΩ
420.0 V ±1.3% rdg. ±4 dgt. Approx. 10 MΩ
500 V ±1.3% rdg. ±4 dgt. Approx. 10 MΩ
ACV
[ V]
50 to 500 Hz *2
4.200 V ±2.3% rdg.±8 dgt. Approx. 11 MΩ*1
42.00 V ±2.3% rdg.±8 dgt. Approx. 10 MΩ
420.0 V ±2.3% rdg.±8 dgt. Approx. 10 MΩ
500 V ±2.3% rdg.±8 dgt. Approx. 10 MΩ
Ω
420.0 Ω±2.0% rdg. ±4 dgt. 3.4 V or less*3
500 V DC/
ACrms (sin)
(one minute)
4.200 kΩ±2.0% rdg. ±4 dgt. 0.7 V (typ.)
42.00 kΩ±2.0% rdg. ±4 dgt. 0.5 V (typ.)
420.0 kΩ±2.0% rdg. ±4 dgt. 0.5 V (typ.)
4.200 MΩ±5.0% rdg. ±4 dgt. 0.5 V (typ.)
42.00 MΩ±10.0% rdg. ±4dgt. 0.5 V (typ.)
Continuity 420.0 Ω±2.0% rdg. ±4 dgt. 3.4 V or less*3
50 Ω ±40 Ω*4
Functions
To avoid battery depletion, turn the function selector OFF after use (the Auto Power Save feature
consumes a small amount of current).
Names and Functions of Parts
Removable sleeves can be attached to the metal pins at the ends of the
test leads. To prevent a short circuit accident, be sure to use the test
leads with the sleeves attached when performing measurements in the
CAT III measurement category. Remove the sleeves from the test leads
when performing measurements in the CAT II measurement category.
For details on measurement categories, see "Measurement categories"
in the instruction manual.
• The tips of the metal pins are sharp, so take care not to injure yourself.
• When performing measurements with the sleeves attached, be careful to
avoid damaging the sleeves.
• If the sleeves are inadvertently removed during measurement, be especially
careful in handling the test leads to avoid electric shock.
Test lead Red (+) / Black (-)
Connect the test leads to the
object to be measured.
Function switch
• [OFF] Power Off
(Power is turned ON in any
position other than OFF.)
• [ V]DC voltage
• [ V] AC voltage
• [Ω] Resistance
• [ ] Continuity check
Carrying Case
Sleeves
Can be stored here.
Test lead be
stored here.
Wind wire
around case.
Display
• Measurement value
• Units
• Symbols
• Decimal point
Handling the Sleeve
Measurement Method
Observe the following precautions to avoid electric shock.
• Always verify the appropriate setting of the function selector before
connecting the test leads. Disconnect the test leads from the mea-
surement object before switching the function selector.
• Never apply voltage to the test leads when the Resistance measure-
ment, Continuity check functions are selected. Doing so may damage
the instrument and result in personal injury. To avoid electrical acci-
dents, remove power from the circuit before measuring.
• The maximum input voltage is 500 V DC/ACrms or 3 x 106•V/Hz.
Attempting to measure voltage in excess of the maximum input could
destroy the instrument and result in personal injury or death.
• To avoid electrical shock, be careful to avoid shorting live lines with
the test leads.
• For safety, test lead connections must always be made at the second-
ary side of a circuit breaker.
• The maximum rated voltage between input terminals and ground is
CAT III (300 V), CAT II (600 V). Attempting to measure voltages exceed-
ing 450 V with respect to ground could damage the instrument and
result in personal injury.
To prevent an electric shock accident, confirm that the white portion
(insulation layer) inside the cable is not exposed. If a color inside the
cable is exposed, do not use the cable. Using the instrument in such con-
ditions could cause an electric shock, so contact your dealer or Hioki rep-
resentative for repair.
Replacing Battery
• To avoid electric shock when replacing the batteries, first discon-
nect the test leads from the object to be measured. After replacing
the batteries, replace the cover and screws before using the instru-
ment.
• Be sure to insert them with the correct polarity. Otherwise, poor per-
formance or damage from battery leakage could result. Replace bat-
teries only with the specified type.
• Battery may explode if mistreated. Do not short-circuit, recharge,
disassemble or dispose of in fire.
• Handle and dispose of batteries in accordance with local regula-
tions.
• Keep batteries away from children to prevent accidental swallowing.
Periodic calibration and inspecton is necessary in order to ensure that this instrument
operates according to its product specifi
• Connecting the leads of negative and positive side oppositely, "-" is displayed.
• The displayed value may sometimes fluctuate due to induction potential even
when no power is supplied. This, however, is not a malfunction.
Rear panel
Battery
CALIFORNIA, USA ONLY
This product contains a CR Coin Lithium Battery which contains Perchlorate Material - special
handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
HIOKI 3244L983-04
