Hioki 9262 User manual

Warranty
Warranty malfunctions occurring under conditions of normal use
in conformity with the Instruction Manual and Product Precau-
tionary Markings will be repaired free of charge. This warranty is
valid for a period of three (3) years from the date of purchase.
Please contact the distributor from which you purchased the
product for further information on warranty provisions.
Introduction
Thank you for purchasing the HIOKI 9262 TEST FIX-
TURE. To obtain maximum performance from the product,
please read this manual first, and keep it handy for future
reference.
This HIOKI 9262 TEST FIXTURE can be directly connect-
ed to the measurement terminals (UNKNOWN) of the
HIOKI LCR and Z HiTESTERs for testing a lead compo-
nent. The component can be clamped with a single knob
action.
Please check a HIOKI catalog for instruments to which this
product can be connected.
Initial Inspection
When you receive the product, inspect it carefully to en-
sure that no damage occurred during shipping. If damage
is evident, or if it fails to operate according to the specifi-
cations, contact your dealer or HIOKI representative.
Preliminary Checks
• Before using the product the first time, verify that it oper-
ates normally to ensure that the no damage occurred
during storage or shipping. If you find any damage, con-
tact your dealer or Hioki representative.
Maintenance and Service
• To clean the product, wipe it gently with a soft cloth
moistened with water or mild detergent. Never use sol-
vents such as benzene, alcohol, acetone, ether,
ketones, thinners or gasoline, as they can deform and
discolor the case.
• If the product seems to be malfunctioning, contact your
dealer or Hioki representative. Pack the product care-
fully so that it will not be damaged during shipment, and
include a detailed written description of the problem.
Hioki cannot be responsible for damage that occurs dur-
ing shipment.
Follow these precautions to ensure safe operation and to
obtain the full benefits of the various functions.
Safety Symbol
The following symbols in this manual indicate the relative
importance of cautions and warnings.
Plug the fixture into the measurement terminals (UN-
KNOWN) of the tester, with the product name up. Fasten
it in place with the left and right fixing levers.
Insert the sample (from above) into the sample clamping
slot, and clamp it by turning the knob.
• Samples whose leads differ in diameter by more than 0.4 mm
cannot be clamped.
• Be careful to keep dirt away from the clamping slot.
• Make sure the sample is firmly clamped. If not, accurate mea-
surements cannot be obtained.
To enhance the accuracy of measurement, perform the
open and short circuit compensation.
The method of operation depends on the tester towhich the test
fixture is connected. Refer to theInstruction Manual for the tes-
ter.
Open circuit compensation
Put the test fixture in the open-circuit state, with no con-
nection between the two ends of the clamping slot.
Short circuit compensation
1. Use a shorting bar whose impedance is allow as possi-
ble. If you use a metallic wire or the like as a shorting
bar, try to ensure that it is as thick and short as possible.
2. Insert the shorting bar and clamp it, to short the high
and low test connections. In order to keep external in-
fluences as low as possible, be sure to thrust the short-
ing bar in all the way.
Overview
Specifications
Measurement frequency
range DC to 8 MHz
Maximum apply voltage ±40 VDC
Dimensions of sample to
be tested
diameter 0.3 to 2 mm
separation at least 5 mm
Residual resistance
Short-circuited 5 mmax. (at 100 Hz)
Floating capacitance
between terminals
2 pF max. (at 5MHz)
Dimensions and Mass Approx.96W x 26H x 33D mm
(3.78”W x 1.02”H x 1.30”D)
(excluding protrusions),
Approx.180 g (6.3 oz.)
Operating temperature
and humidity range
0°C to 40°C (32
°F to 104 °F) , 80%
RH or less (with no condensation)
9262
TEST FIXTURE
Instruction Manual
Dec. 2018 Revised edition 4
9262A980-04 18-12H
Storage temperature and
humidity range
-10°C to 55°C (14 °F to 131 °F) , 80%
RH or less (with no condensation)
Operating environment Indoors, altitude up to 2000 m
(6562-ft.)
Accessories Instruction Manual
Product warranty period 3 years
Inspection and Maintenance
Safety
Mishandling during use could result in injury or
death, as well as damage to the product. Be certain
that you understand the instructions and precau-
tions in the manual before use. We disclaim any
responsibility for accidents or injuries not resulting
directly from product defects.
In the manual, the symbol indicates particu-
larly important information that the user should
read before using the product.
Indicates that incorrect operation presents a
significant hazard that could result in serious
injury or death to the user.
Indicates that incorrect operation presents a
possibility of injury to the user or damage to
the product.
Advisory items related to performance or cor-
rect operation of the product.
Usage Notes
• Do not store or use the product where it could be ex-
posed to direct sunlight, high temperature or humidity,
or condensation. Under such conditions, the product
may be damaged and insulation may deteriorate so
that it no longer meets specifications.
• Do not use the product where it may be exposed to cor-
rosive or combustible gases. The product may be dam-
aged.
• This product is not designed to be entirely water- or
dust-proof. To avoid damage, do not use it in a wet or
dusty environment.
• To avoid damage to the product, protect it from vibra-
tion or shock during transport and handling, and be es-
pecially careful to avoid dropping.
• If the fixture has gotten seriously wet, oily, or dusty,
stop using it and send it for service at an approved
HIOKI service facility.
• Please refer to the instruction manual for the instru-
ment to which this product is connected for how to use
the instrument and apply direct current voltage.
• When attaching or detaching this product from a tester,
pull or plug it straight from the measurement terminal
of the tester. If the product is attached or detached di-
agonally, the connecting terminal may distort and af-
fect the measurement value.

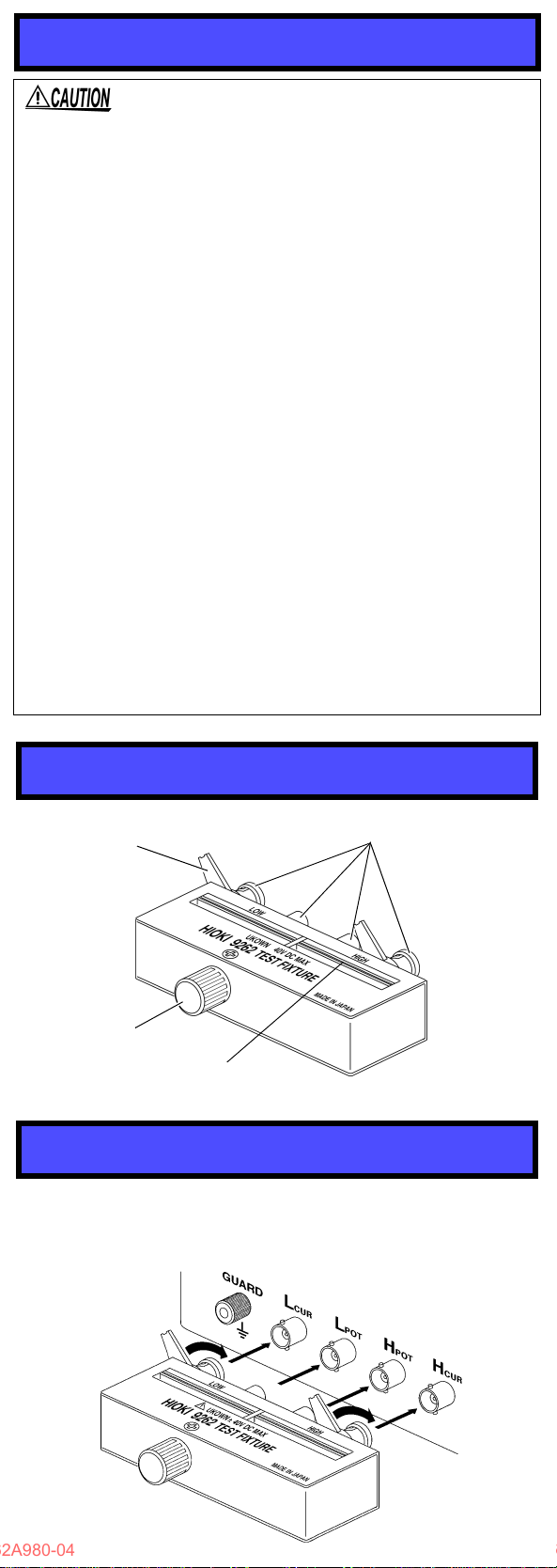

Parts Names
Connecting the Test Fixture
Connecting terminals
Fixing lever
Sample clamping slot
Knob

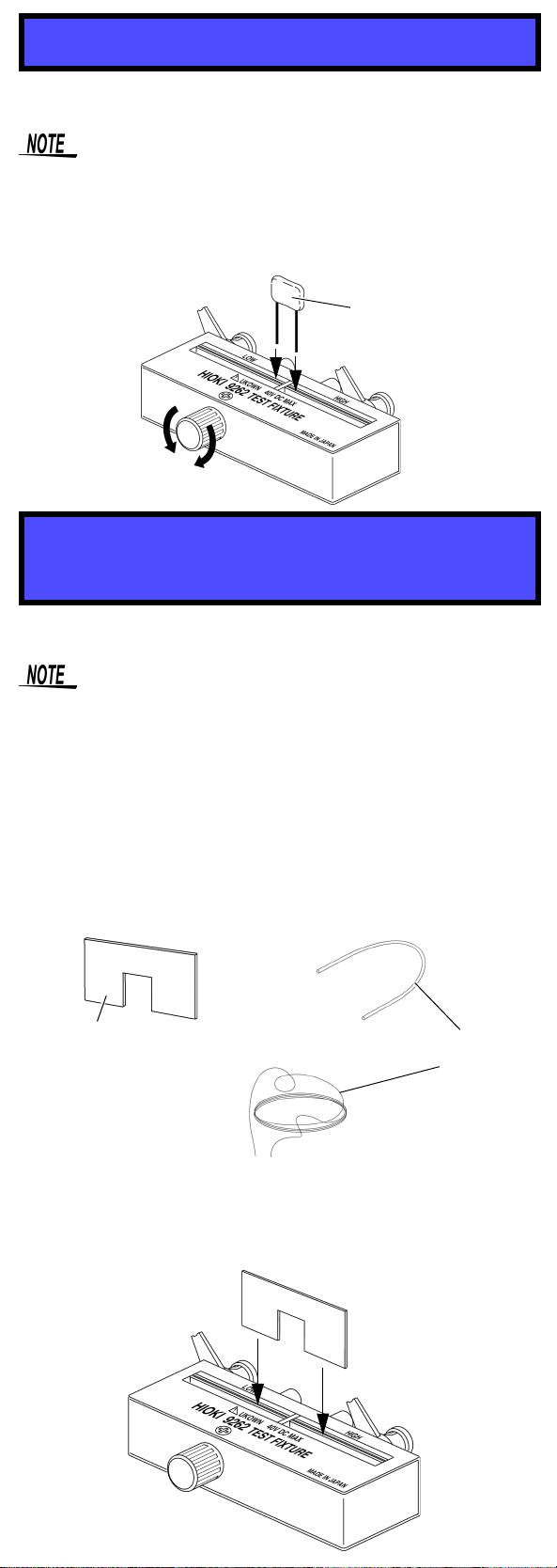

Fixing the Samples
Open and Short Circuit
Compensation
Sample
Remove
Fix
Possible
Not possible
Metallic plate Metallic wire
